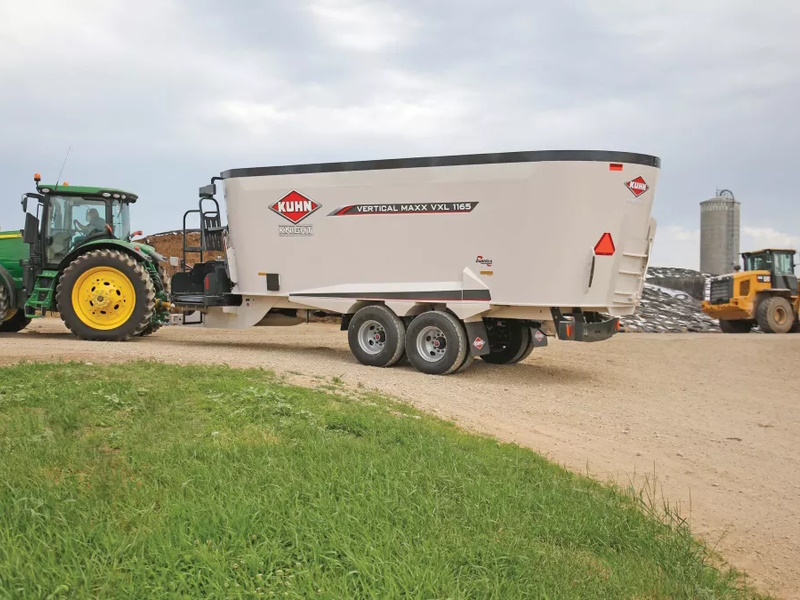

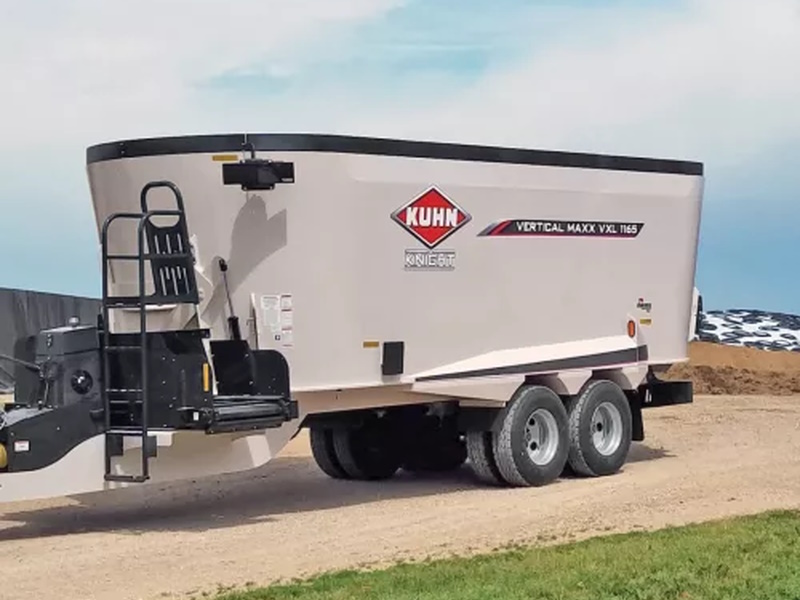

2023 Kuhn Equipment VXL 1180 Trailer Front

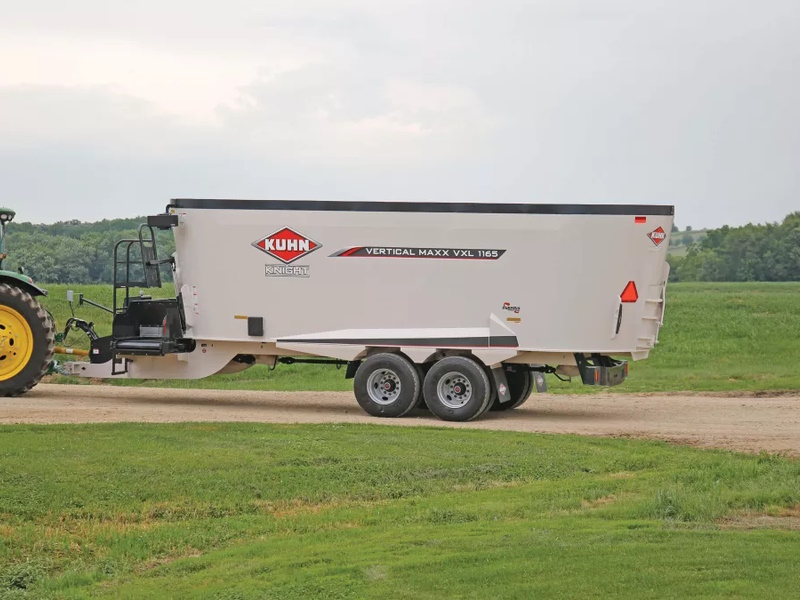

2023 Kuhn VXL 1180 Trailer Front

Taking Efficiency…To The Maxx!
KUHN Knight VXL 100 Series triple-auger vertical mixers, with capacities ranging from 1,400 to 1,960 cubic feet, provide the ultimate solution for farmers to feed more cows per load by increasing the capacity without compromising mixing quality.

KUHN Knight VXL 100 Series Vertical Maxx® triple-auger mixers are rugged, yet simple to operate machines designed for large dairies that are looking to maximize efficiencies and feed more cows per load. Built to last in commercial operations and easy to maintain, the VXL allows you to spend more time at the bunk and less time in the shop. The VXL 100 Series is available in trailer and stationary configurations.

New Cone-Style Auger & Kicker Design
New cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The top cover of the auger has a steep angle to aid in bale movement when processing round bales and to prevent feed from sitting on top of the auger between mixes. The straight bolt-on kicker (2) provides a fast and even discharge. Each lead flight is equipped with a cast iron scraper (3) that pulls material away from the tub walls into the auger for a better overall mix. Both the kicker and scraper are bolt-on attachments, making replacement very easy to save you precious time.

Hardened Knives
Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients.
A: Knife set in for slicing and cutting
B: Knife set out for grabbing and tearing

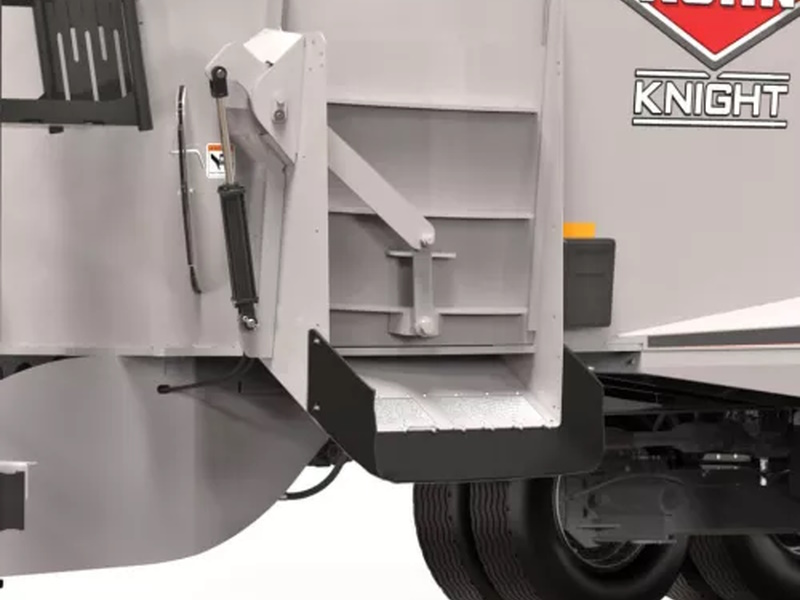

Large Unloading Doors
For unmatched feed flow, these mixers feature the largest discharge door available in the industry. The discharge linkage allows for rapid opening and closing of the door.

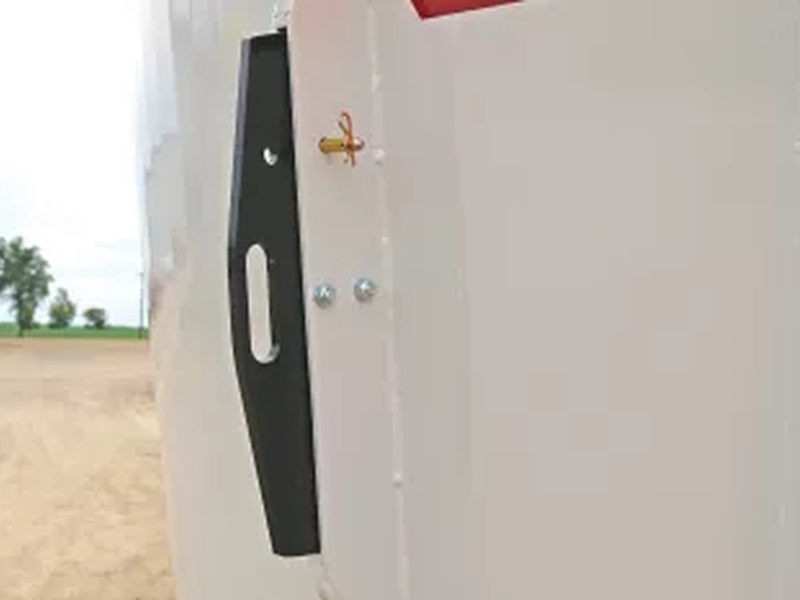

Adjustable Hay Stops
The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.

Simple Operation & Long Machine Life"

Powershift Transmission
The 2-speed powershift gearbox shifts on-the-go for faster, more consistent feed delivery without having to stop the PTO. Speeds can be switched using a wireless remote, while the PTO is still engaged for a faster and easier mixing experience, whether the operator is in the tractor or loader. Startup is in low speed and is recommended for processing and mixing materials. High speed is recommended for a fast and even cleanout.
Shift on-the-go for more consistent feed delivery and faster cleanout
Speeds can easily be switched using a wireless remote
External cooling and filtration system for extended oil and gearbox life

Oil Cooling & Filtration System
To best protect the planetaries and gearboxes through higher-duty cycles and greater mixer throughput, oil cooling and filtration systems are supplied as standard. These systems extend oil change intervals up to two times, leading to less time and money spent on oil changes, while also ensuring longer life of the components. Brushless variable speed fans automatically adjust speed to match cooling demand, saving energy and increasing fan life.

Heavy-Duty, Inline Drive
The VXL uses a simple, yet heavy-duty inline drive design. Three, 2-stage planetary gearboxes are heavy-duty, reliable and designed for commercial use. The top bearing is fully flooded in oil, eliminating an extra greasing point. An automatically resetting torque disconnect clutch is standard equipment for torque protection of the gearboxes. The secondary drives have extended greasing intervals up to 40 hours, greatly reducing maintenance requirements.

High-Wear Components
DuraMix™ extended wear components help ensure dependable service and long life, even under the heaviest-use cycles. These include standard stainless steel side liners, higher-carbon steel on the baffles and high-wear augers for all KUHN Knight VXL mixer models. The higher-carbon augers, with heat treatment on the outer 4", doubles the life of the auger flighting while maintaining a smooth surface to optimize cleanoff. Tests have shown the high-wear augers last two times as long as compared to standard augers. For additional wear protection, optional baffle liners are also available. Trailer Models: 30" side liner standard, 60" optional. Stationary Models: 60" side liner standard.

Rugged Undercarriage
The undercarriage features a simple, yet rugged bogie axle that pivots on heavy-duty 5” pivot pins with sleeve bearings for excellent stability, longer life and no maintenance. The sleeve bearings are grease free, to minimize daily service points and save maintenance time for the operator. An adjustable, articulating hitch available with a 1.5" or 2" diameter pin, allows for ease of pulling and less drawbar wear. Hydraulic brakes are standard for improved stopping capabilities.The undercarriage features a simple, yet rugged bogie axle that pivots on heavy-duty 5” pivot pins with sleeve bearings for excellent stability, longer life and no maintenance. The sleeve bearings are grease free, to minimize daily service points and save maintenance time for the operator. An adjustable, articulating hitch available with a 1.5" or 2" diameter pin, allows for ease of pulling and less drawbar wear. Hydraulic brakes are standard for improved stopping capabilities.

Eight 315/80R 22.5 truck tires are standard on VXL 100 Series mixers. Truck tires offer excellent load carrying capabilities for maximum net loads up to 58,800 pounds. Heavy-duty tandem axles offer similar load carrying capabilities as a tridem axle, but with fewer moving parts and no steerable axle requirement. Each axle features oil-filled wheel hubs and no grease fittings on the undercarriage or bogies.

Tailor to your Operation

Multiple Door Options
Various door configuration options on trailed and stationary models offer flexibility to fit a variety of feeding situations. The VXL 100 Series trailed models offer a rear door standard, with the option of a front door, two side doors on either side, or all four side doors for increased flexibility and versatility to fit your unique feeding situation. Door locations on stationary machines include: rear, two side doors, or three side doors on either side. The large discharge openings provide fast, even unloading from front, side and rear door locations for maximum efficiency. Note: Middle doors available only on stationary models.

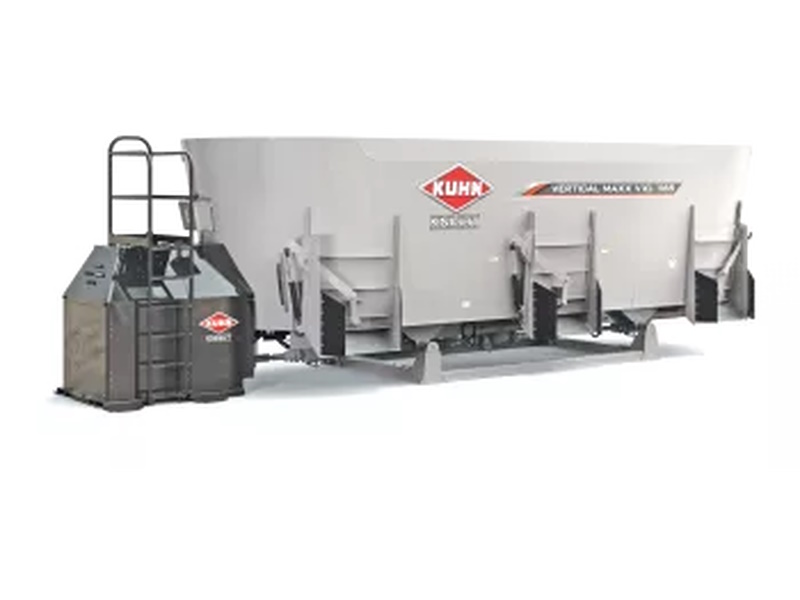

Stationary Models
For large-scale operations looking to maximize feeding efficiency and mixer throughput, the VXL 100 Series mixers are also available in a stationary configuration. Stationary mixers are ideal for producers with centralized feed storage and multiple mixers running throughout the day. By incorporating centralized mixing, one loader operator is often able to keep multiple mixers constantly running, greatly increasing mixer throughput by up to 30% and reducing labor.  Also, with the addition of delivery boxes, the mixers do not experience the downtime from driving location to location, and in turn do not receive the additional stress which can be seen from constant travel. VXL 100 Series stationary mixers are available with complete electric drive packages for efficient operation, and include many unique features, allowing them to be custom tailored to perfectly fit in your facility.
