2025 Northstar Attachments RDS Drag Scraper DS Series 12'

2025 Northstar Attachments RDS Drag Scraper DS Series 12'

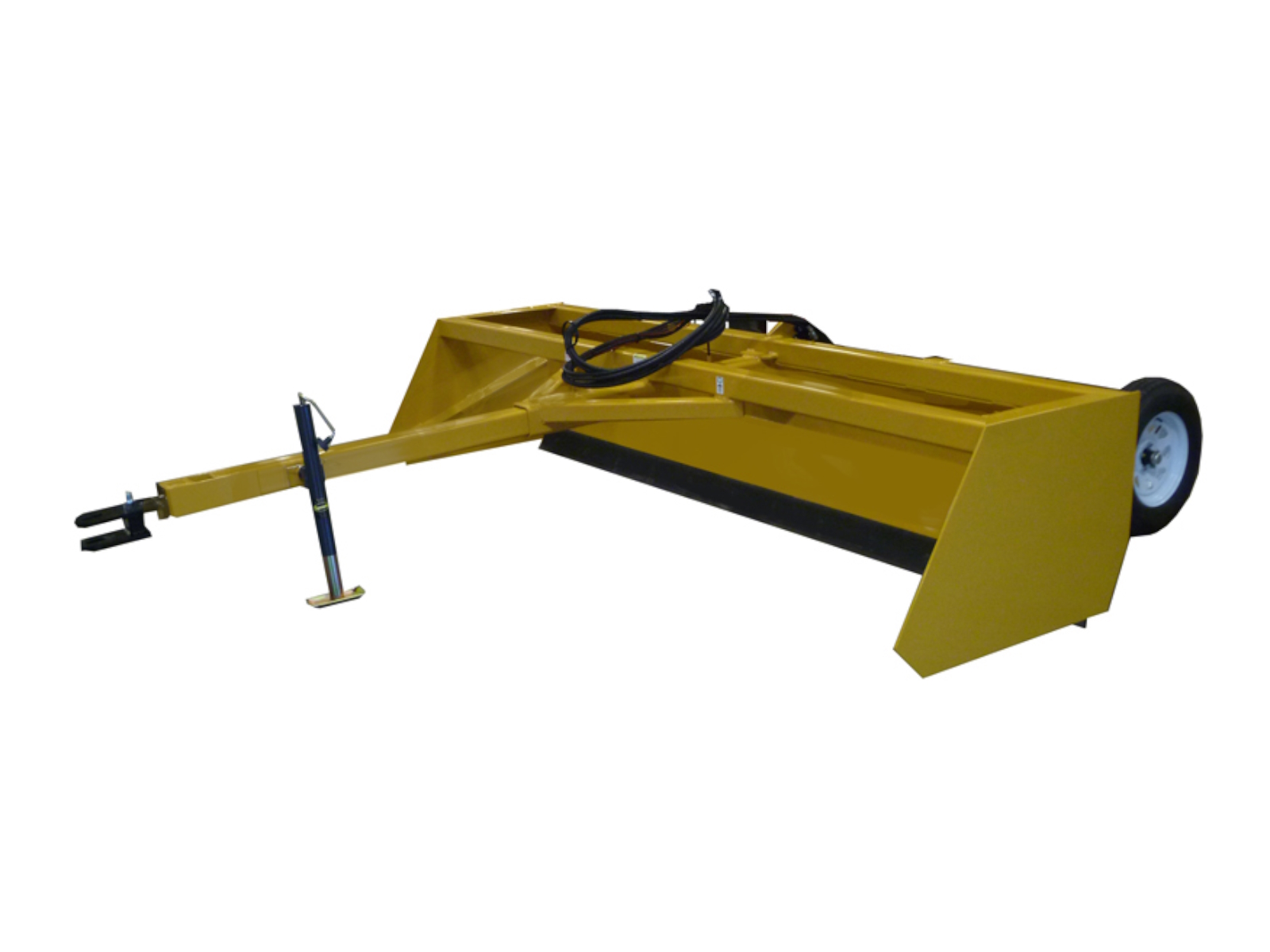

RDS SERIES DRAG SCRAPERS are heavy-duty and designed for a variety of applications such as general earth moving, road repairs, leveling ditches, building terraces, filling low spots and spreading topsoil. Available in 8', 10', and 12' sizes from 2 1/2 to 3 3/4 cubic yard capacities. Equipped with two 15" wheels less tires, 1/2" x 6" reversible cutting edge, 3/8" x 30" high x 40" long side plates and removable 4" x 4" swivel tongue. Features 12" clearance when raised. Equipped with a manual tilt feature. Requires one or two 3" x 8" double acting hydraulic cylinder and hoses and two G70 x 15" tires.

Features May Include:

• Working width: 8′, 10′, 12′
• Moldboard height & thickness: 1/4″ x 24″
• Side plates: 3/8″ x 30″ x 40″
• Tongue: 4″ x4″ x 3/8″ Bolt On
• Approximate weight: 1450 (8′), 1650 (10′), 1860 (12′)
• Approximate HP range: 75 to 175
• Less tires, required (2) G70 x 15 tires
• Hydraulics: *Requires (1 or 2) 3″ x 8″ Dbl. Acting Cylinder and Hoses
• Tilt: Standard
• Capacity: 2-1/2 Cu. Yd. (8′), 3-1/8″ Cu. Yd. (10′) 3-3/4 Cu. Yd. (12′)
• Moldboard cutting edge: 1/2″ x 6″ Reversible
