2026 Morbark Material Handling Conveyor 14"

2026 Morbark Material Handling Conveyor 14"

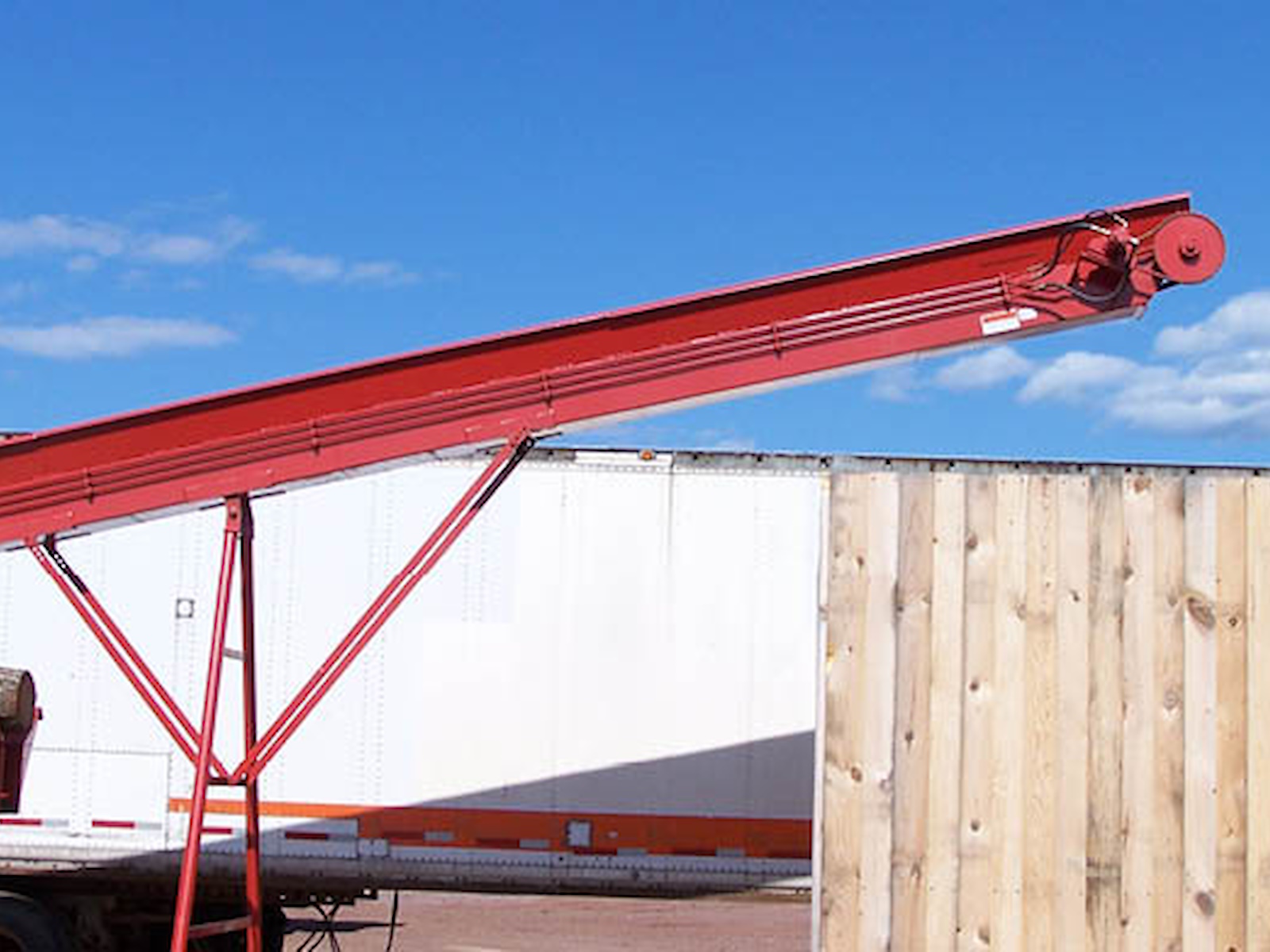

This heavy-duty, versatile, paddle-type conveyor is available in widths of 14" (35.6 cm) and 24" (61 cm) and lengths up to 100' (30.5 m). The conveyor is fabricated from 10 gauge formed steel panning with enclosed chain return, with steel reinforced hardwood paddles on 24" (61 cm) centers.

Options

• C-188 chain with hardwood flites on 24" (61 cm) centers or 81X chain and plastic Driscope paddles on 24" (61 cm) centers
• 5-hp (3.7 kW) electric drive in lieu of hydraulic drive, includes 5-hp (3.7 kW) motor, base, and V-belt drive LESS starter ( to accommodate up to 30'/9.1 m conveyors)
• 10-hp (7.4 kW) electric drive in lieu of hydraulic drive, includes 10-hp (7.4 kW) motor, base, and V-belt LESS starter (to accommodate up to 60'/18.3 m conveyors)
• Legs for upright conveyor, 14" or 24" (35.6 cm or 61 cm) wide per set (up to 40'/12.2.m conveyors)
• Extra set of legs for upright conveyors - 40' – 60' (12.2 m – 18.3 m) in length
• 14" (35.6 cm) or 24" (61 cm) feed hopper
