2026 Morbark M20 Forestry Brush Chipper M20R

2026 Morbark M20 Forestry Brush Chipper M20R

M20 Forestry Brush Chipper

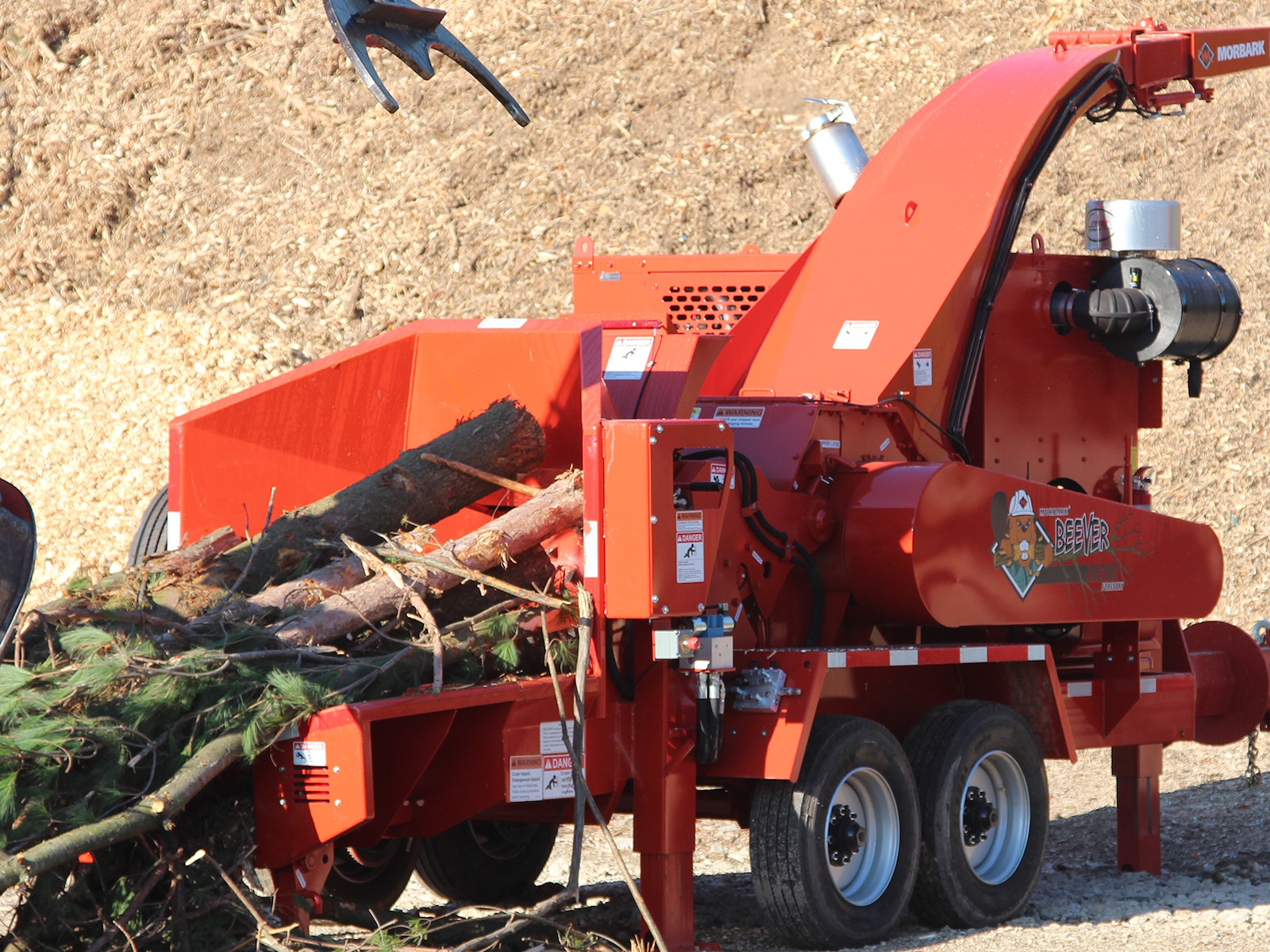

The M20R Forestry Whole Tree Chipper offers unmatched efficiency and reliability for forestry professionals.

Equipment Overview
The hard-working, aggressive M20R Forestry chipper provides optimal performance for in-wood chipping. Quickly filling a 53' (16.15 m) trailer and sustaining up to four to five loads per day, this hard-working, aggressive chipper is the perfect option for those looking to enter the biomass market with low startup costs. This machine features the Advantage 3 Drum and electronic flow control to control feed speed from the remote. Tough, abrasion-resistant AR-450 steel is used for the drum skin, replaceable belly band, discharge chute, and wear strips beneath the bed chain, providing strength and long wear life.

The hard-working, aggressive M20R Forestry chipper provides optimal performance for in-woods chipping. Easily filling a 53' (16.15 m) trailer and sustaining up to four to five loads per day, this hard-working, aggressive chipper is the perfect option for those looking to enter the biomass market with low startup costs. This machine features the Advantage 3 Drum and electronic flow control to control feed speed from the remote. Tough, abrasion-resistant AR-450 steel is used for the drum skin, replaceable belly band, discharge chute and wear strips beneath the bed chain, providing strength and long wear life.

Features may include:

• A 6' (1.83 m) feed bed with live chain drive, tilted downward at 4° angle, provides efficient feeding of tree-length material.

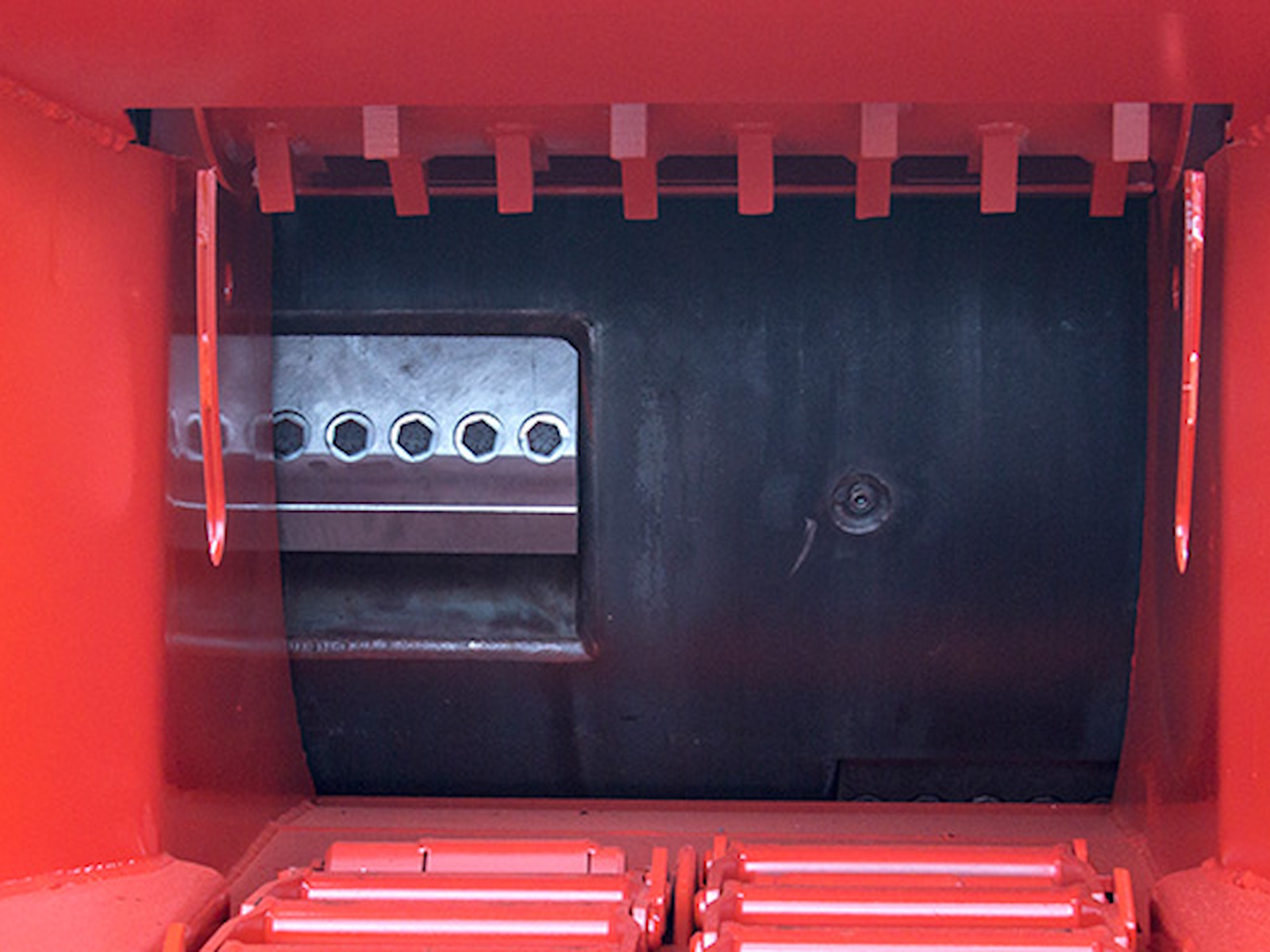

• The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs
• The Beever M20R Forestry has the heaviest frame among machines in the <20,000 lb (9,072 kg) weight range.

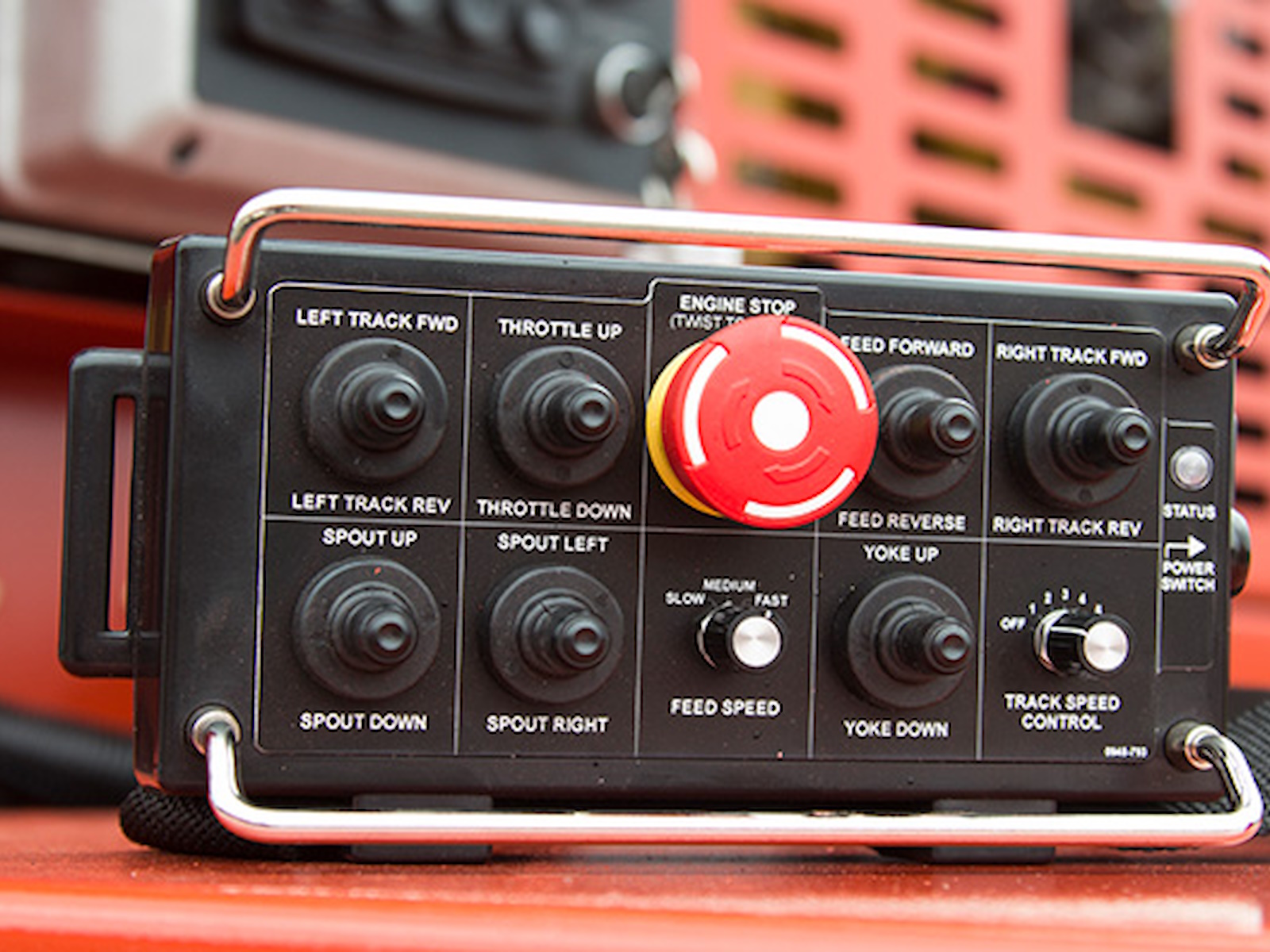

• Wireless remote with tethered back-up system controls the feed functions, yoke functions, throttle functions, rear stabilizers and hydraulic swivel discharge.

EQUIPMENT HIGHLIGHTS

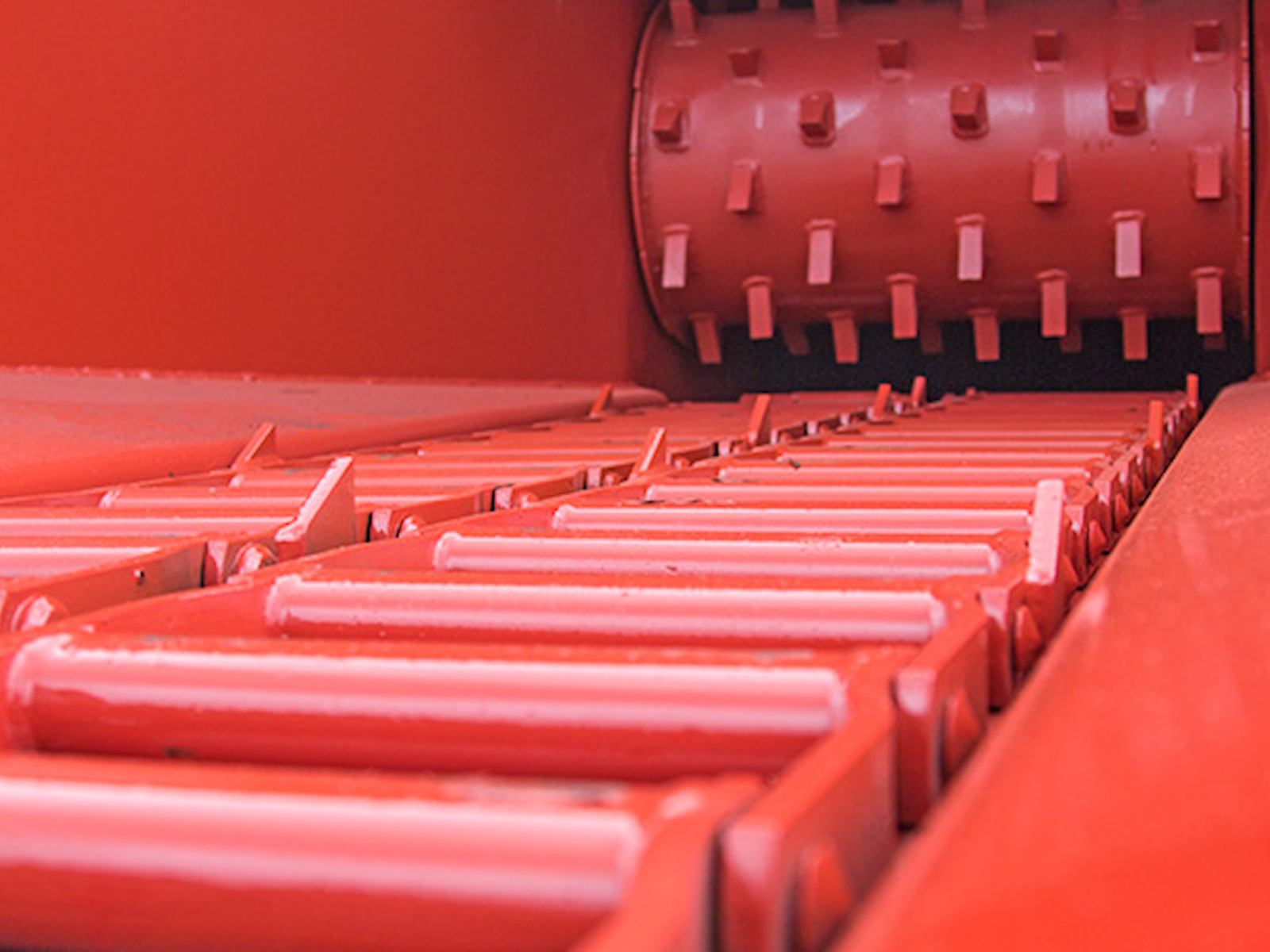

• Infeed system consisting of one 20" (50.8 cm) diameter top compression feed roll, with a 26" (66.04 cm) wide x 9' (2.74 m) long live floor equipped with two strands of WDH‑110 chain

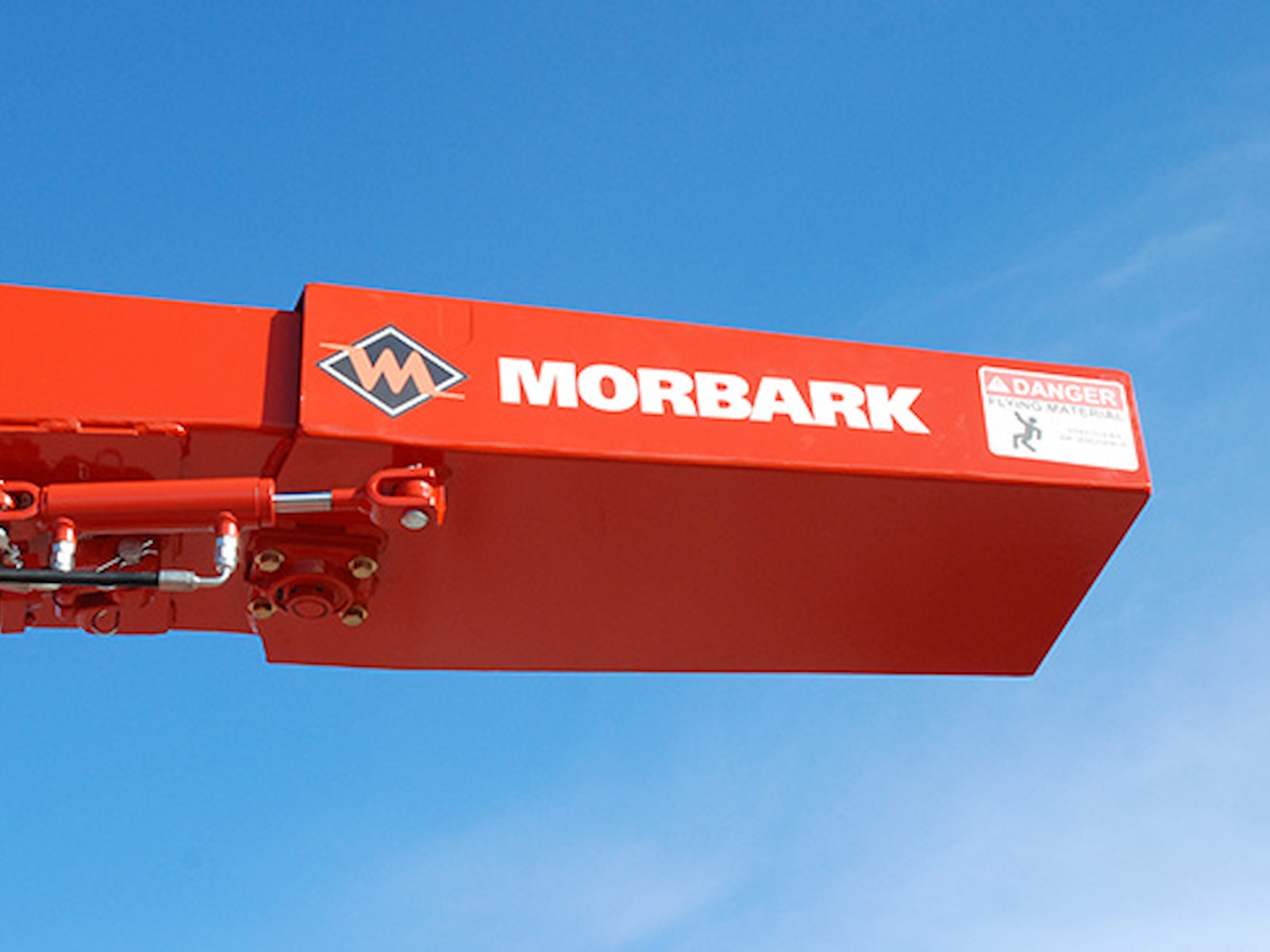

• Straight discharge chute includes hydraulically operated chip deflect with vertical and horizontal adjustment

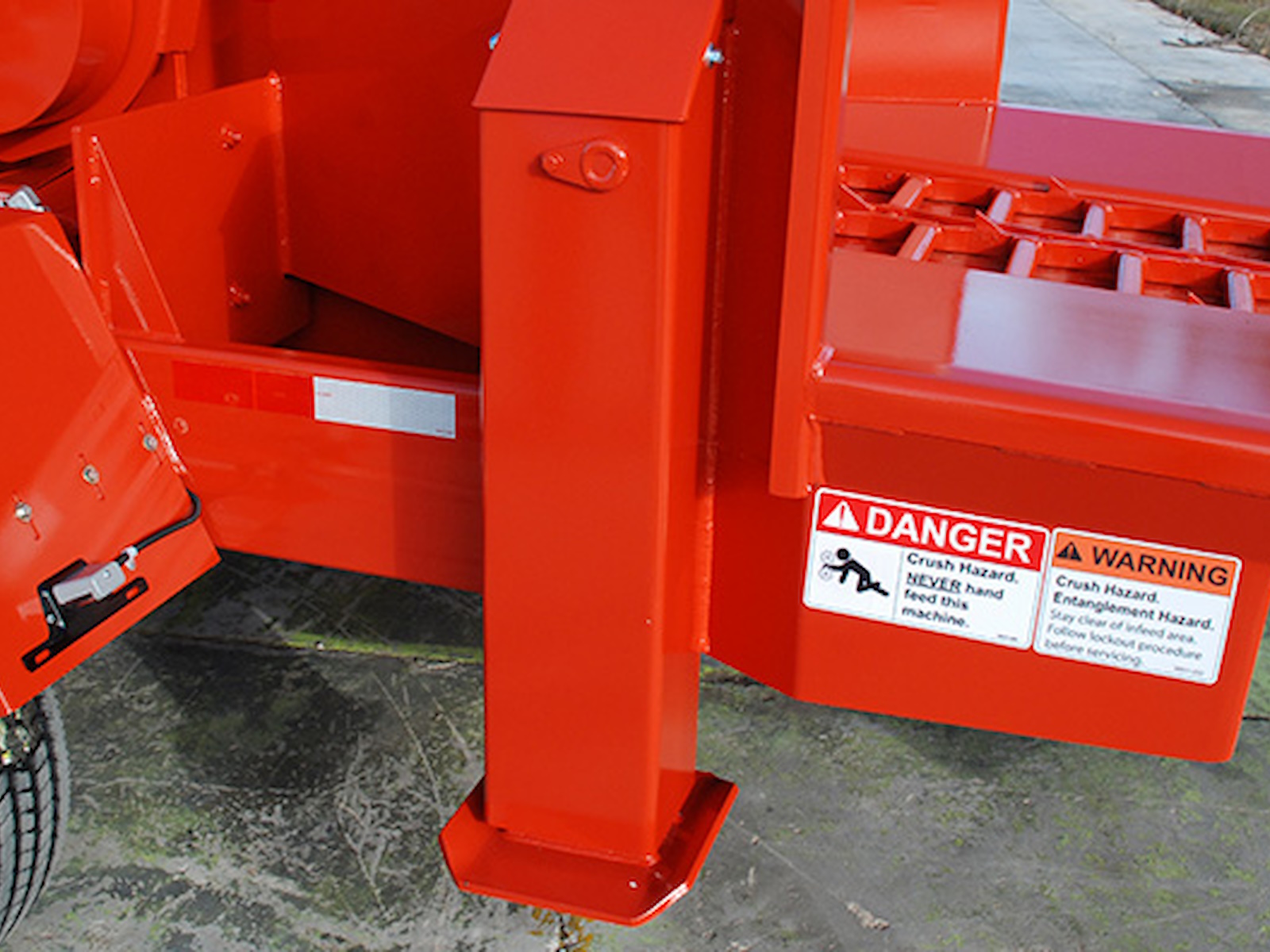

• Hydraulic front and dual rear stabilizers
• Discharge clean-out door on bottom
• Steel guard enclosing valve bank and automatic feed system components

OTHER SPECIFICATIONS

• Drum diameter: 36" (91.44 cm)
• Drum width: 33.375" (84.77 cm)
• Frame: 2" x 10" tubular (5.08 cm x 25.4 cm)

Options

• Forestry, rotating or top load discharge
• Forestry grate system
• Variable speed flow control
