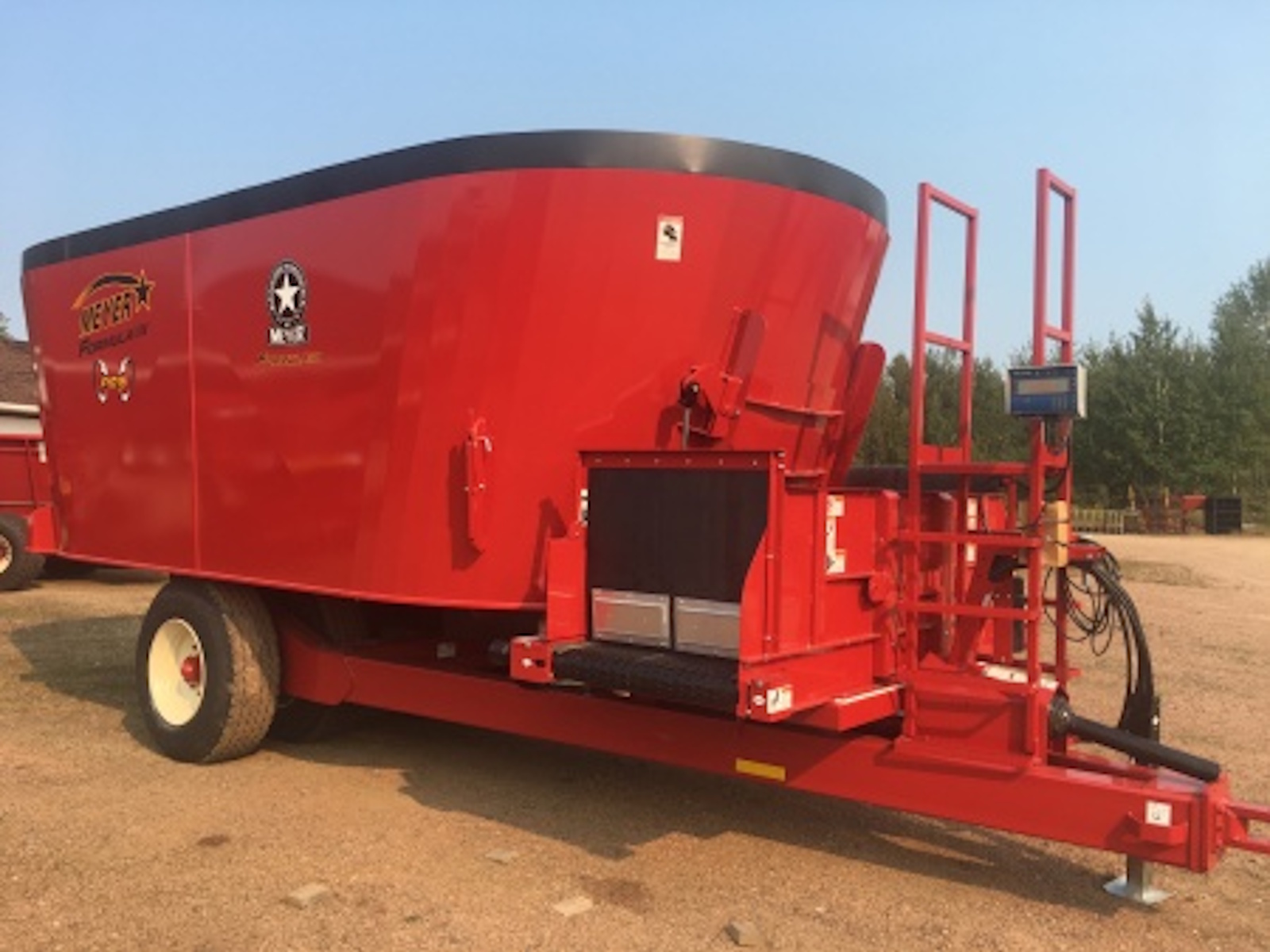

2025 Meyer Manufacturing F1215 Front 36"/ Side 48"
Get in Touch
Info
Industry
Agriculture
Make
Meyer Manufacturing
Model
F1215
Trim
Front 36"/ Side 48"
Year
2025
MSRP
N/A
Category
Feed / Mixer
Subcategory
Wagon
Specs
Length

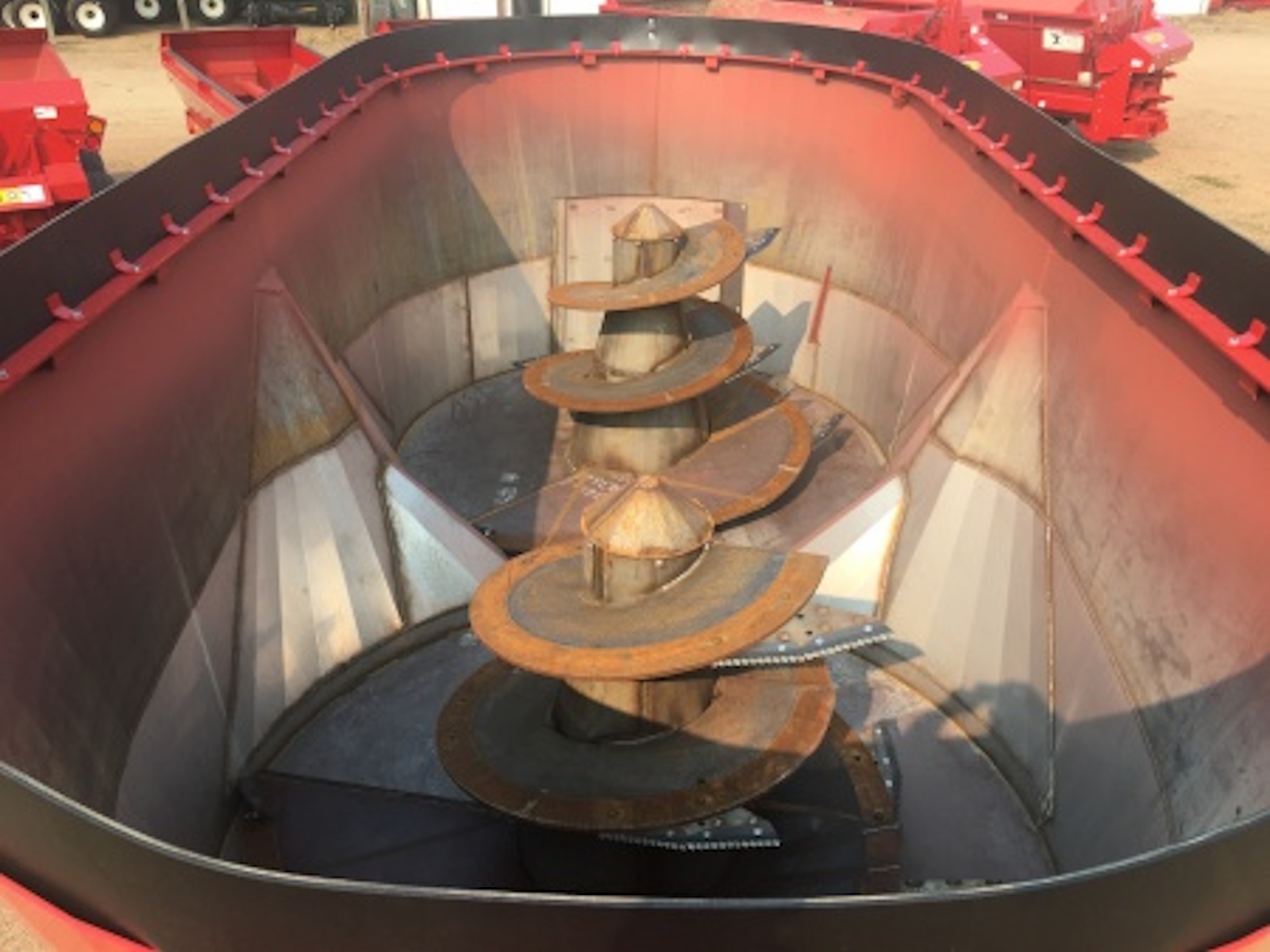

Overall Length - Side Door / Front Door: 304"/334" | Mixing Chamber: 269" |
Tires
Size: 385/65R22.5 (4)
Notes

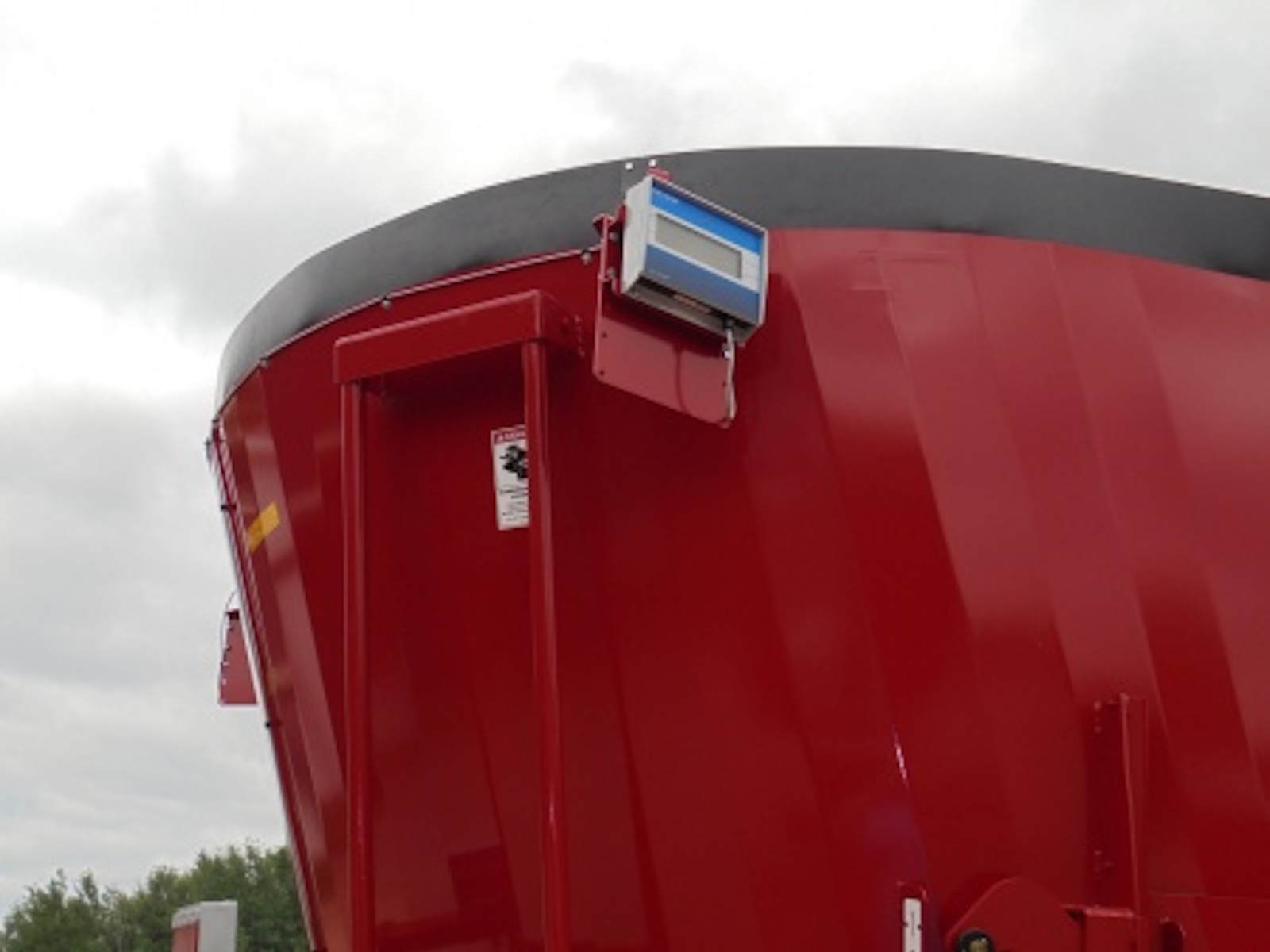

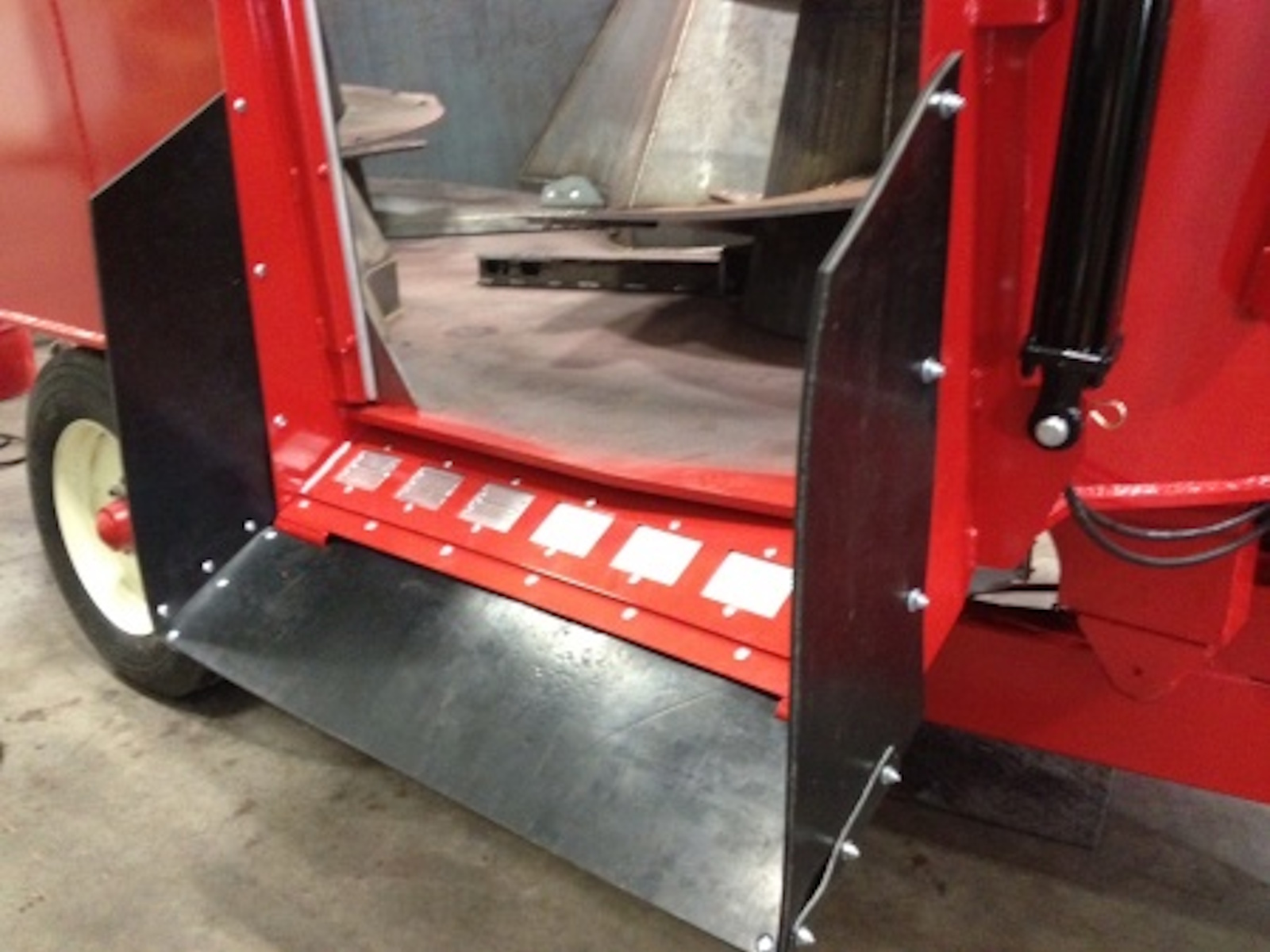

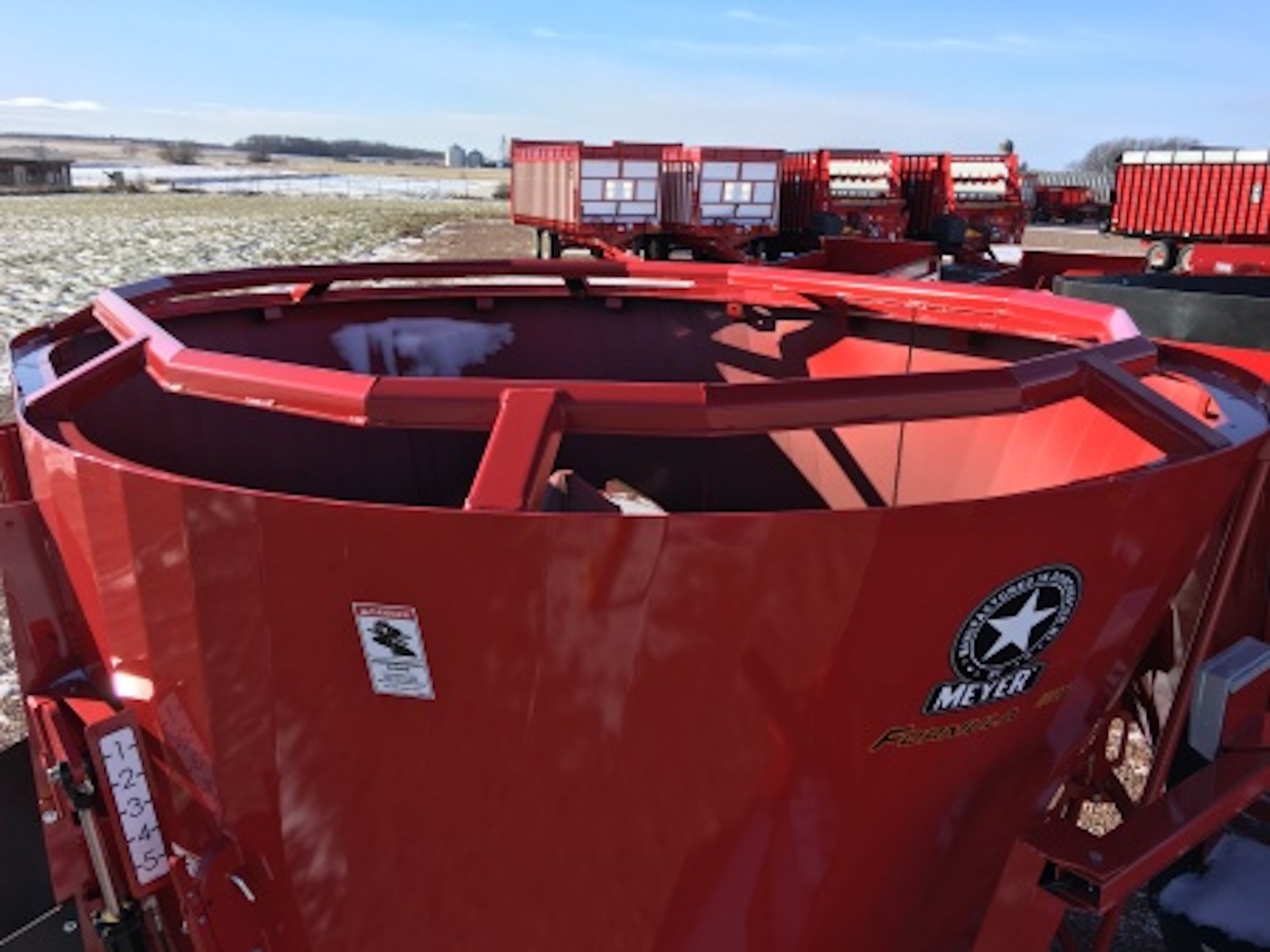

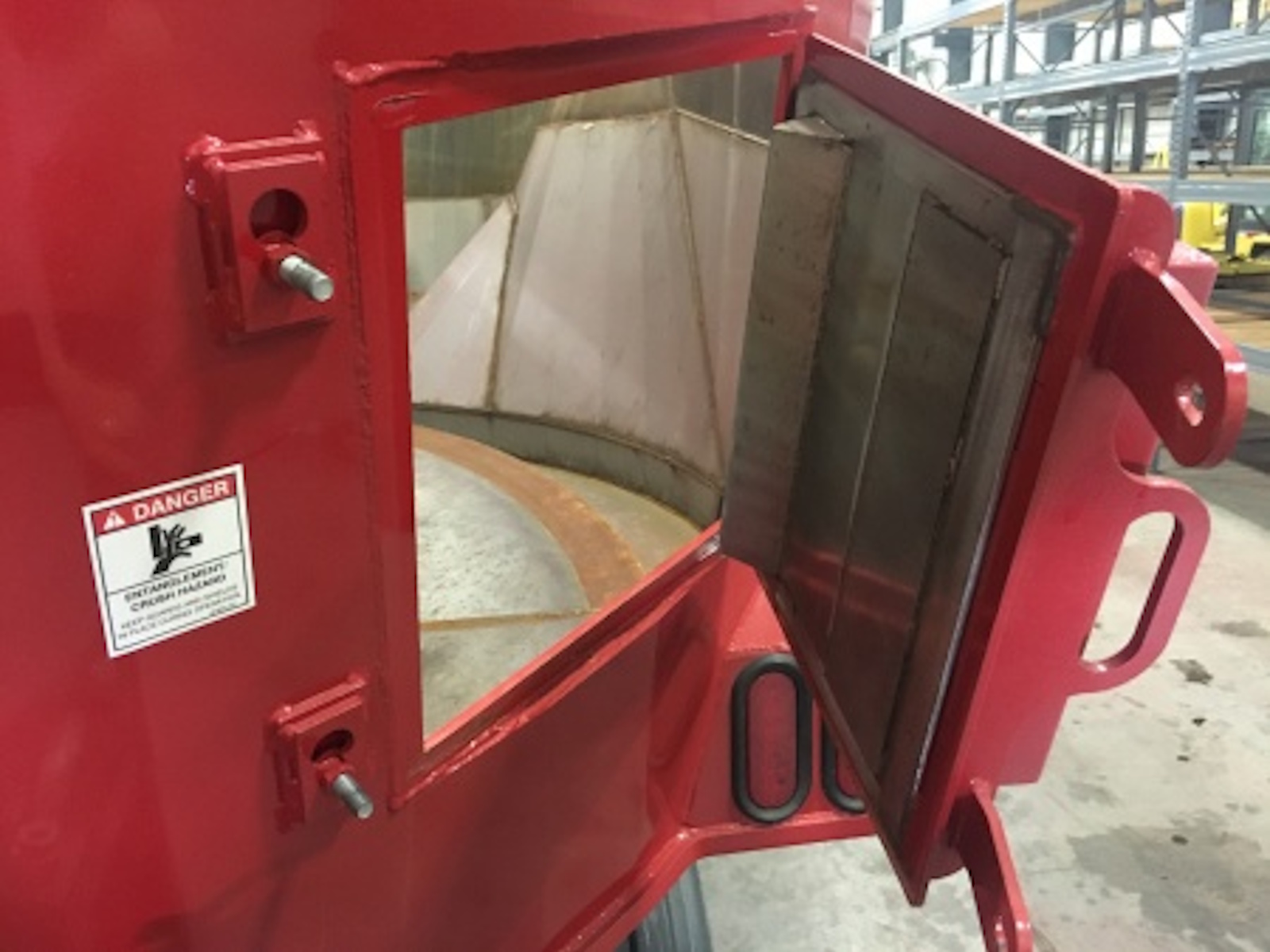

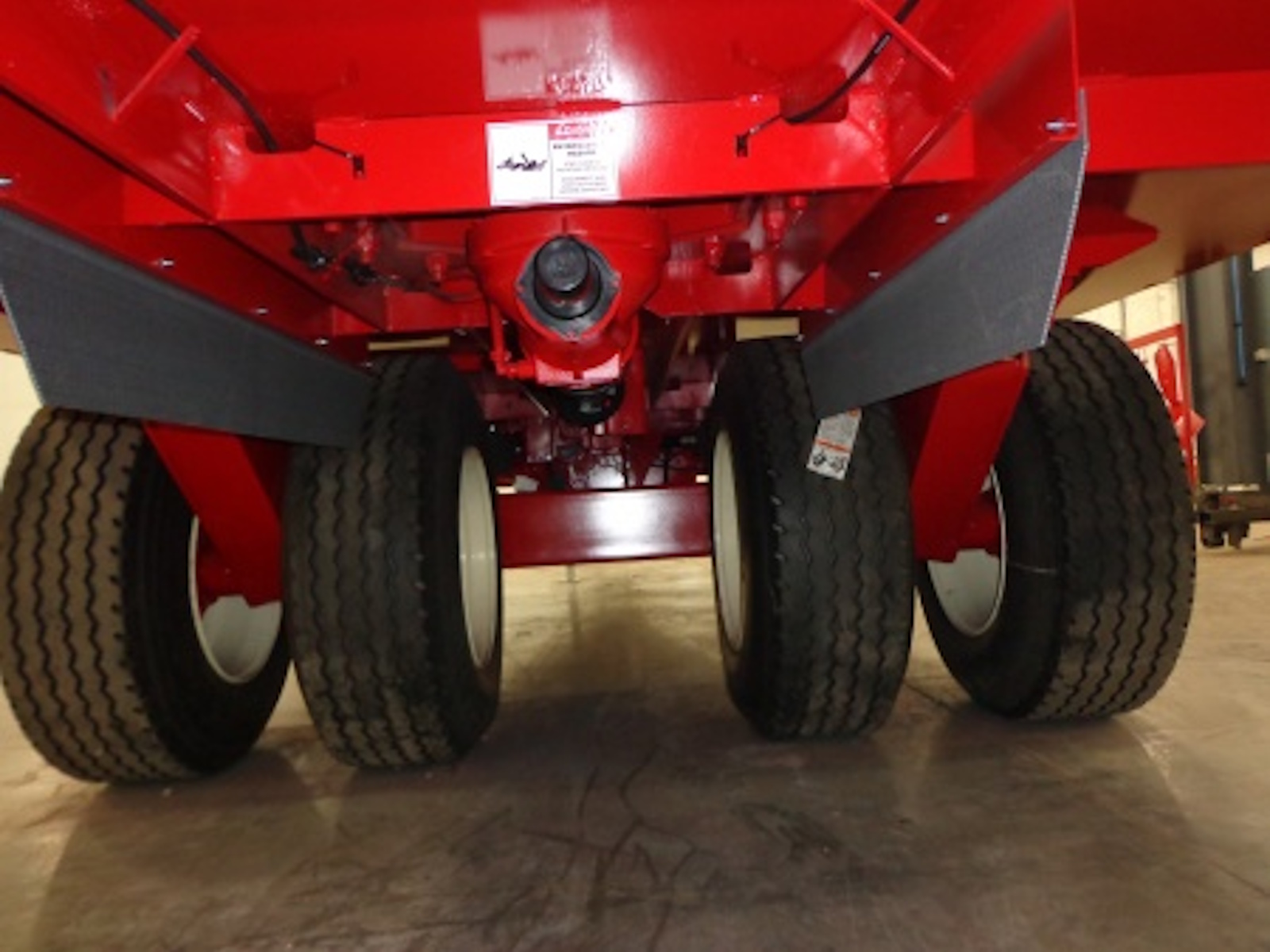

Tractor Requirement - PTO HP - Minimum: 200 | Tongue Weight - % Gross: 10% | Scale System: 4-point | Spindle Diameter (Quantity): 4 1/2" (x4) | Optional Axle: Walking Tandem | Trailer or Subframe: In-Line Quad | Floor Thickness: 1" | Sidewall Thickness: 1/4" | Flat Front Cross Conveyor Travel - Left or Right: 8" | Maximum Net Load - Pounds: 39450 | Cubic Feet - No Extension / with extension: 1215/1315 | Base Machine: 130" | Belt Extensions: 136" | Hay Retention Ring: 136" | Transport Width - Frt Conv. / Side Conv. w/36" ext: 118"/133" | Door Opening - Front: 46" x 40" | Side: 42" x 40" | Rear: 46" x 40" | Conveyor Width - Front/Side: 36" / 42"
Discharge Reach

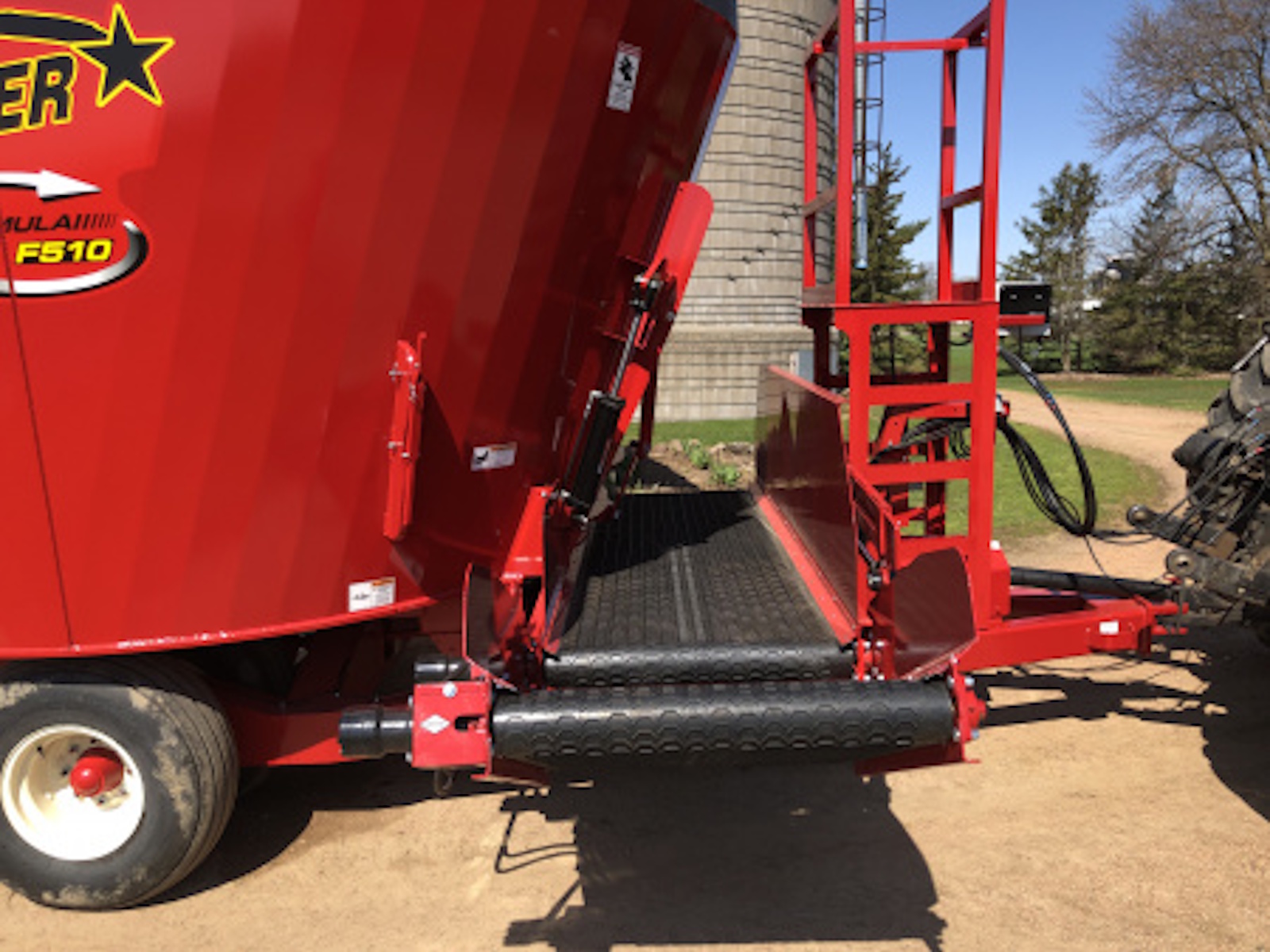

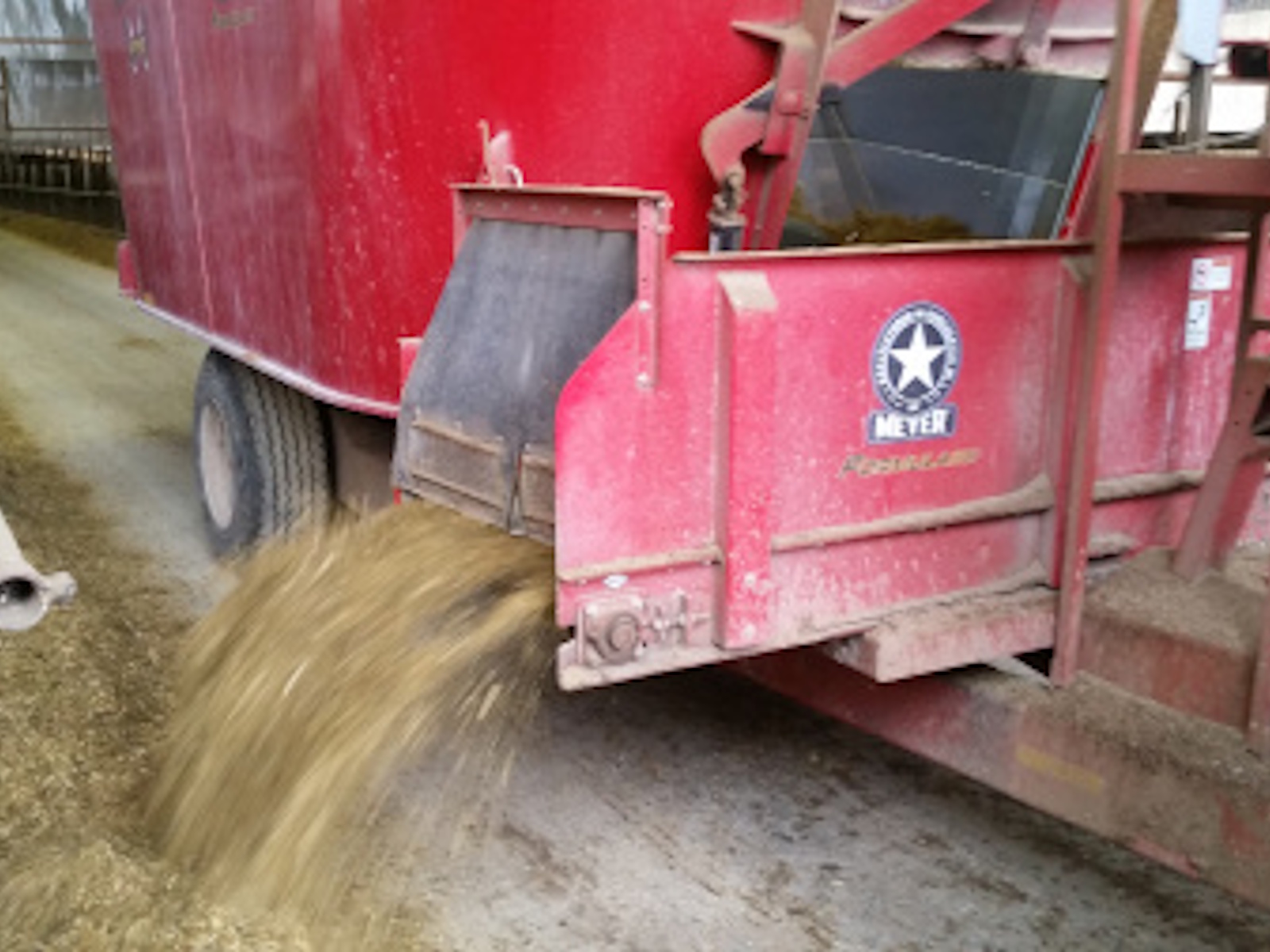

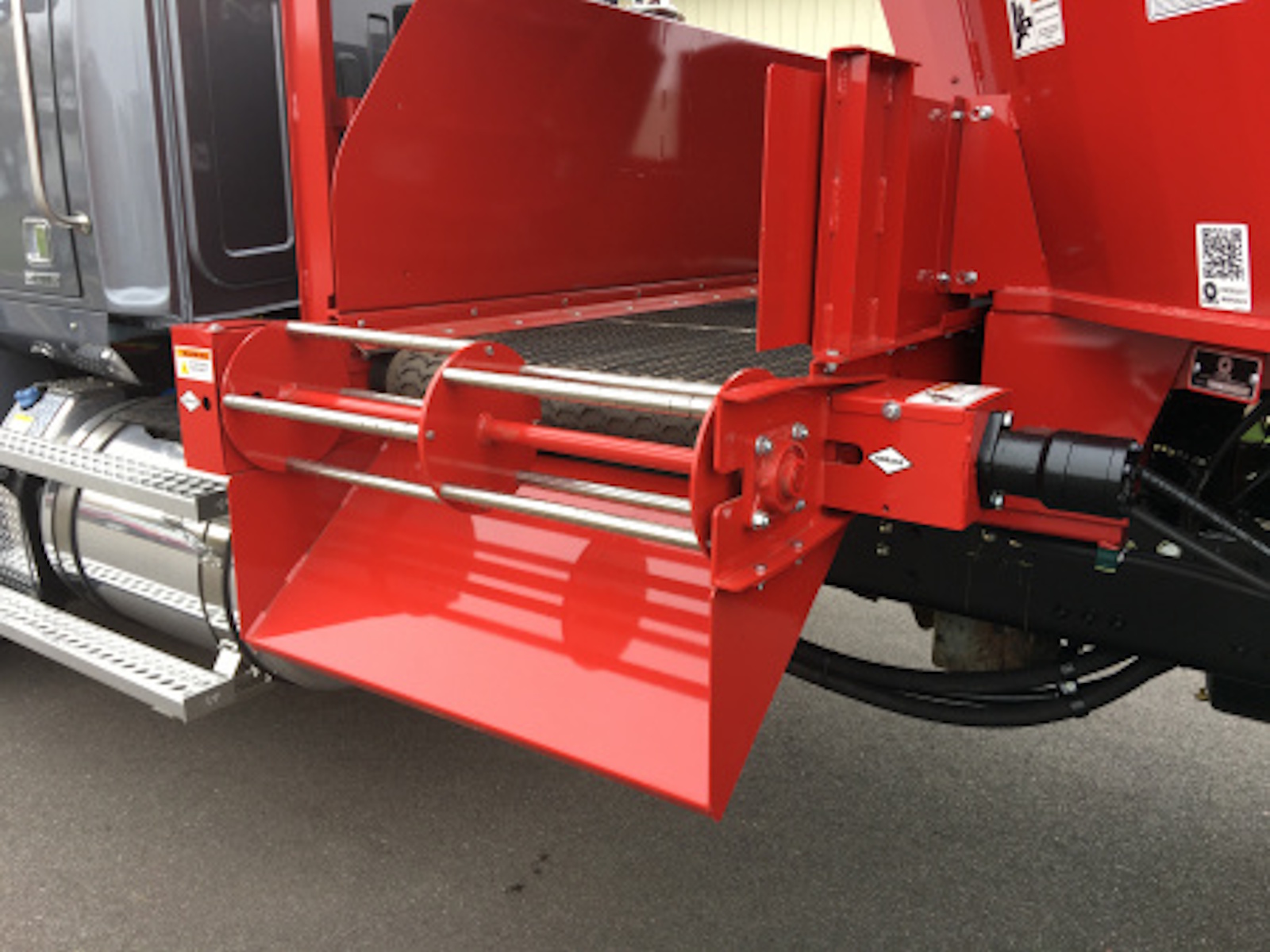

Frt Cross Conveyor - Flat: 9" | Frt Cross Conveyor - Belt incli. 36": 32" | Frt Cross Conveyor - Chain incli. 36": 28" | Side Conveyor-36": 57" | Side Slide Tray: 18" | Side Belt Extension: 16"
Discharge
Frt Conveyor - Flat Belt: 34" | Frt Conveyor - Belt incli. 36": 53" | Frt Conveyor - Chain incli. 36": 61 | Side Conveyor-36": 69" | Side Slide Tray: 25" | Side Belt Extension: 32"
RPM
27/40
PTO Type
PTO Drive (Std./Opt.): 1000 RPM-CV
