2026 Manitou Group ULM 412 H
Get in Touch
Description

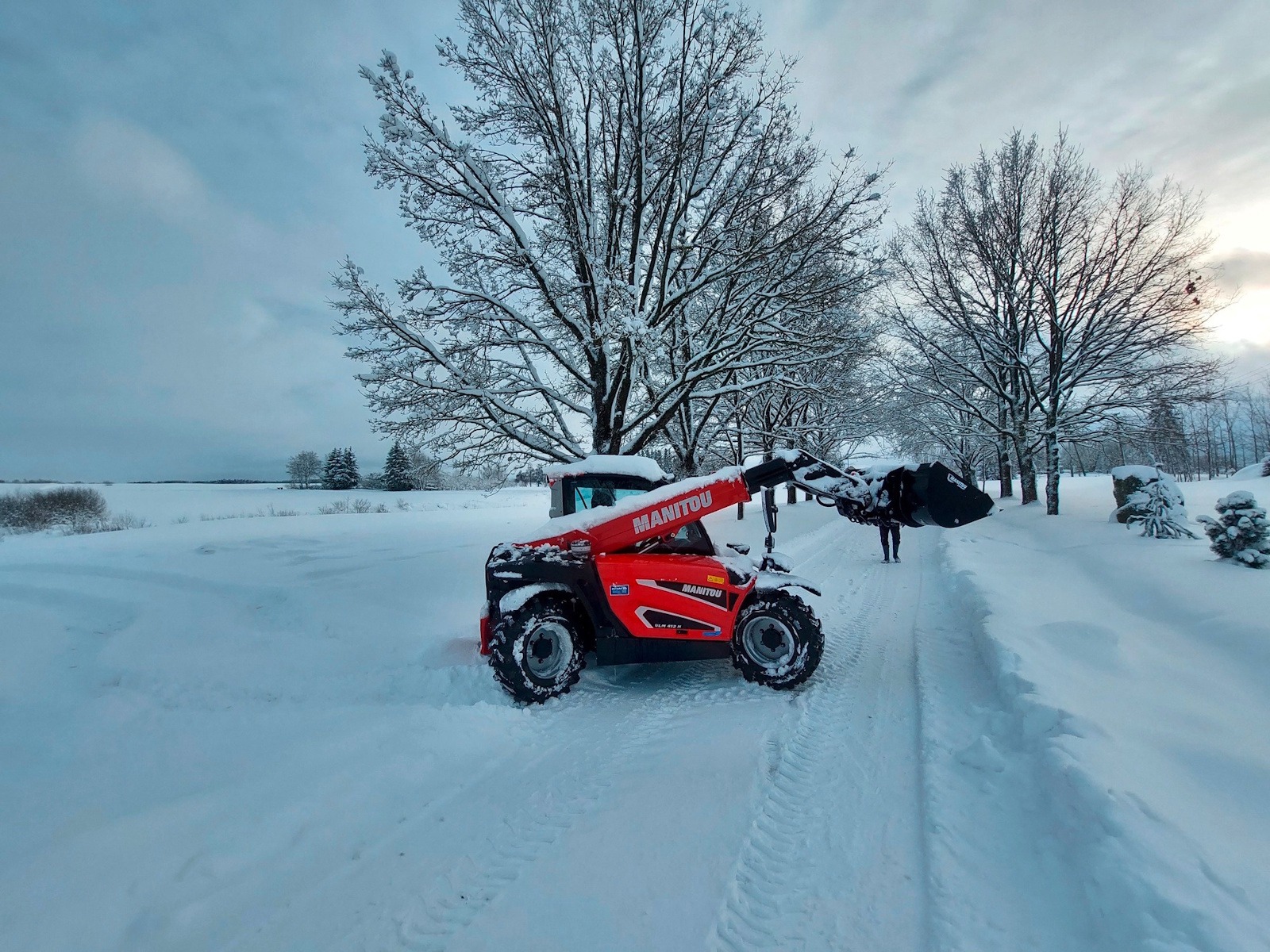

2026 Manitou Group ULM 412 H
The ULM telehandler is designed to help you save time and money. It is adapted to many types industries: lanscaping companies, riding schools, building companies... Thanks to its 1250kg or 1500kg capacity (2 models are available), the ULM can easily place pallets of blocks or bricks, straw or hay bales... Its ultra compact dimensions and rough terrain abilities make this machine particularly adapted to work in tight spaces on all types of grounds. Due to its lightweight, the ULM can also easily be transported on a small trailer. If you need to fully adapt your machine to your environment, numerous options are available: the auto reversing fan, the air prefilter, a full range of tyres...
Info
Industry
Agriculture
Make
Manitou Group
Model
ULM 412 H
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
2756 lb
Height
6 ft 4 in | Max. lifting height: 14 ft 1 in | Reach at max. height: 3 ft 3 in
Notes
Max. outreach: 8 ft 7 in | Breakout force with bucket: 1880 daN | Front overhang: 2 ft 6 in | Tilt-up angle: 23 ° | Tilt-down angle: 116 ° | Lifting: 8.80 s | Lowering: 7 s | Extension: 6.40 s | Retraction: 4.30 s | Crowd: 3.40 s | Dump: 2.60 s | Drawbar pull (Laden): 2000 daN | Engine cooling system: 3 radiators (water + hydraulic oil + fuel) | Number of gears (forward / reverse): 2 / 2 | Max. travel speed: 16 mph | Differential lock: Limited slip differential on front and rear axles | Hydraulic pump type: Gear pump | Hydraulic flow - Pressure: 13 US gpm - 3408 PSI | Hydraulic tank capacity: 10 US gal | Noise at driving position (LpA): 76 dB | Noise to environment (LwA): 104 dB | Vibration on hands/arms: less than 8 ft/s² | Cab certification: ROPS - FOPS cab (level 1) | Controls: JSM
Weight
Shipping mass (min. / max.): 5622 lb / 6063 lb
Ground Clearance
11 in
Wheelbase
7 ft
Length
Overall length to carriage (with hitch): 11 ft 5 in | Overall length to carriage (without hitch): 11 ft 5 in
Width
4 ft 11 in | Overall cab width: 2 ft 2 in
Turning Radius
External turning radius (over tyres): 8 ft 7 in
Tires
CAMSO - MPT 552 - 10.0/75-15.3 124A8
Steering
2 wheel steer, 4 wheel steer, Crab mode
Engine
Yanmar | Stage V, Tier 4 final
Power/Horsepower
35.10 Hp / 26.20 kW
Torque
77 ft/lbs @1950 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Automatic negative parking brake | Service brake: Hydraulic servo brake
Fuel Capacity
9 US gal
