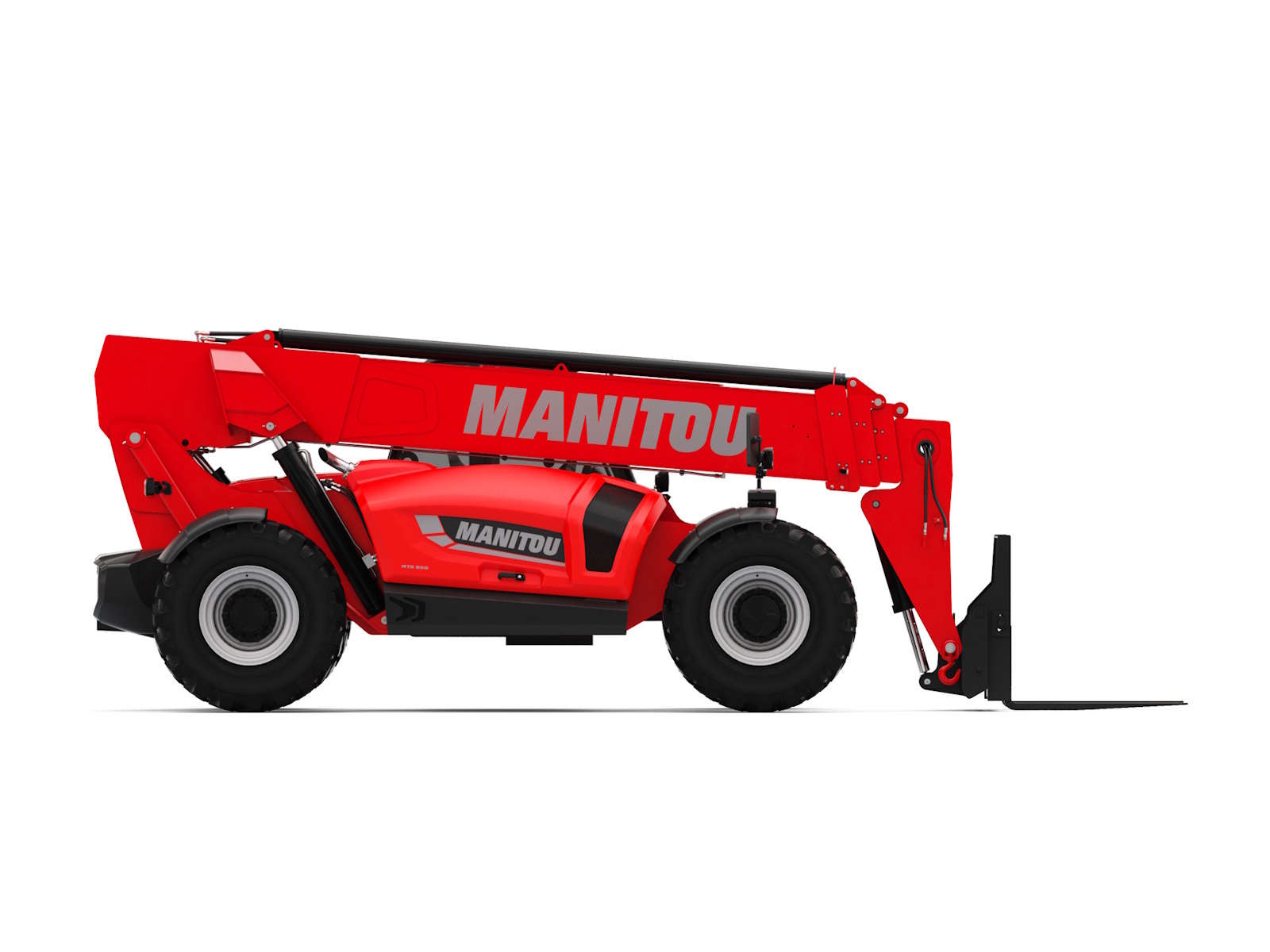

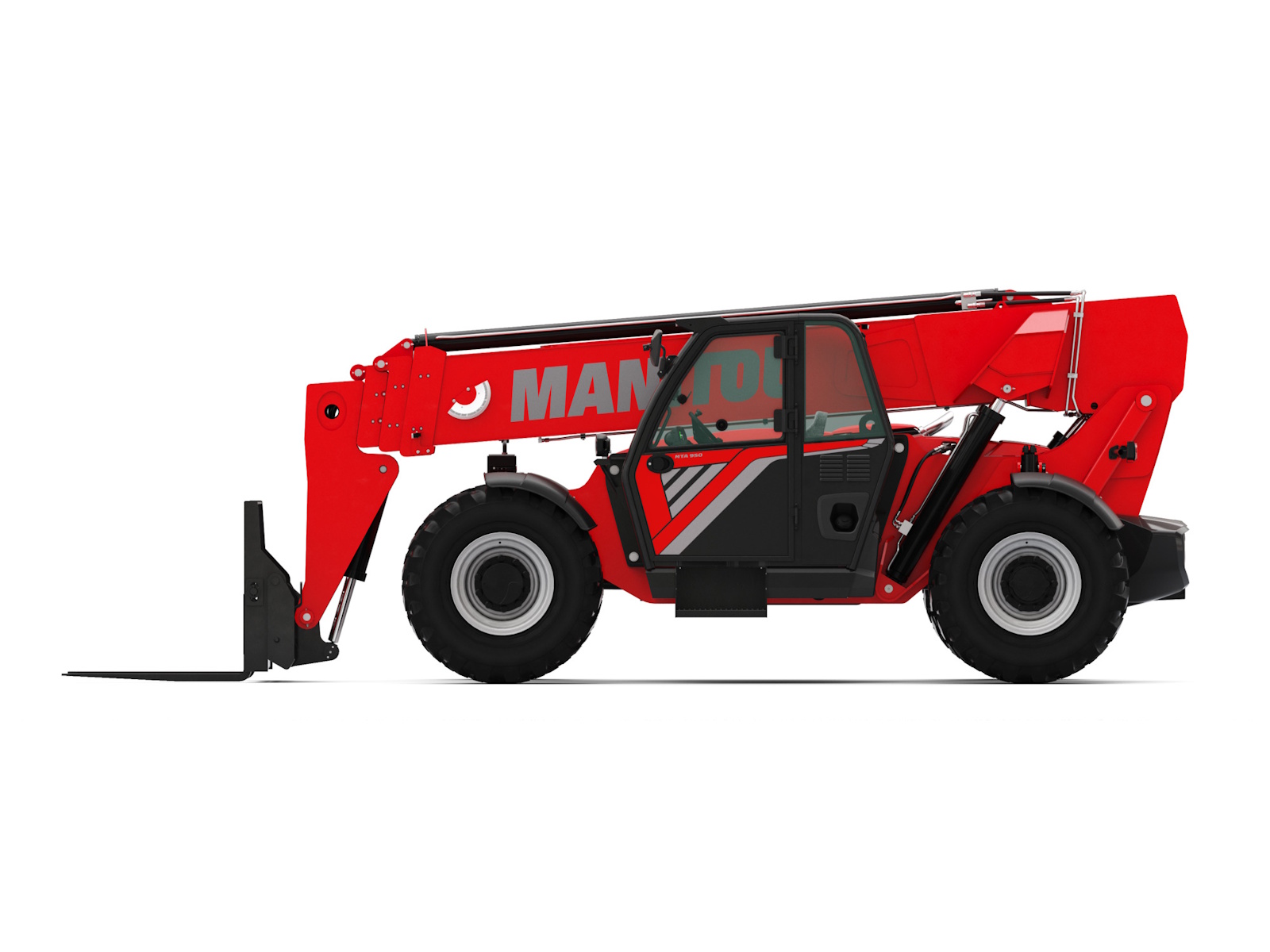

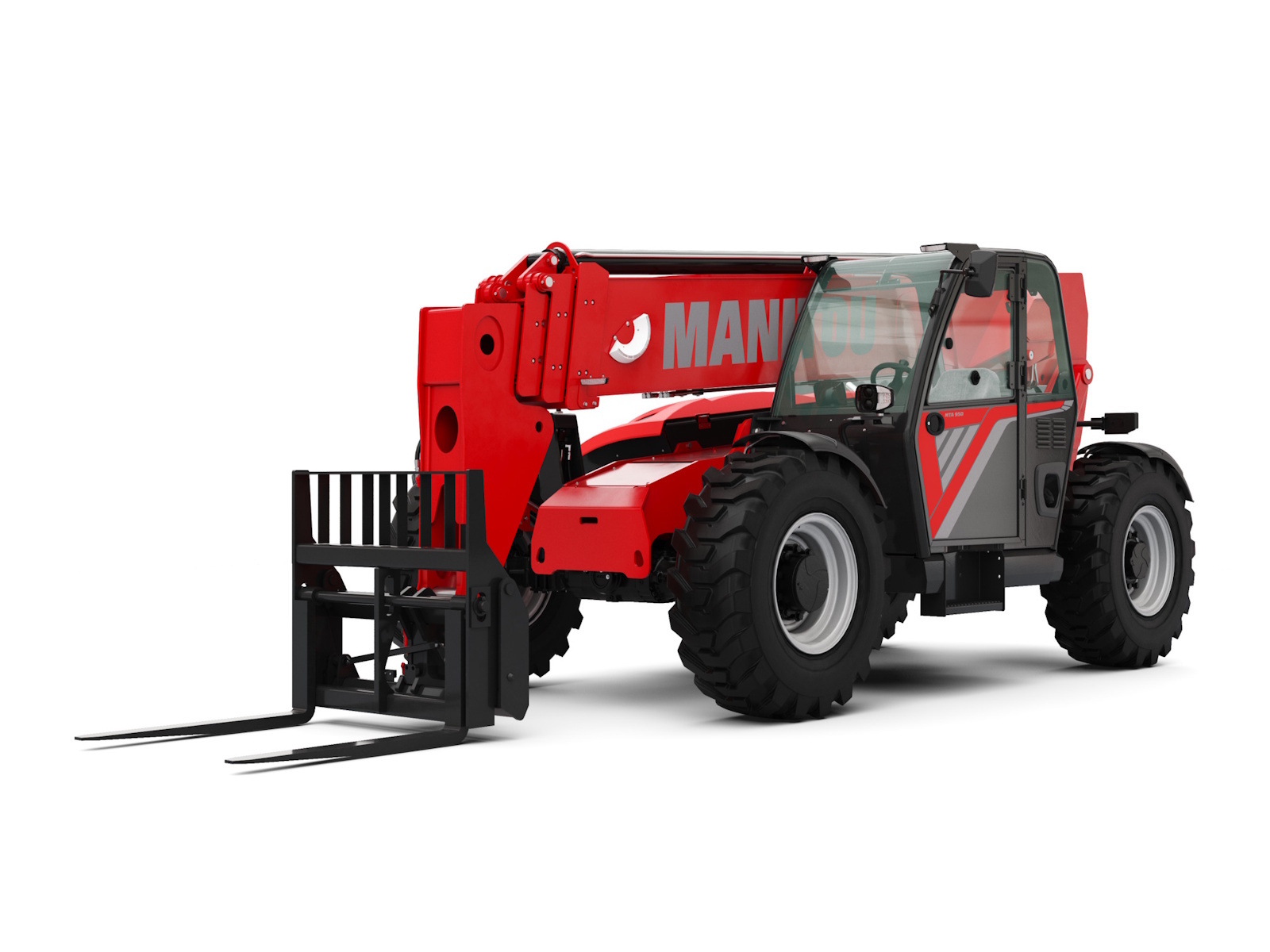

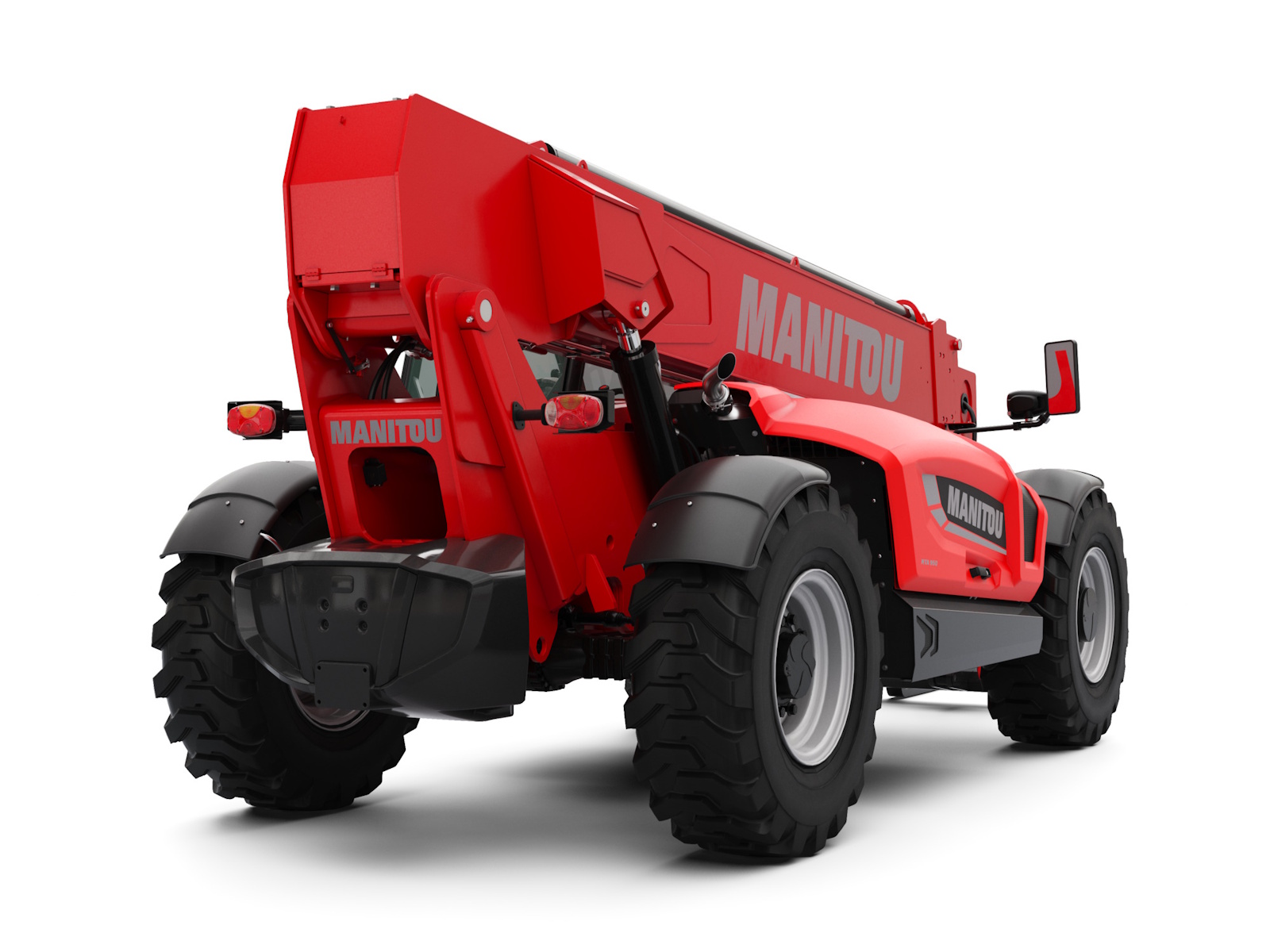

2026 Manitou Group MTA 950
Get in Touch
Description
2026 Manitou Group MTA 950
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 950
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 9000 lb
Height
8 ft 6 in | Max. lifting height: 50 ft 2 in
Notes
Max. outreach: 36 ft 7 in | Tilt-up angle: 34 ° | Tilt-down angle: 96 ° | Frame leveling longitudinal +/-: 10 ° | Lifting: 16 s | Lowering: 11 s | Extension: 18 s | Retraction: 16 s | Crowd: 4 s | Dump: 6 s | Number of gears (forward / reverse): 5 / 3 | Max. travel speed: 20 mph | Hydraulic pump type: Axial piston | Hydraulic flow / Pressure: 40 US gpm-4000 PSI | Noise at driving position (LpA): 80 dB | Controls: Joystick
Length
Overall length to carriage: 21 ft | Overall length (with forks): 25 ft | Forks: 48 in
Width
8 ft 4 in | Overall cab width: 3 ft 1 in | Forks: 5 in
Wheelbase
11 ft 6 in
Ground Clearance
1 ft 7 in
Turning Radius
External turning radius: 12 ft 9 in
Weight
28650 lb
Tires
Pneumatic
Engine
Deutz | Tier 4 final
Cylinders
4 - 220 in³
Power/Horsepower
127 Hp / 95 kW
Torque
369 ft/lbs @ 2300 rpm
Transmission
Powershift
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Wet disc brakes
Oil Capacity
2 US gal | Hydraulic oil: 42 US gal
Fuel Capacity
38 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 4 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
