Description

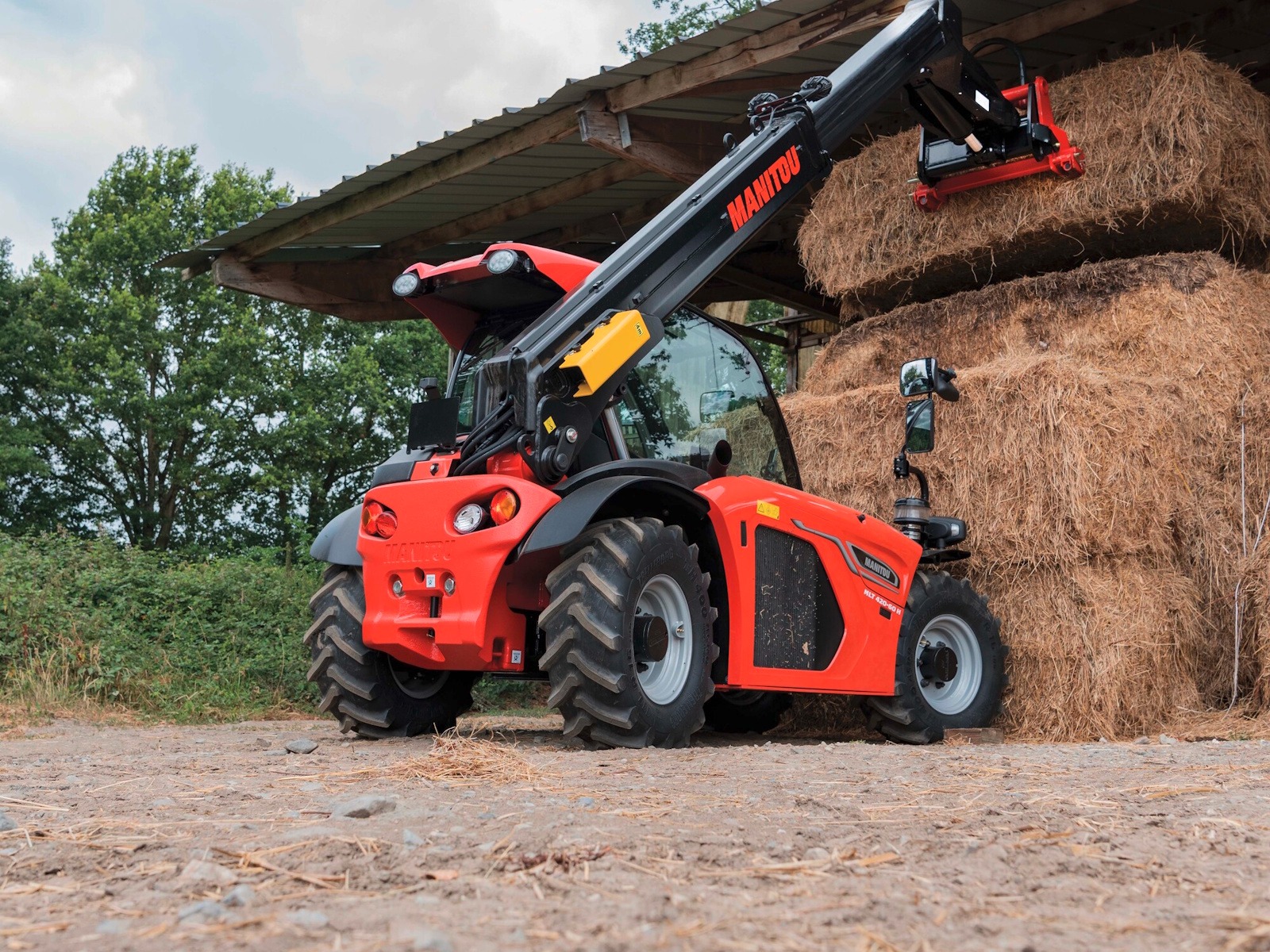

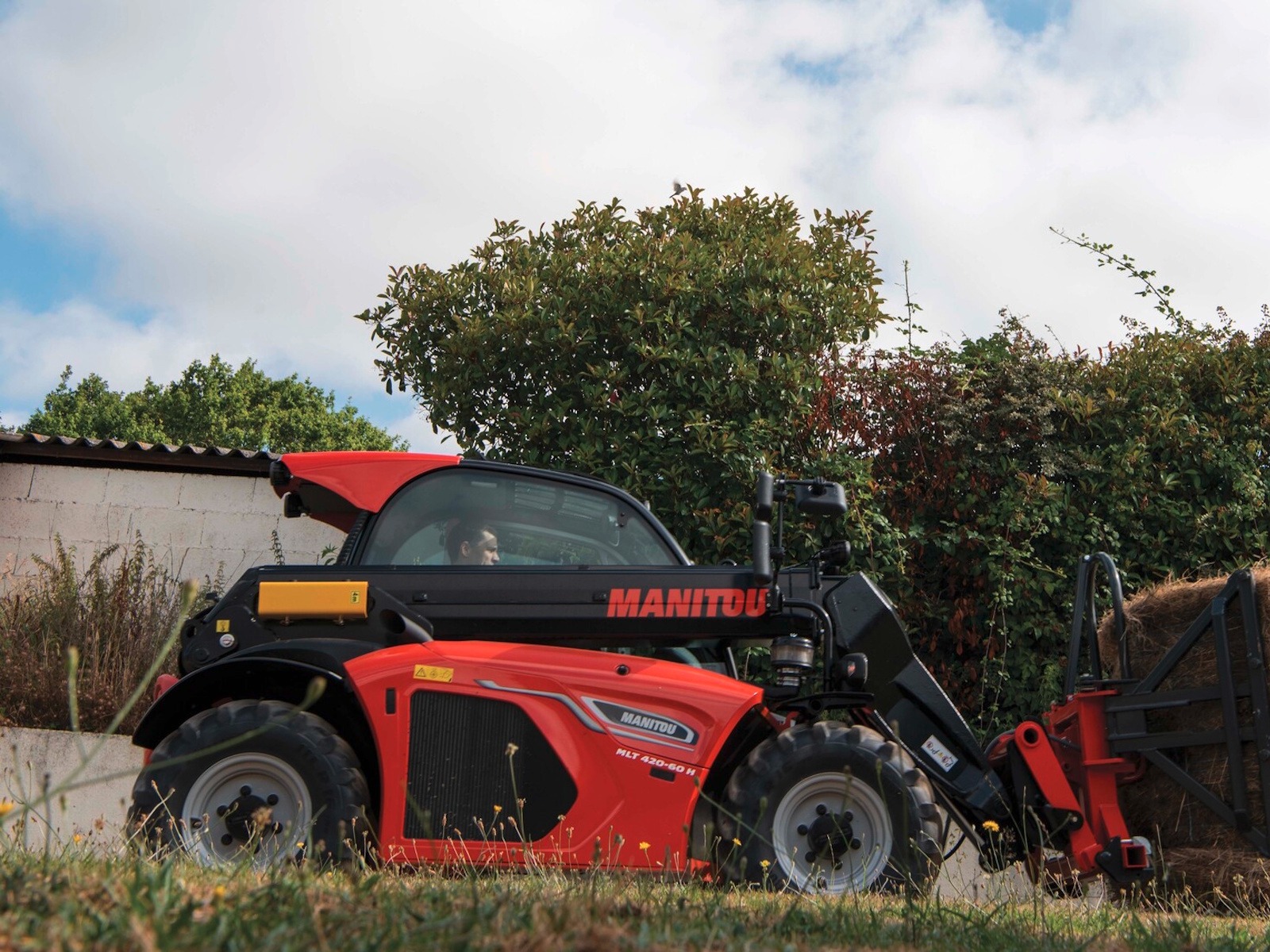

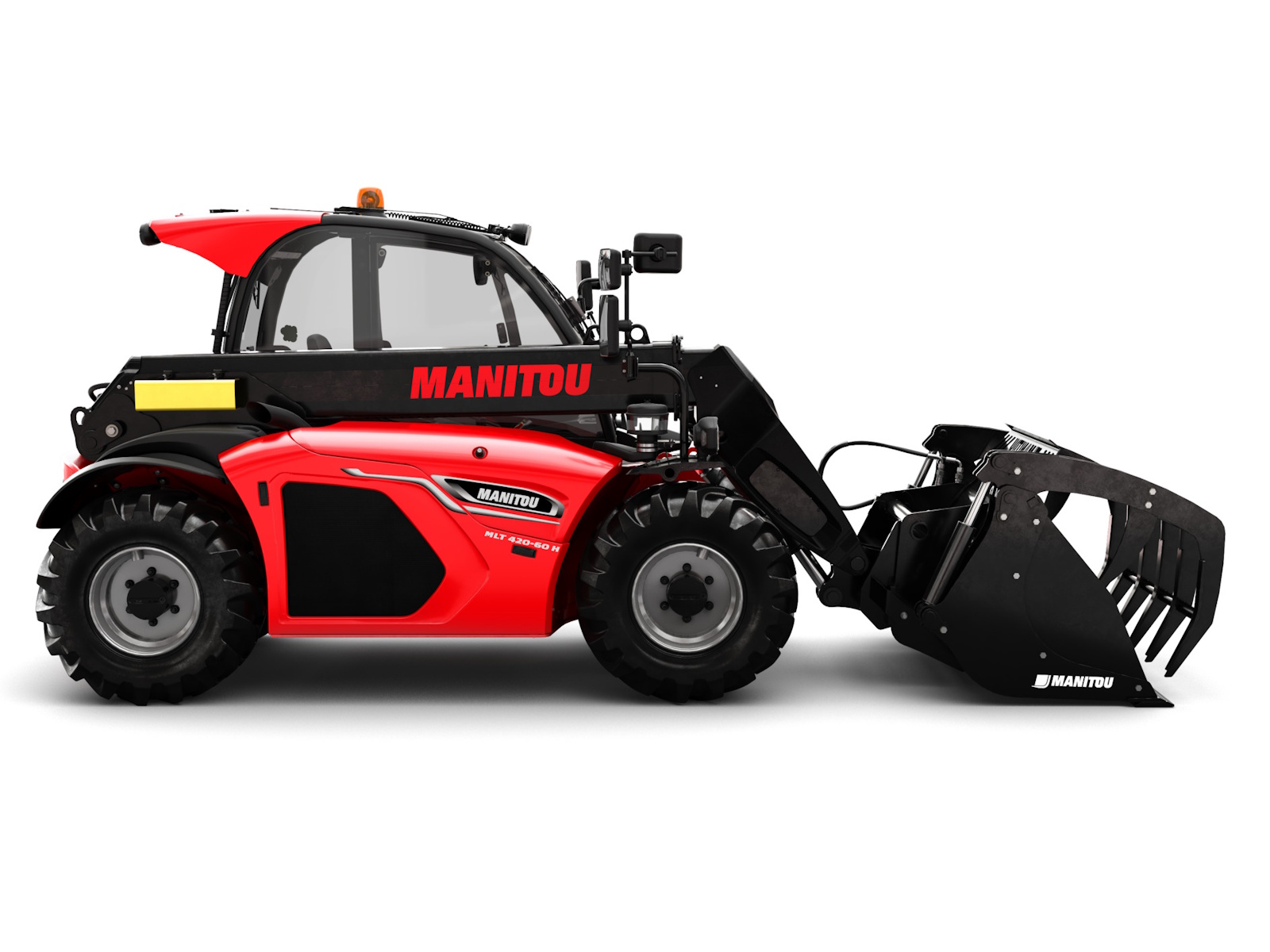

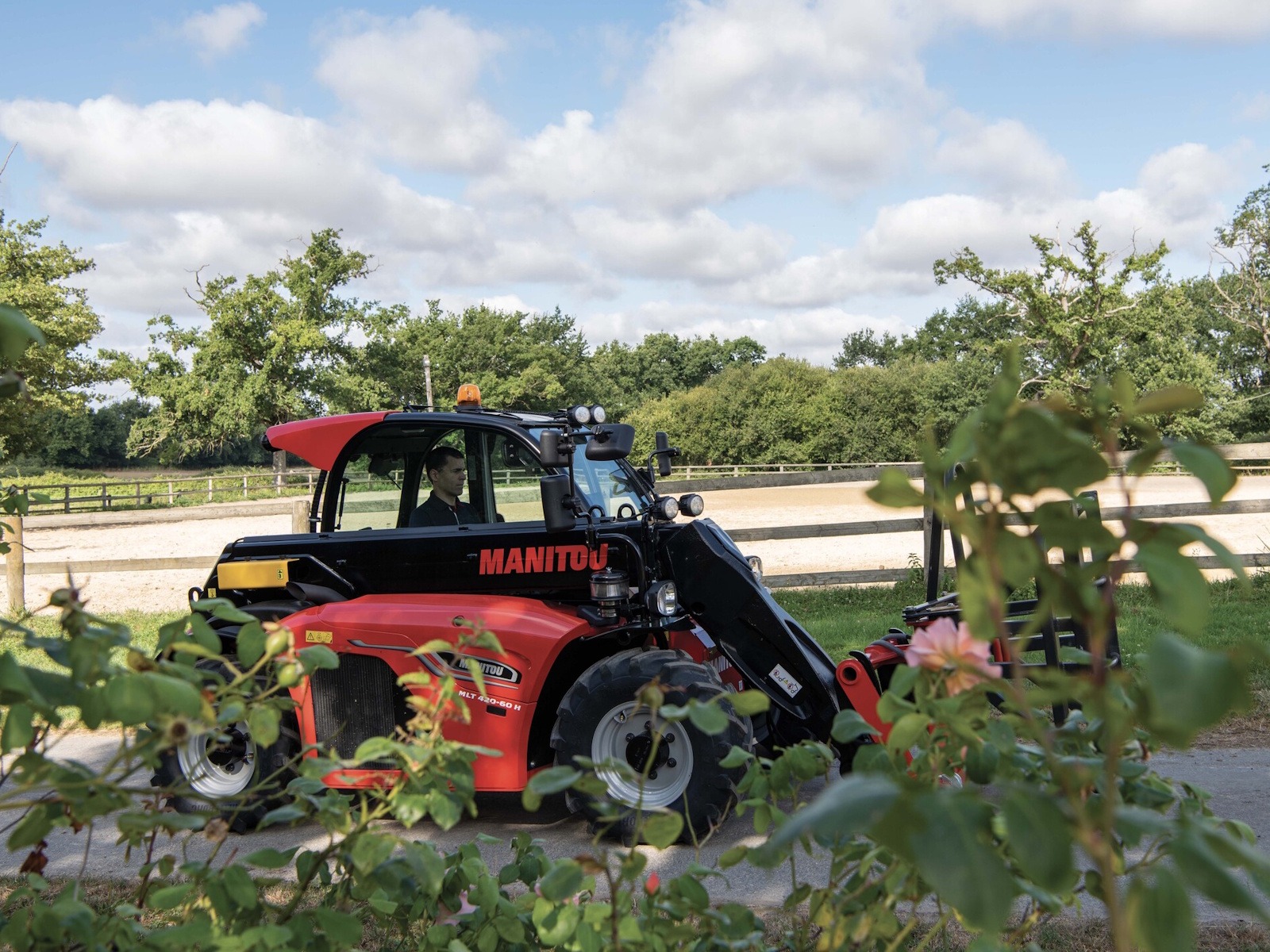

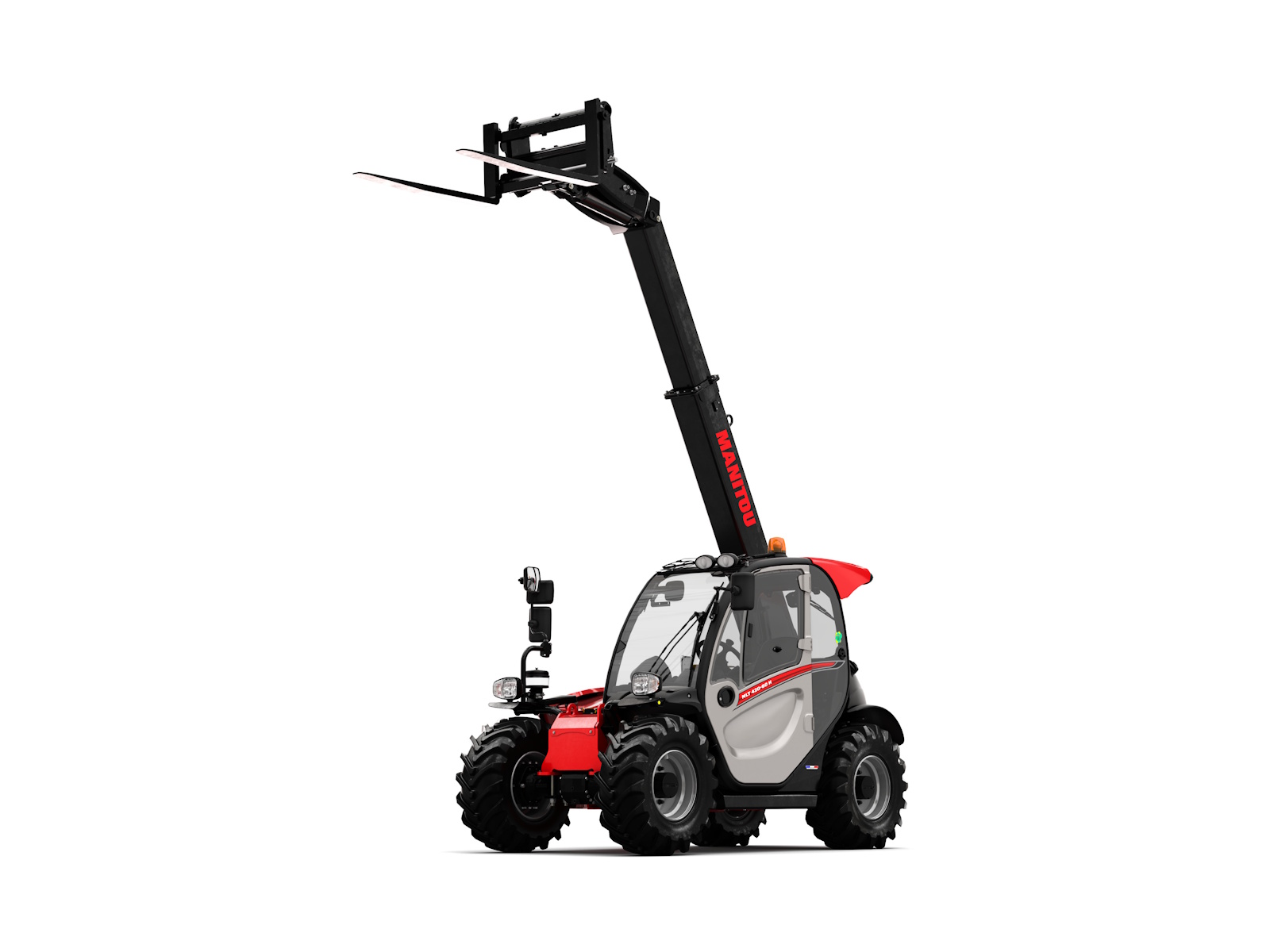

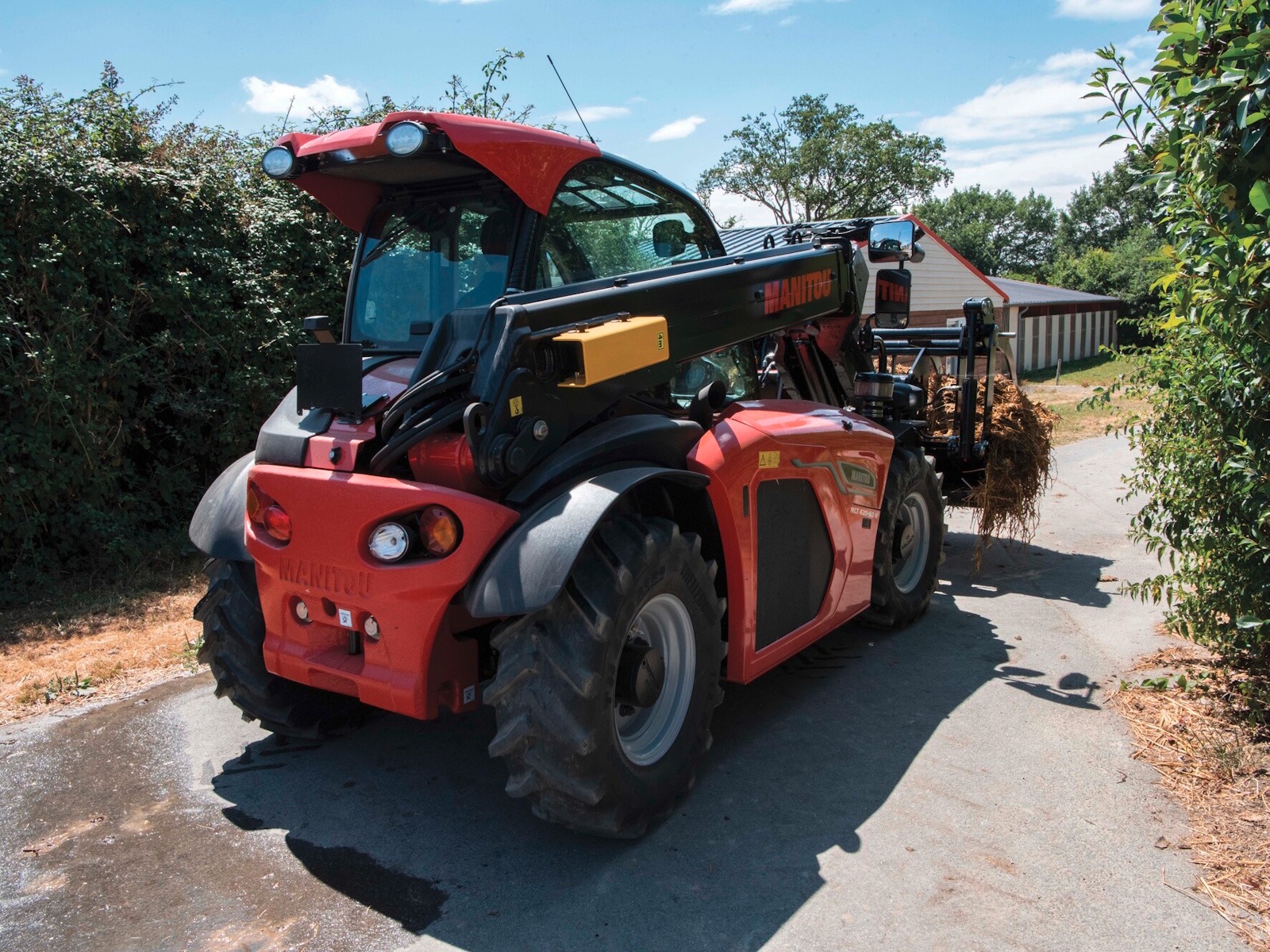

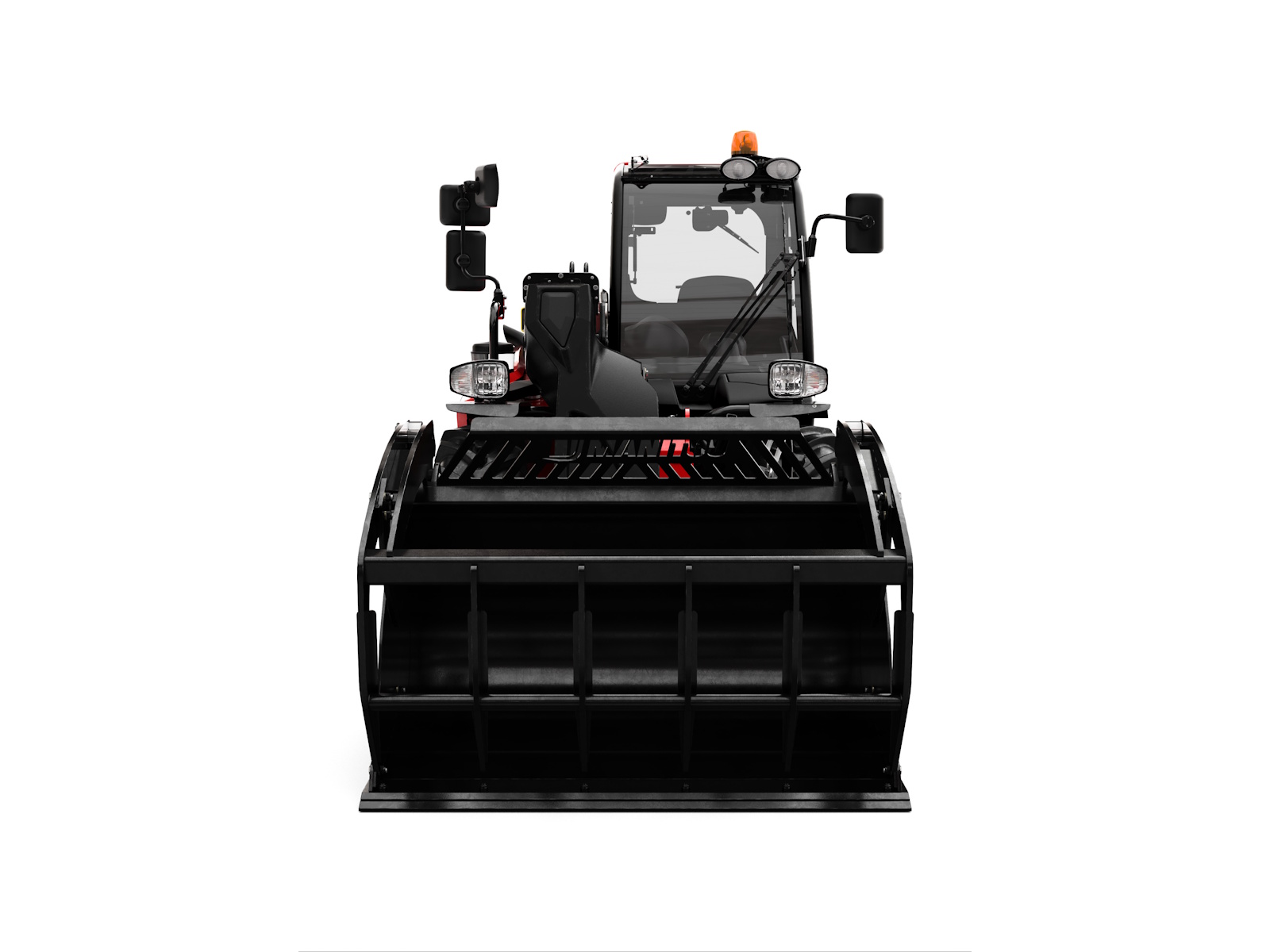

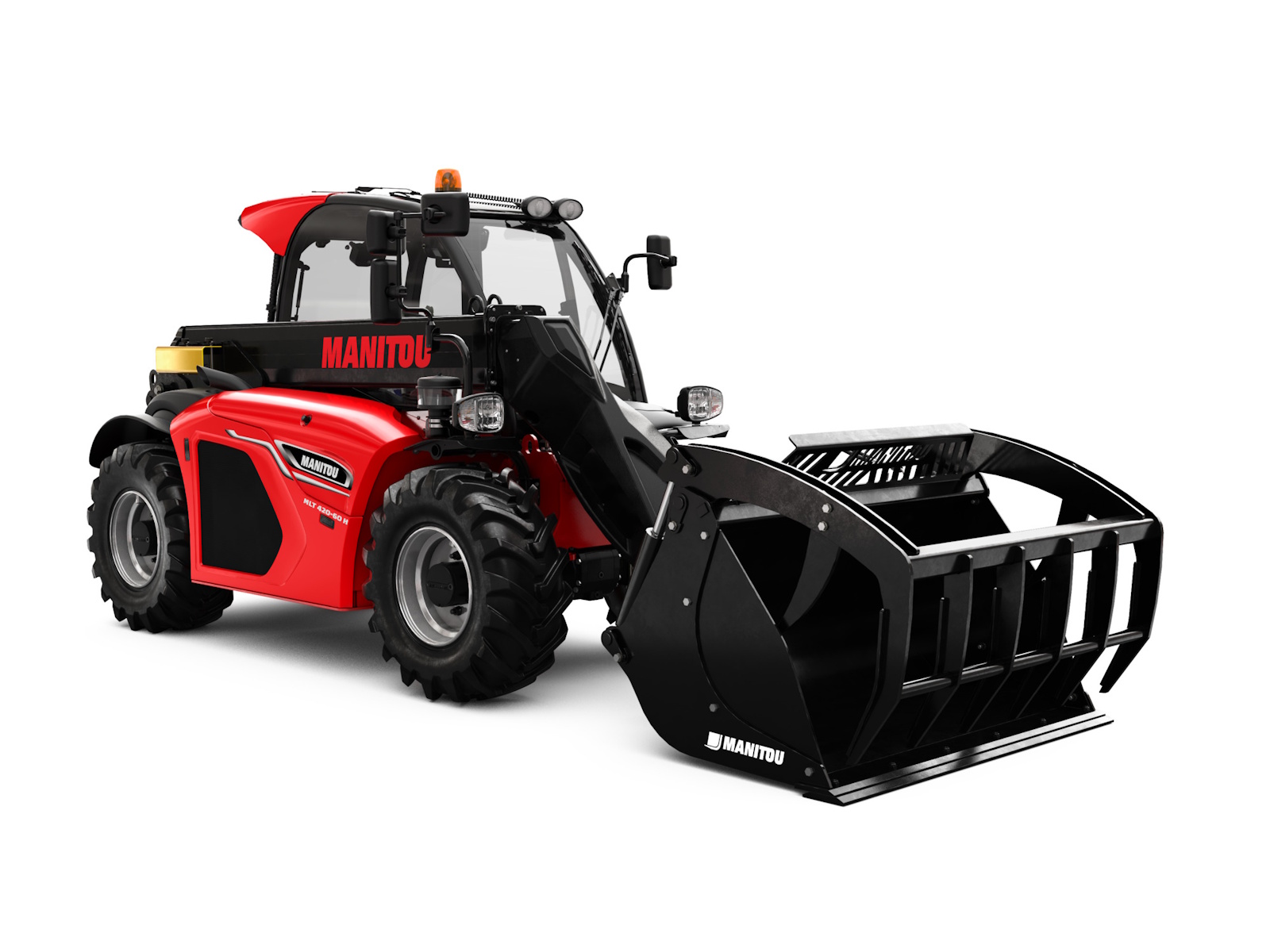

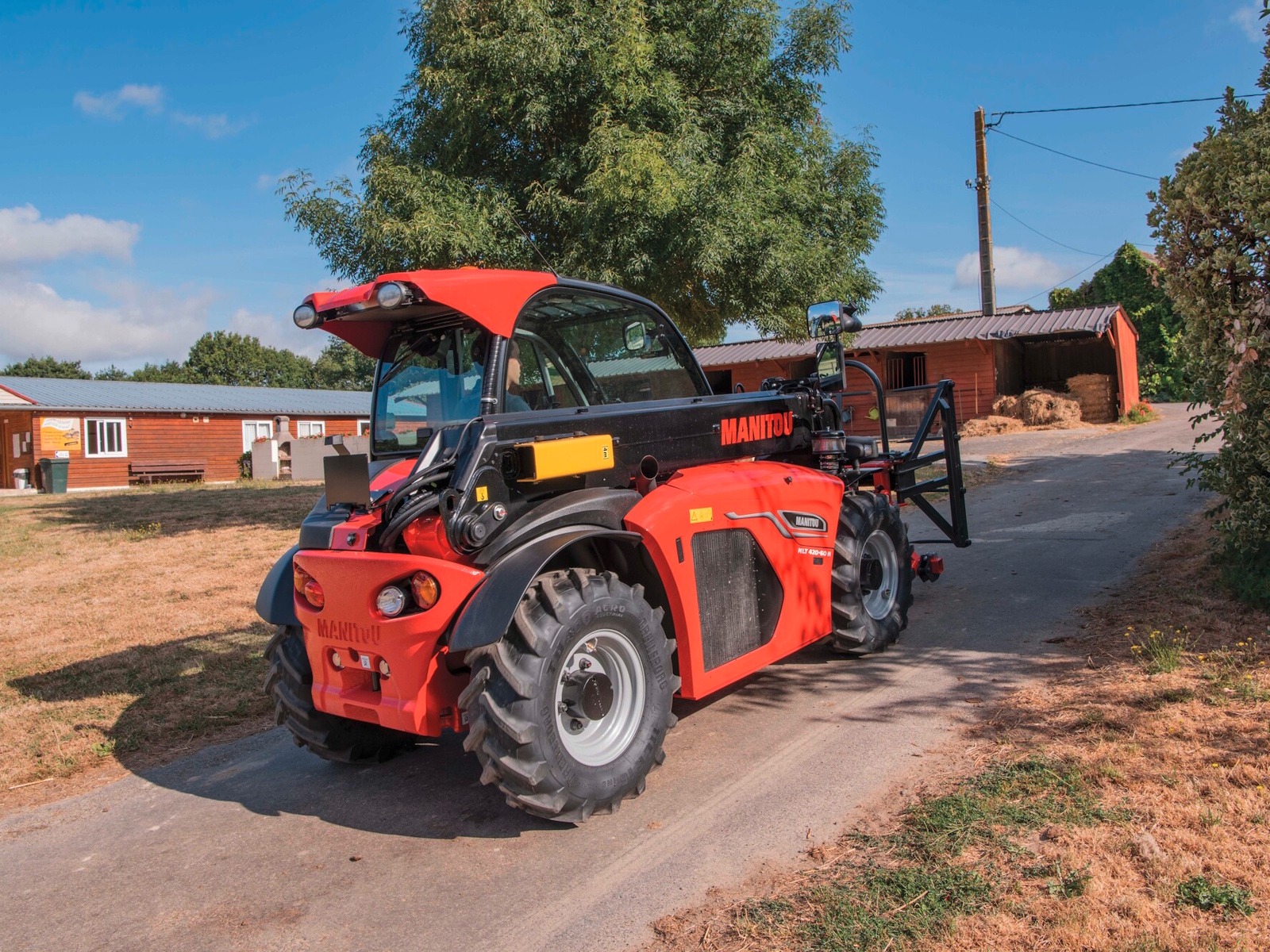

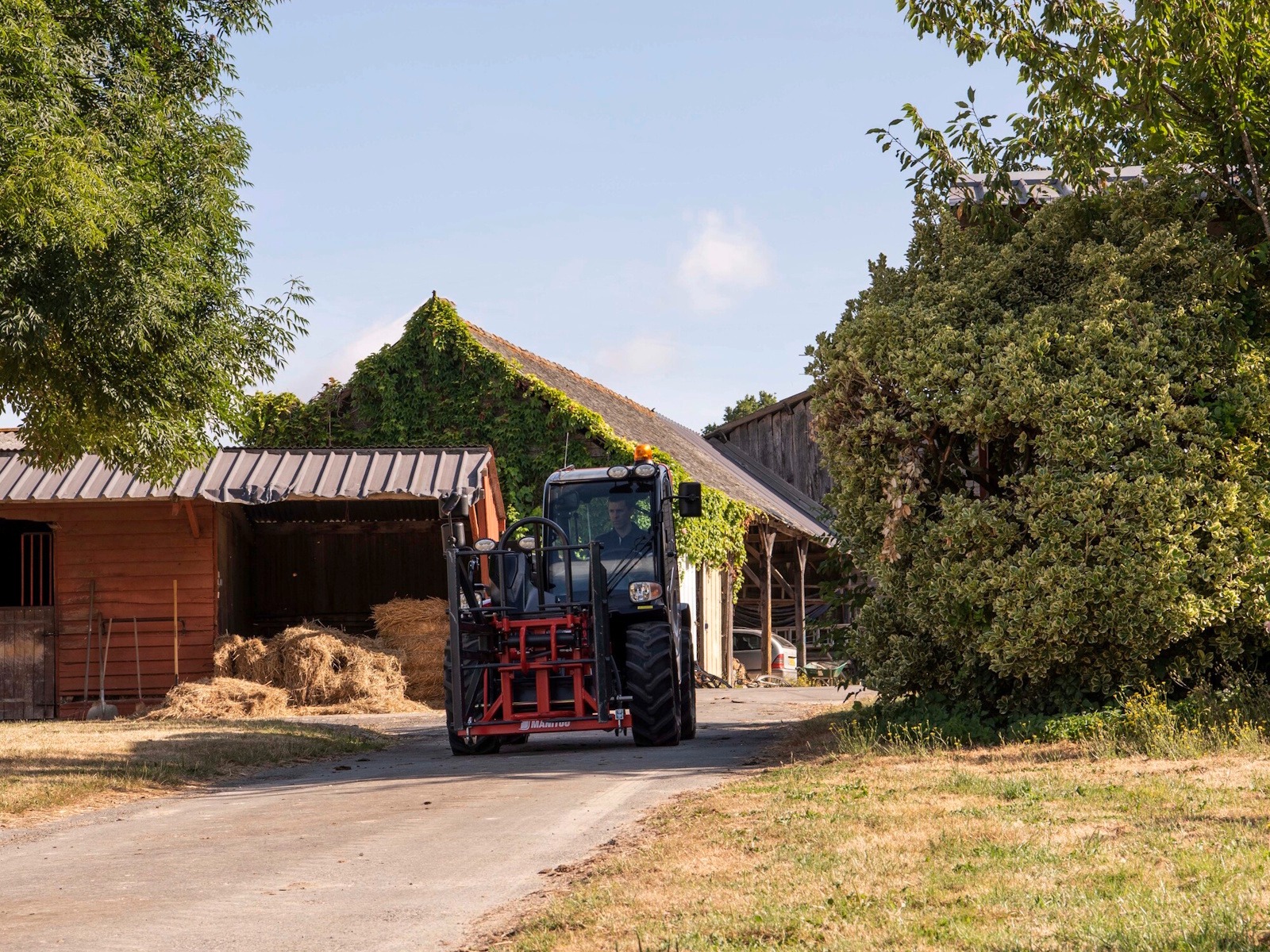

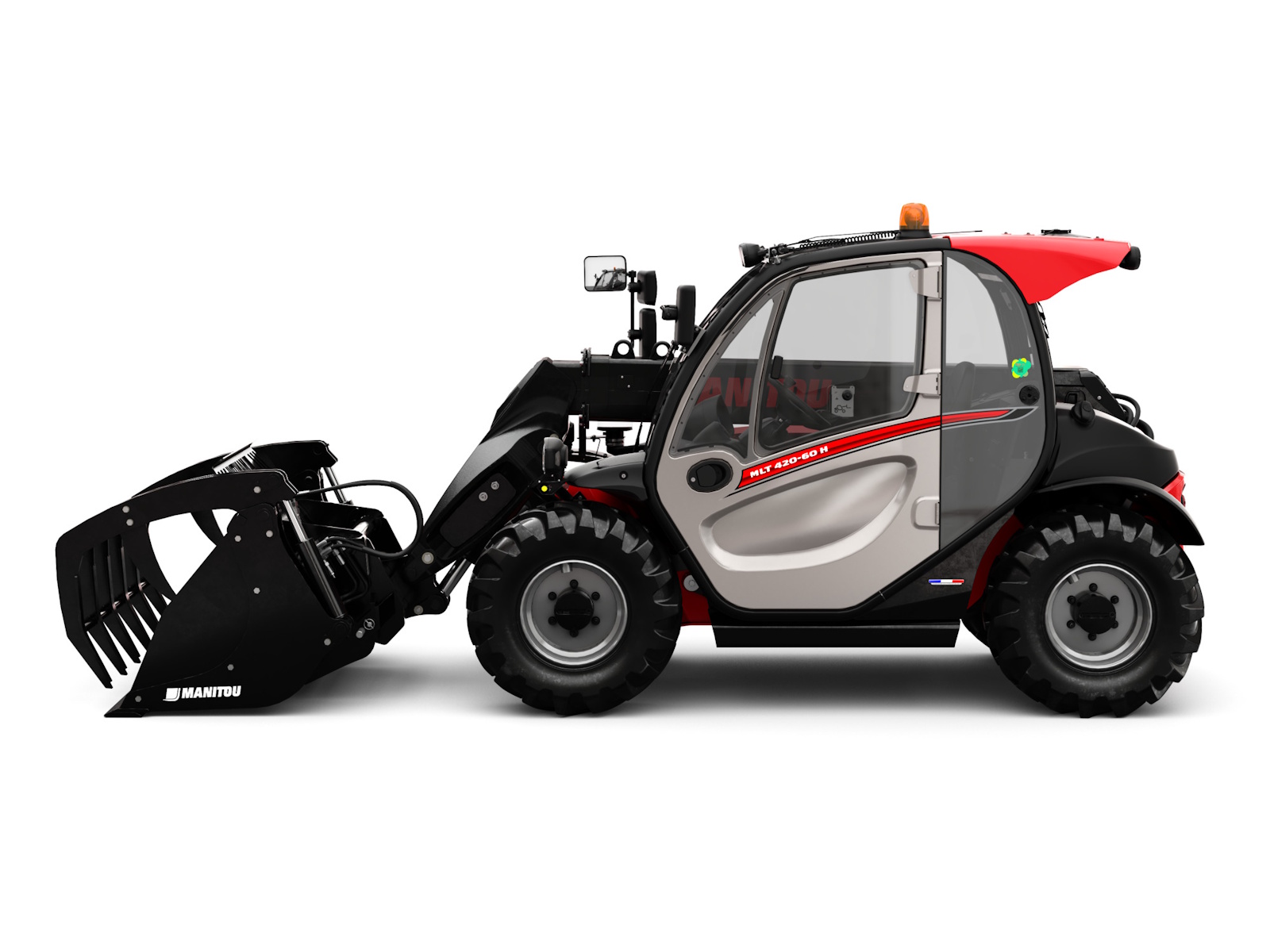

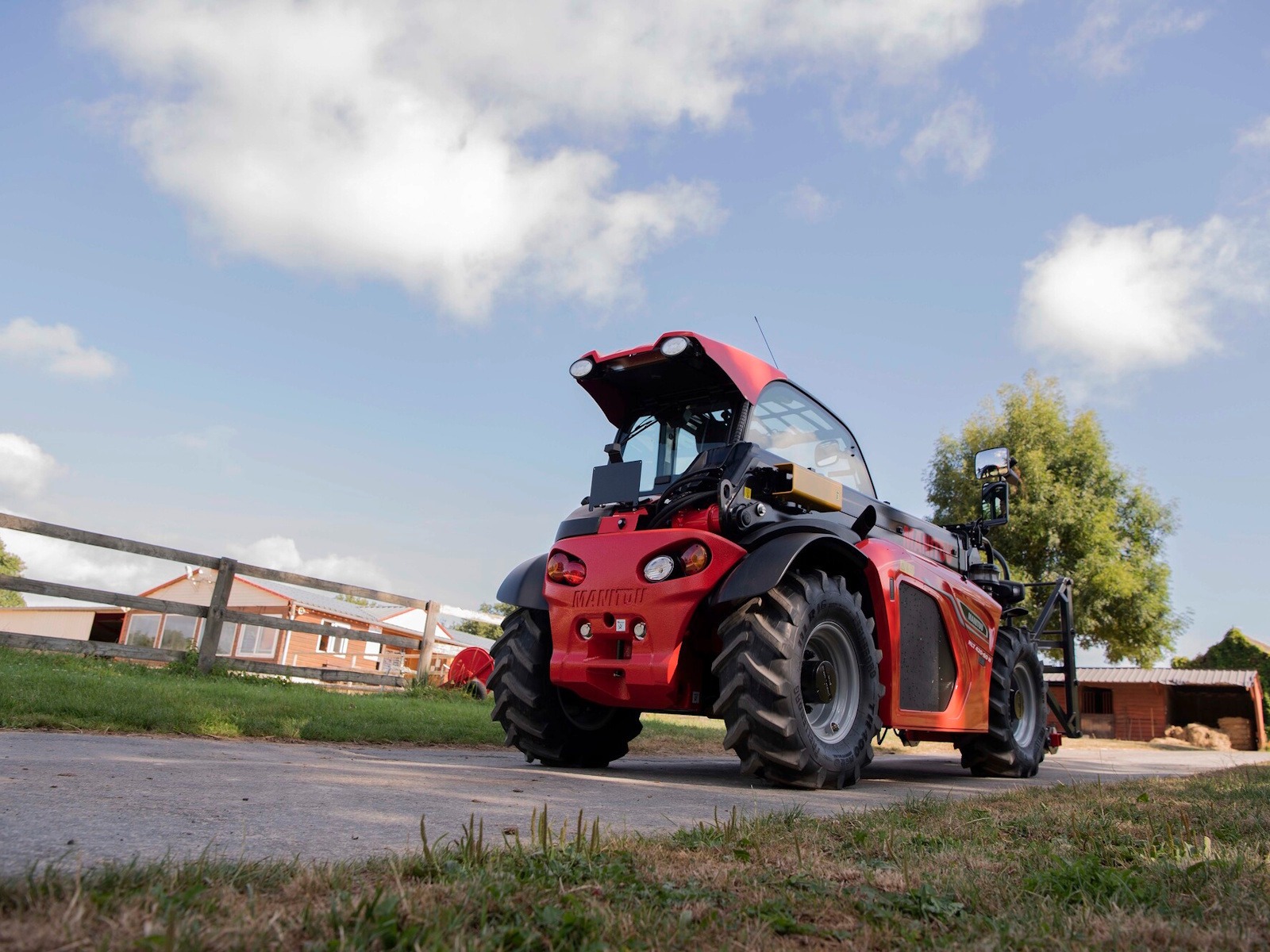

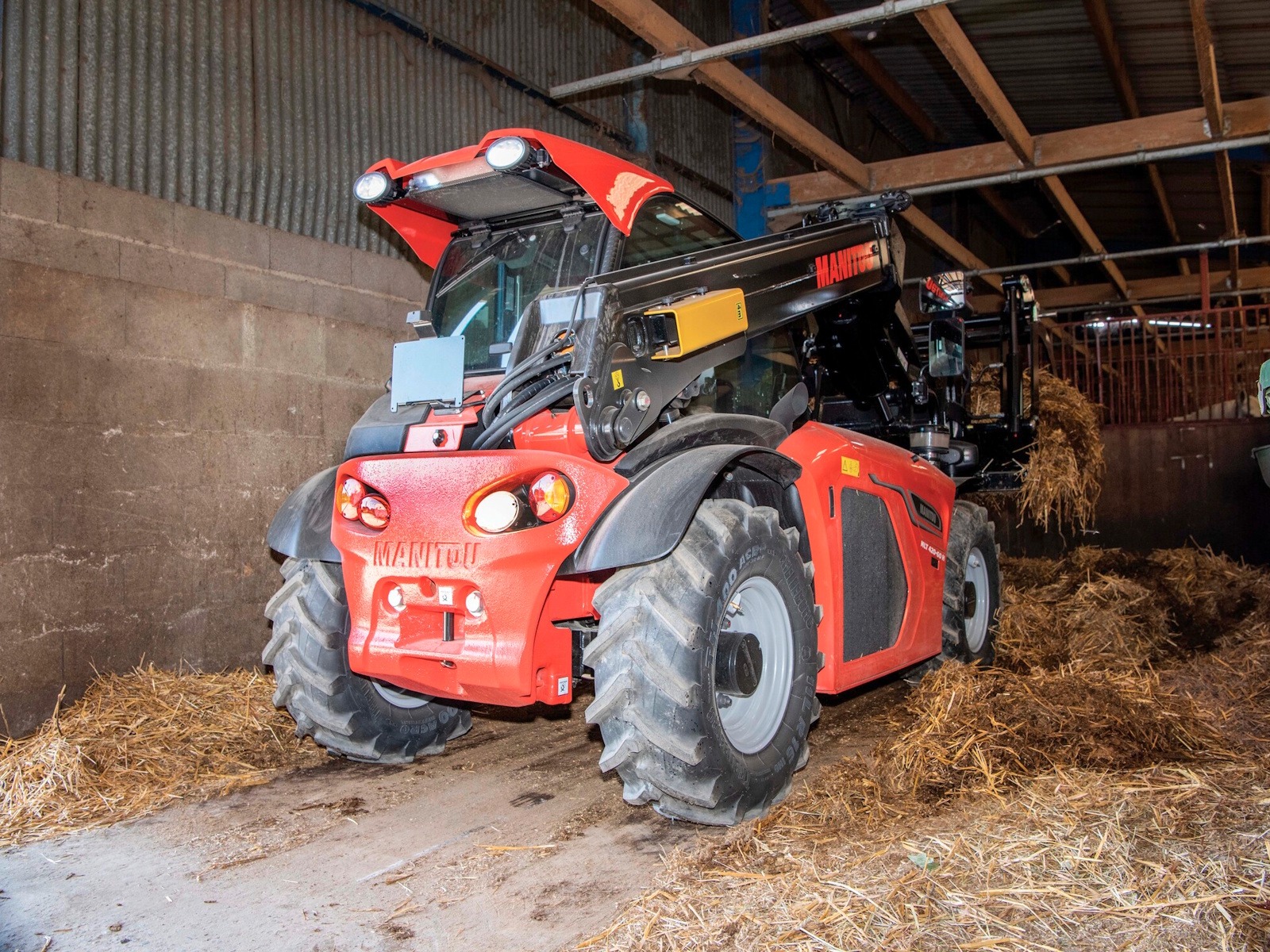

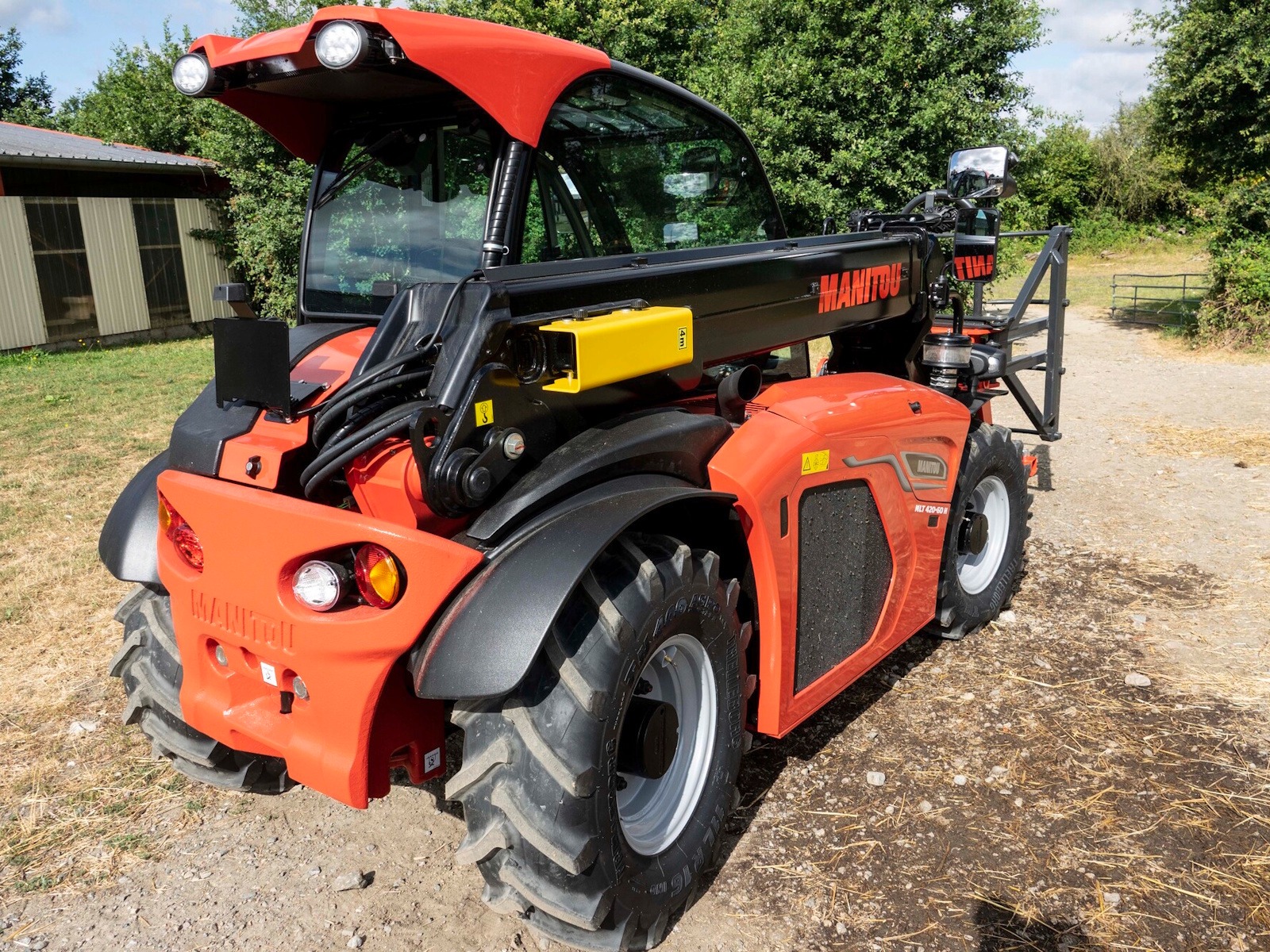

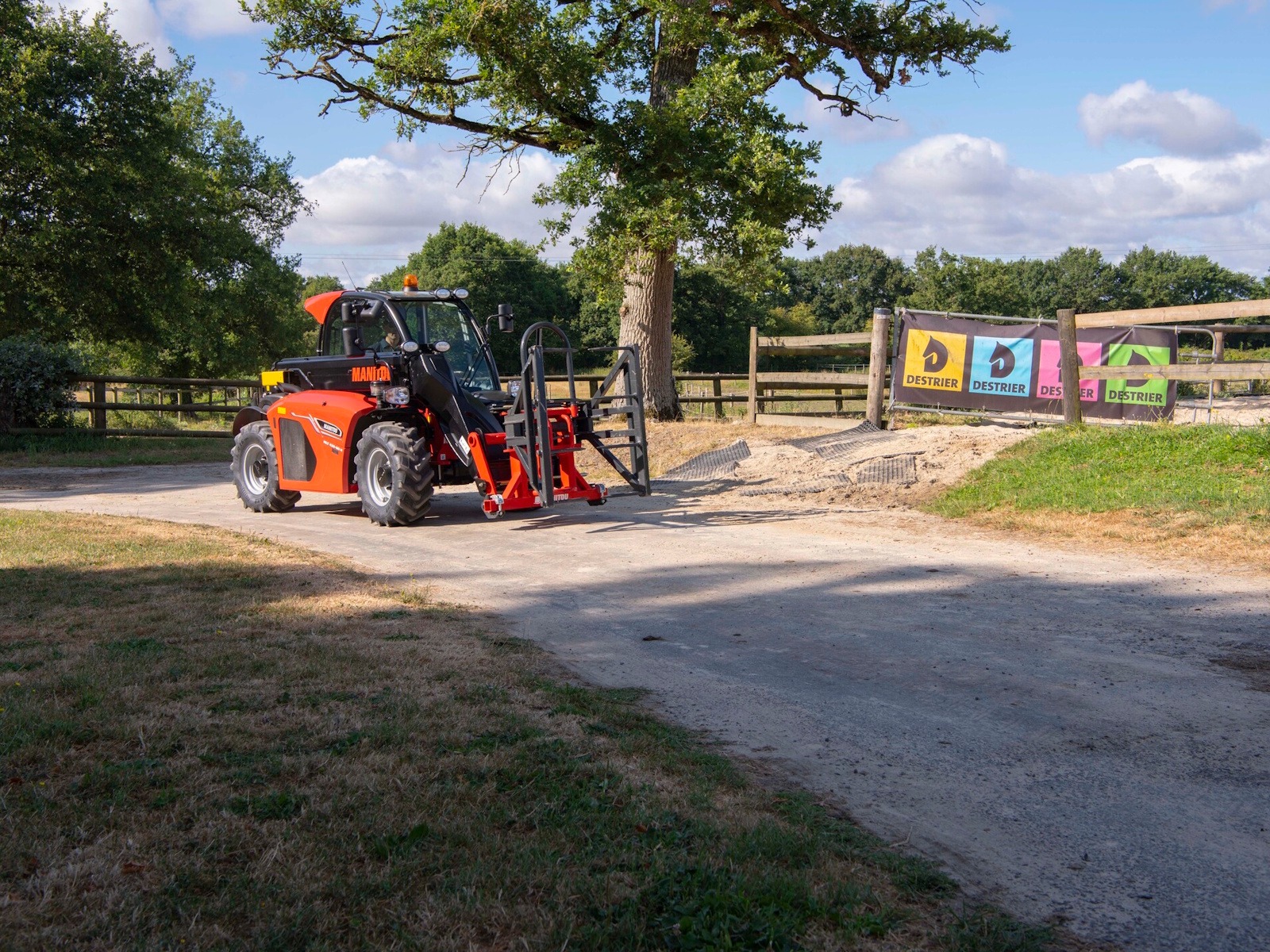

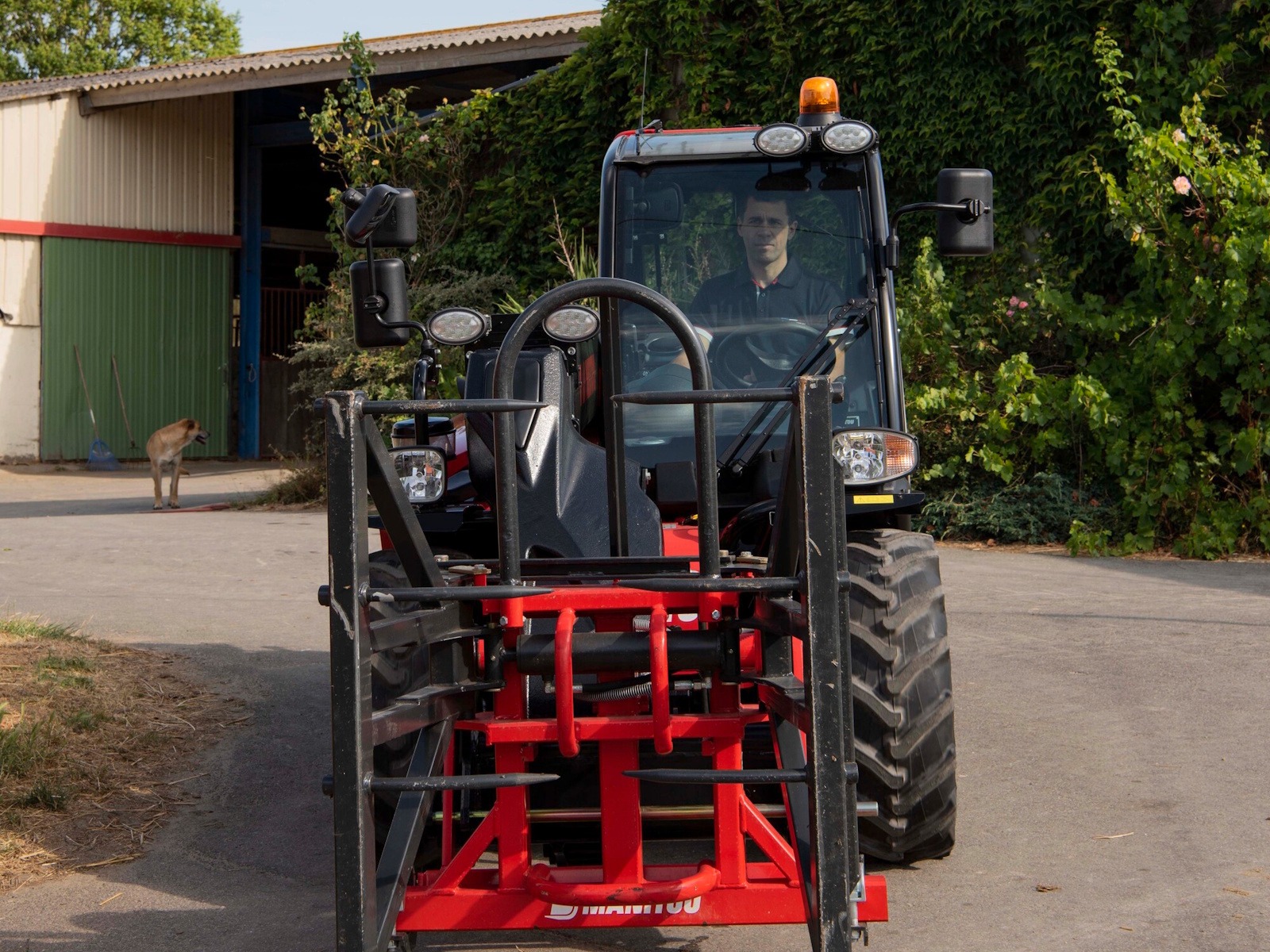

2026 Manitou Group MLT 420-60 H

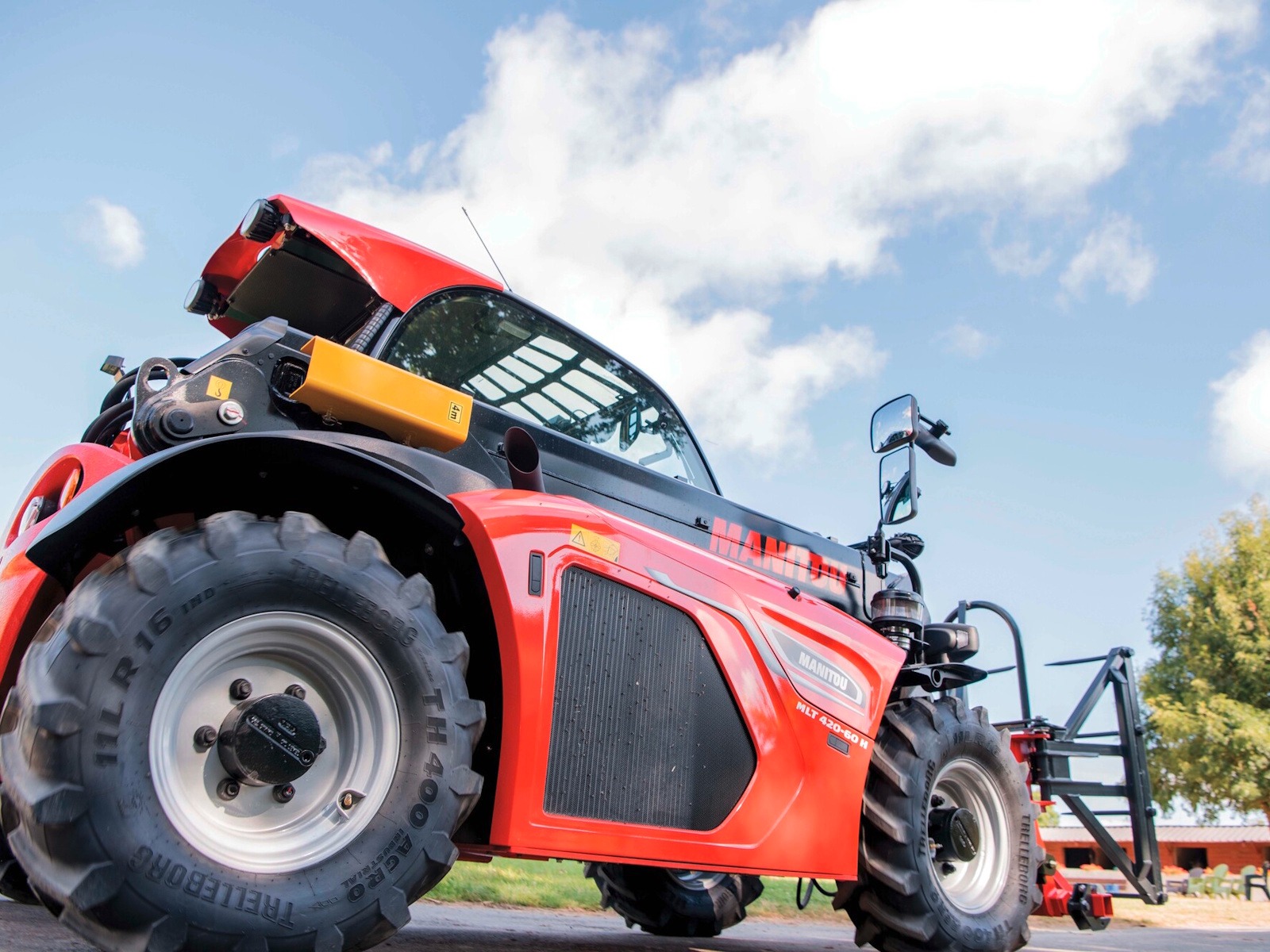

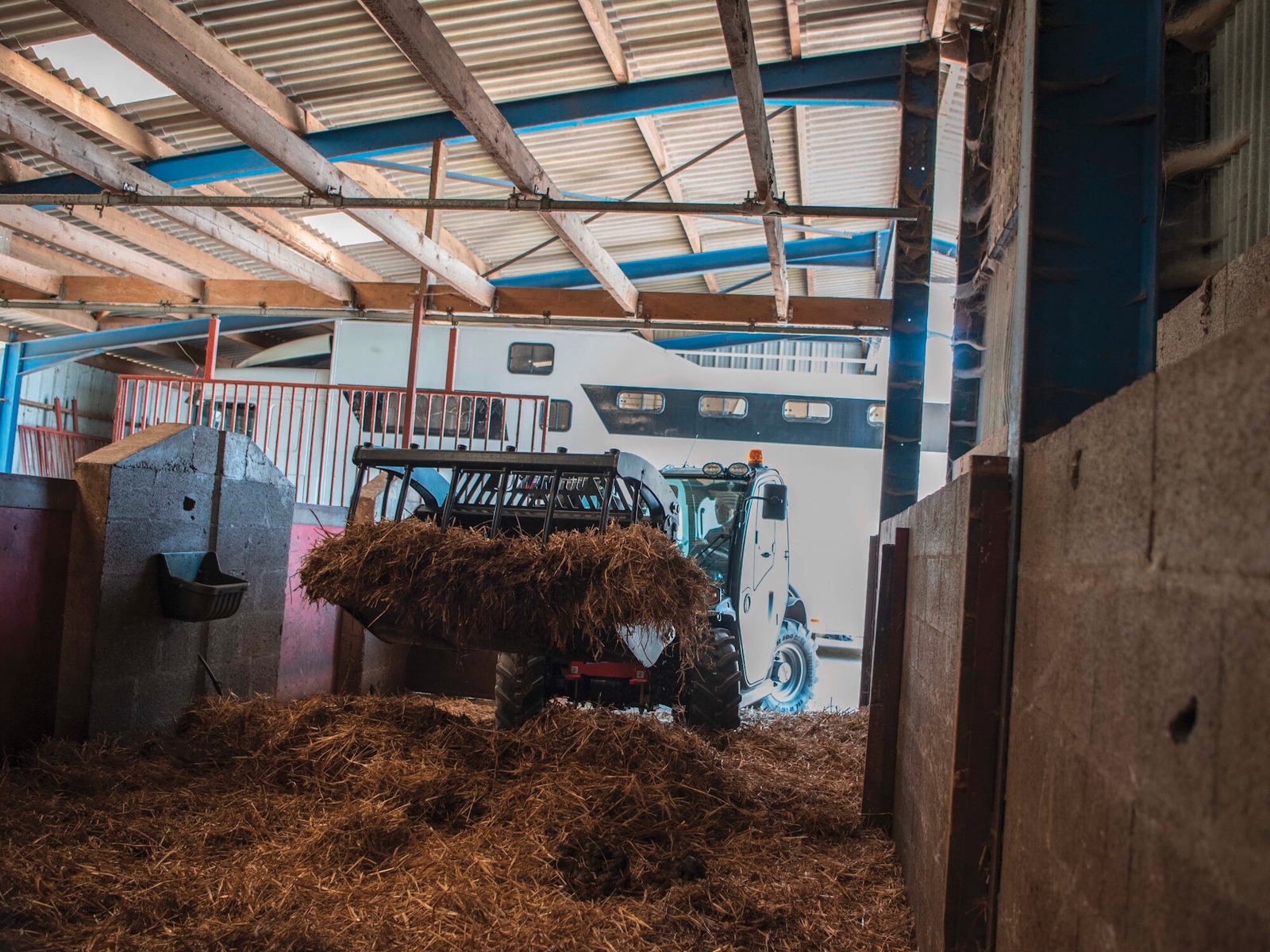

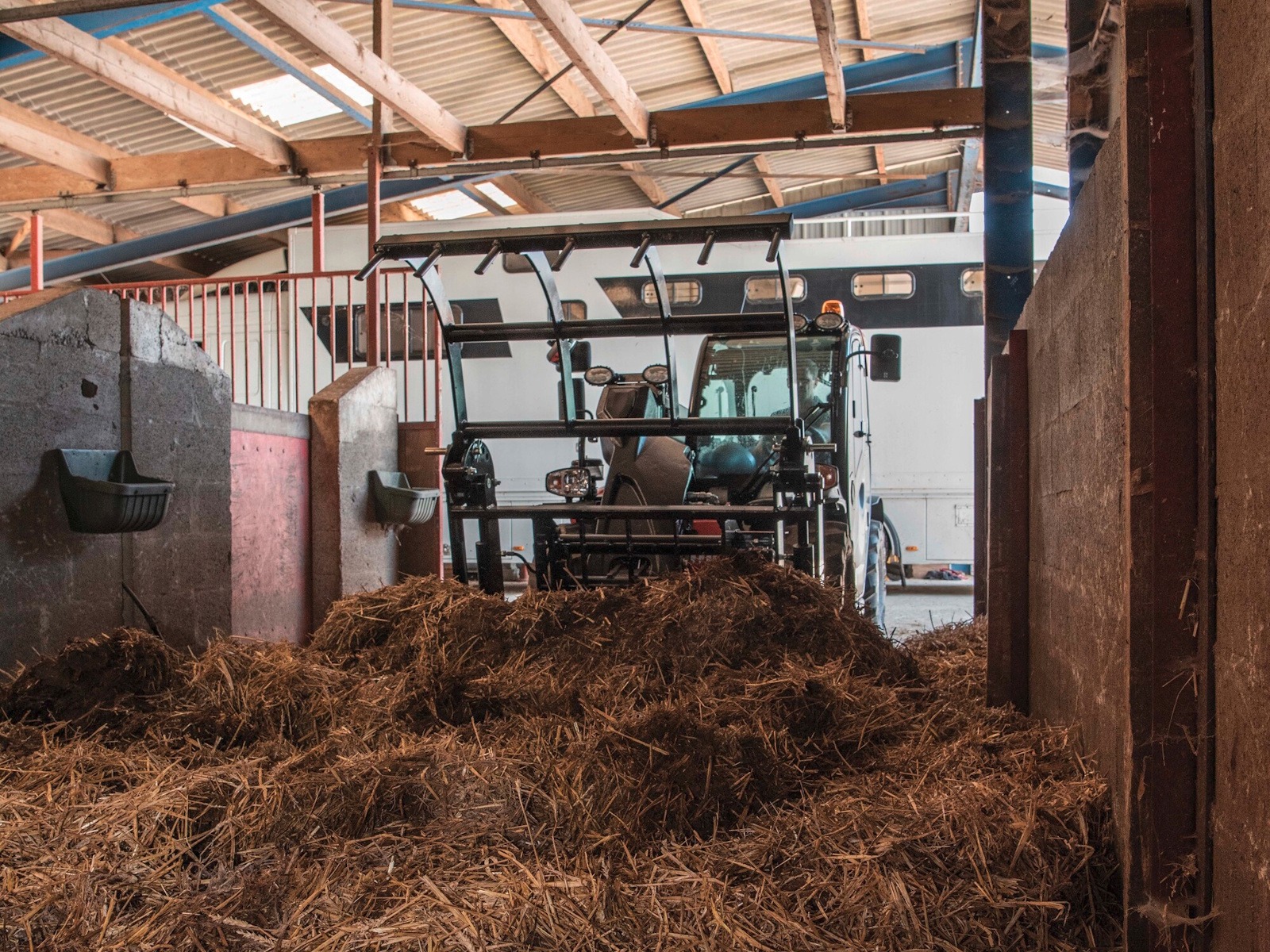

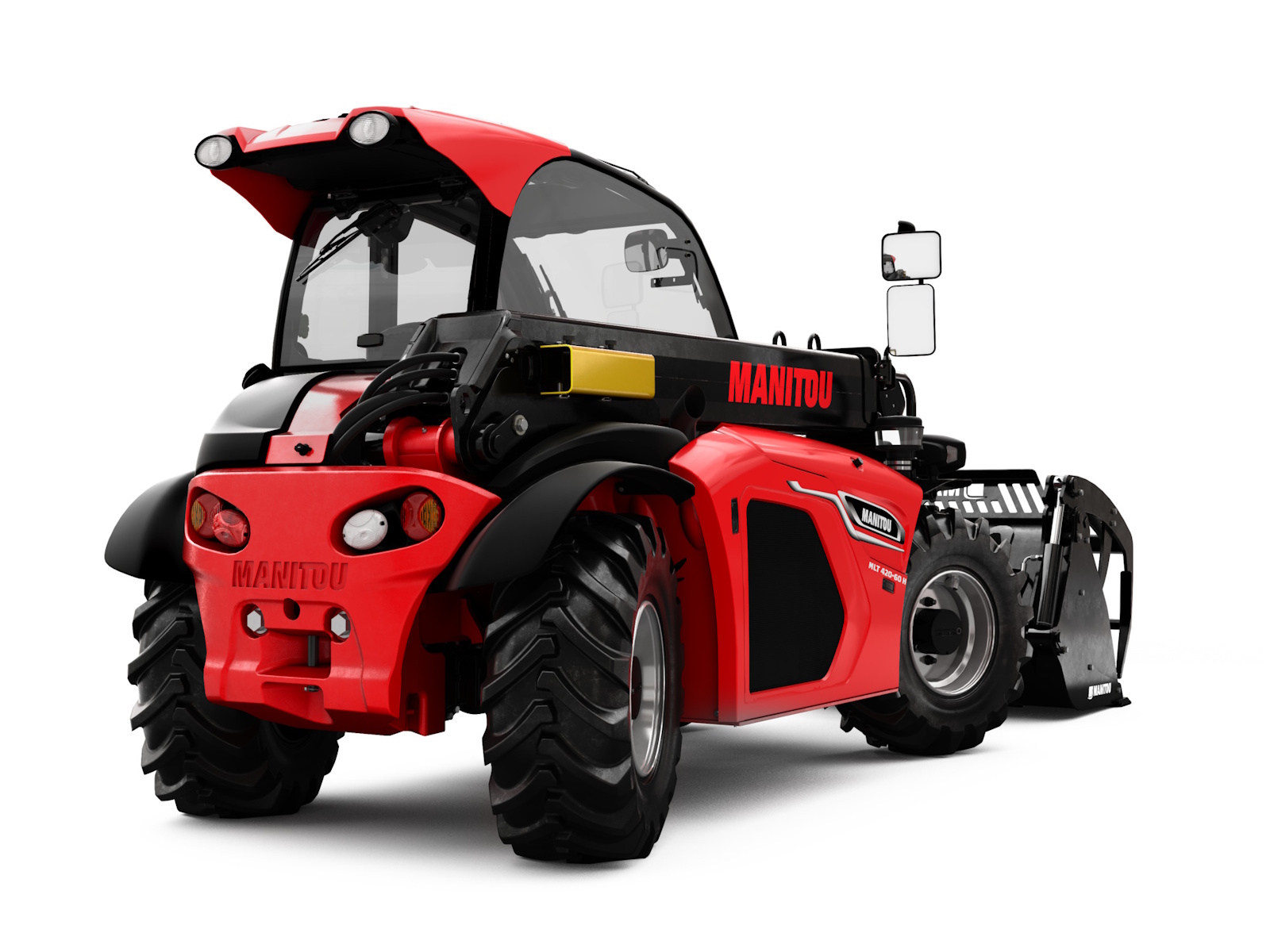

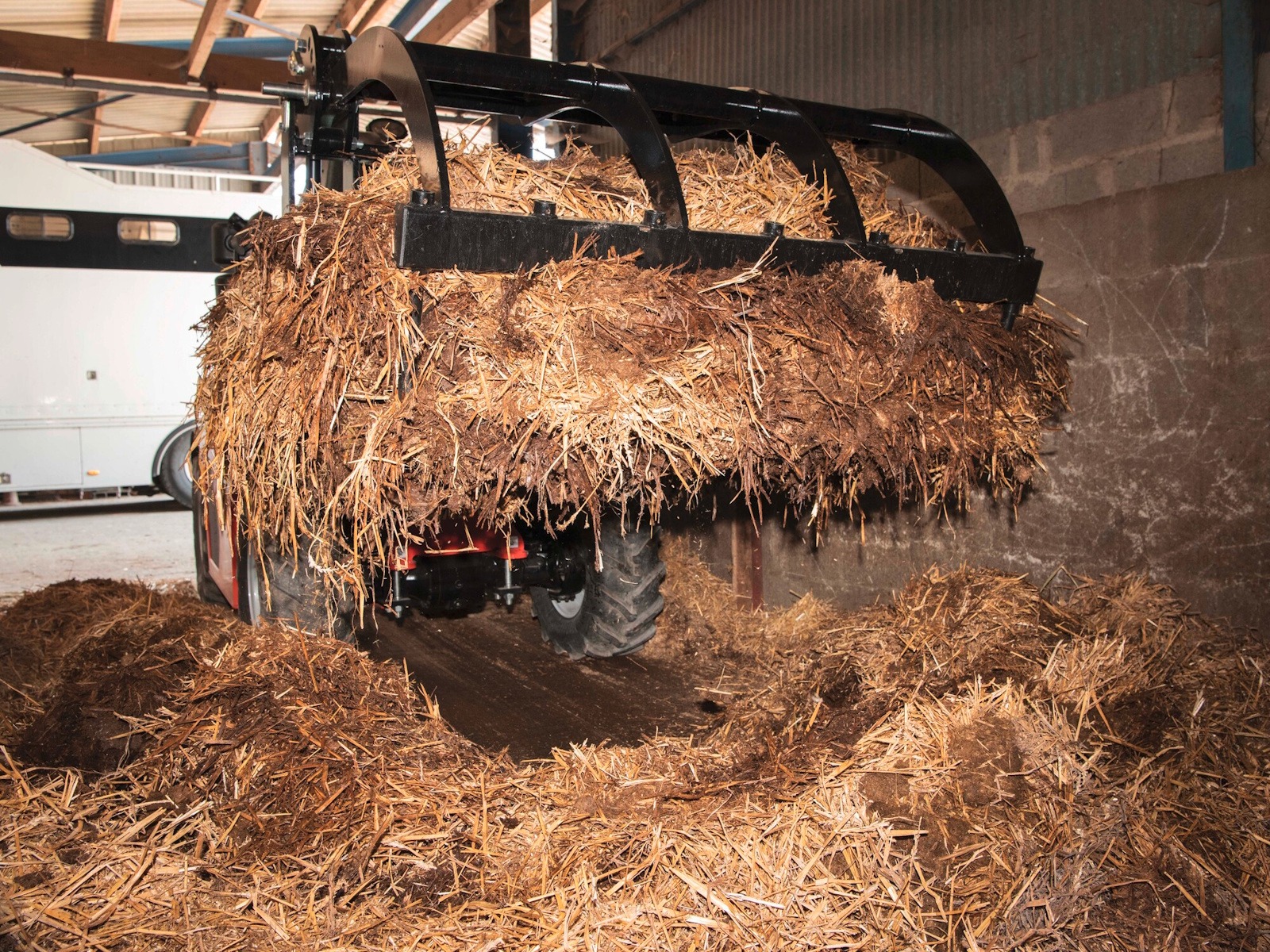

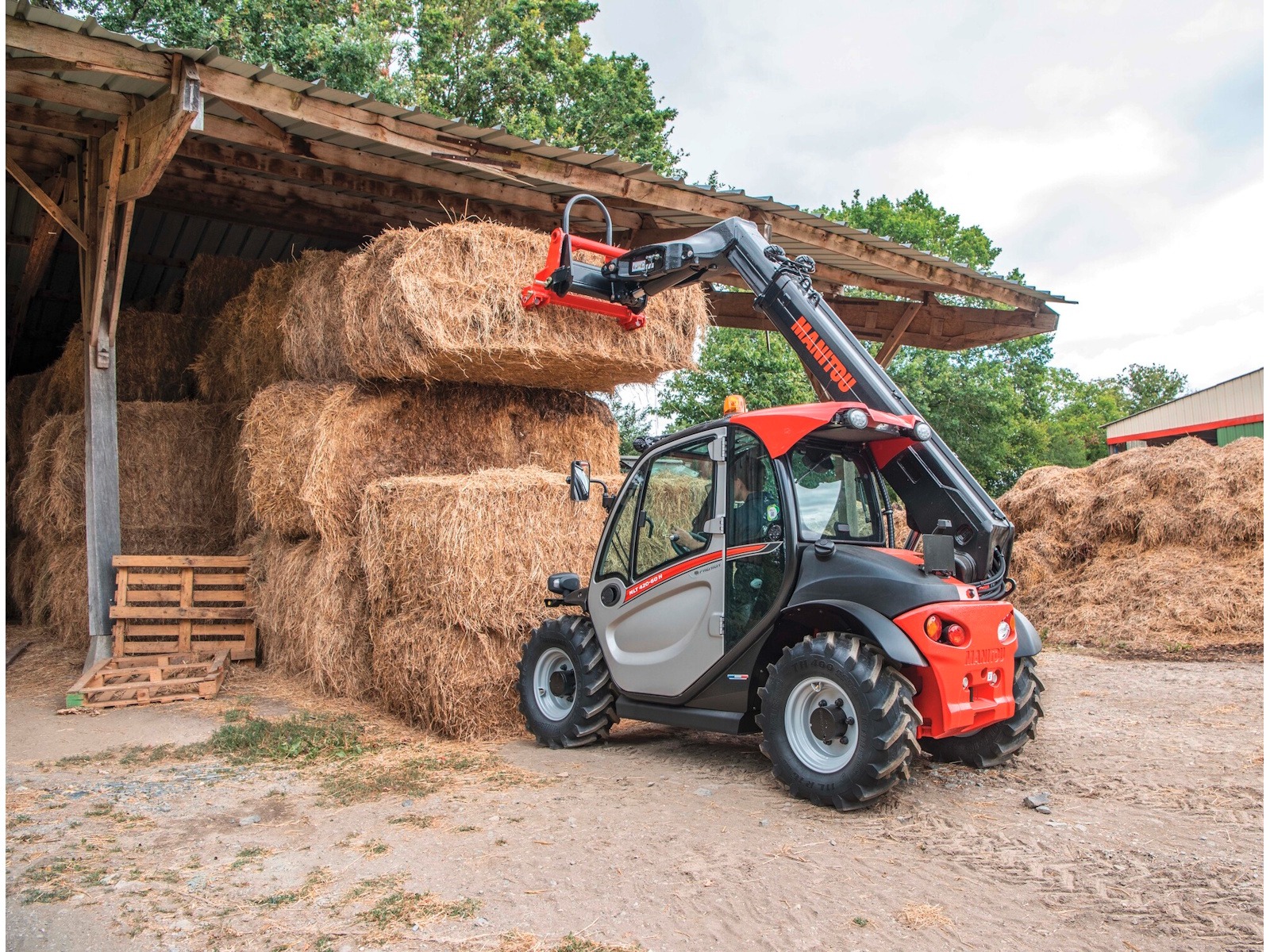

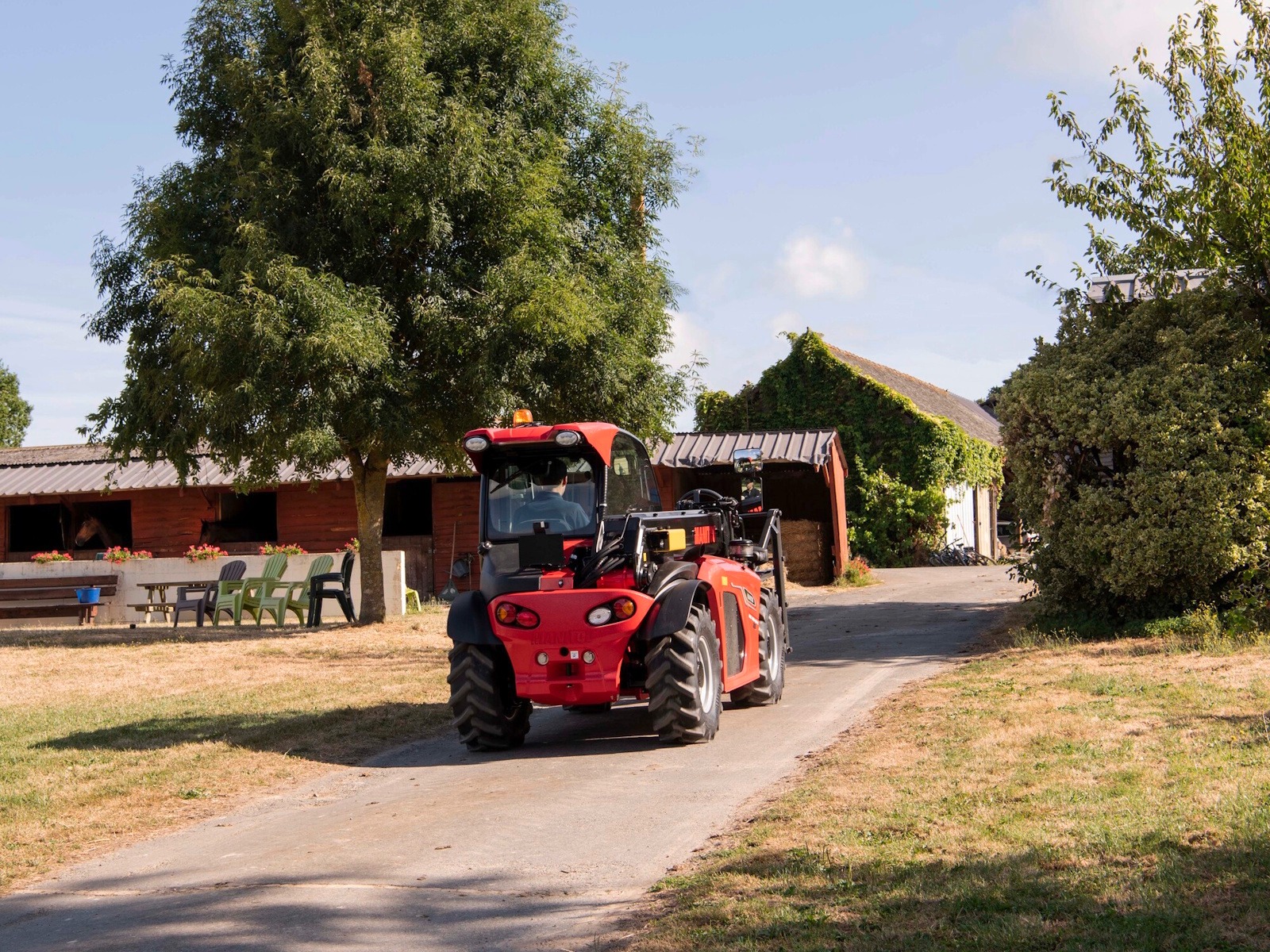

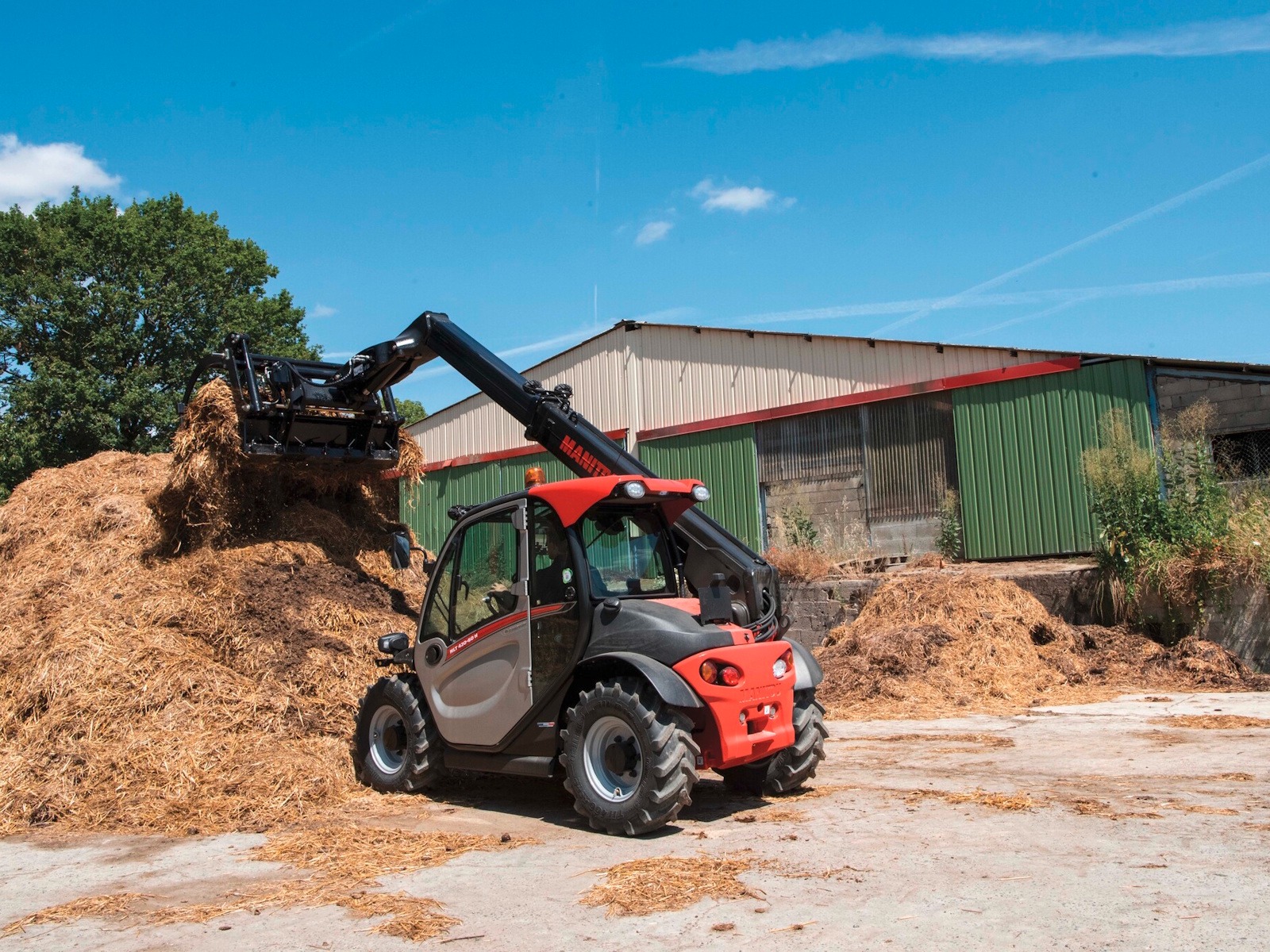

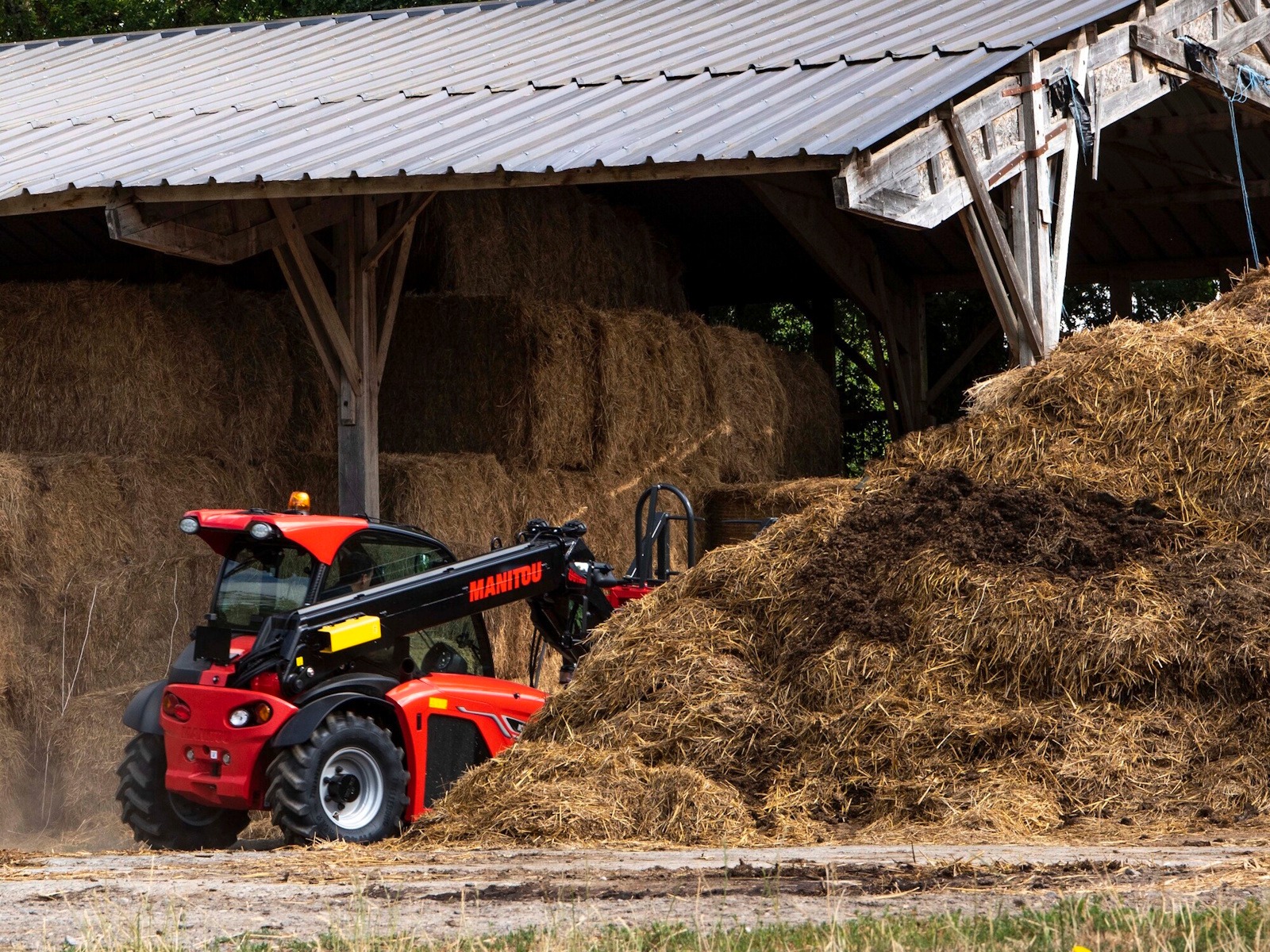

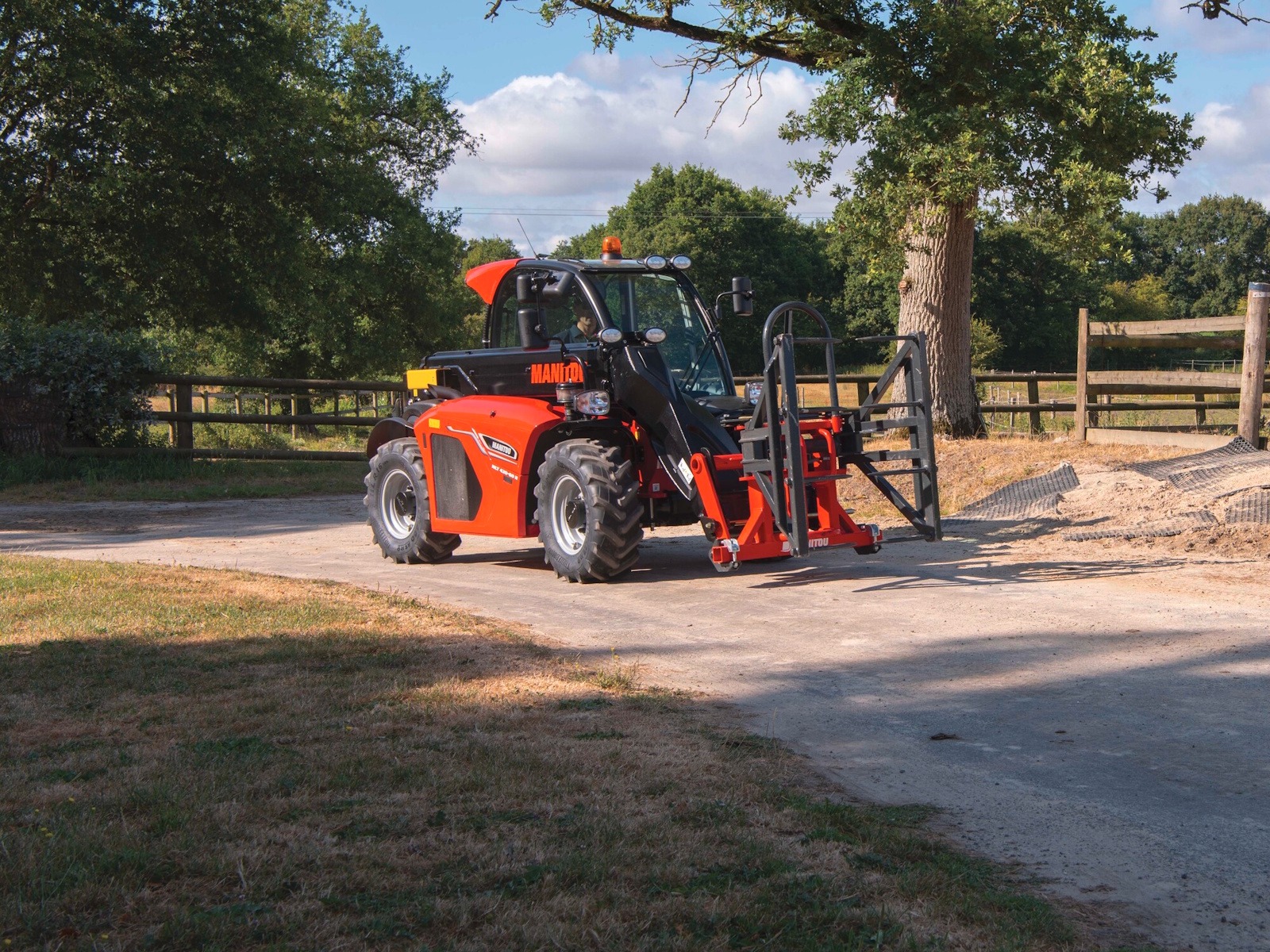

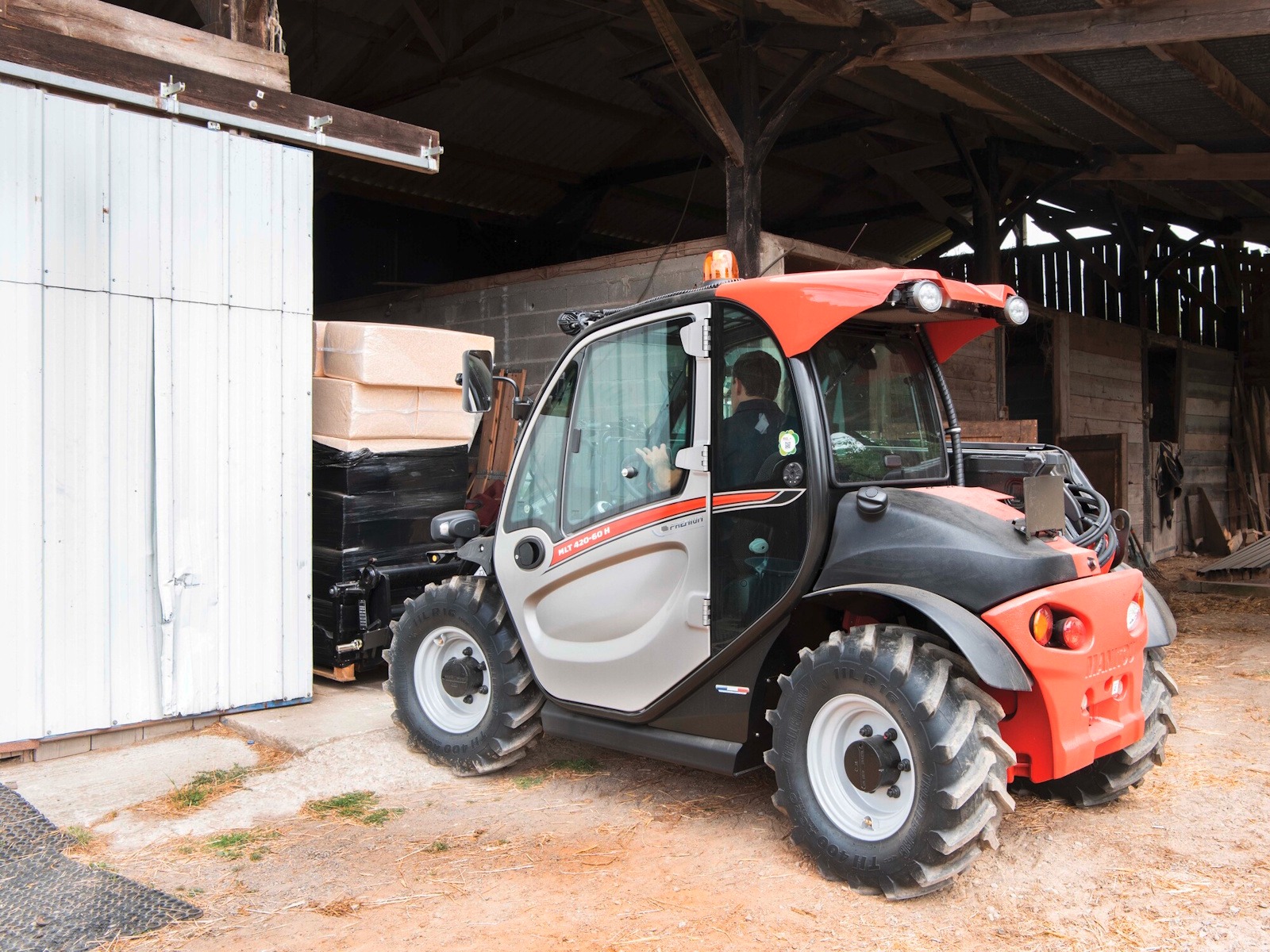

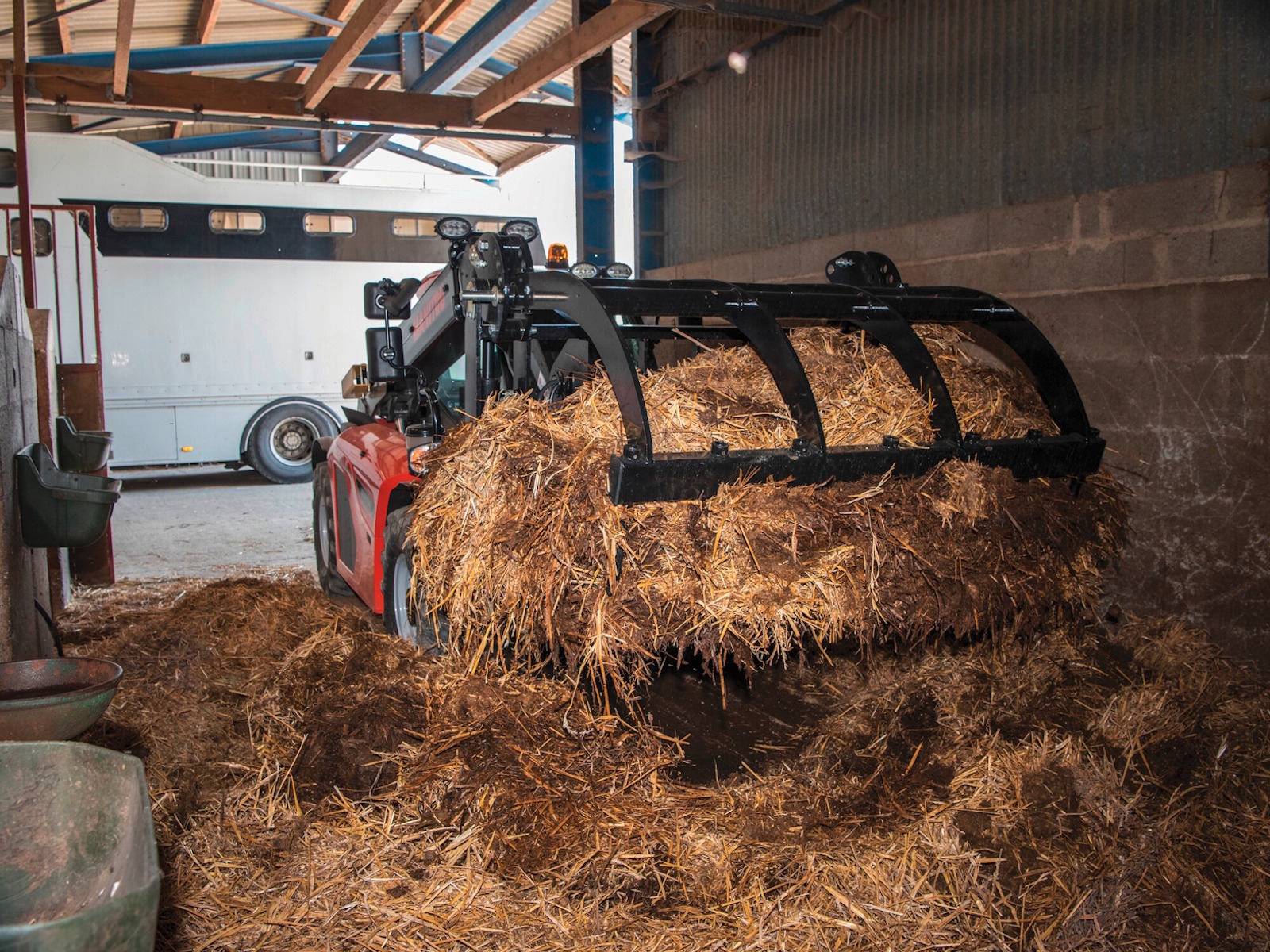

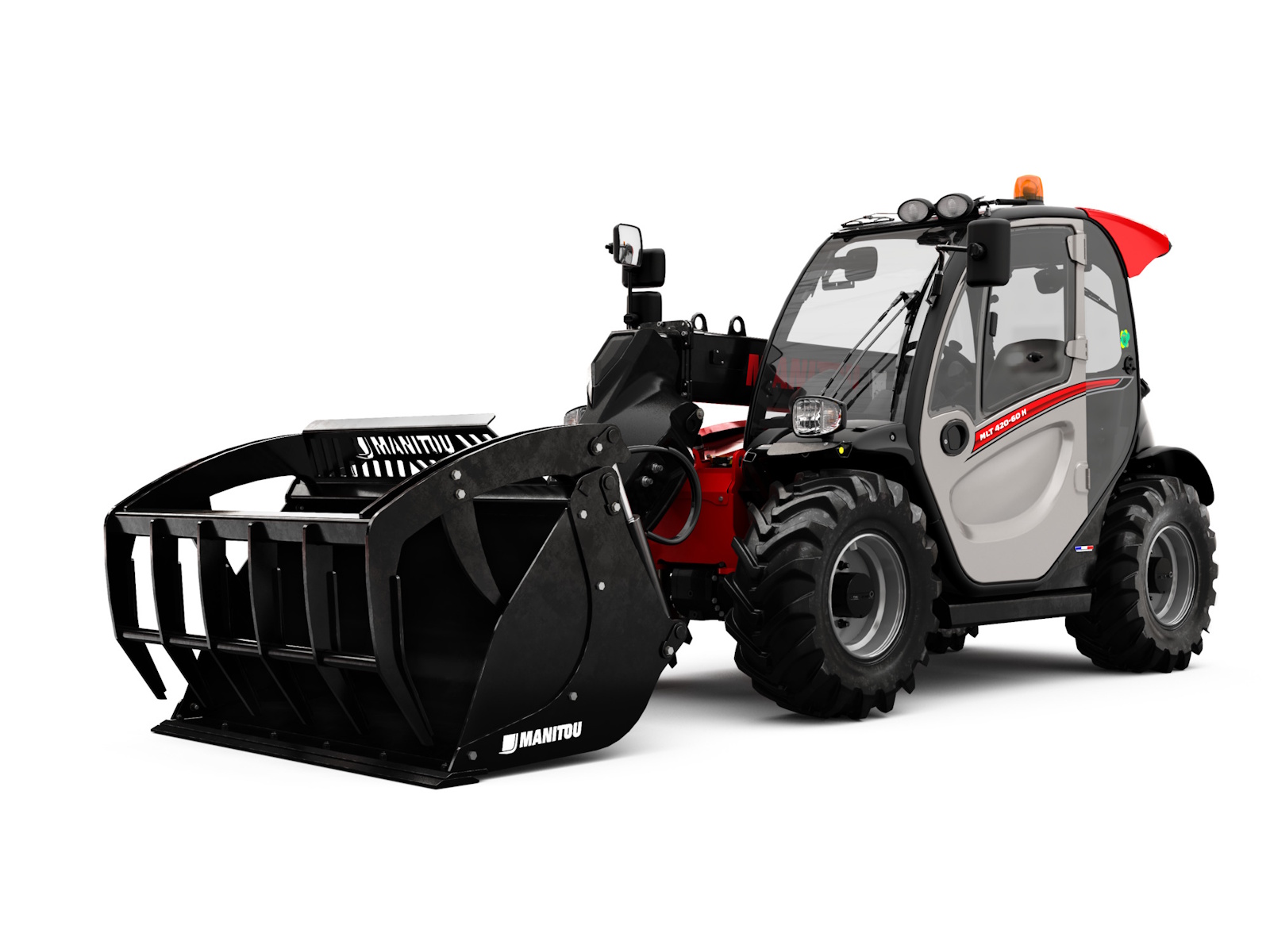

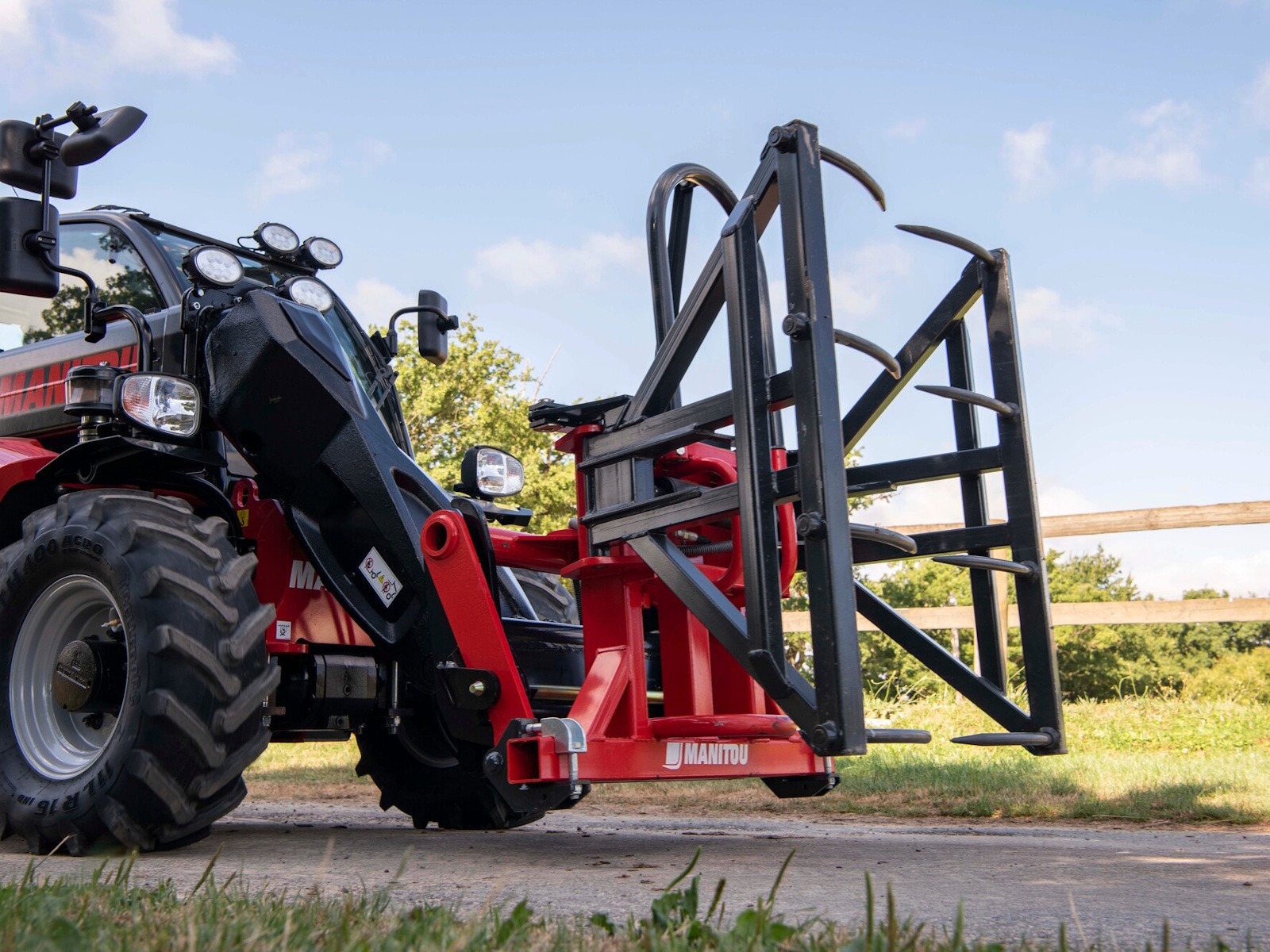

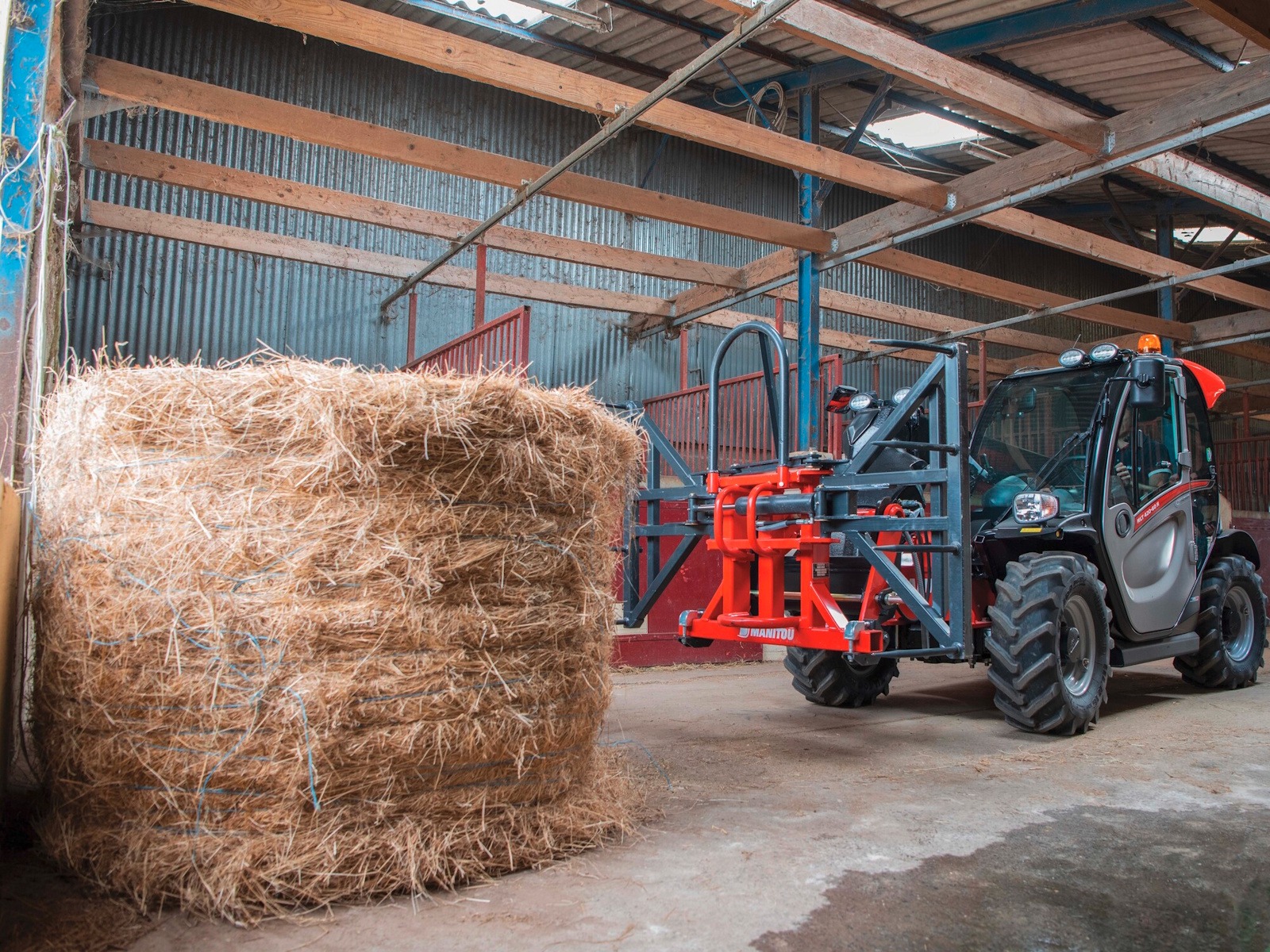

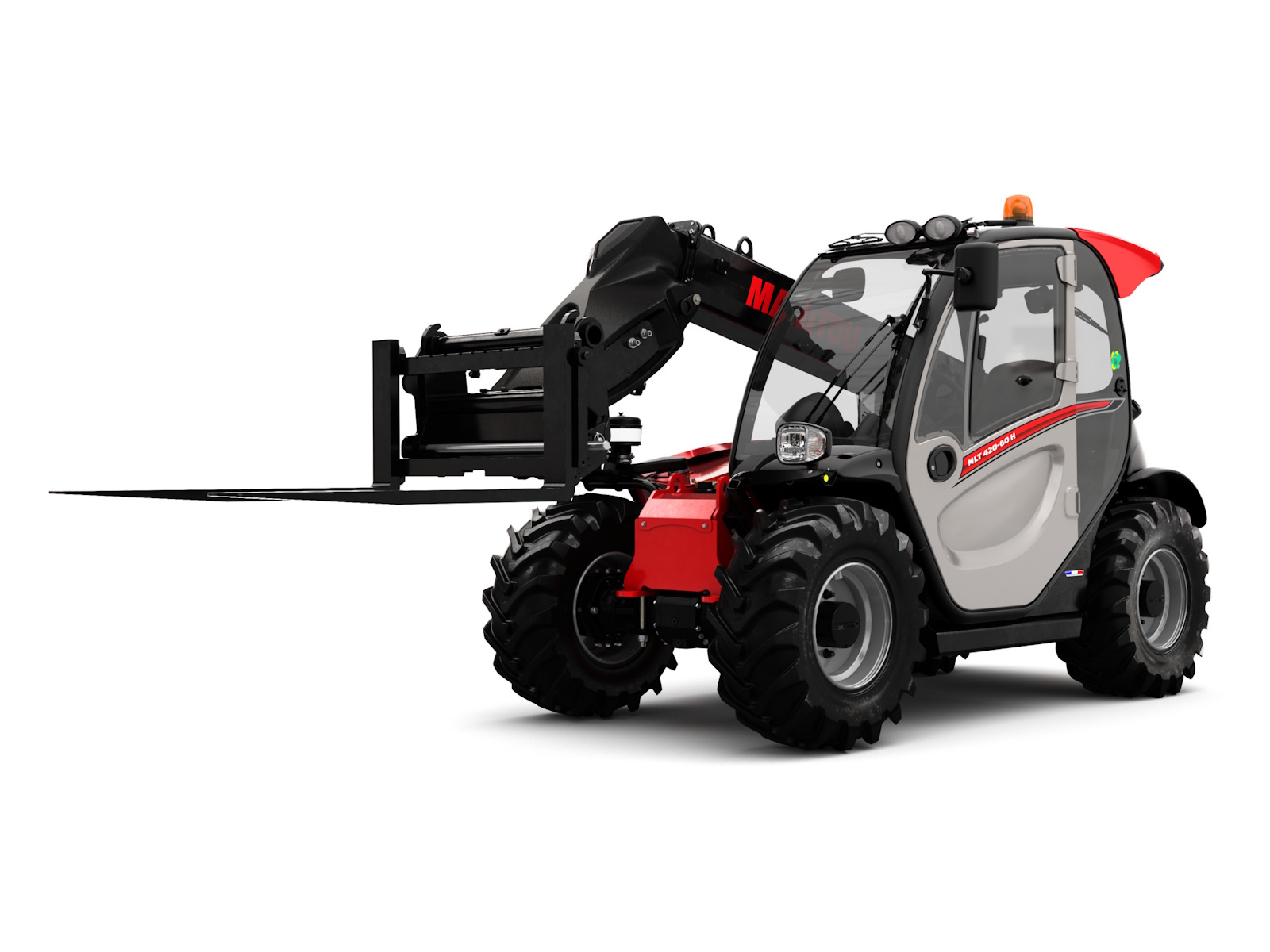

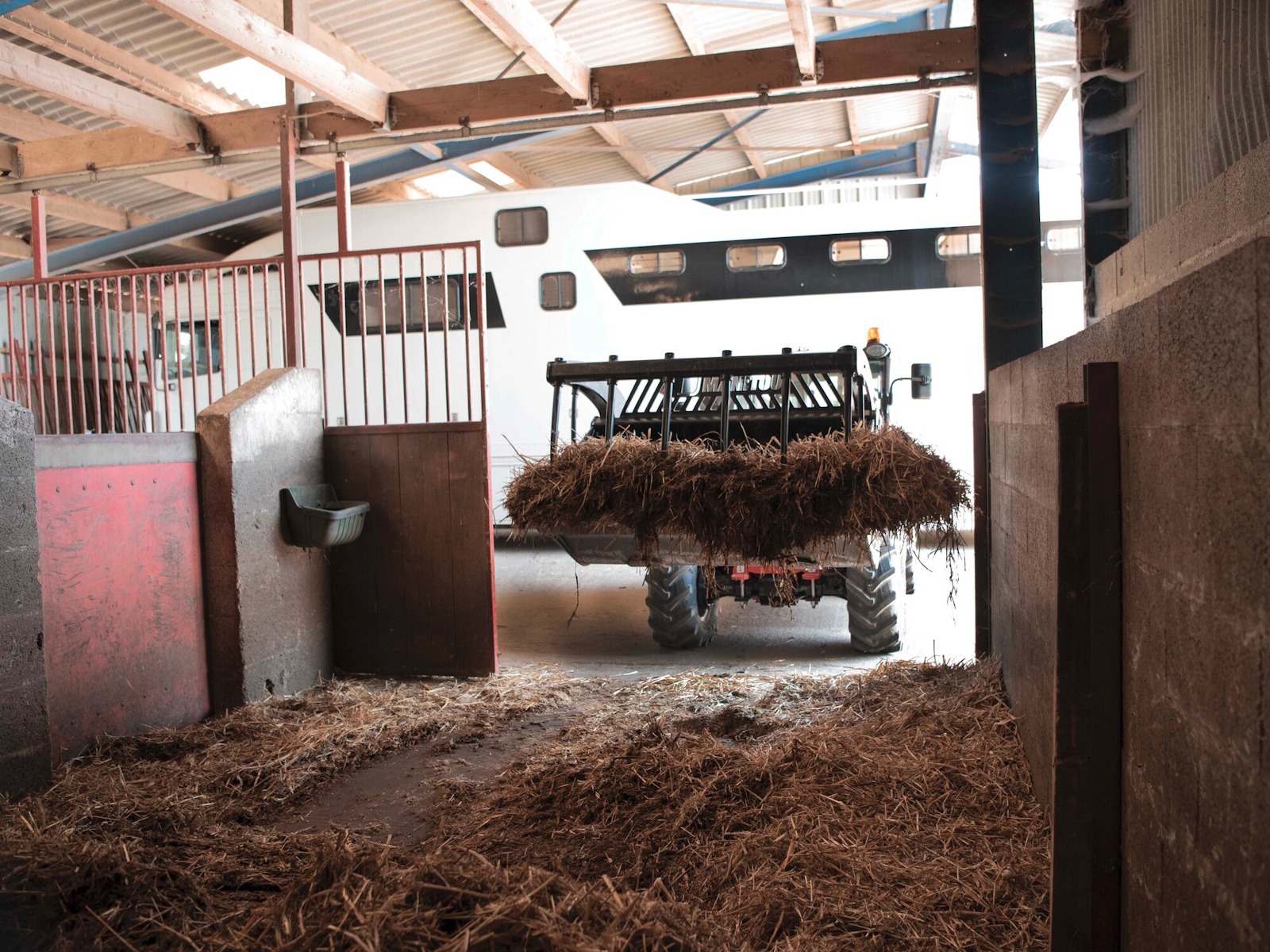

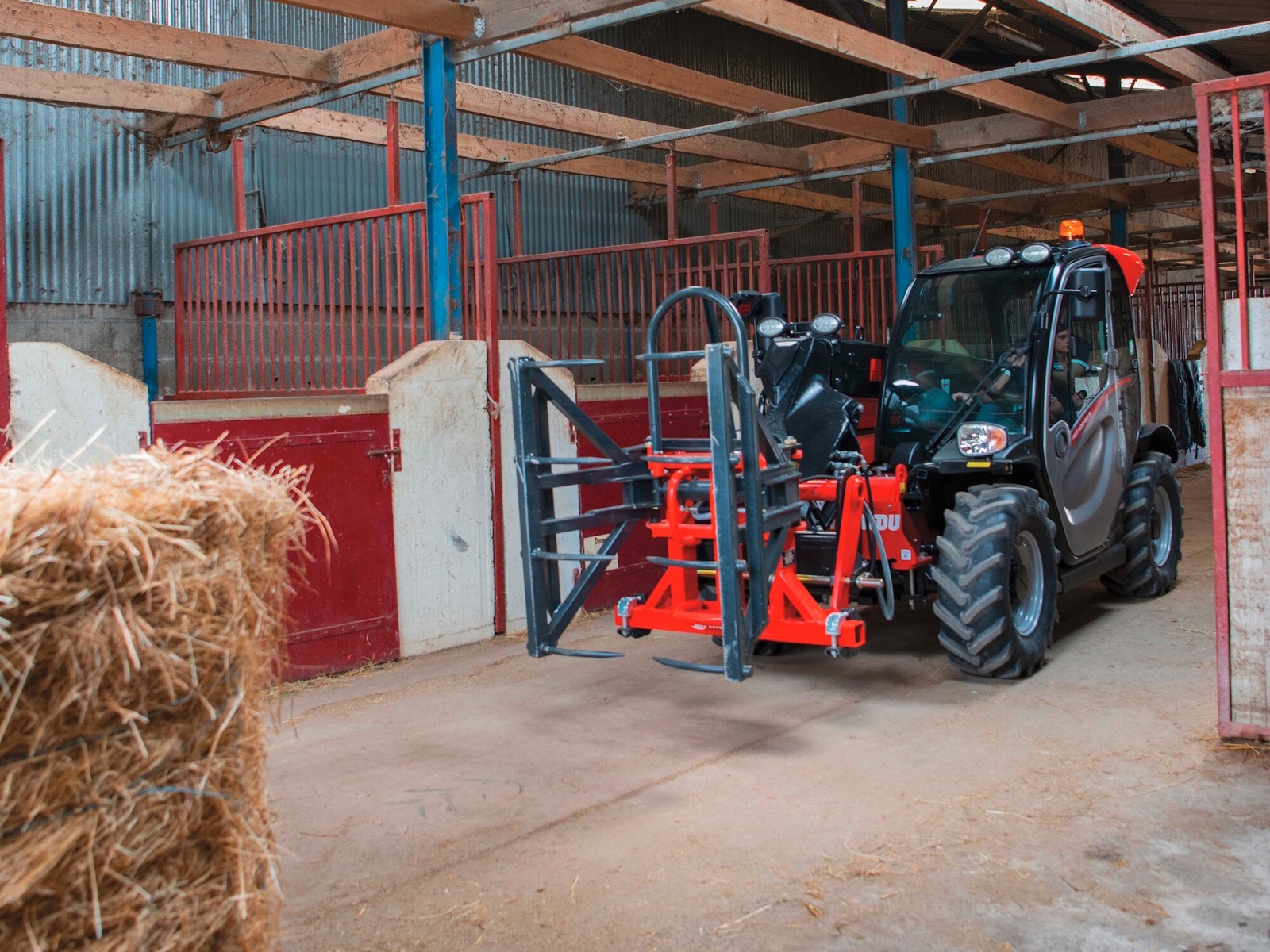

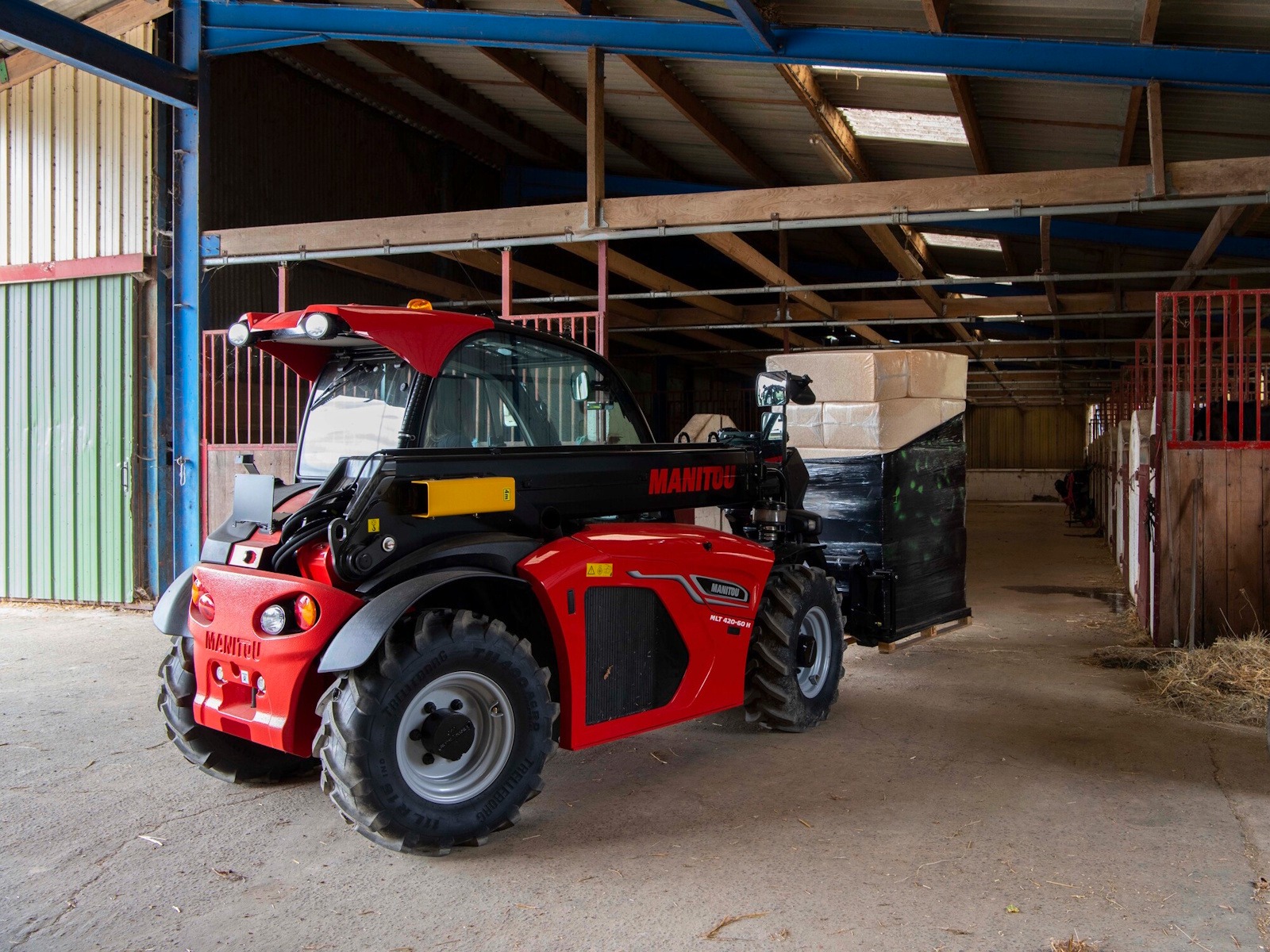

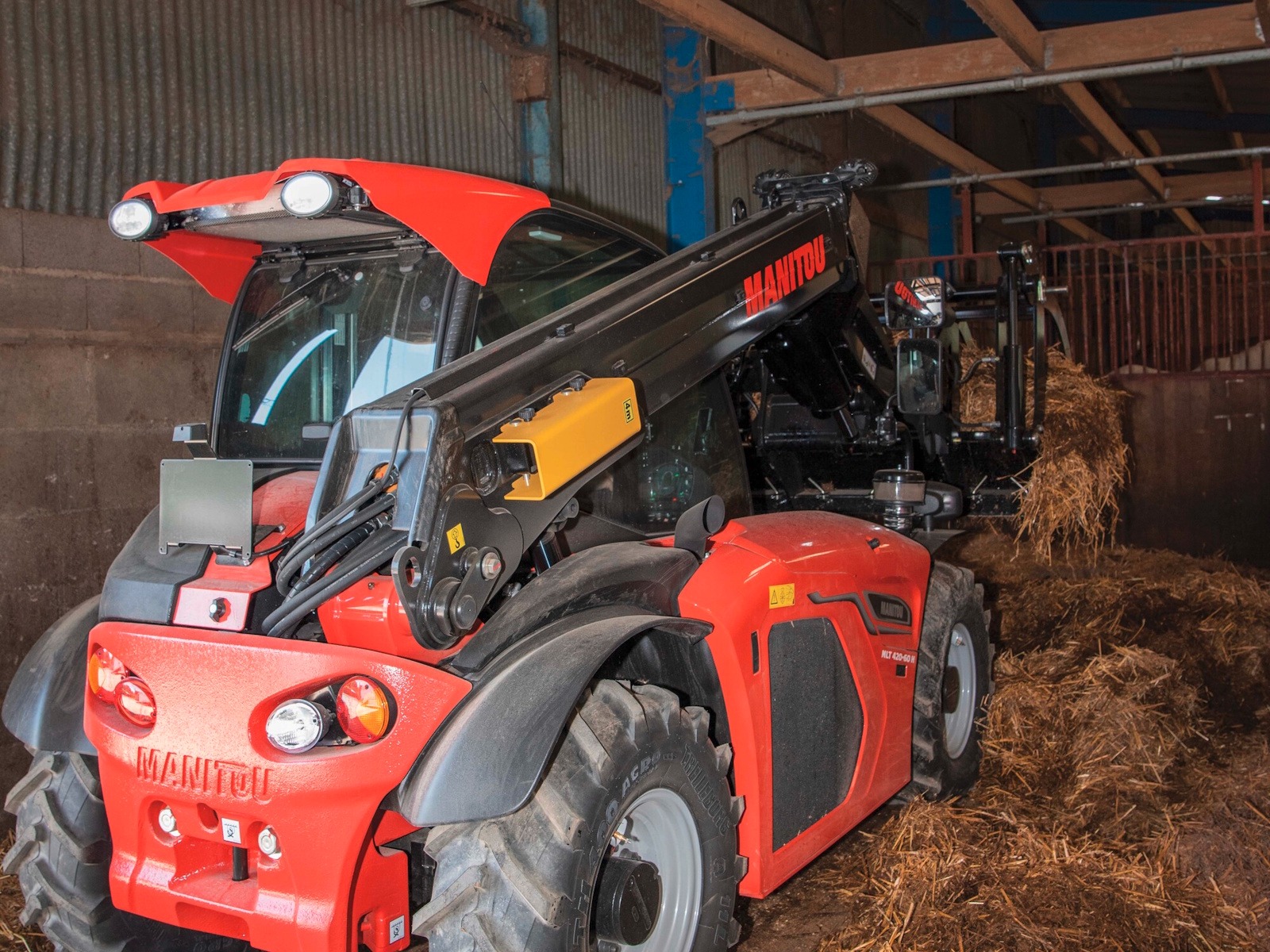

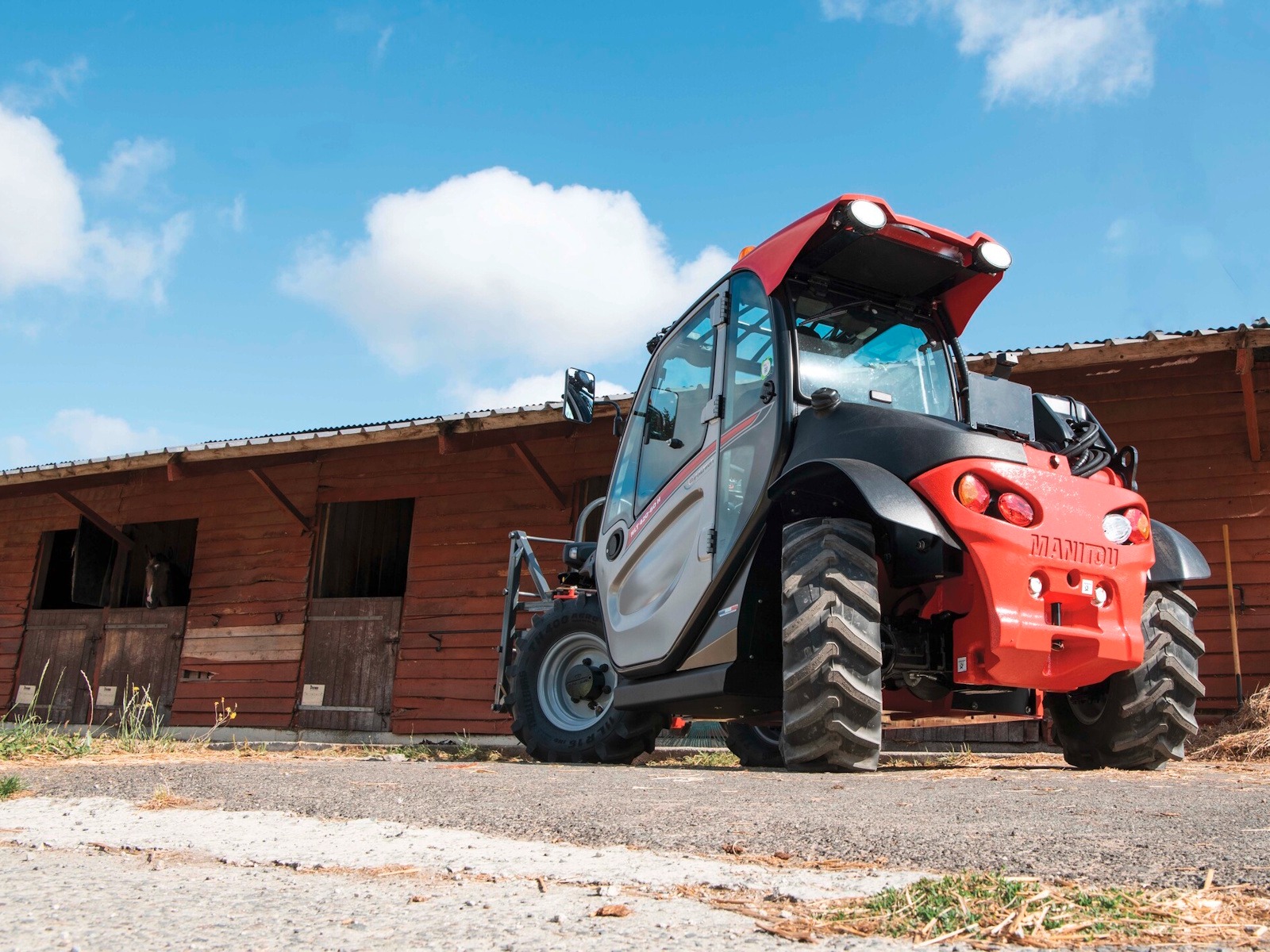

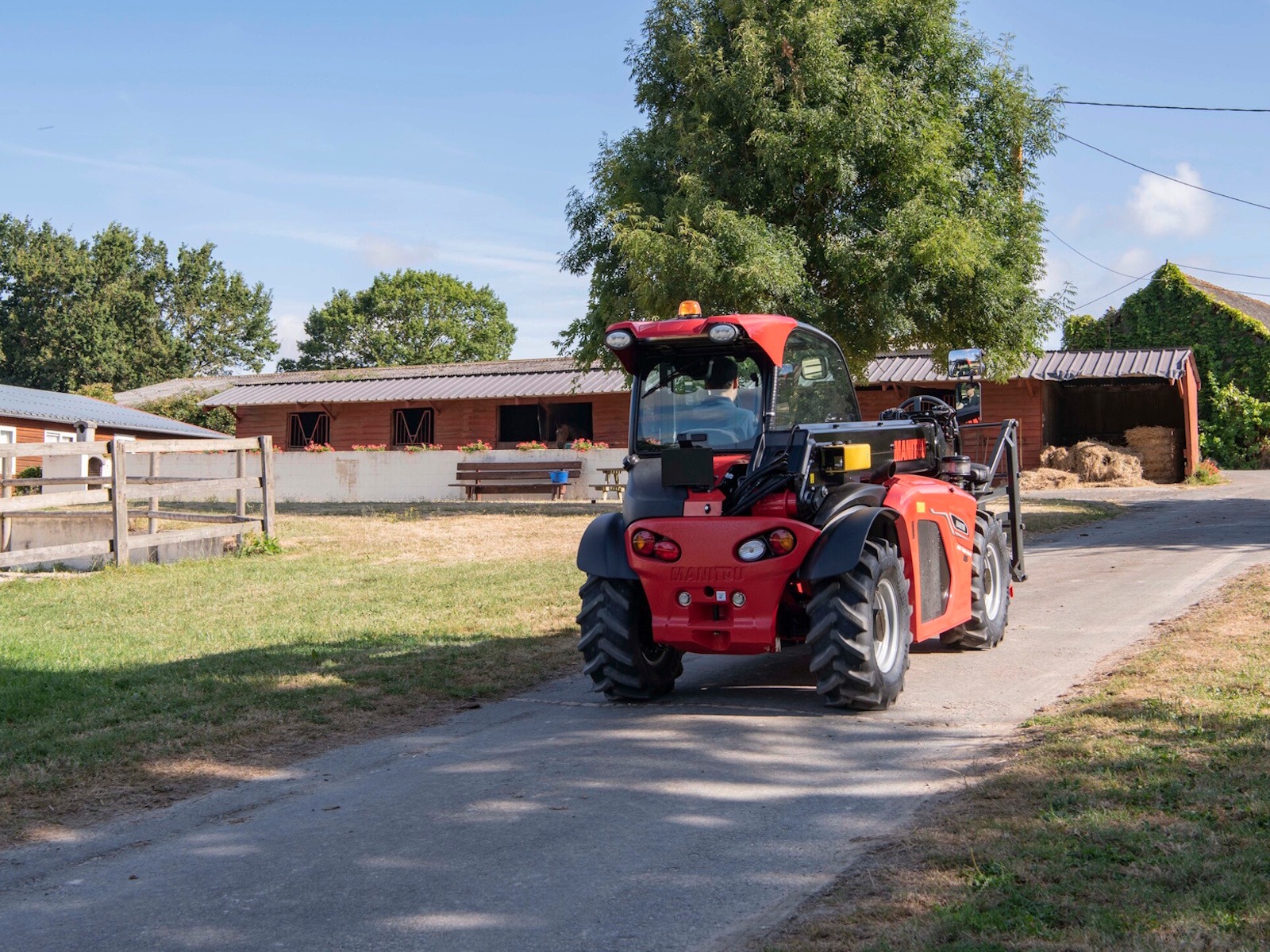

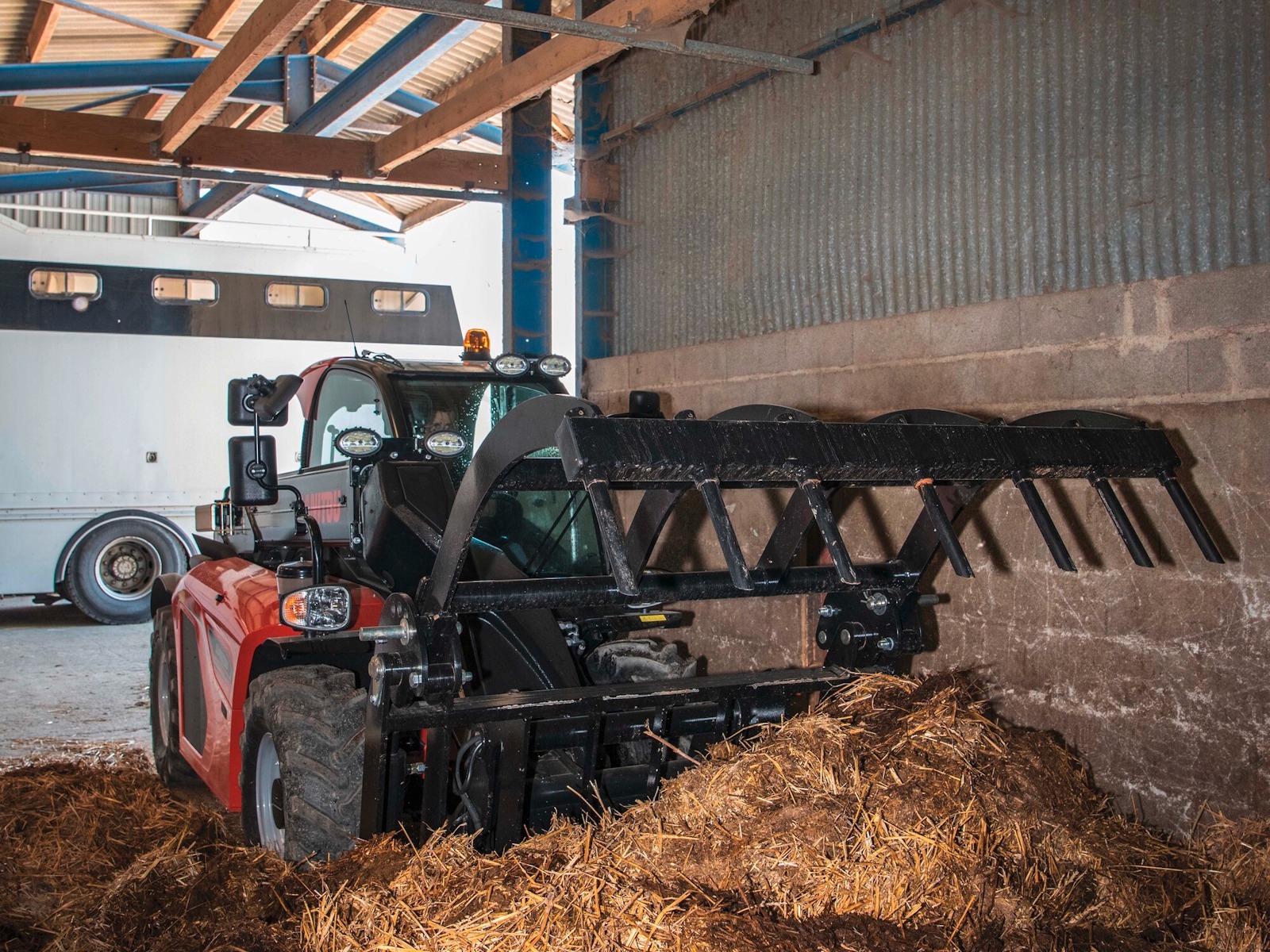

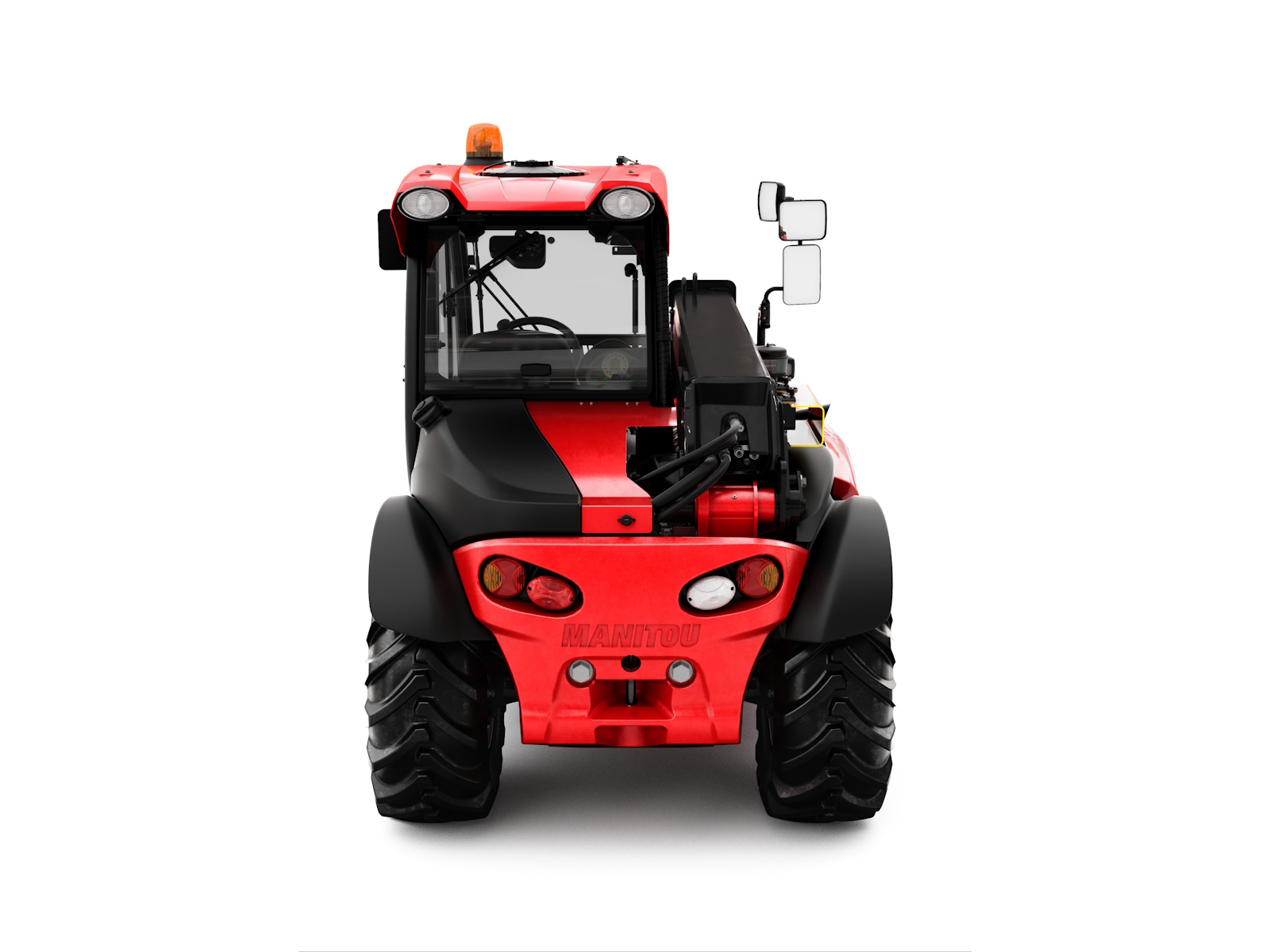

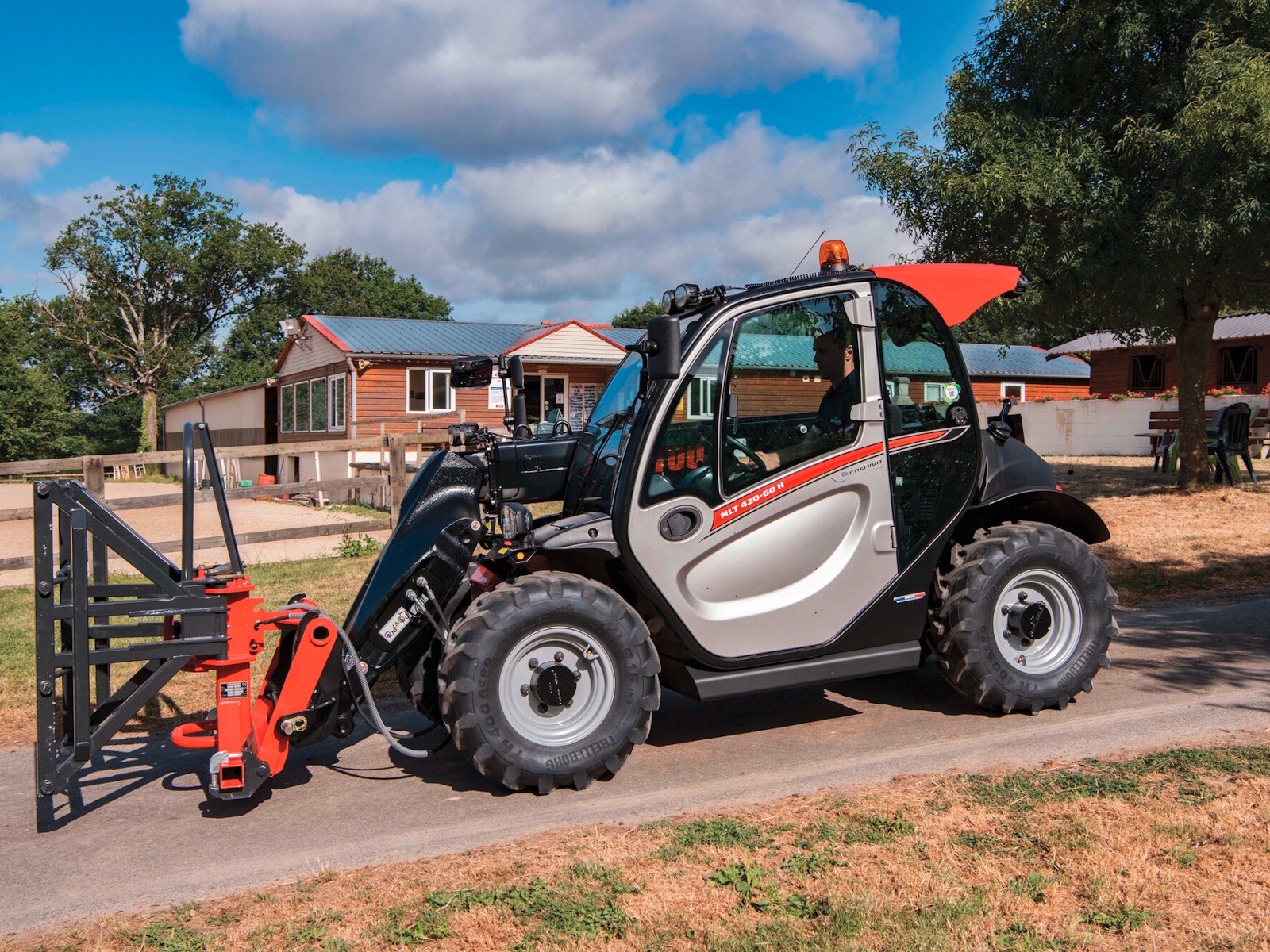

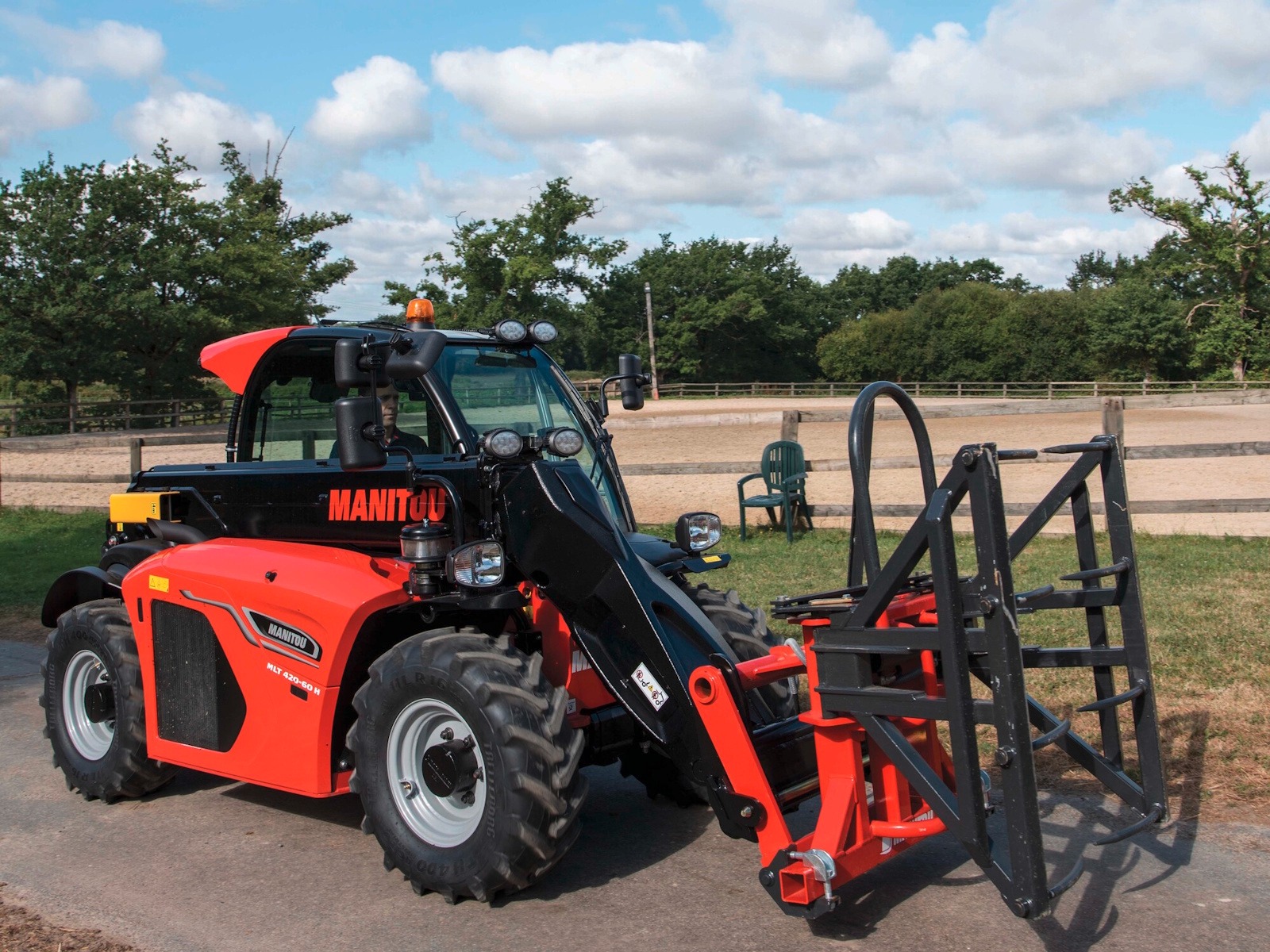

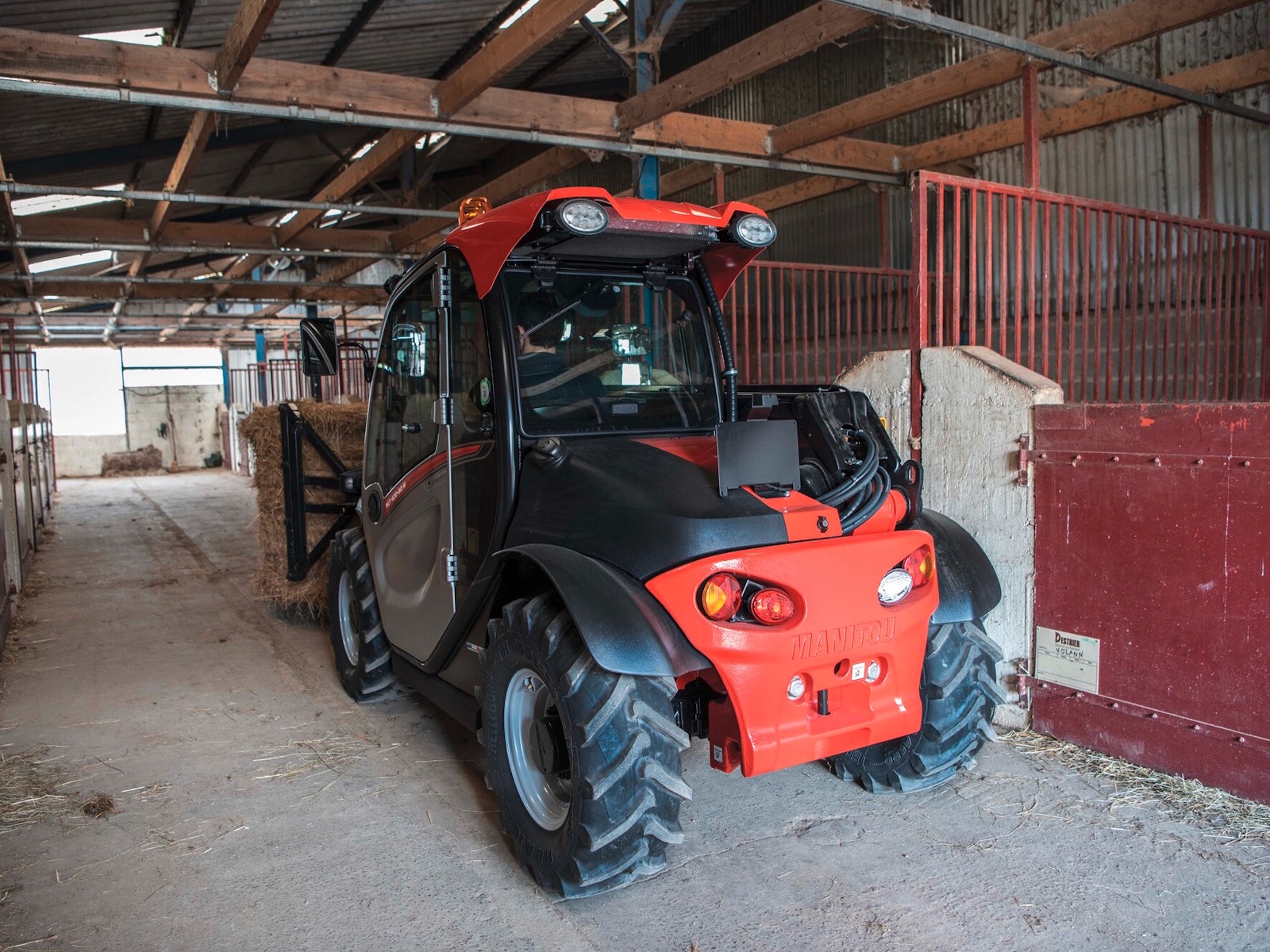

The MLT 420-60 H is an incredibly compact machine specially designed for agriculture and has been a proven asset when tackling the daily tasks needed to be done on your farm. Its compact dimensions ensure unparalleled maneuverability for access to smaller buildings and tight spaces. The comfort of the driver's cab, full 360° visibility and JSM (Joystick Switch & Move) controls are just some of the features that make working days safer and less exhausting. The Easy Connect System (ECS) makes swapping boom tip attachments easy and the sheer number available provides the versatility your farm requires. The hydraulic movements are precise and smooth on the MLT 420, combined with 4-wheel drive, 4-wheel steer and 4 steering modes to optimize more flexibility, regardless of the situation.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 420-60 H
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
4409 lb
Height
Max. lifting height: 14 ft 3 in | Reach at max. height: 3 ft 3 in | 6 ft 5 in
Notes
Max. outreach: 8 ft 8 in | Breakout force with bucket: 1886 daN | Front overhang: 3 ft 5 in | Tilt-down angle: 116 ° | Tilt-up angle: 12 ° | Lifting: 5 s | Lowering: 3.50 s | Extension: 4.80 s | Retraction: 3 s | Crowd: 3.30 s | Dump: 2.70 s | Drawbar pull (Laden): 2850 daN | Reversible fan: Standard | Engine cooling system: 2 radiators water + hydraulic oil | Number of gears (forward / reverse): 2 / 2 | Max. travel speed (may vary according to applicable regulations): 16 mph | Differential lock: Limited slip differential on front axle | Hydraulic pump type: Gear pump | Hydraulic flow - Pressure: 20 US gpm - 3408 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 76 dB | Noise to environment (LwA): 104 dB | Vibration on hands/arms: < 8 ft/s² | Cab certification: ROPS - FOPS cab (level 1) | Controls: JSM
Weight
Unladen weight (with forks): 9237 lb
Ground Clearance
10 in
Wheelbase
7 ft
Length
Overall length to carriage (with hitch): 11 ft 11 in | Overall length to carriage (without hitch): 11 ft 11 in
Width
4 ft 11 in | Overall cab width: 2 ft 7 in
Turning Radius
External turning radius (over tyres): 10 ft
Tires
CAMSO - SKS532 - 12-16.5 145A2
Wheels
Drive wheels (front / rear): 2 / 2
Steering
2 wheel steer, 4 wheel steer, Crab mode
Engine
Kubota | Stage V
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 160 in³
Power/Horsepower
57 Hp / 42 kW
Torque
128 ft/lbs @1600 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Automatic negative parking brake
Fuel Capacity
16 US gal | Hydraulic tank capacity: 18 US gal
