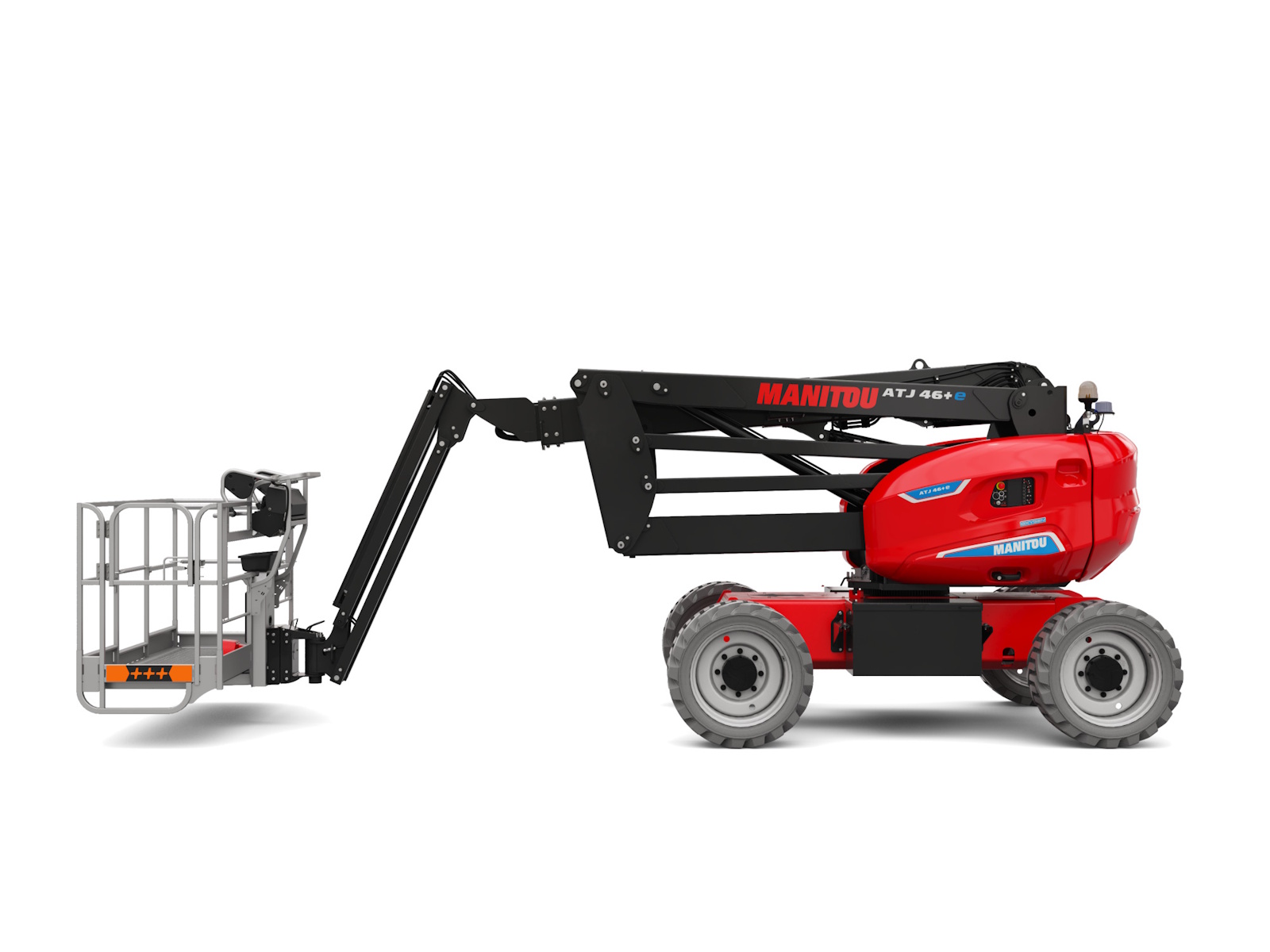

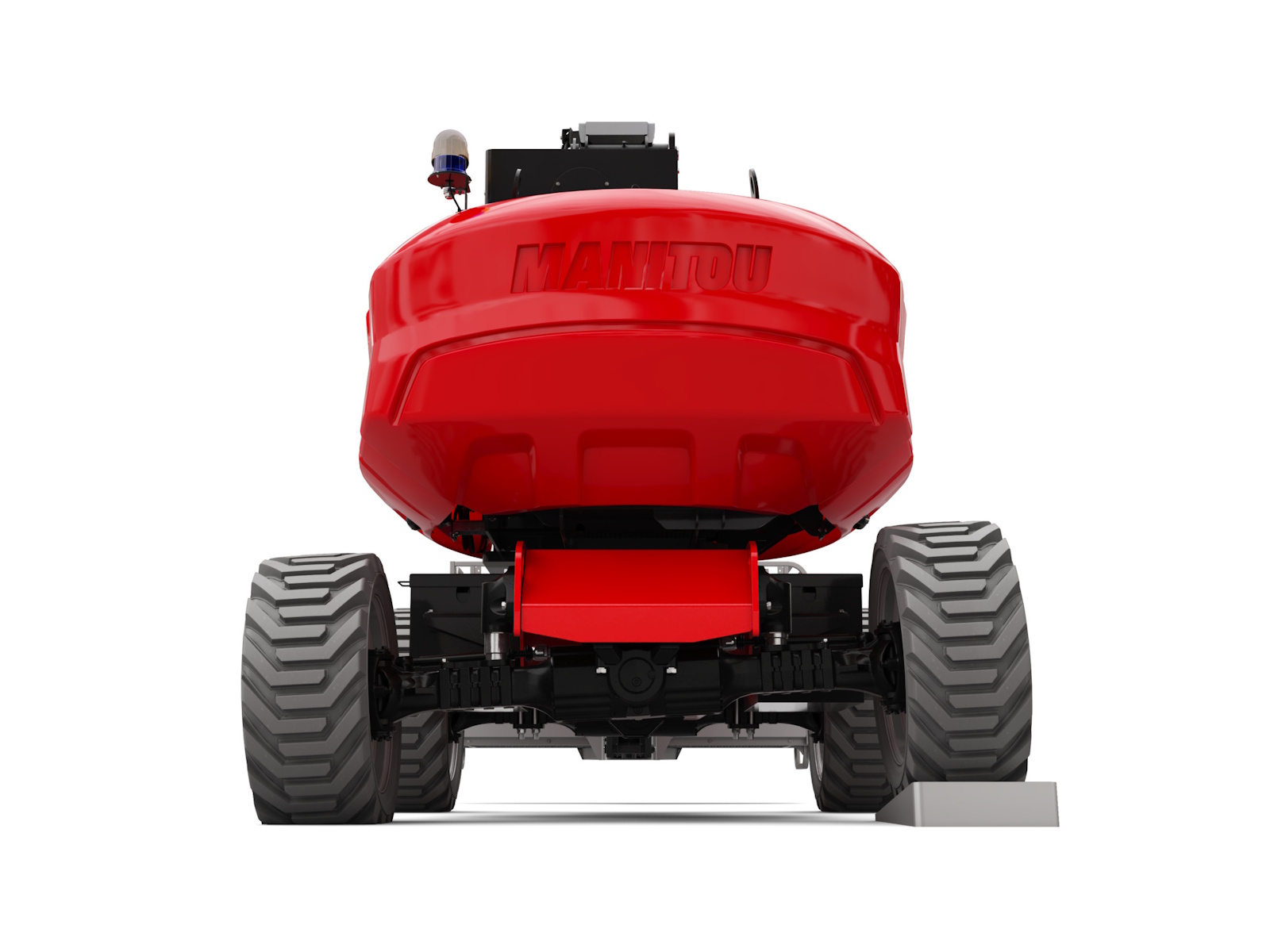

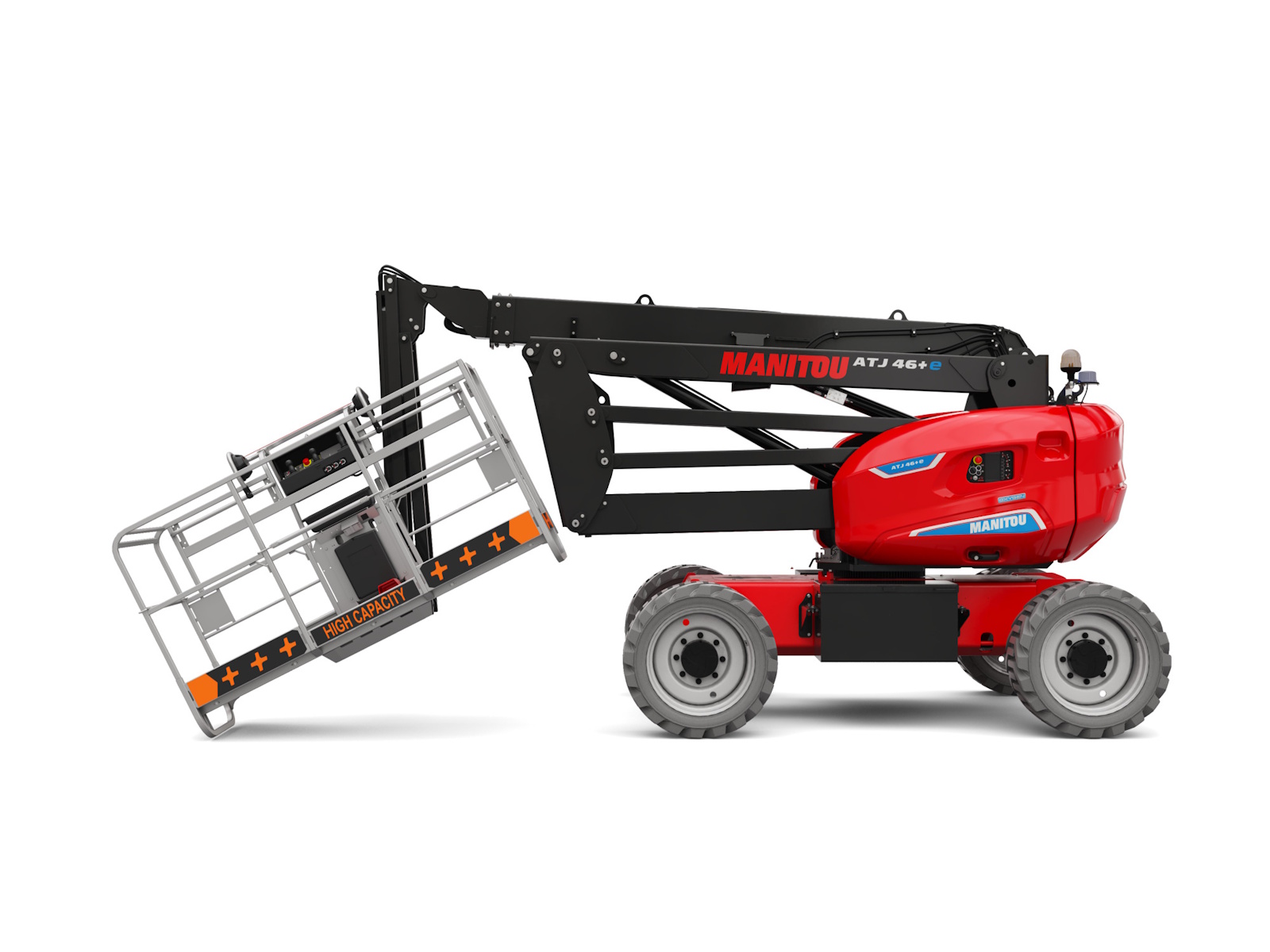

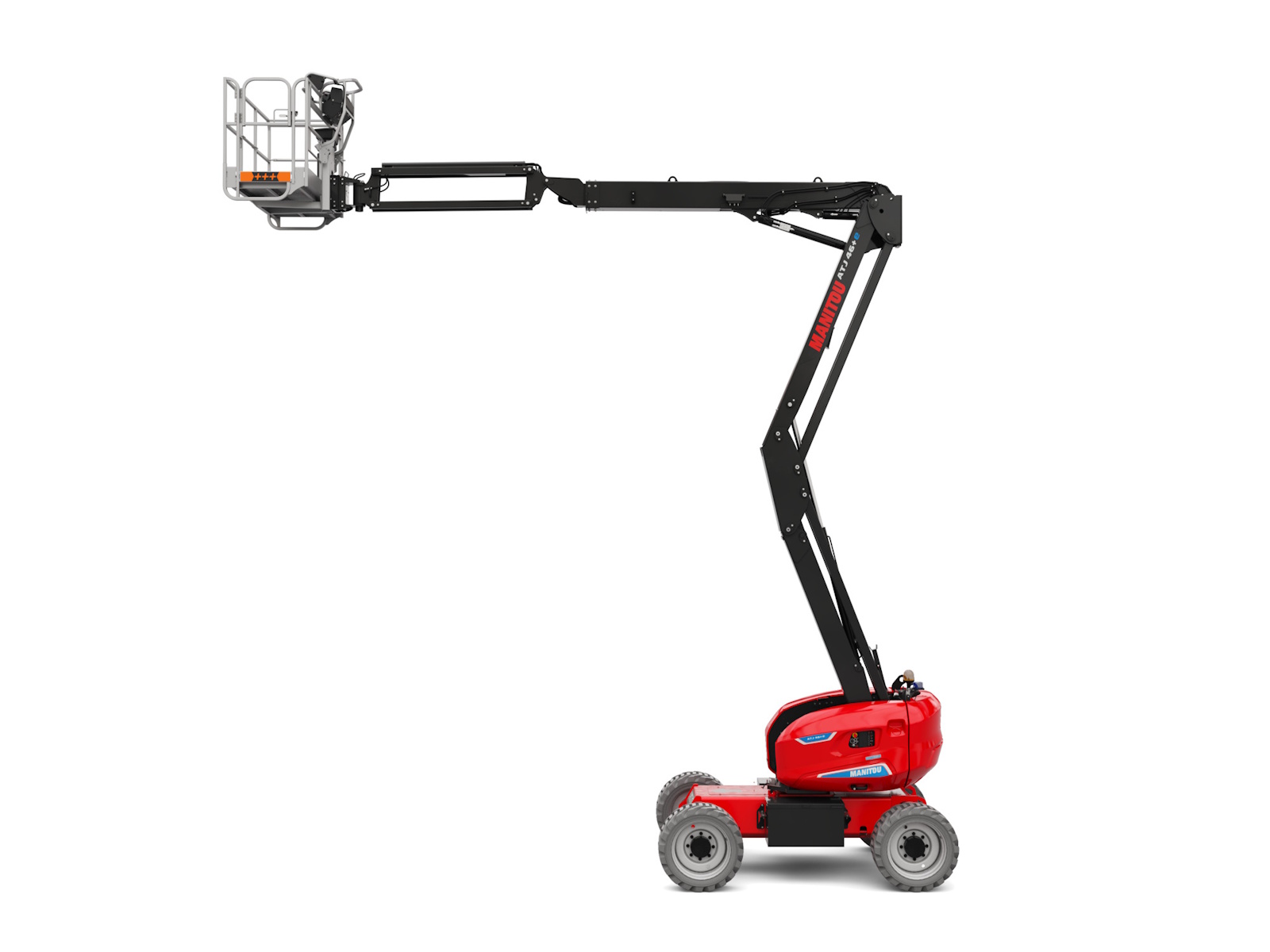

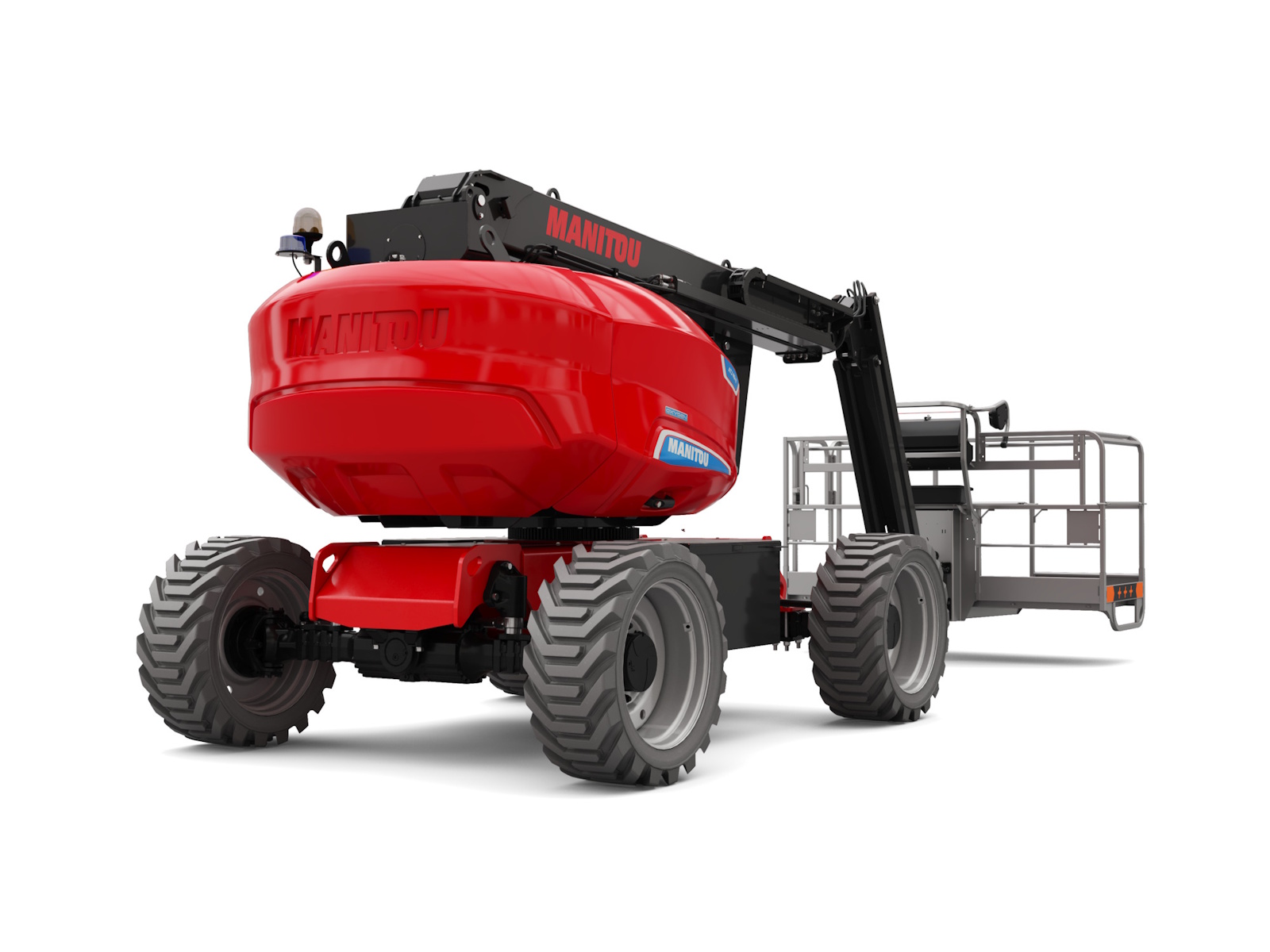

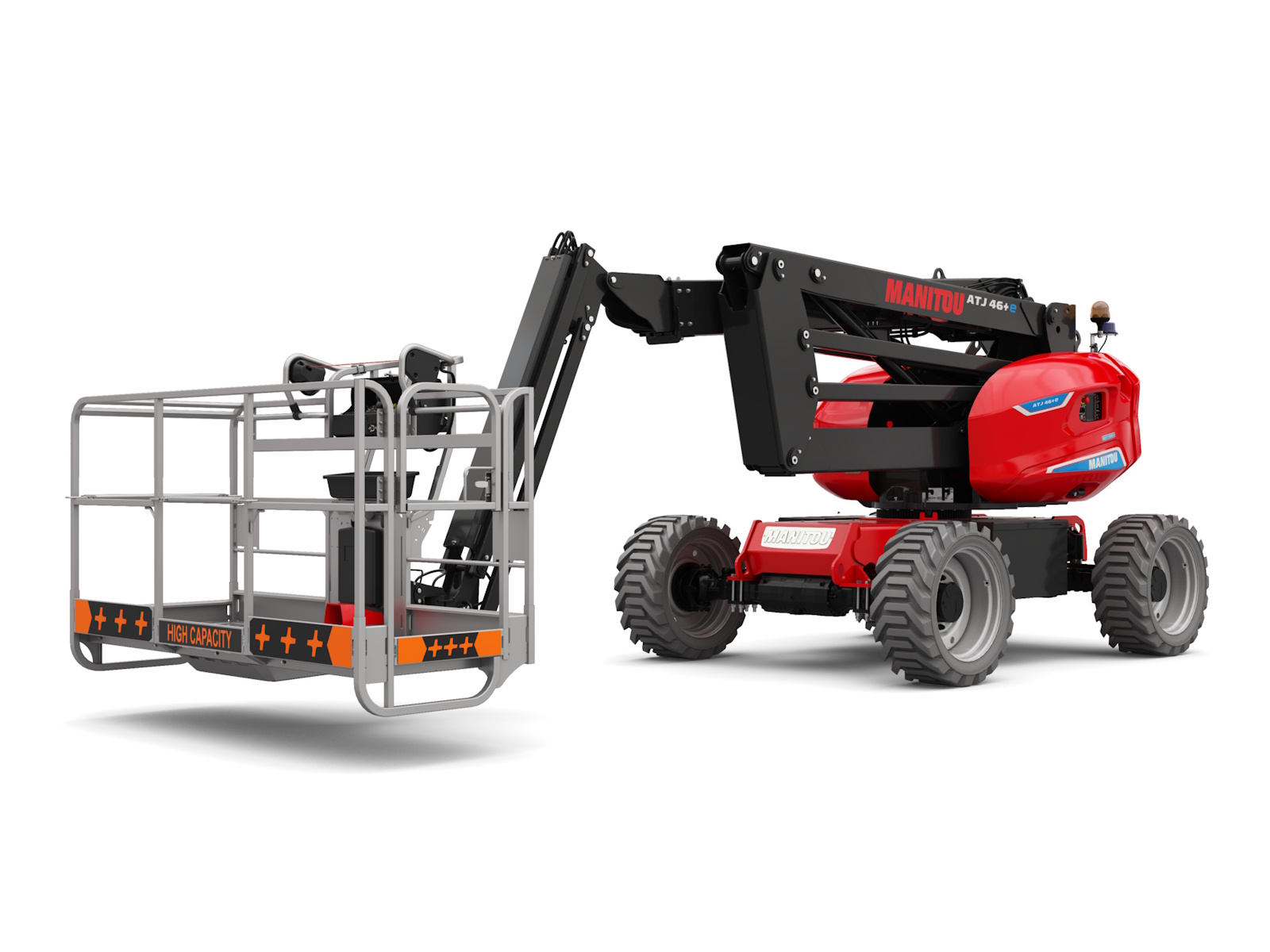

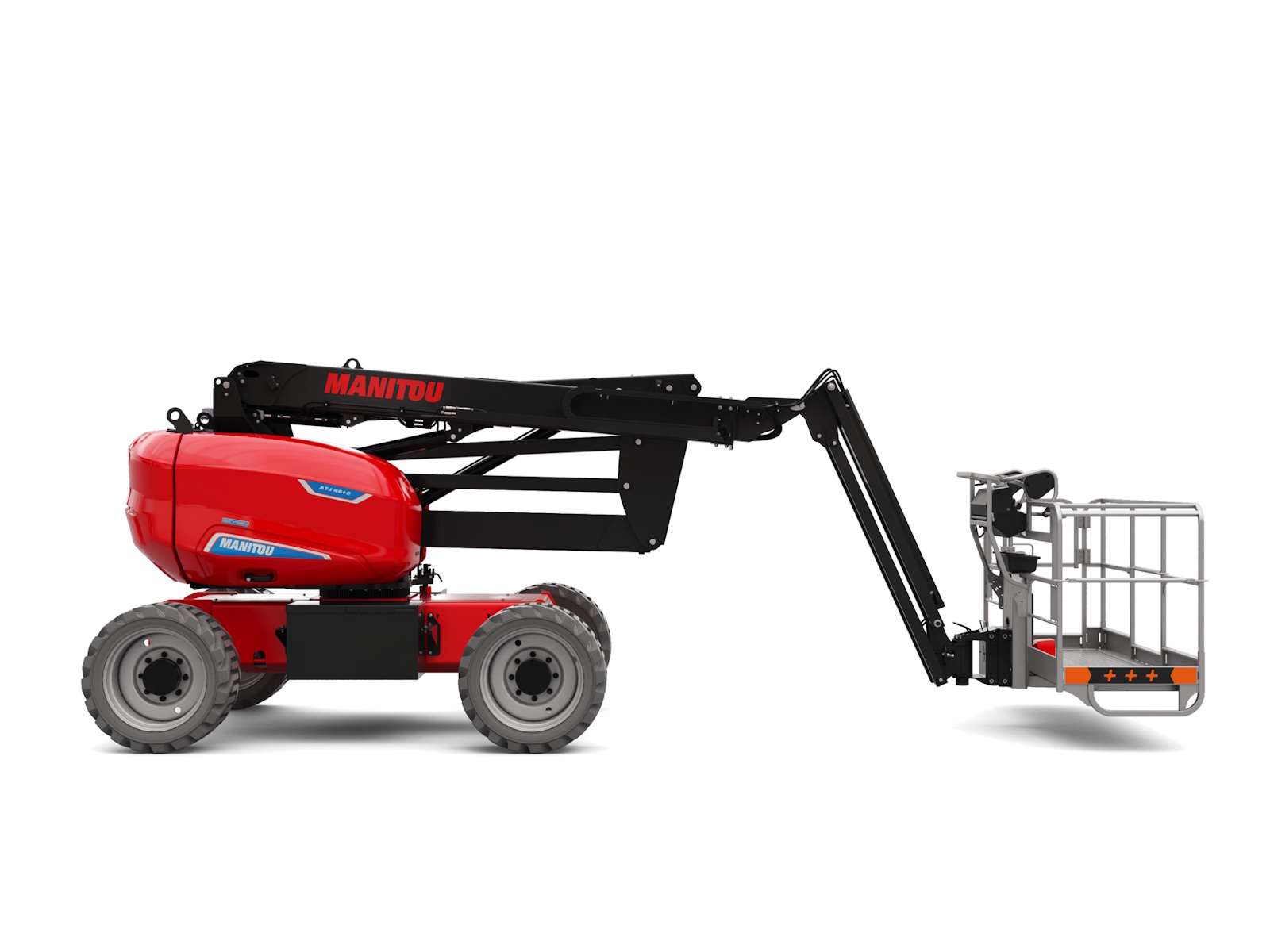

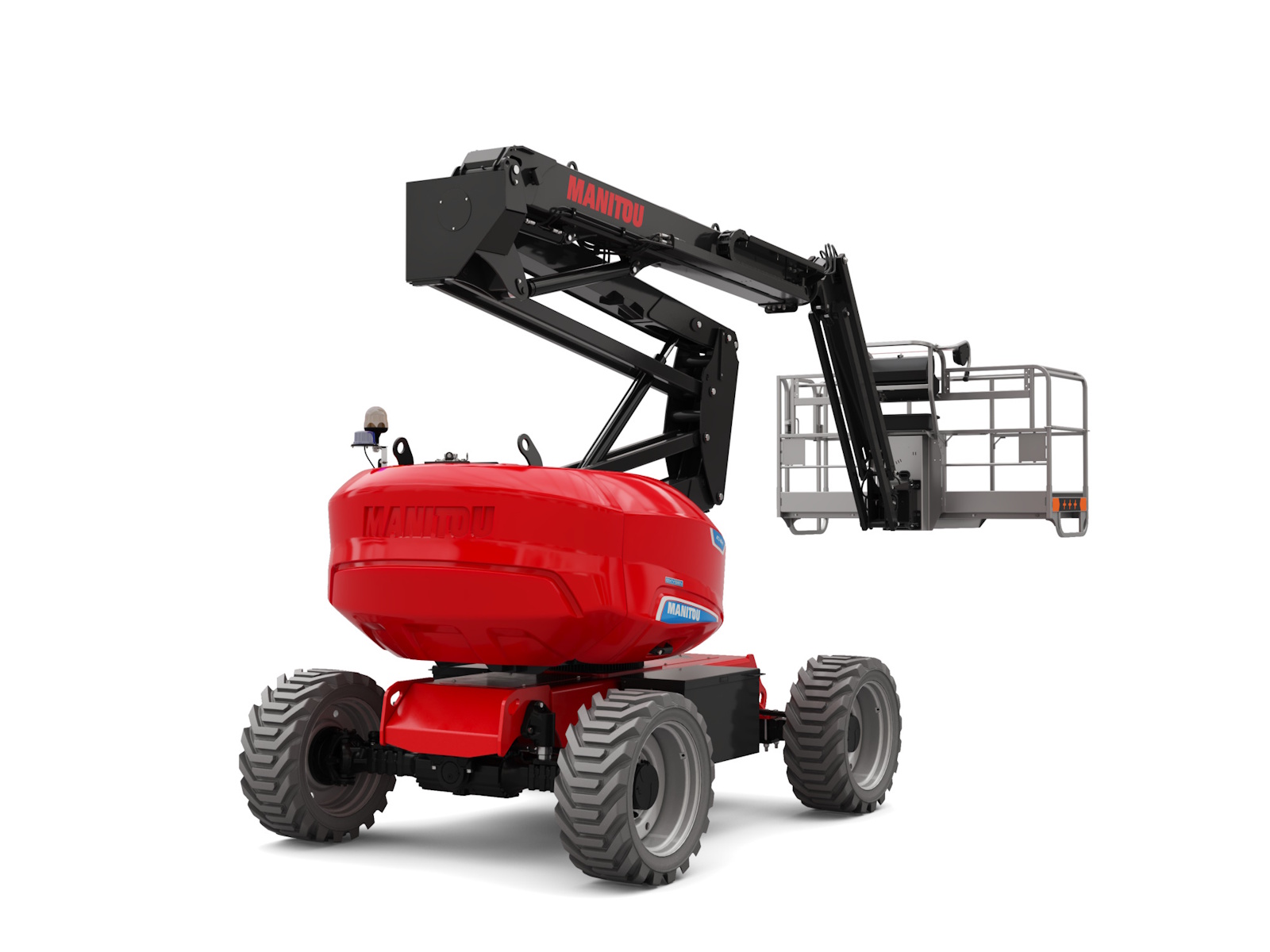

2026 Manitou Group ATJ 46+ e CR
Opt for an ultra-performing and versatile all-terrain lifting solution with the ATJ 46+ e CR 4x4 100% articulated electric boom lift! Take advantage of its performance to optimize your operations on rough, uneven or muddy terrain or even indoors thanks to its zero emission energy. Its 4 steering wheels allow you to evolve in the most difficult terrains.
Equipped with transmission decks, this Manitou model has all the features to facilitate your work at height:

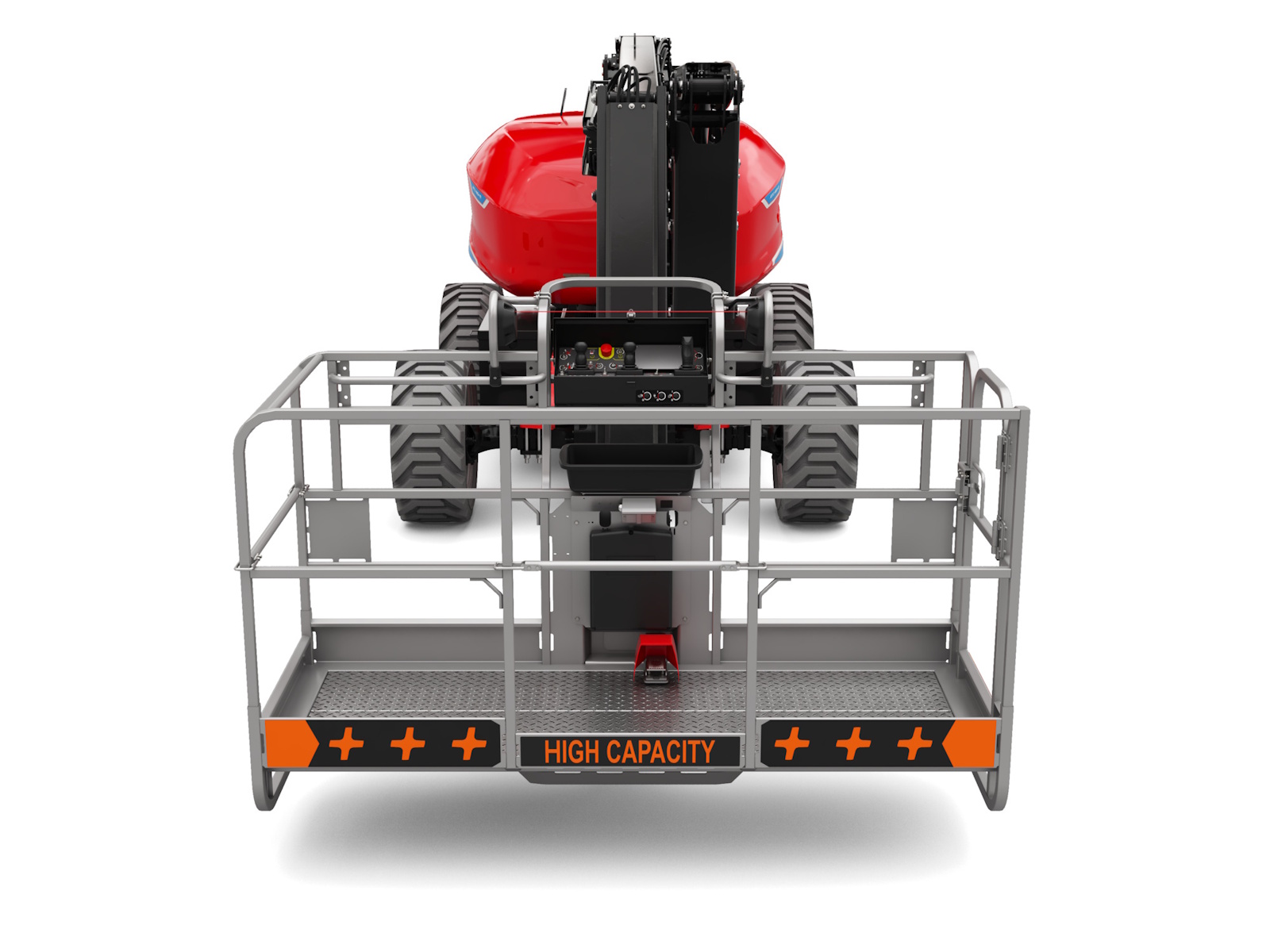

spacious and resistant basket, important ground clearance, active oscillating axle, 4 driving wheels, 4 steering wheels, continuous rotation as an option, important load capacity (408 kg), 4 simultaneous movements...
The ATJ 46+ e CR 4WS articulated aerial work platform allows you to work safely up to a height of 16, outdoors or indoors, thanks to the 100% electric motor and therefore without Co2 emissions. A plus: the slinging without lifting beam, faster for your teams
Info
Industry
Agriculture
Make
Manitou Group
Model
ATJ 46+ e CR
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
8 ft 10 in | Working height: 52 ft 7 in | Platform height: 46 ft 1 in | Overall height (stowed): 9 ft 10 in | Floor height (access): 1 ft 4 in
Notes
Max. outreach: 26 ft 4 in | Overhang: 22 ft 8 in | Platform capacity: 880 lbs | Turret rotation: 360 ° | Platform rotation (right / left): 90 ° / 90 ° | Number of people (inside / outside): 3 / 3 | Platform dimensions (length x width): 7 ft 7 in x 3 ft | Drive speed - stowed: 3.20 mph | Drive speed - raised: 0.50 mph | Gradeability: 40 % | Permissible leveling: 4 ° | Integrated charger / charger type: 48 V / 60 A | Ground Pressure: 180 PSI | Hydraulic Pressure: 3481 PSI | Hydraulic tank capacity: 6 US gal | Noise at driving position (LpA): < 70 dB | Noise to environment (LwA): < 101 dB | Vibration on hands/arms: < 8.20 ft/s²
Weight
Platform weight*: 16733 lbs
Width
7 ft 7 in
Length
23 ft 3 in | Overall length (stowed): 16 ft 5 in
Turning Radius
Internal turning radius (over tyres): 7 ft 7 in | External turning radius: 17 ft 2 in
Ground Clearance
Ground clearance at centre of wheelbase: 1 ft 5 in
Wheelbase
7 ft 3 in
Tires
Foam-filled
Wheels
Drive wheels (front / rear): 2 / 2 | Braking wheels (front / rear): 2 / 2
Steering
Steering wheels (front / rear): 2 / 2
Battery
Battery energy: 30 kWh | Battery technology: Lead Acid | Battery voltage: 48 V | Battery nominal capacity: 620 Ah
