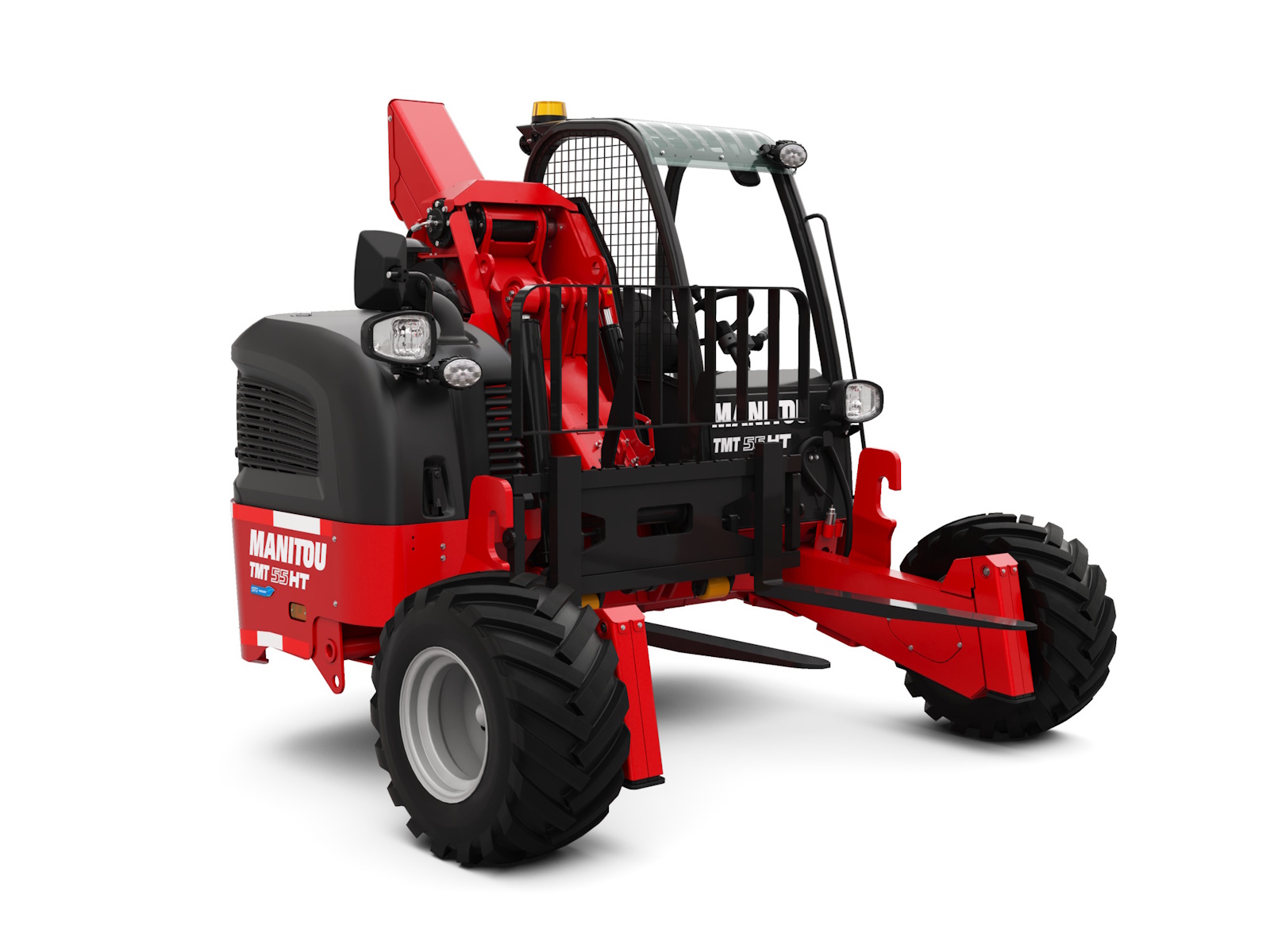

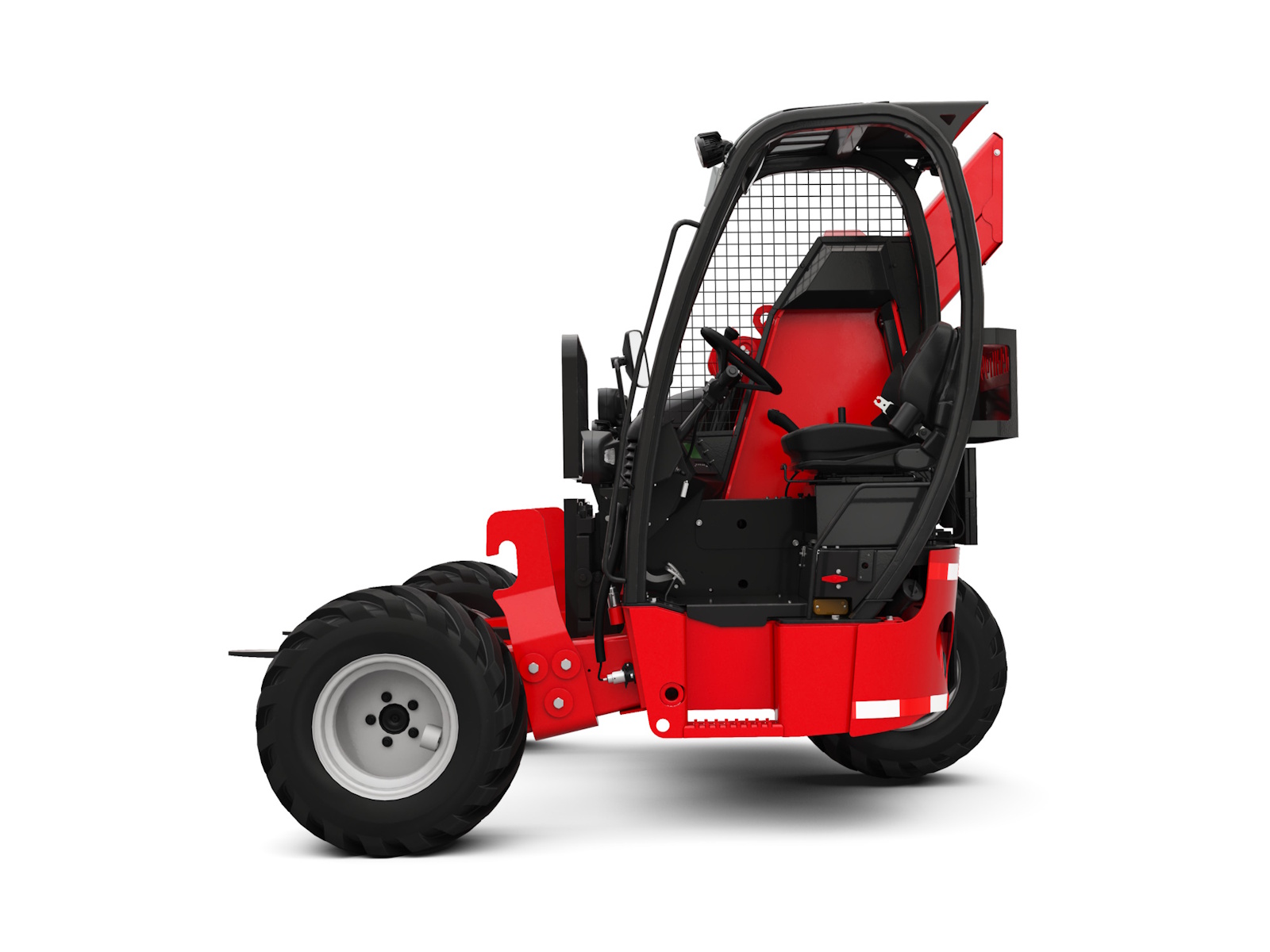

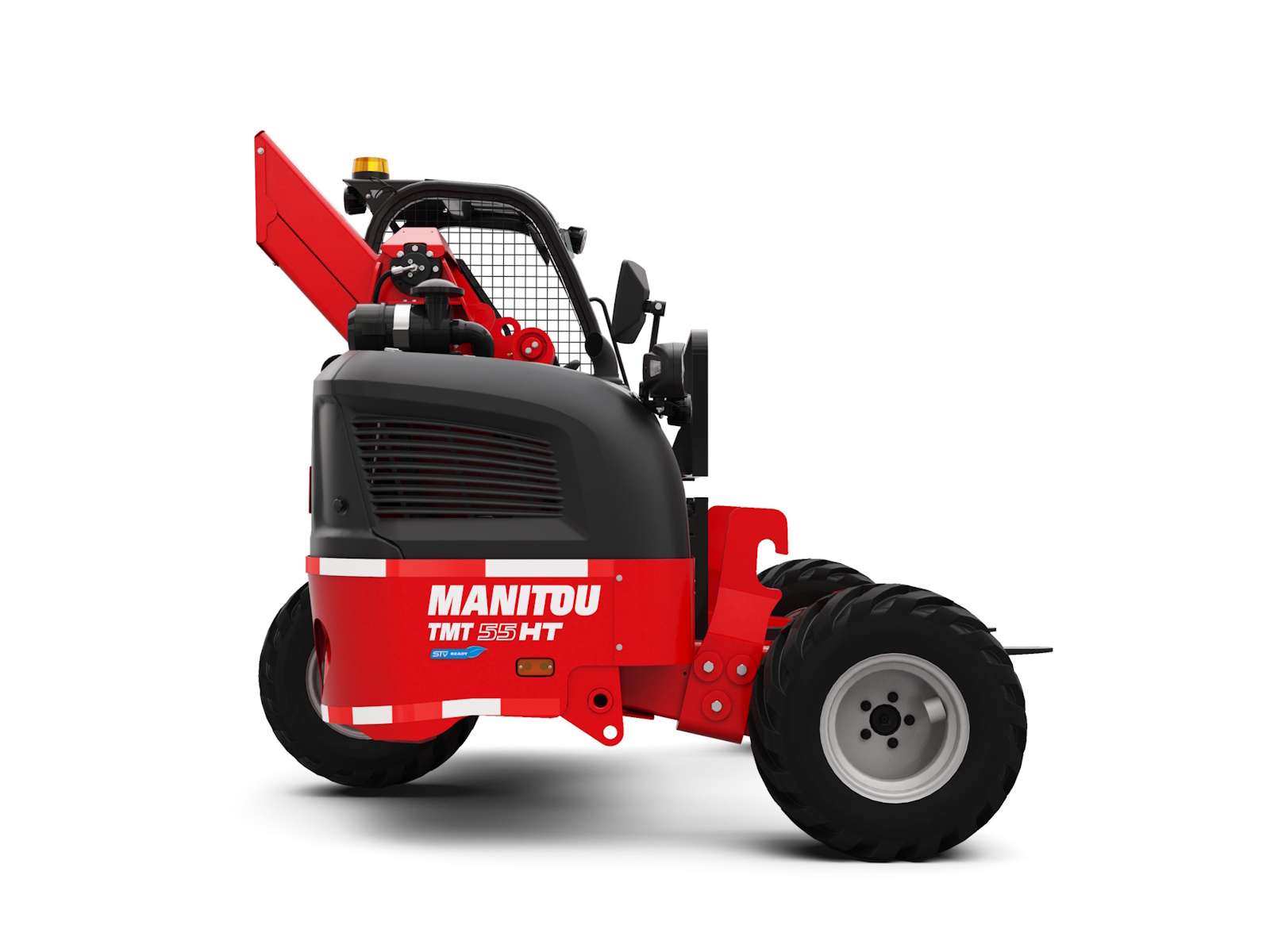

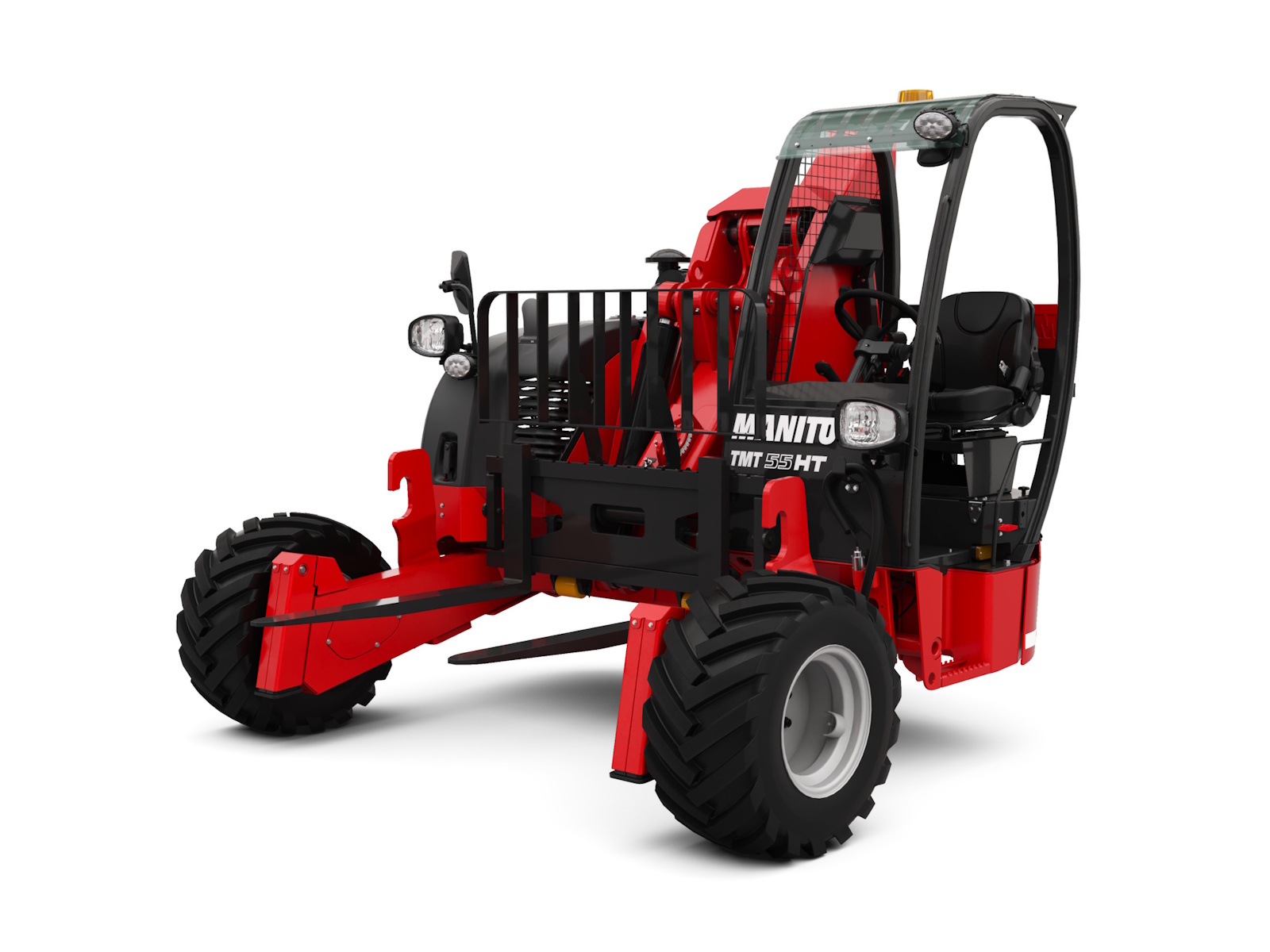

2026 Manitou Group TMT 55 HT 4W Y ST5

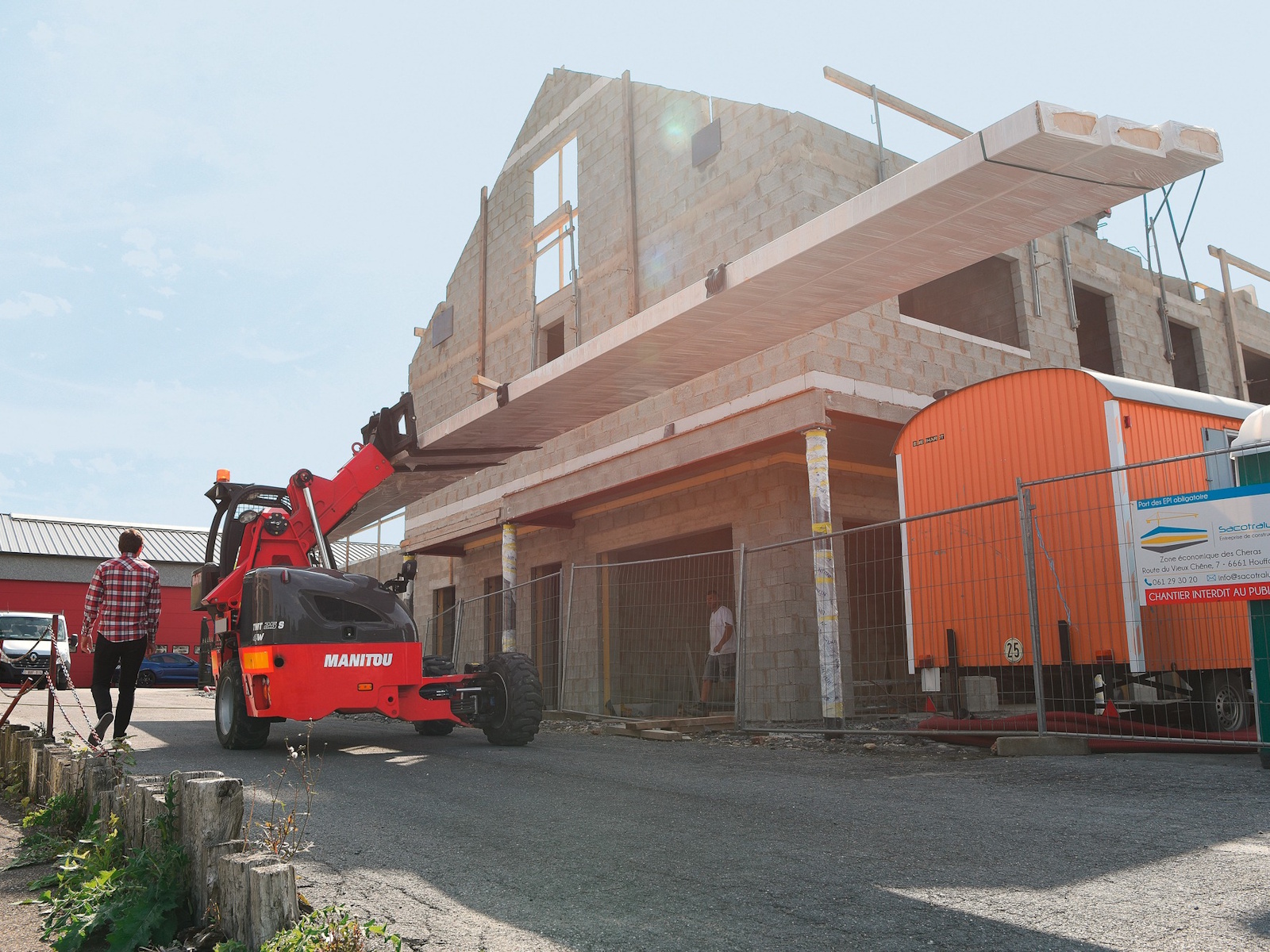

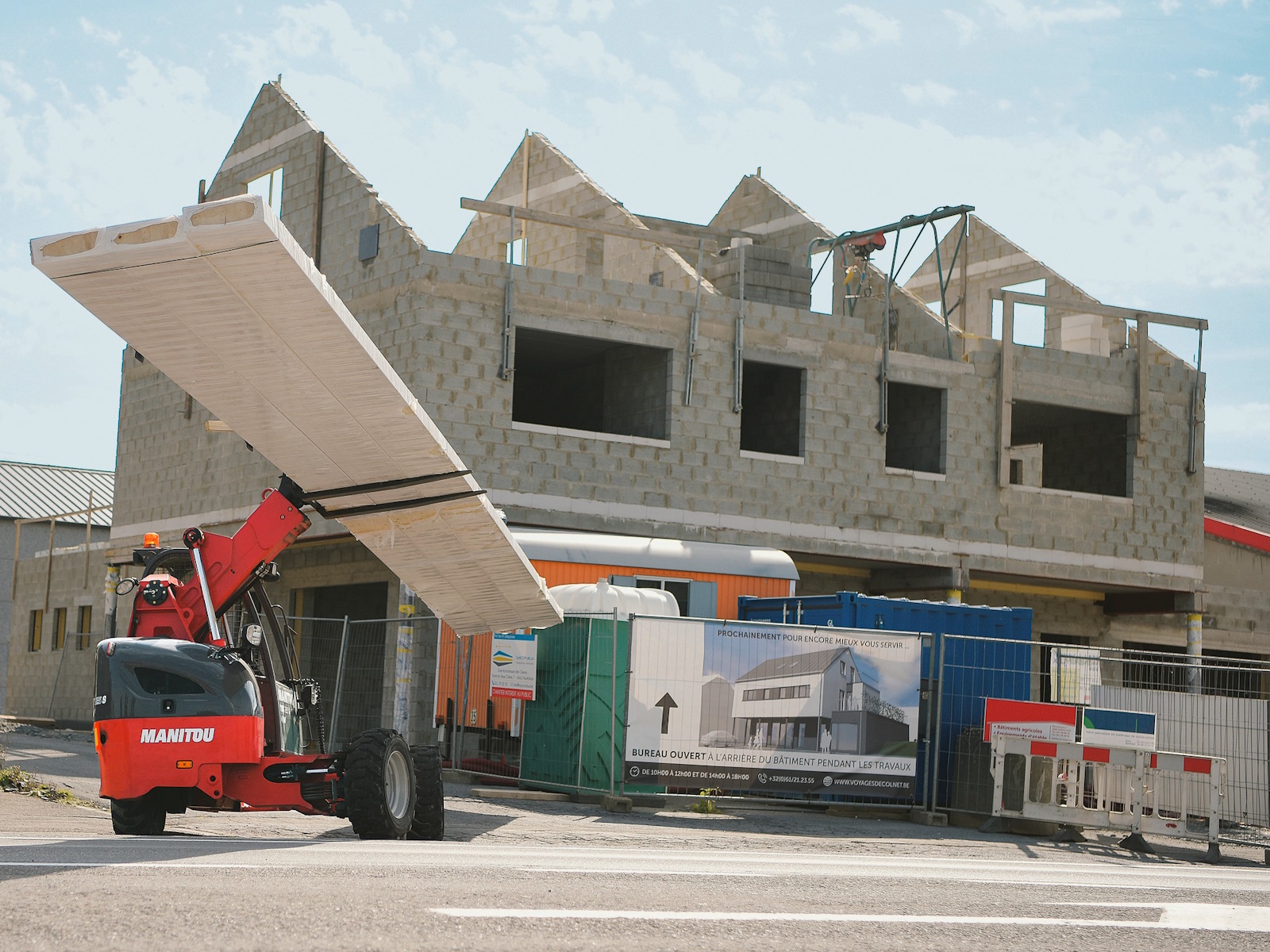

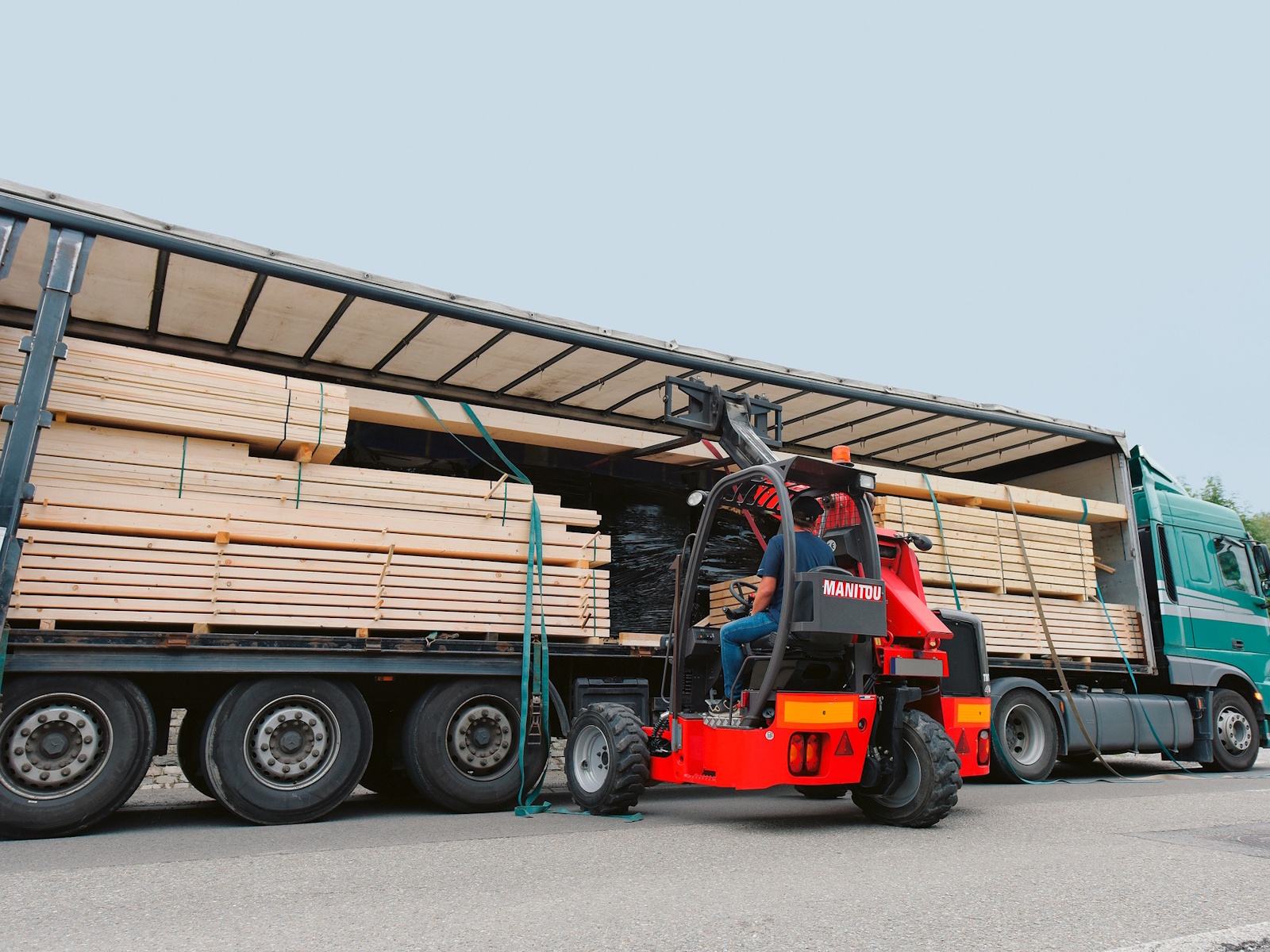

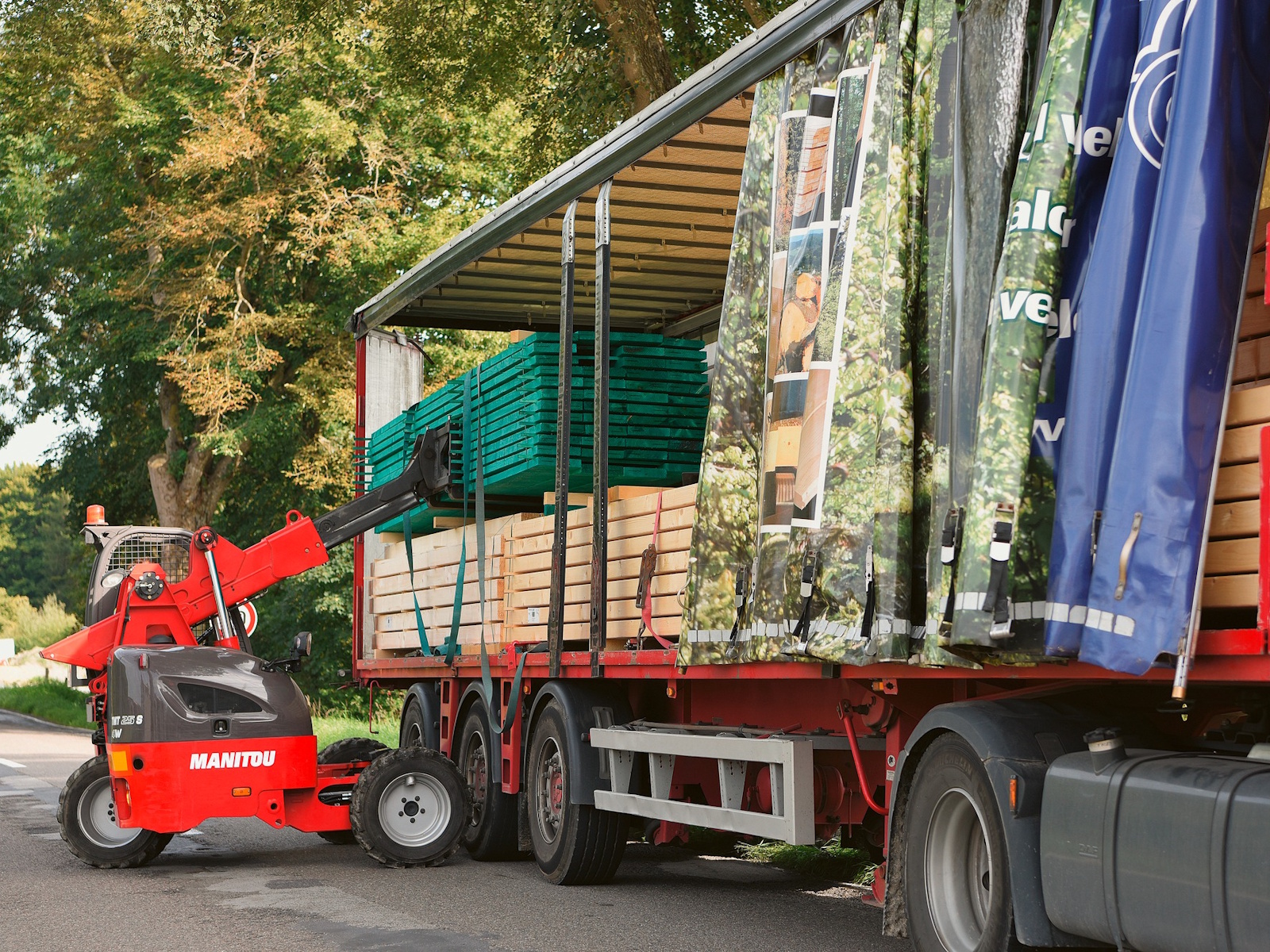

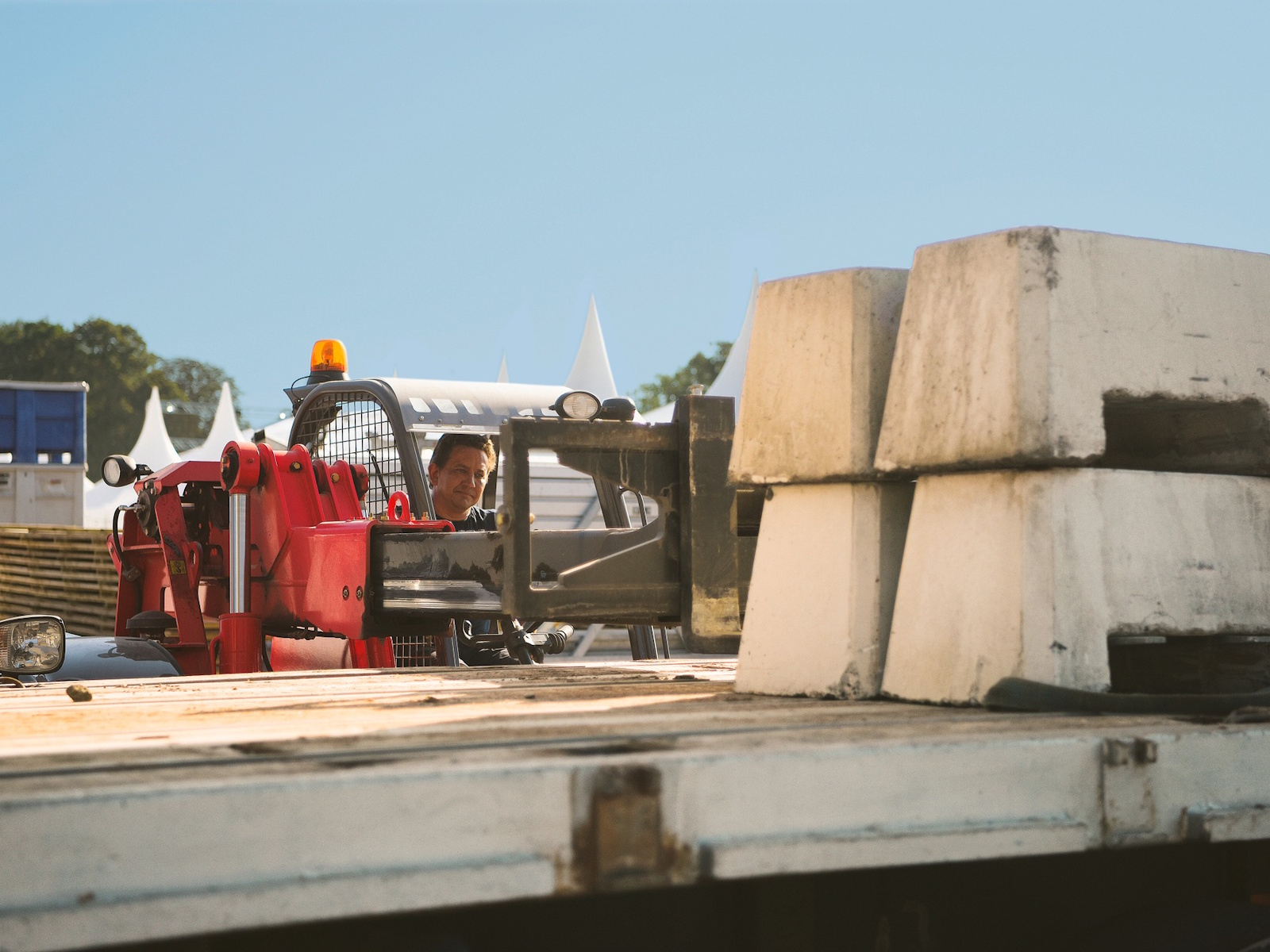

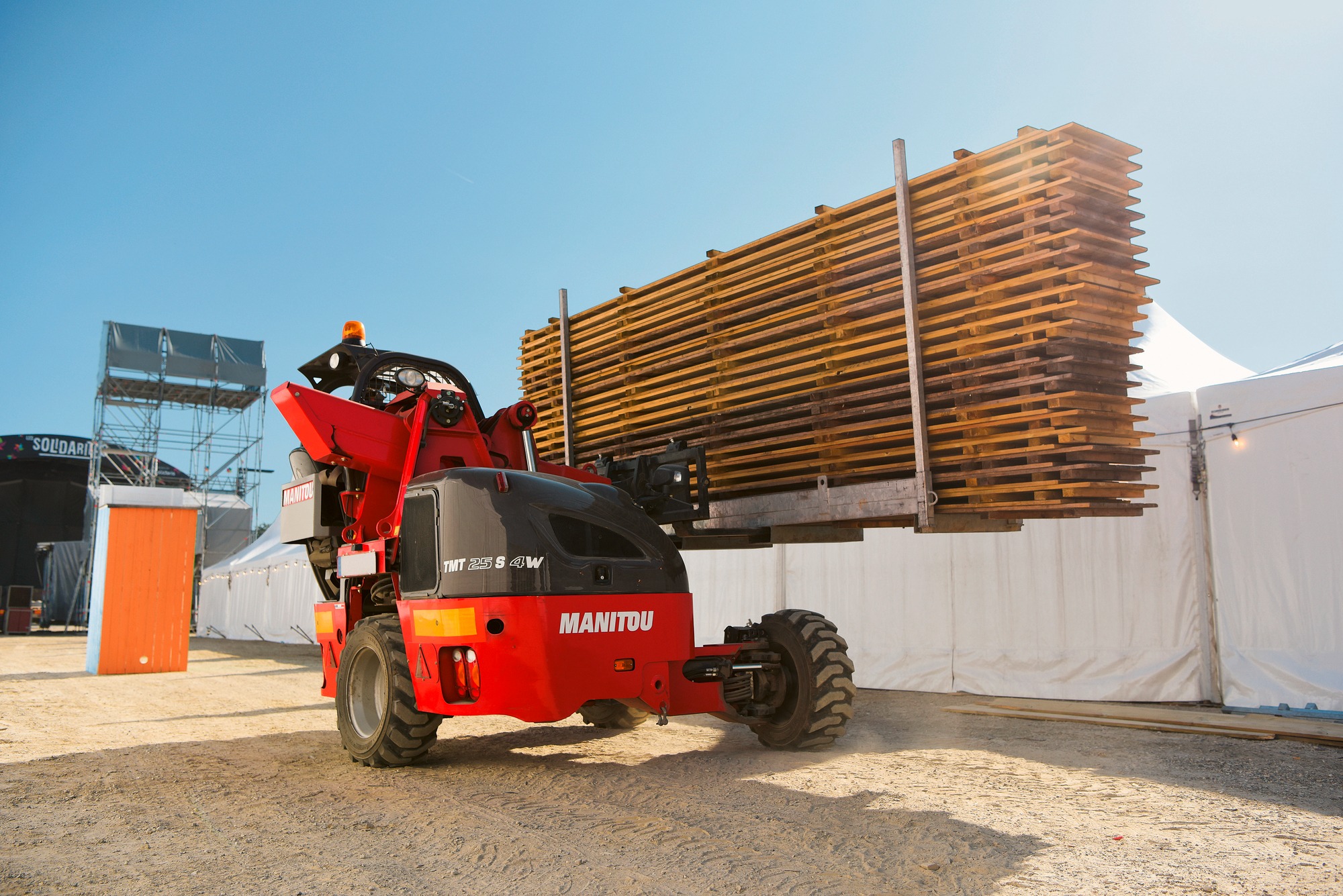

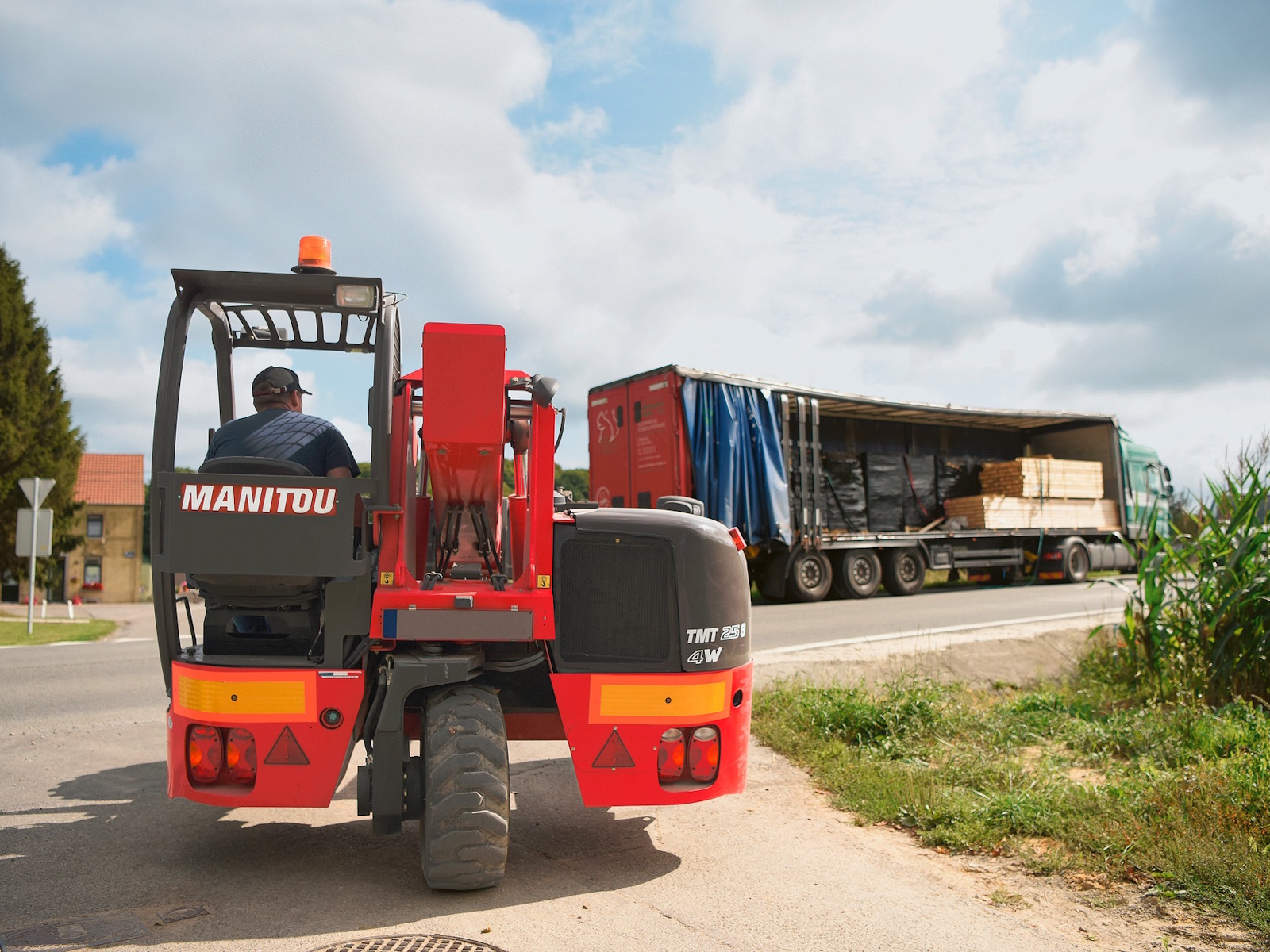

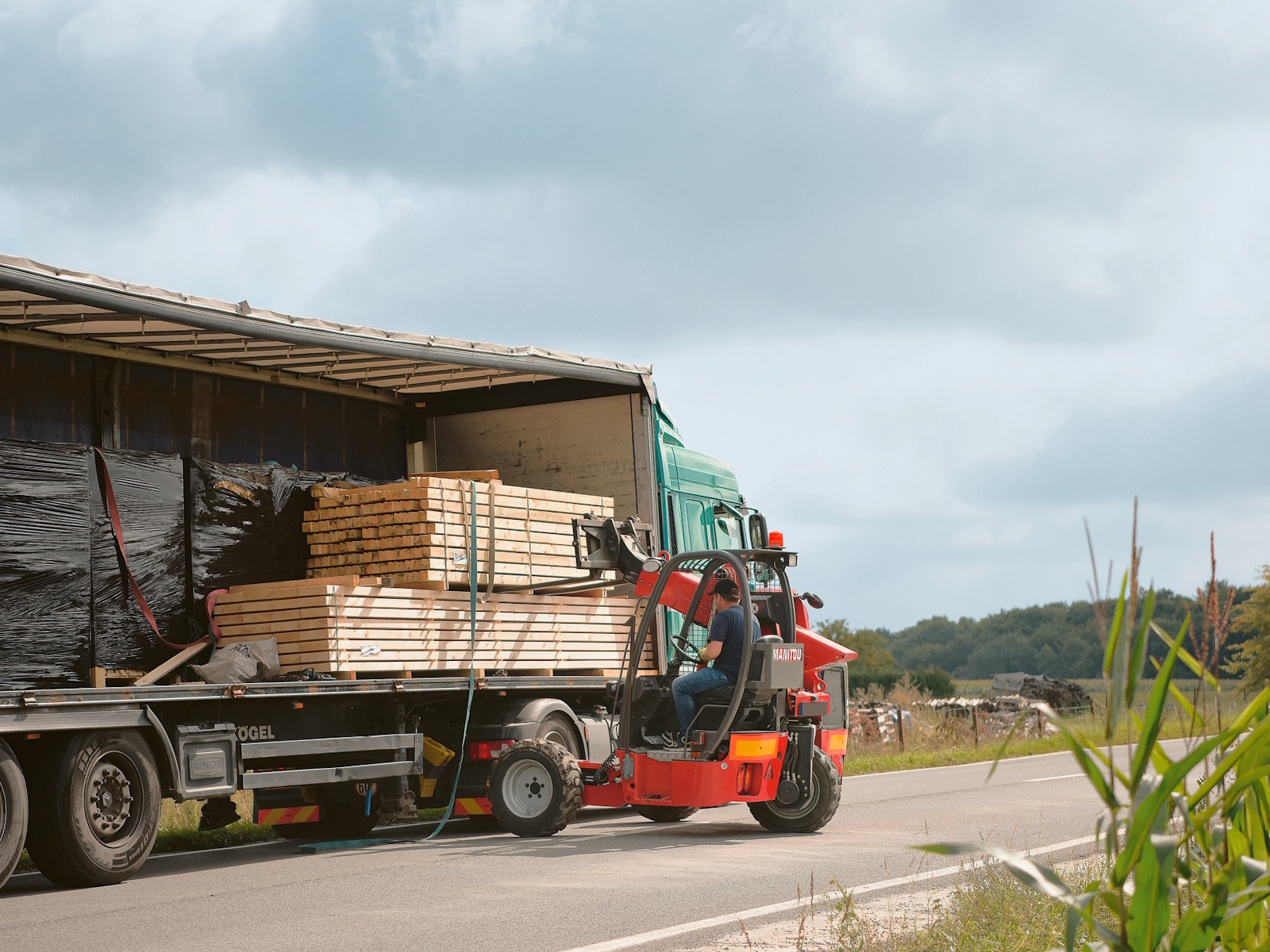

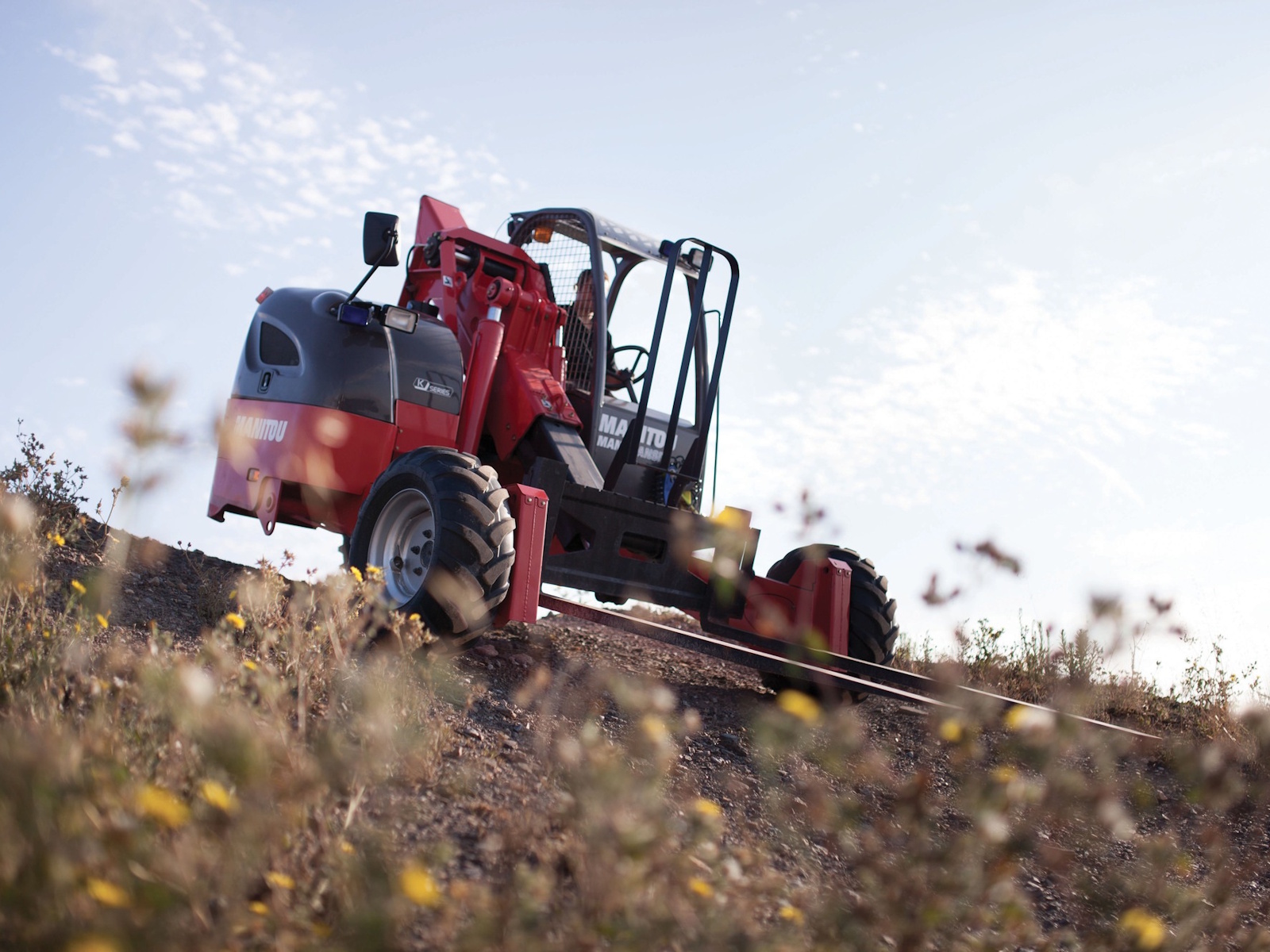

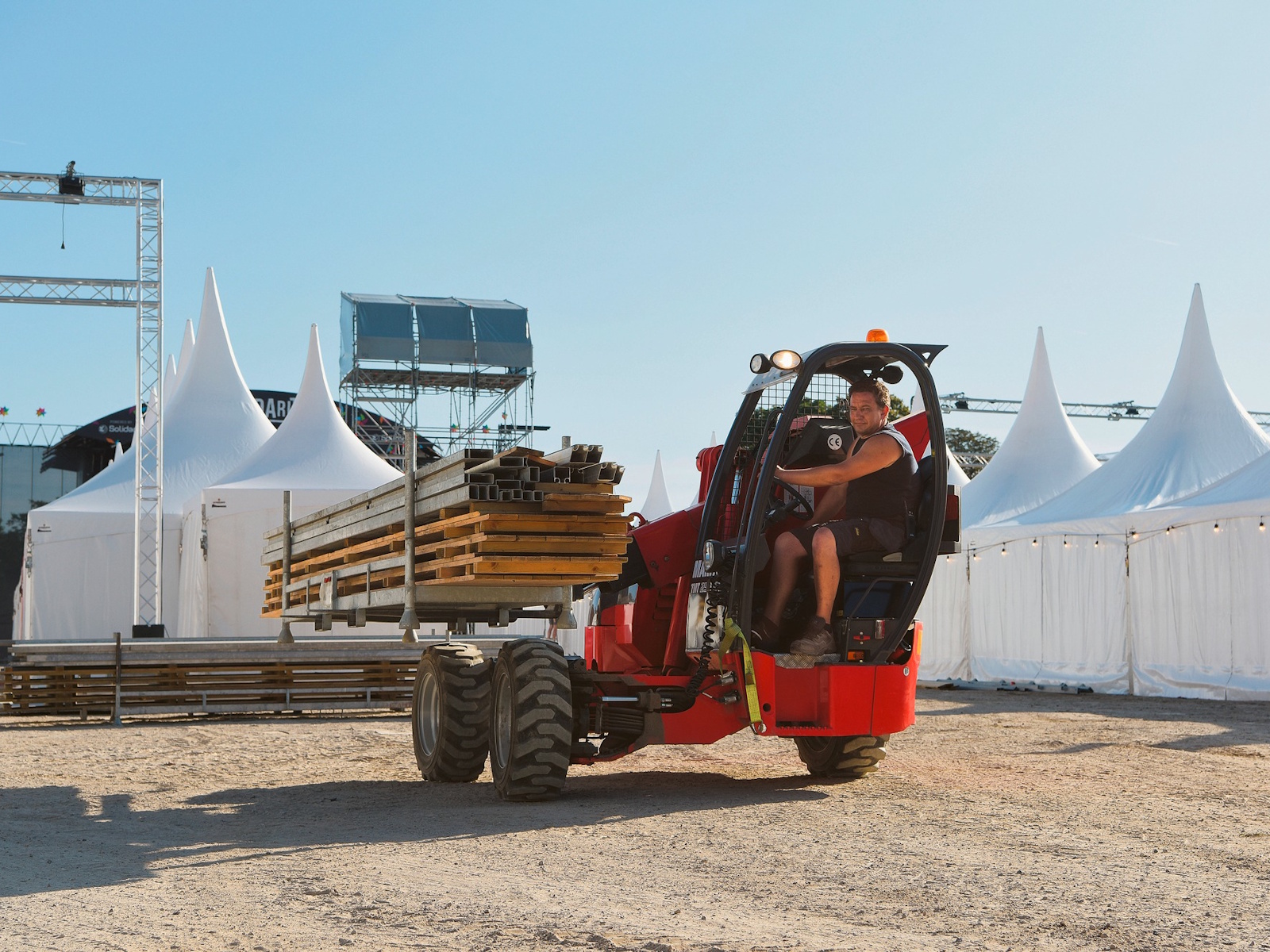

The TMT 55 HT 4W heavy-traction truck-mounted forklift designed for single-side loading and unloading of lorries and making customer deliveries even when ground conditions aren't as smooth as they could be, or when a loading/unloading bay is not available. It's incredibly useful in the construction sector for materials delivery with its increased robustness and reduced payload. Built to last, the controls are incredibly easy to grasp and upkeep has been simplifed as well. With offset and lateral movement modes, it can load and unload lorries from a single side with no problems. This is particularly useful when lorries are parked alongside a wall, on the side of the road or if you have to navigate a narrow path.
Info
Industry
Agriculture
Make
Manitou Group
Model
TMT 55 HT 4W Y ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Notes
Reach out equipment: Telescopic boom | Operator type: Seated | Load center of gravity: 24 in | Load distance, centre of drive axle to fork: -20 in | Mast/fork carriage tilt, forward: 100 ° | Mast/fork carriage tilt, backward: 12 ° | Mast free lift: 57 in | Forks section / width / length: 2 in x 4 in x 48 in | Fork carriage ISO 2328 (class/form) A/B FEM: 2A | Distance between support arms: 49 in | Distance between wheel arms/loading surfaces: 60 in | Maximum horizontal extension at COG 600: 52 in | Lifting speed (laden / unladen): 0.82 ft/s / 0.89 ft/s | Lowering speed (laden / unladen): 0.95 ft/s / 1 ft/s | Rated speed: 2800 rpm | Type of drive control: Mechanical | Working hydraulic pressure for attachments: 3916 PSI | Oil flow rate for attachments: 12 US gpm | Measured/guaranteed mean noise level at the ear of the operator: 104 dB
Fuel Type
Diesel
Load Capacity
5512 lb
Wheelbase
65 in
Weight
6316 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 10x16,5 | Dimensions of rear wheels: 31x15,5-15 | Number of front wheels / rear wheels: 2 / 1 | Drive wheels (front / rear): 2 / 1 | Front wheel gauge: 86 in
Height
Height telescopic boom lowered: 89 in | Max. lifting height: 134 in | Height telescopic boom extended: 154 in | Height of overhead guard (cabin): 93 in | Seat height/stand height: 55 in
Length
111 in | Length to face of forks: 63 in
Width
96 in | Fork carriage width: 50 in | Aisle Width for pallets 1000 x 1200 crossways: 79 in | Aisle width for 800 x 1200 pallet lengthways: 76 in
Ground Clearance
Ground clearance at centre of wheelbase: 11 in
Turning Radius
123 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Engine
Engine brand / norm / model: Yanmar - Stage V / 3TNV 86 CT
Power/Horsepower
42 Hp / 31 kW
Cylinders
3 - 96 in³
