Description

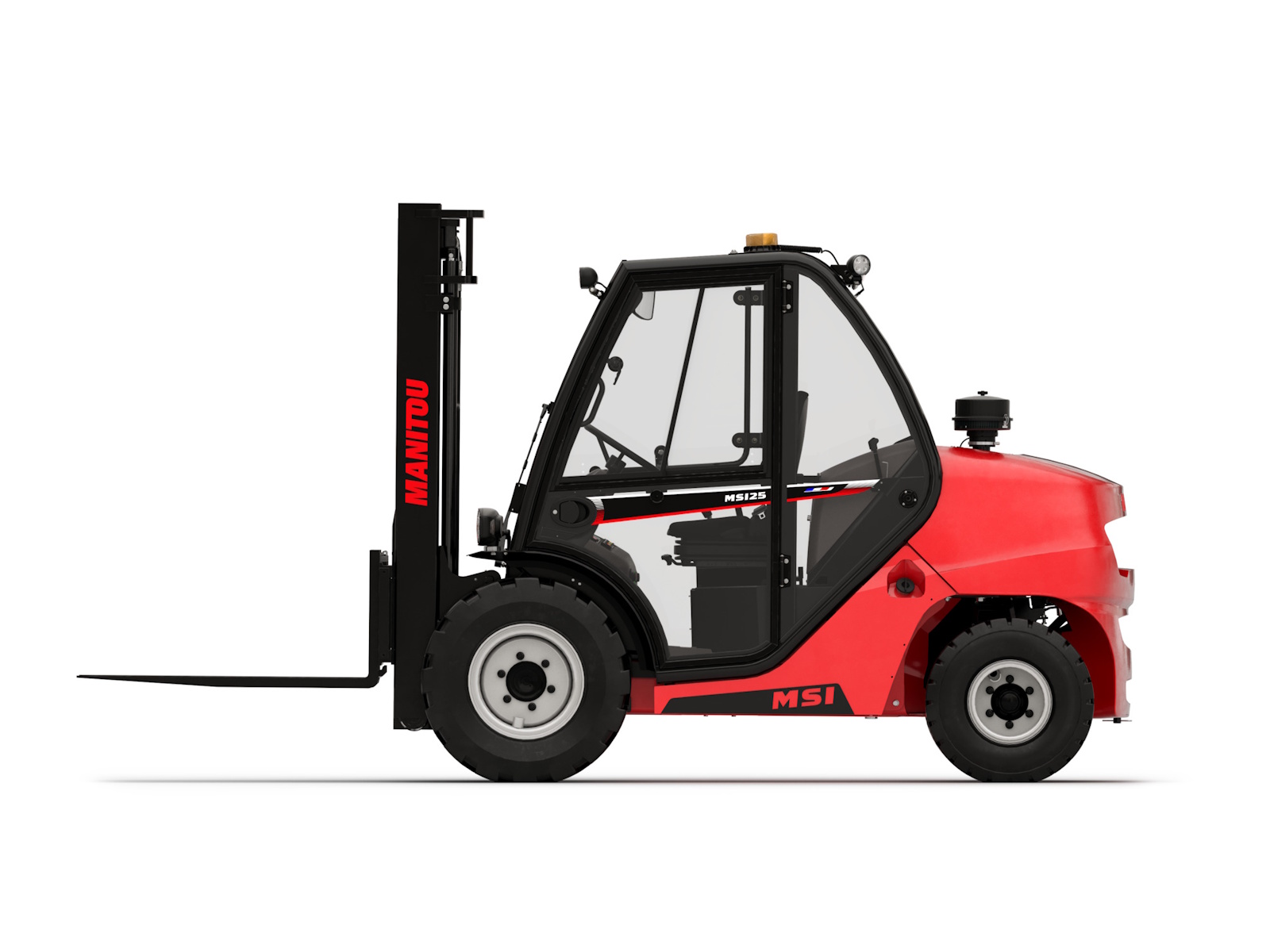

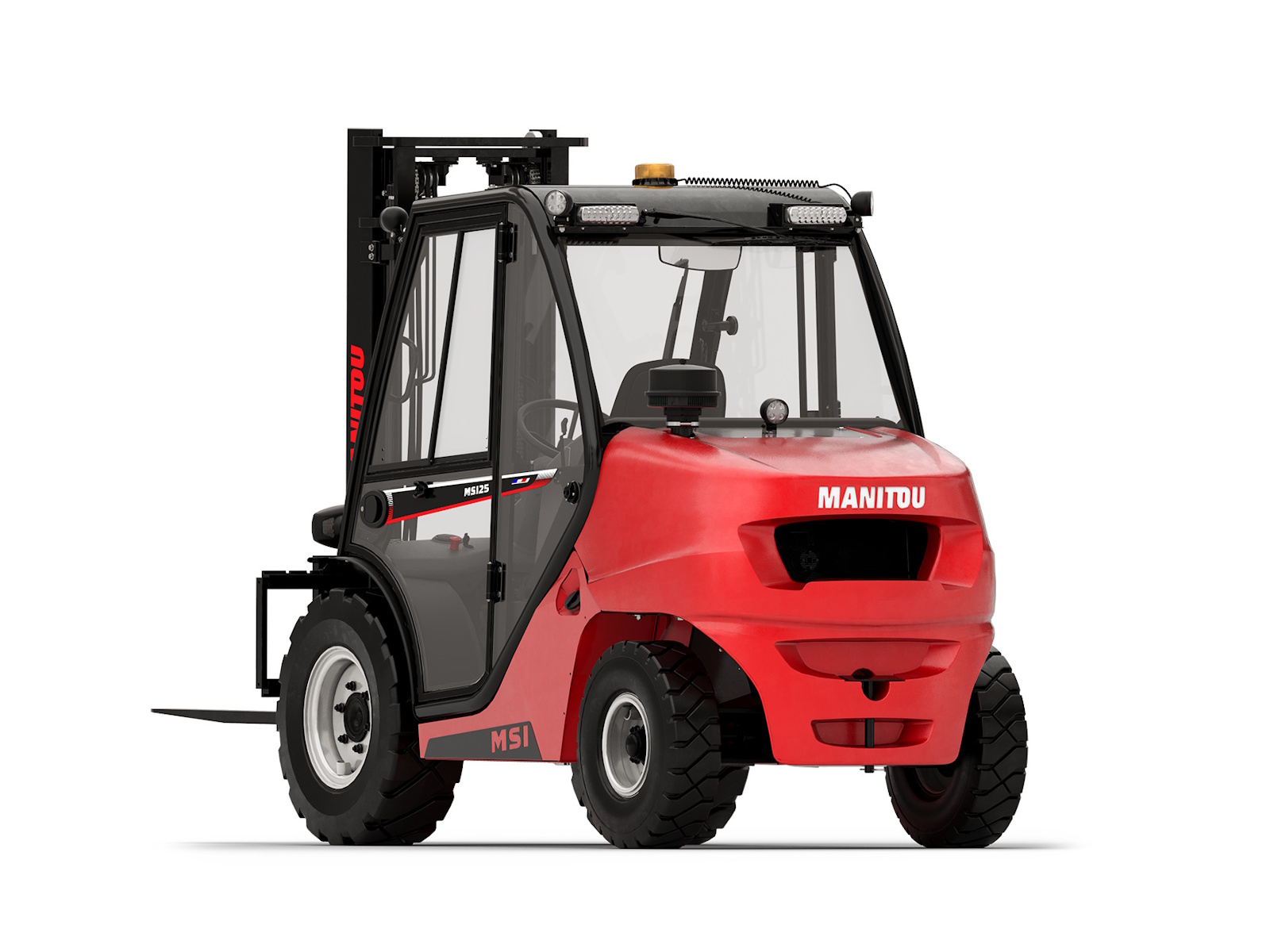

2026 Manitou Group MSI 25 ST5

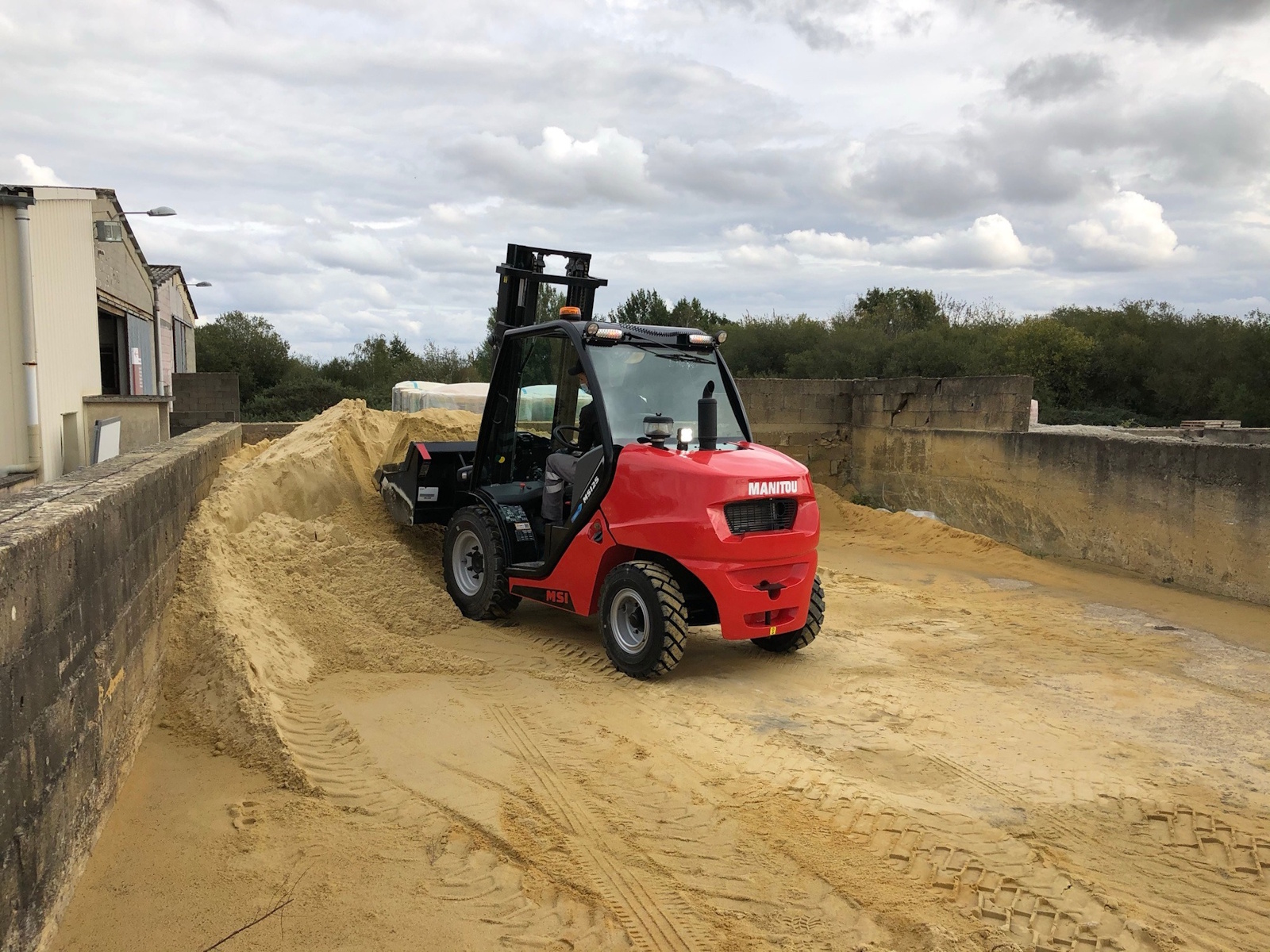

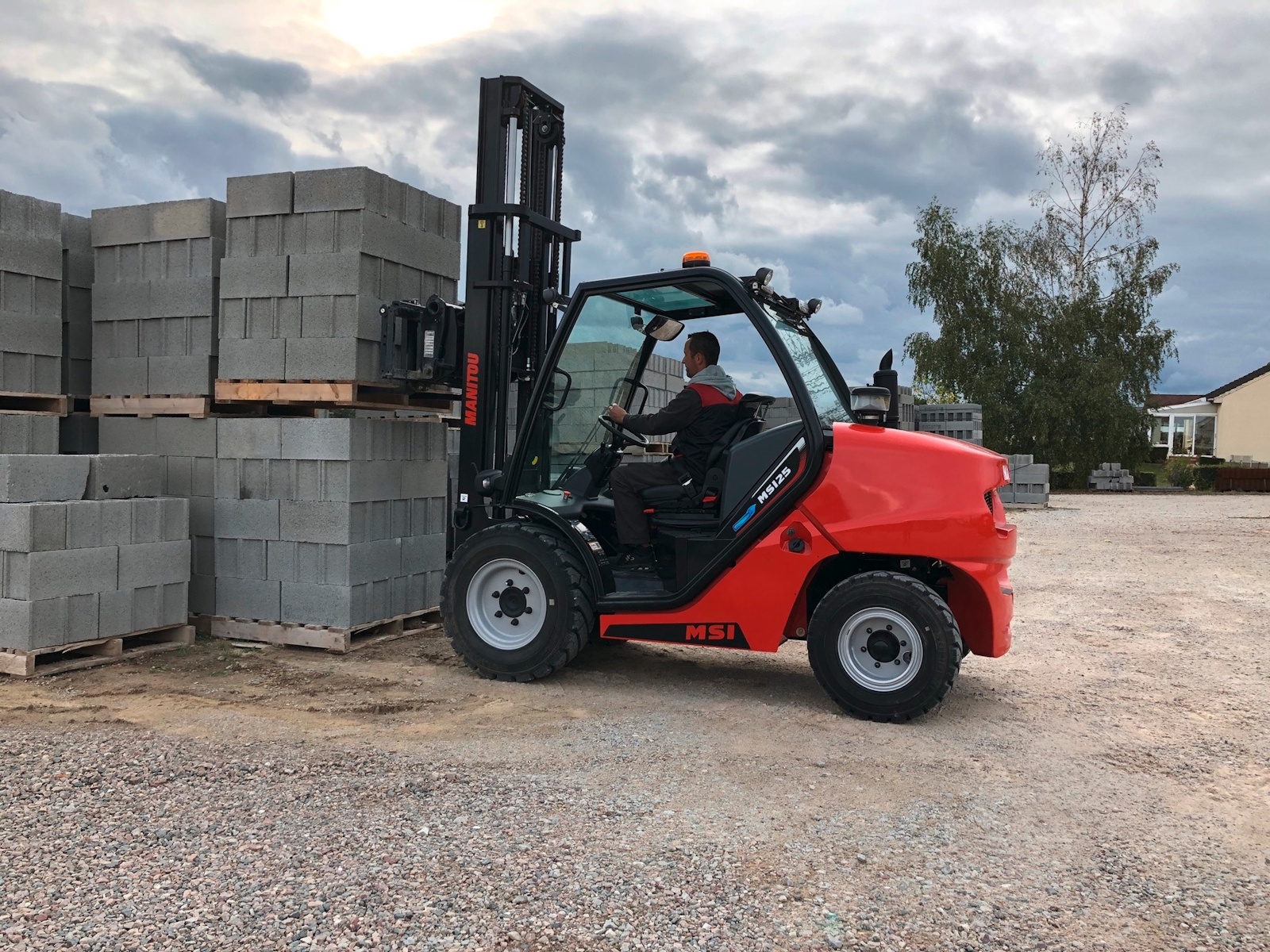

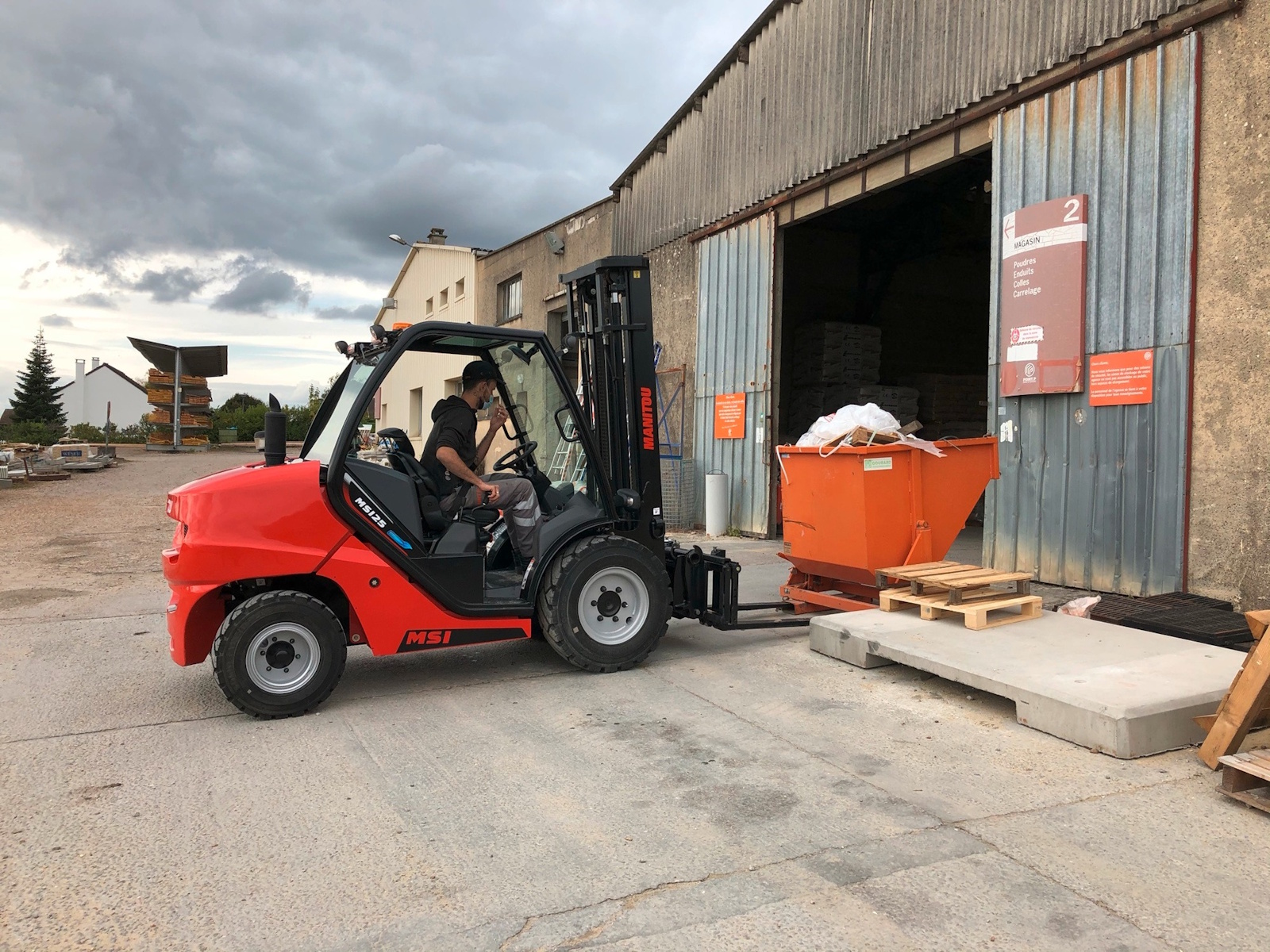

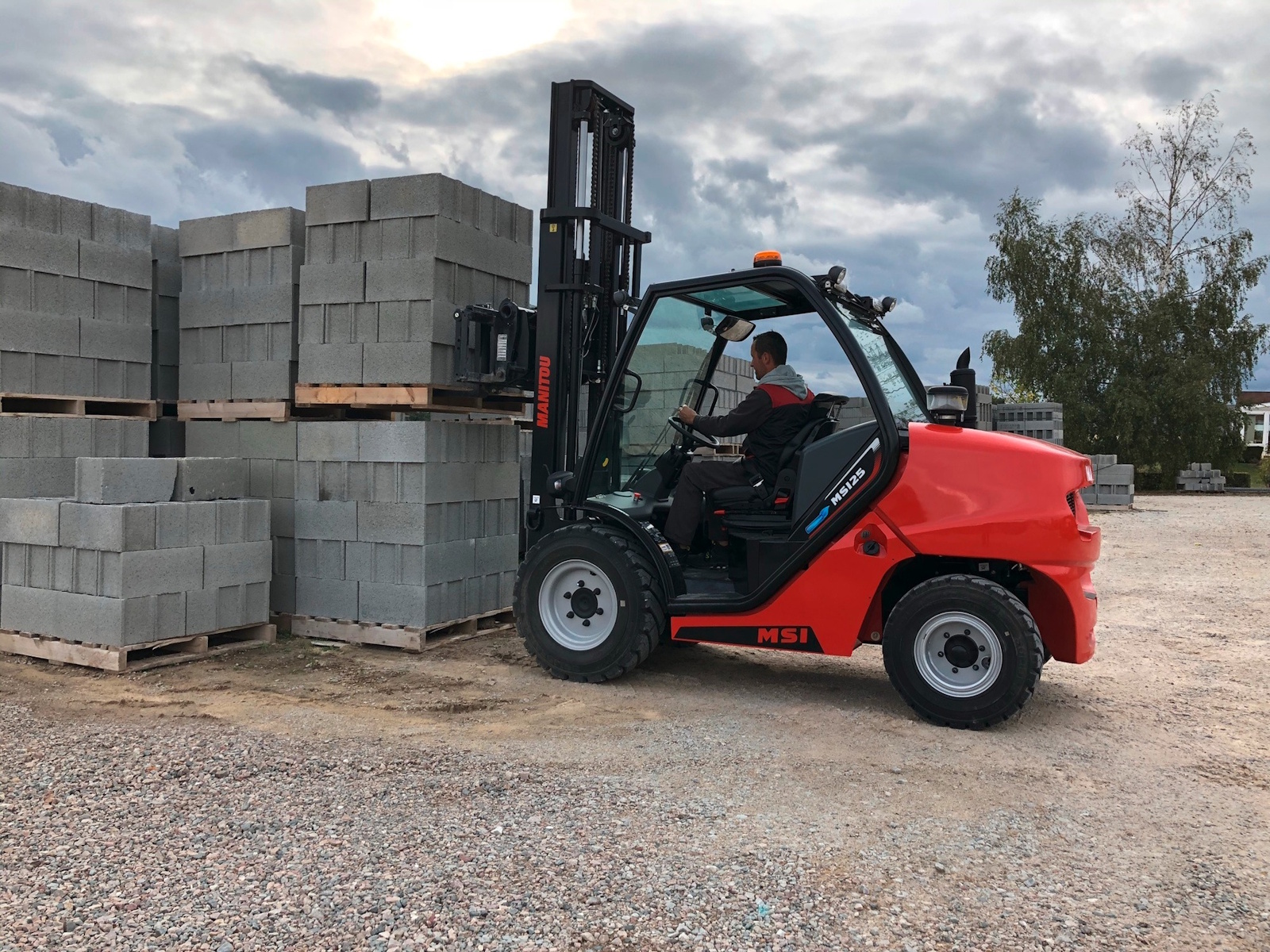

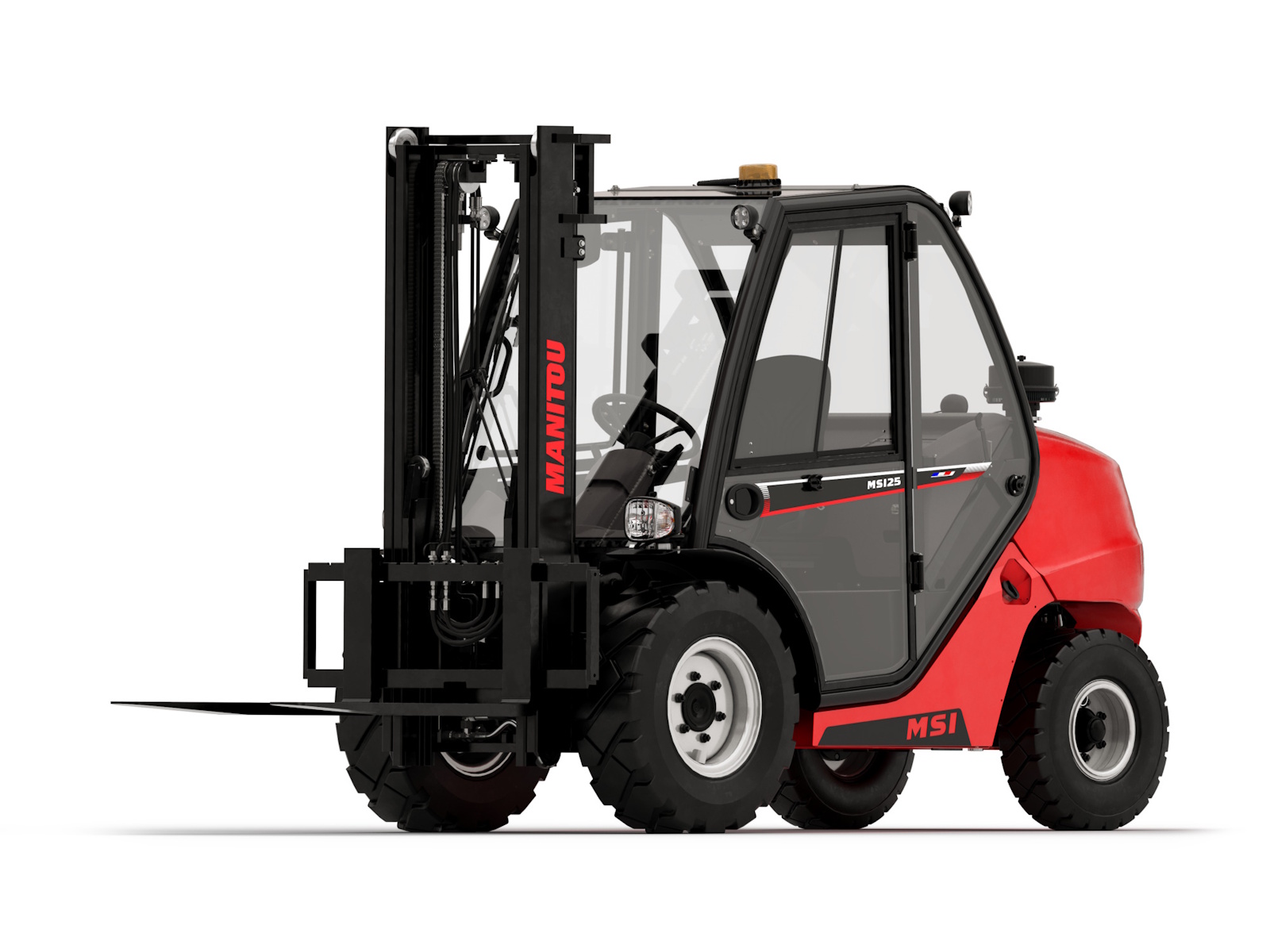

The semi-industrial forklift MSI 25 has been designed to handle all types of loads, up to 2500 kg. Handy, robust and equipped with tires adapted to your application, it allows you to transport your goods whatever your constraints: unstabilized or degraded grounds, slippery grounds, high-precision work requiring regulated power... For your comfort, it has intuitive controls that make driving easier. Thanks to its overall width and wheelbase, which are greater than those of an industrial forklift truck, the MSI 25 helps you handle long loads or several pallets at the same time in complete safety.
Info
Industry
Agriculture
Make
Manitou Group
Model
MSI 25 ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes

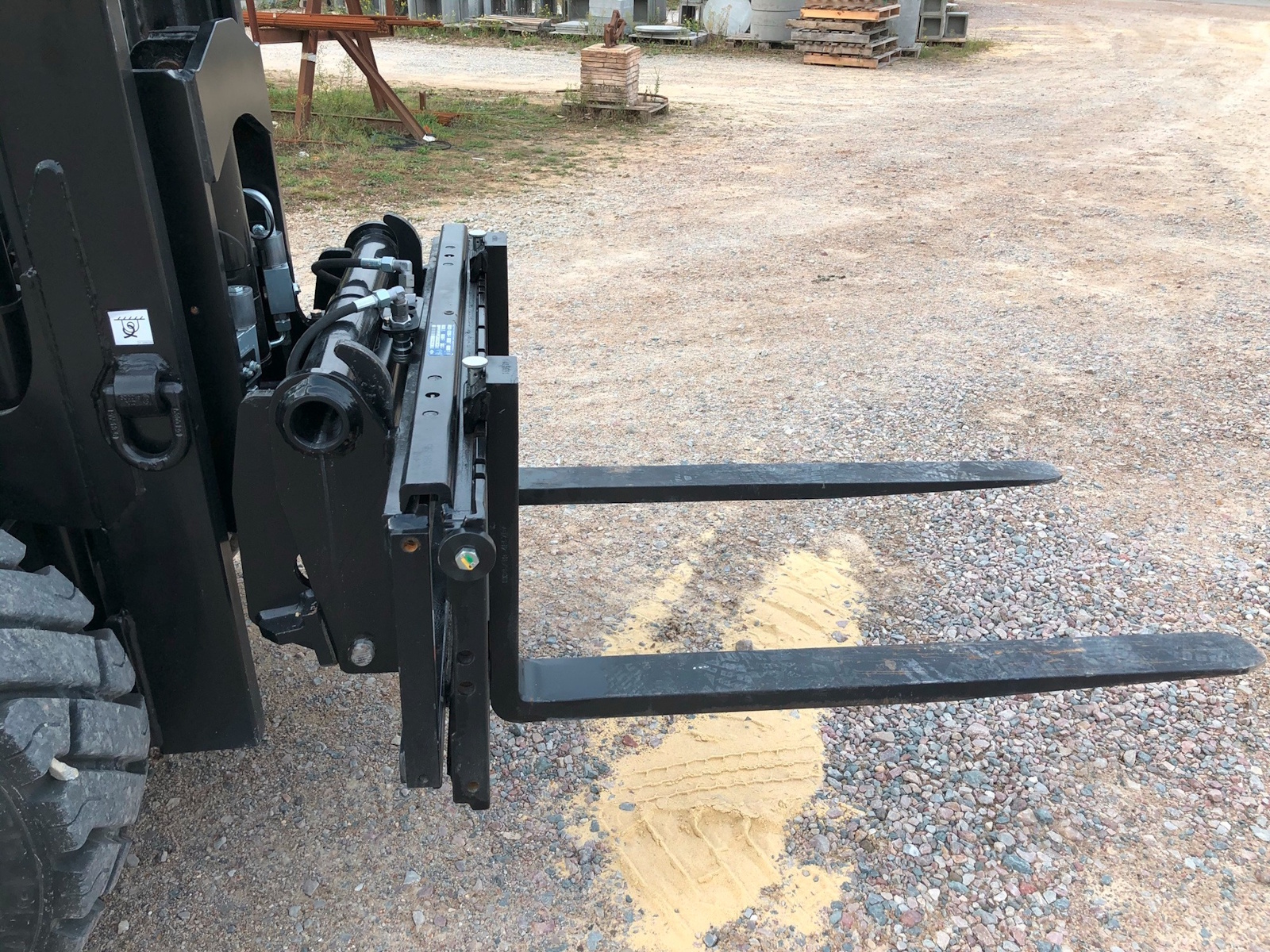

Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 24 in | Standard mast reference of the machine: FVD 33 | Forks section / width / length: 2 in x 4 in x 47 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Travel speed (laden / unladen): 13 mph-13 mph | Lifting speed (laden / unladen): 2 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-0.98 ft/s | Drawbar pull (Laden): 1900 daN | Gradeability (laden): 31 % | Rated speed: 2700 rpm | Type of drive control: Electronic | Working hydraulic pressure for attachments: 3191 PSI | Oil flow rate for attachments: 12 US gpm | Sound level at the driver's ear according to DIN 12 053: 81 dB
Load Capacity
5512 lb
Wheelbase
75 in
Weight
Service weight: 8598 lb | Weight on front axle (laden) / rear axle (laden): 12632 lb / 1477 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3505 lb / 5093 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 300-15/18 6T P43 | Dimensions of rear wheels: 7.00-12/12 ED PLUS | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 41 in | Rear wheel gauge: 44 in
Height
Seat height/stand height: 38 in | Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 82 in / 76 in
Length
165 in | Length to face of forks: 118 in
Width
52 in | Fork carriage width: 50 in | Aisle Width for pallets 1000 x 1200 crossways: 183 in
Ground Clearance
Ground clearance below mast: 10 in | Ground clearance at centre of wheelbase: 9 in
Turning Radius
103 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Transmission
Hydrostatic
Engine
Kubota / D1803 CRT E5B / Stage V
Power/Horsepower
50 Hp/37 kW
Cylinders
Rated speed 2700 rpm
