2026 Manitou Group MI 35 G US

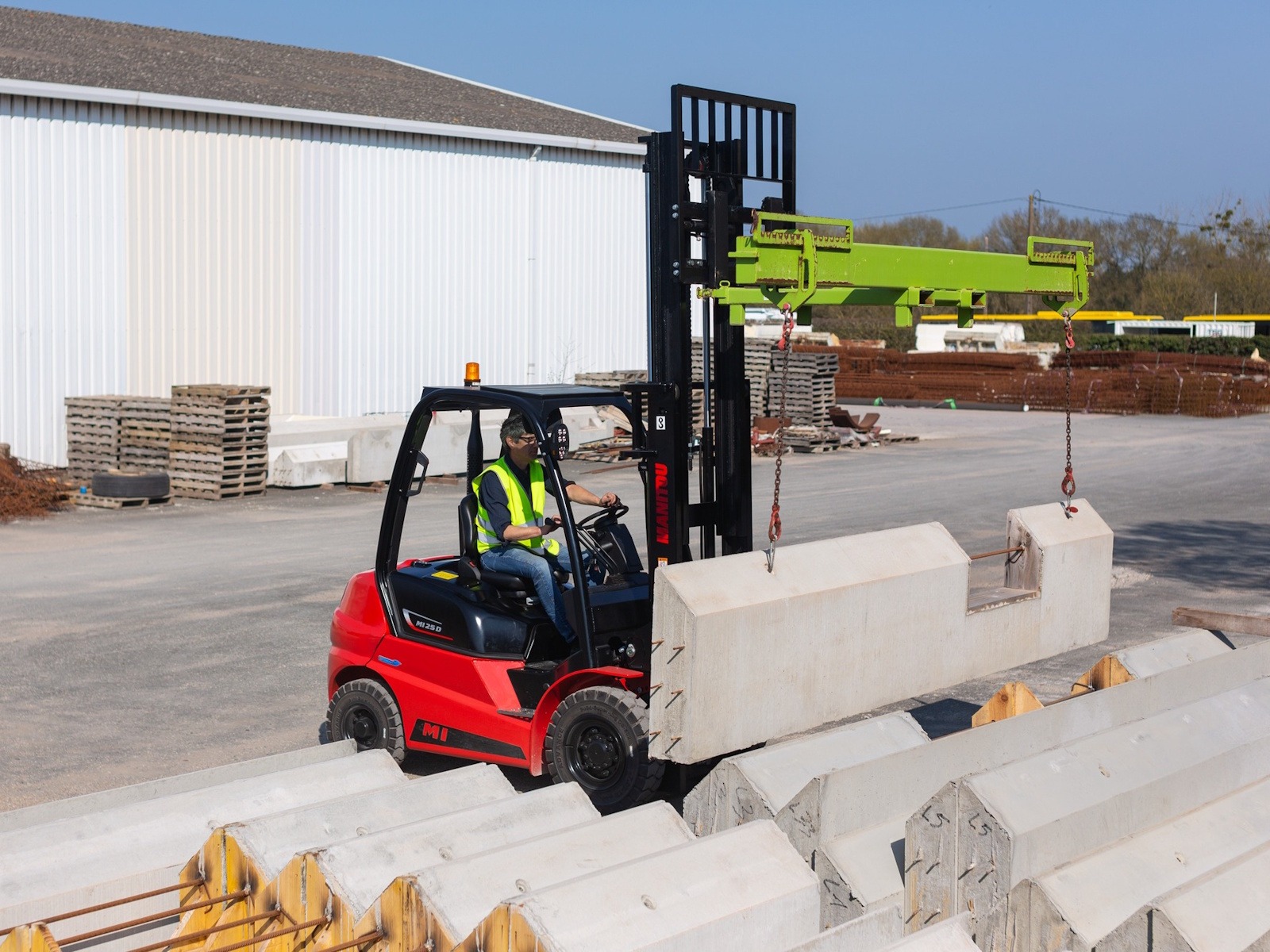

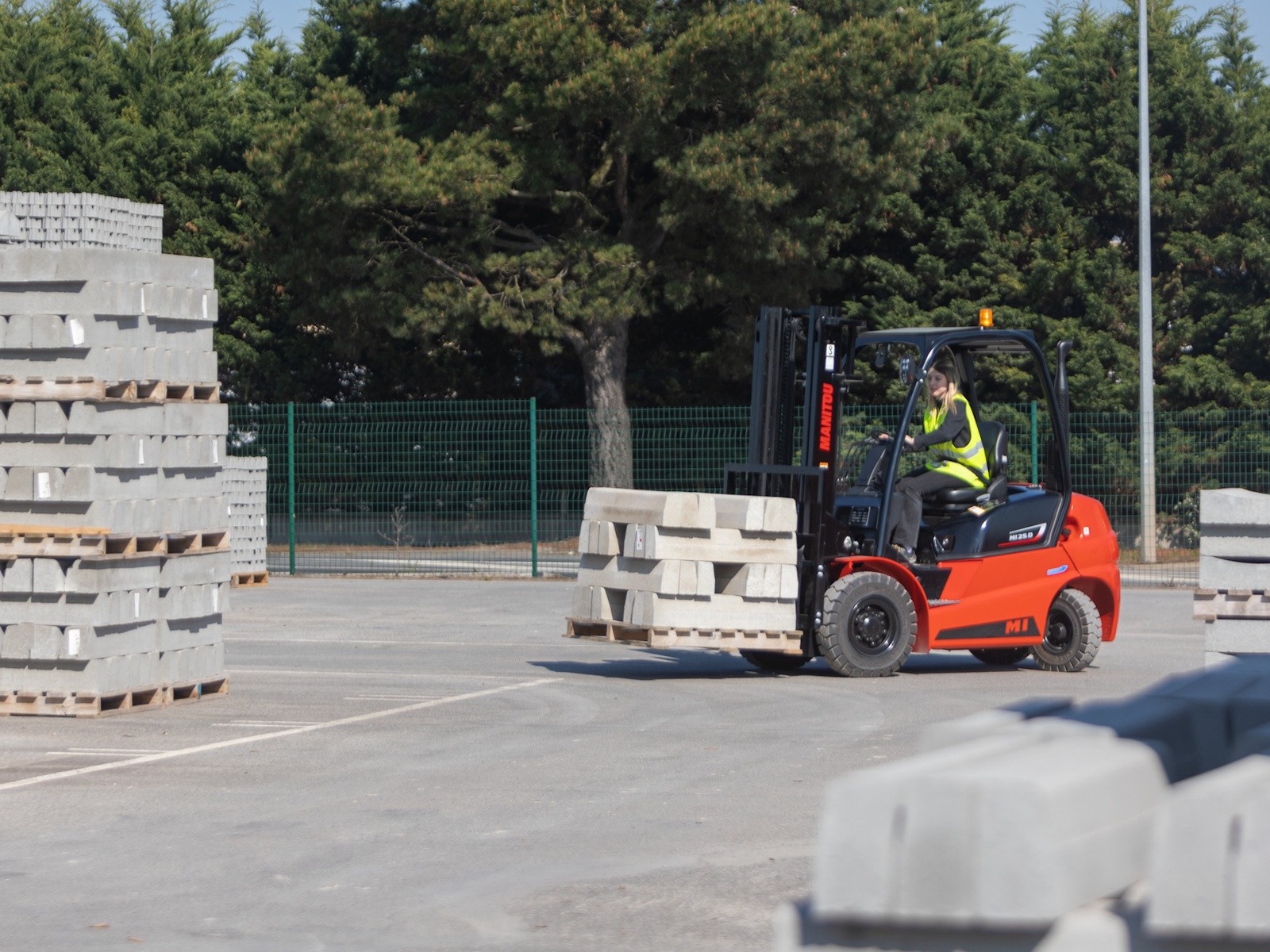

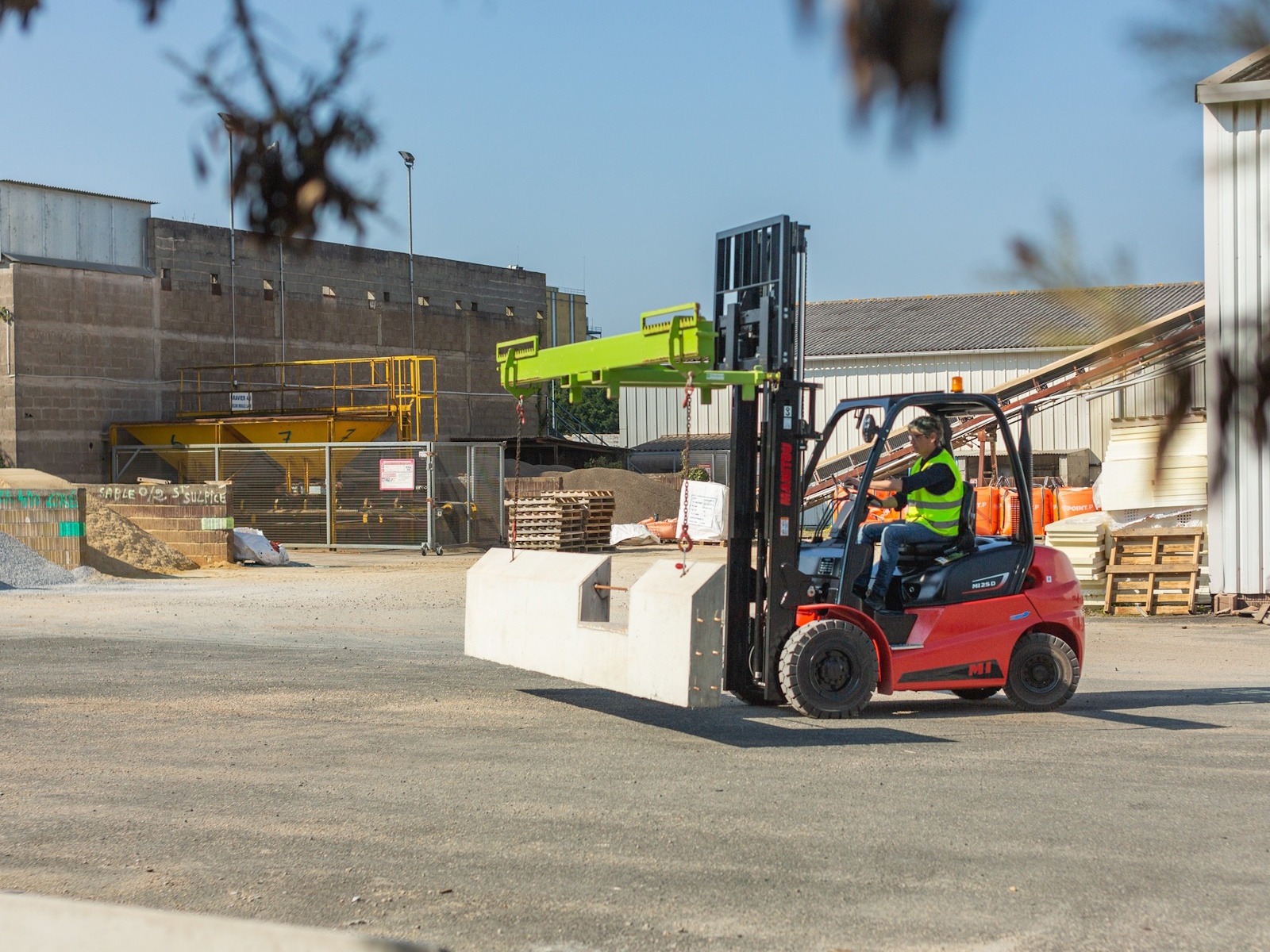

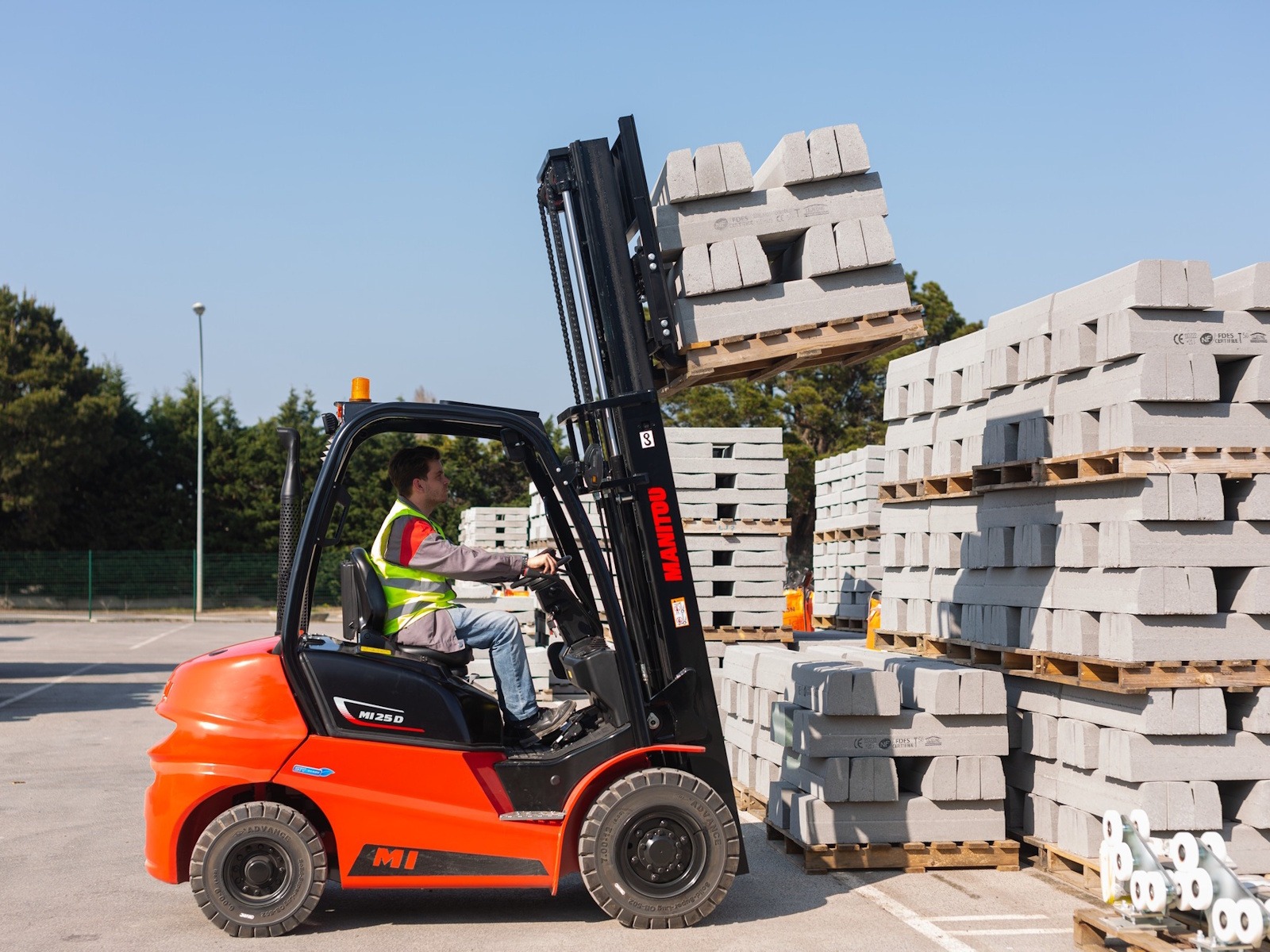

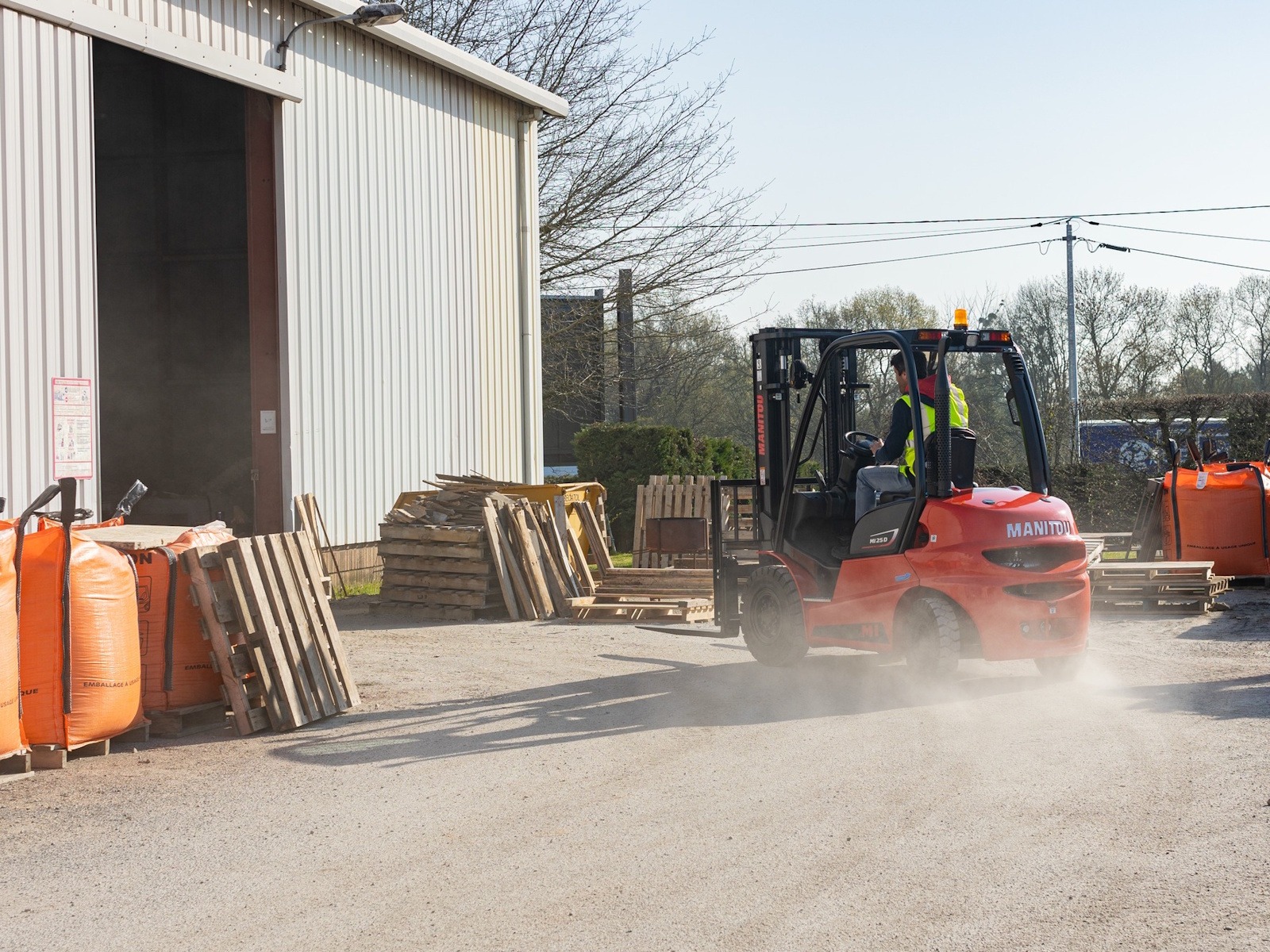

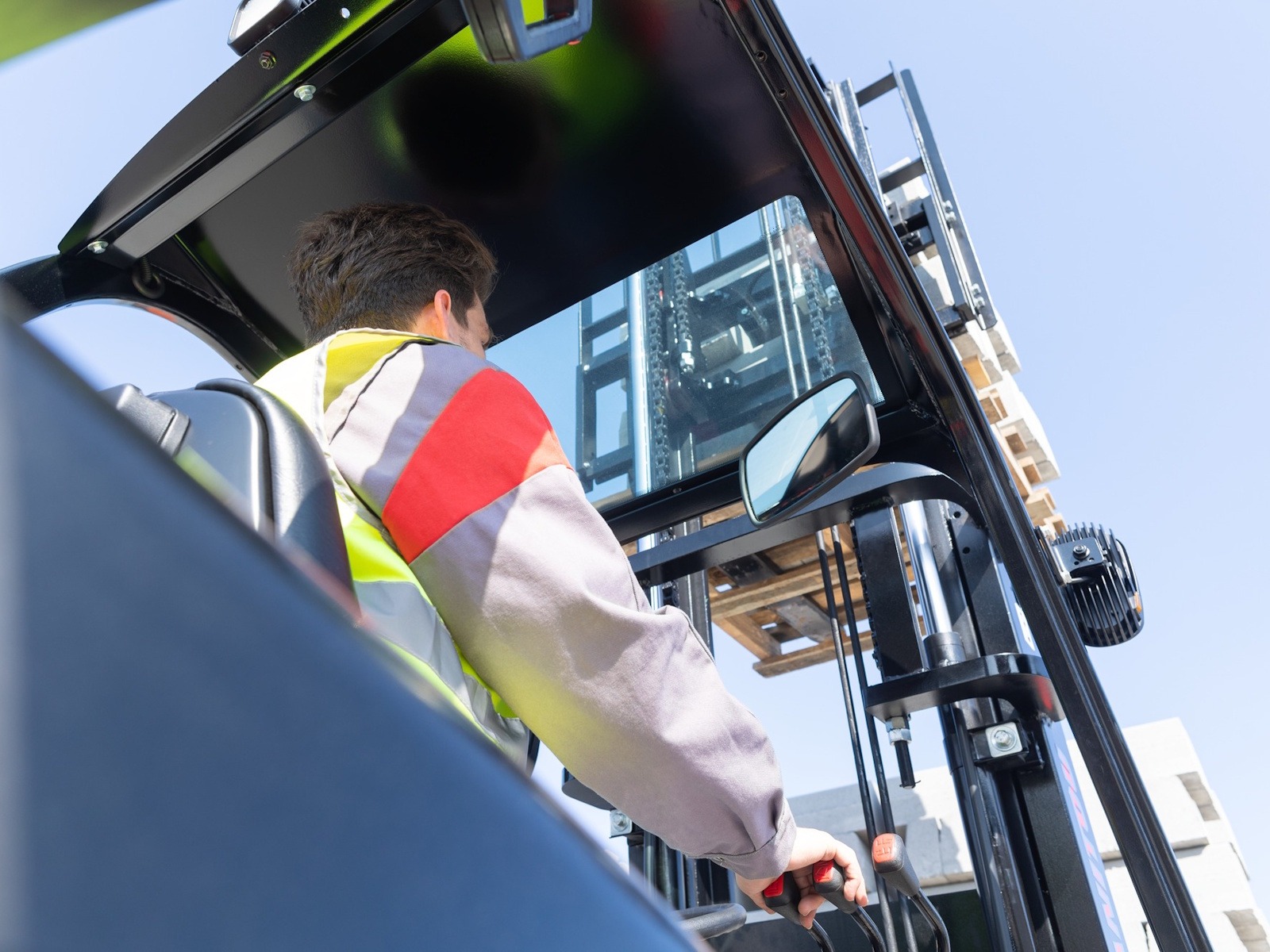

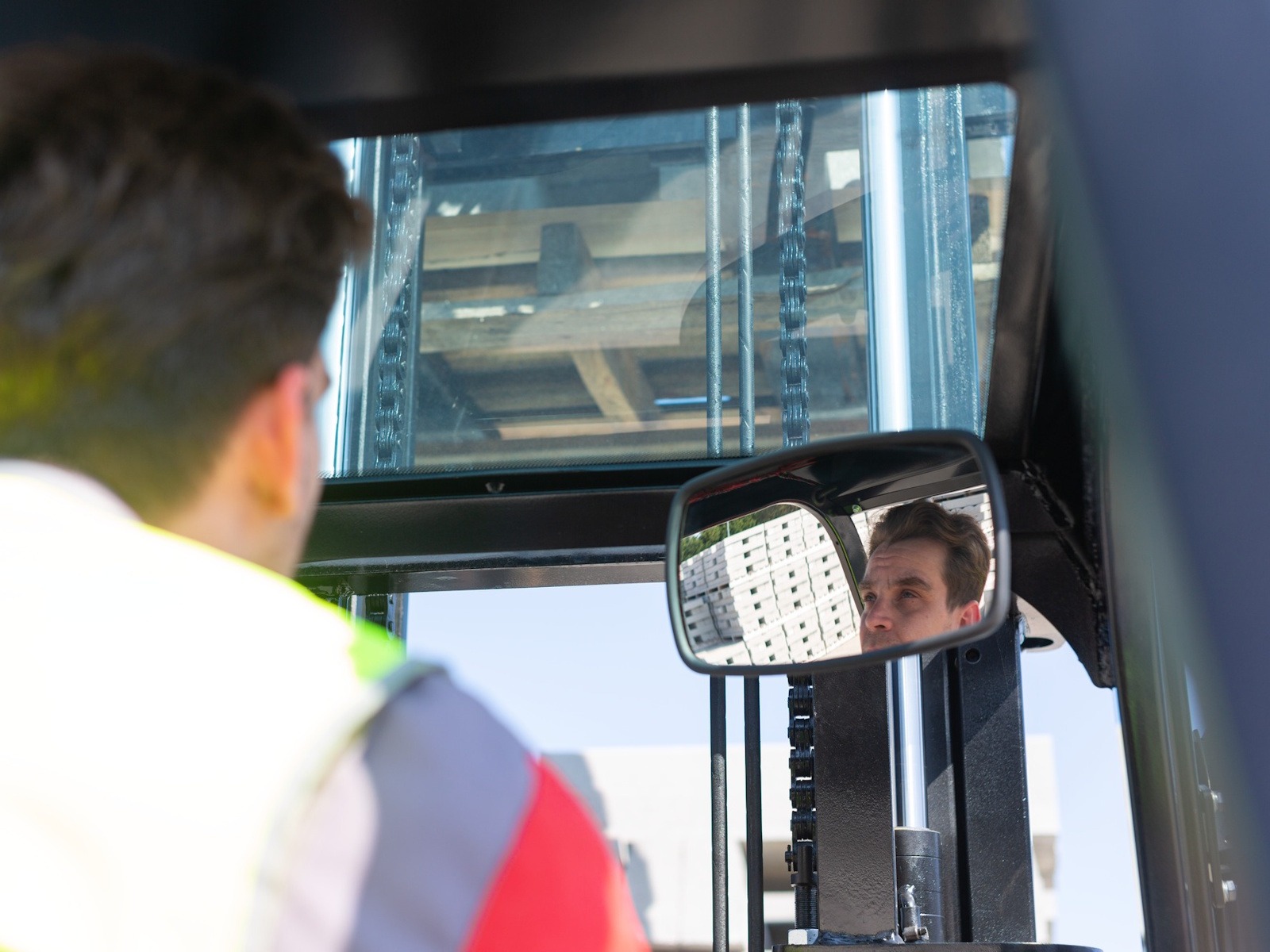

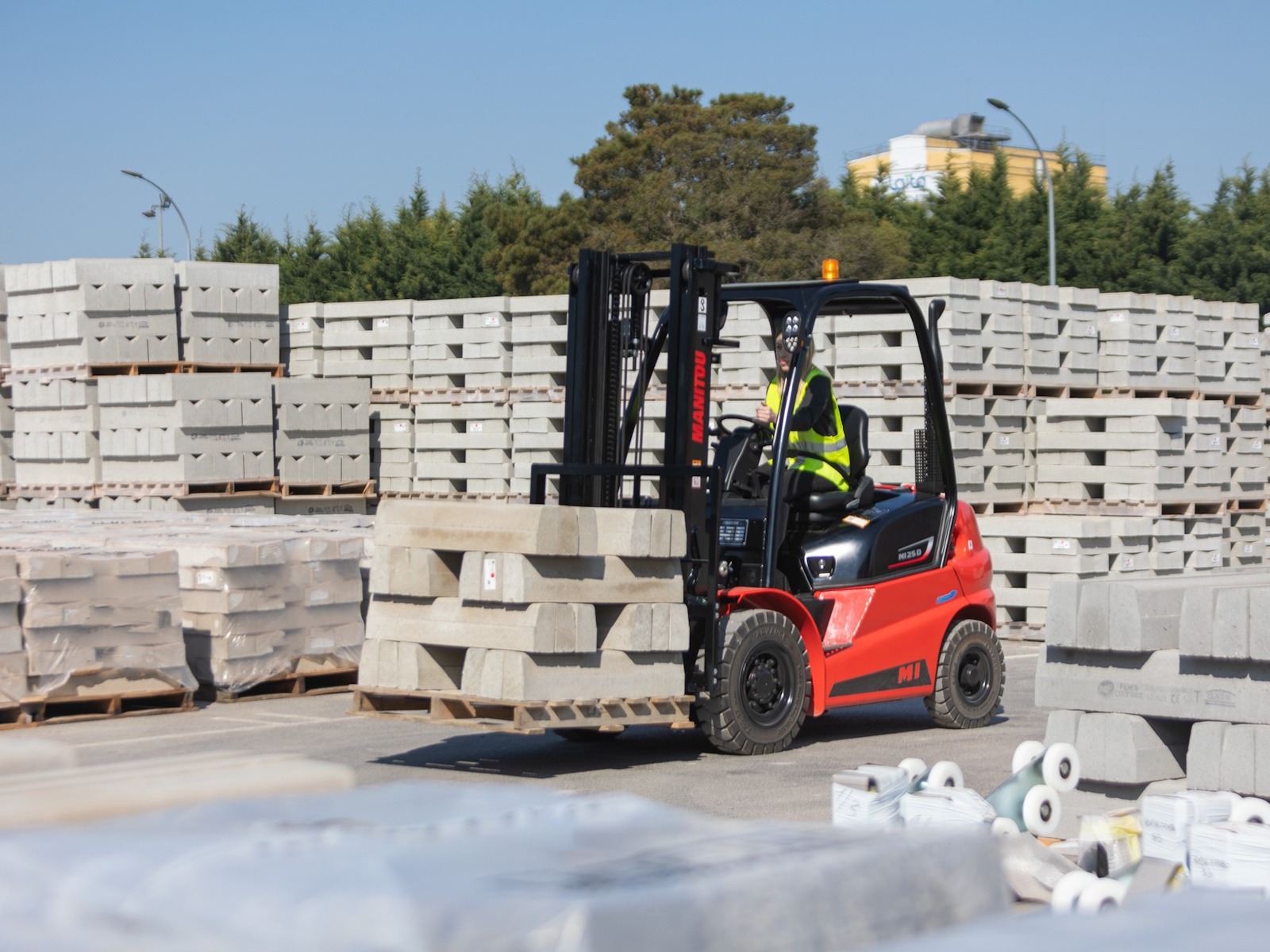

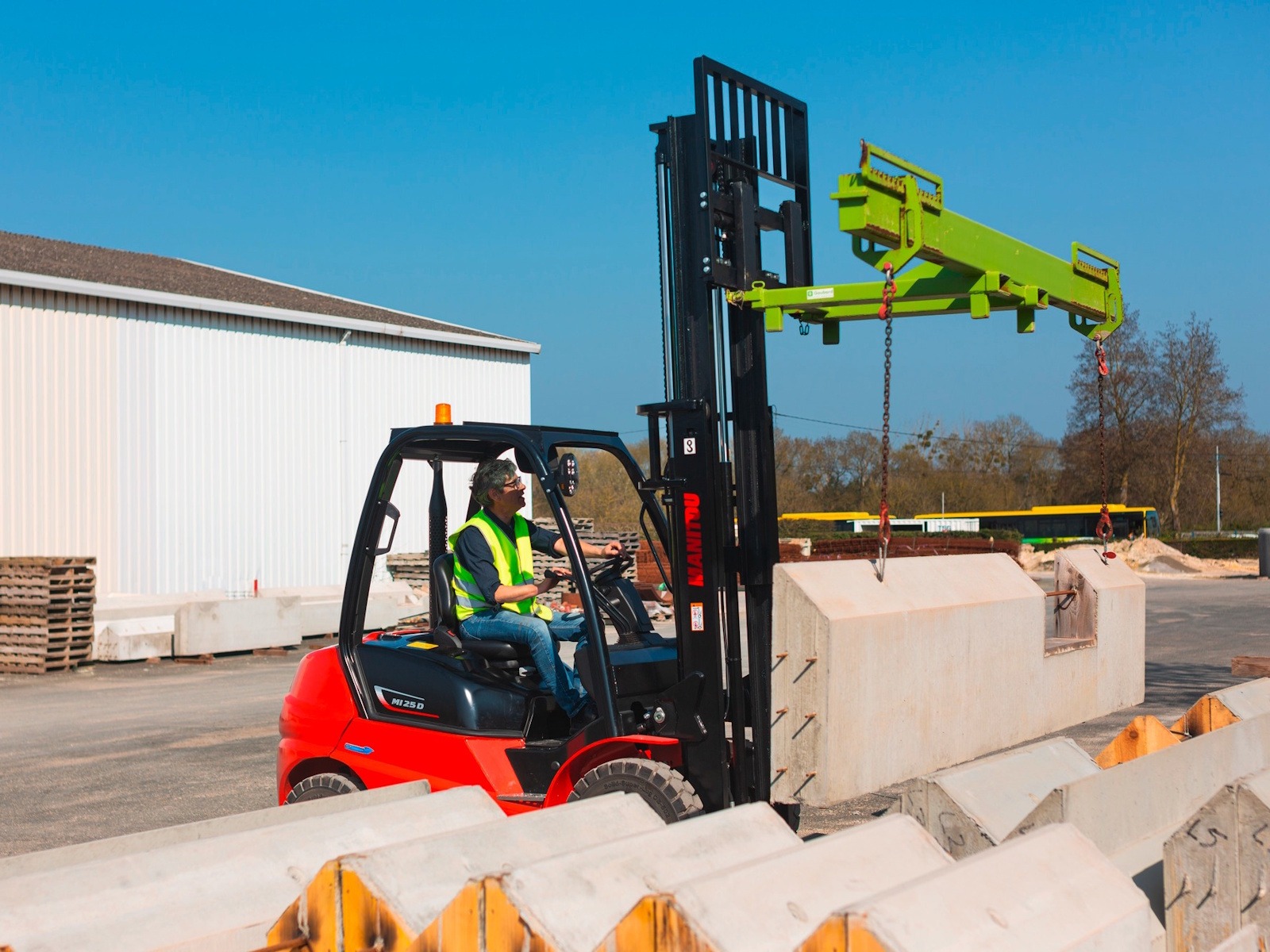

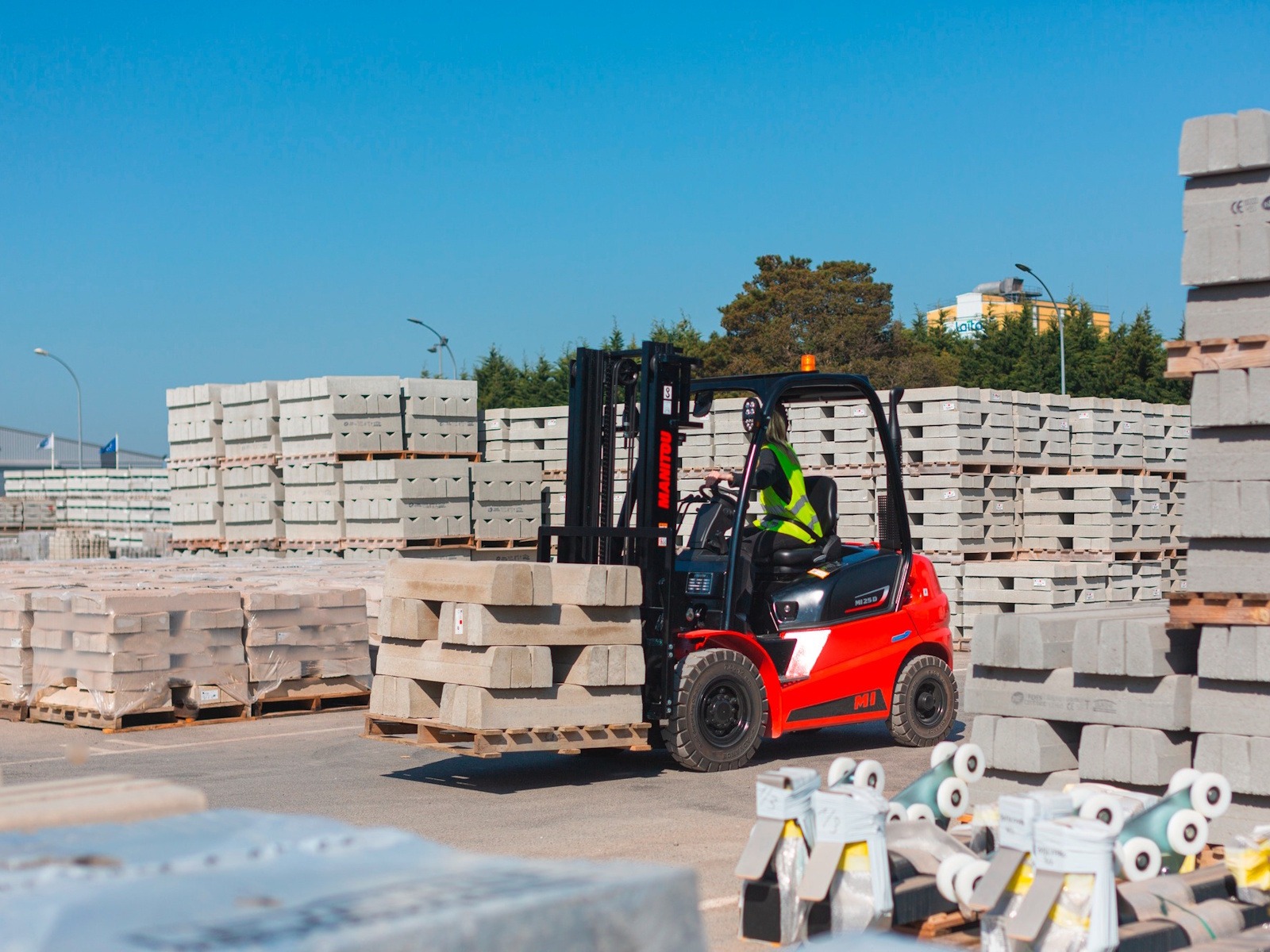

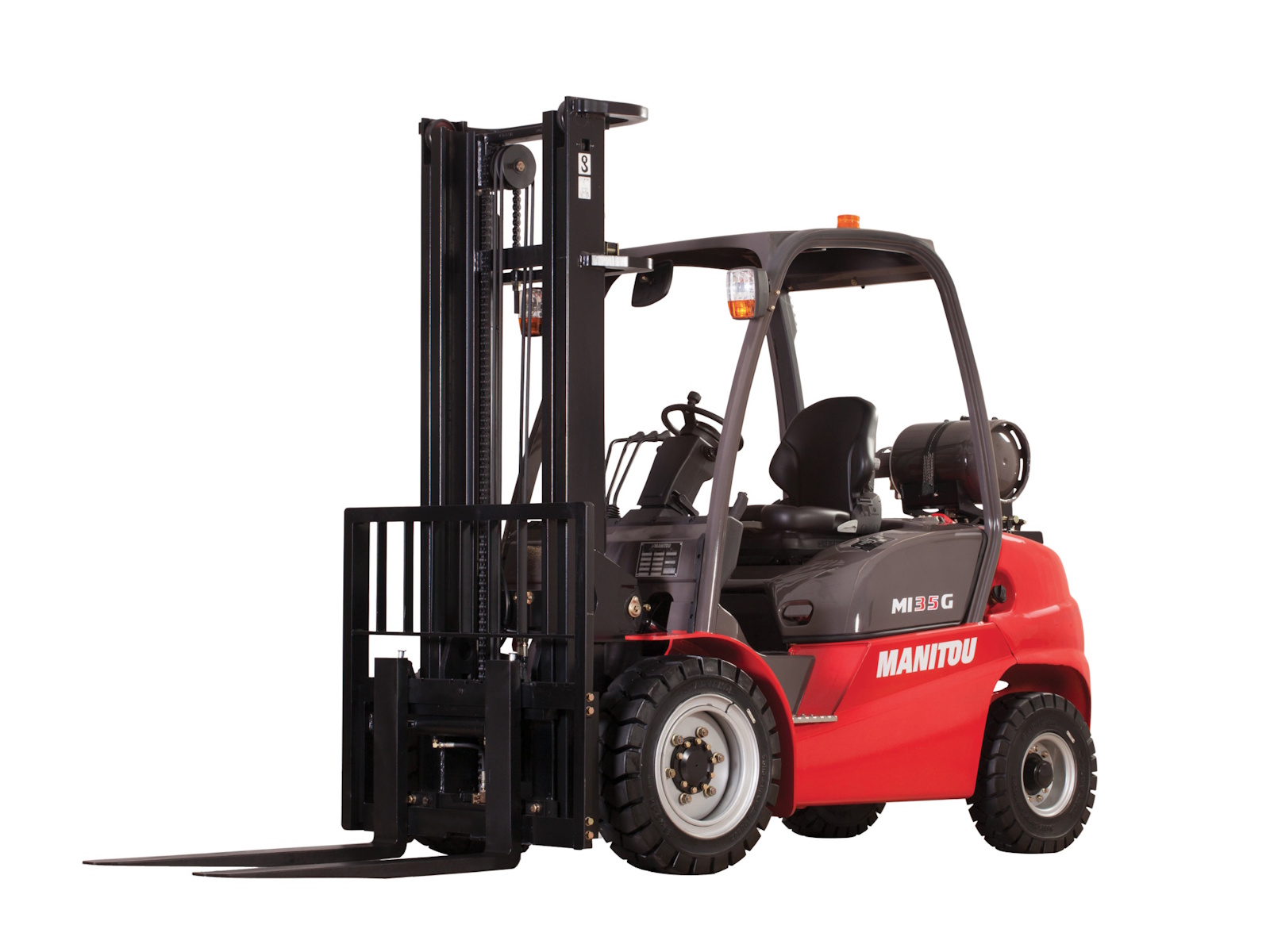

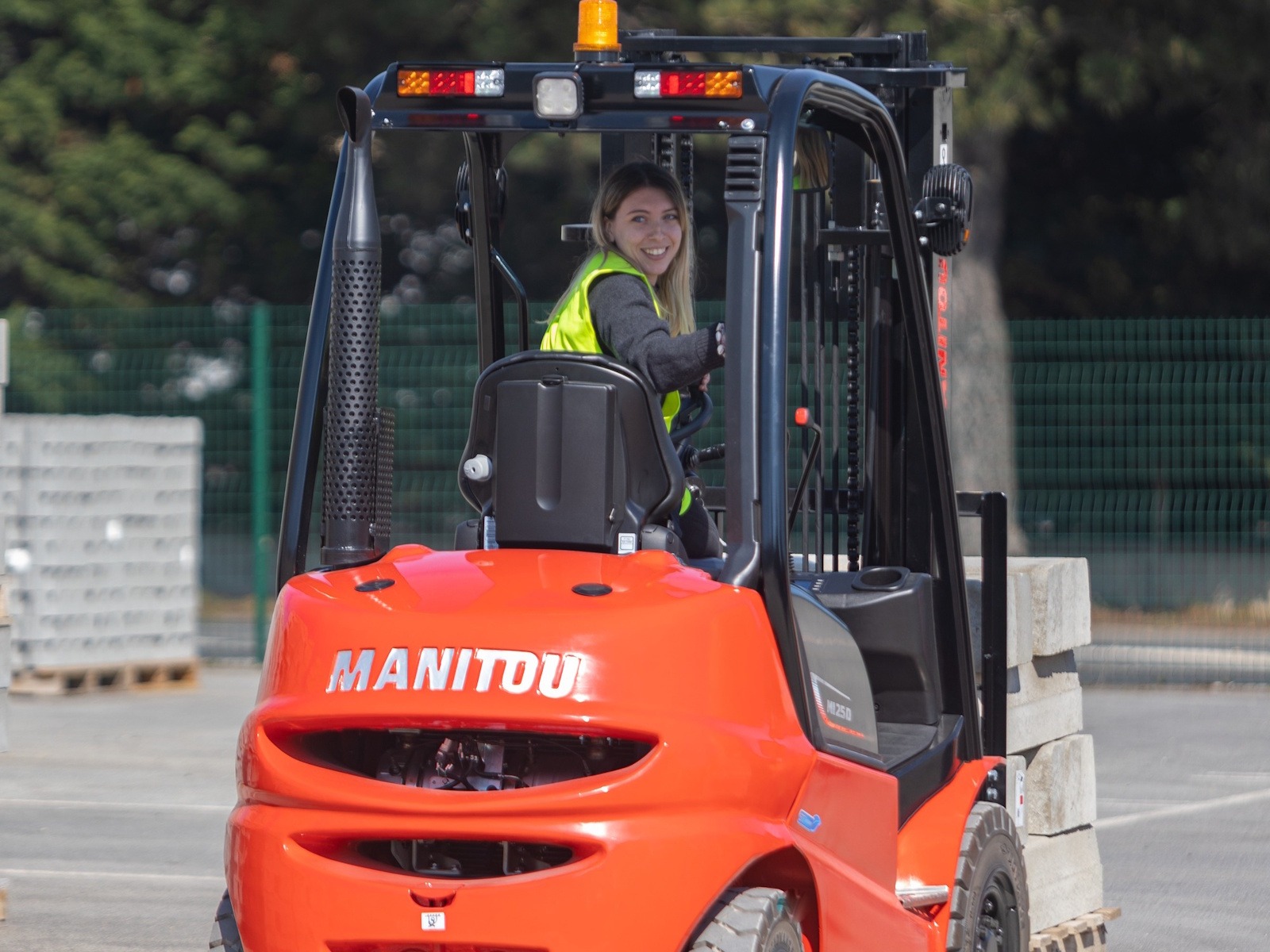

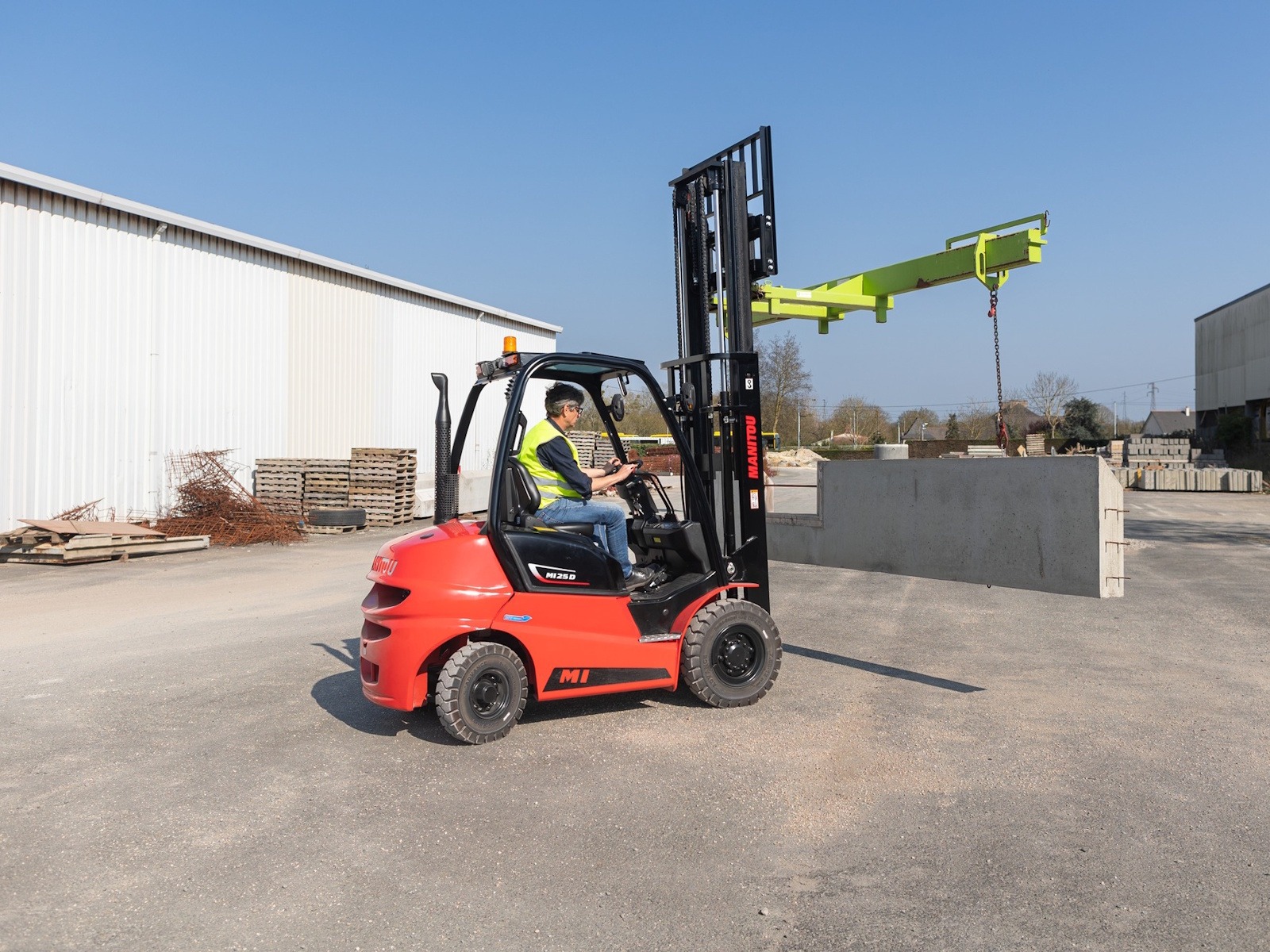

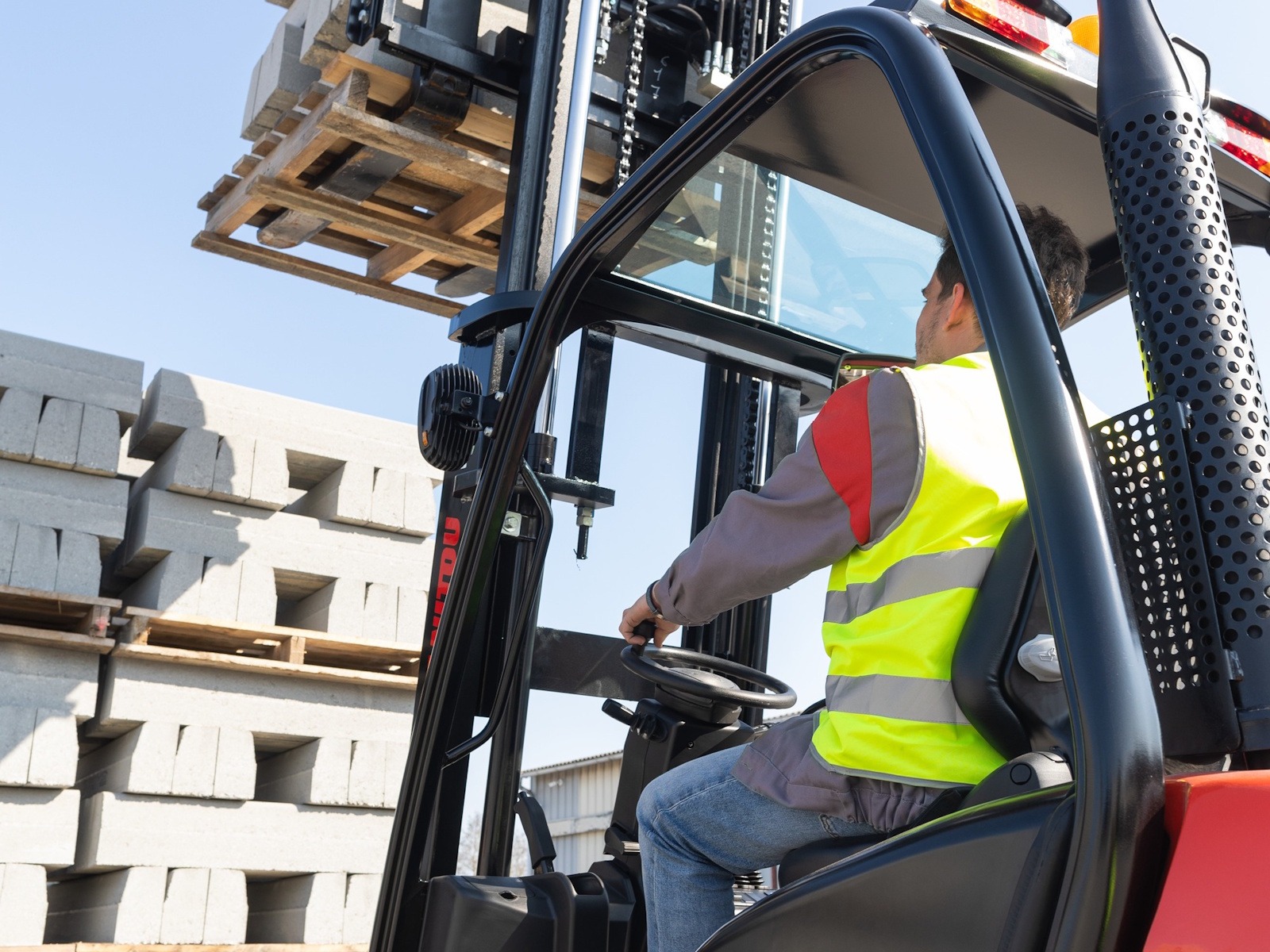

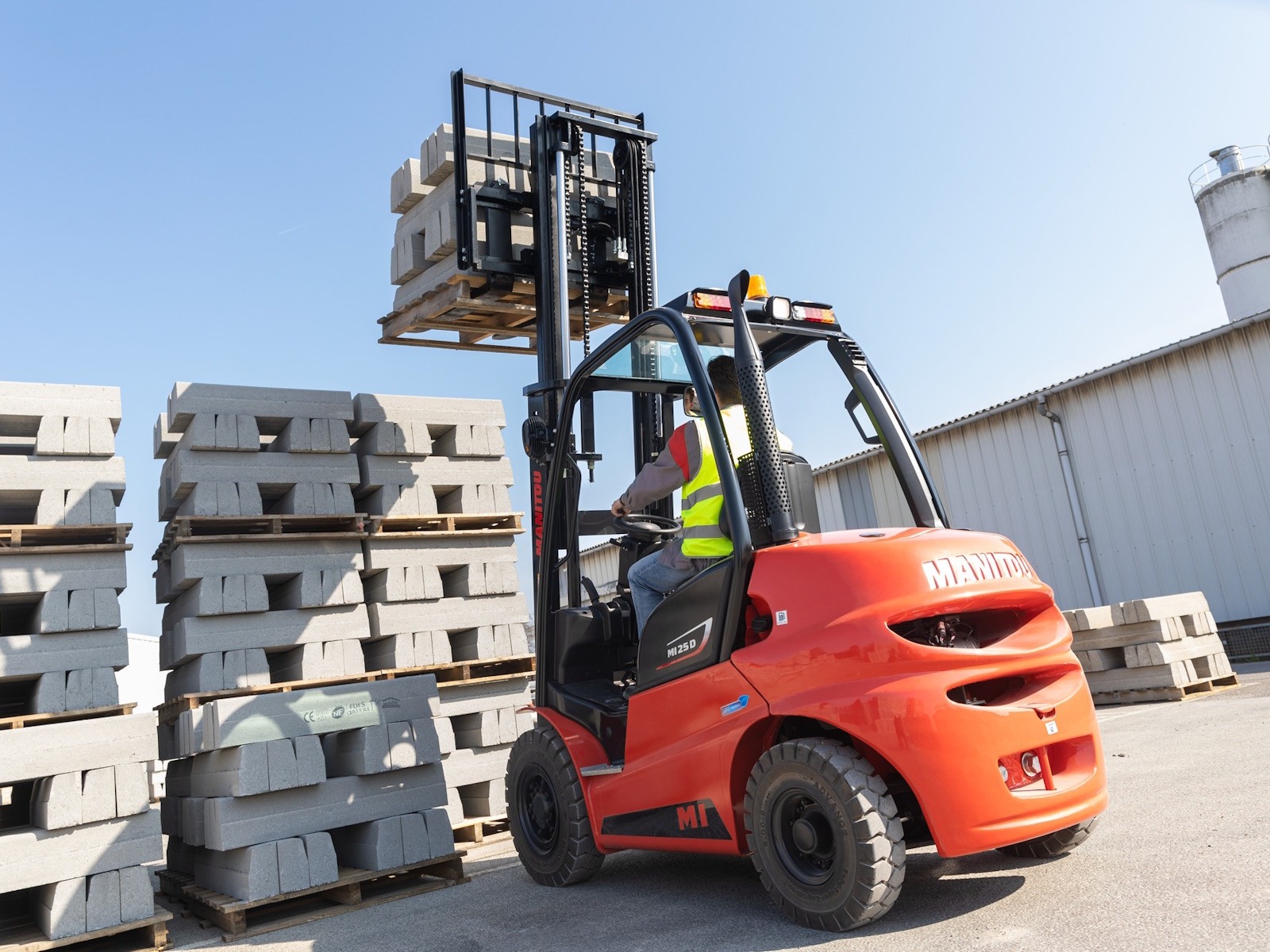

The MI 35 G is an industrial forklift designed for both indoor and outdoor applications with a maximum load capacity of 3.5 tonnes. It comes equipped with a Nissan LPG engine, with a wide range of masts and tyres available to meet your exact needs.The streamlined and spacious driver's position provides the operator with a pleasant and safe working space, which can easily be accessed from both sides. The ergonomic controls were designed to make day-to-day operation easier on the driver, and visibility has been maximised with the openwork roof, increased space between mast, slim profile rear posts for enhanced safety.
Info
Industry
Agriculture
Make
Manitou Group
Model
MI 35 G US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
LPG
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 19 in | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 11 mph-11 mph | Lifting speed (laden / unladen): 1 ft/s-2 ft/s | Lowering speed (laden / unladen): 2 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 1750 daN / 1100 daN | Gradeability (laden / unladen): 18 % / 20 % | Rated speed: 2400 rpm | Working hydraulic pressure for attachments: 2321 PSI | Oil flow rate for attachments: 19 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 80 dB | Sound level at the driver's ear according to DIN 12 053: 80 dB
Load Capacity
7716 lb
Wheelbase
67 in
Weight
Service weight: 10450 lb | Weight on front axle (laden) / rear axle (laden): 16006 lb / 2161 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3913 lb / 6537 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 28-9-15 12 | Dimensions of rear wheels: 6.50-10 10 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 40 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 48 in | Height of overhead guard (cabin): 84 in | Height of towing bar (coupling height): 14 in
Length
155 in | Length to face of forks: 110 in
Width
48 in | Overall width - Single wheels: 48 in | Fork carriage width: 43 in | Aisle Width for pallets 1000 x 1200 crossways: 165 in | Aisle width for 800 x 1200 pallet lengthways: 173 in
Ground Clearance
Ground clearance below mast: 5 in | Ground clearance at centre of wheelbase: 8 in
Turning Radius
99 in | Internal turning radius (over tyres): 6 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Engine
GCT (ex-Nissan) / K25
Power/Horsepower
63 Hp/46 kW
Cylinders
4 - 152 in³
