Description

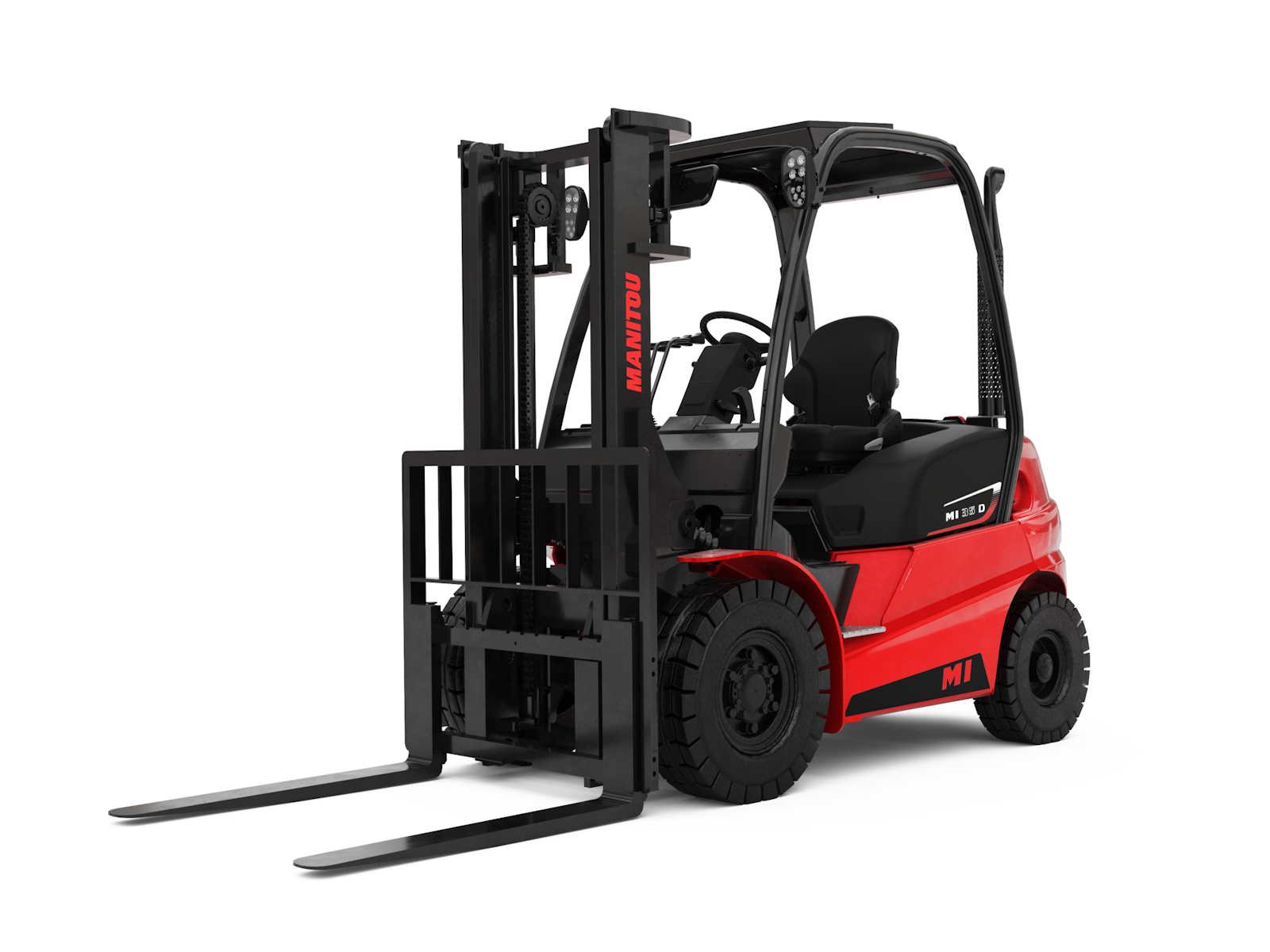

2026 Manitou Group MI 35 D ST5 US

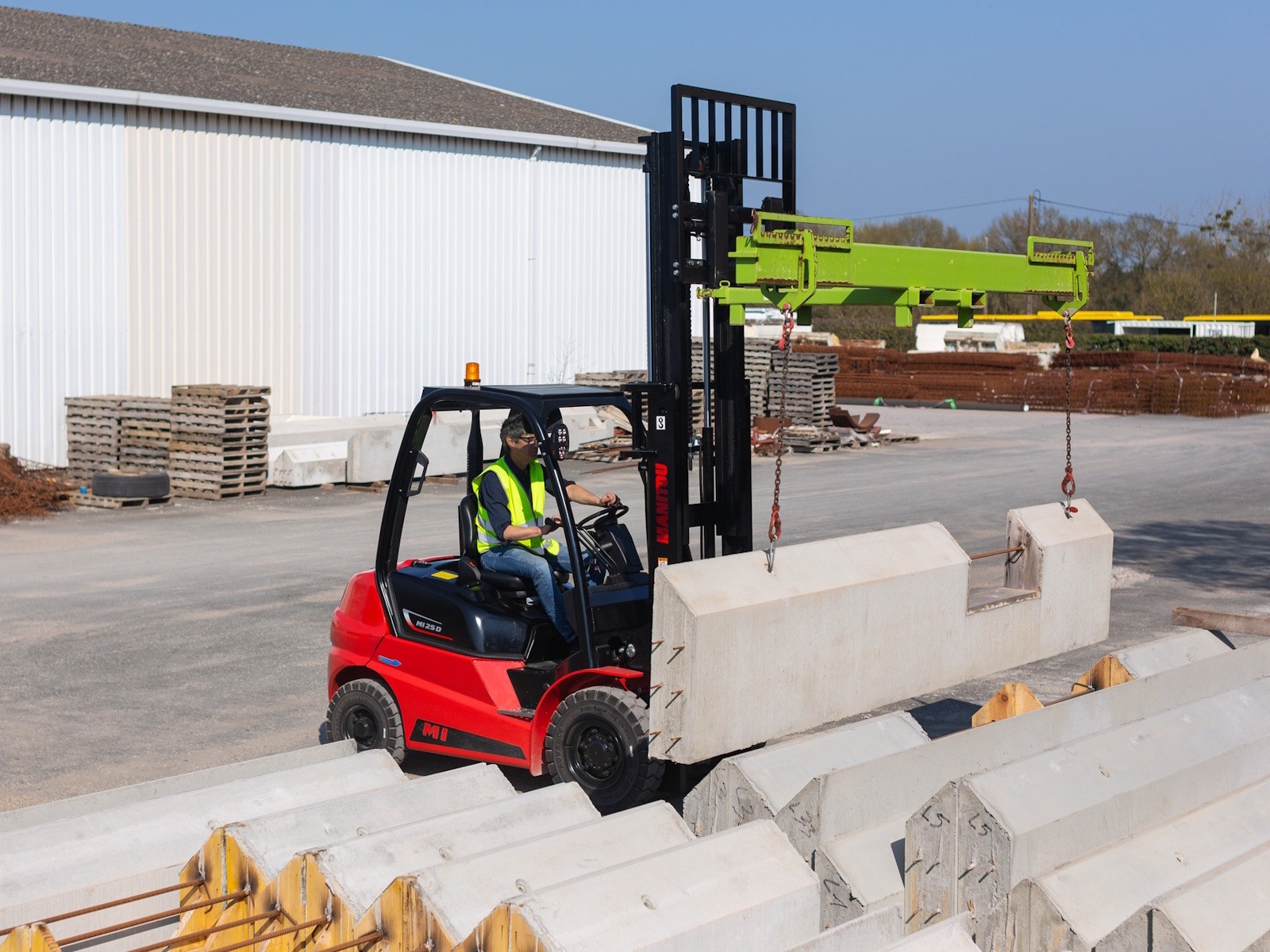

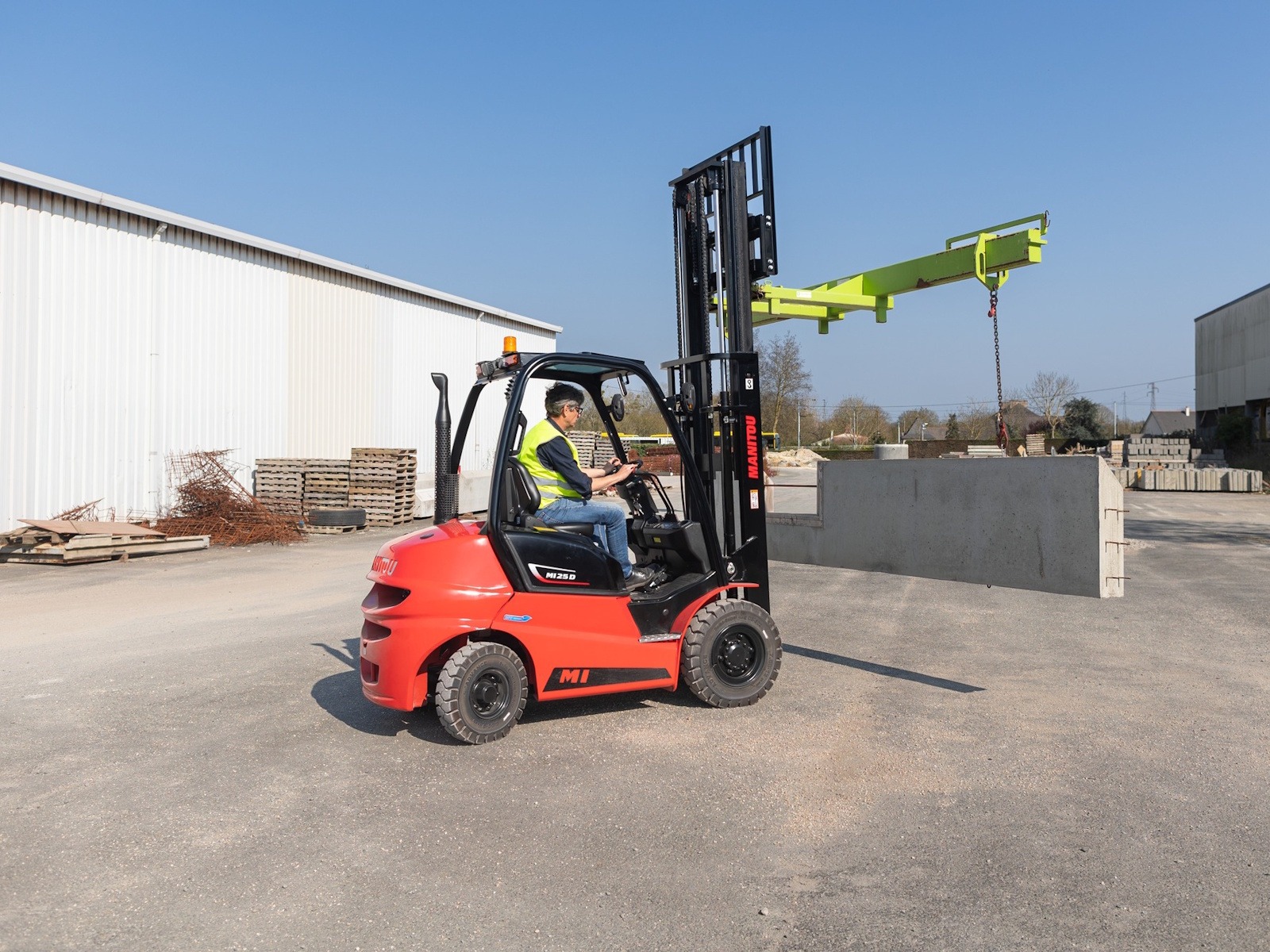

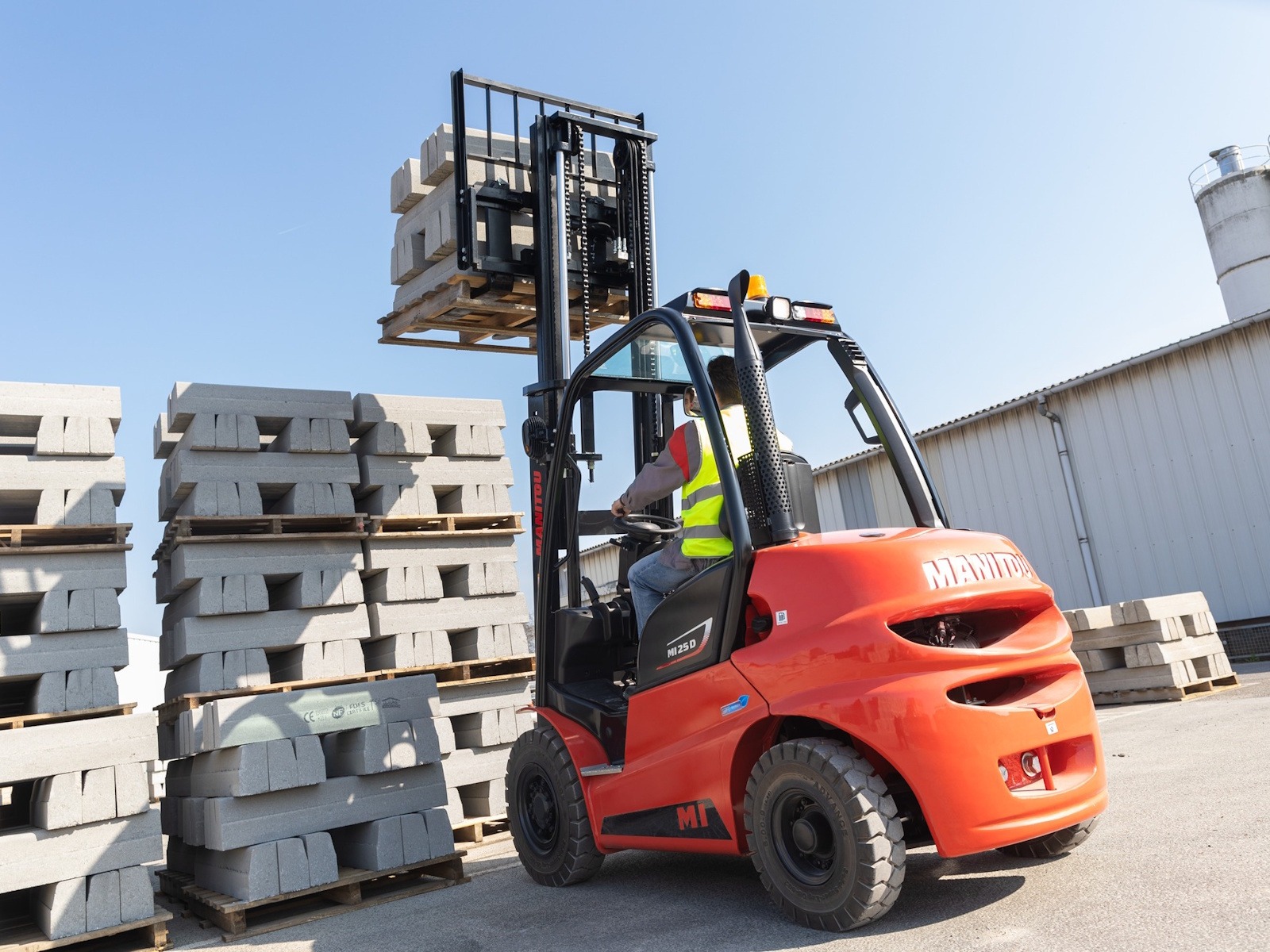

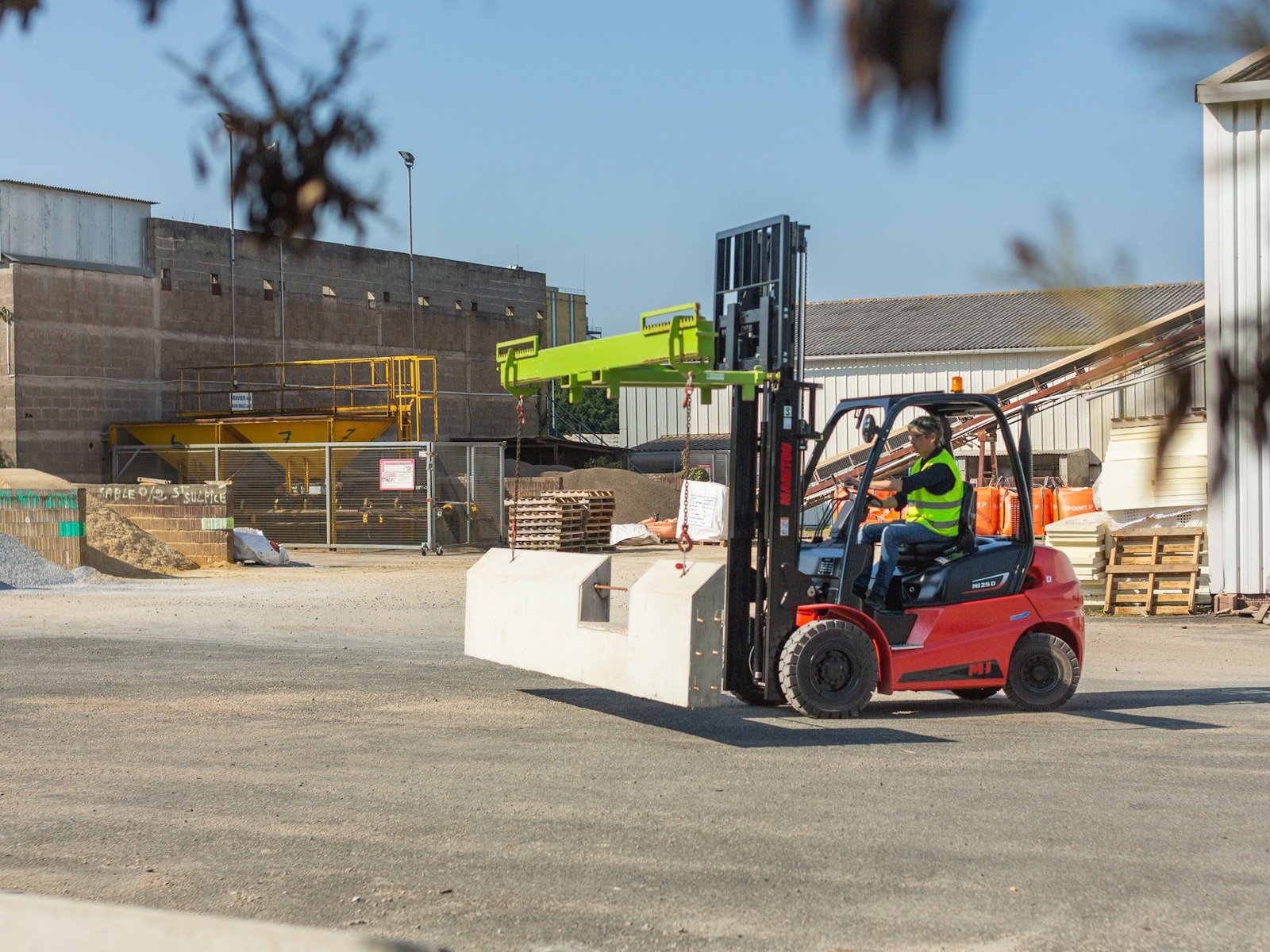

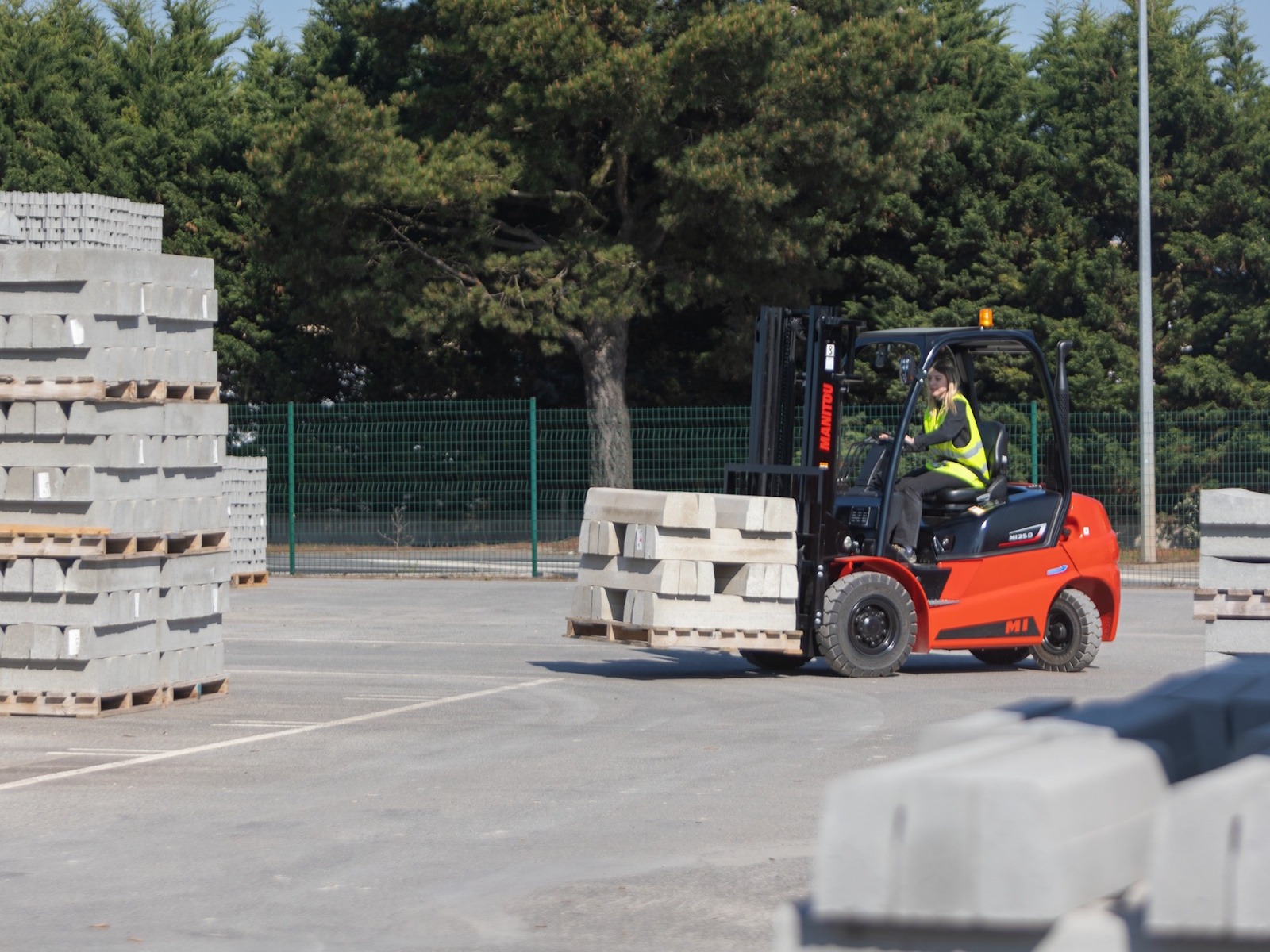

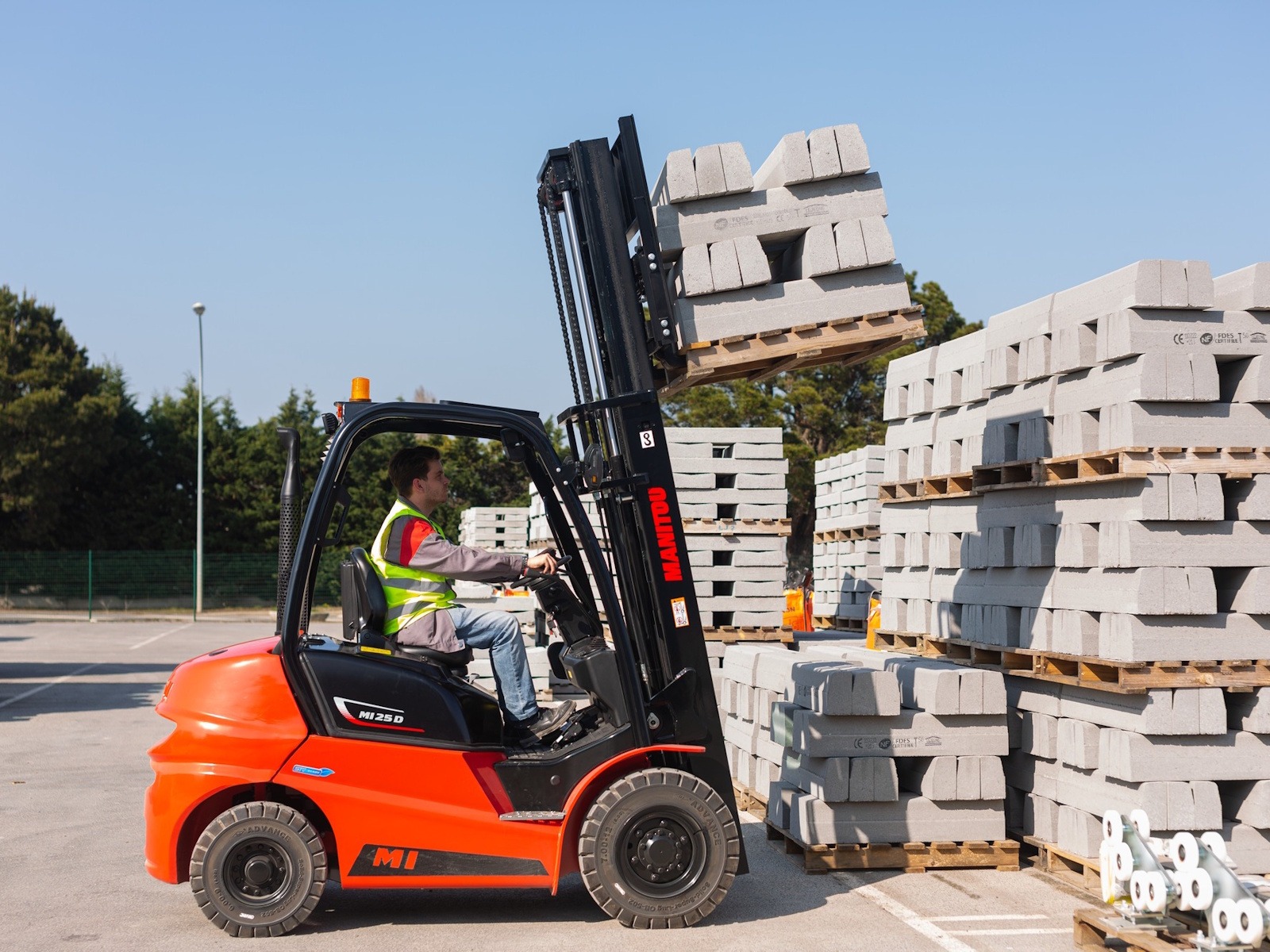

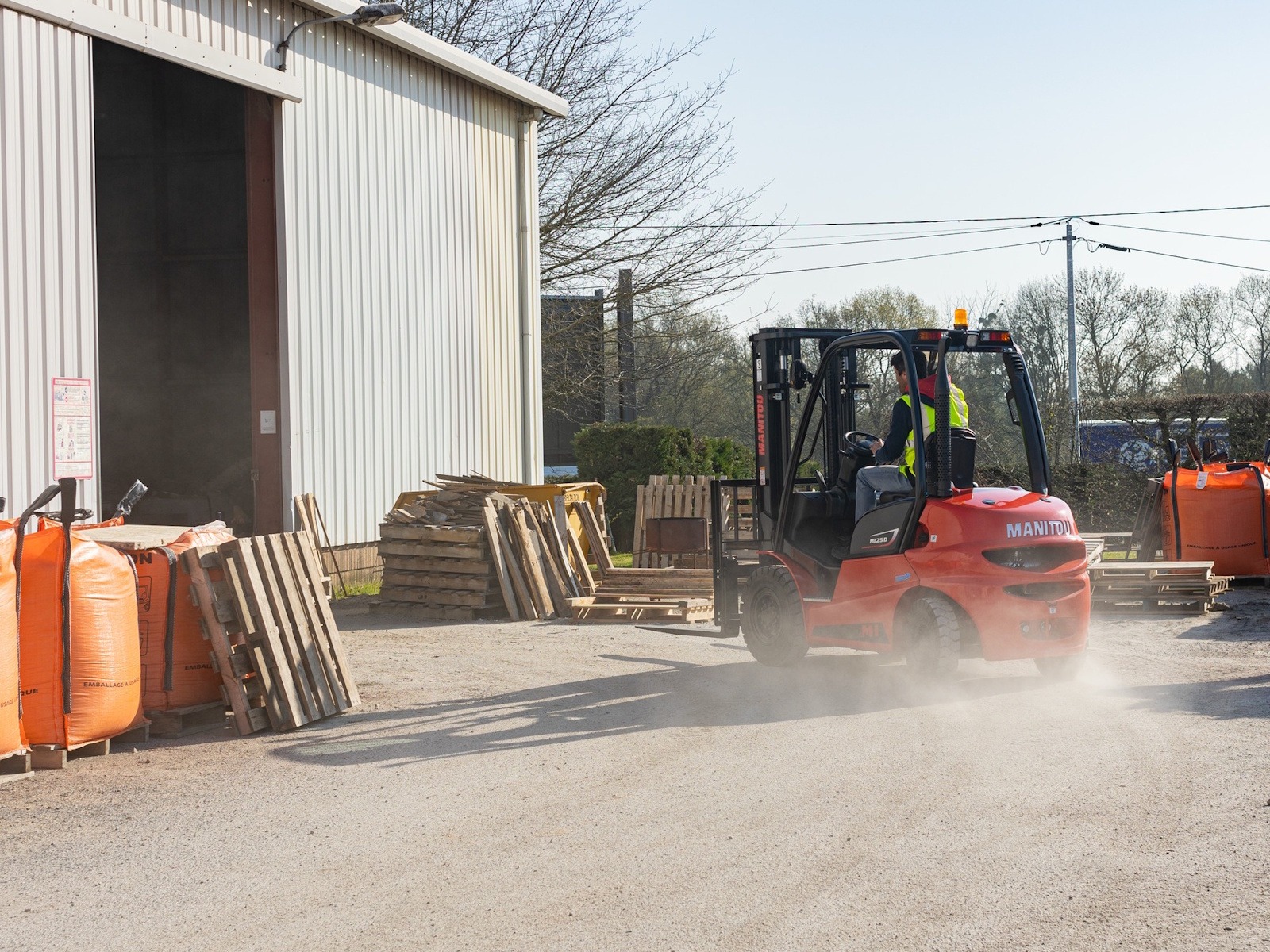

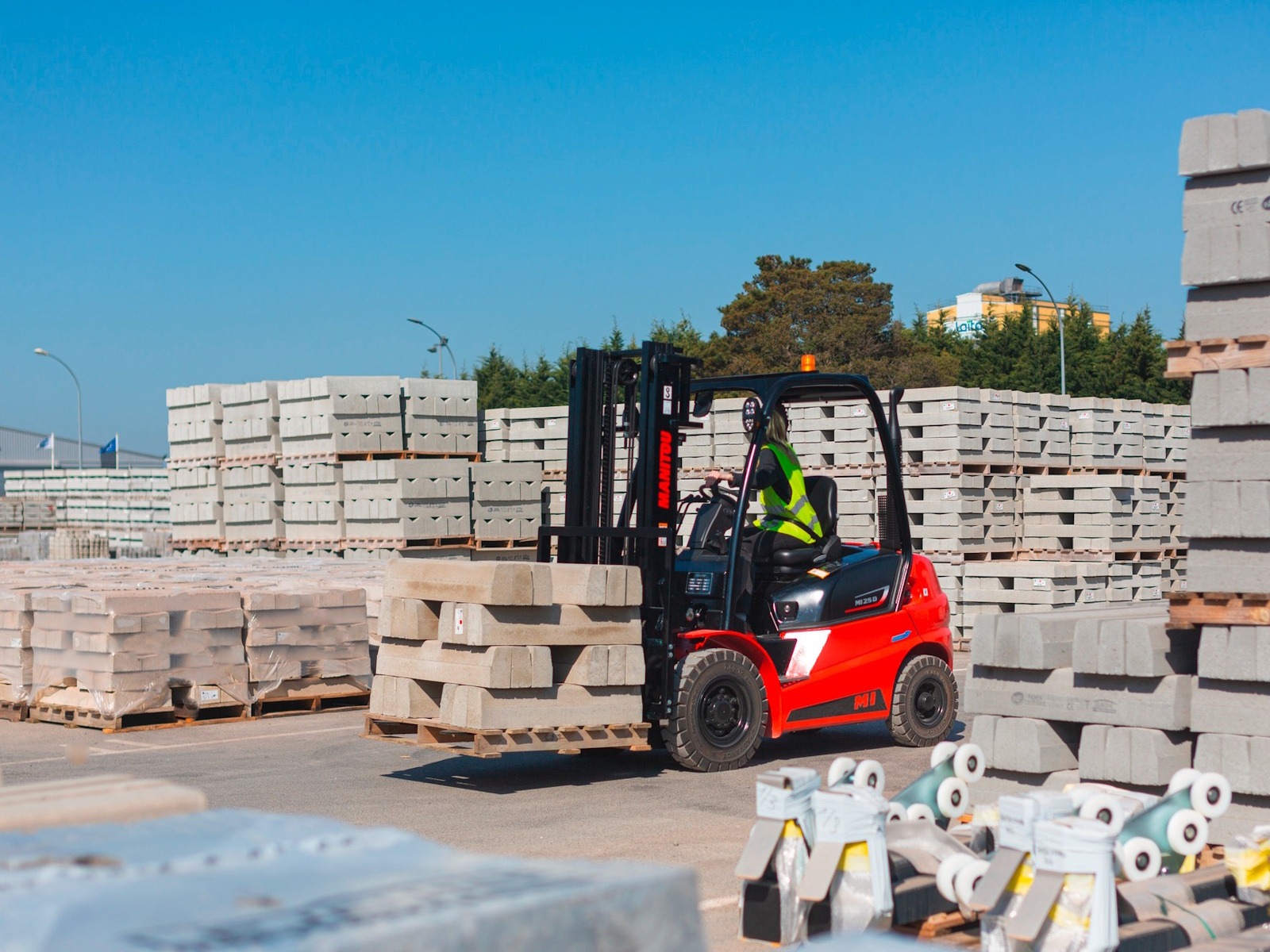

Are you looking for a handling solution that is both compact and capable of moving heavy loads with precision? Discover the performance of the Manitou MI 35 D forklift. Equipped with solid tyres and a powerful 37 kW Kubota diesel engine, our truck meets all your requirements. Move loads of up to 3500 kg and carry out all your operations efficiently, even in narrow aisles of your warehouses, logistics platforms or production sites!
Info
Industry
Agriculture
Make
Manitou Group
Model
MI 35 D ST5 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 19 in | Forks section / width / length: 2 in x 5 in x 45 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 11 mph-11 mph | Lifting speed (laden / unladen): 1 ft/s-1 ft/s | Lowering speed (laden / unladen): 1 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 2000 daN / 1520 daN | Gradeability (laden / unladen): 18 % / 20 % | Rated speed: 2400 rpm | Working hydraulic pressure for attachments: 2321 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 84 dB
Load Capacity
7716 lb
Wheelbase
67 in
Weight
Service weight: 10714 lb | Weight on front axle (laden) / rear axle (laden): 16226 lb / 2205 lb | Weight on front axle (Unladen) / rear axle (Unladen): 4023 lb / 6691 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 28-9-15 12 | Dimensions of rear wheels: 6.50-10 10 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 40 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 48 in | Height of overhead guard (cabin): 84 in | Height of towing bar (coupling height): 14 in
Length
155 in | Length to face of forks: 110 in
Width
48 in | Overall width - Single wheels: 48 in | Overall width - Twinned wheels: 68 in | Fork carriage width: 43 in | Aisle Width for pallets 1000 x 1200 crossways: 165 in | Aisle width for 800 x 1200 pallet lengthways: 173 in
Ground Clearance
Ground clearance below mast: 5 in | Ground clearance at centre of wheelbase: 8 in
Turning Radius
97 in | Internal turning radius (over tyres): 6 in
Brakes
Service brake: Hydraulic
Engine
Kubota / V2607-CR-E5B / Stage V
Power/Horsepower
51 Hp/37.40 kW
Cylinders
4 - 160 in³
