2026 Land Pride CGC1040

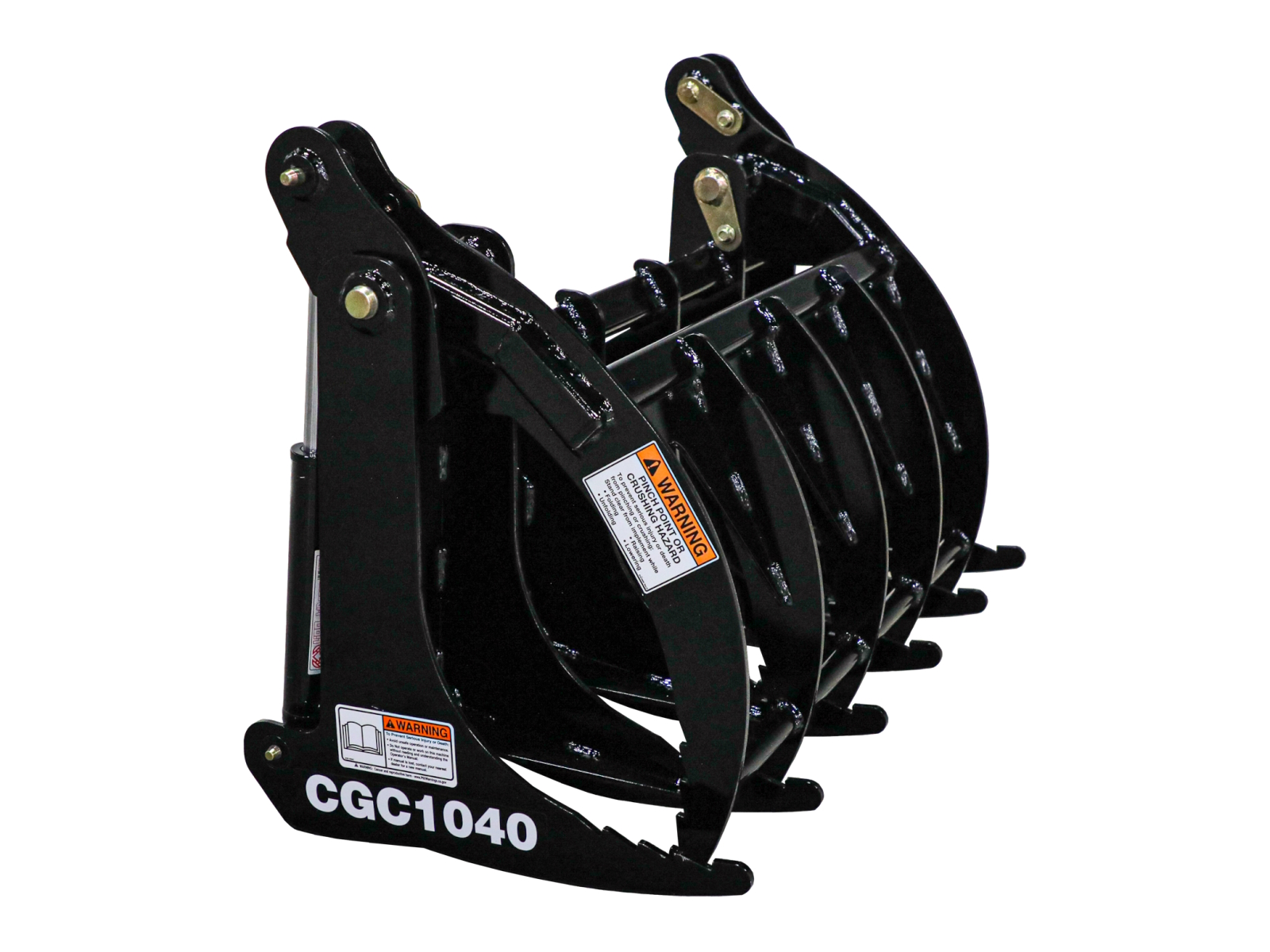

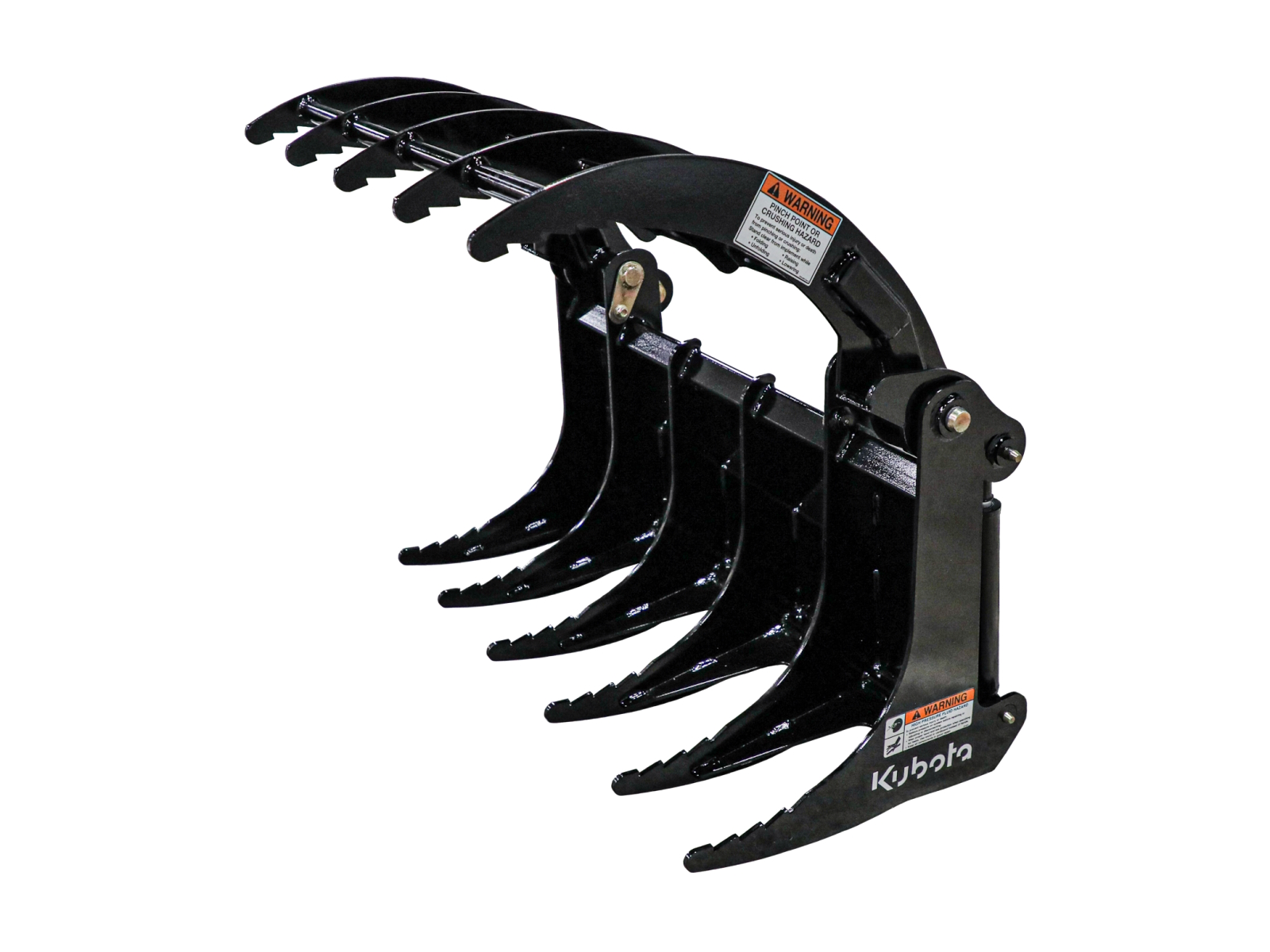

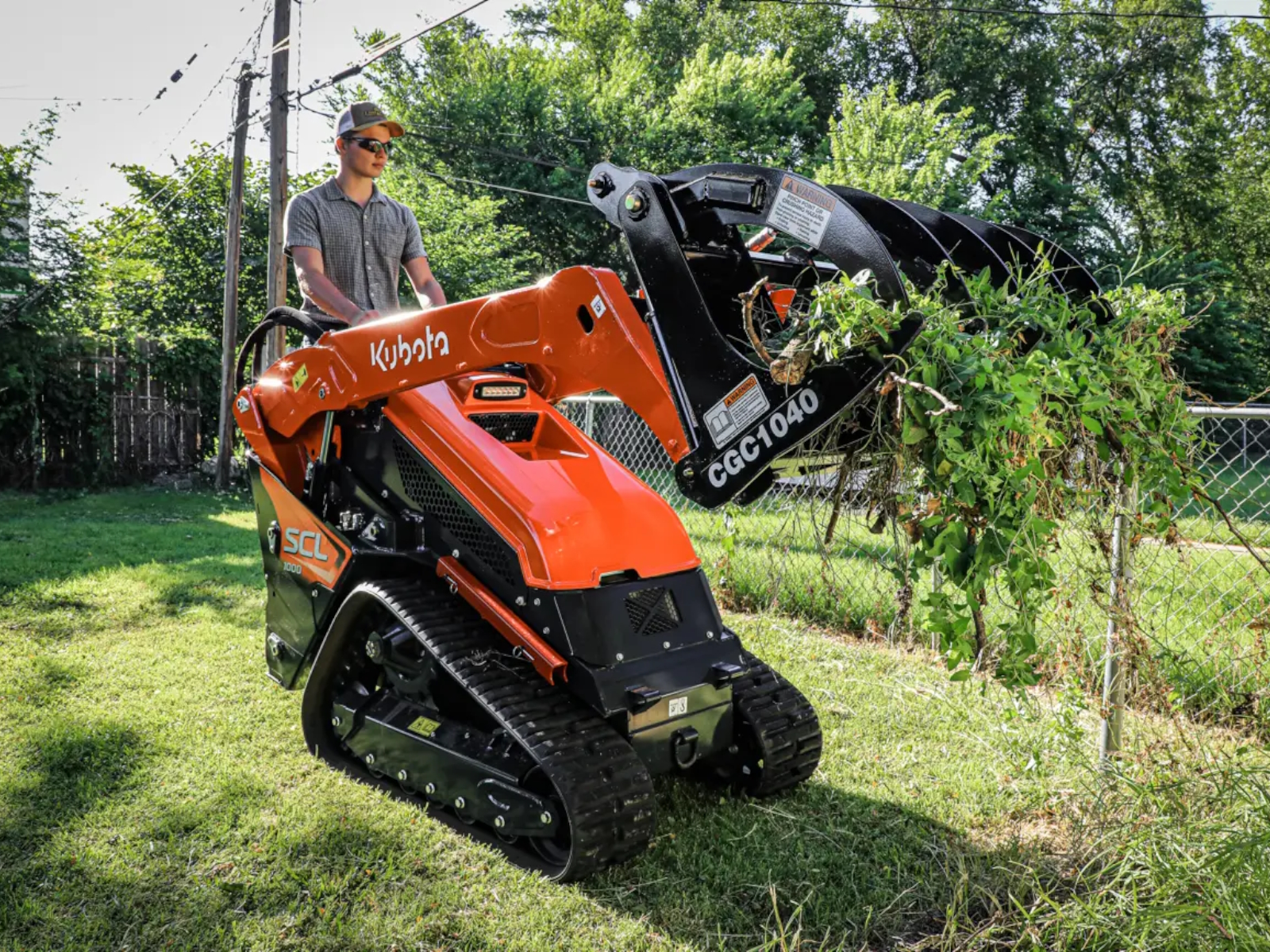

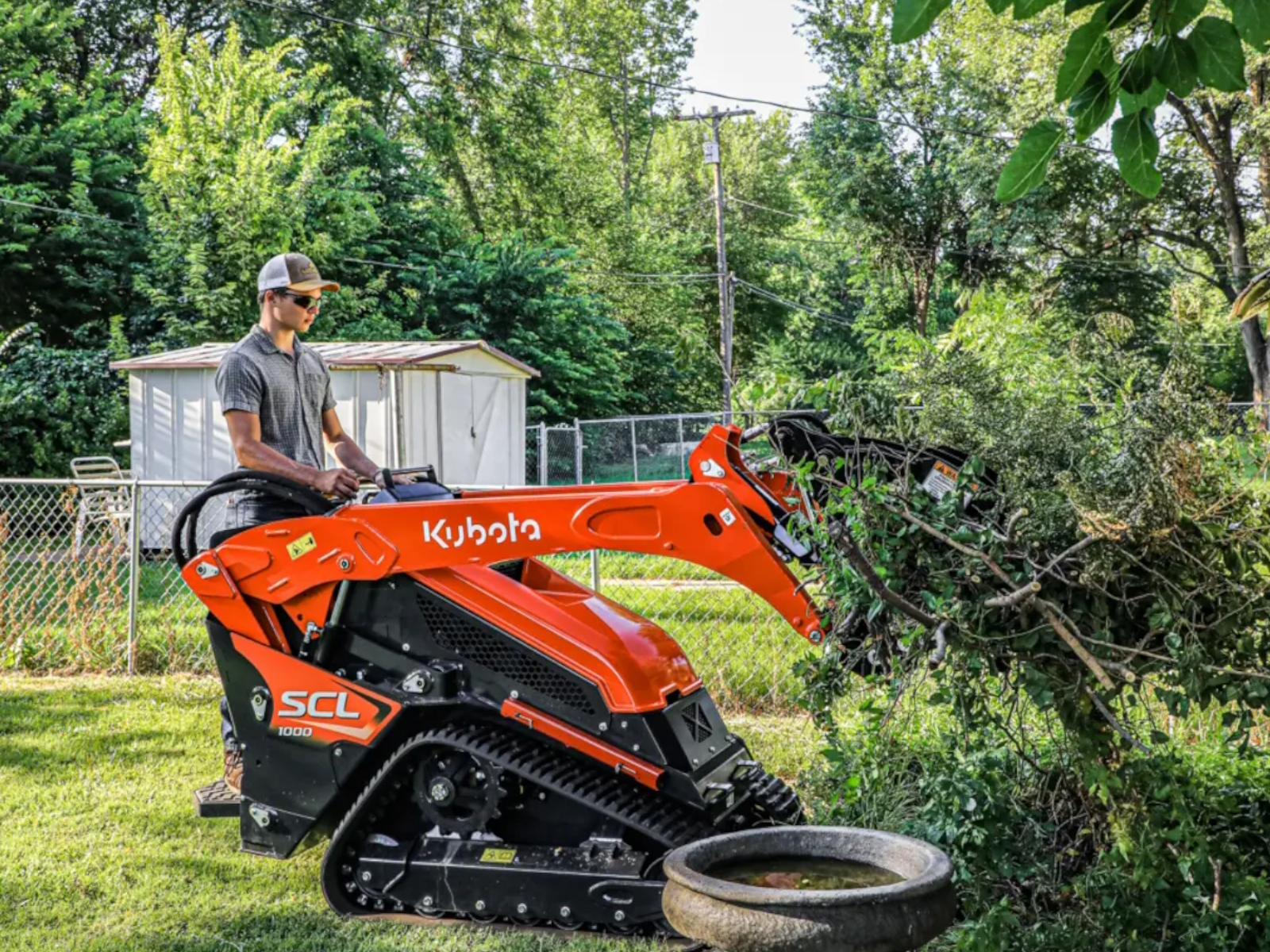

Kubota by Land Pride: CGC1040 is a compact Grapple designed specifically for the Kubota SCL1000. With a working width of 40", it complements the narrow width of the SCL.
Features May Include:
- AR400 Teeth Material
- AR400 teeth material provides increased resistance to abrasion.
- Tines
- 5/16" Tine Thickness
- 32" Jaw Opening
- The 32" jaw opening allows the operator to grasp large or irregularly shaped objects and move them as needed.
- 40" Wide
- The compact grapple complements the narrow width of the SCL.
- Greasable Pivot Points
- Greaseable pivot points provide years of reliable service.
Info
Industry
Agriculture
Make
Land Pride
Model
CGC1040
Trim
Base
Year
2026
MSRP
N/A
Category
Attachments
Subcategory
Grapple
Specs
Weight
307 lbs (139.3 kg)
Width
41 1/2 in (105.4 cm) | Working: 40 in (101.6 cm)
Height
Closed: 29 in (73.7 cm)
Notes
Maximum pressure rating: 3000 psi (20.7 mPa) | Hydraulic couplers: 1 male & 1 female | Hydraulic flow requirements: 20 gpm (76 Lpm) max | Working length of teeth: 8 3/8 in (21.3 cm) | Tooth thickness: 5/16 in (8 mm) | Jaw opening: 32 in (81.3 cm) | Hitch type: CII Quick-Attach | Number of teeth: 6 bottom & 5 top | Teeth spacing: 8 1/8 in (20.6 cm) upper & 7 7/8 in (20 cm) lower
Cylinders
Hydraulic: 1 1/2 in x 8 in x 1 in rod
