2026 Kubota KX040-5 6-in-1 Blade Canopy / Steel
KX040-5

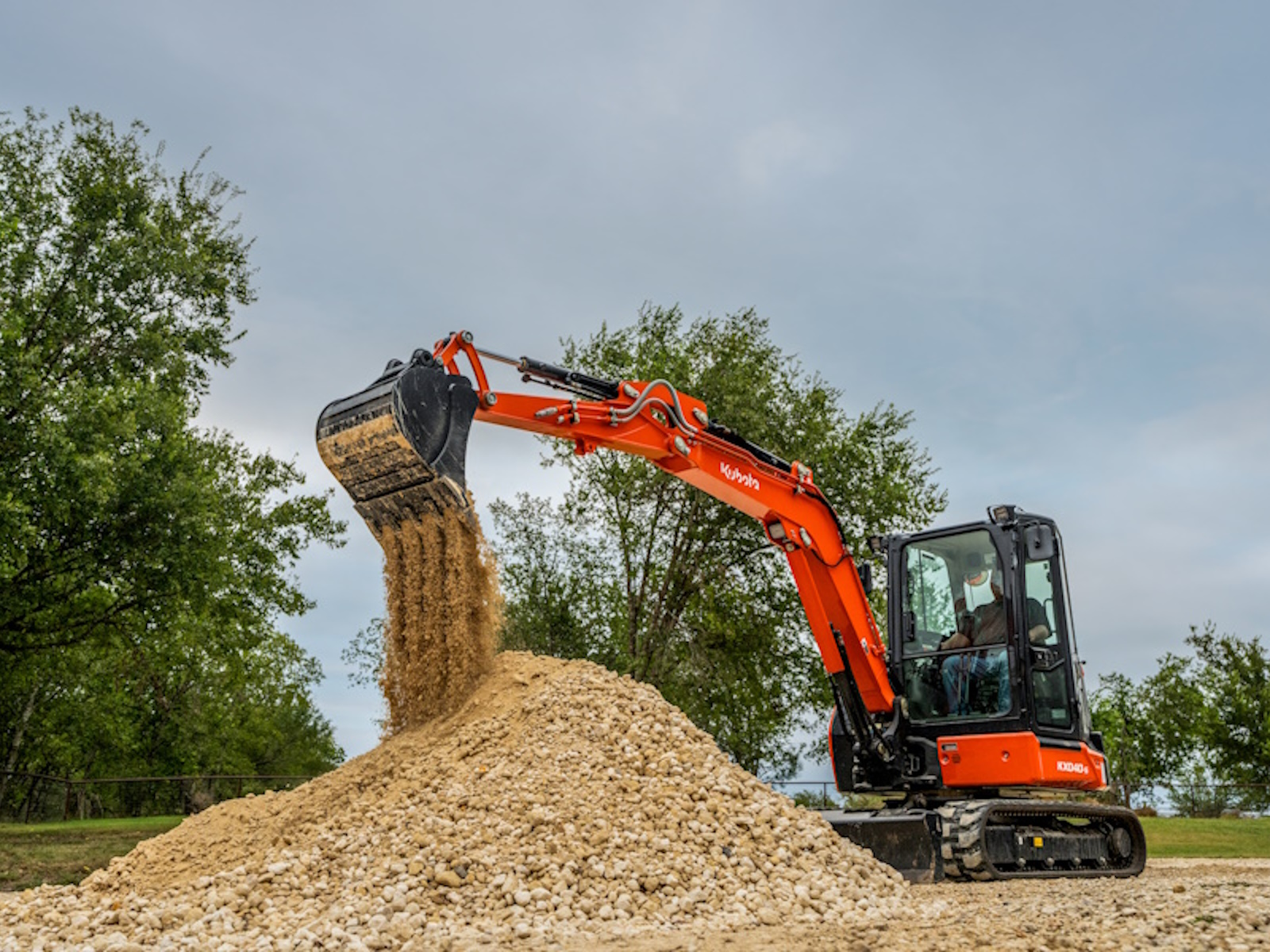

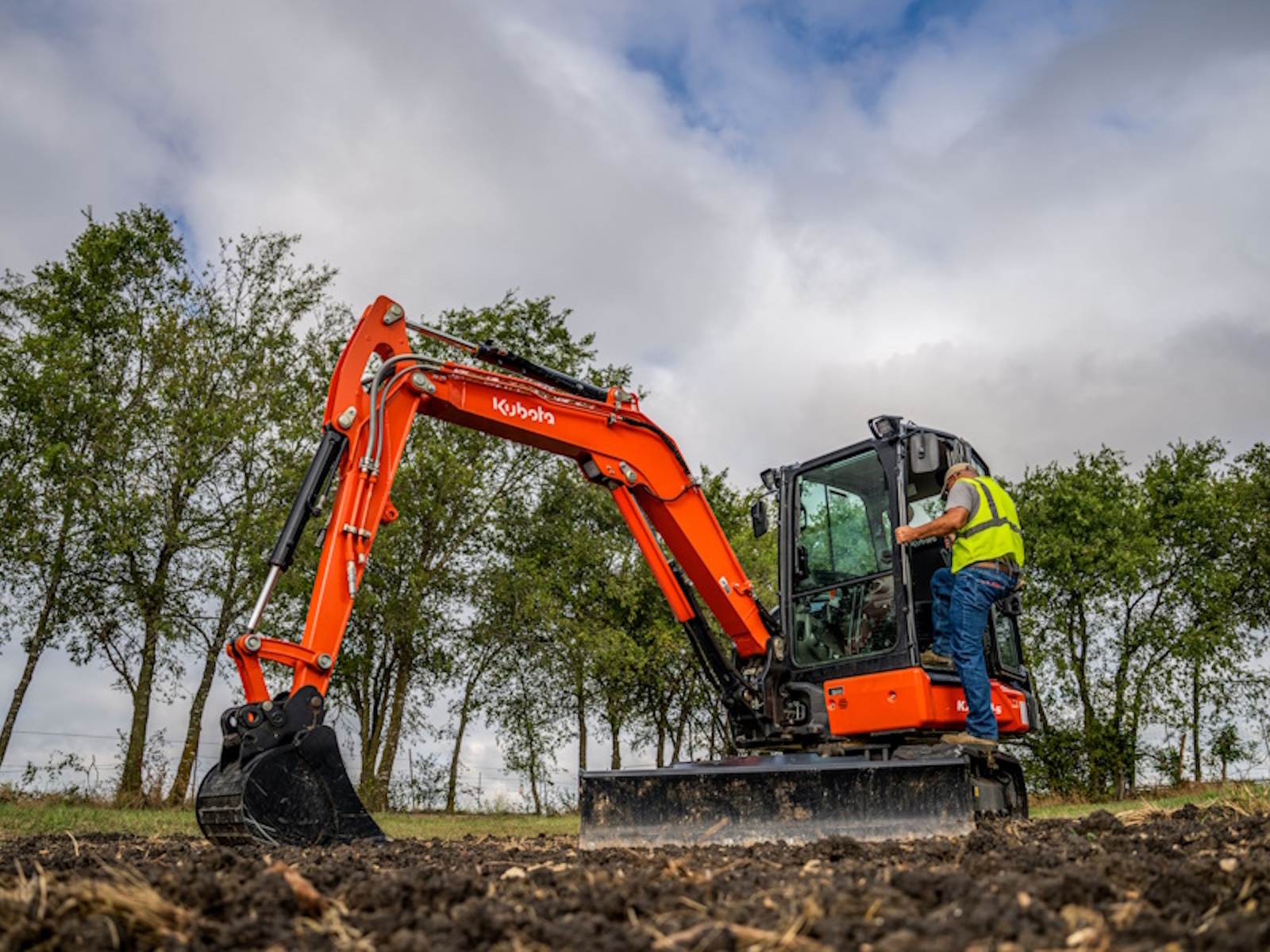

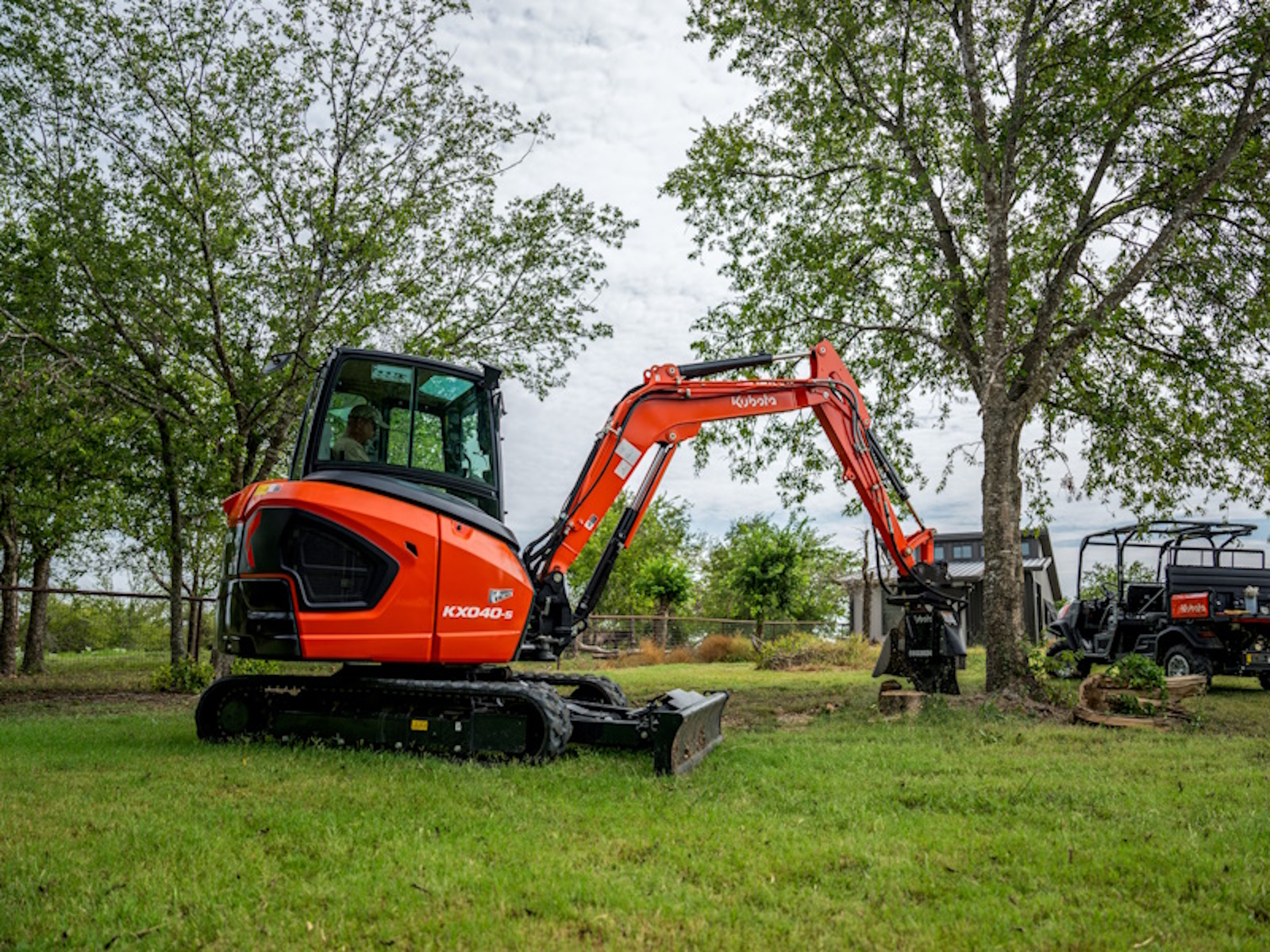

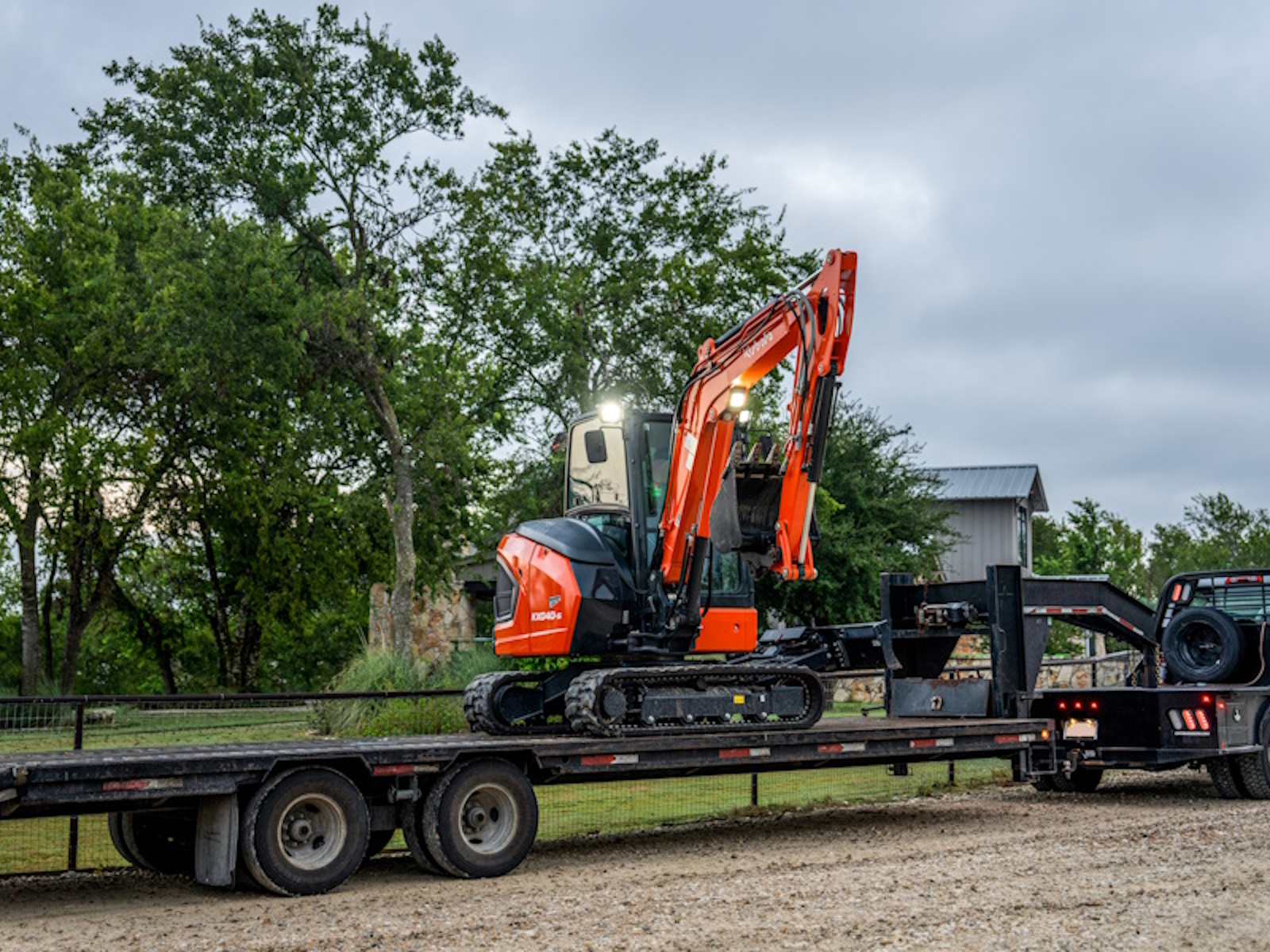

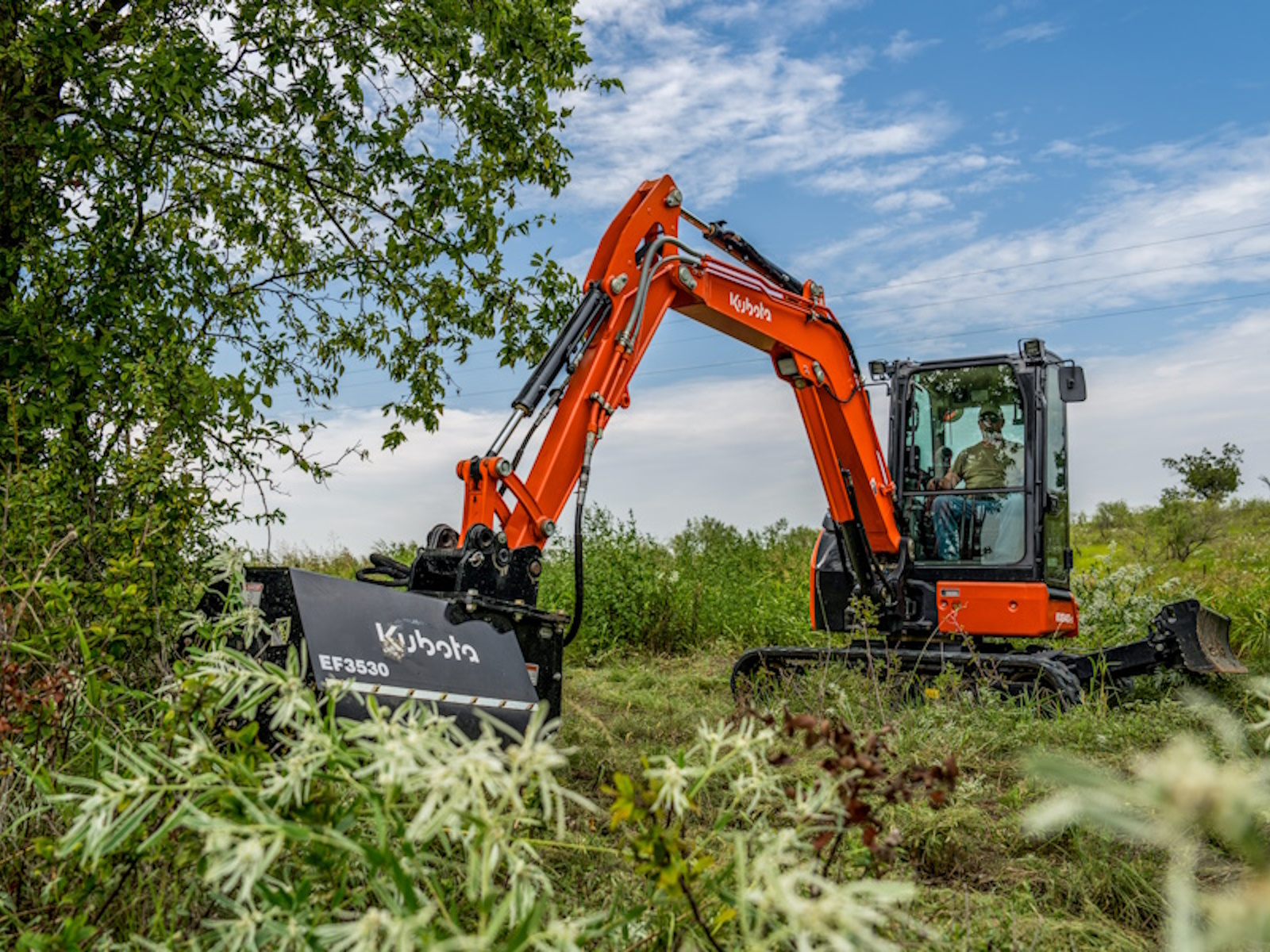

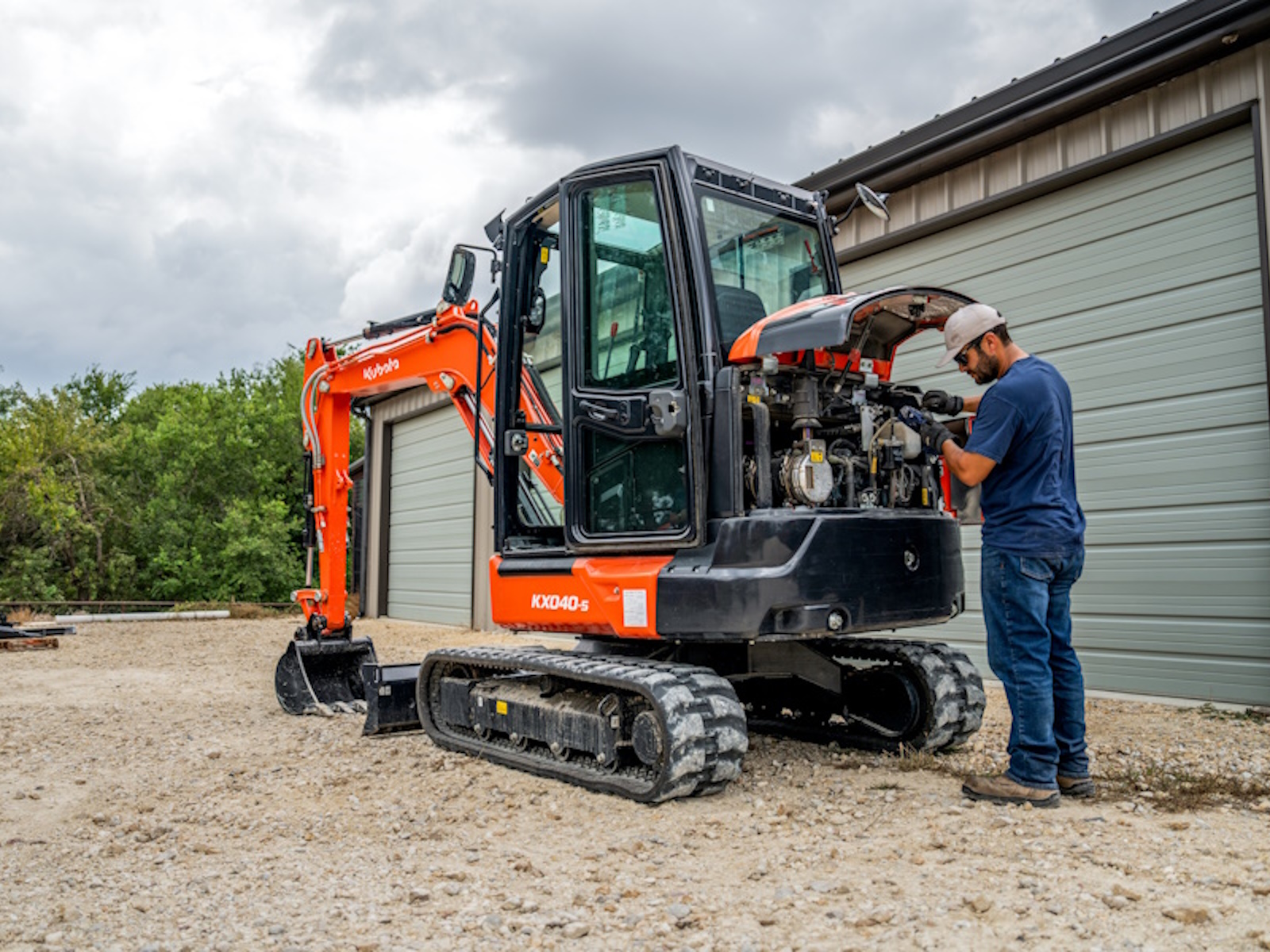

The KX040-5 replaces the popular KX040-4 with a wide range of performance, comfort and productivity features. Updated with all new interior design and added productivity features like engine speed sensing, you'll be equipped get the job done right, while operating in comfort. But that's not all, with the option of a straight, angle, or 6-in-1 blade this machine can fit any job site. To top it all off this compact excavator comes standard with KubotaNOW telematics, giving you complete visibility of your machine.
Features May Include:
- Keyless start
- 7 inch full color LCD monitor with jog dial controls
- Rearview camera - optional

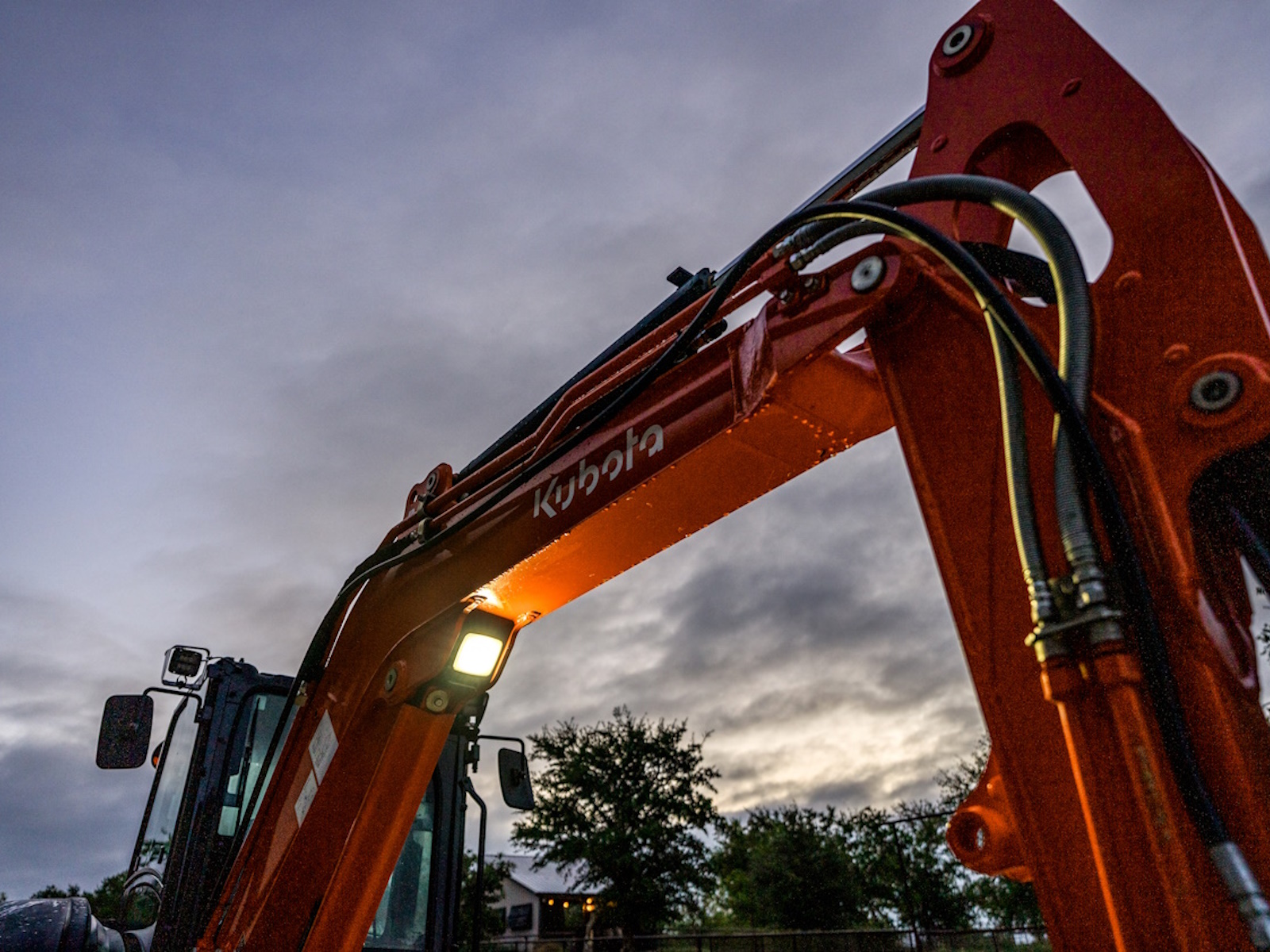

- LED work lights

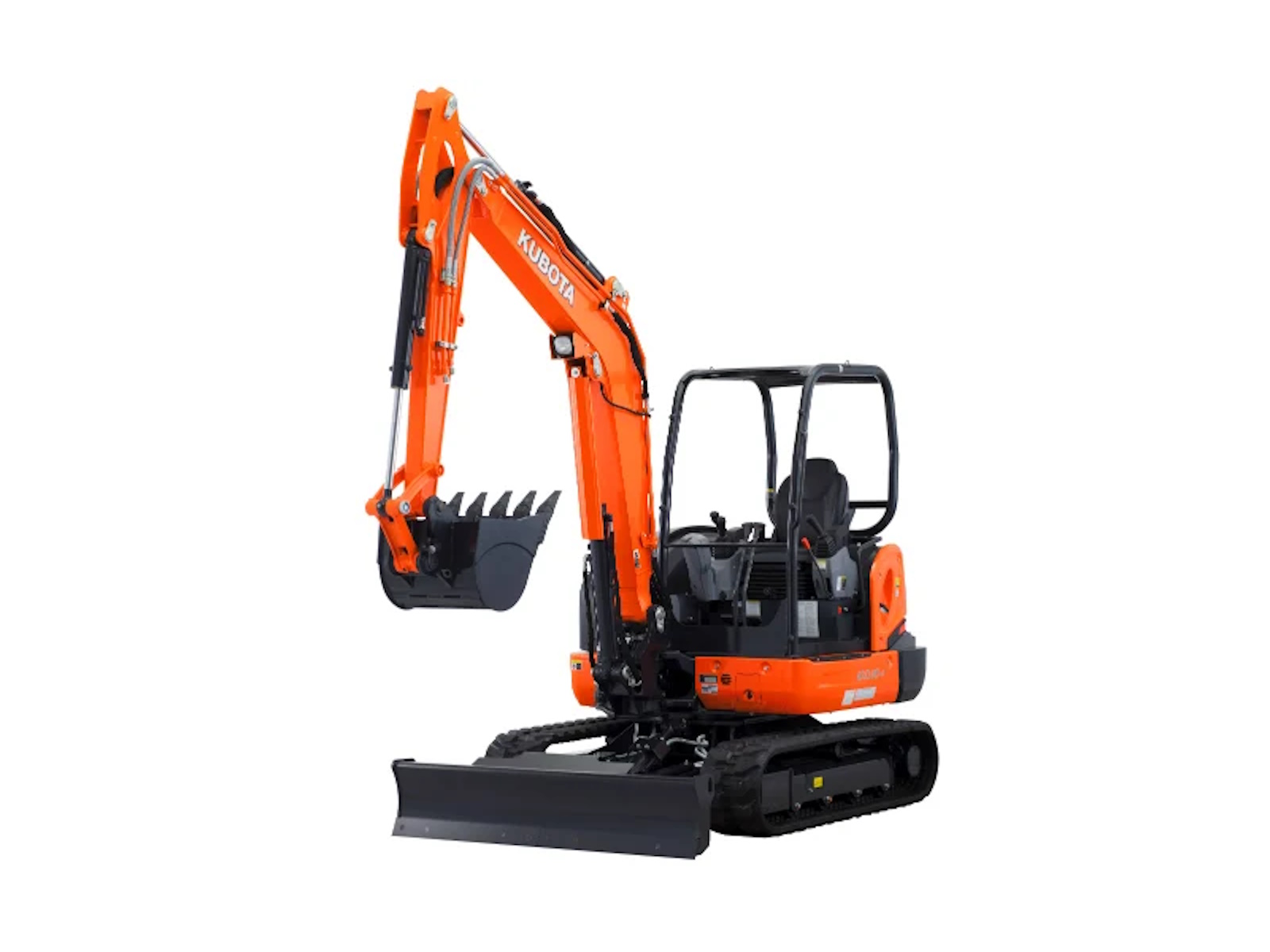

- Enclosed cab or open canopy ROPs options
- Quieter cab for lower operator noise

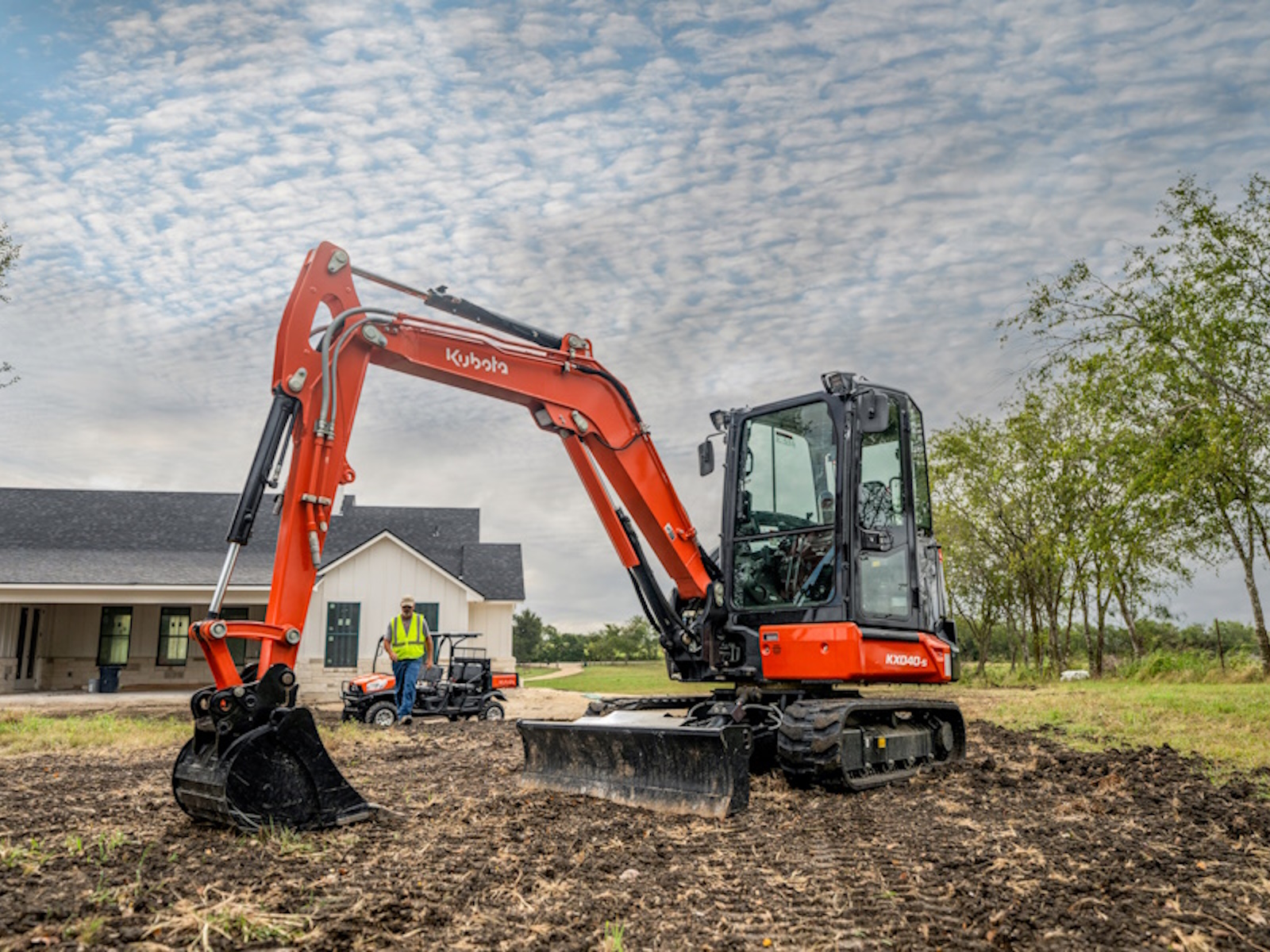

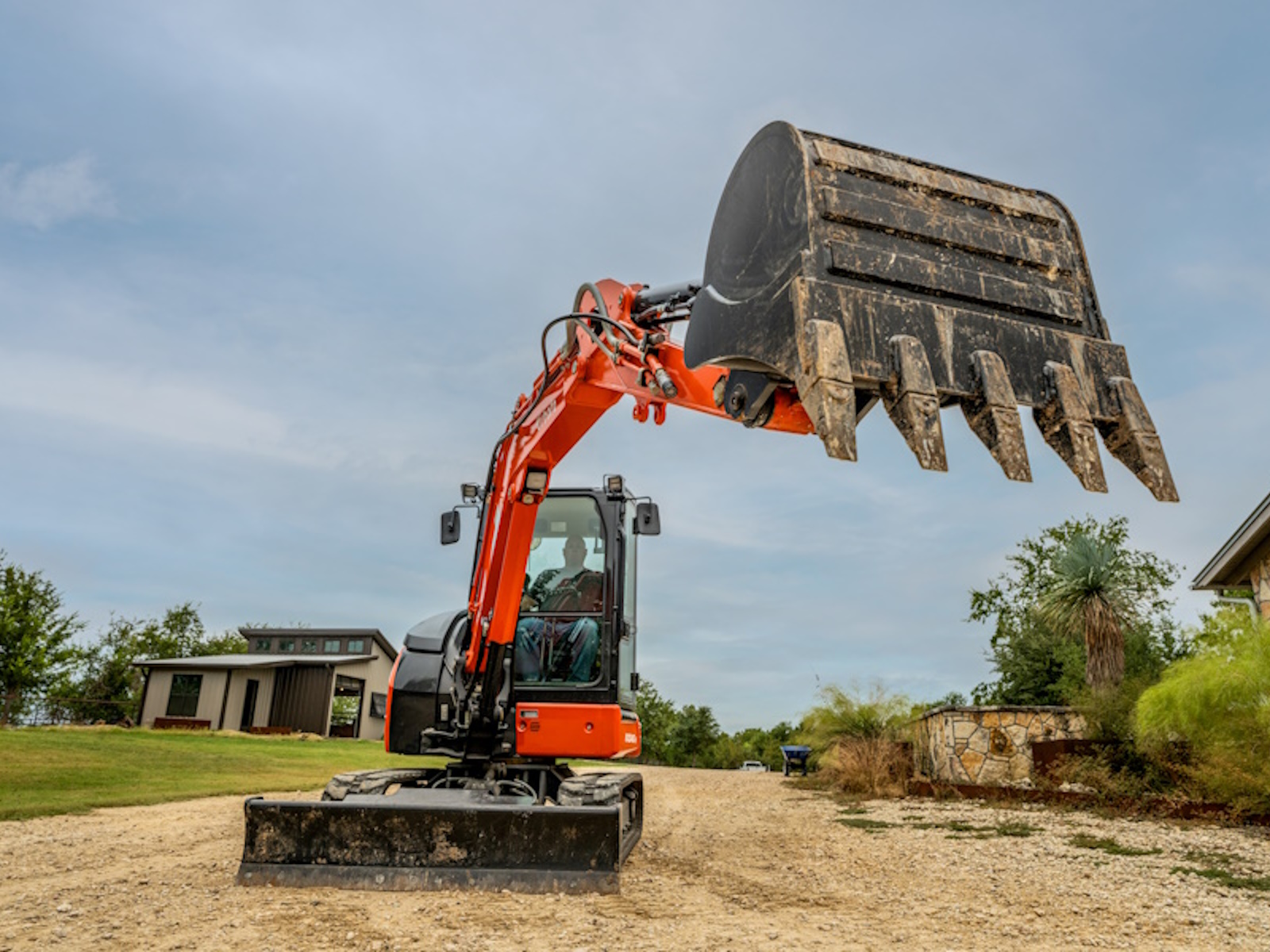

- 6-way dozer blade, angle blade and straight blade options available
- Redesign to the AUX hydraulic system provides easier multifunction capabilities
- KubotaNOW telematics pre wired at factory
Info
Industry
Agriculture
Make
Kubota
Model
KX040-5 6-in-1 Blade
Trim
Canopy / Steel
Year
2026
MSRP
N/A
Category
Excavator
Subcategory
Compact
Specs
Fuel Type
Gas
Length
Overall: 16 ft 8.2 in | Crawler: 7 ft 3.2 in
Ground Clearance
1 ft 1.3 in
Notes
Type of ROPS / OPG: Canopy | Type of Tracks: Steel | Pump Capacity: 29.1 gpm | AUX1 Auxiliary Hydraulic Flow: 17.2 gpm | AUX2 Auxiliary Hydraulic Flow: 9.8 gpm | Bucket Breackout Force: 9397 lbf | Arm Breackout Force: 4114 lbf | Low Travel Speed: 1.7 mph | High Travel Speed: 3.1 mph | Max Traction Force: 5868 lbf | Tumbler Distance: 5 ft 7.3 in | Ground Contact Pressure: 4.9 psi | Boom Swing Angle: 70° - 55° | Blade Max Lift Above Groud: 1 ft 5.0 in | Blade Max Drop Below Groud: 1 ft 8.7 in | Reservoir Hydraulic Oil: 9.8 Gal | System Hydraulic Oil: 17.7 Gal | Blade Angle Right: 25° | Blade Angle Left: 25° | Blade Angle Tilt: 10°
Fuel Capacity
17.4 gal
Engine
Kubota D1803-CR-TE5-BH5
Displacement
111.4 cu in
RPM
Unit Swing Speed: 9.2 rpm
Width
Overall: 5 ft 10.9 in | Shoe Width: 1 ft 1.8 in | Blade: 5 ft 10.9 in
Power/Horsepower
Gross Engine Power at 2200 rpm: 40.3hp | Net Engine Power at 2200 rpm: 39.1 hp - 38.9 hp
Height
Overall: 8 ft 1.6 in - 8 ft 2.0 in | Blade: 1 ft 3.2 in
Weight
10119 lbs
