2026 Kioti NX5010 Cab


Get in Touch
Description

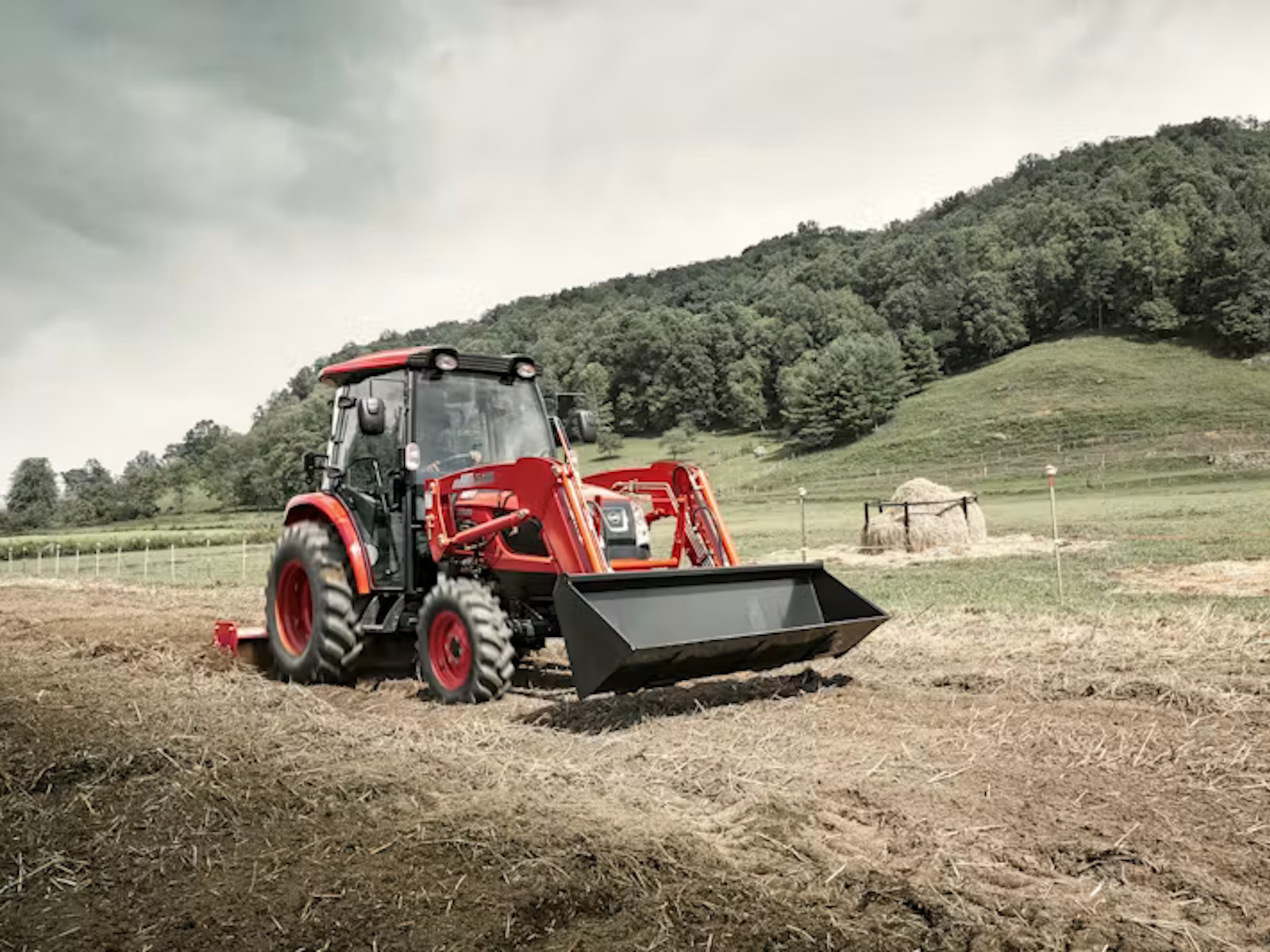

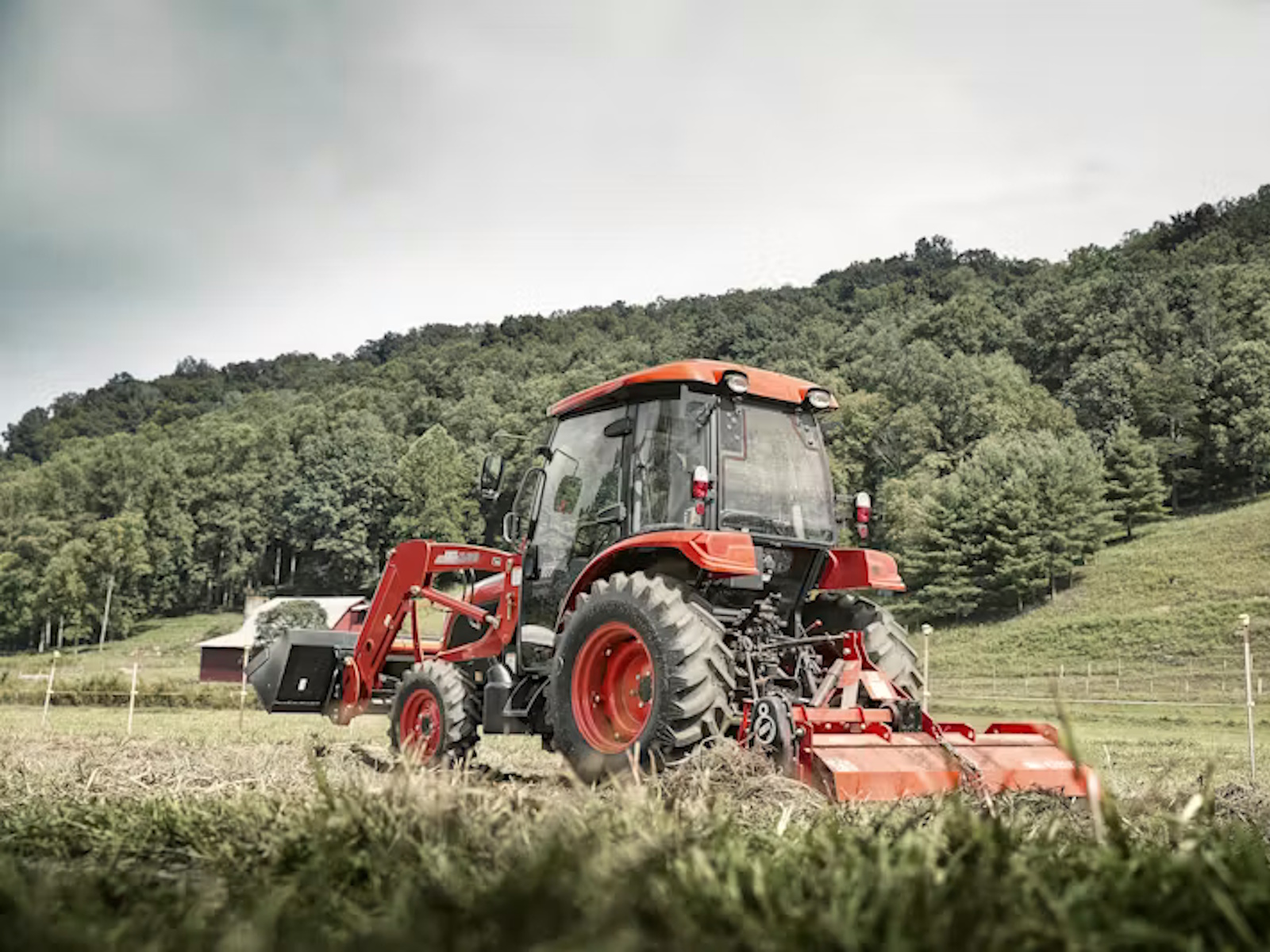

2026 Kioti NX5010 Cab
The KIOTI NX5010C is a 50-horsepower compact utility tractor ideal for homeowners, landscapers, and small farms. With a factory installed cab, synchro shuttle transmission, an independent PTO, and a lift capacity of over 3,000 lbs., the NX5010C is ready for the task.
Let us do your dirty work.
These Machines are built to complete the job.
Everything you want.
Without all the things you don’t.
Eco-Friendly Diesel Engine
The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Silence and strength go hand-in-hand, letting you conquer every task with quiet confidence.
PTO Cruise
Engage it with a tap, and your engine locks into a steady RPM, guaranteeing precise and efficient implement operation. Simply click the switch to adjust PTO speed on the fly—all without ever shifting gears or wrestling with the throttle.
Projection and Working Lamp
With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.
Torque Compensation
This feature acts like a master engineer, automatically adjusting the engine torque level to maintain a steady, unwavering flow of power.
Hydrostatic Power Steering
Hydrostatic power steering makes even the tightest, most repetitive turns a breeze. And for peak comfort, you can tilt the steering wheel to your perfect position with a simple push of a lever.
Anti-Stall Function (HST Models)
Automatically engages to prevent sudden engine stalls caused by momentary overload, helping you maintain consistent power and momentum. For added control during delicate tasks, a maximum speed limit can be set to ensure smooth, precise operation.
Info
Industry
Agriculture
Make
Kioti
Model
NX5010 Cab
Trim
Base
Year
2026
MSRP
N/A
Category
Tractor
Subcategory
Utility
Specs
Family/Type
KIOTI
Power/Horsepower
50 hp (37.30 kW)
Displacement
111.40 cu. in. (1,826 cc)
Notes
RPM: 2,600 rpm | Aspiration: Turbo Charged | Shuttle: Synchronized | Main Gear: Synchronized | Rear Speed: 540 rpm | Pump: Gear | Pump Capacity: 16.50 gpm (62.40 lpm) | Front Tread: 55.20 in (1,352 mm) | Rear Tread: 52.10 in (1,324 mm)
Fuel Type
Diesel
Fuel Capacity
14.80 gal (56 L)
Transmission
Manual: Synchro Shuttle
PTO Type
Independent | PTO Power: 41.80 hp (31.20 kW)
Brakes
Wet Multi Disc
Clutch
Dry Single Stage
Steering
Hydrostatic Power Steering
Load Capacity
3,177 lb (1,441 kg)
Length
With Hitch: 139.60 in (3,547 mm)
Width
65.60 in (1,665 mm)
Wheelbase
75.60 in (1,920 mm)
Ground Clearance
13.70 in (350 mm)
Turning Radius
9.81 ft (2.99 m)
Weight
4,342 lb (1,969.50 kg)
Height
94.10 in (2,390 mm)
