2026 Kinze 5670 31 ROW 15 in

2026 Kinze 5670 31 ROW 15 in

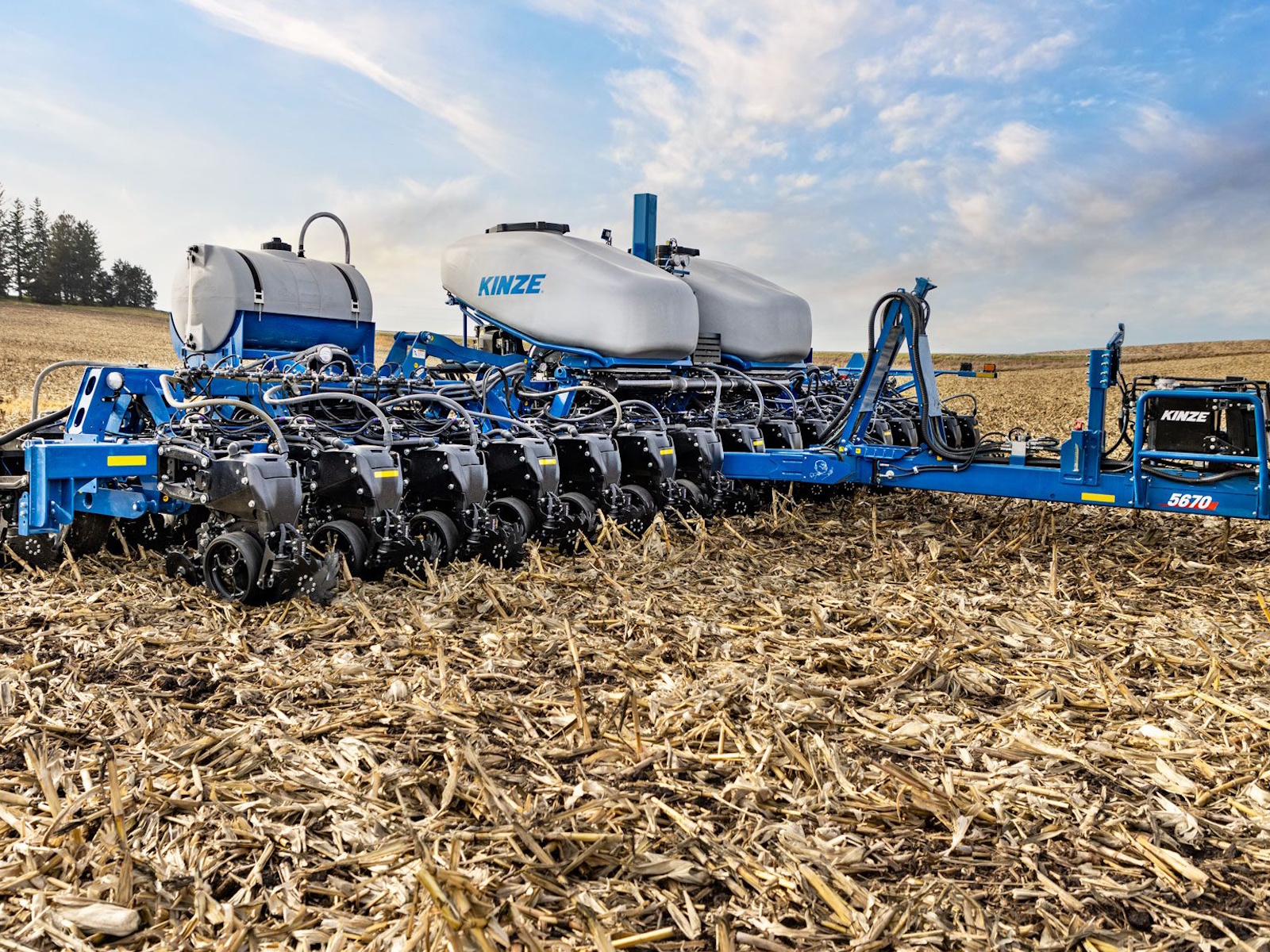

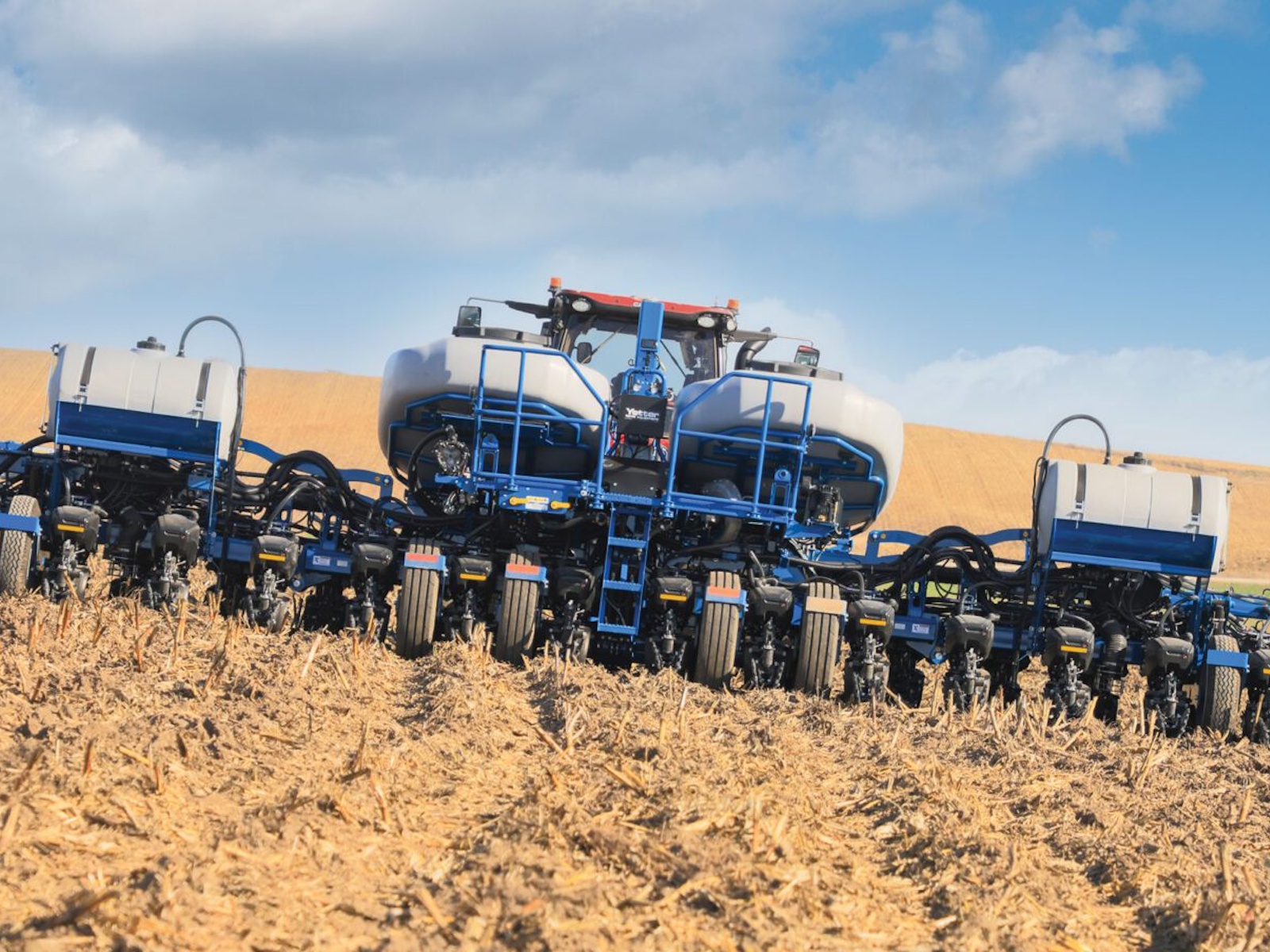

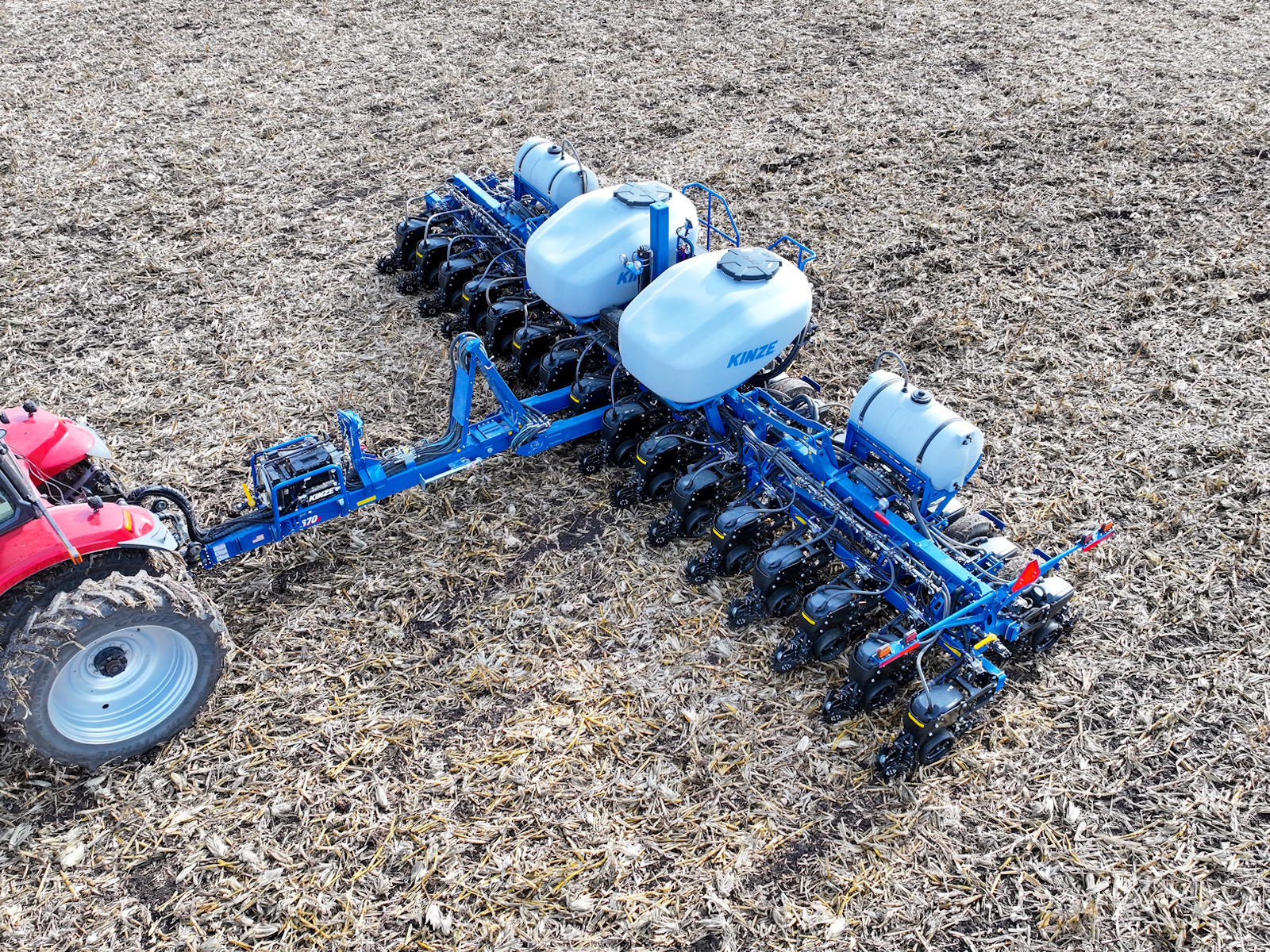

The 5670 pivot fold planters, available in 30′ and 40′ widths and four configurations, are the next generation of planters built on Kinze’s proven push split row design. Whether used as a dedicated narrow-row planter or a multi-crop workhorse, it delivers increased productivity by utilizing the latest and best in technology  and performance-boosting features.

5670 Key Benefits

• Fully delivered electric planting with the 5000 Series row unit, Blue Drive electric drive, and True Speed high speed or the True Rate vacuum electric meter.
• Accurate planting at slow and fast speeds, from 3 to 12 mph, fully delivered with the True Speed high speed meter
• Simple planter operation with the Blue Vantage display controlling all transport, planting, fertilizer, camera, and data functions
• Available in four configurations: 31 row 15″ and 23 row 15″ (with split rows), and 16 row 30″ and 12 row 30″ (without split rows)
• Fewer fertilizer stops with 300 gallons (31R15 & 23R15) or 600 gallons (16R30 & 12R30) on board and optional plumbing for auxiliary tank(s)
• Large seed capacity: 120 bu. on 31R15 & 16R30, and 80 bu. on 23R15 & 12R30

Automatic Tank Leveling

The 5670 is equipped with automatic tank leveling to maintain equal fertilizer levels in each tank while planting on slopes and prevent overflowing the downhill tanks. Sensors in each tank work with the Blue Vantage display to direct the flow of fertilizer and maintain equal tank levels.

Dedicated Frame Designs

The 5670 pivot fold planters (30′ versus 40′ widths) have dedicated frame designs specific to their size and the features and options they carry. In addition, the two frame widths have different-sized center sections to optimize the wing length and maintain a consistent seed depth. They both have 24″ of toolbar clearance, up to 30° of wing flex, best-in-class residue flow, and narrow transport width. They are also equipped with adjustable active hydraulic weight transfer and outfitted with bulk fill hoppers, push split row units, AND onboard fertilizer tanks without giving up features. Both models have standard VF radial tires for improved flotation in soft conditions.

Split Row Planter

For almost forty years Kinze's exclusive push row units and parallel bar design have improved residue flow through the frame resulting in more uniform seed spacing and depth. Split rows provide optimum narrow rows for crops like soybeans, sunflowers, and wheat.
Offered exclusively on the 5670 pivot fold planter, is the all-cast 5000 Series PUSH split row unit. It delivers the latest and best in technology and productivity-boosting features.

Features May Include:

5670 Features & options

• True Rate vacuum or True Speed high speed electric meters
• Blue Vantage display with no unlock fees
• High clearance lift-axle
• Yetter air-adjustable row cleaners
• Convenient row unit service height
• Articulating clevis hitch or 2-point hitch
• Down force of 650 lbs. max. with True Depth
• True Depth provides 150 lbs. max. of uplift
• Pneumatic down pressure option
• Up to 600 gal. fertilizer on board
• Quick lock-up air adjustable closing wheels
• Rearview camera standard
• Three additional cameras optional
• Bulk fill seed hopper scales standard
• Shim-less, greaseless gauge wheel arms
• Split row even row unit option
• 2-year limited warranty

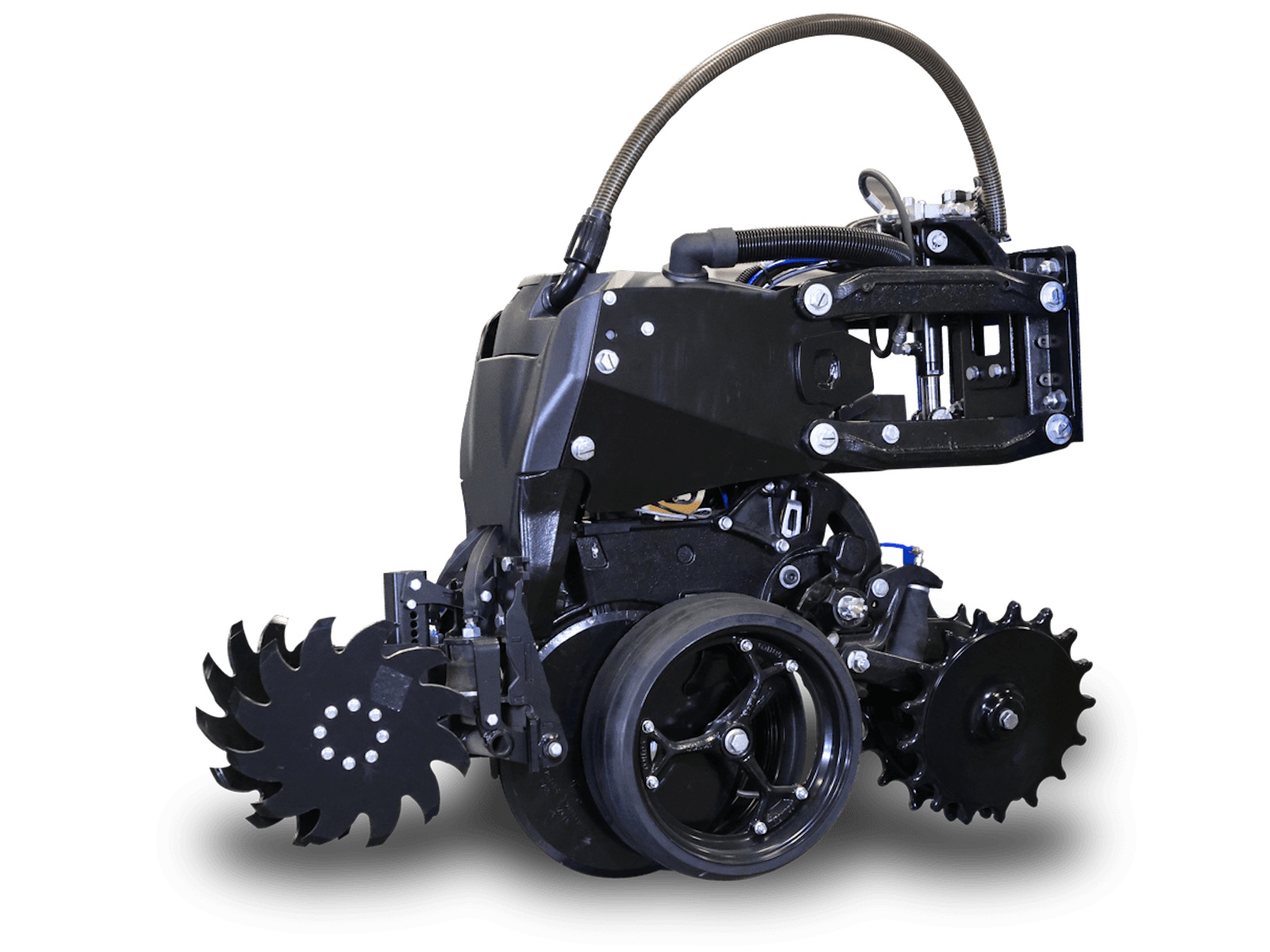

Cast push row unit

• Offered exclusively on the 5670 pivot fold planter, is the all-cast 5000 Series push split row unit.
