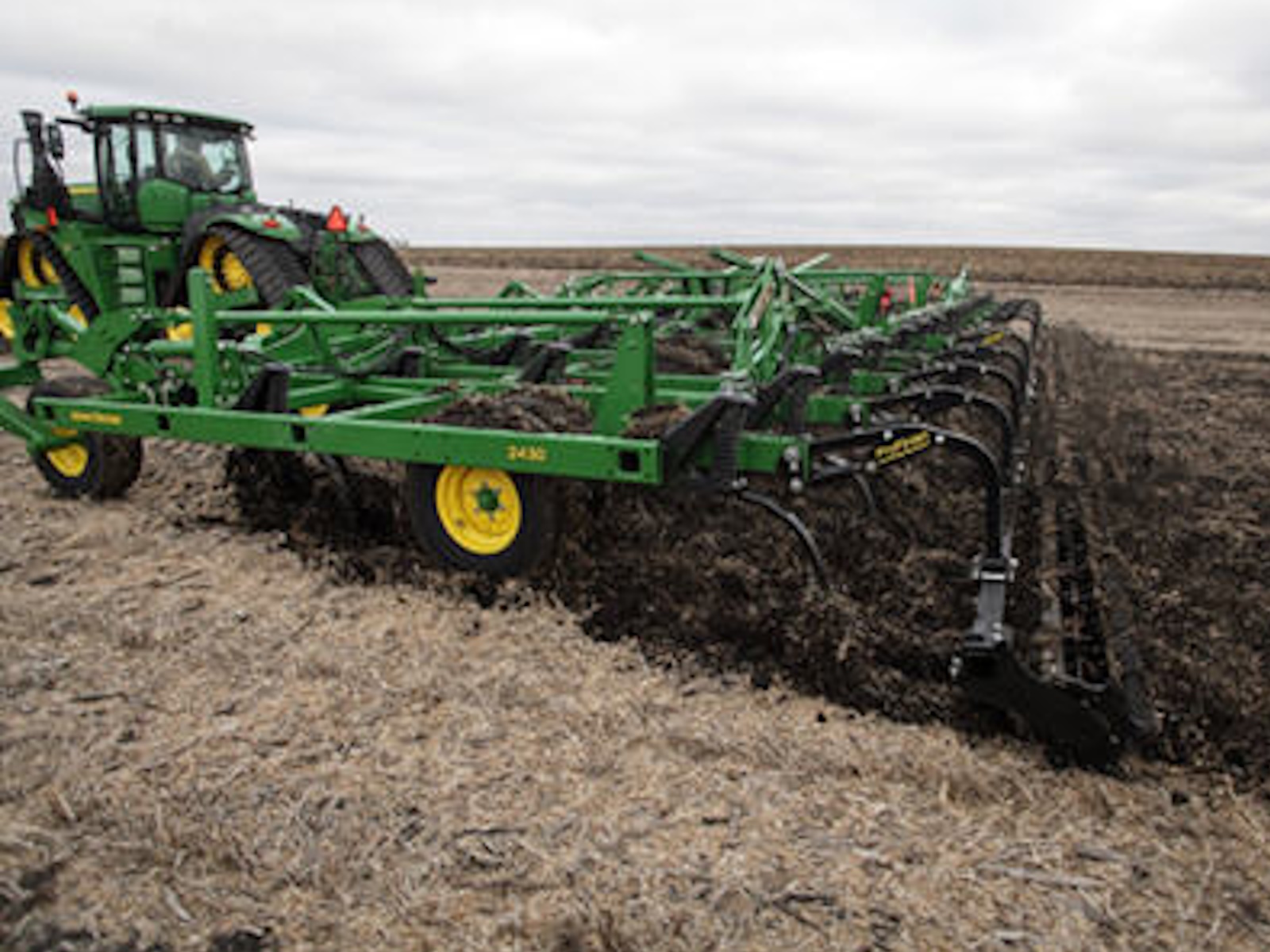

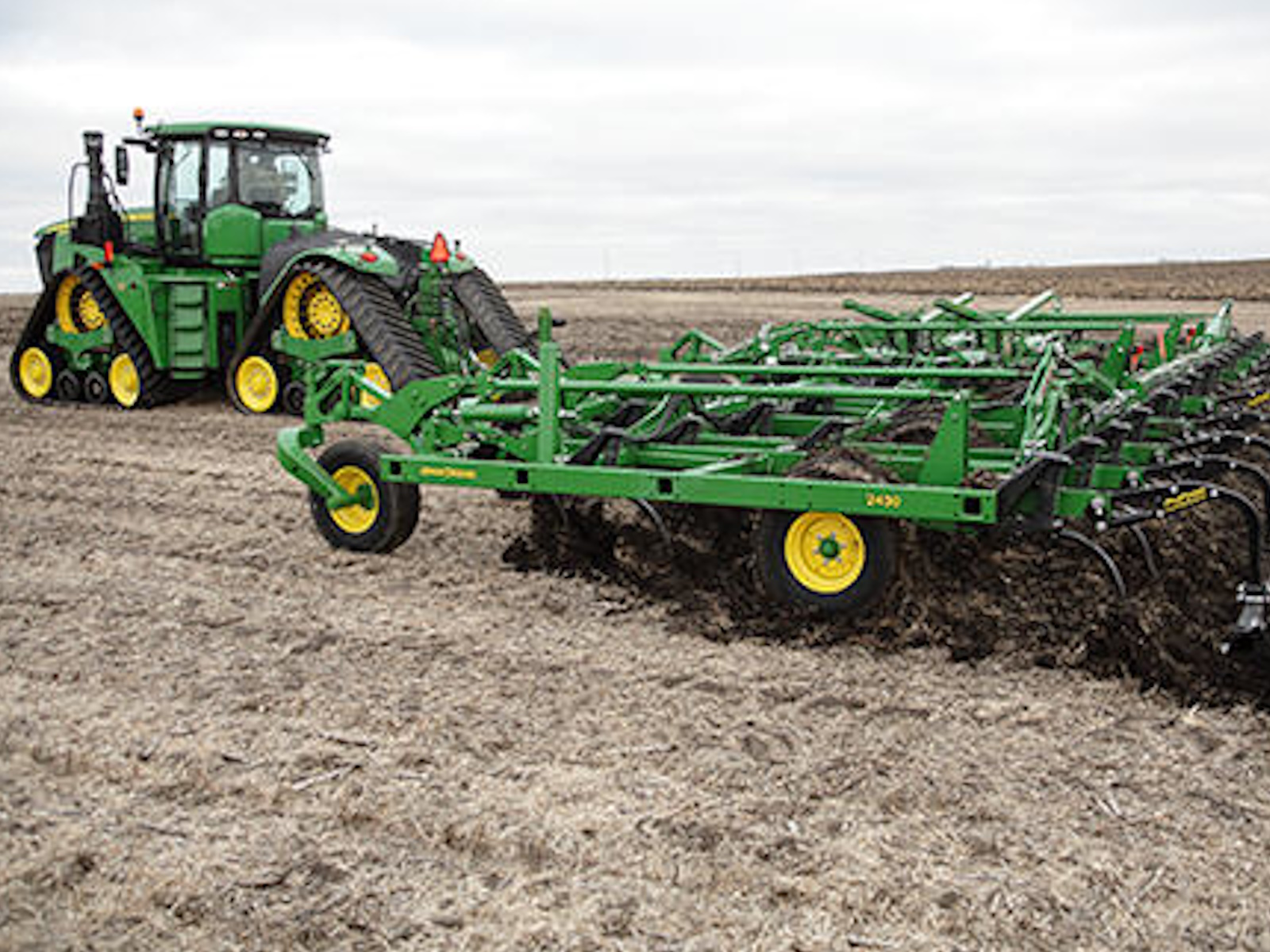

2026 John Deere Ag 2430

2026 John Deere AG 2430

Chisel Plow

• Hydraulically-adjusted knife-edge rolling basket with internal scraper
• Radial tires improve flotation and transport
• New rear hitch adjusts side-to-side for easier hookups

Features May Include:

Finishing components

• The 2430 offers different rear attachment options to meet the unique agronomic needs of each producer. Producers have a choice of two rear attachments on the 2430 Chisel Plow.

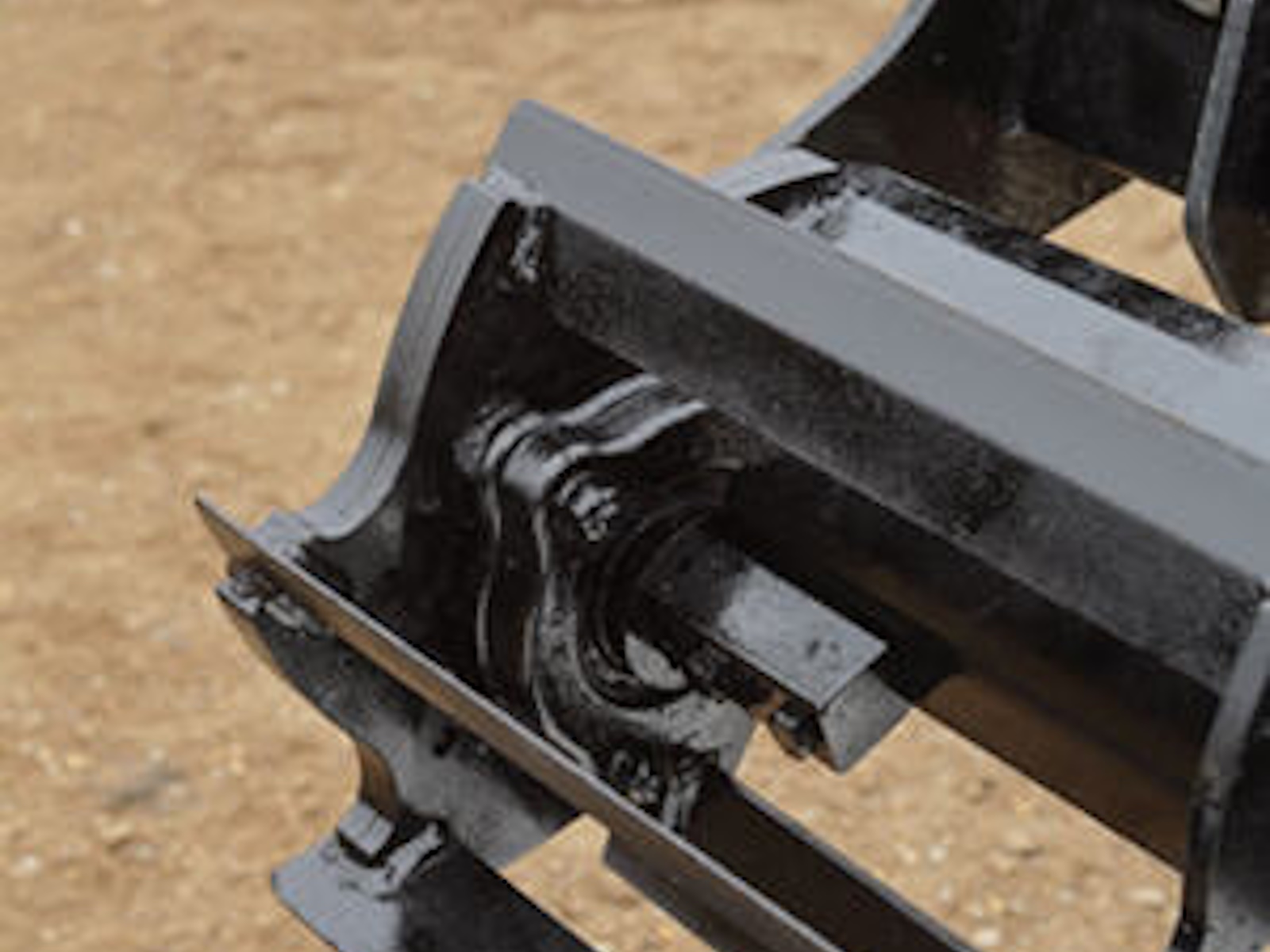

The knife-edge rolling basket for the 2430 Chisel Plow is made of hardened steel and handles rock strikes and adverse conditions well. The ease of down pressure adjustability allows the tool to adapt to changing field conditions. The internal basket scraper allows for a uniform field finish in wet conditions because baskets do not need to be raised out of the ground to avoid plugging; they can remain in the ground 100 percent of the time.

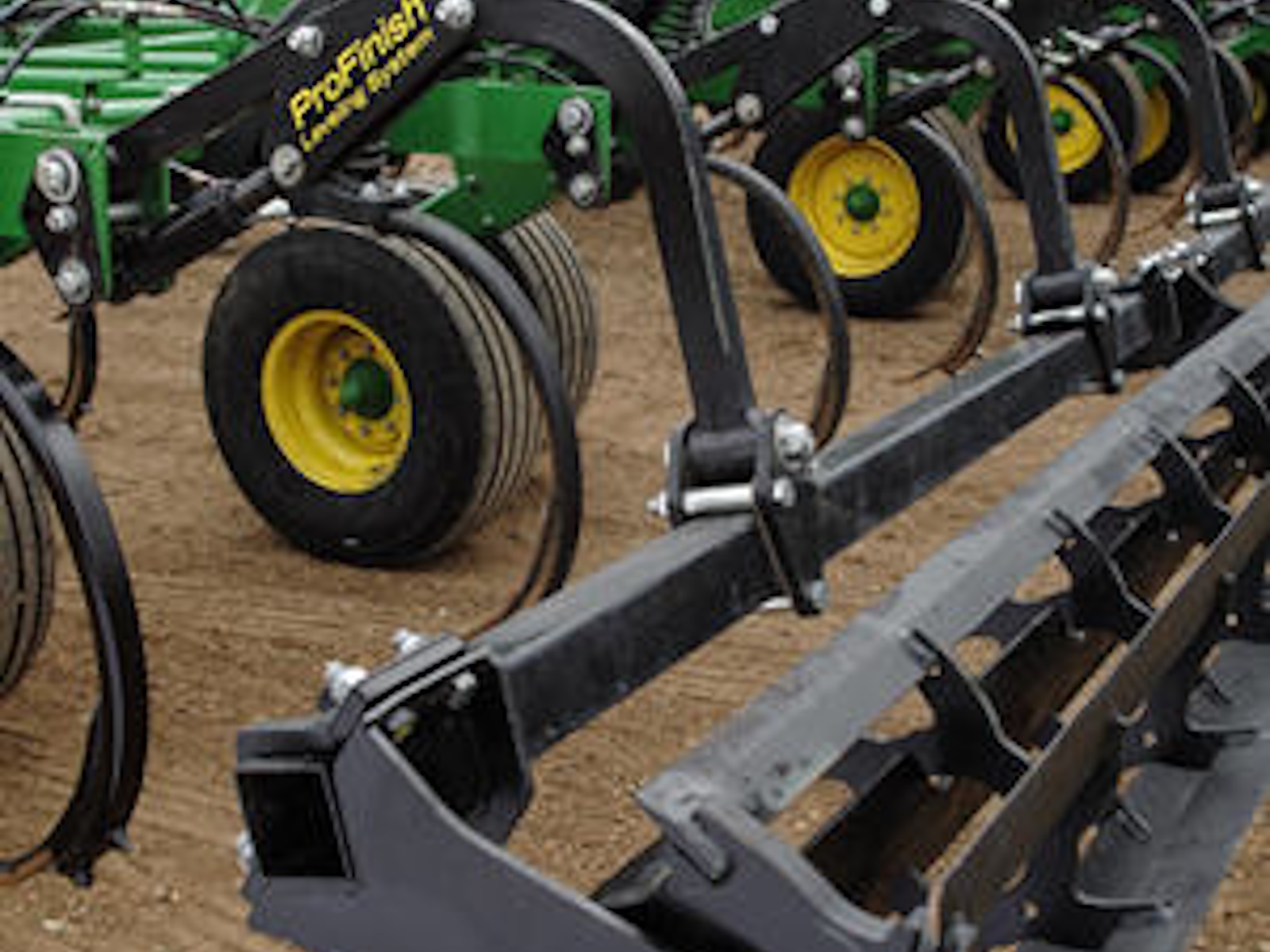

The John Deere 2430 Chisel Plow offers an active hydraulic rolling basket that gives the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for the demanding fall conditions. The system was designed to have the ability to run the rolling baskets in three different positions to finish and level the soil:

• Raised: allows the operator to raise the rolling baskets in harsh, muddy conditions
• Float: allows the operator to float the rolling baskets to lightly fluff soil
• Apply down pressure: allows the operator to adjust the basket pressure to provide consistent contact with the ground, provides a firm seedbed, and shatters root balls

The hydraulic rolling basket is offered with the knife-edge basket, which is the best for heavier, wet soil.

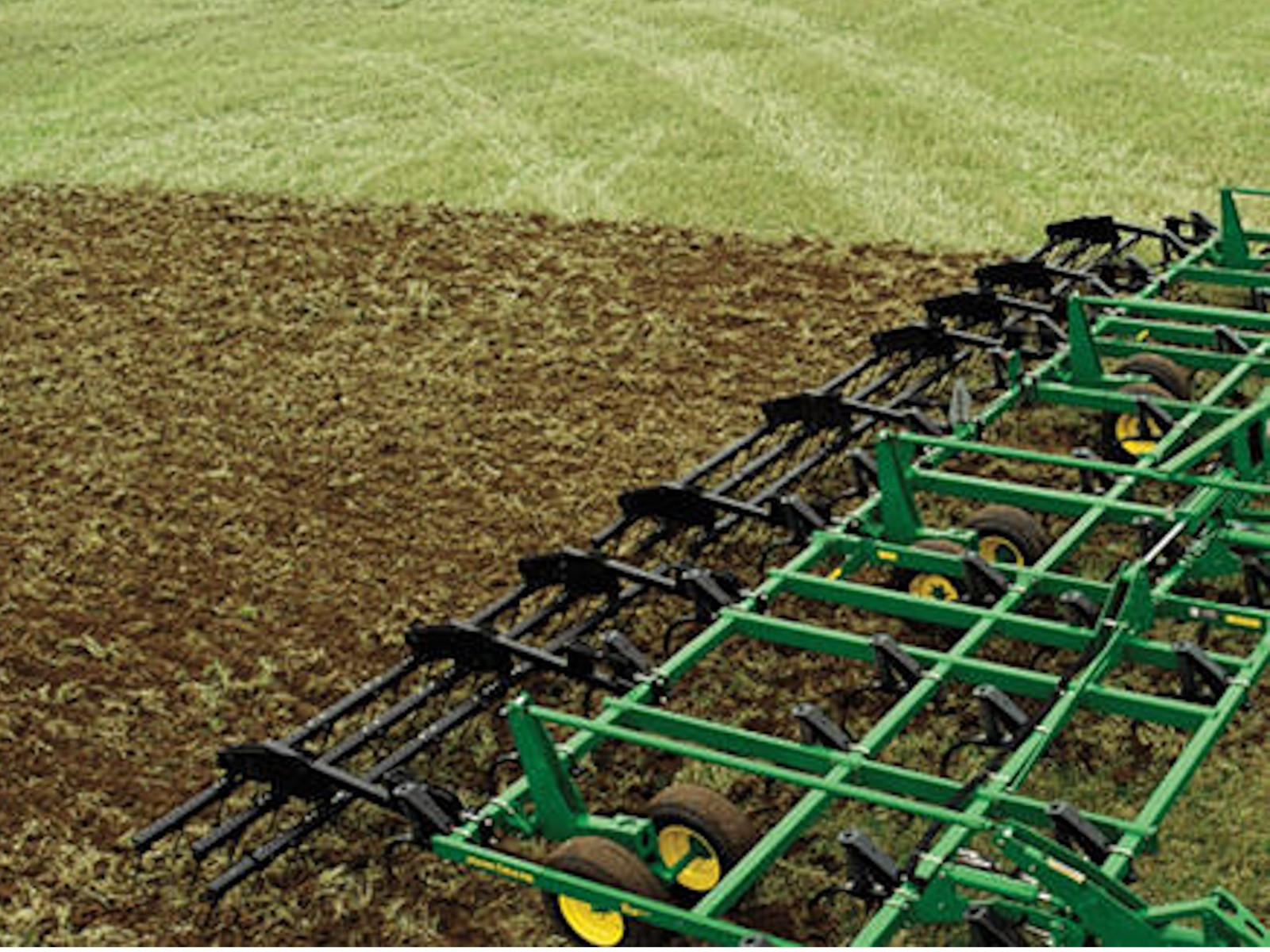

• The Coil-Tine Chisel Plow Harrow is designed specifically for the 2430 Chisel Plows. Harrow performance has grown increasingly important over the last few years as soil profile finish and residue-handling capability are on the top of the list for producers. Both attributes are standouts on this heavy harrow.

Variety of models and sizes available

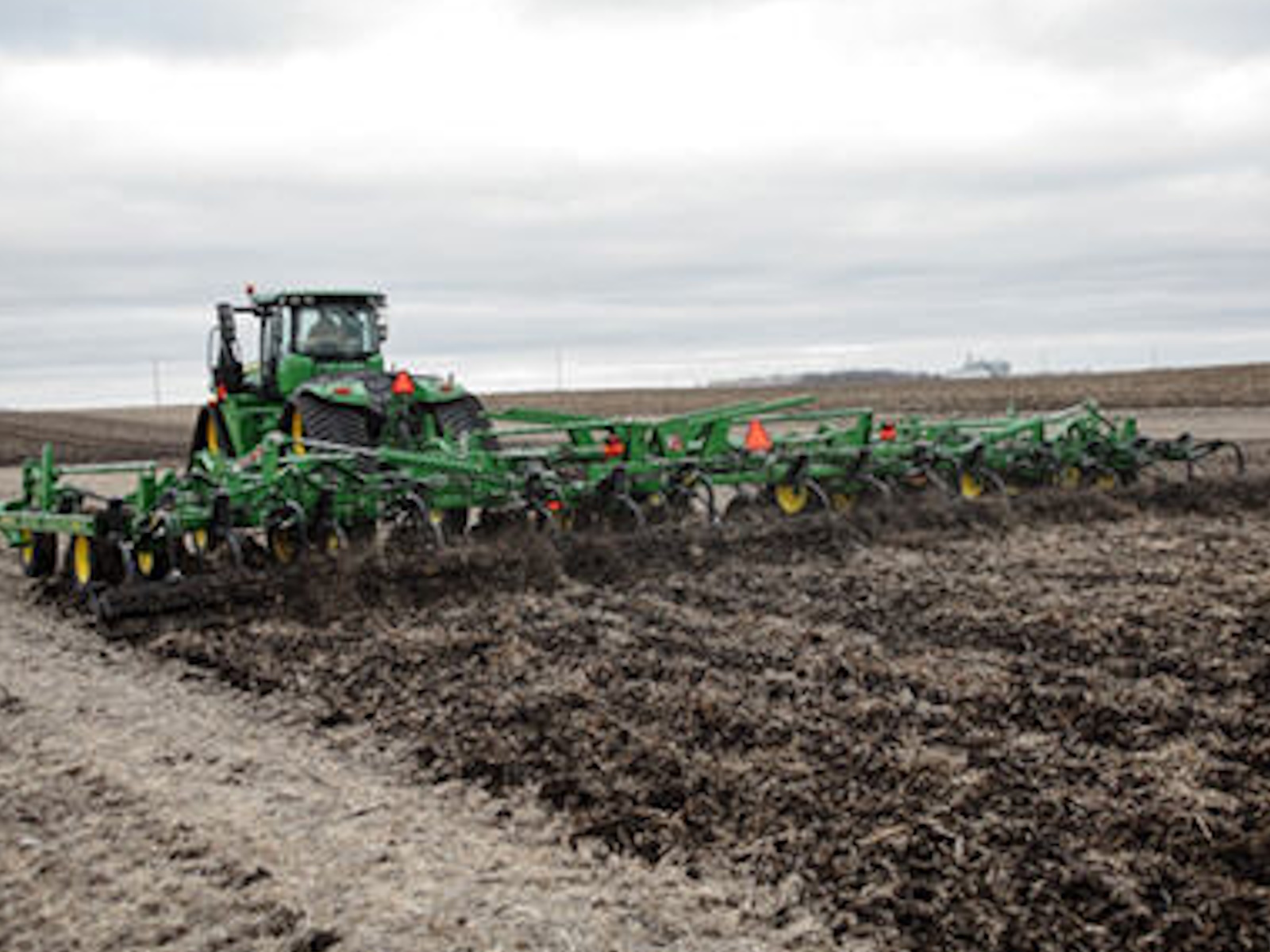

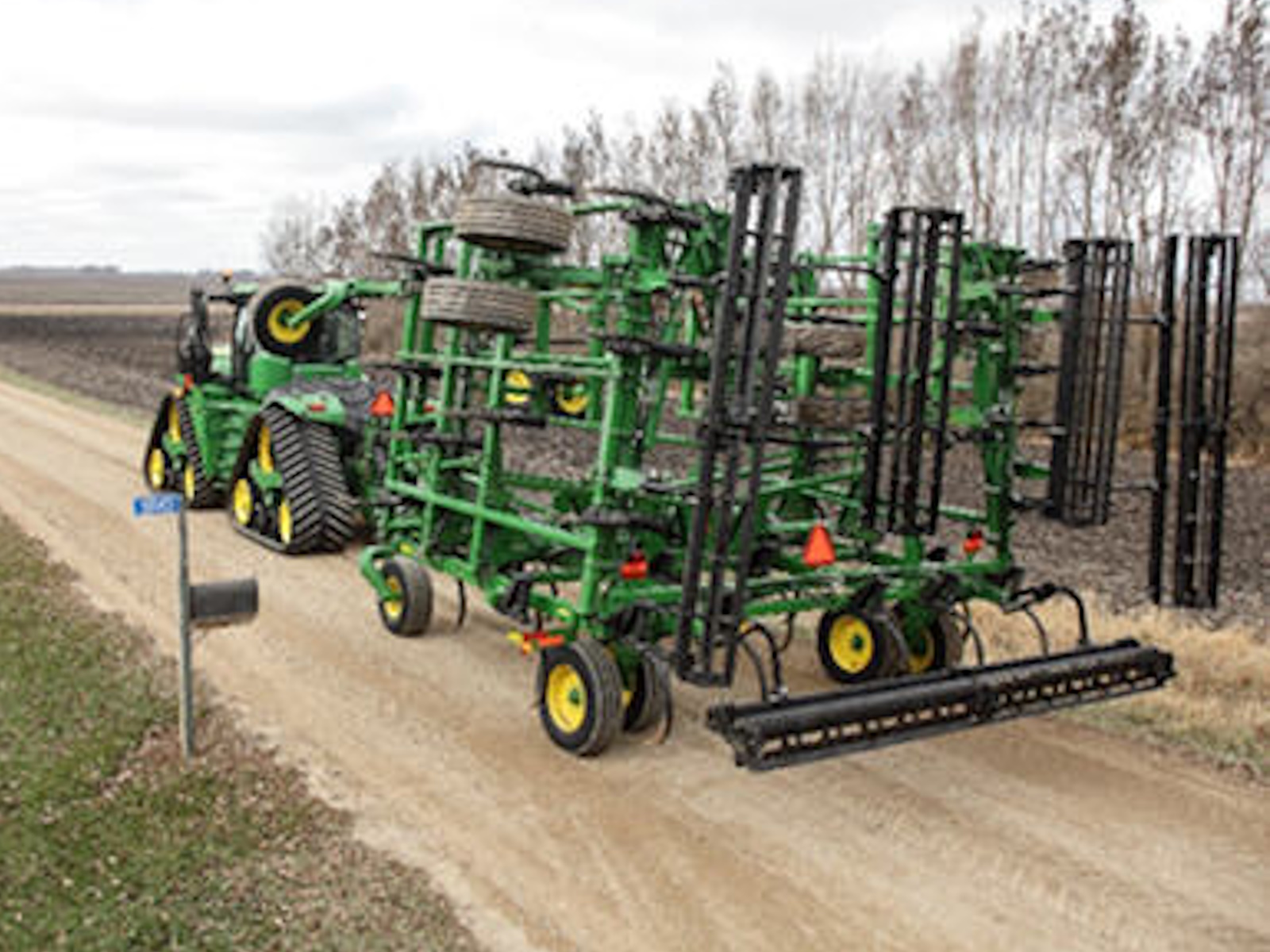

• The 2430 Chisel Plow is available in rigid and rigid fold, three-section folding, and five-section folding frame models.

Excellent residue-handling capability

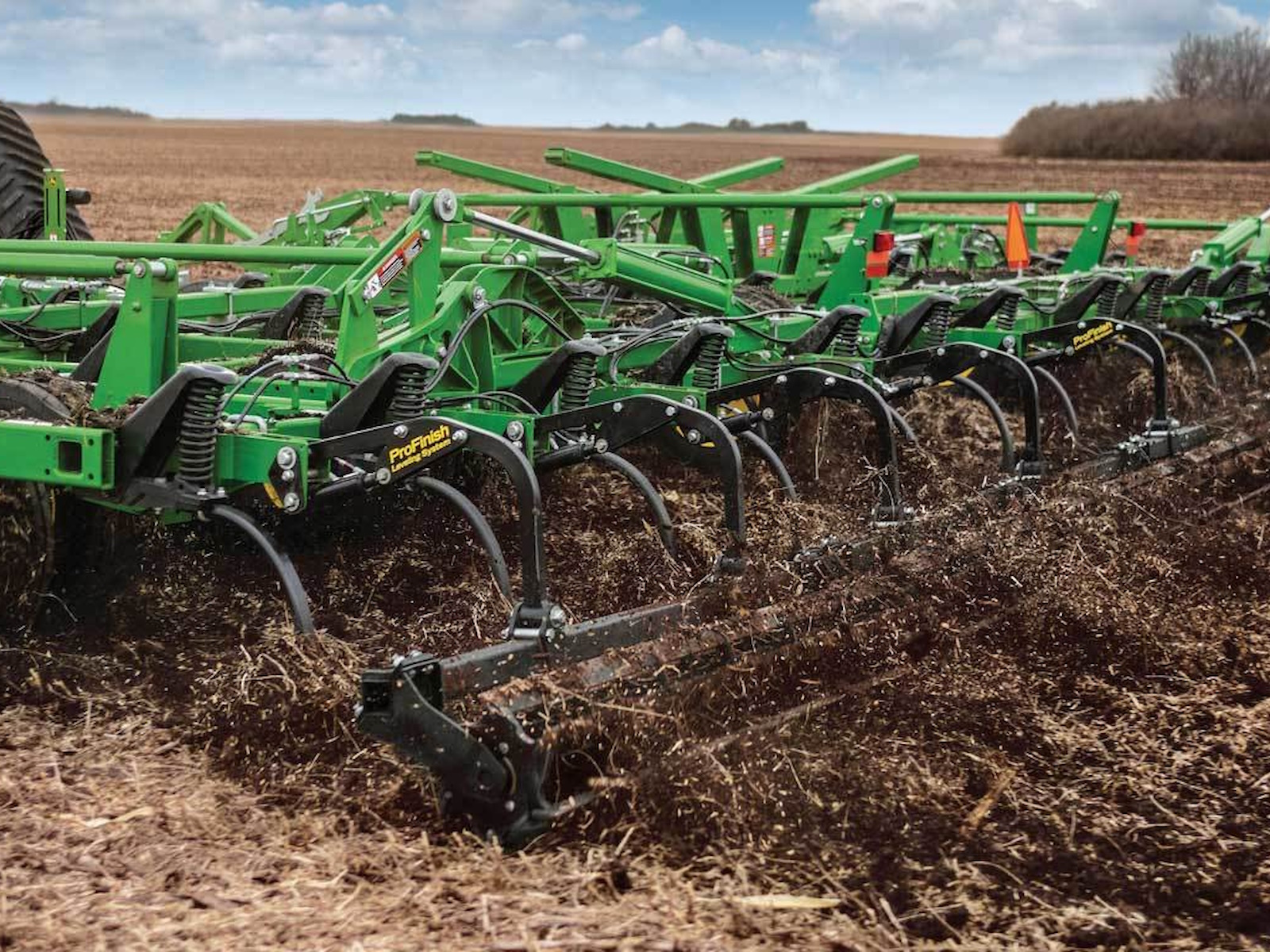

• The 2430 Chisel Plow has excellent residue-handling capability in primary tillage at all residue levels.
• Typical percentages of residue cover remaining from the 2430 are listed in the following table. The percentages do not consider variables such as the condition of the residue, speed, and soil type.

Proven frame construction

• Operators are requiring faster field working speeds, larger implements, and tractors because of a dramatic increase in farm size. The market is asking for and receiving tractors with more torque, more weight, and more horsepower.
• Accommodating 600 engine horsepower tractors requires more from implement frame and hitch components, including thicker frame tubes, additional diagonal bracing, and frame gussets.
• The frame is constructed of continuous 102-mm x 102-mm (4-in. x 4-in.) cross members inserted through 51-mm x 152-mm (2-in. x 6-in.), 76-mm x 152-mm (3-in. x 6-in.), and 102-mm x 152-mm (4-in. x 6-in.) fore-aft members. The mainframe boasts a structure made up of 102-mm x 152-mm (4-in. x 6-in.) fore-aft tubes.

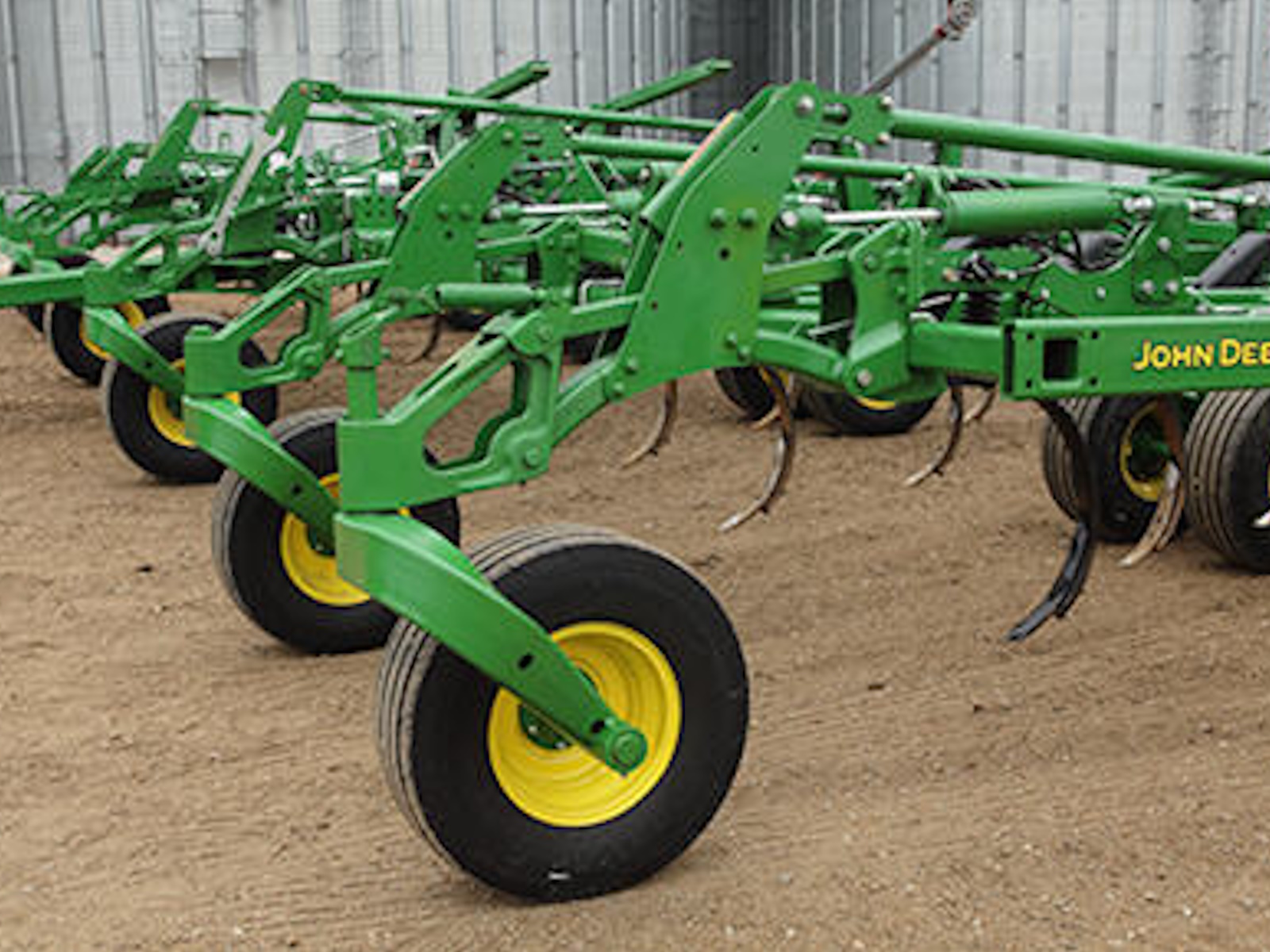

• The large frame member sizes, joint welds, and wheel module placement adds to the structural integrity, providing a stable front-to-rear and side-to-side operation.

Frame construction offers:

• Consistent operating depth

• Level operation

• Restricts frame dip
