2025 Jaylor 5150 Trailer 12"
Get in Touch
Description

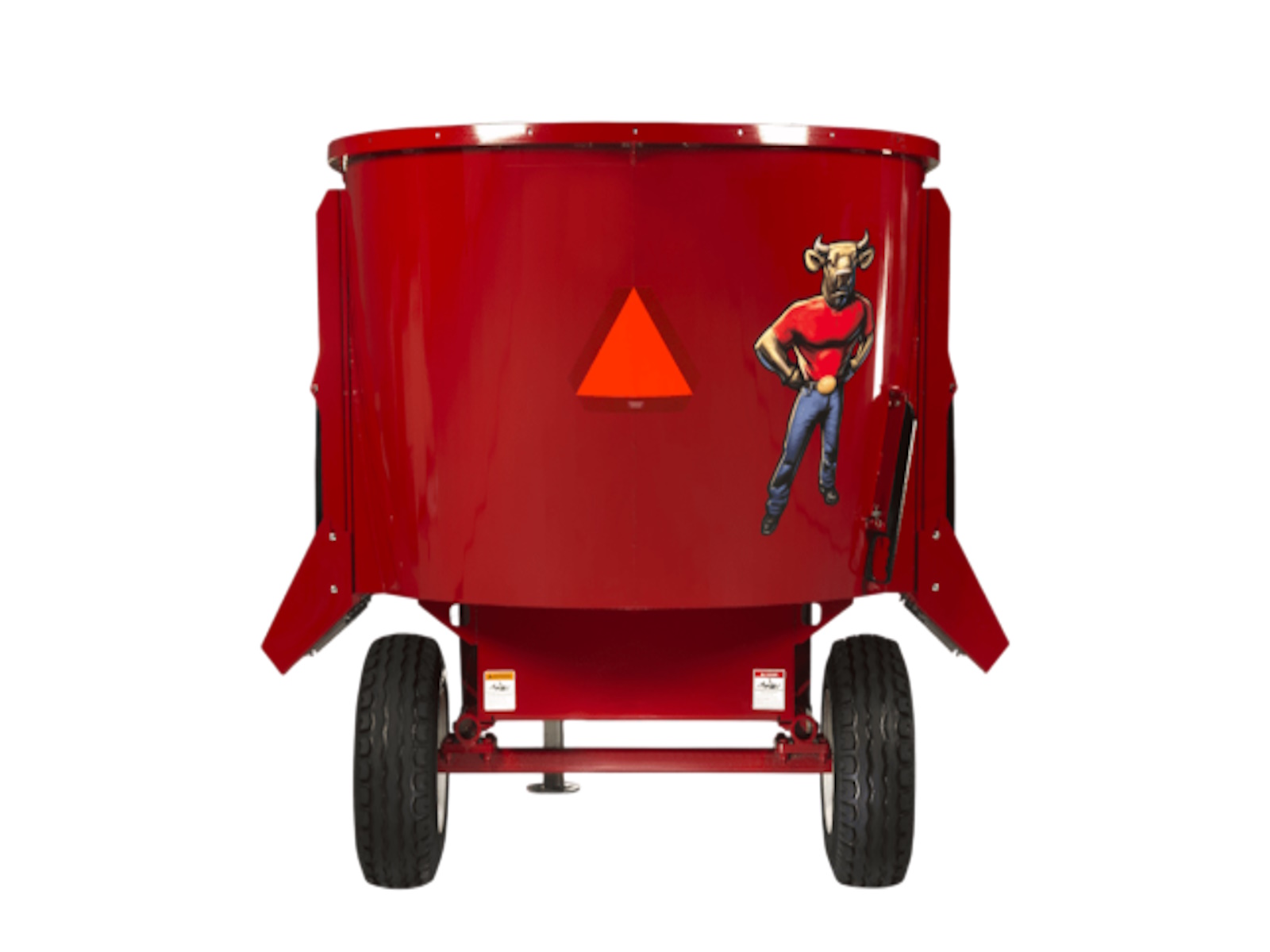

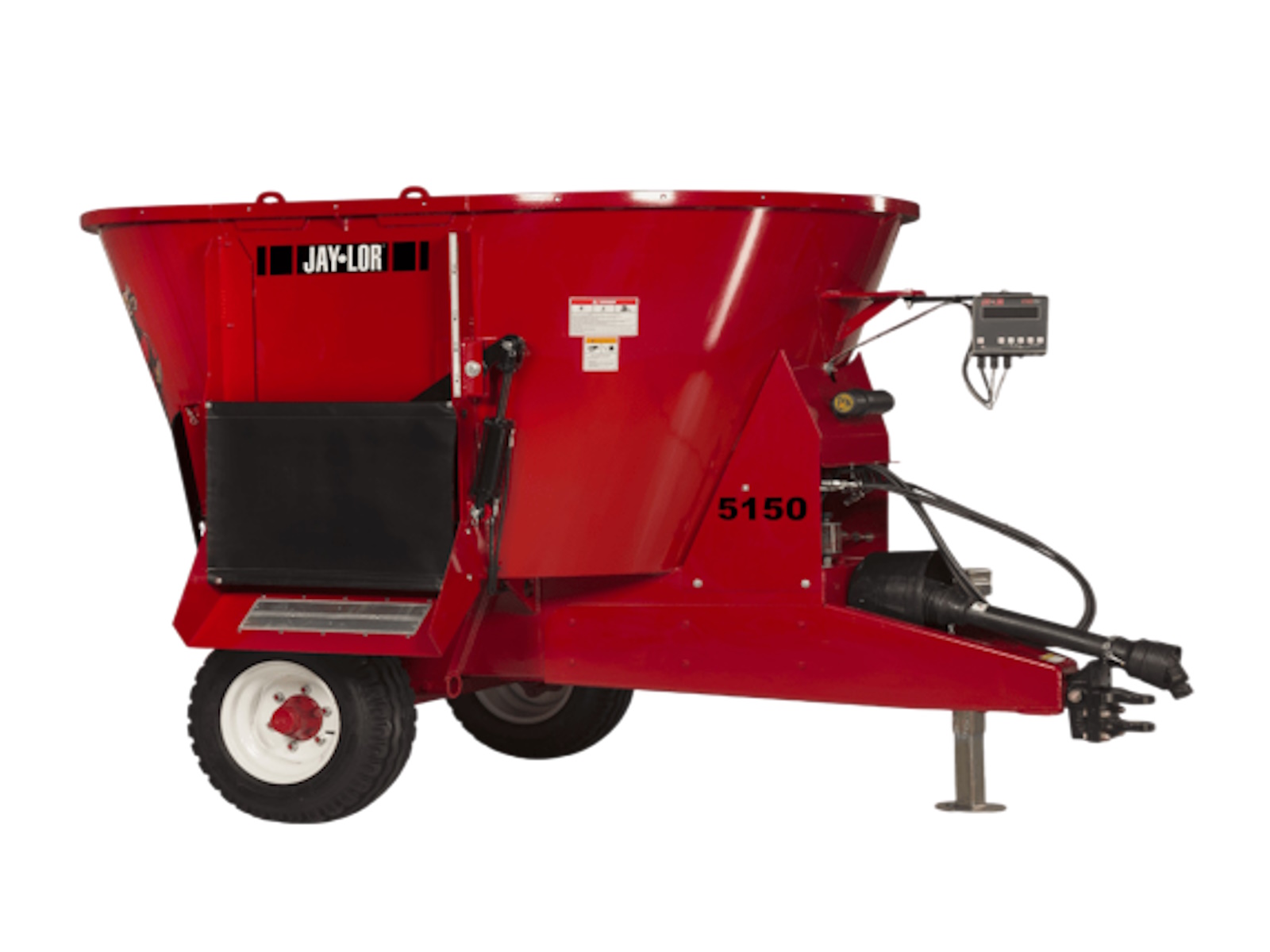

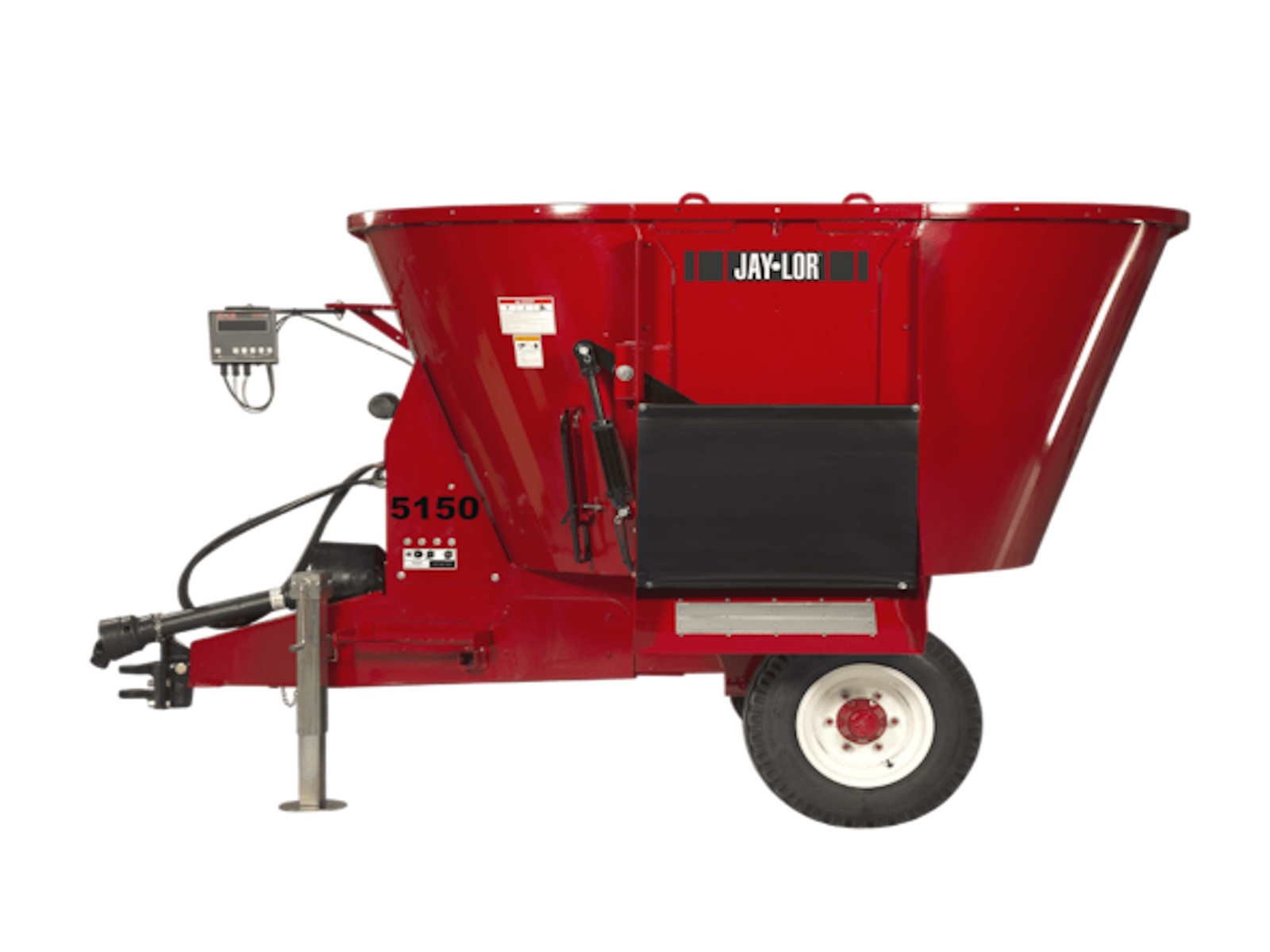

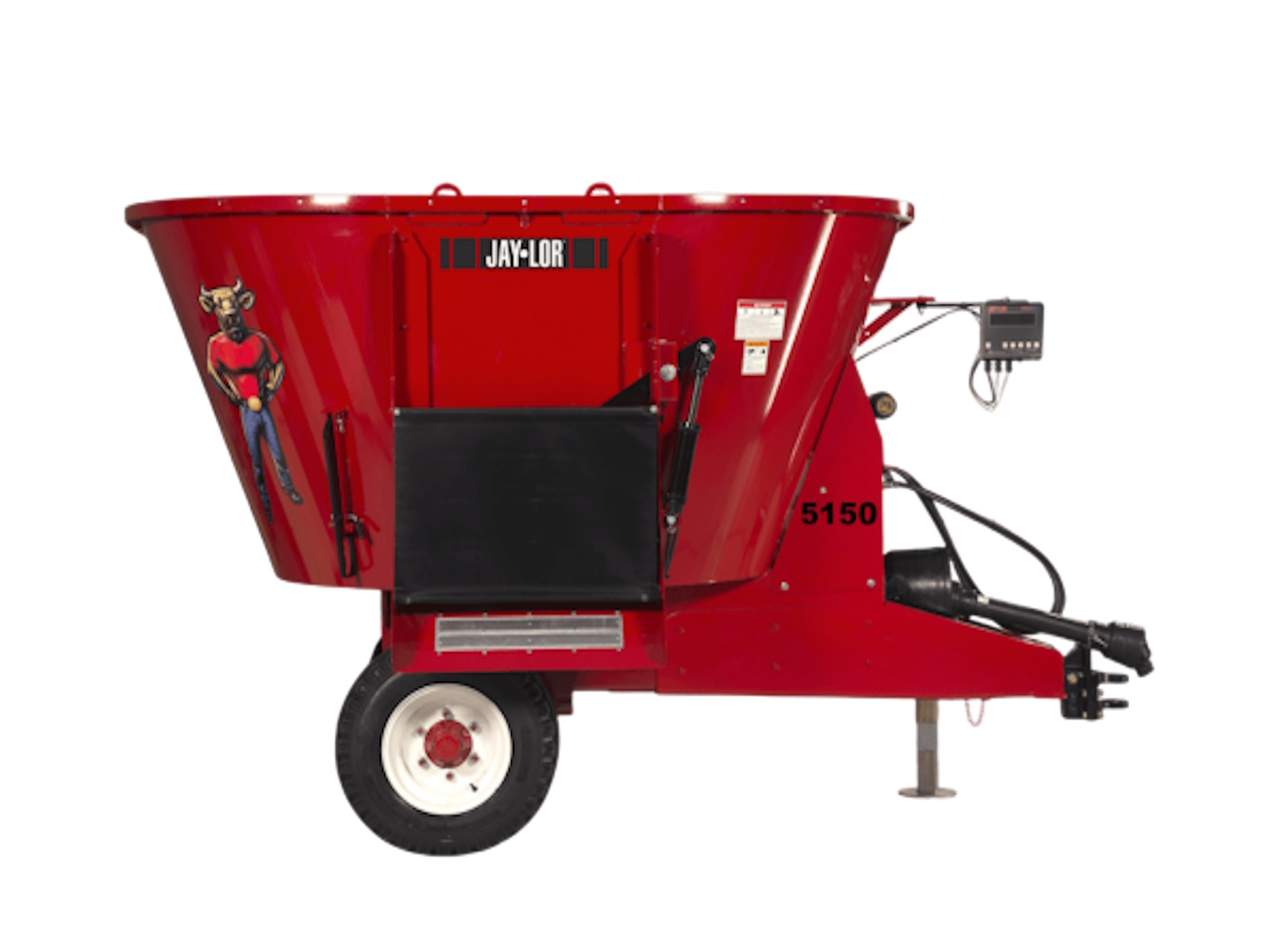

2025 Jaylor 5150 Trailer 12"
Your 35 HP (PTO) tractor is all you need to power the Jaylor 5150 Trailer Mini TMR Mixer! This compact yet powerful mixer creates a true Total Mixed Ration (TMR) by blending baled forage, silage, and additives into a uniform mix that resists sorting. Capable of processing and mixing a 4×4 round bale (600 lbs/275 kg hay equivalent) per load, or an equivalent portion of a larger bale, the 5150 Trailer Mixer delivers consistent, high-quality feed every time. Featuring a simple, reliable driveline, a planetary gearbox-powered auger, and unloading doors on the left, right, or both, it’s built for efficiency and versatility.
Features May Include:
- Sloped top Square-Cut Auger
- Planetary Gearbox
- 3-Point Weigh System with DG500 Indicator
- Fully Welded Mixing Chamber
- Structurally Reinforced Frame
- Mix Viewing Window
- Tungsten Carbide Coated Knives
- Central Grease Bank
- Heavy Duty Adjustable Cast Hitch
- Heavy Duty Single Straight Axle
Info
Industry
Agriculture
Make
Jaylor
Model
5150 Trailer
Trim
12"
Year
2025
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Feed / Mixer Wagon
Specs
Load Capacity
12" Extension: 200ft³
Power/Horsepower
Minimum: 35 HP
Height
86 in | Max Discharge: 35in
Weight
4300 lbs
Tires
10.0/75 – 15.3 18 PLY (2)
Battery
PTO Type
Speed: 540 RPM
Width
Drum: 76.5 in | Door Opening: 25in
Wheels
Single Straight Axle
Length
140 in
RPM
540 RPM
Notes
Scale System: DG500 | Auger Speed: 41 RPM | Number Of Knives: 8 | Auger Flighting Thickness: 1/2in | Floor Thickness: 1/2in | Drum Wall Thickness: 1/4in
