    Description

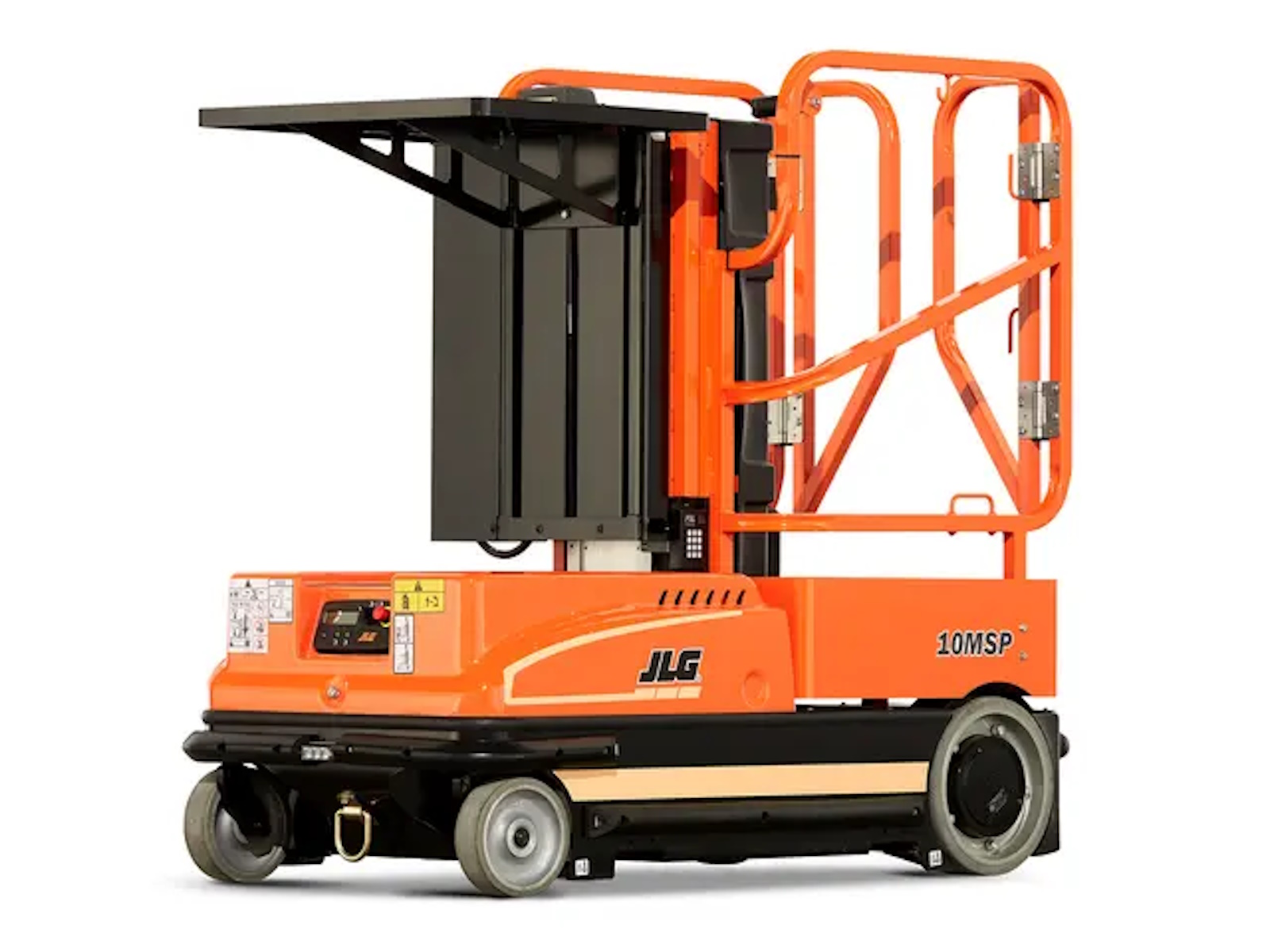

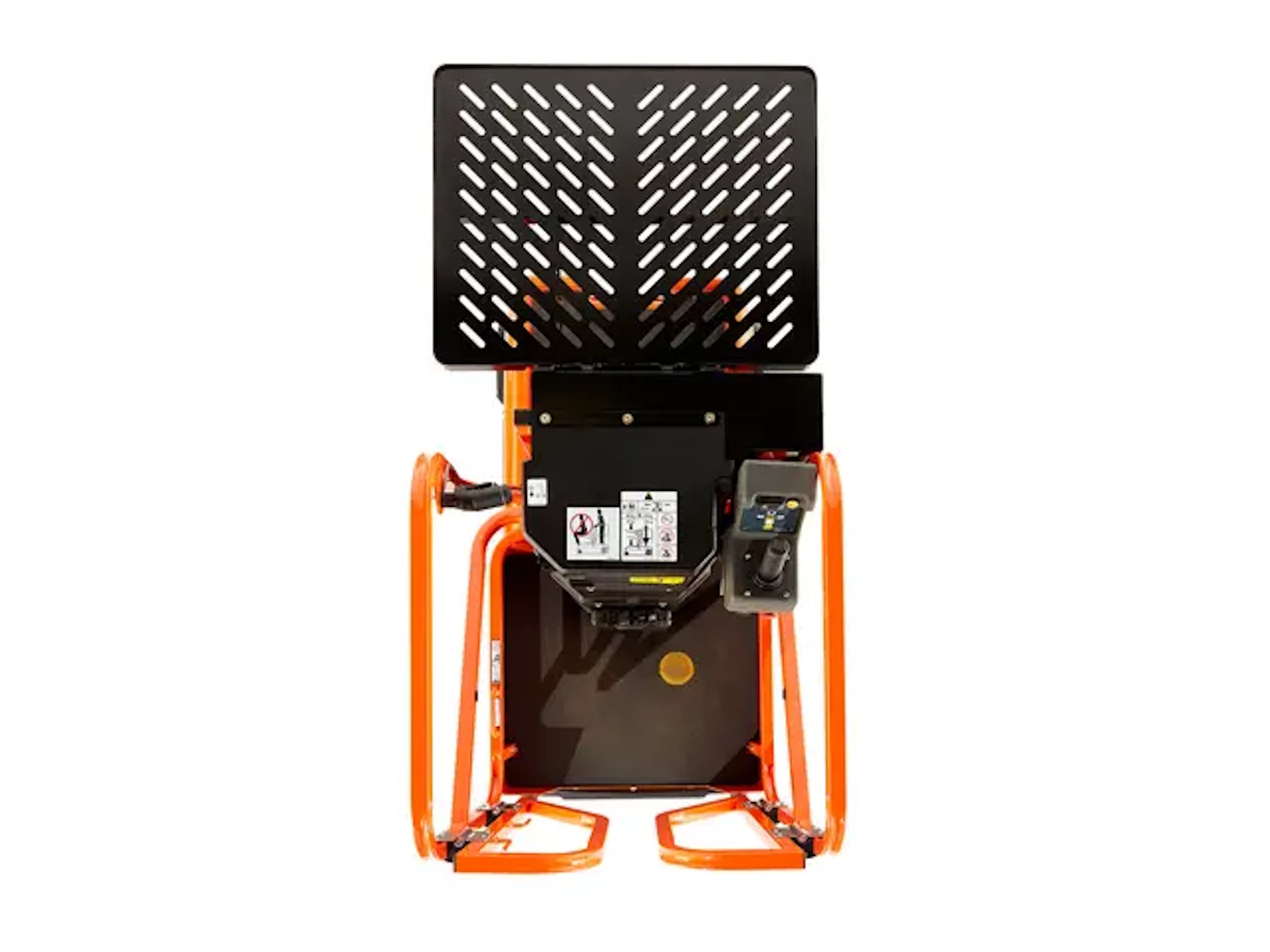

    2026 JLG 10MSP

    Boost your efficiency with the JLG 10MSP. Drivable at full height while picking stock, this machine features a zero turning radius for superior maneuverability, even in narrow aisles.

    Its one-hand operation provides increased operator comfort compared to a walkie stalker. And, a built-in automatic battery charger means less downtown during warehouse shifts.

    Features May Include:

    • Zero turning radius for superior maneuverability even in a narrow aisle.  
    • Built-in automatic battery charger for less downtime during warehouse shifts.  
    • One-hand operation for increased operator comfort compared to a walkie stacker.  

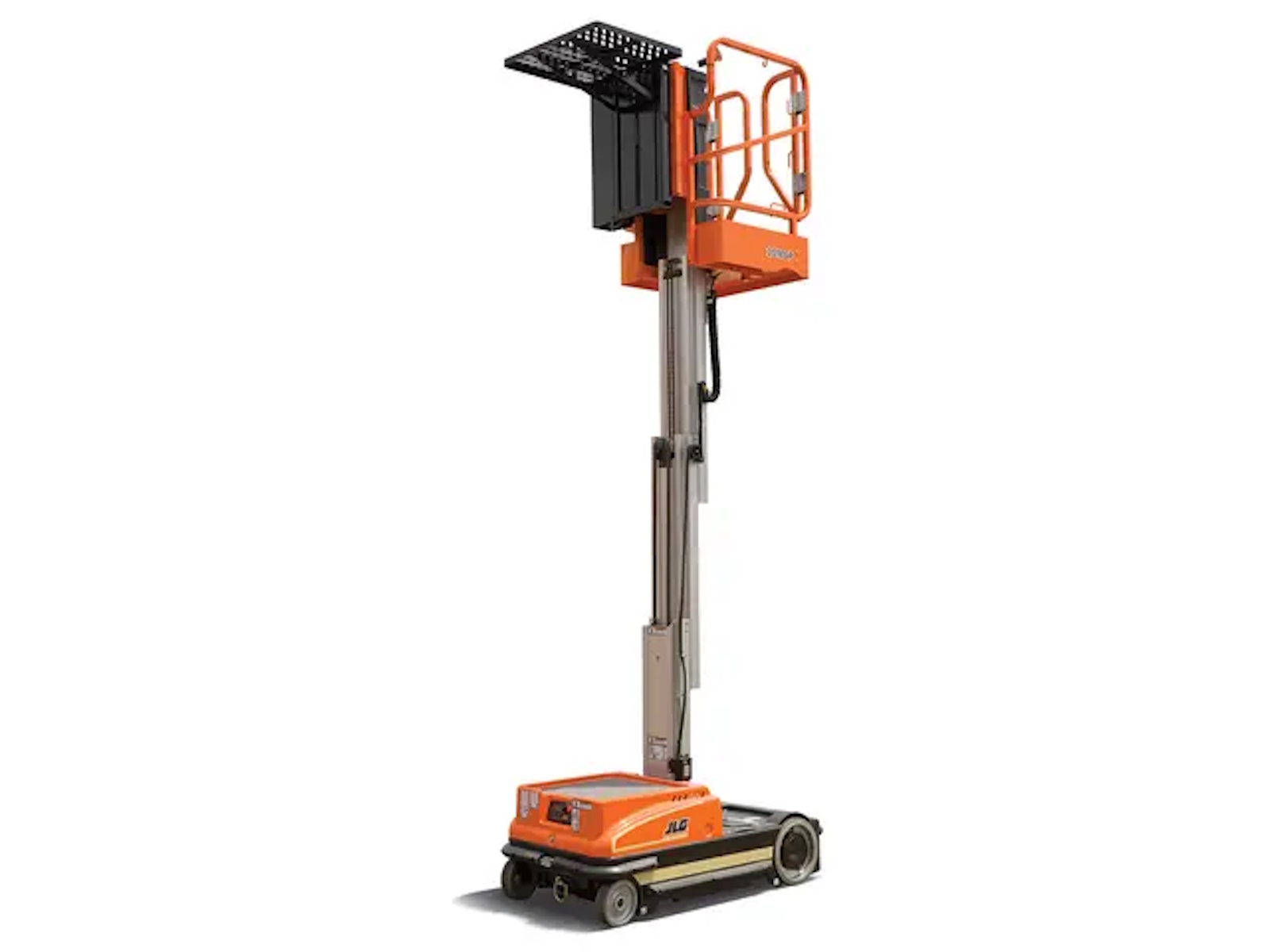

    • Driveable at full height for increased efficiency while picking stock.

    Standard Features:

    • Adjustable Height Material Tray
    • Automatic Five-Hour Battery Charger
    • Battery Discharge Indicators— Platform and Base
    • Heavy Duty Planetary Gear Drive Motors
    • Horn
    • Hourmeter
    • Lanyard Attachment Anchor Point
    • Lubrication-Free Anodized Aluminum Mast Sections
    • Maintenance-Free Mast Guide System
    • Non-Marking Tires
    • Platform Gate Operation Interlock

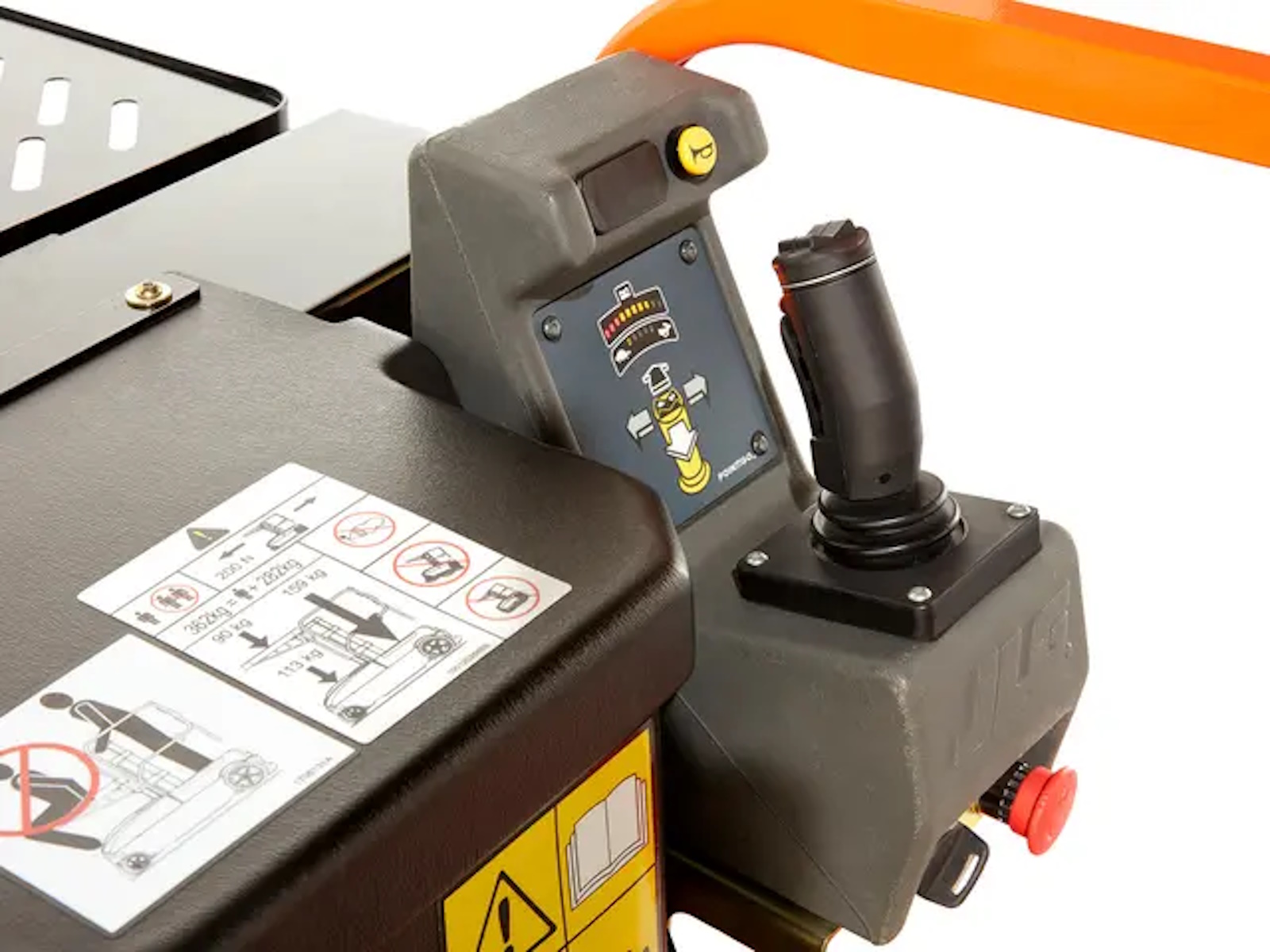

    • Point & Go® One-Hand Drive and Steer System
    • Programmable Motion Alarm
    • Proportional Drive
    • Side and Front Bumpers
    • Simultaneous Lift and Drive Capability
    • Shipping Skid
    • Slope Cut-Out Control Interlock
    • Stand-On Foot Switch Operation Enable Control
    • Strobe Lights Front and Rear
    • Transportation Tie Downs

    ACCESSORIES & OPTIONS

    • Aisle Guide Roller System
    • ClearSky™ Legacy
    • Electrically-Powered Material Tray (200-lb Capacity)
    • Floor Mats
    • Object Sensing Pad
    • Programmable 4-Digit Security Lock
    • Remote Manual Descent

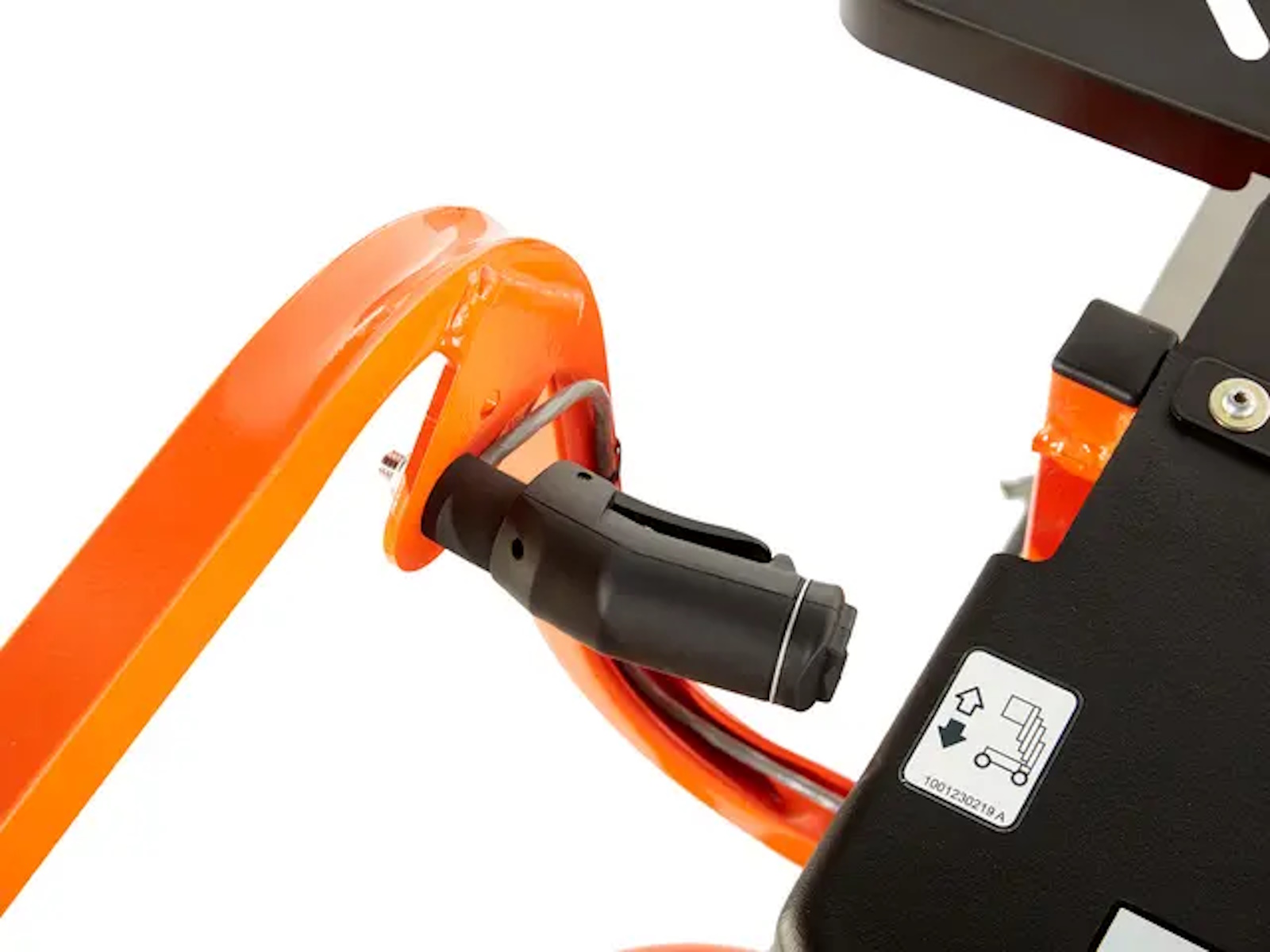

    • Retractable Charger Cord






    Info

    Industry

    Agriculture

    Make

    JLG

    Model

    10MSP

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Boom Lift

    Subcategory

    Telescopic


    Specs

    Height

    Platform (Elevated): 10 ft (3.05 m) | Working: 16 ft (4.88 m) | Maximum Drive: Full Height | Machine: 57 in (145 cm) | Ground Entry: 13.75 in (35 cm)

    Weight

    1,100 lb (499 kg)

    Load Capacity

    Platform: 350 lb (159 kg) | Material Tray: 250 lb (113 kg)

    Drivetrain

    Speed (Lowered): 5.0 mph (8.0 km/h) | Speed (Elevated): 0.5 mph (0.8 km/h)

    Turning Radius

    Zero

    Battery

    4 Sealed 210 amp-hr Maintenance Free (AGM) | Charger: 25 Amp Automatic

    Fuel System

    Drive: 4 Brush Direct Electric (Planetary Gear)

    Tires

    Rear Drive & Steer Wheels: 12.62 x 4 in (32 x 10 cm) | Non-Marking Front Caster Wheels: 8 x 2.5 in (20 x 6 cm)

    Width

    Platform: 20 in (49.5 cm) | Machine (With Bumpers): 32.5 in (82.5 cm)

    Length

    Platform: 27 in (69 cm) | Machine: 61 in (1.55 m)

    Ground Clearance

    2 in (5 cm)

    Fuel Type

    Gas
