    Description

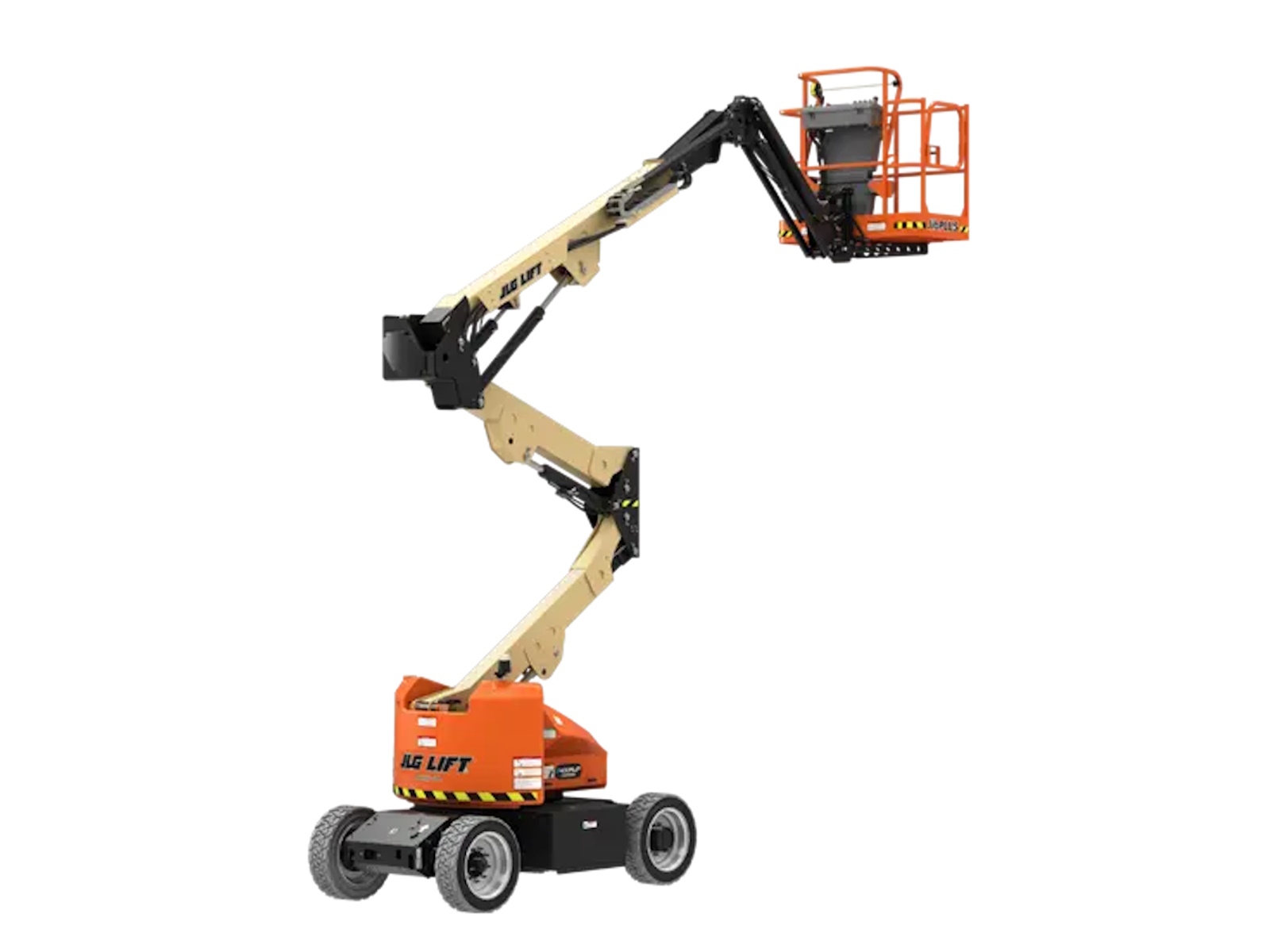

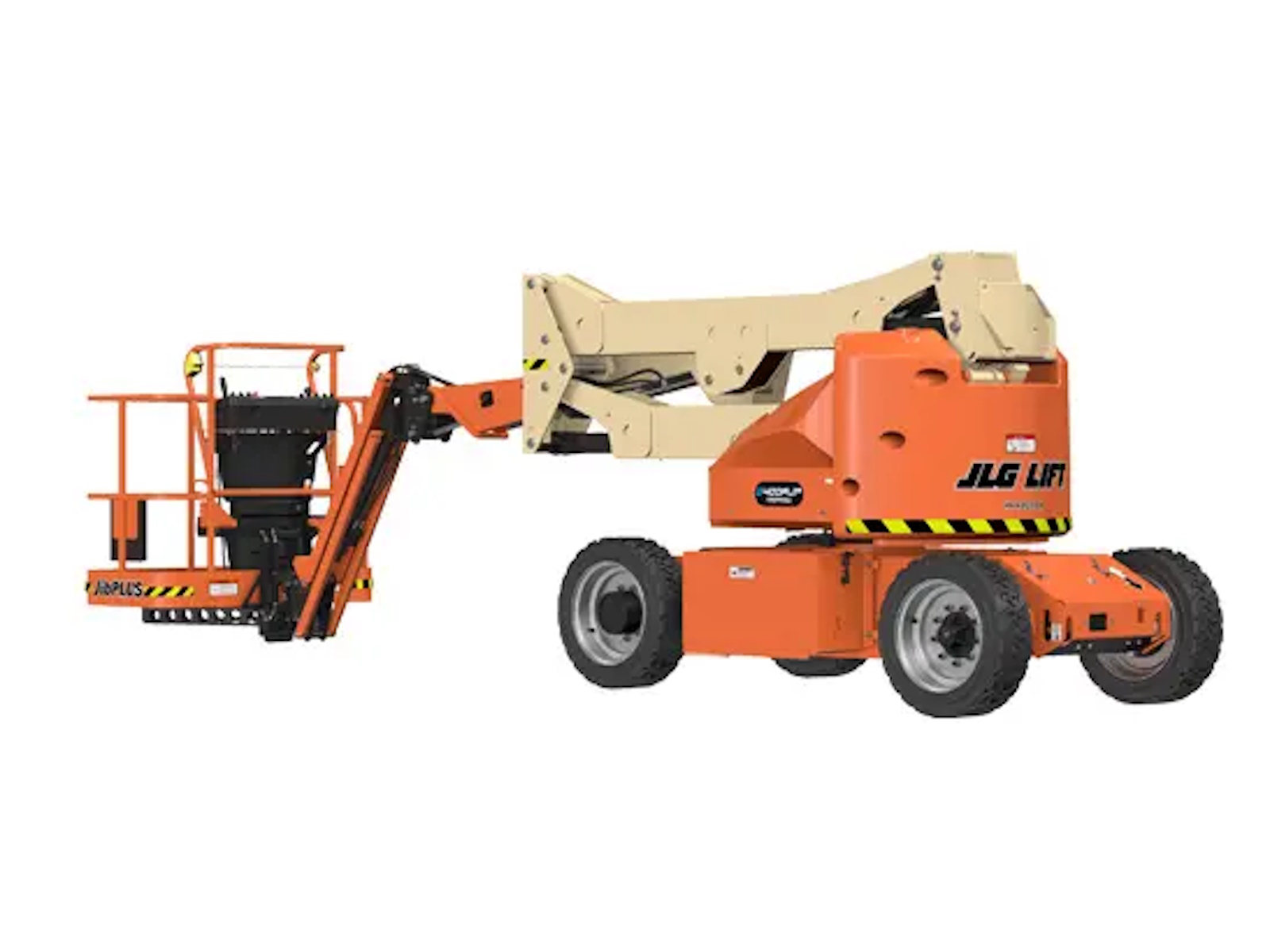

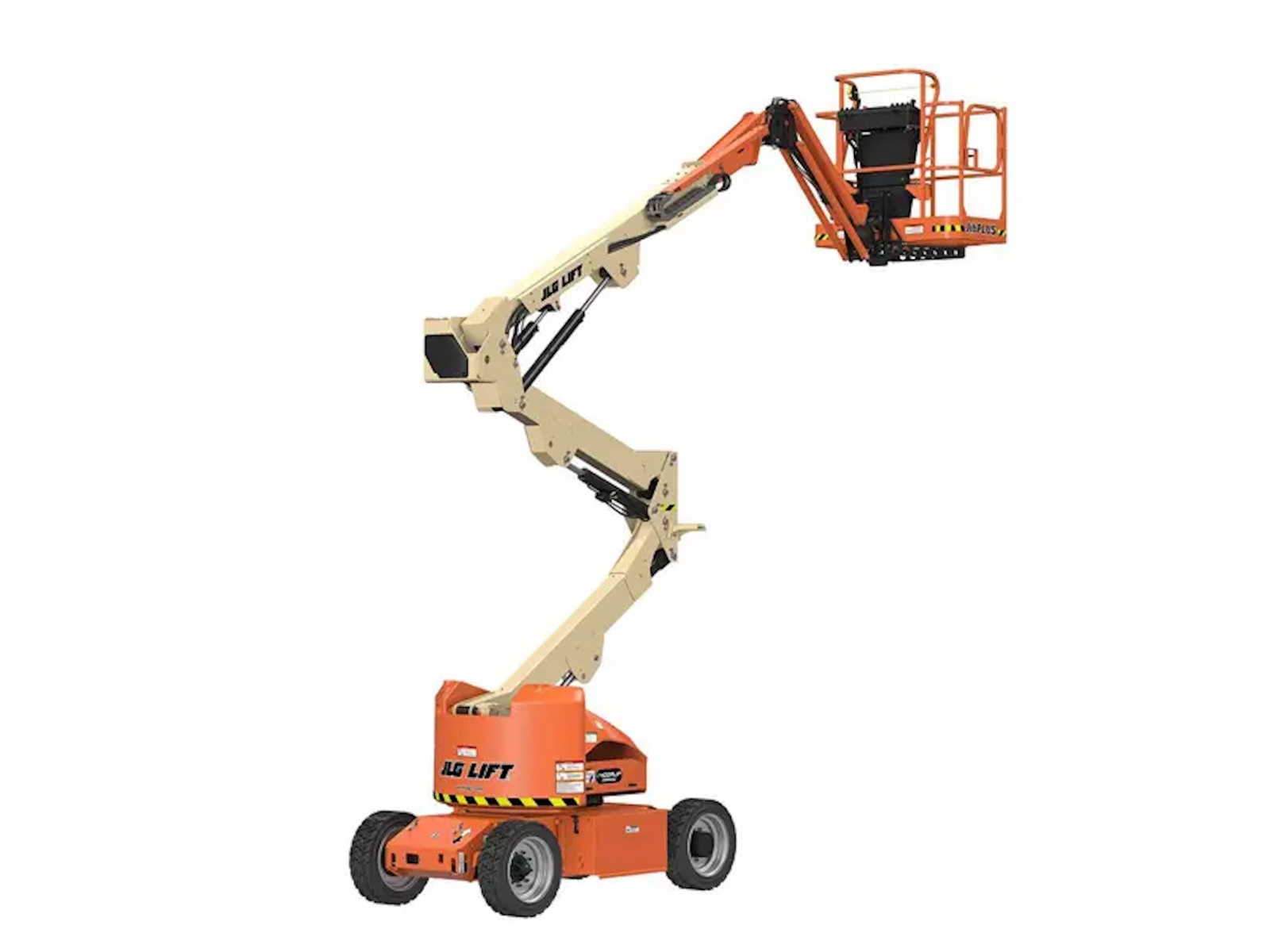

    2026 JLG E400AJPN

    The E400 Series is environmentally friendly with industry-leading performance. You get the up and over access you need and multiple function operation for efficient maneuvering in tight spaces.

    Designed for efficiency and versatility in your workspace, the JLG E400AJPN delivers greater accessibility with up-and-over access and an optional jib for hard-to-reach areas.

    Product Details

    Designed for efficiency and versatility in your workspace, the JLG E400AJPN delivers greater accessibility with up-and-over access and an optional jib for hard-to-reach areas.

    The Automatic Traction Control option lets you easily maneuver over uneven, challenging surfaces. And with longer duty cycles, this boom lift maximizes productivity without interruption.

    The JLG E400AJPN is environmentally-friendly with zero emissions. This lift includes a standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware. Also available in the E400AN model.

    Features May Include:

    • Achieve maximum maneuverability by moving over uneven surfaces with  Automatic Traction Control.
    • Achieve optimum productivity with longer duty cycles.
    • Produces zero emissions, 100% environmentally friendly.
    • Also available as E400AN model.

    Standard Features:

    • 110V-AC Receptacle in the Platform
    • 12V DC Auxilliary Power  
    • 180 Degree Hydraulic Platform Rotator  
    • 3 Degree Tilt Cut-out  
    • All Motion Alarm  
    • Automatic Traction Control (ATC)  
    • Battery Condition Indicator  
    • Brushless AC Motors  
    • Center Storage Tray  
    • ClearSky Smart Fleet™ Hardware (CS550)
    • Horn
    • Hourmeter  
    • LED Motion/Amber Beacon (CS550)
    • Lifting/Tie Down Lugs  
    • Load Sensing System  
    • Platform Console Machine Status Light Panel**  
    • Rapid Replaceable Platform with Self-Closing Gate
    • SkyGuard SkyLine™  
    • Tilt Light and Alarm  
    • USB-A and USB-C Charger

    ACCESSORIES & OPTIONS

    •  1/2-in Airline to Platform
    •  Batteries, AGM
    •  Ambient White Noise Alarm
    •  Batteries, AGM
    •  Inverter - 1200W1
    •  Inward Self-closing Swing Gate
    • Light PackageS
    • Platform Mesh to Mid or Top Rail2
    • Aluminum or Plastic
    • Platforms: Drop Bar, 30 x 36-in, 30 x 48-in
    • Inward Self-Closing Swing Gate, 30 x  48-in
    • Inward Self-Closing Swing Gate with Stop, 30 x 60-in
    • UL EE Rating

    Info

    Industry

    Agriculture

    Make

    JLG

    Model

    E400AJPN

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Boom Lift

    Subcategory

    Articulating

    Specs

    Height

    Platform: 40 ft (12.19 m) | Machine: 6 ft 5.75 in (1.97 m)

    Ground Clearance

    5 in (13 cm) | Up and Over:21 ft 6 in (6.55 m) | Bearing Pressure: 185 psi (13 kg/cm²)

    Load Capacity

    Platform: 500 lb (227 kg)

    Length

    Jib (Range of Articulation): 144 Degrees (+84, -60) Vertical | Platform: 48 in (1.22 m) | Machine: 22 ft (6.71 m)

    Weight

    14,900 lb (6,759 kg)

    Drivetrain

    Max Speed: 4.2 mph (6.7 km/h) | Motors: Dual Electric Traction

    Turning Radius

    Inside: 2 ft 10 in (.86 m) | Outside: 10 ft 4 in (3.15 m)

    Electrical

    48V DC

    Battery

    8 x 6V, 312 amp-hr

    Tires

    Standard (Front): 22 x 6 x 17.5-in Solid Non-marking | Standard (Rear): 25 x 7 x 12-in Solid Non-marking

    Fuel Capacity

    4 gal (15.14 L)

    Fuel Type

    Gas

    Width

    Platform: 30 in (76 cm) | Machine: 4 ft 11 in (1.5 m)

    Wheelbase

    6 ft 7 in (2.01 m)
