2026 JLG ES3246
Get in Touch
Description

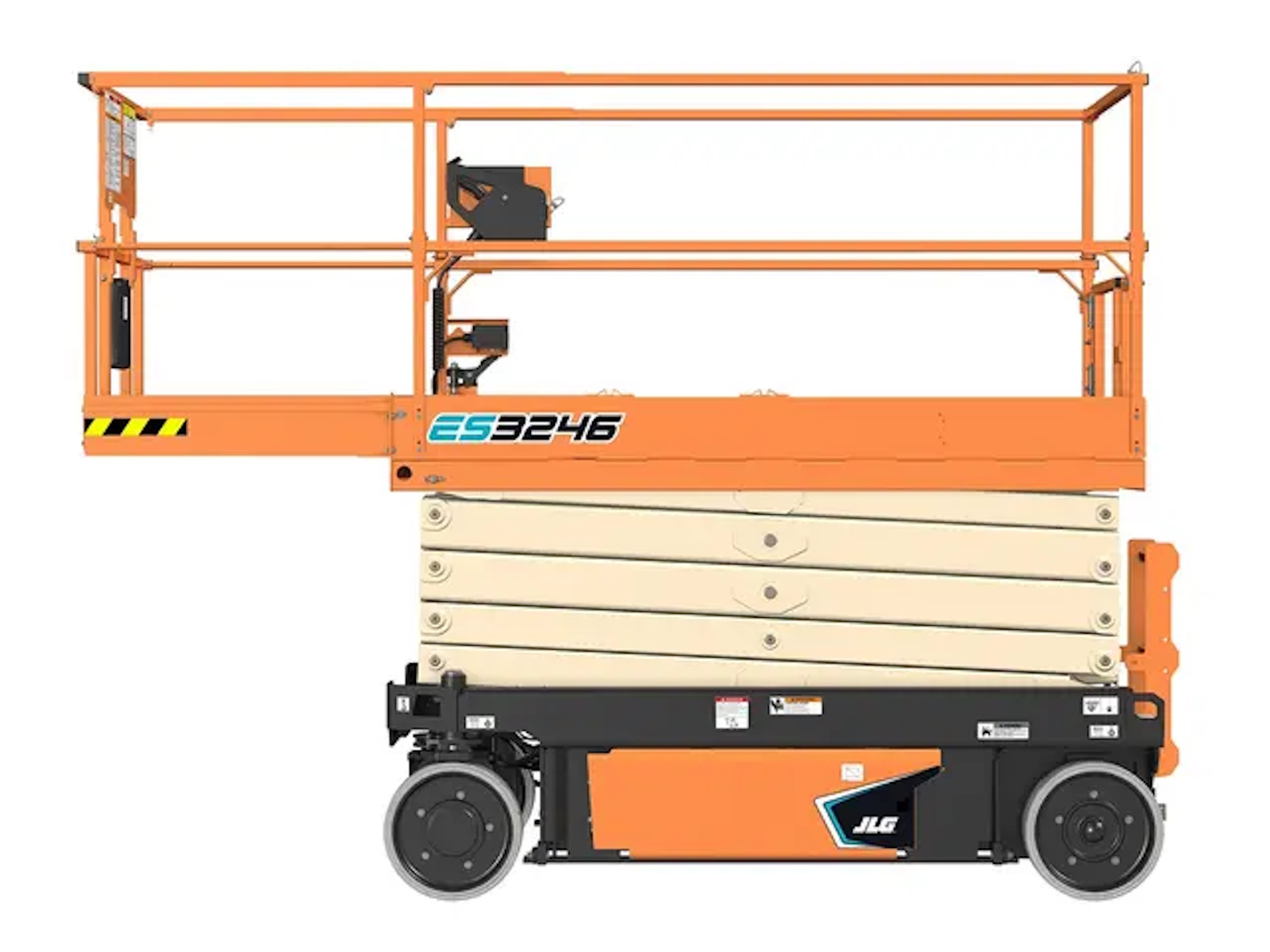

2026 JLG ES3246
The JLG ES3246 electric scissor lift delivers double the battery life compared to a competitive model under similar test conditions, allowing you to run longer on a single charge. The available CleanGuard leak containment system enables work on sensitive flooring.
Features May Include:
- Refreshed design delivers electric drive, for up to double the battery life of a standard scissor.
- Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
- Work in sensitive areas with optional CleanGuard leak containment system.
- Features a standard USB charger and phone holster, improving the operator experience while delivering a high degree of commonality with other JLG® scissors to simplify service.
STANDARD FEATURES
- 27 amp Multi-Function Universal Charger
- AC Receptacle in Platform
- Active Pothole Protection System
- All Motion Alarm
- Analyzer Port for Diagnostics
- Battery Condition Indicator
- CAN-Enabled Charger
- ClearSky Smart Fleet™ Hardware (CS550)
- Diamond Tread Steel Deck
- Dynamic Braking
- Electric Drive
- Foot-Actuated Deck Extension
- Fork Lift Pockets
- Greaseless Kingpin Joints
- Horn
- Hourmeter
- Lanyard Attach Points
- Lifting and Tie Down Points
- LED Motion/Amber Beacon (CS550)
- Load Sensing System
- Lubrication Free Scissor Arm Bushings
- Manual Descent Cable
- Movable, Removable Platform Control
- Nickel Plated Pins
- Proportional Controls
- QuikFold Rails
- Removable Ladder
- Scissor Maintenance Prop
- Self-Closing Gate
- Steel Swing-Out Doors
- Tilt Alarm and Light
- USB Charger & Phone Holder
- Variable Tilt Visual Zone Indicator
ACCESSORIES & OPTIONS
- 4 x 6V AGM Batteries, 220 ah
- 900W Inverter
- Anti-Vandalism Package
- CleanGuard® Leak Containment System
- Coiled Platform Control Box Cable
- Drive Motor Covers
- Dual Flashing Amber Beacons - LED
- Lithium Battery (1)
- Lithium+ Batteries (2)
- MDI (Ground)
- Panel Carrier
- Pipe Racks
- SkySense® Enhanced Detection System
- White Noise Alarm
Info
Industry
Agriculture
Make
JLG
Model
ES3246
Trim
Base
Year
2026
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Miscellaneous Equipment
Specs
Height
Platform (Elevated): 32 ft (9.8 m) | Maximum Drive: Fully Elevated | Platform (Lowered): 50.9 in (1.3 m) | Platform Railing: 44.6 in (1.13 m) | Machine (Rails Raised): 96.3 in (2.5 m) | Machine (Rails Lowered): 77.6 in (2.0 m)
Load Capacity
Platform: 705 lb (320 kg)
Weight
5,620 lb (2,549 kg)
Drivetrain
Speed (Lowered): 3 mph (4.8 km/h) | Speed (Raised): 0.5 mph (0.8 km/h) | 24V AC
Turning Radius
Inside: Zero | Outside: 88 in (2.2 m)
Battery
4 x 6V 220 amp-hr
Tires
Standard: 16 x 5-in / 406 x 125-mm
Brakes
Multi-Disc Friction
Fuel Capacity
Hydraulic: 3.2 gal (12 L)
Width
Platform: 41.6 in (1.1 m) | Machine: 46 in (117 cm)
Length
Platform: 84 in (2.1 m) | Machine: 94.3 in (2.4 m)
Wheelbase
74 in (1.9 m)
Ground Clearance
3.9 in (9.8 cm)
Fuel Type
Gas
