Description

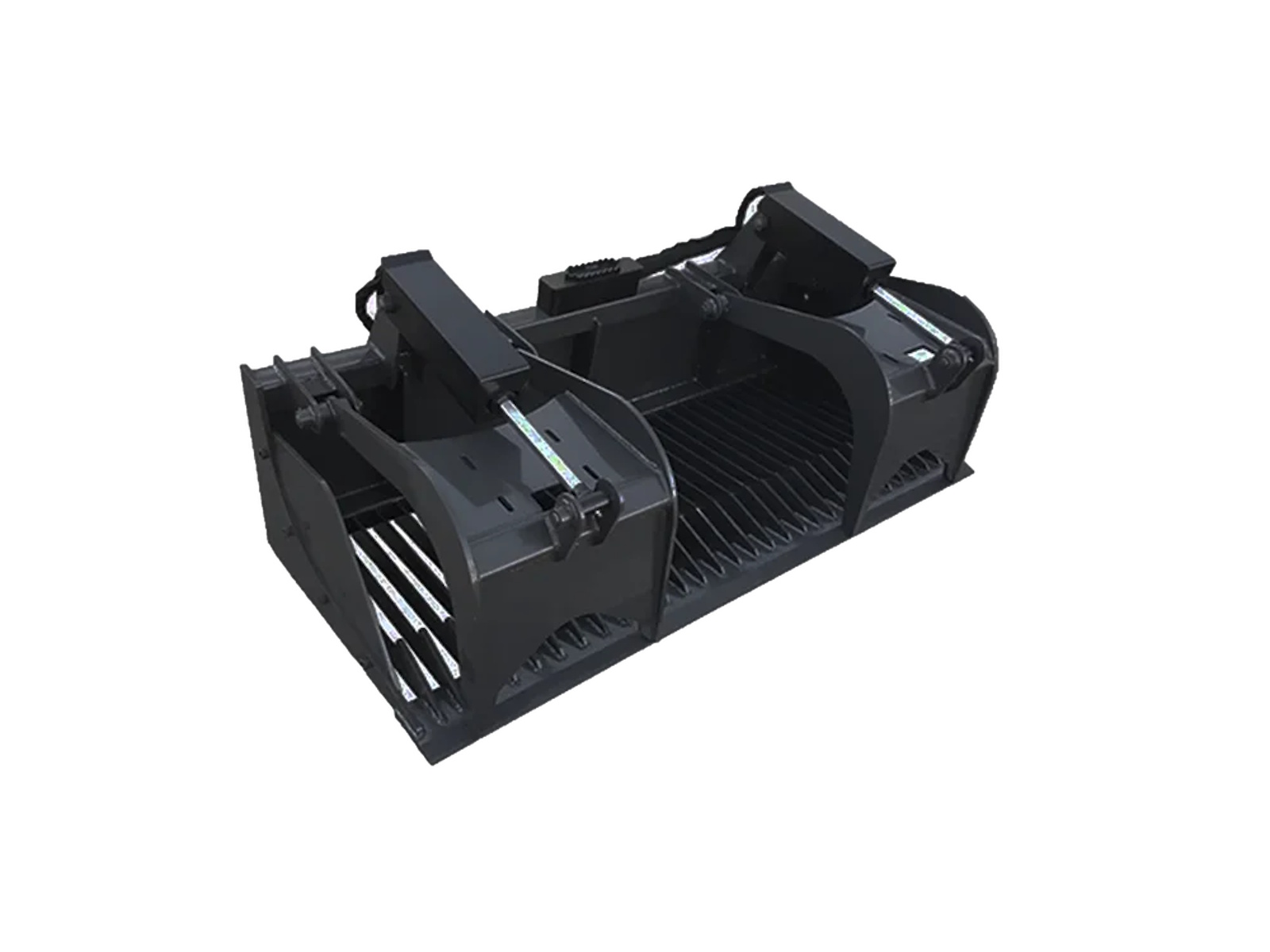

2025 Ironcraft Heavy Duty Rock Grapple HDROKG78
Our Heavy Duty Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 2–3/8″ apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else by use of the grapples. We use twin 2″ bore by 10″ stroke cylinders rated at 4,000 psi on all of our grapples. The rock grapple comes standard with 3/4 x 6 cutting edge and is upgraded to 1 x 8 edge when optional teeth are added. Up to 65 HP.
Info
Industry
Agriculture
Make
Ironcraft
Model
Heavy Duty Rock Grapple HDROKG78
Trim
Base
Year
2025
MSRP
N/A
Category
Attachments
Subcategory
Bucket
Specs
Notes
Tine Spacing: 2-38/" | Wear Bars & Side Edge: Bolt on Sides | Tine Thickness: 5/8" | Notes: Optional Weld on Teeth w/ 1" x 8" cutting edge
Cylinders
Size: 2" x 10" rated at 4000 PSI
Width
Working: 78"
Blades
Cutting Edges: 3/4" x 6"
Weight
941 LBS
