2023 Horsch Terrano FM 5 FM

2023 Horsch Terrano FM 5 FM

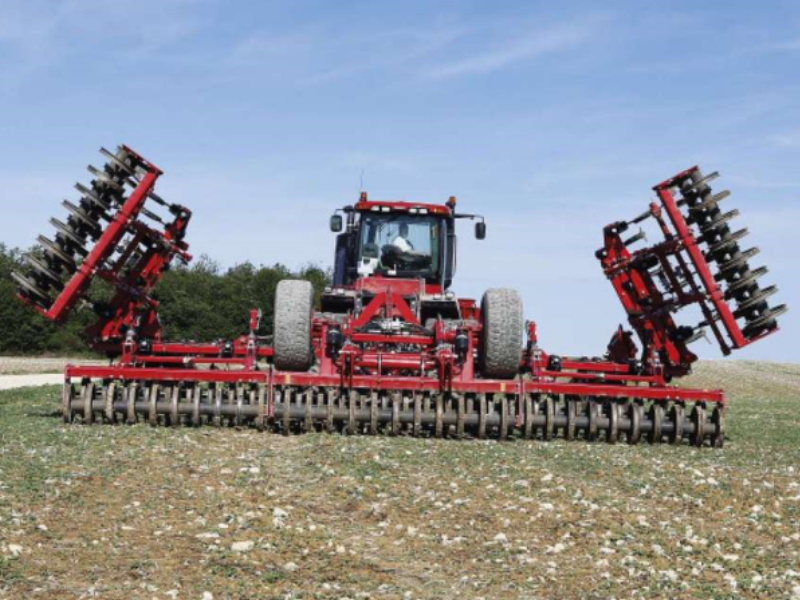

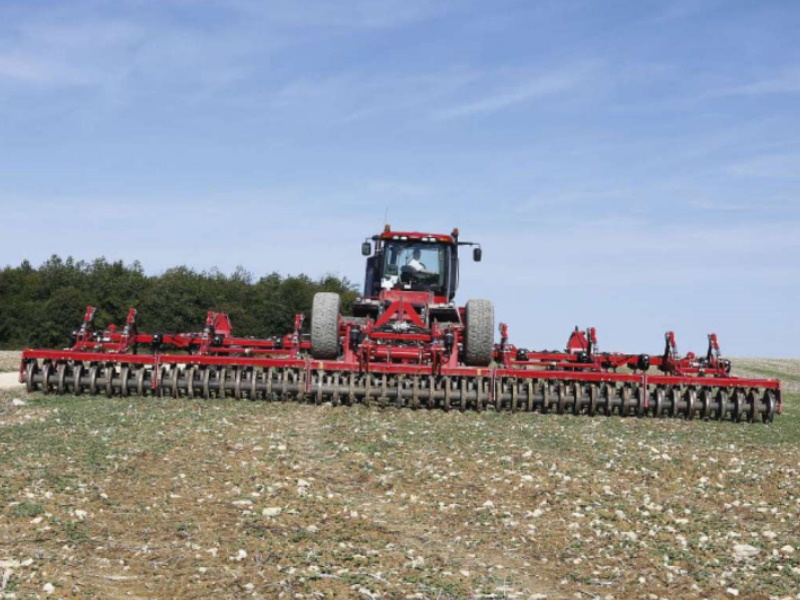

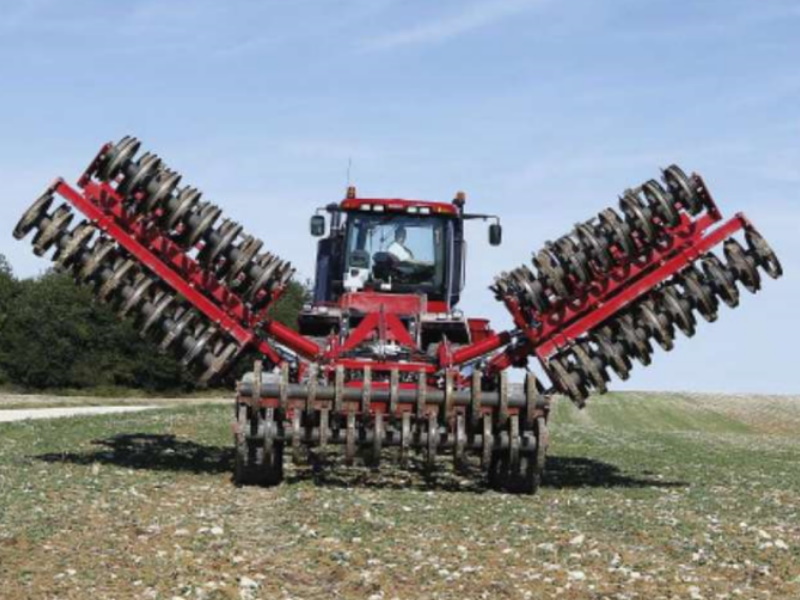

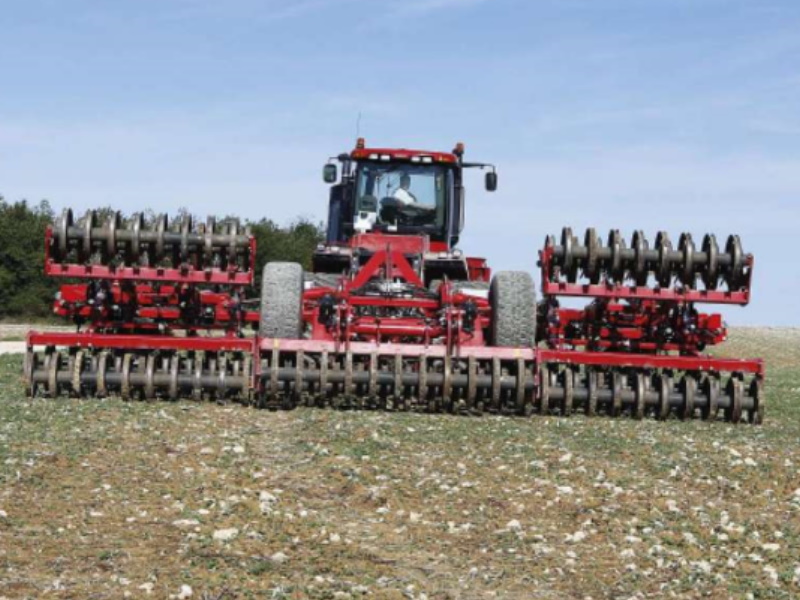

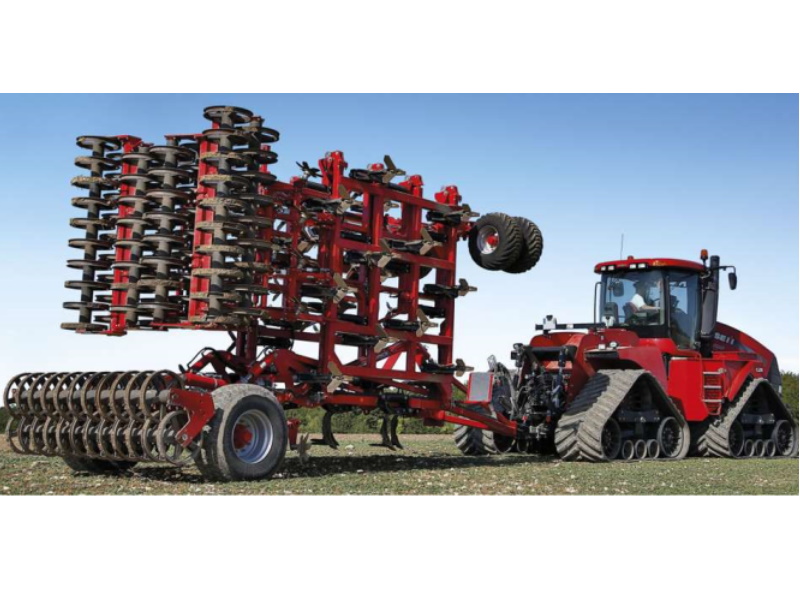

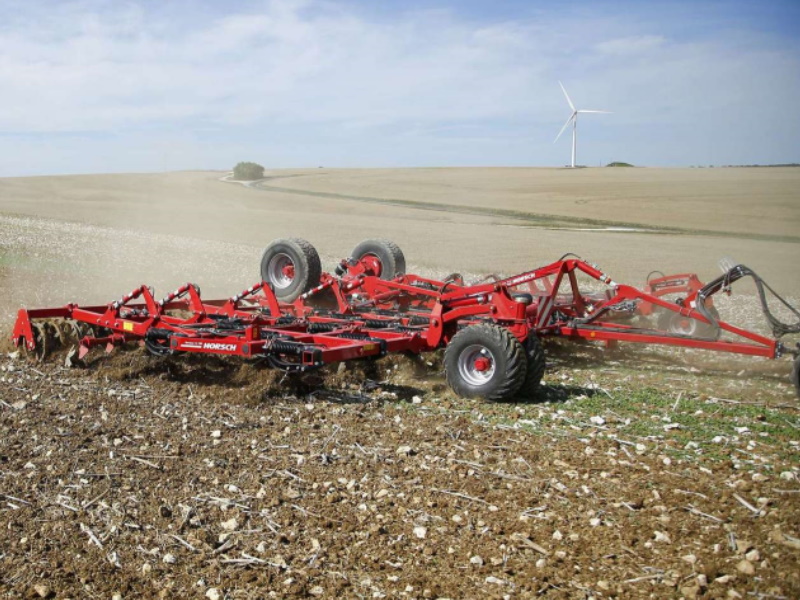

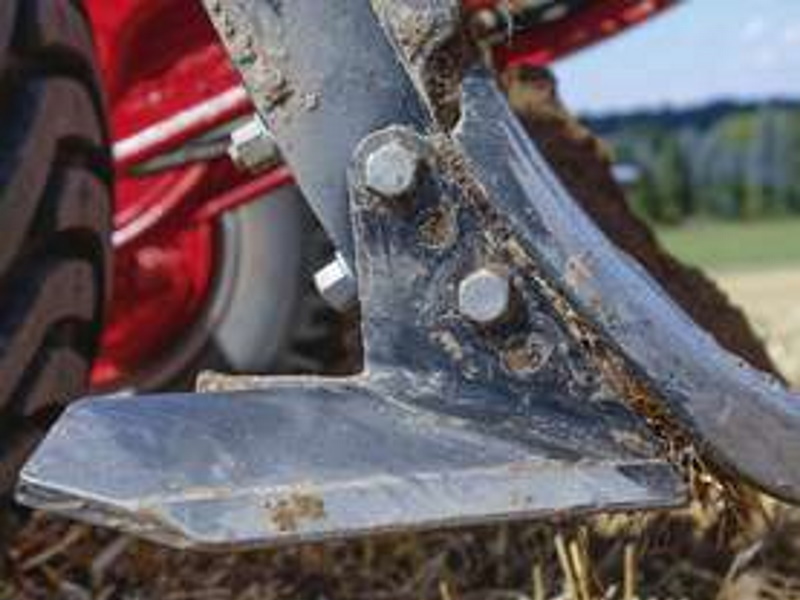

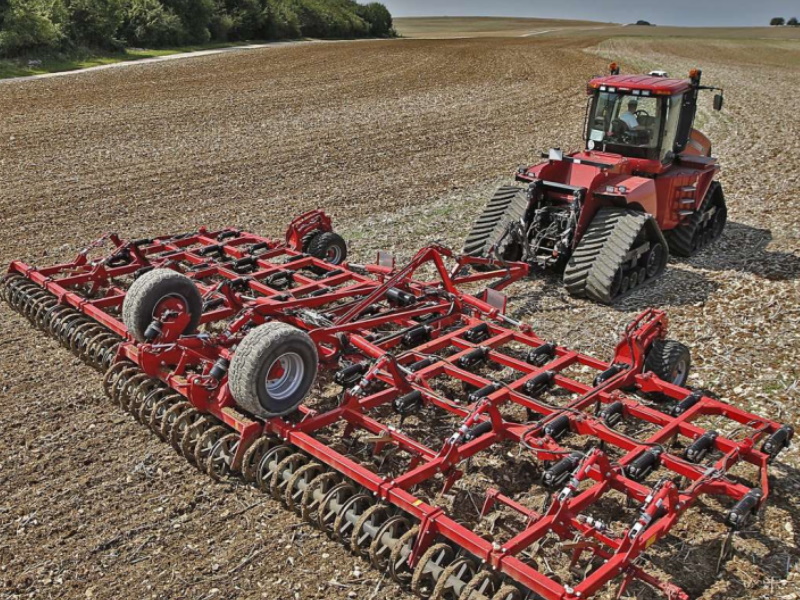

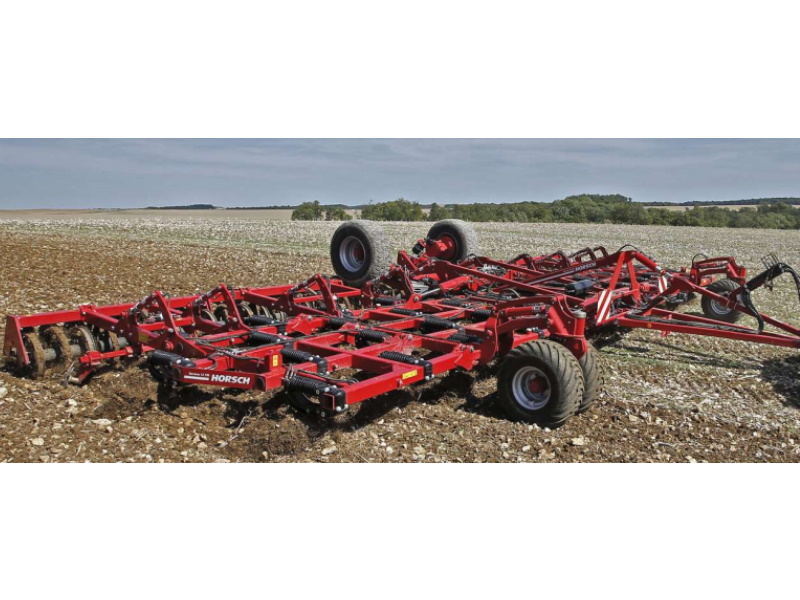

The Terrano FM is ideal for shallow stubble cultivation and medium-deep tillage, depending on the tractor power. Due to its 4-bar design it achieves intensive mixing and with a tine spacing of 27 cm the horsepower requirement is still low. The Terrano FM has a large clearance for working without cloggings in case of large amounts of harvest residues. It is equipped with TerraGrip tines of the third generation – they guarantee an exact coulter control due to high release forces. Due to large pivot points they are maintenance-free and very solid. The well-proven MulchMix point guarantees an excellent levelling effect with a low horsepower requirement. In the field, the Terrano FM turns on the packer, thus guaranteeing hight soil protection on the headlands. For road transport, the turret chassis moves downwards and changes place with the middle packer segment. The chassis is located centrally in the machine and guarantees high stability and driving comfort during transport. The disc levelling with maintenance-free oil-bath bearing guarantees an even levelling of the soil already in front of the packer. The rest is carried out by the very solid and sophisticated double RollPack packer. Due to its stable design it is suitable for almost all types of soil. The interlocking packer rings guarantee an excellent self-cleaning.

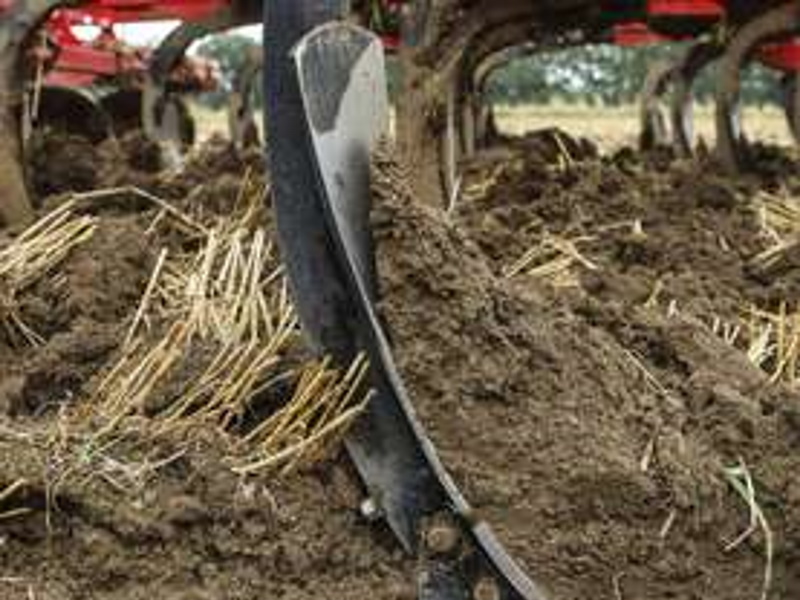

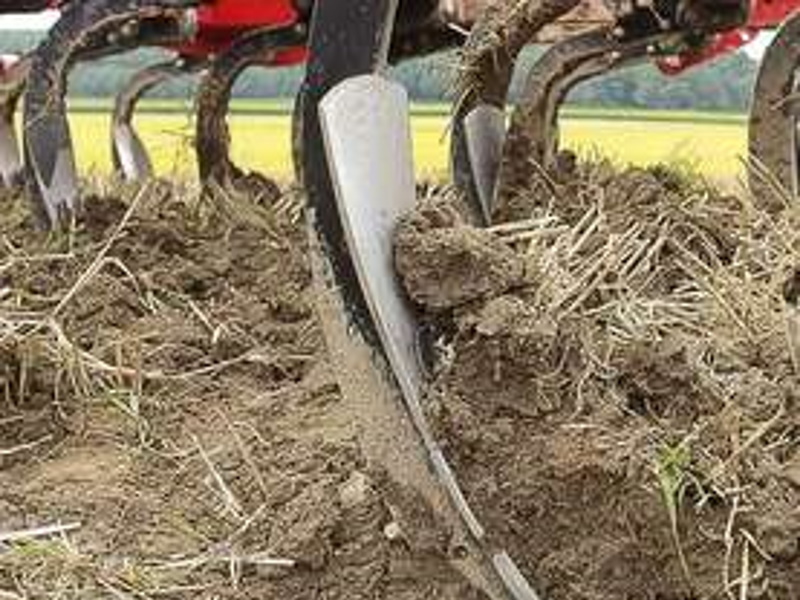

Depth control is carried out hydraulically via the packer and the swing support wheels. To adjust the machine exactly, the well-proven AluClips (colour-coded) are clipped to the cylinders. Despite its large working width the transport width of the Terrano FM is 3 metre with a frame height of 600 mm and 3.63 metre with a frame height of 750 mm. The TerraGrip tines of the third generation make the difference. The 3 m version is equipped with tines with a tine spacing of 60 cm, the 3.63 m version with tines with a tine spacing of 75 cm. Thus, release forces of the tines are different – 515 kg for the 3 m version and 630 kg for the 3.63 m version.
