2026 Hamm Equipment HX 70i VT-S
Get in Touch
Description
2026 Hamm Equipment HX 70i VT-S
Series HX
The HX series pivot-steered tandem rollers boast intuitive operation with Easy Drive, high performance data, many comfort features and sustainable operation, as well as the Smart Compact digital compaction assistant. All models, including machines with two vibrating roller drums, an oscillation drum and a vibrating roller drum as well as combination rollers, are available in countries with the EPA Tier 4/EU Stage V emissions regulation.

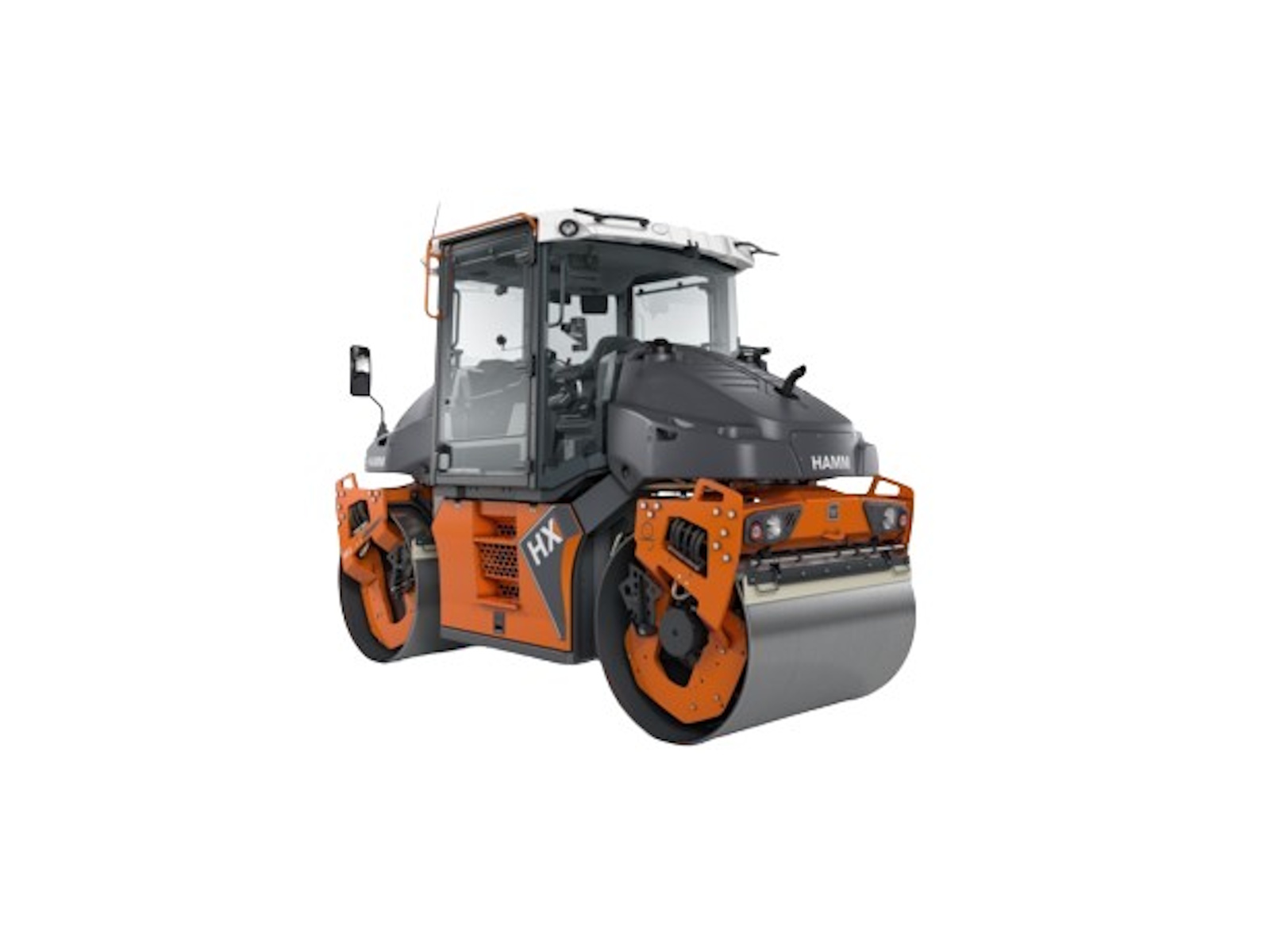

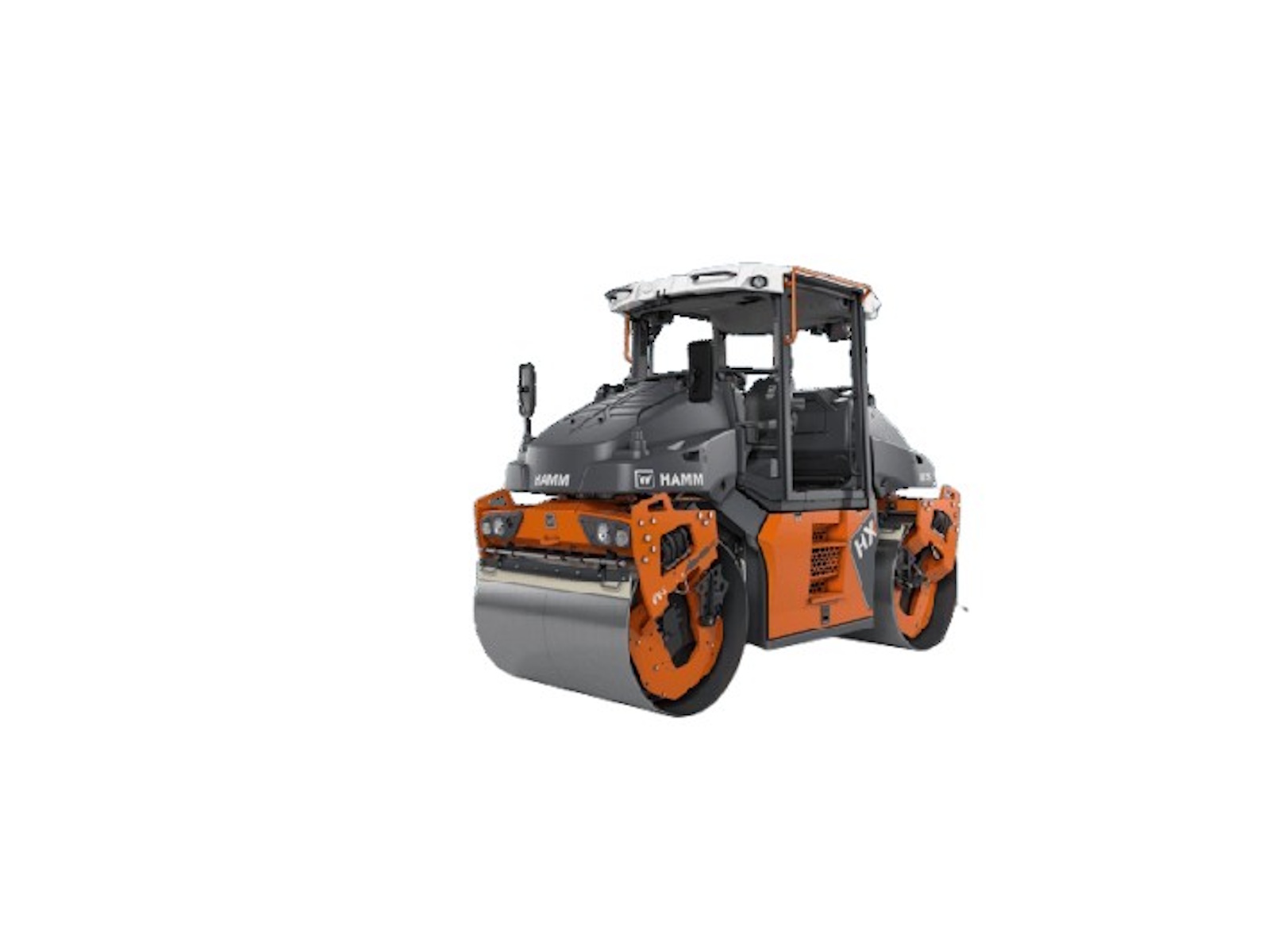

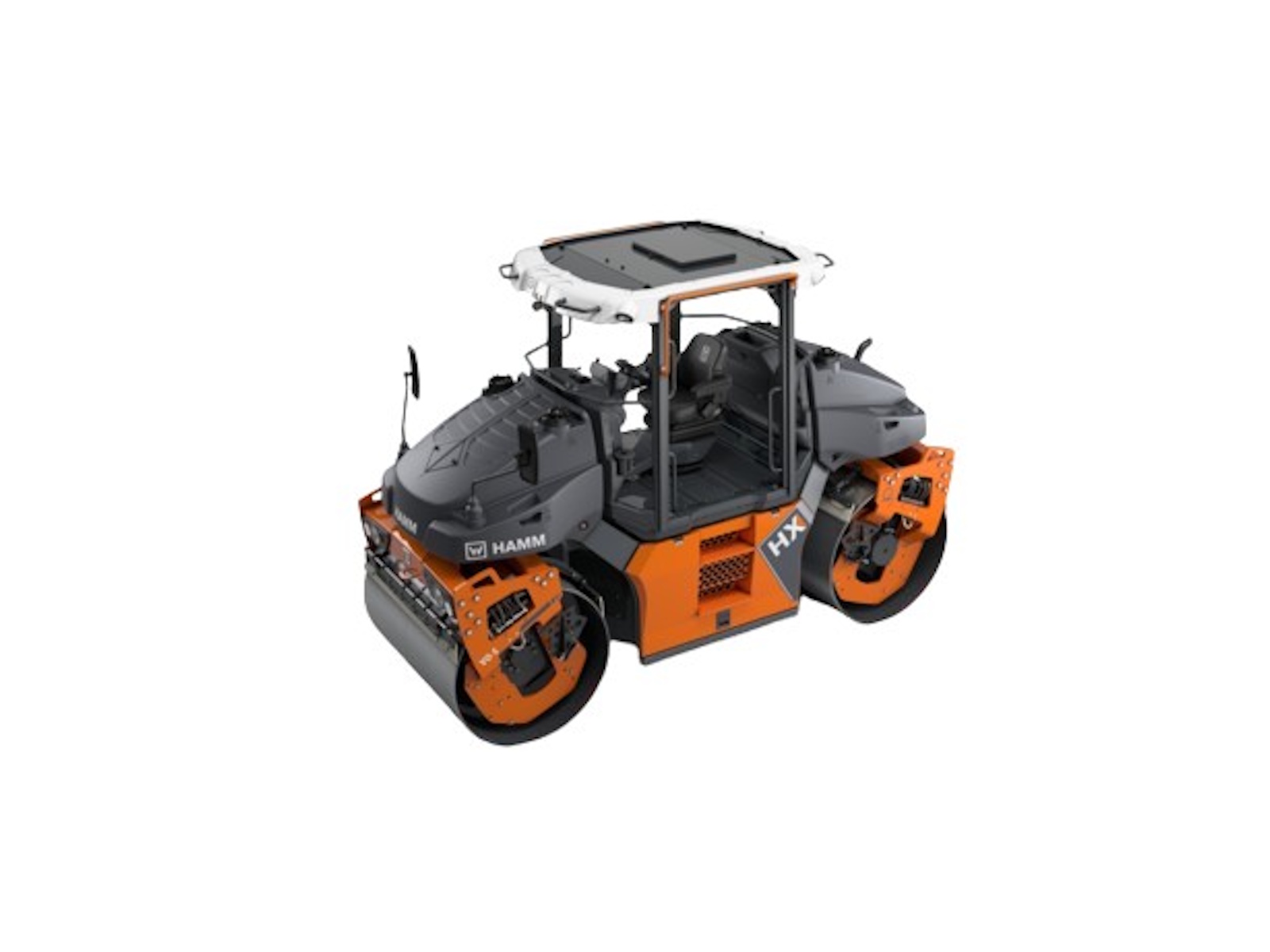

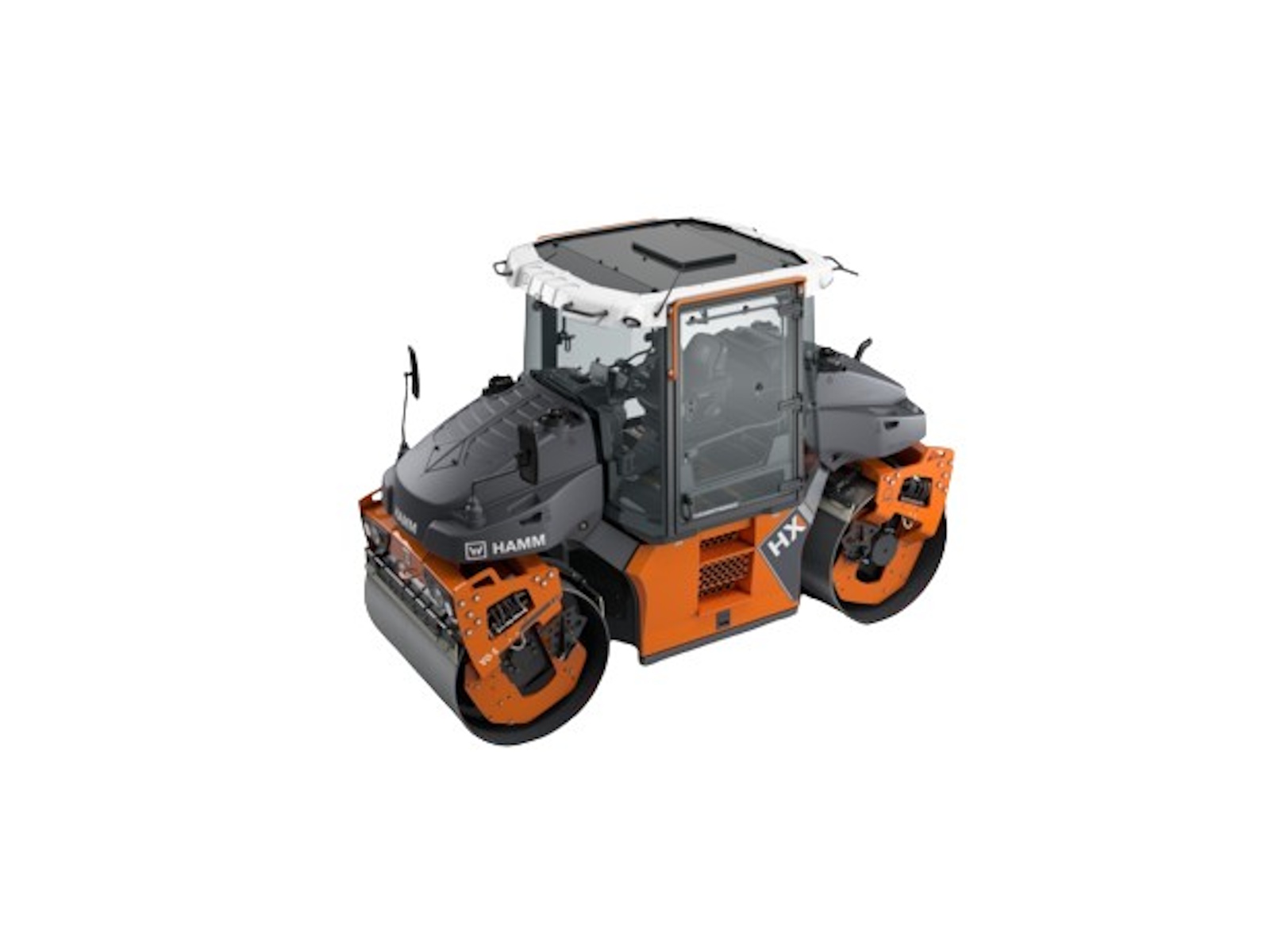

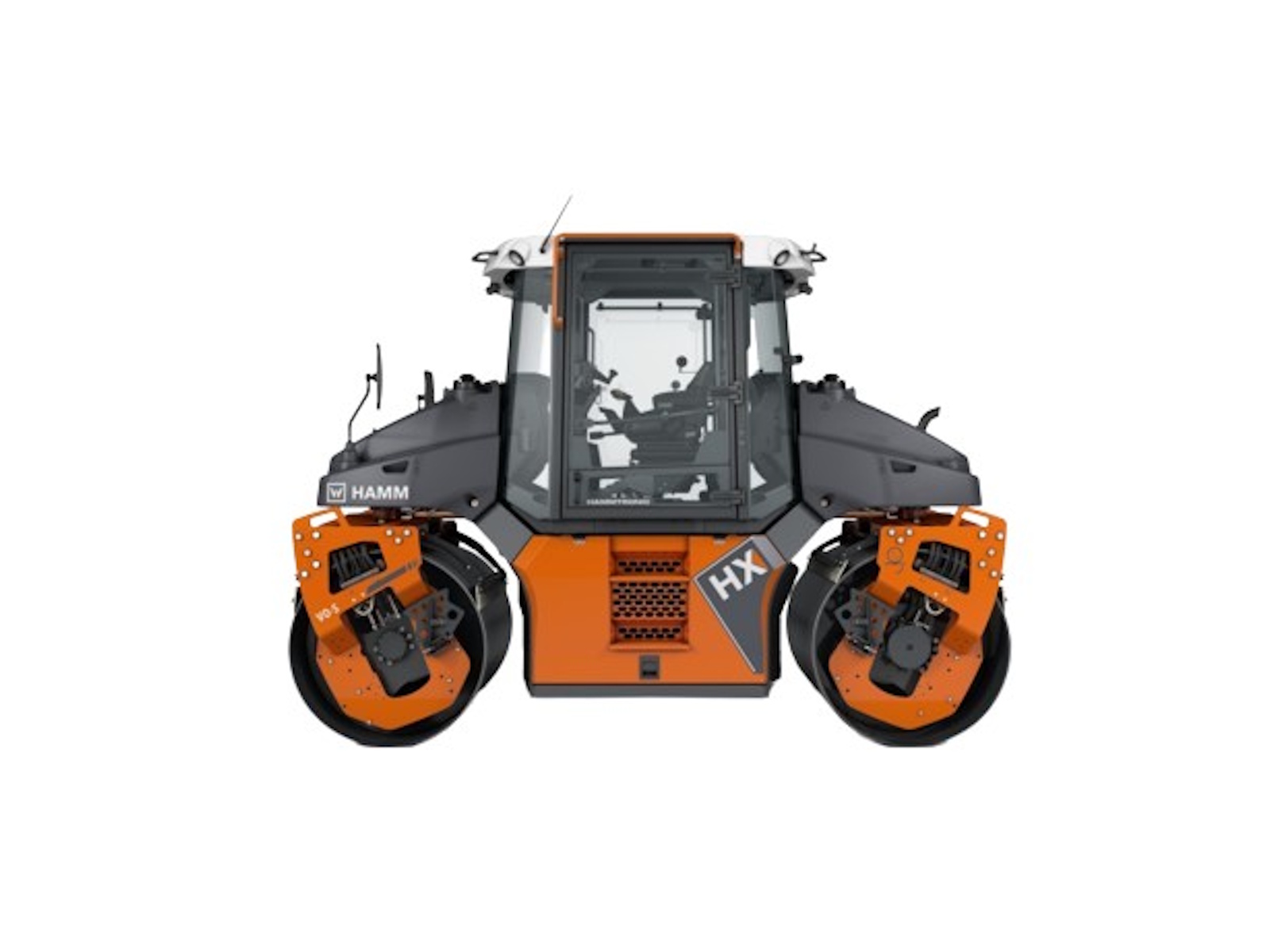

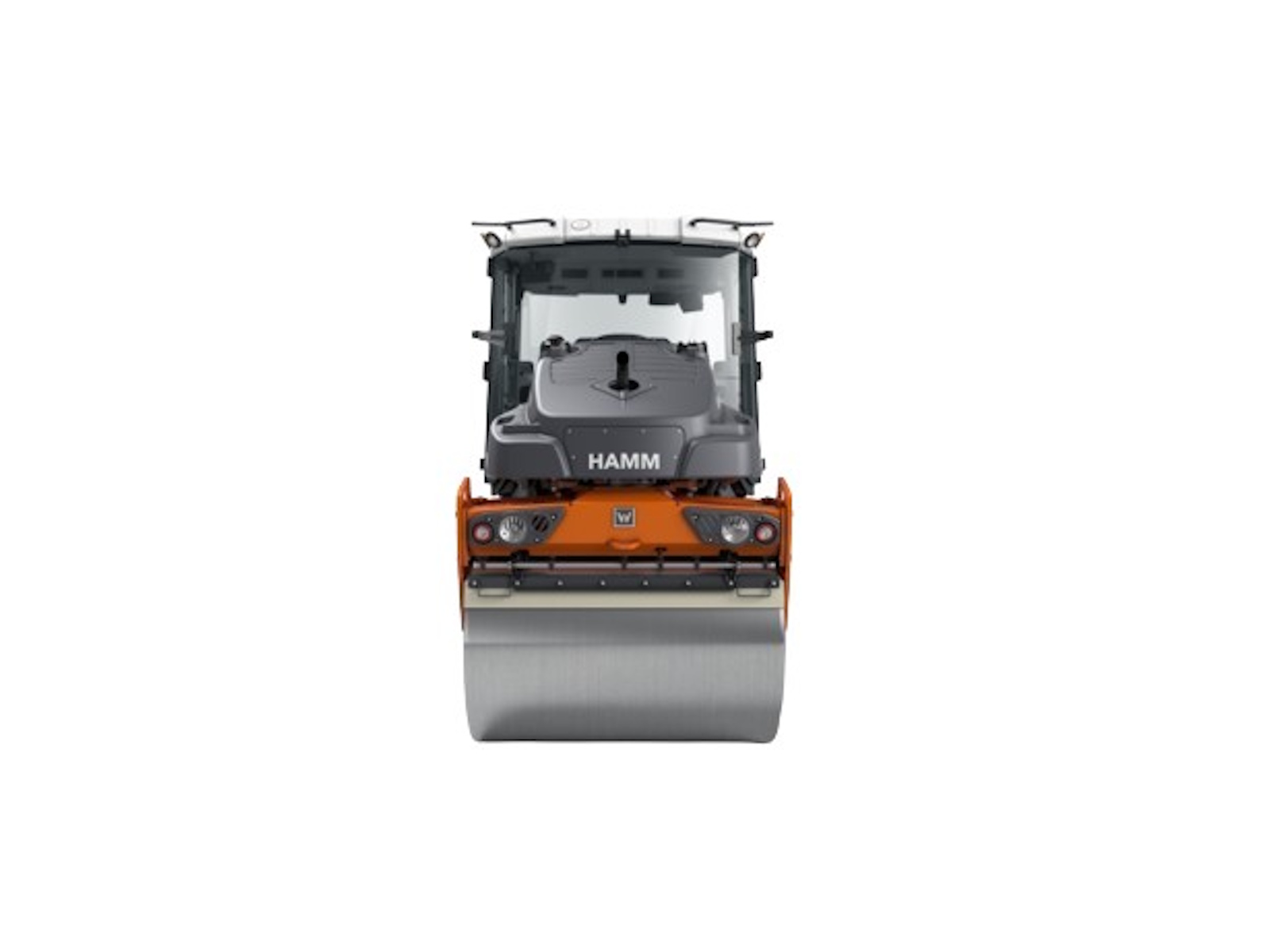

Tandem roller with vibration drum and set of wheels.
Info
Industry
Agriculture
Make
Hamm Equipment
Model
HX 70i VT-S
Trim
Base
Year
2026
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Miscellaneous Equipment
Specs
Load Capacity
Static linear load, front: 149 lbs/in
Weight
with cab: 17,089 lbs | Max. operating: 22,800 lbs
Height
with cab: 116.5 in |
Length
164.4 in
Width
with cab: 66.1 in | Maximum working: 109.1 in
Turning Radius
110.2 in
Tires
Number of tires: 4
Engine
KUBOTA | Model: V3307-CR-TE5AB
Cylinders
4
RPM
ISO 14396: 2,200 rpm | SAE J1349: 2,200 rpm
Power/Horsepower
ISO 14396: 74.3 HP | SAE J1349: 74.2 hp
Steering
All-wheel, analogue
Fuel Capacity
39.1 gal | Water tank: 195.5 gal | Additive tank: 7.9 gal
