2026 Grouser Products AG240 10 ft

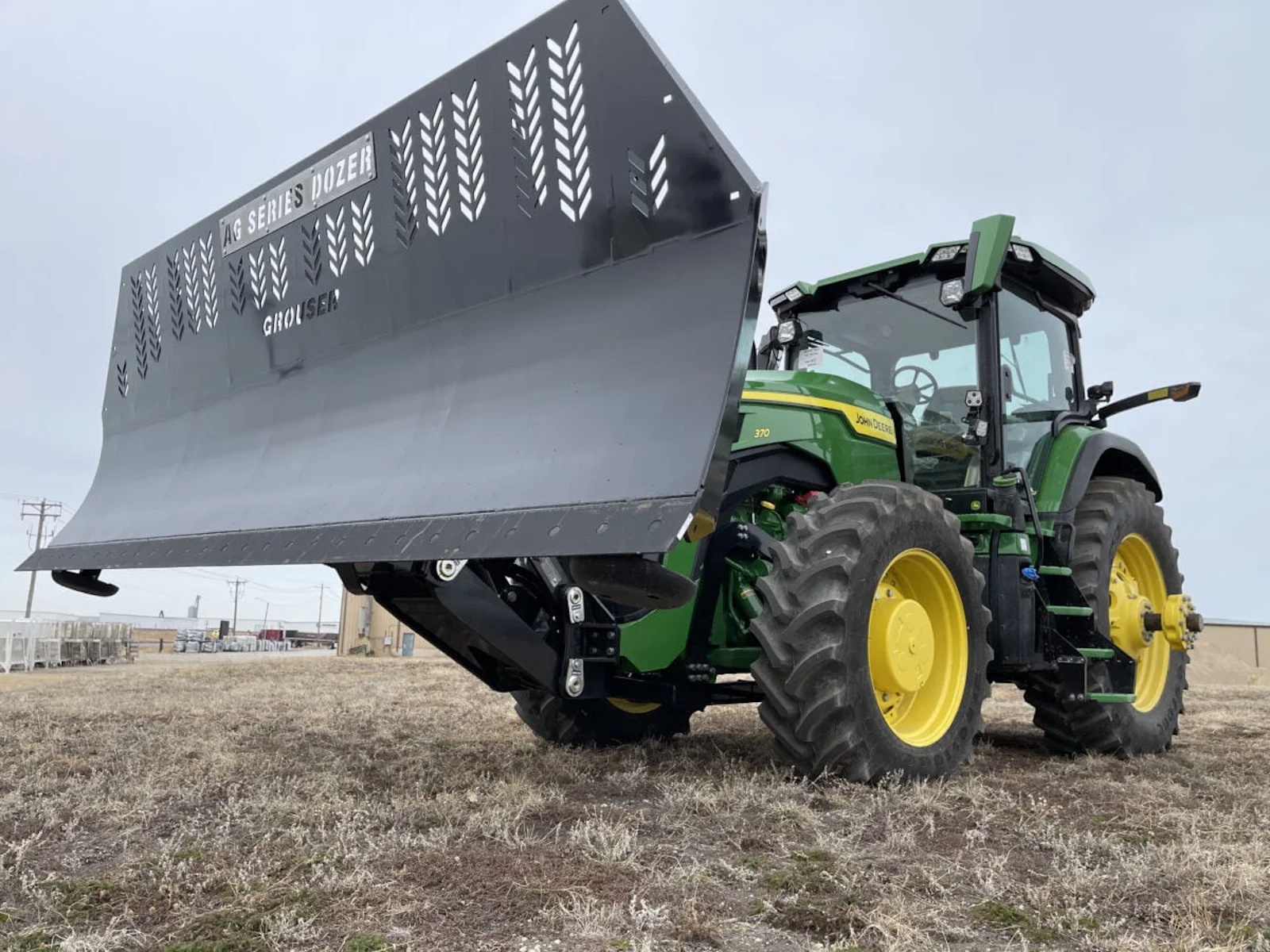

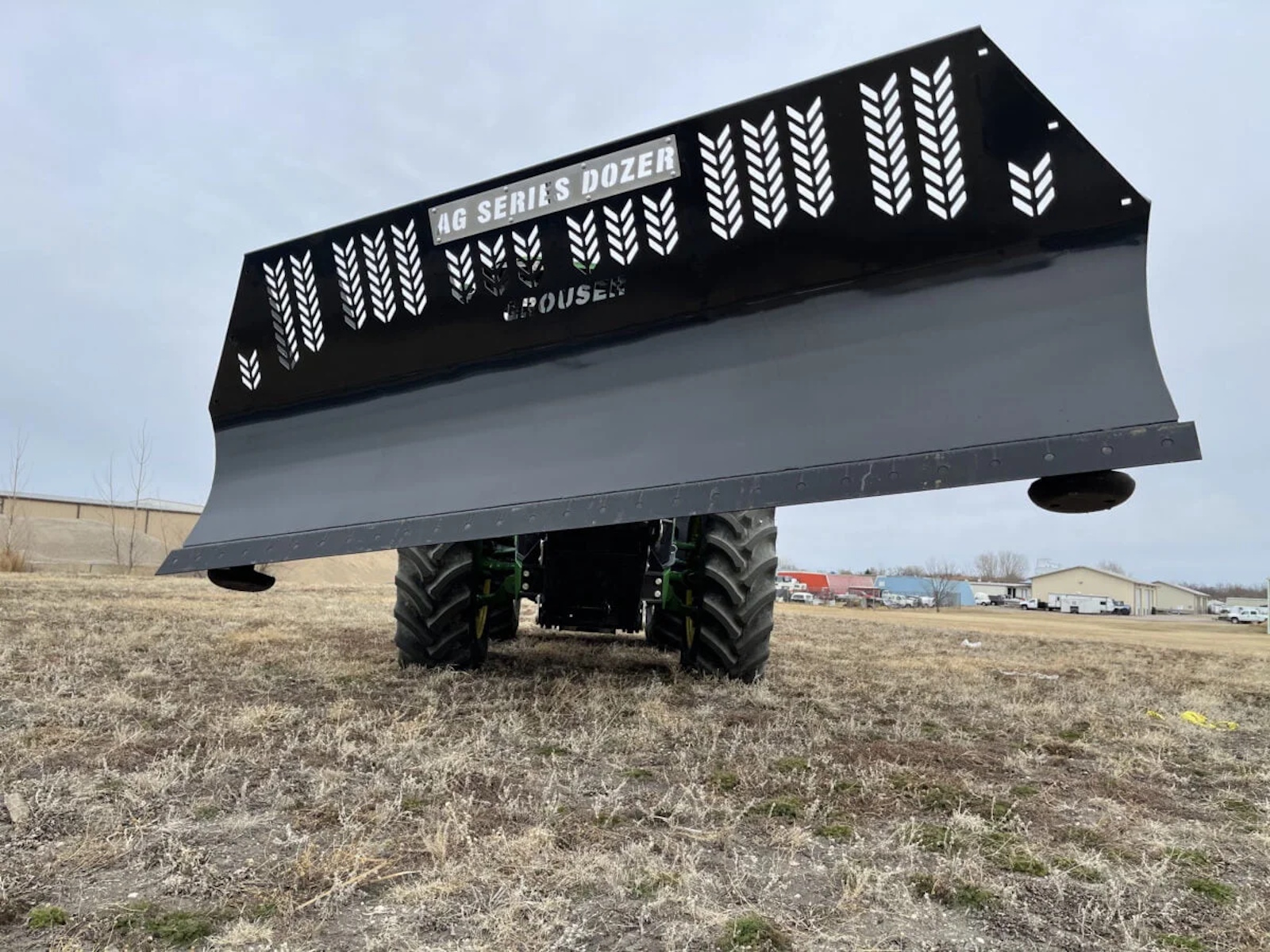

The latest AG240 Dozer Blade gives you increased lift height, ground clearance and in-ground depth. This is the ideal blade for 150–500 horsepower row crop tractors that have long travel front suspensions. The AG240 is available in 4 or 6-way configurations to give you exceptional versatility and ease of use in the yard and the field.
Features May Include:

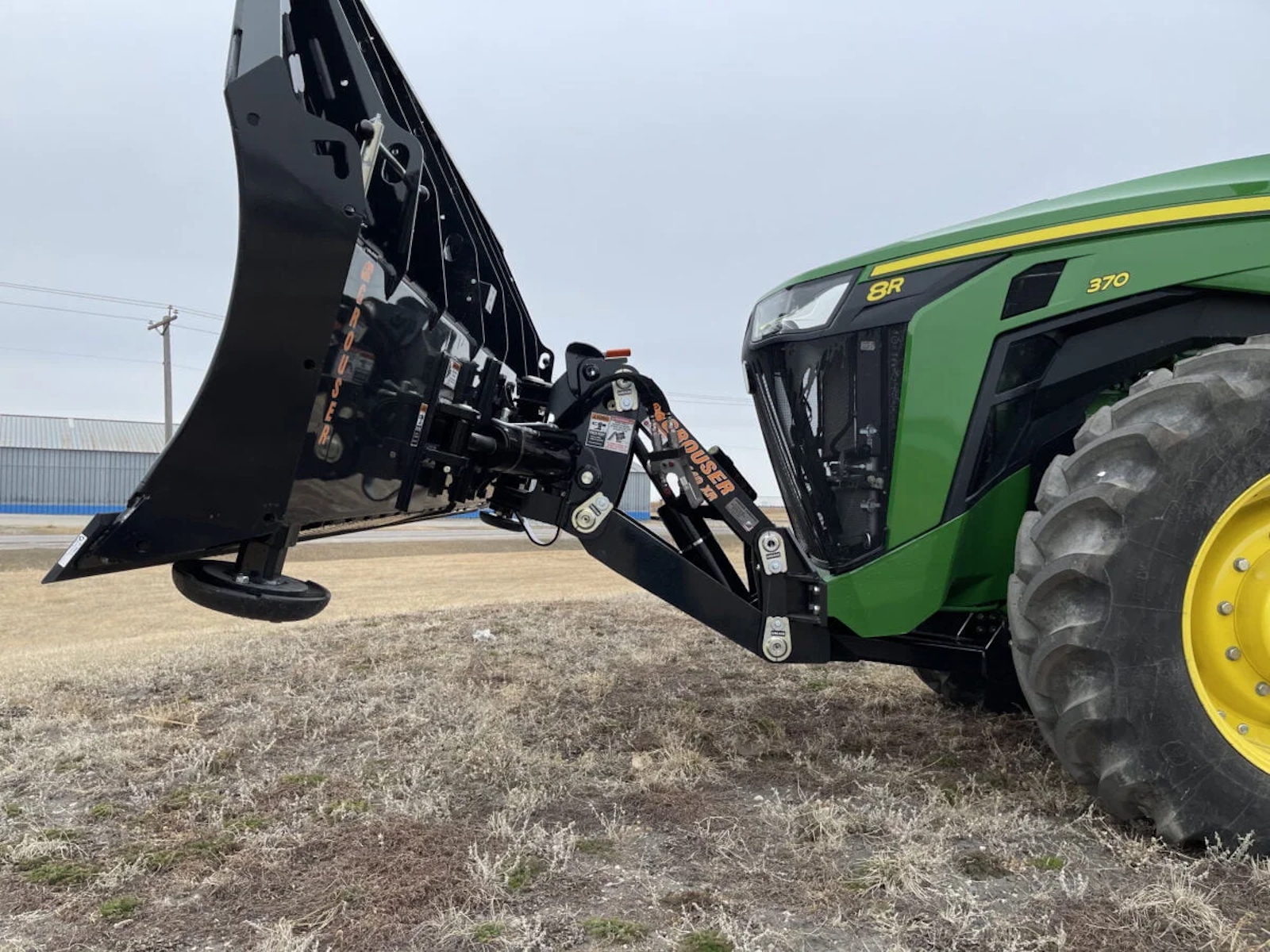

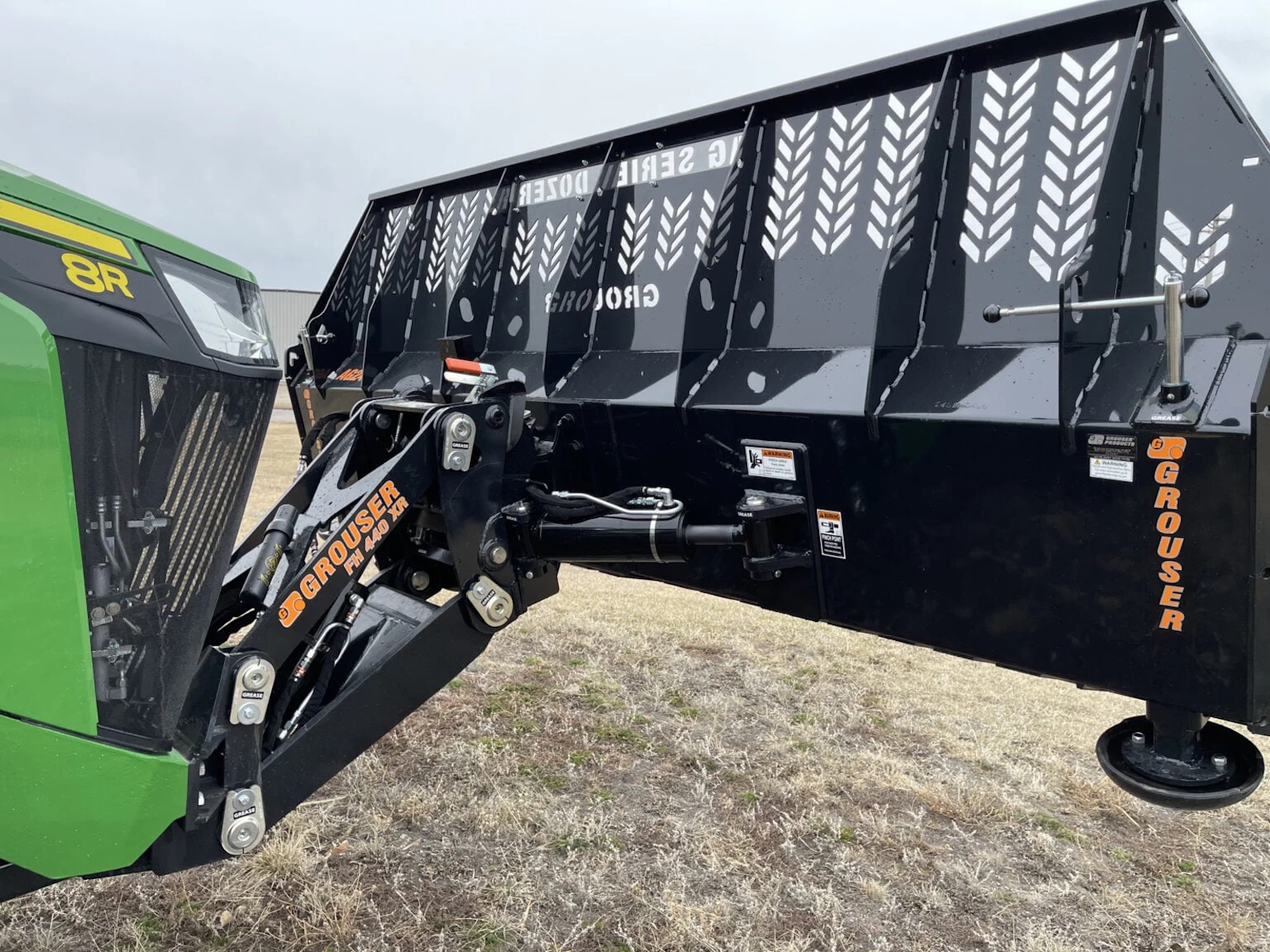

- Used with the Grouser FH440XR Front Hitch
- Single lever quick attach blade
- Available with hydraulic angle and hydraulic tilt
- Easy adjustable skid shoes with replaceable wear pads
- Easy access hydraulic couplers
- Custom name plate
- Extended Range Vertical Paralift lift system
Attachments/Options
- 1-Foot End Extensions
- Top Extension for End Extensions
- Box End Plates – Straight
- Box End Plates – Angled
- Top Extension for End Plates
- LED Light Kit
- Additional 12″ Top Extension
- Weight Carrier Bracket
- Single Lever Hydraulic Multi-Coupler
- 4-Point to CAT3N Adapter
Info
Industry
Agriculture
Make
Grouser Products
Model
AG240
Trim
10 ft
Year
2026
MSRP
N/A
Category
Ag Attachments
Subcategory
Miscellaneous Ag Attachments
Specs
Width
10 ft
Blades
tilts: 10° | height: 60 in | angles: 30° right or lef
Cylinders
Angle: (2) 5 in x 12 in | Tilt cylinder: 4 in x 8 in | Lift: 5 in x 12 in
Height
42 in - 48 in lift height
Notes
Moldboard: 3/16 in thick | Reversible cutting edge: 5/8 in x 6 in | 18 in - 20 in undercarriage clearance | 16.5 in - 21.5 in in-ground depth | 22°-29° approach angle | 96.5″-118″ from cutting edge to front axle |
