2026 Dawn 5050 Series ZRX

2026 Dawn 5050 Series ZRX

5050 Series
ZRX Row Unit

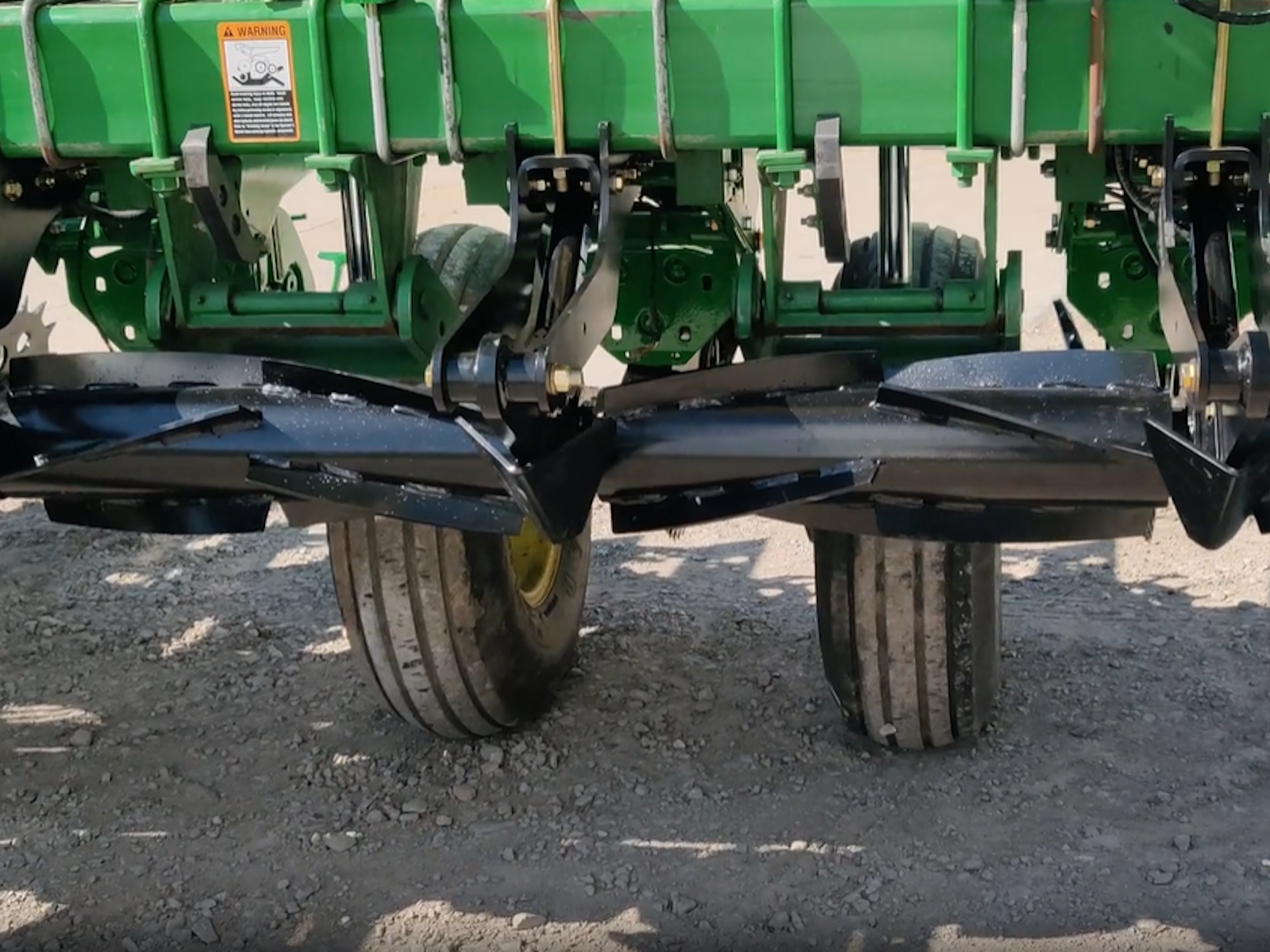

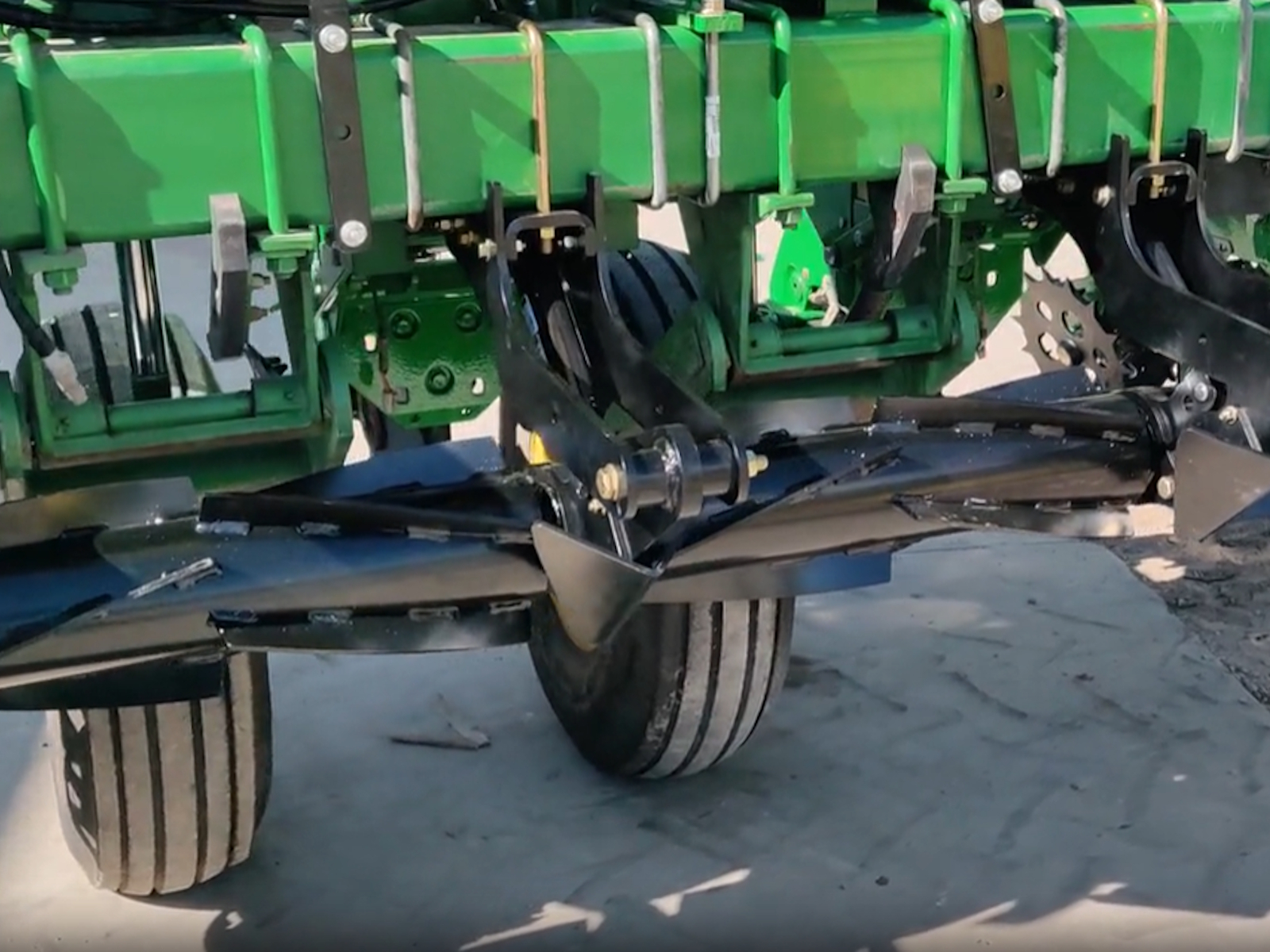

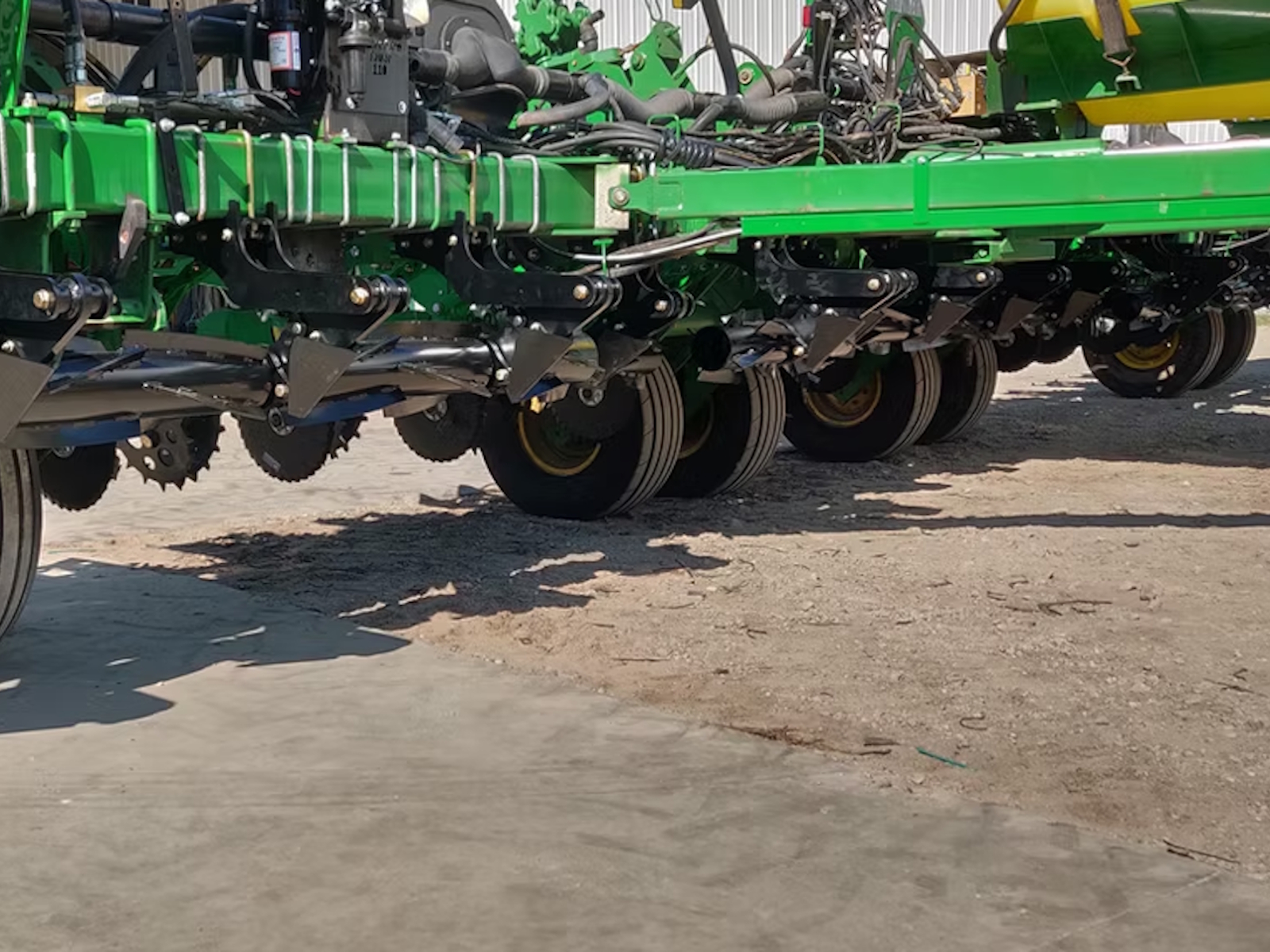

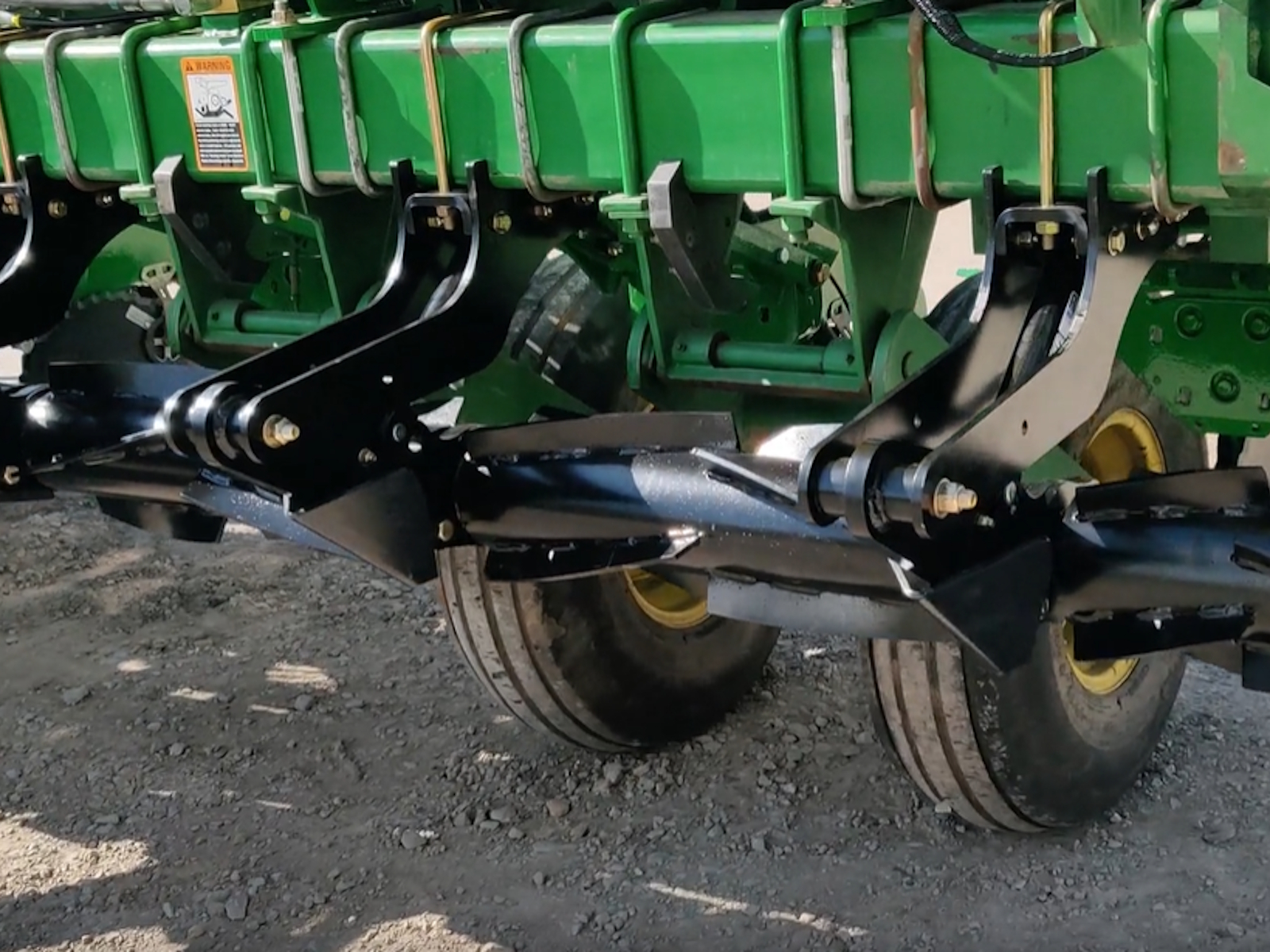

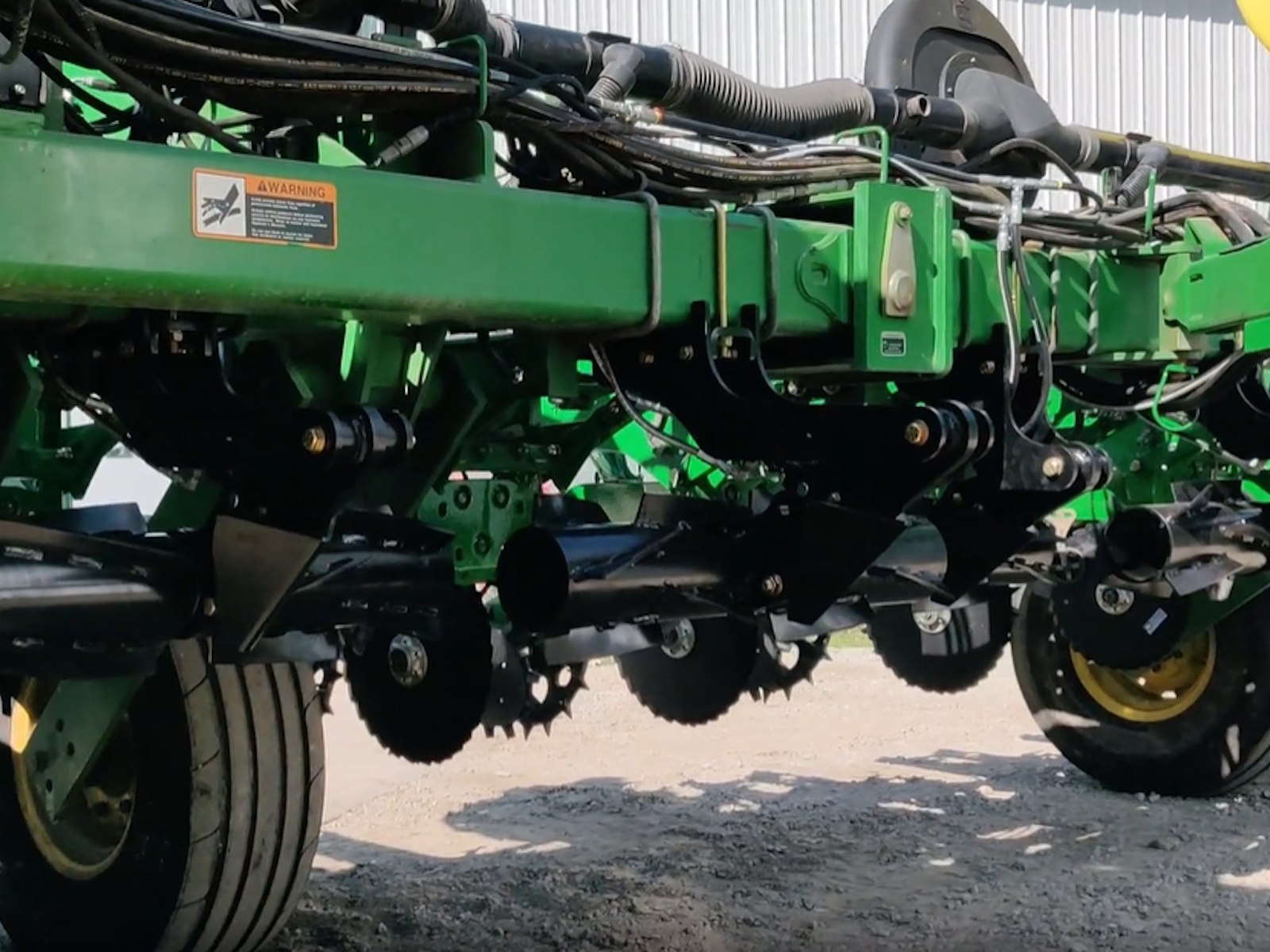

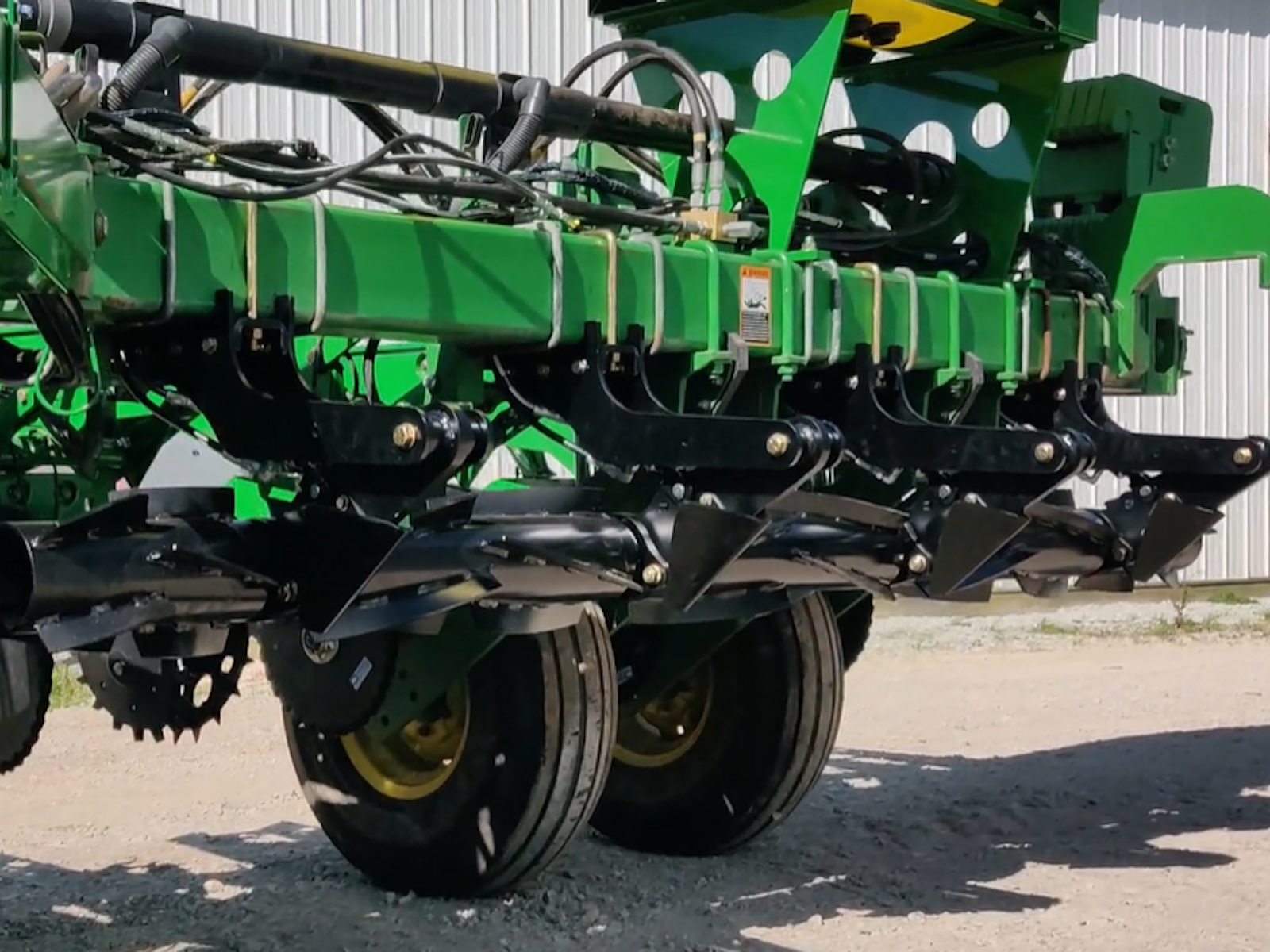

The ZRX crimper is a groundbreaking attachment designed for straightforward installation on your planter frame. Each planter has its specific mounting challenges. Some planters can only accommodate either ZRX or ZRX+, while others can support both options. With its single linkage modules and independent oscillating rollers, the ZRX ensures reliable ground contact for optimal crimp performance while planting. Available in different roller widths to accommodate various row spacings, this crimper is compatible with most existing row cleaners. Furthermore, the hydraulic control allows you to easily lift the rollers out of the way when not in use, boosting flexibility and efficiency in your planting process.

Features May Include:

• Hydraulic Control​
• Articulating Rollers
• Replaceable Bushings
• One Pass Crimping System
• Ability to Use Existing Row Cleaners

• Achieve Consistent Ground Contact with Articulating Rollers

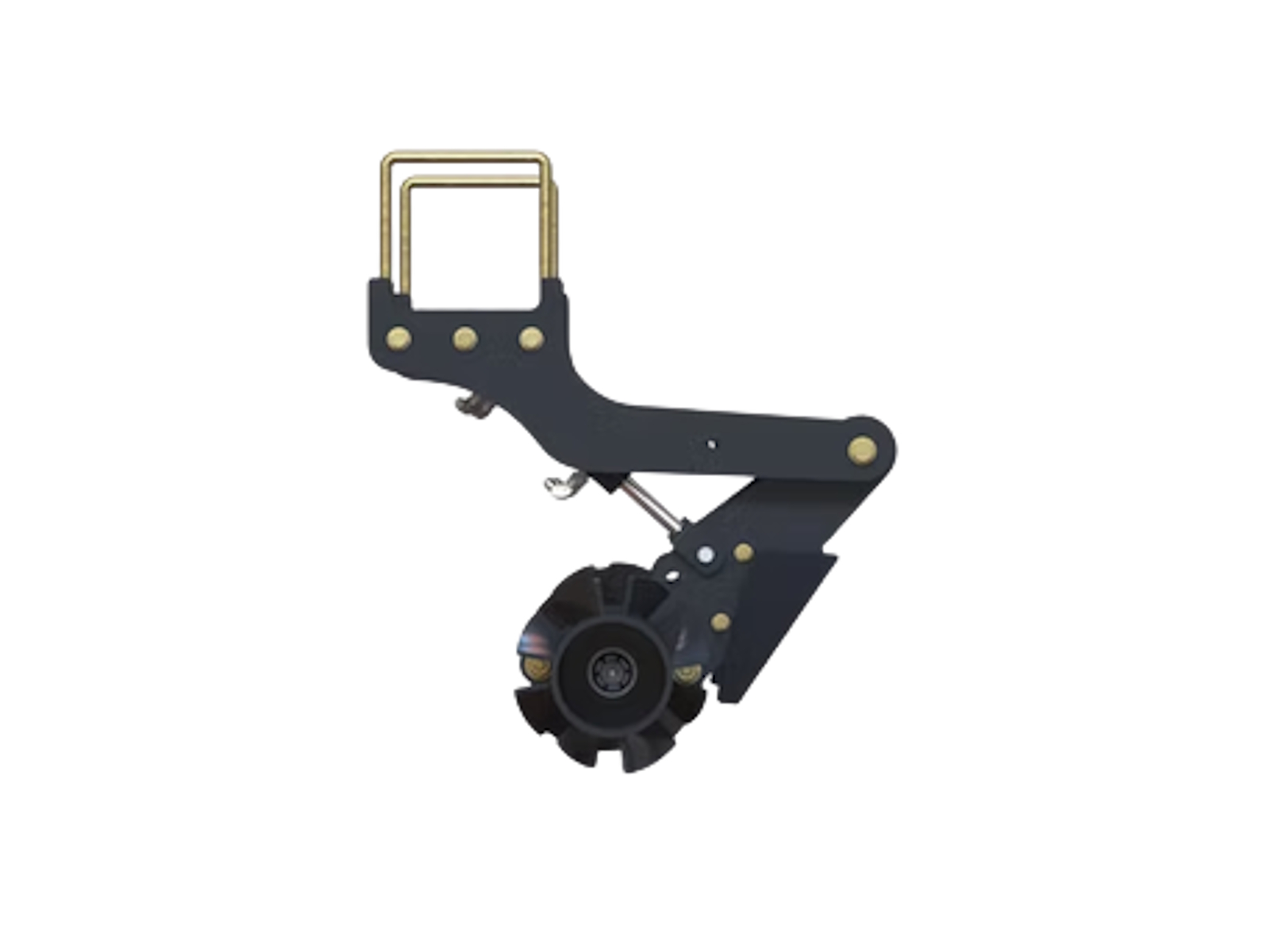

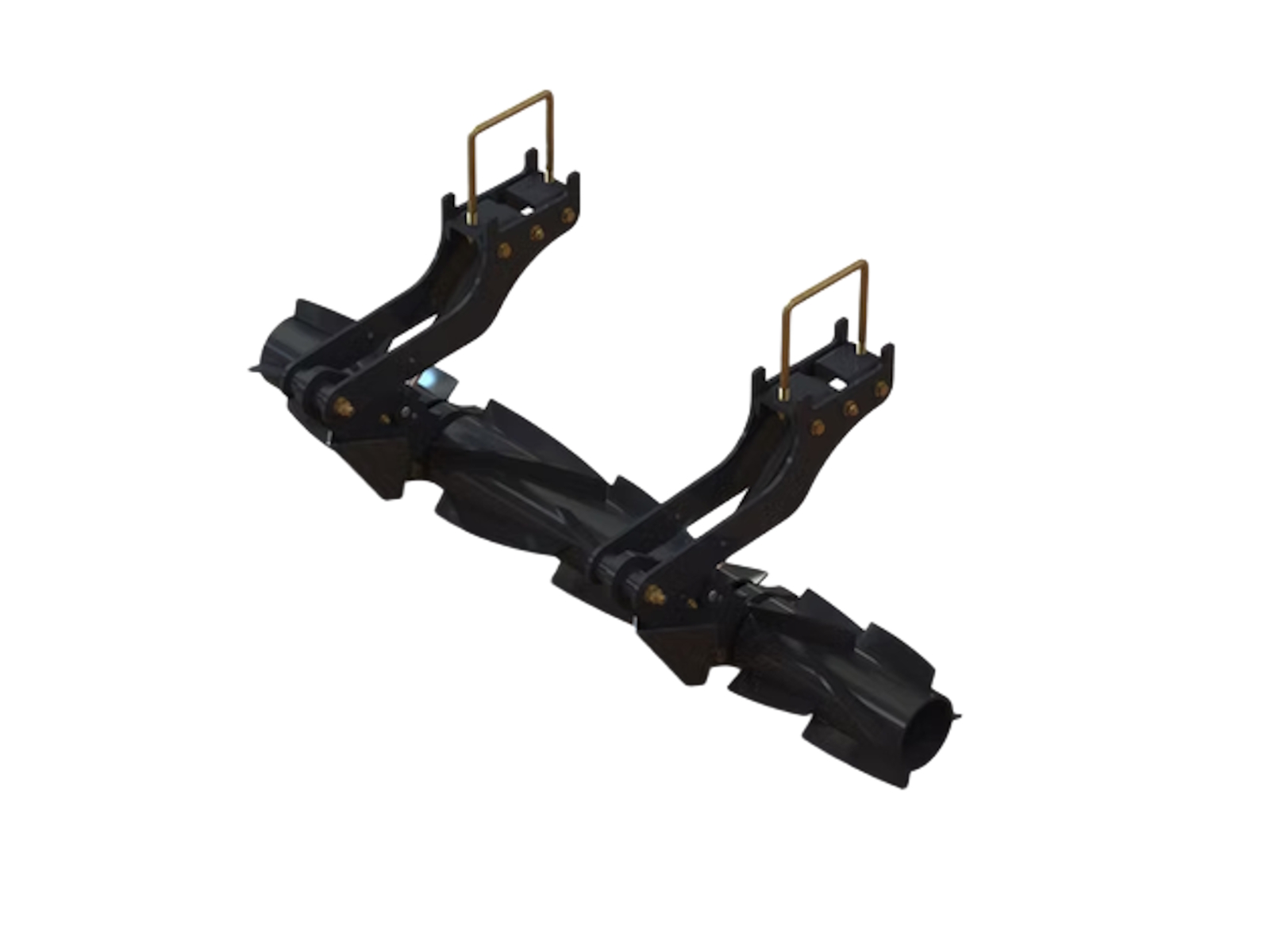

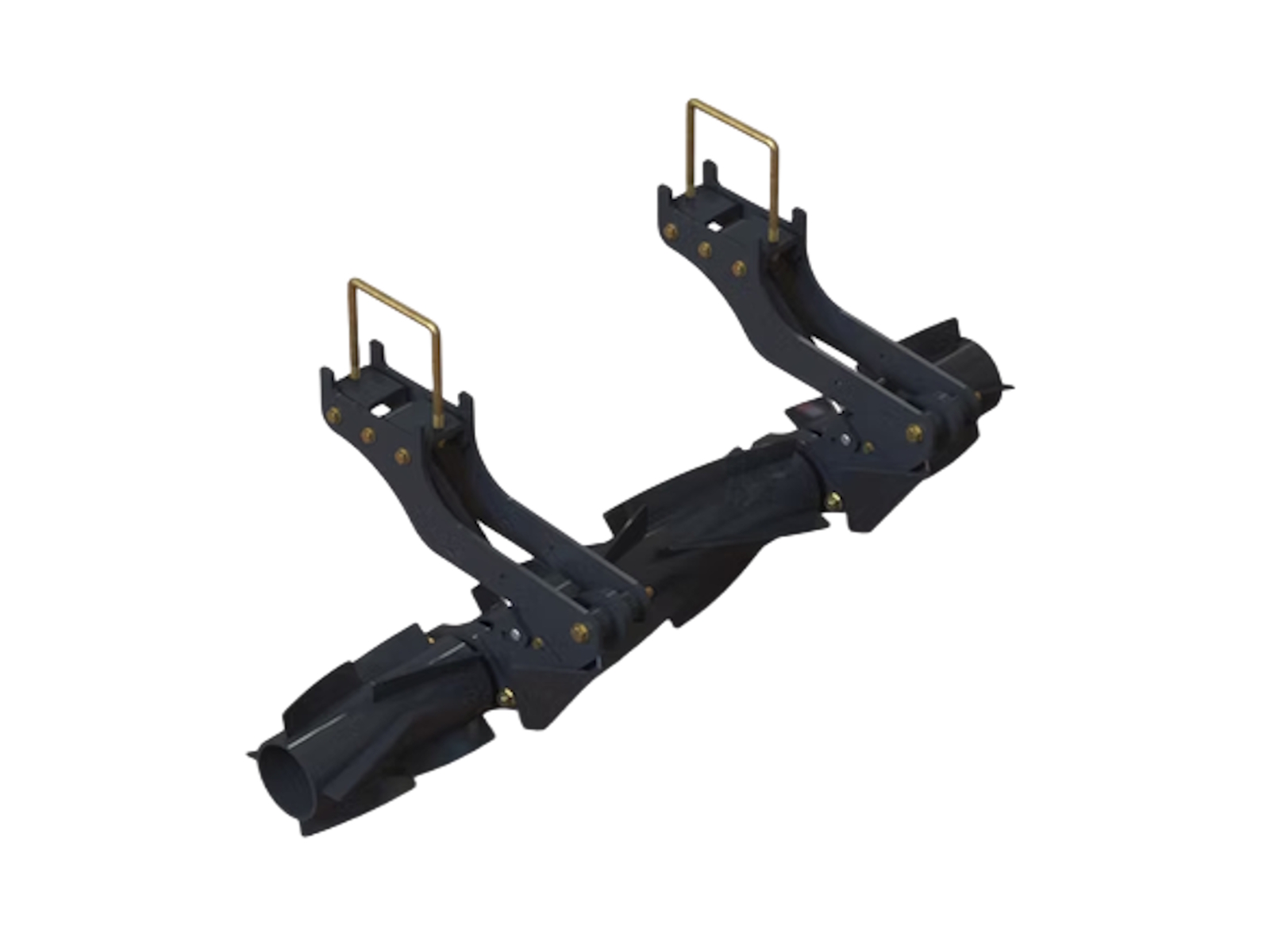

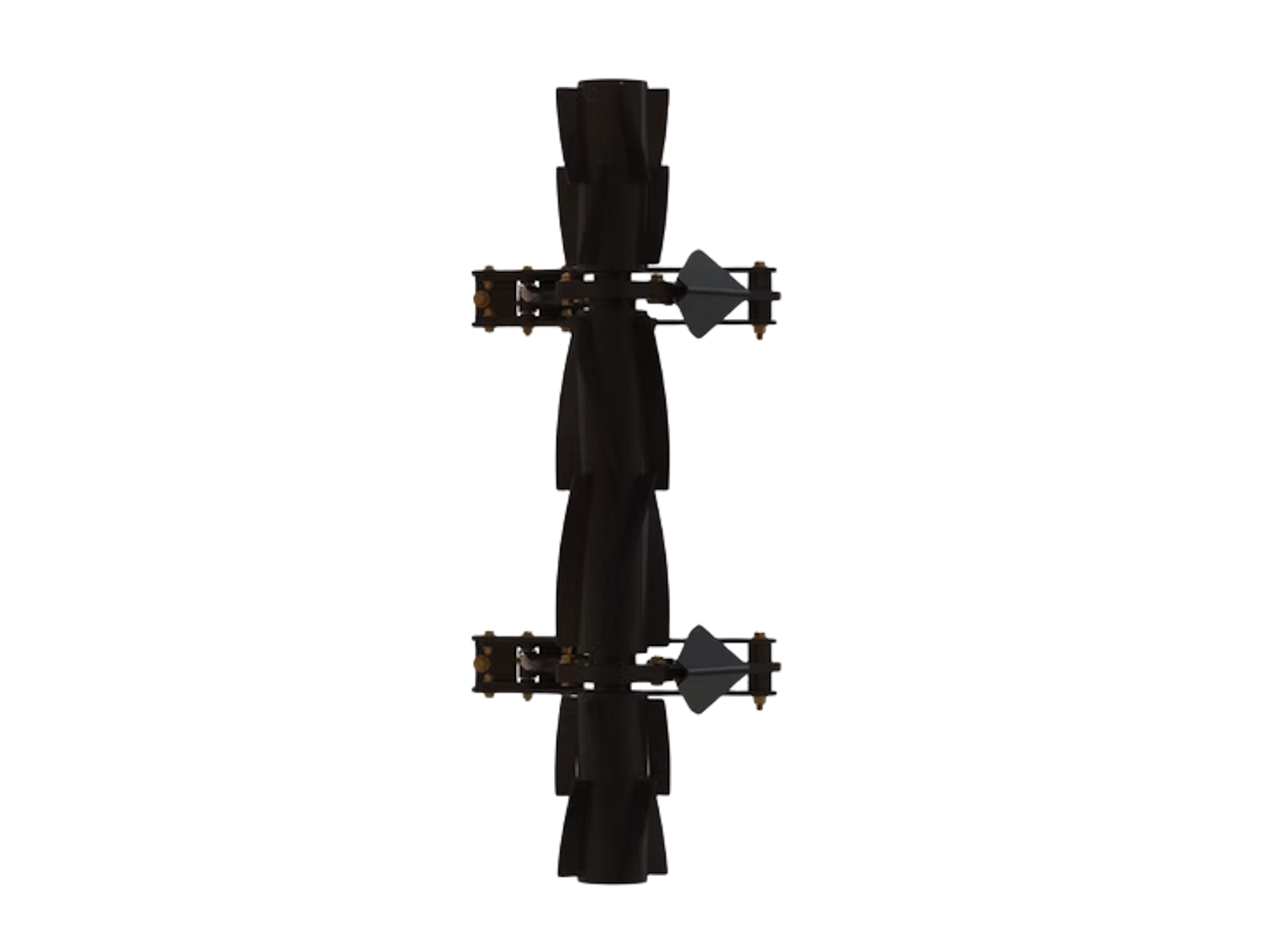

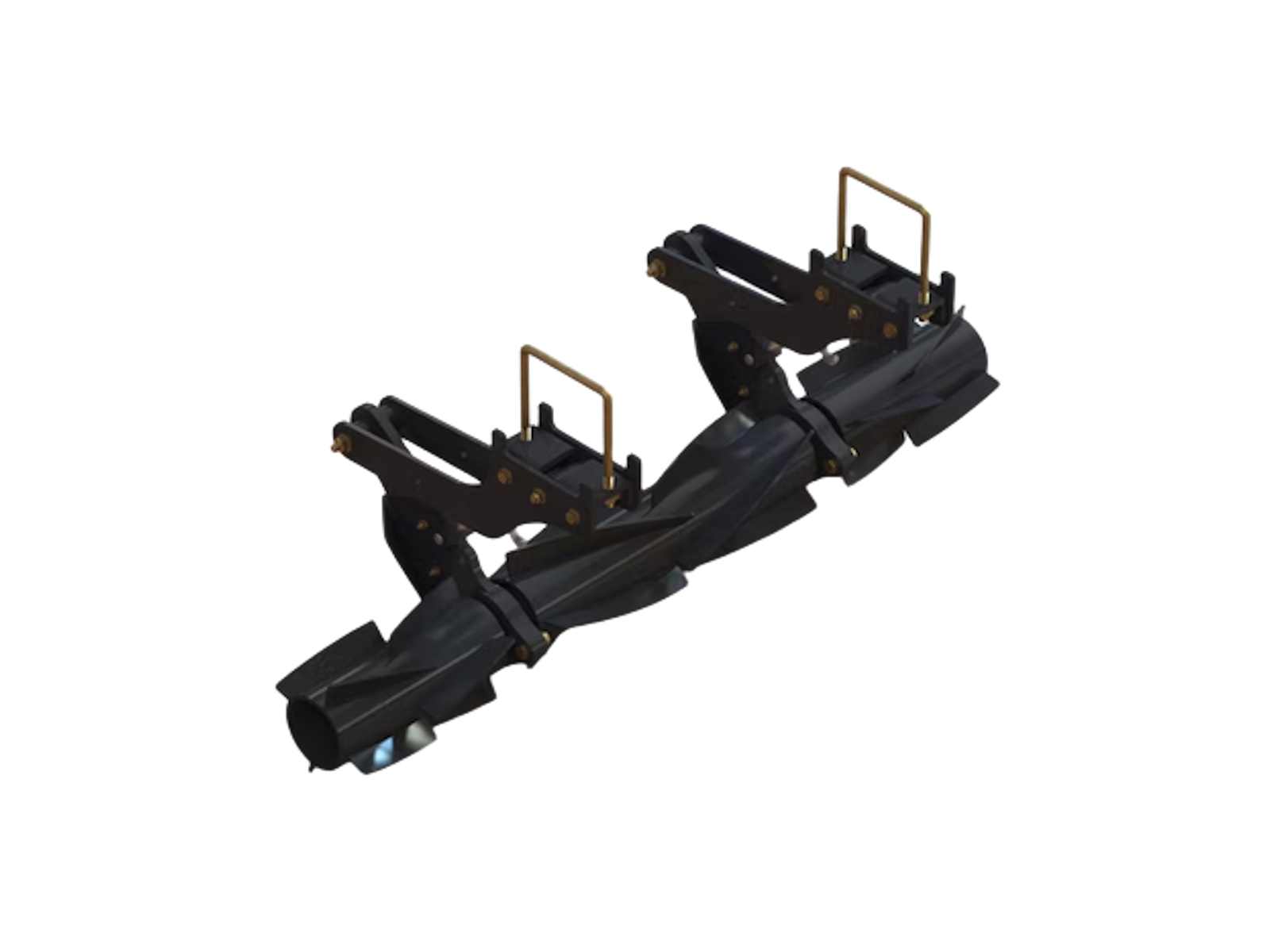

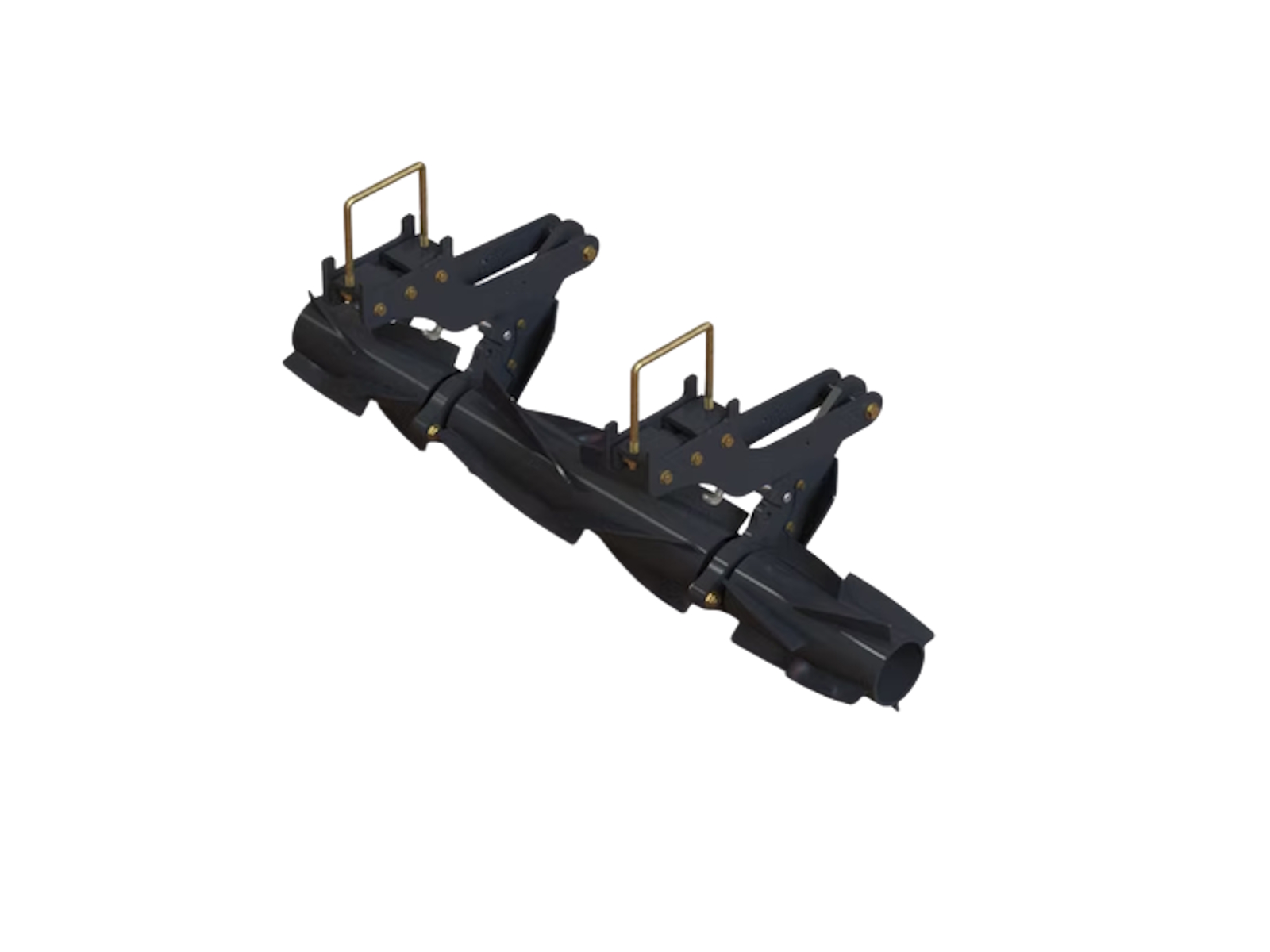

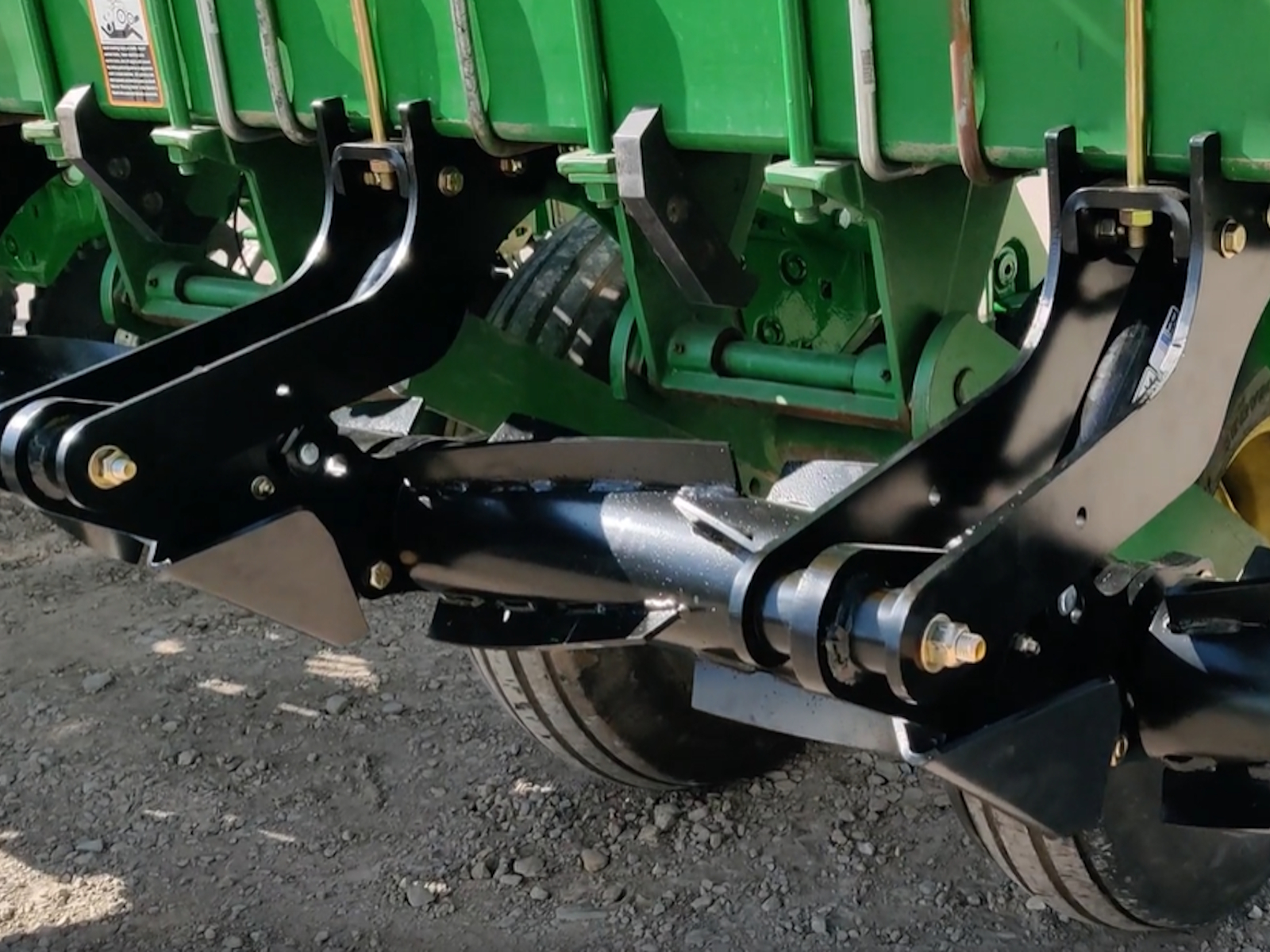

  All ZRX roller crimper designs share a key feature: they are made up of modular roller sections tailored for various row spacings. Each roller is equipped with spherical bearings on both ends, which connect the single linkage module positioned along the centerline of the row unit. These spherical bearings enable independent vertical movement of the modules, ensuring consistent pressure is applied to the cover crop. As a result, the ZRX achieves the most uniform crimping and termination available in roller crimping on the market.

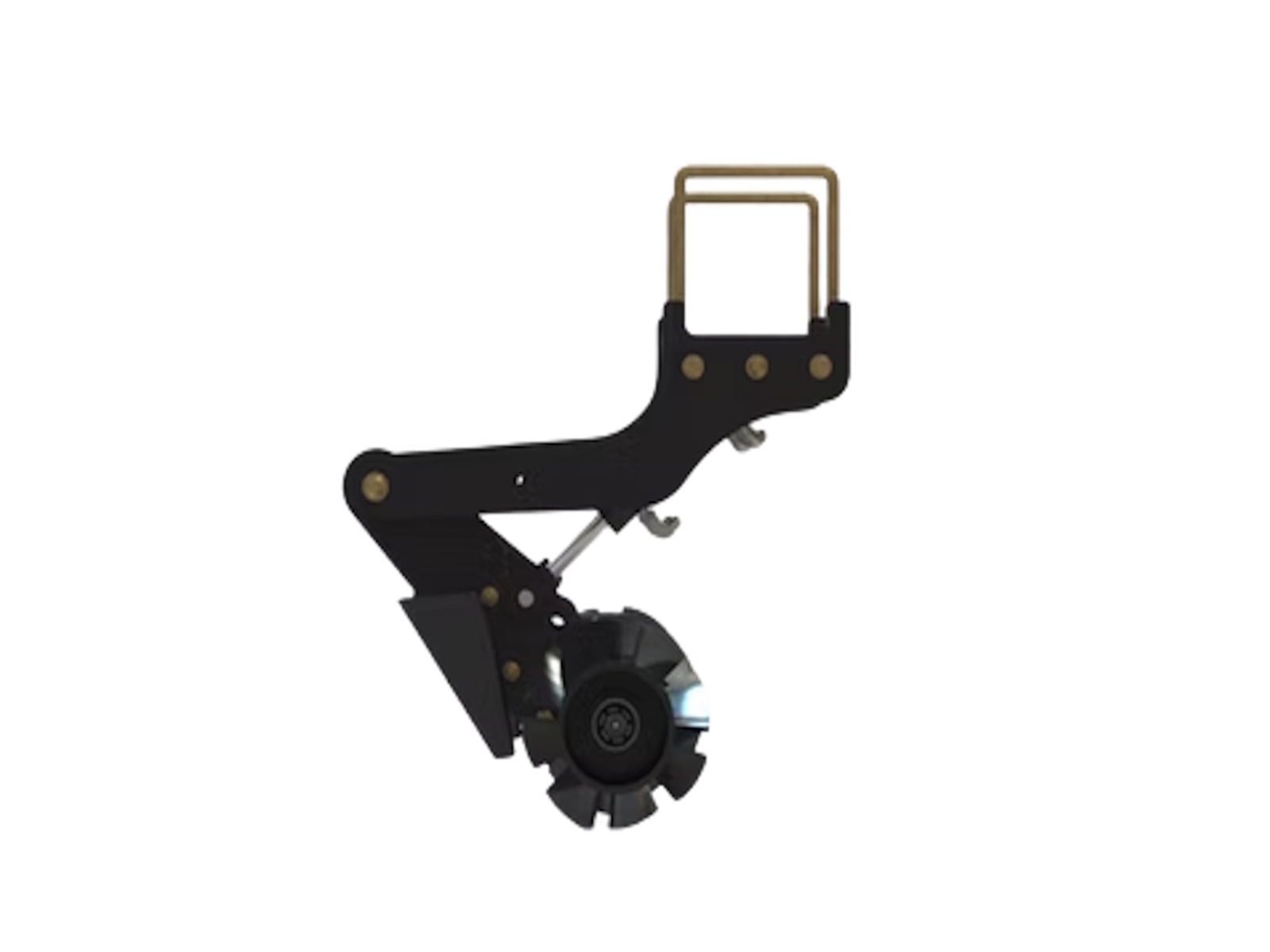

• Reduce Maintenance Costs with Single Linkage Design

  A single linkage system provides numerous benefits that improve both efficiency and reliability. By reducing the number of moving parts, it lowers wear points, resulting in decreased maintenance costs over time. Moreover, its main pivots are greaseless, which greatly reduces the time and effort needed for regular maintenance, for a more efficient operation.

• Increase Versatility with Hydraulic Control

  The ZRX is hydraulically controlled, offering both manual and in-cab control options. It can be set to a specific pressure and easily adjusted for various covers and conditions. Operating the SCV continuously allows the ZRX to quickly adapt to changing conditions, ensuring a reliable crimping effect. This system is highly efficient and requires minimal hydraulic flow. By flipping the SCV direction, the rollers can be raised allowing the planter to operate in areas without cover.

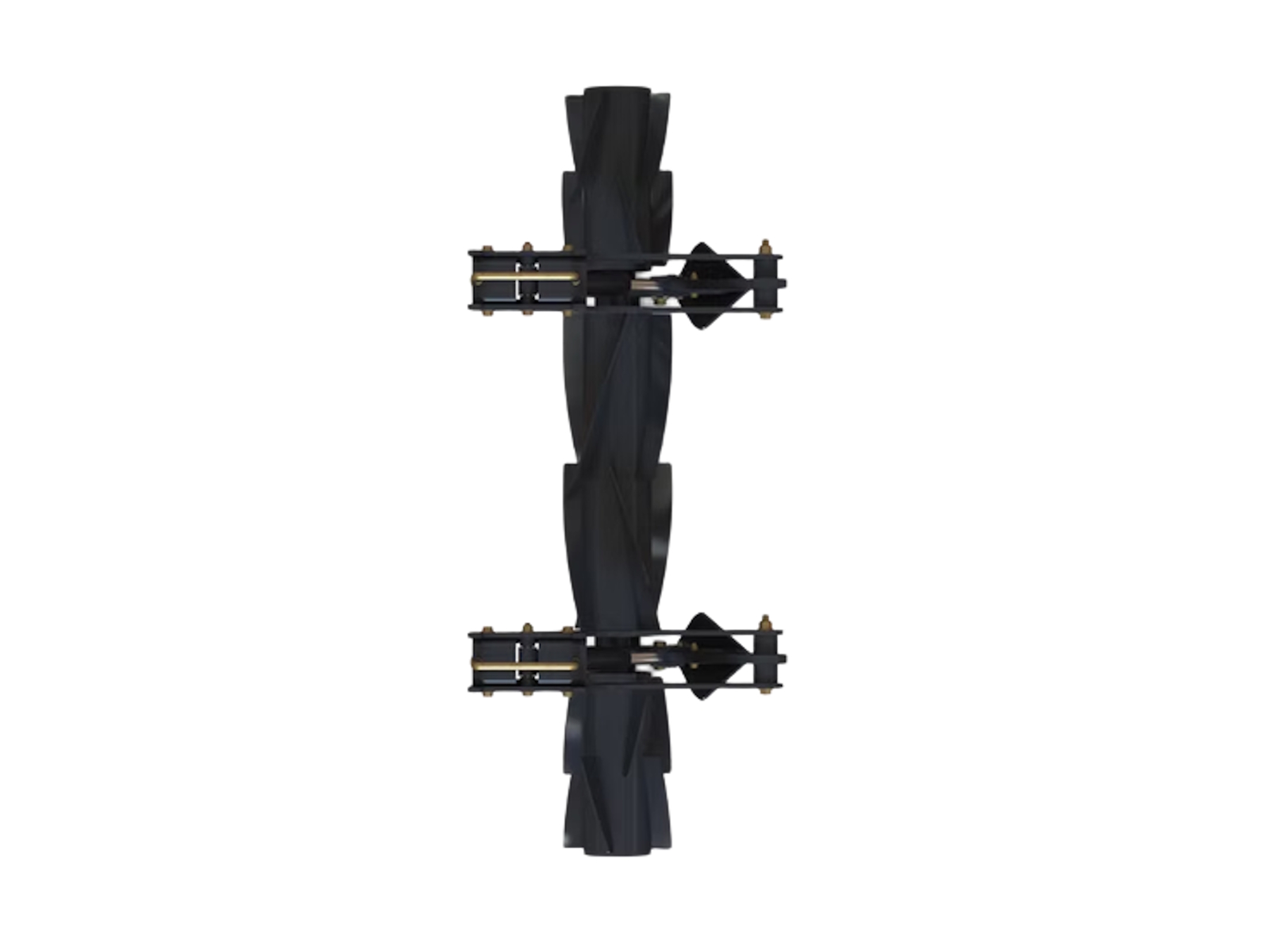

• Increase Crimping Effectiveness with Chevron Pattern

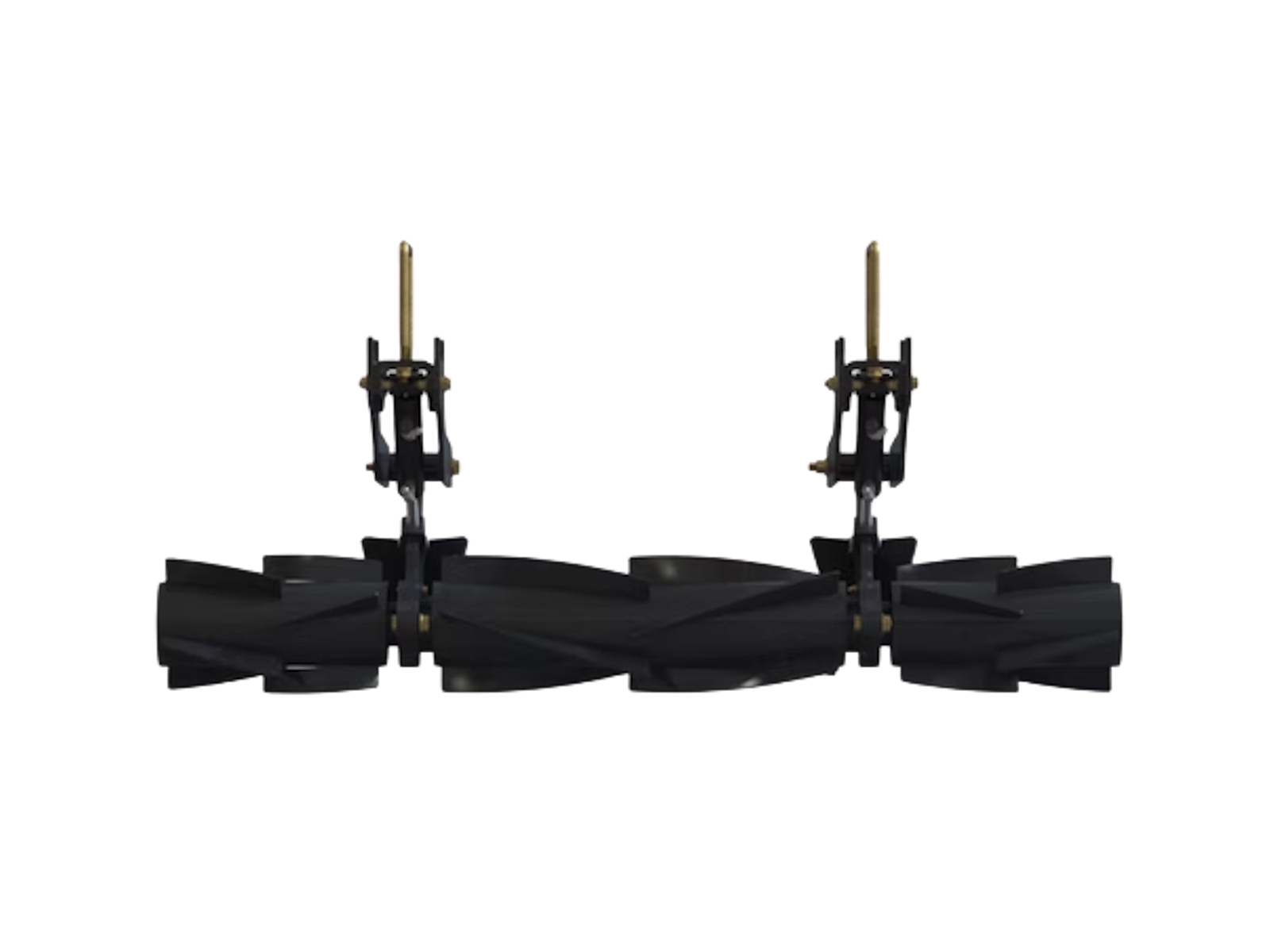

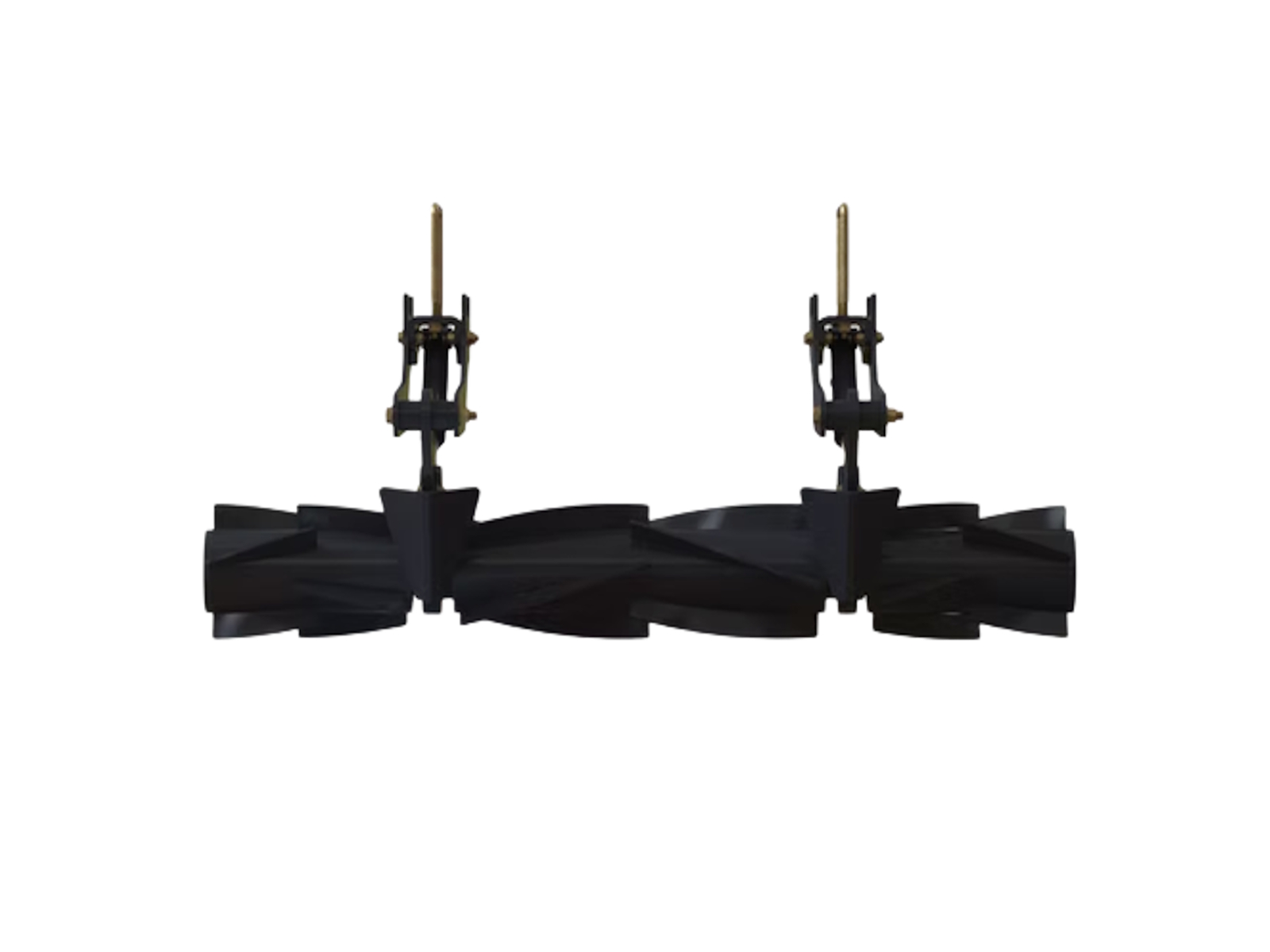

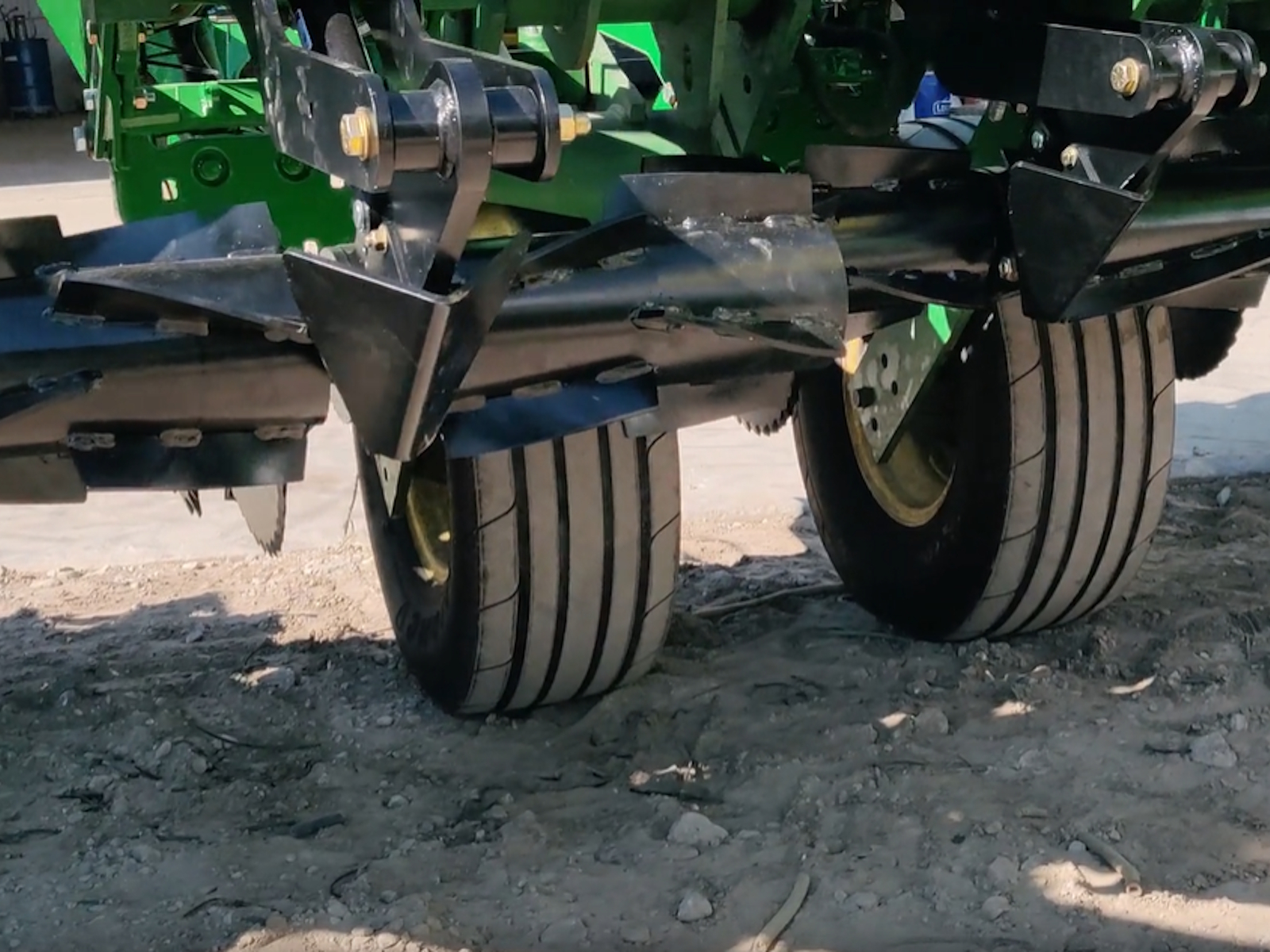

  The chevron pattern provides two key benefits: it minimizes roller bounce that may lead to crimping issues and it efficiently directs material toward the center of the roller. This design decreases the likelihood of material wrapping around the rollers, creating a thicker mat in the center of the row. As a result, it improves the performance of row cleaners, enhancing their overall efficiency.
