2026 Dawn 5050 Series ZRX PLUS

2026 Dawn 5050 Series ZRX PLUS

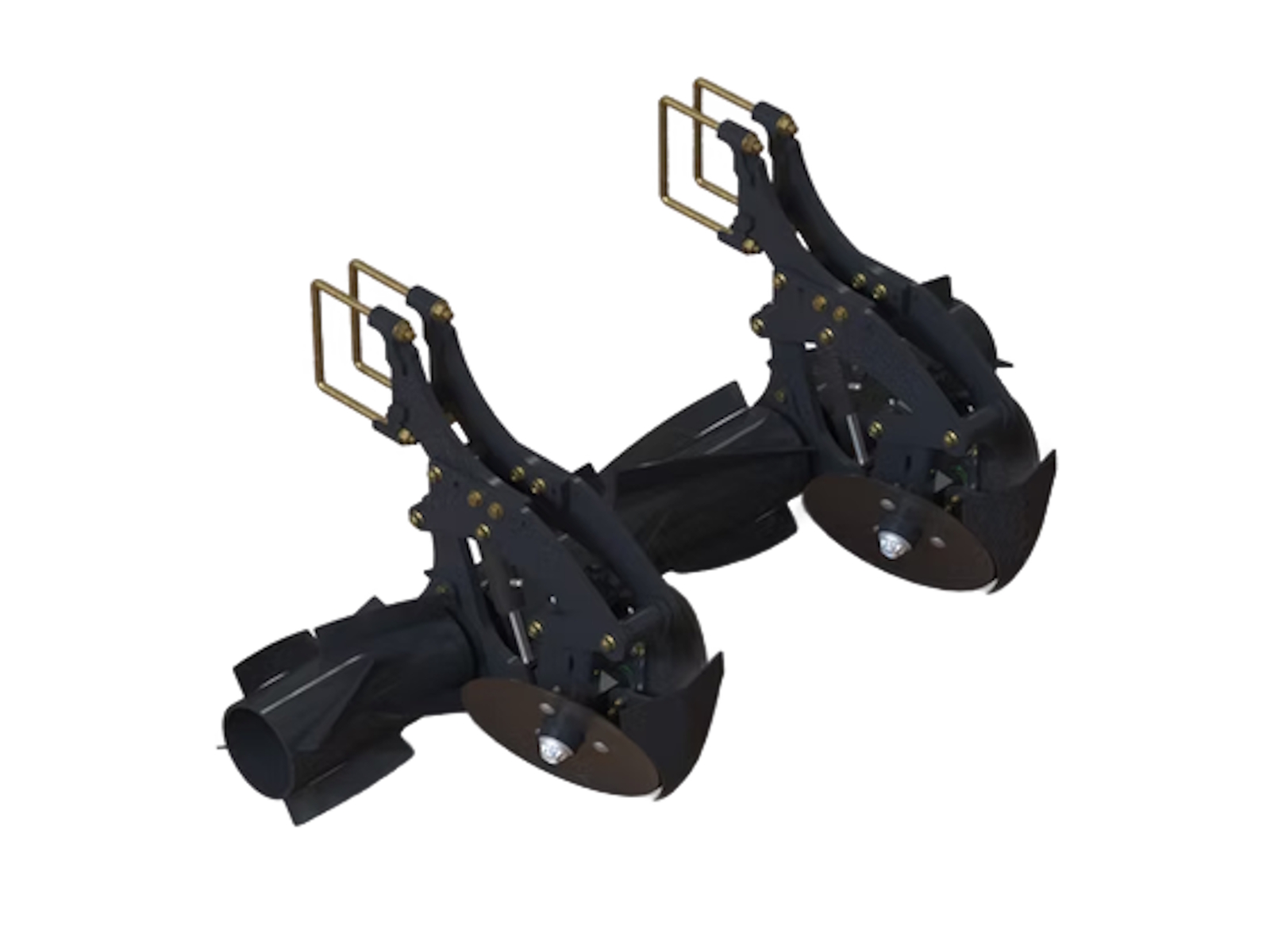

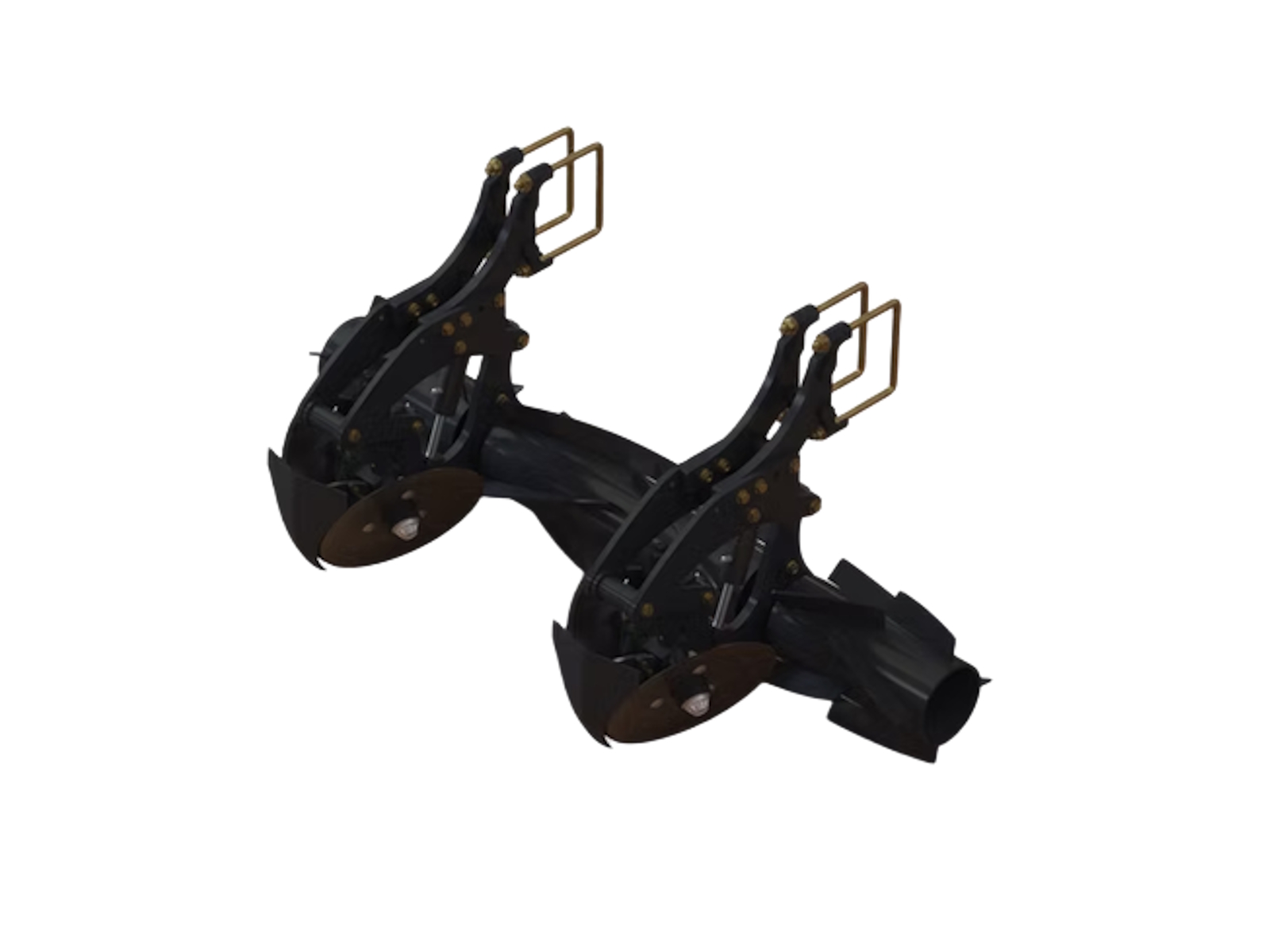

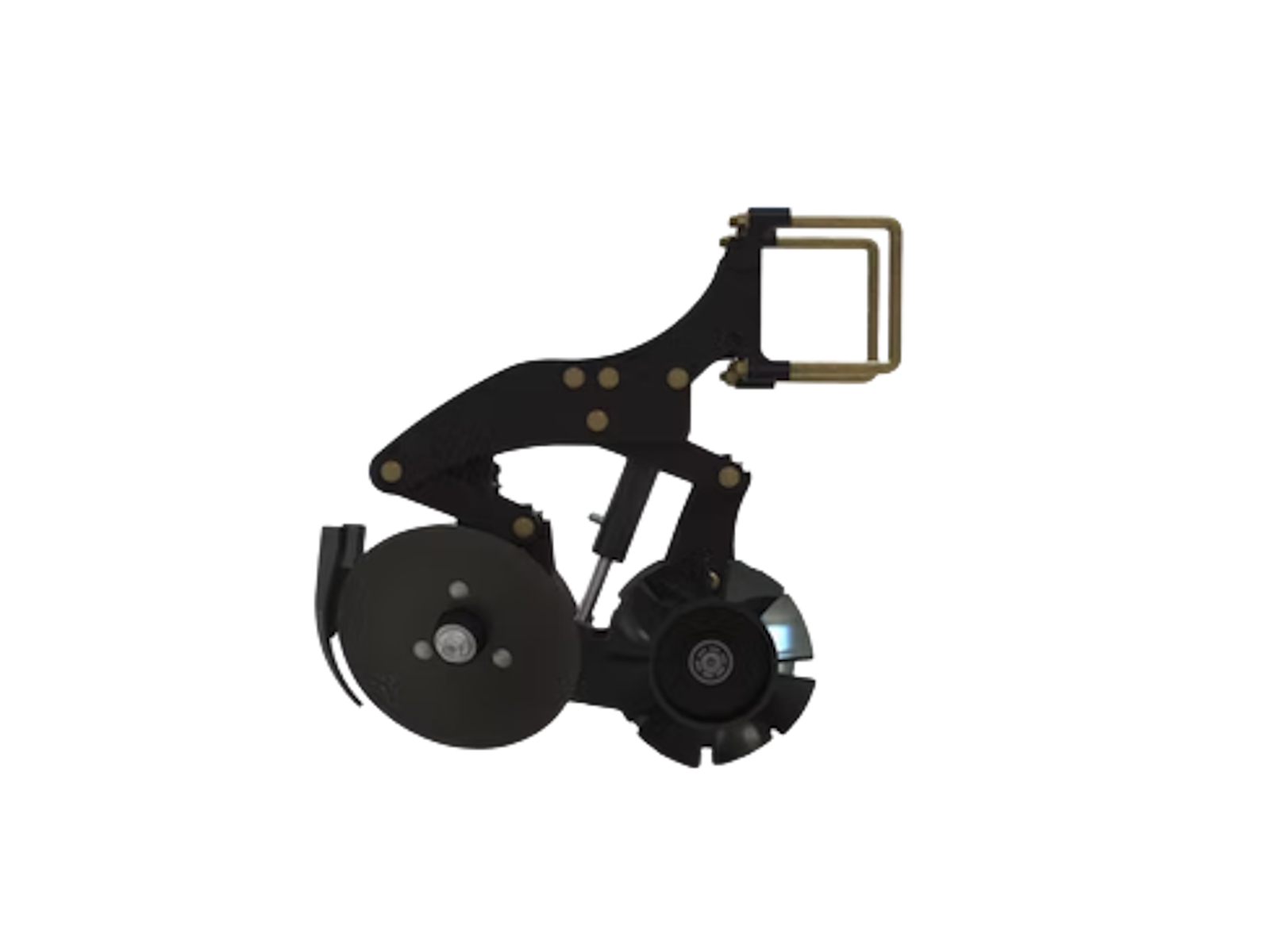

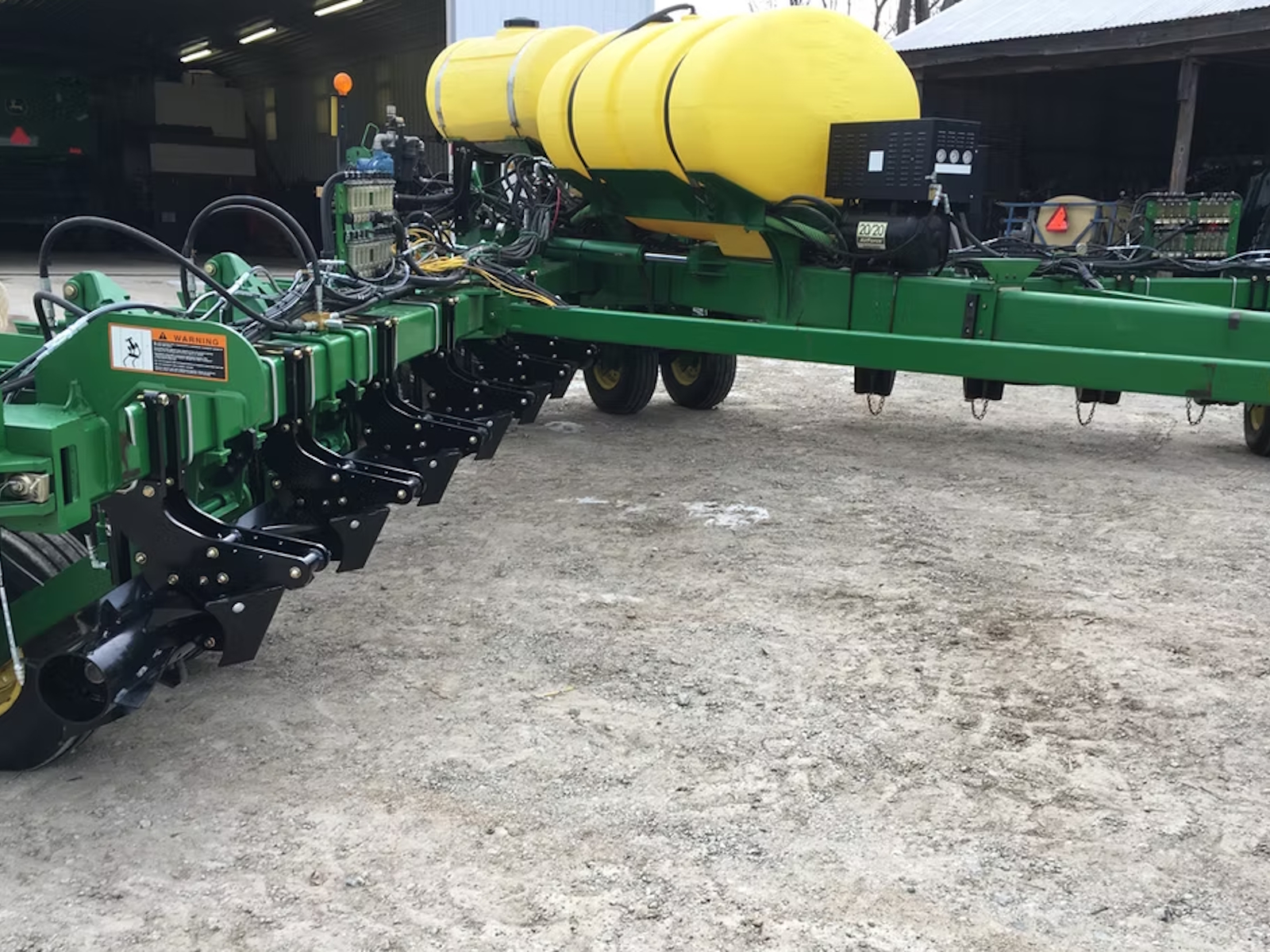

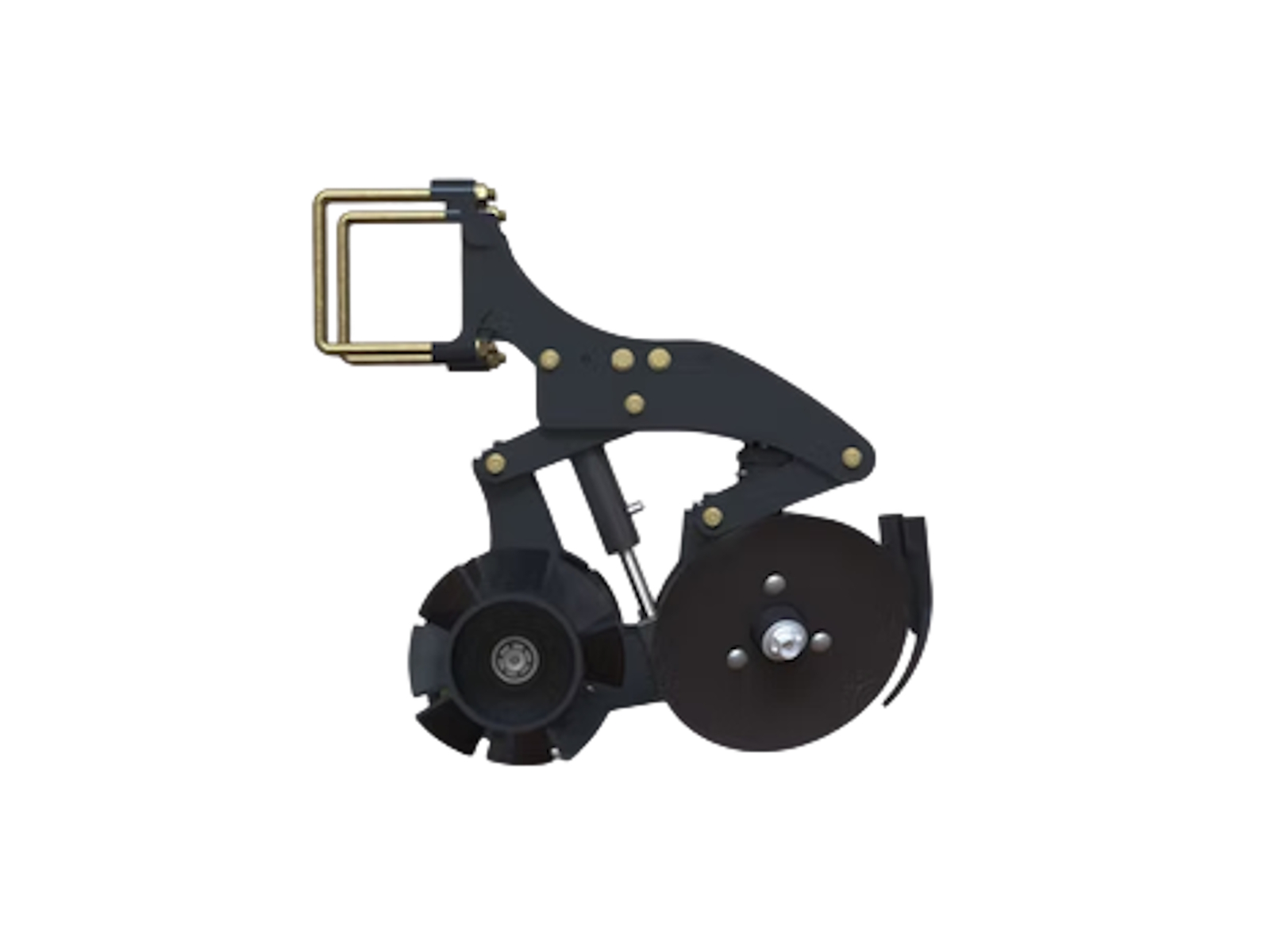

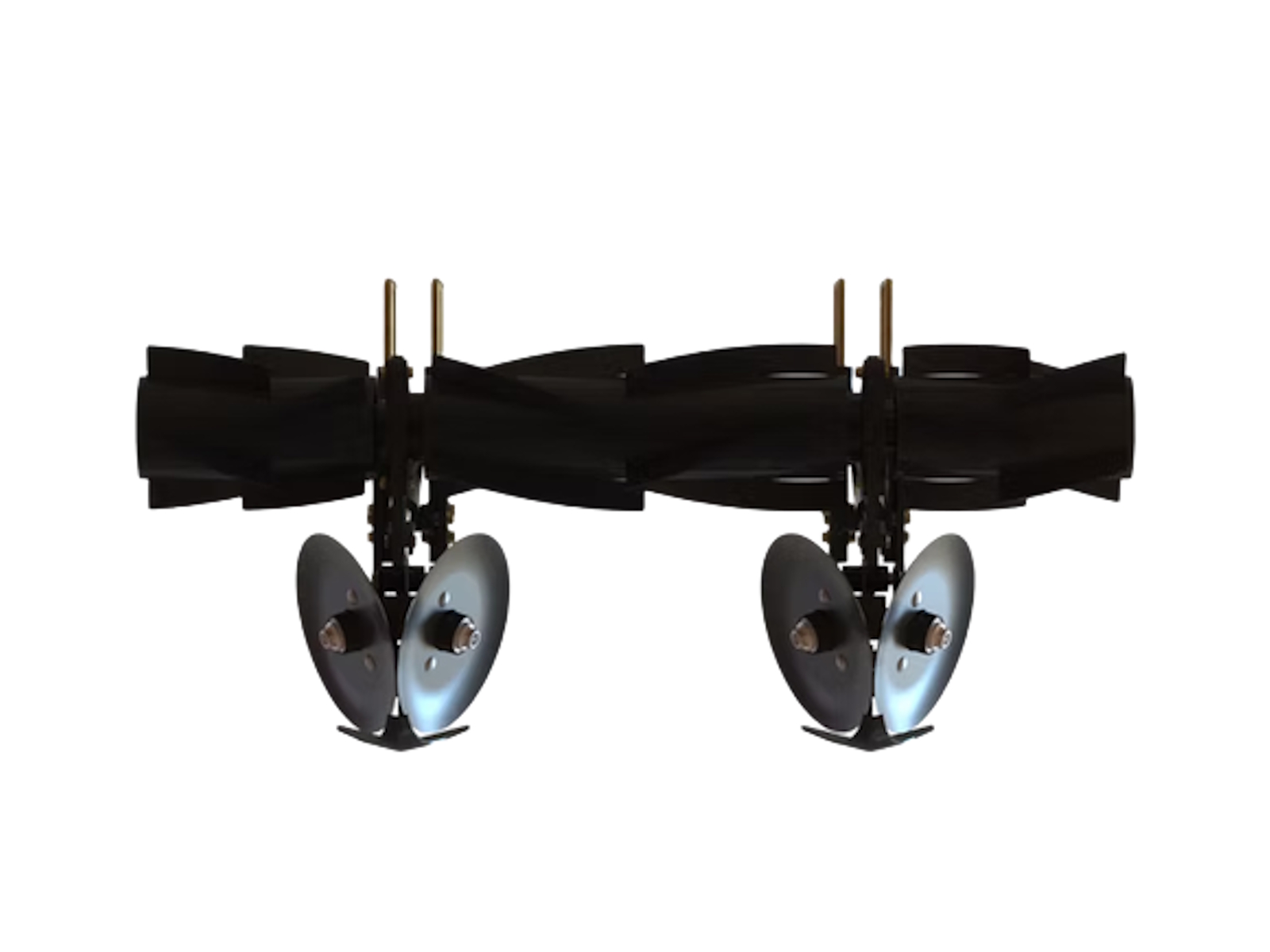

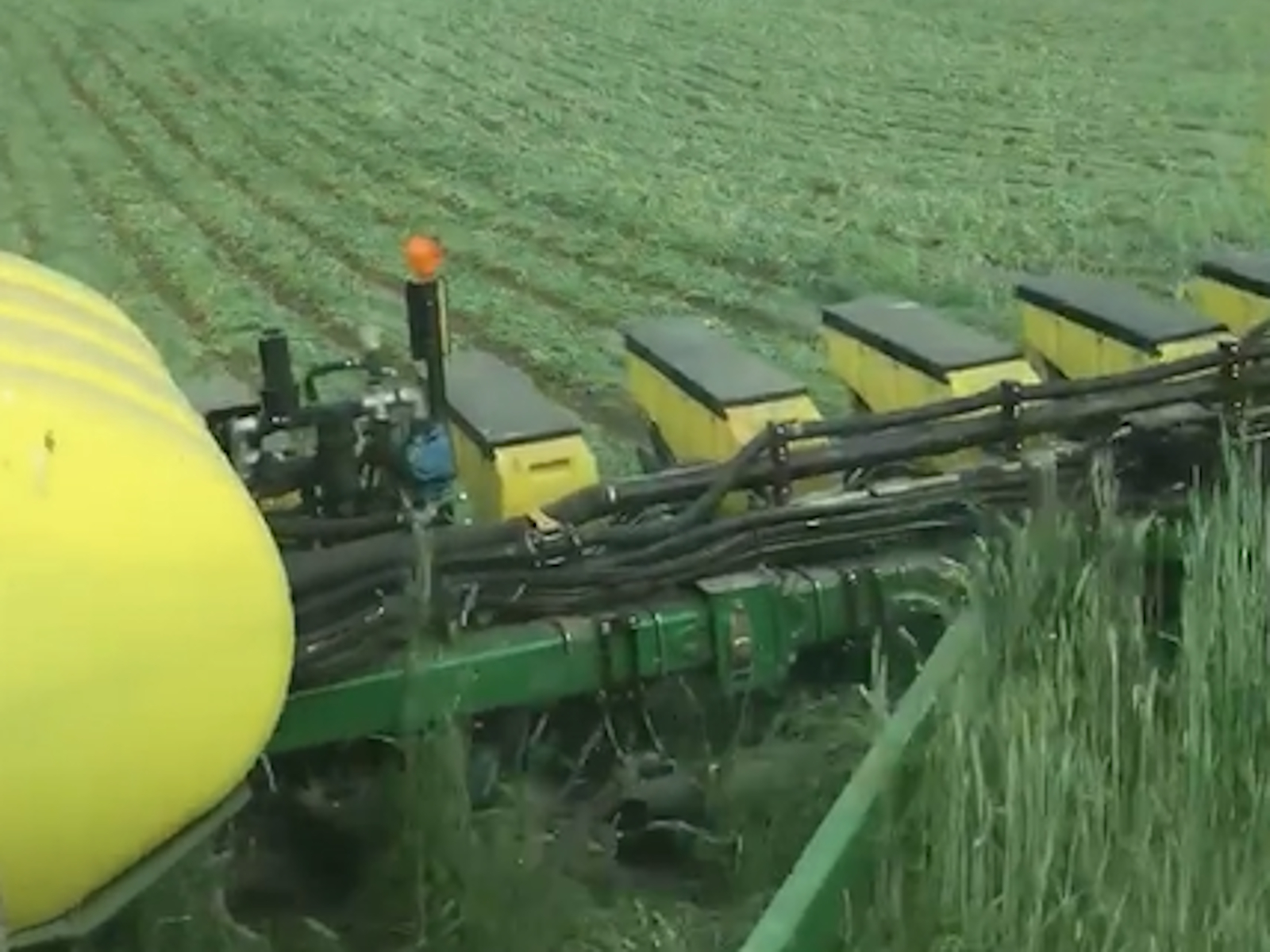

The ZRX+ crimper is a groundbreaking attachment designed for straightforward installation on your planter frame. Each planter has its specific mounting challenges. Some planters can only accommodate either ZRX or ZRX+, while others can support both options. With its parallel linkage modules and independent oscillating rollers, the ZRX+ ensures reliable ground contact for optimal crimp performance while planting. Available in different roller widths to accommodate various row spacings, this crimper has a built in row cleaner. Furthermore, the hydraulic control allows you to easily lift the rollers out of the way when not in use, boosting flexibility and efficiency in your planting process.

Features May Include:

• Hydraulic Control​
• Articulating Rollers
• Replaceable Bushings
• One Pass Crimping System
• Parallel Linkage

• Achieve Consistent Ground Contact with Articulating Rollers

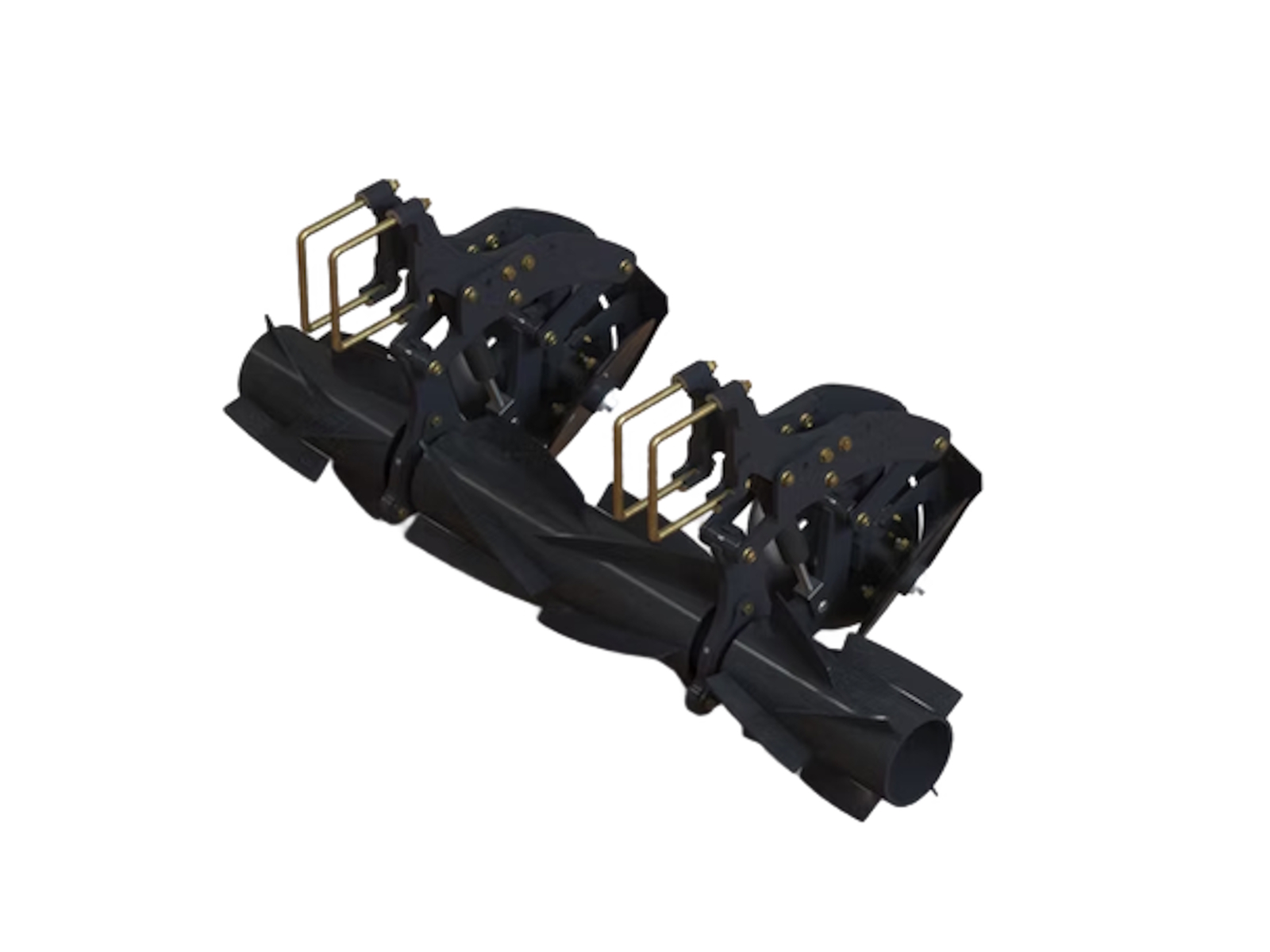

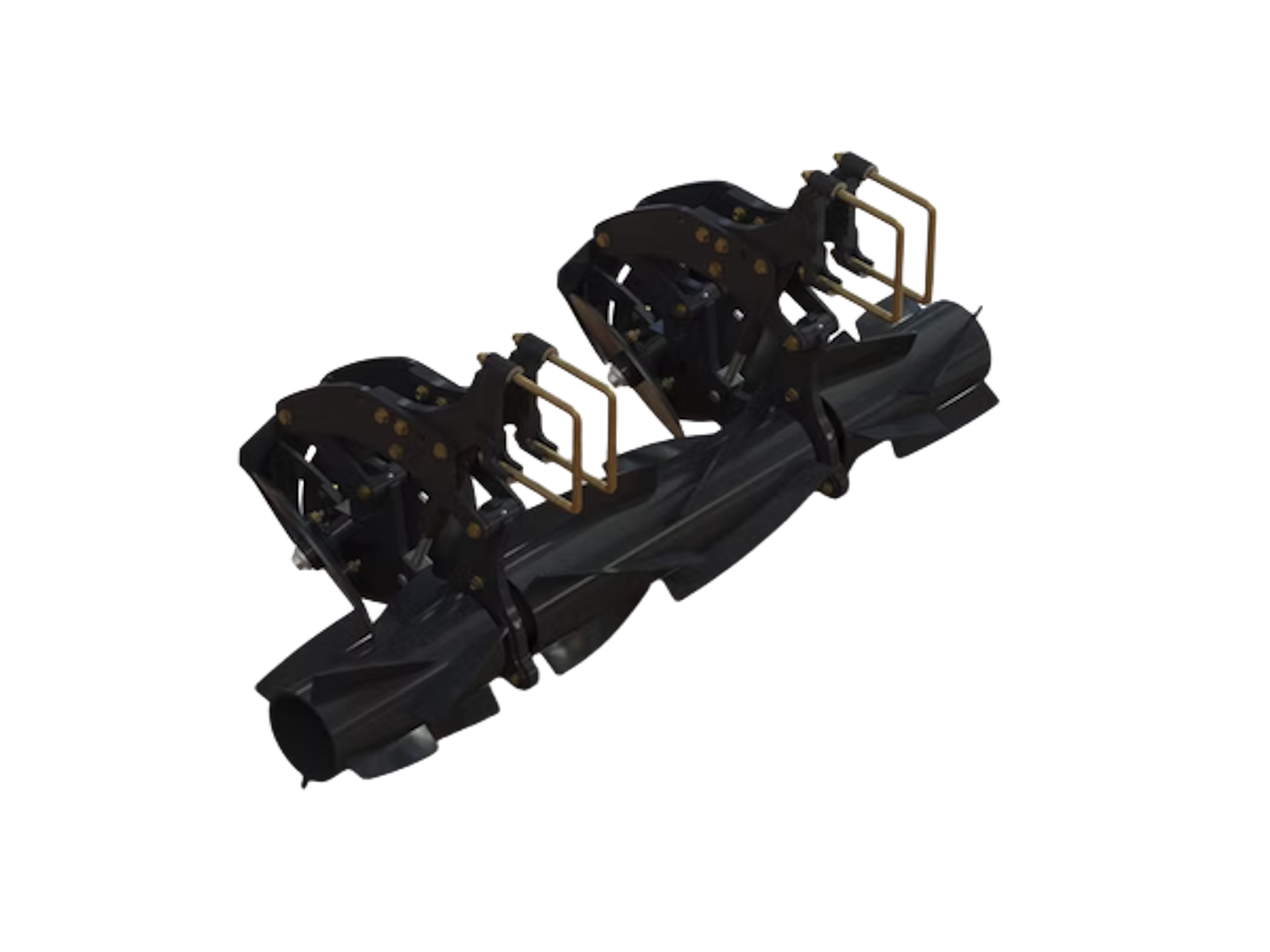

  All ZRX roller crimper designs share a key feature: they are made up of modular roller sections tailored for various row spacings. Each roller is equipped with spherical bearings on both ends, which connect the parallel linkage module positioned along the centerline of the row unit. These spherical bearings enable independent vertical movement of the modules, ensuring consistent pressure is applied to the cover crop. As a result, the ZRX+ achieves the most uniform crimping and termination available in roller crimping on the market.

• Increase Row Cleaner Effectiveness with Parallel Linkage

  The ZRX+ is designed with integrated row cleaners that require parallel linkages to ensure optimal performance. This design allows the row cleaners to maintain a consistent angle throughout the full stroke of the ZRX+.

• Enhance Flexibility with Built-in Row Cleaners

  The ZRX+ integrated row cleaners are designed for effortless height adjustment through a simple screw. To modify the height, lift the cap, turn it to the desired setting, and securely replace the cap. The stem features dot indicators that provide a clear visual reference for depth adjustments. Furthermore, the concave disks are effective in parting the cover crop which enhances its flow into the rollers. The row cleaners can be adjusted for a more aggressive setting to remove additional debris from the row, thereby optimizing soil preparation for the planter row unit.

• Increase Versatility with Hydraulic Control

  The ZRX+ is hydraulically controlled, offering both manual and in-cab control options. It can be set to a specific pressure and easily adjusted for various covers and conditions. Operating the SCV continuously allows the ZRX+ to quickly adapt to changing conditions, ensuring a reliable crimping effect. This system is highly efficient and requires minimal hydraulic flow. By flipping the SCV direction, the rollers can be raised allowing the planter to operate in areas without cover.

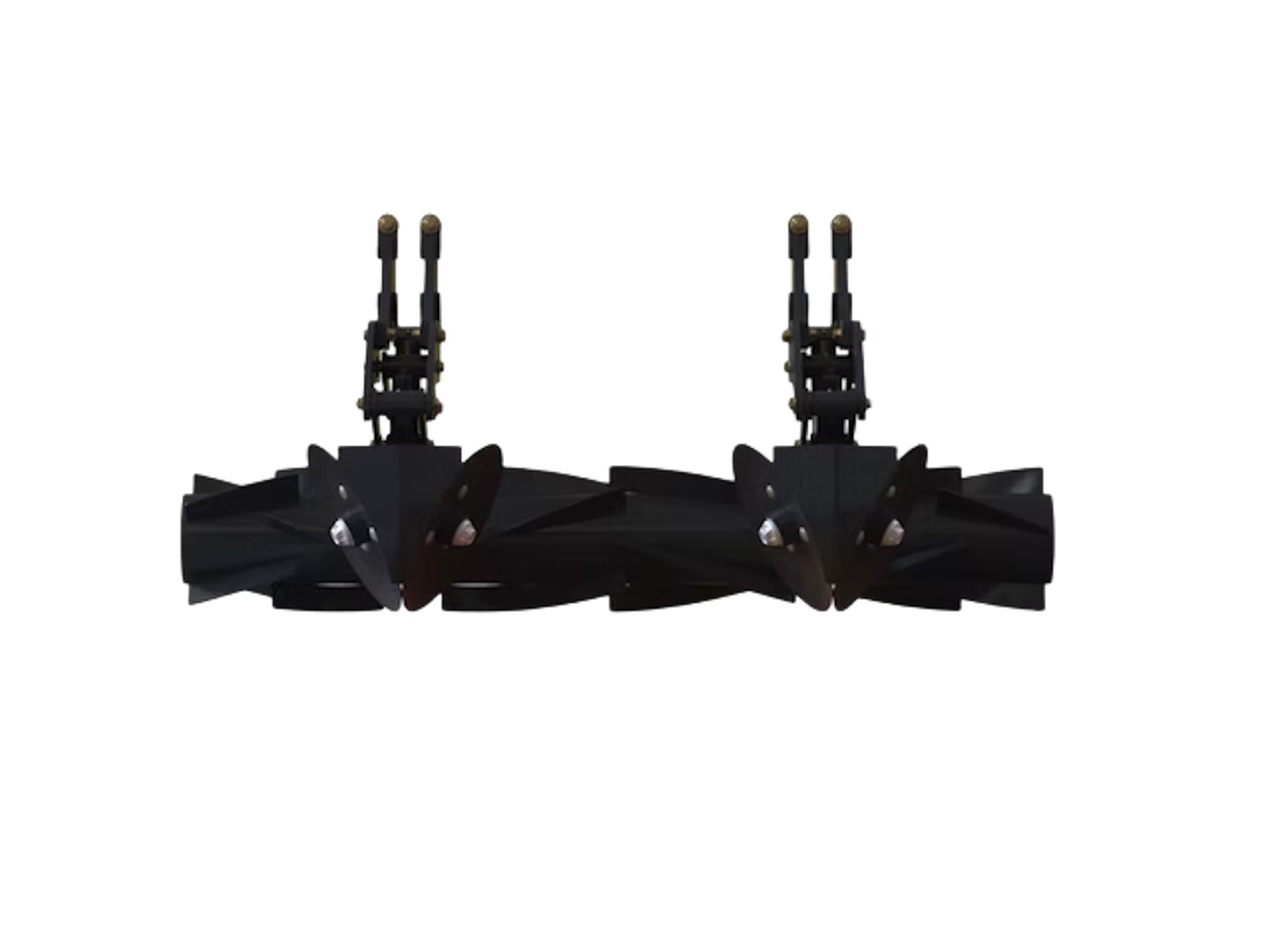

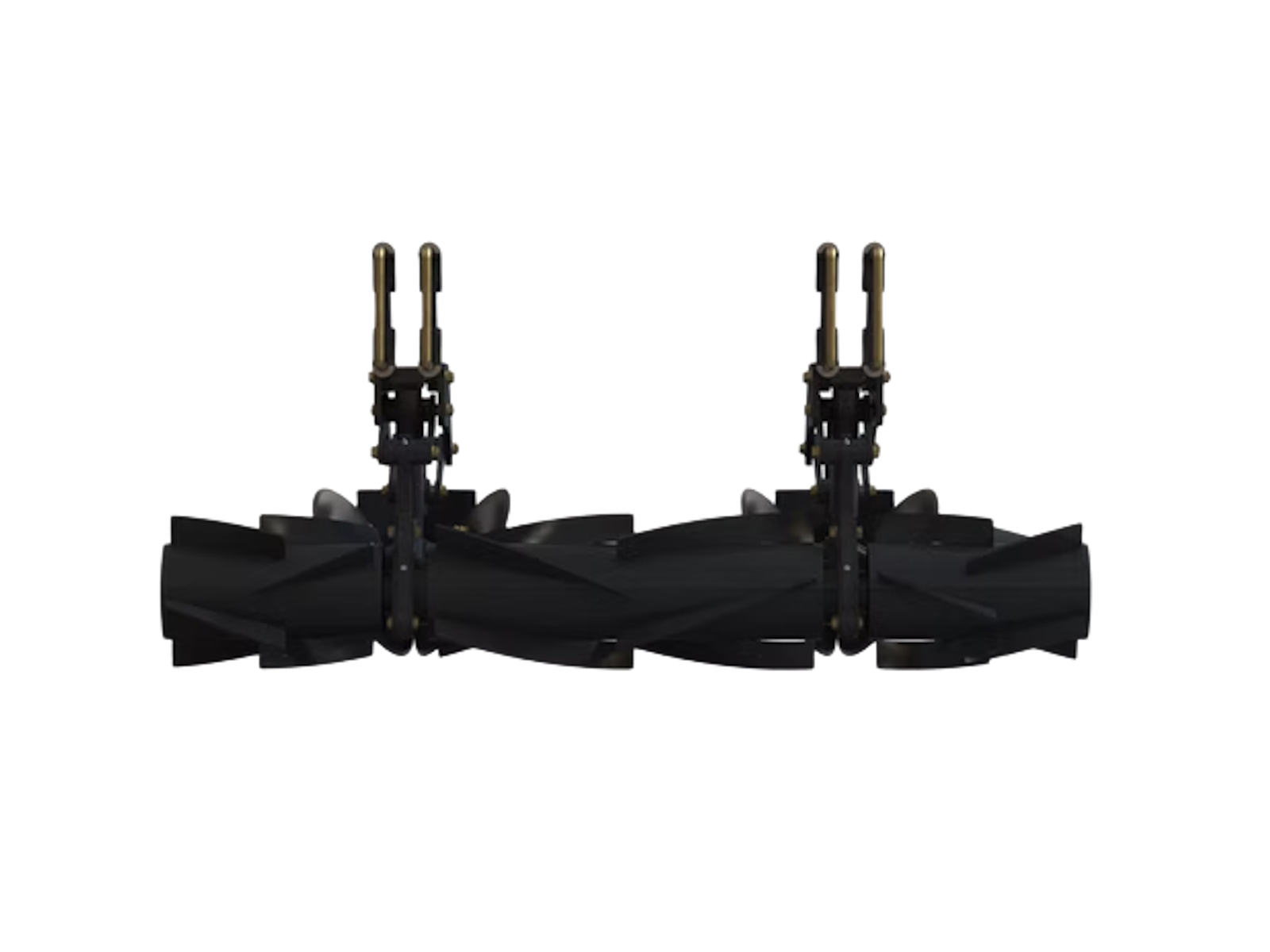

• Increase Crimping Effectiveness with Chevron Pattern

  The chevron pattern provides two key benefits: it minimizes roller bounce that may lead to crimping issues and it efficiently directs material toward the center of the roller. This design decreases the likelihood of material wrapping around the rollers, creating a thicker mat in the center of the row.
