2023 Chandler Spreaders C/L Pull-Type Litter and Shavings Spreader 86"

2023 Chandler Spreaders C/L Pull-Type 86"

The Chandler C/L Pull-Type Litter and Shavings Spreader, in production for more than 45 years, is the model of dependability in the field. Whether you’re dressing cotton fields with litter or laying shavings in a poultry house, the C/L Pull-Type can be configured/customized to perform numerous duties all over the farm.

Features May Include:

• Standard running gear:
• 10-16’: 12.5L x 15 tire and wheels with (2) 7000# torsion axles
• 18-26’: 16.5L x 16.1 tire and wheels with (2) 10000# torsion axles
• 3/16” Plate used on Floor and Rails; 10 gauge used for hopper front and sides
• 88” wide hopper and 34” floor width

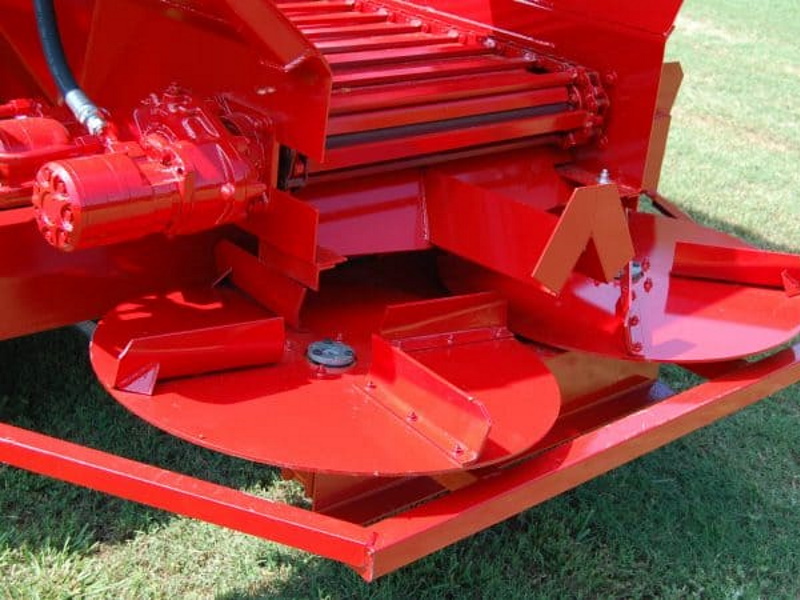

• 24” Flat Disc (1/4 plate) with 9 x ¼” thick spinner blades
• D-667X chain with 3/8 thick flat bars welded every fifth link
• Mechanical:
• 50:1 conveyor worm drive (2” CR rear conveyor shaft)
• PTO-driven gearboxes for spinners
• Hydraulic:
• Plug to tractor or self-contained hydraulic
• Parker M3000 Spinner Motors
• Single motor conveyor drive
• BOSS JIC hydraulic fittings
• Case drain ready
• Adjustable flow control valves for speed control on both conveyor and spinners
