2027 Case IH TD103

2027 Case IH TD103

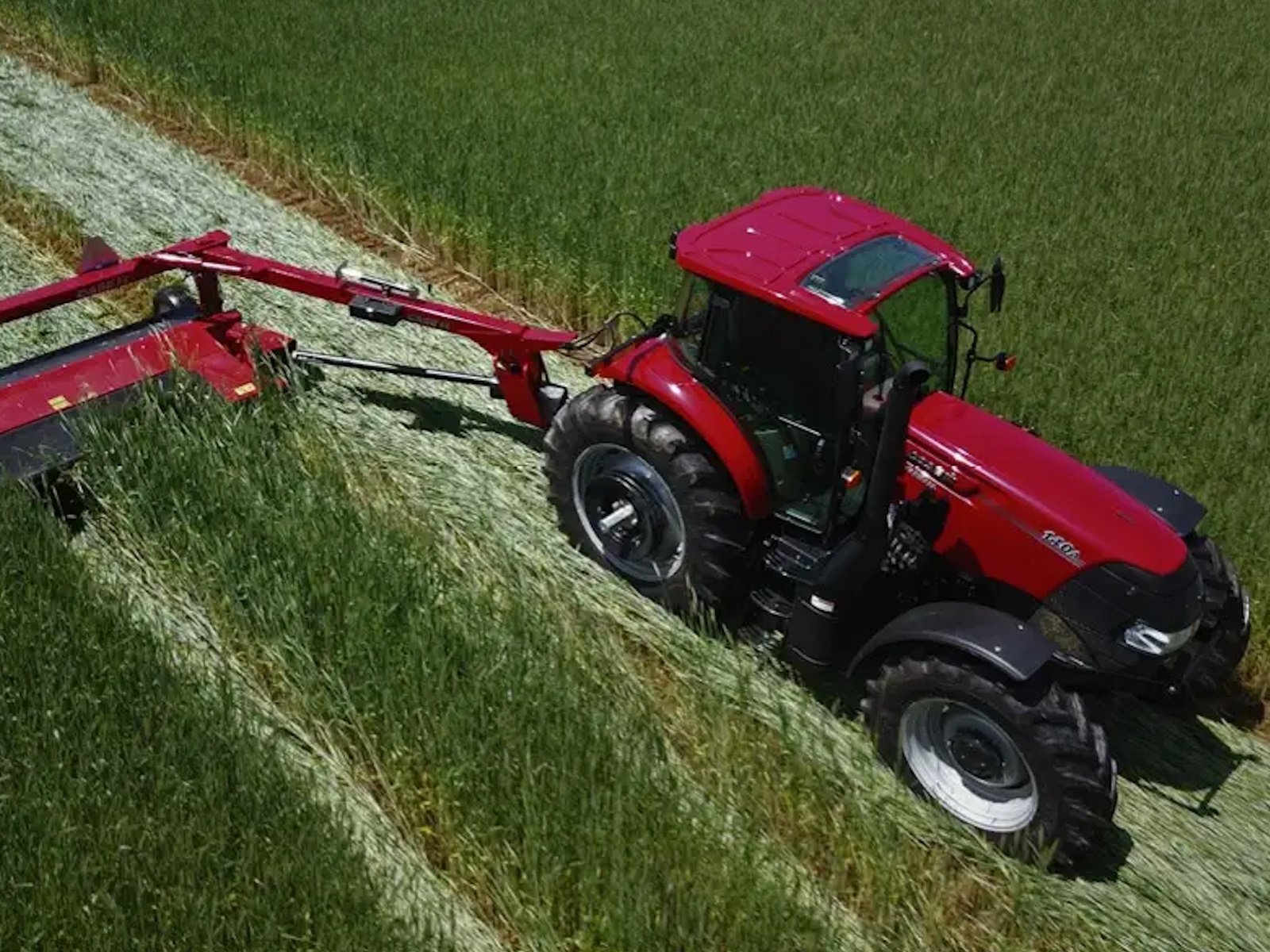

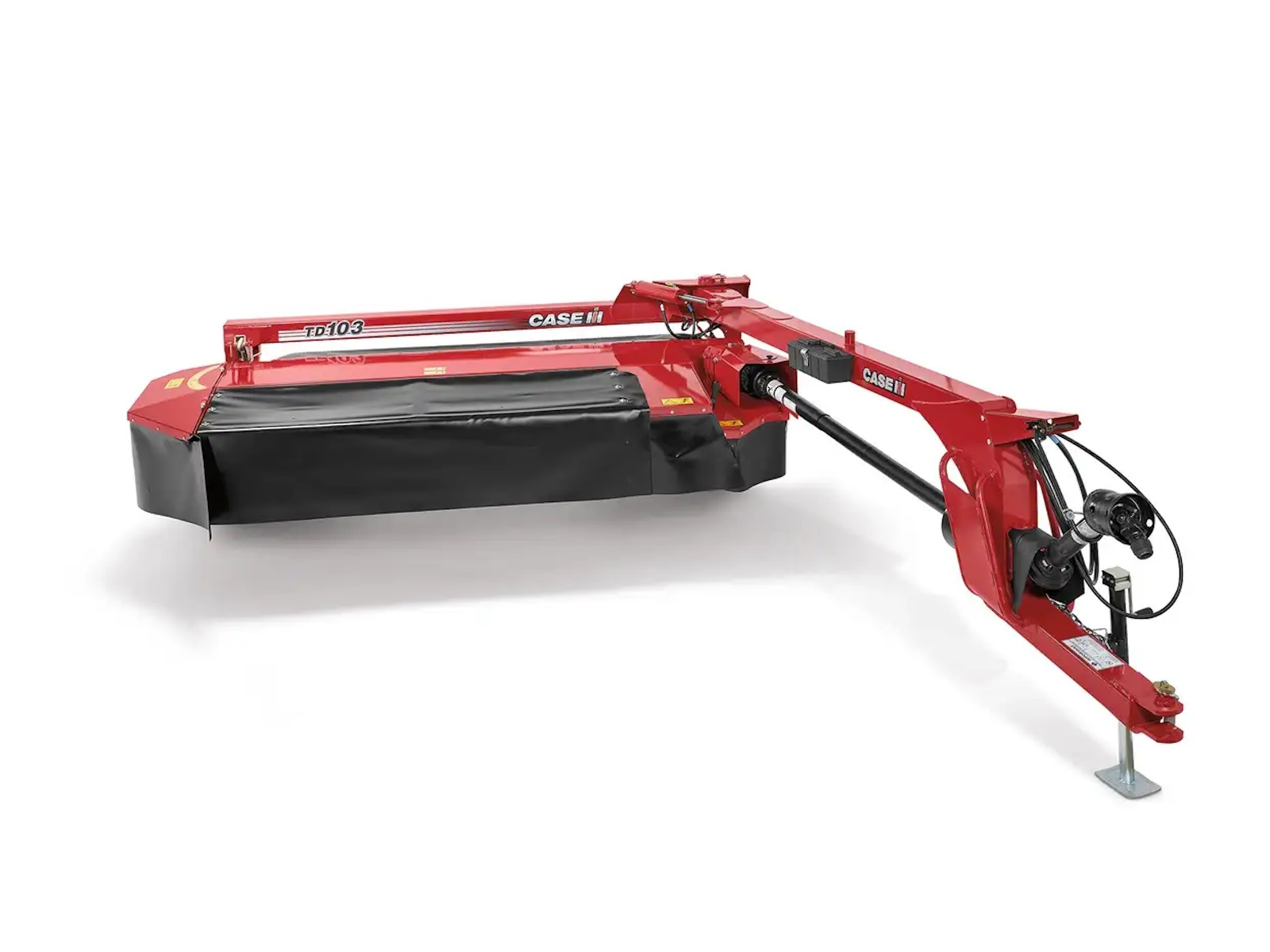

The Case IH TD103 pull-type disc mower features a smooth ride, clean cut, superior trailing ability and narrow transport width, plus easy tractor hookup using a simple clevis hitch.

Superior Productivity, Trailing Simplicity

With a rugged and reliable design, Case IH Pull-Type Disc Mowers deliver superior crop flow that reduces streaking and ensures quick mowing. The TD103 can be pulled by lighter weight tractors, has a narrow transport width and hookup is quick and easy.

Features May Include:

Cutterbar

Superior Crop Flow

Versatility and Convenience

• Quick-change knives cut change time in half – the provided tool makes no wrenches necessary
• Crop deflector shields behind each end of the cutterbar direct cut crop into a wide swath inside the tire path
• Two end discs co-rotate to provide a narrower swath
• Adjust swath from 60–95 in. (1.5 m–2.4 m)
• Left cutterbar shield is hinged for easy service access

Unmatched reliability

• Shock protection to minimize repair expense
• Discs protected from internal gear damage by the drive hub

Constant Velocity Joint

Durability at Every Degree

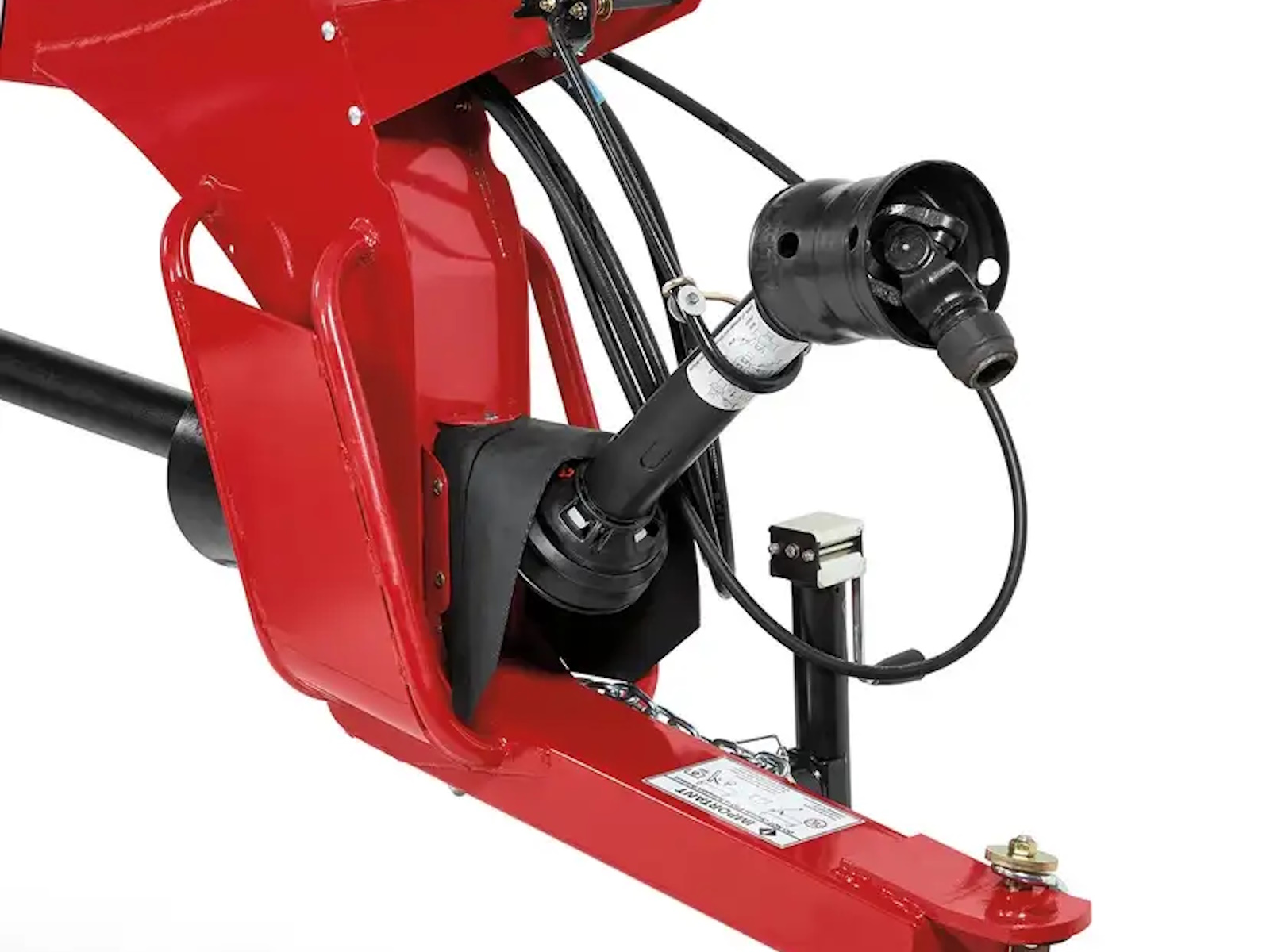

80-Degrees Constant Velocity Joint

• Overload protection is standard
• Primary PTO uses an 80-degree constant velocity joint at the tractor end to permit tight turns, reduce noise and extend service life
• Standard tractor tire bumpers protect PTO driveline and tractor tires

Tilt Adjustments

• Tilt is adjustable from 2–10 degrees using a mechanical turnbuckle

Transport

Easy Transition from Field to Road

Attaching and detaching the mower from the tractor is easily accomplished with a simple clevis hitch. The TD103 can be pulled by lighter-weight tractors, as weight is pulled versus carried on a 3-point hitch.

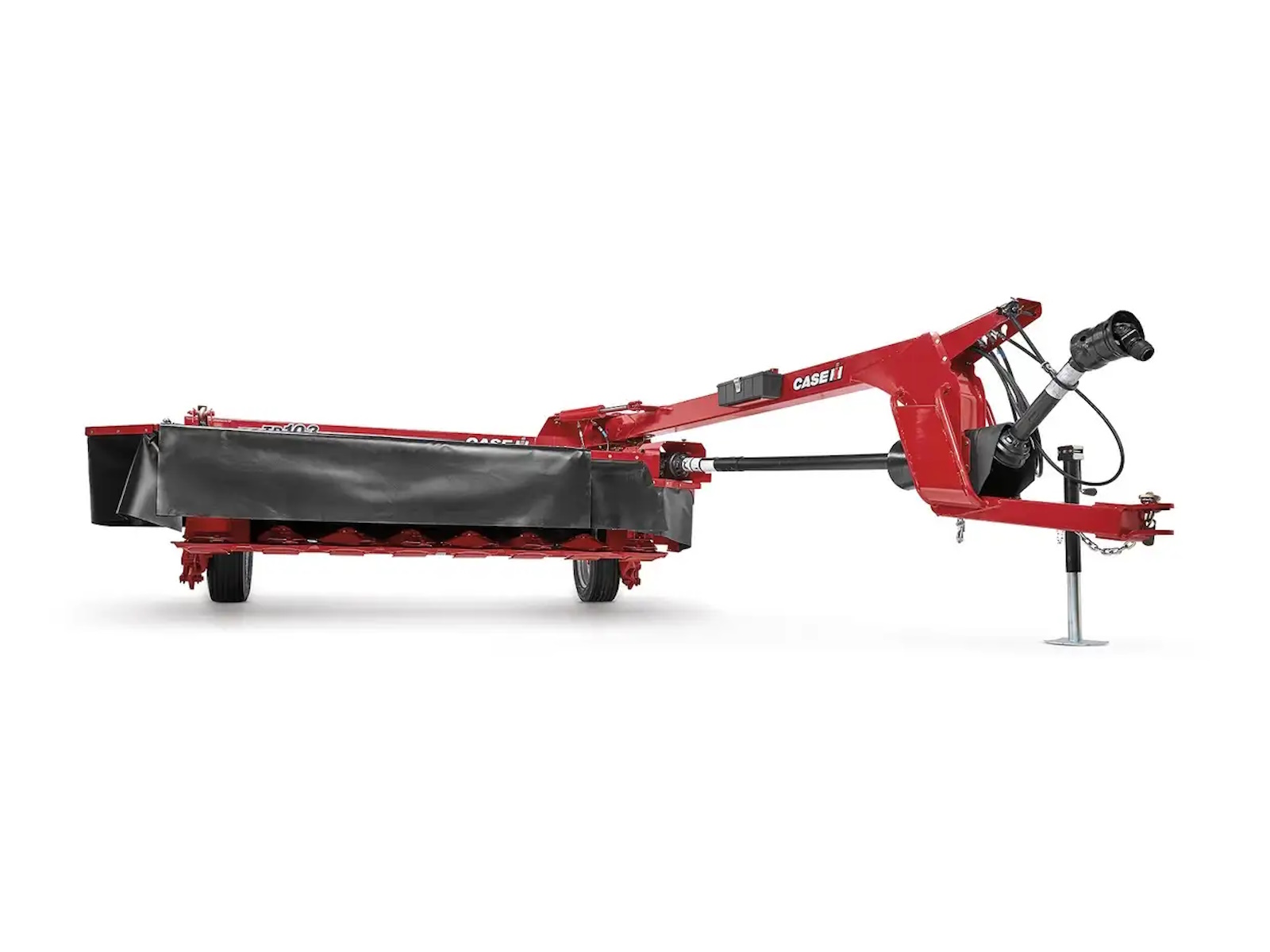

• Transport width is just 10 ft 10 in (3,300 mm) when end shields are folded
• Removable parking jack stand is stored on top of tongue assembly
• Hydraulic tongue swing cylinder powers the unit from transport to operating position
• Has a 12-in (305-mm)-minimum cutterbar ground clearance in transport position
• Hinged right-side cutterbar shield folds up for narrow transport
• Safety tow chain standard
• Low transport height eliminates the need for implement lights

Warranty

Worry-Free Operation

• 3-year cutterbar warranty includes one full-year of base factory warranty, plus two additional full years and unlimited hours of extended factory disc cutterbar warranty
