2026 Bigham Vertical Fold Tool Bars 4×7”

2026 Bigham Vertical Fold Tool Bars 4×7”

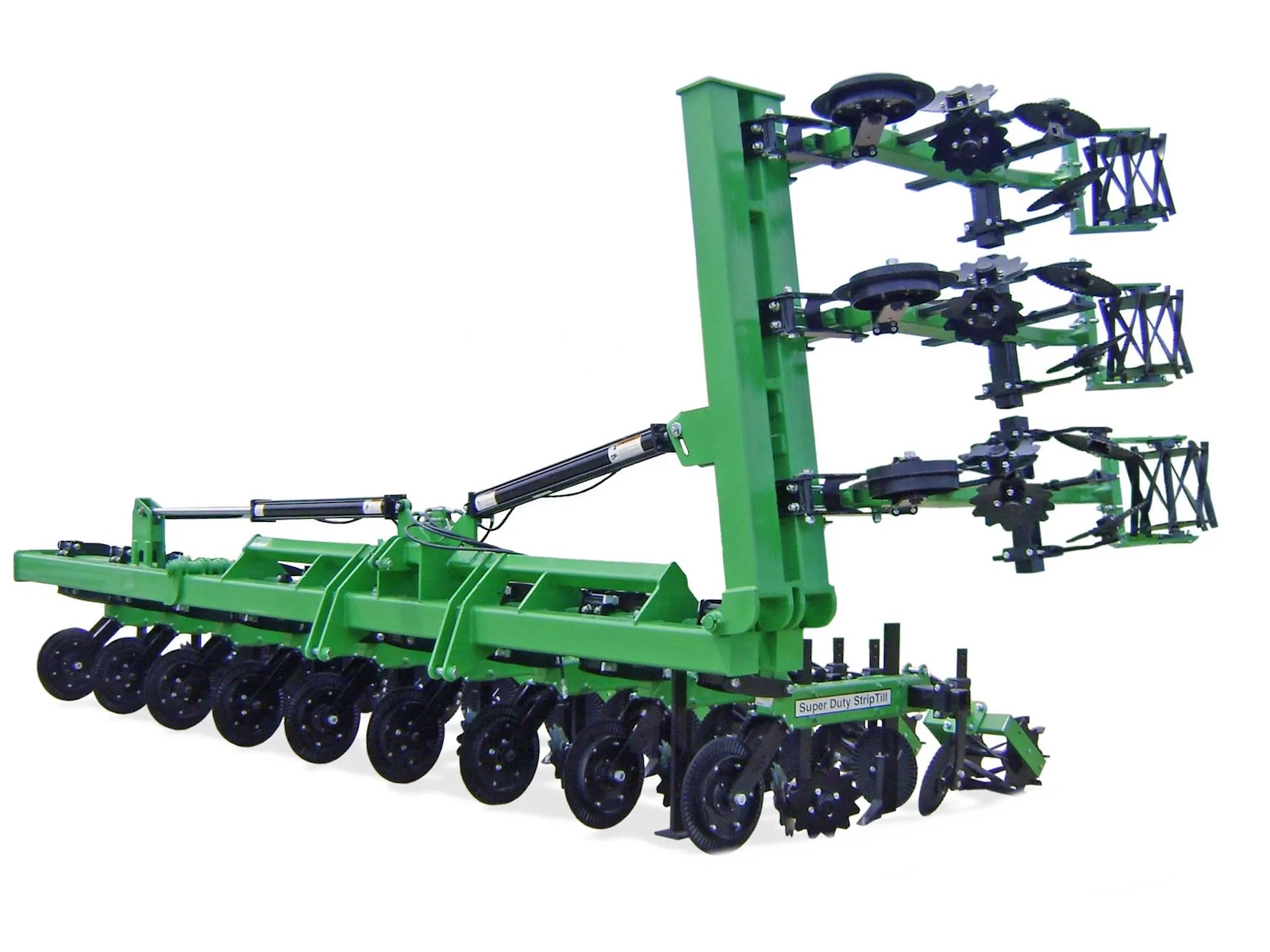

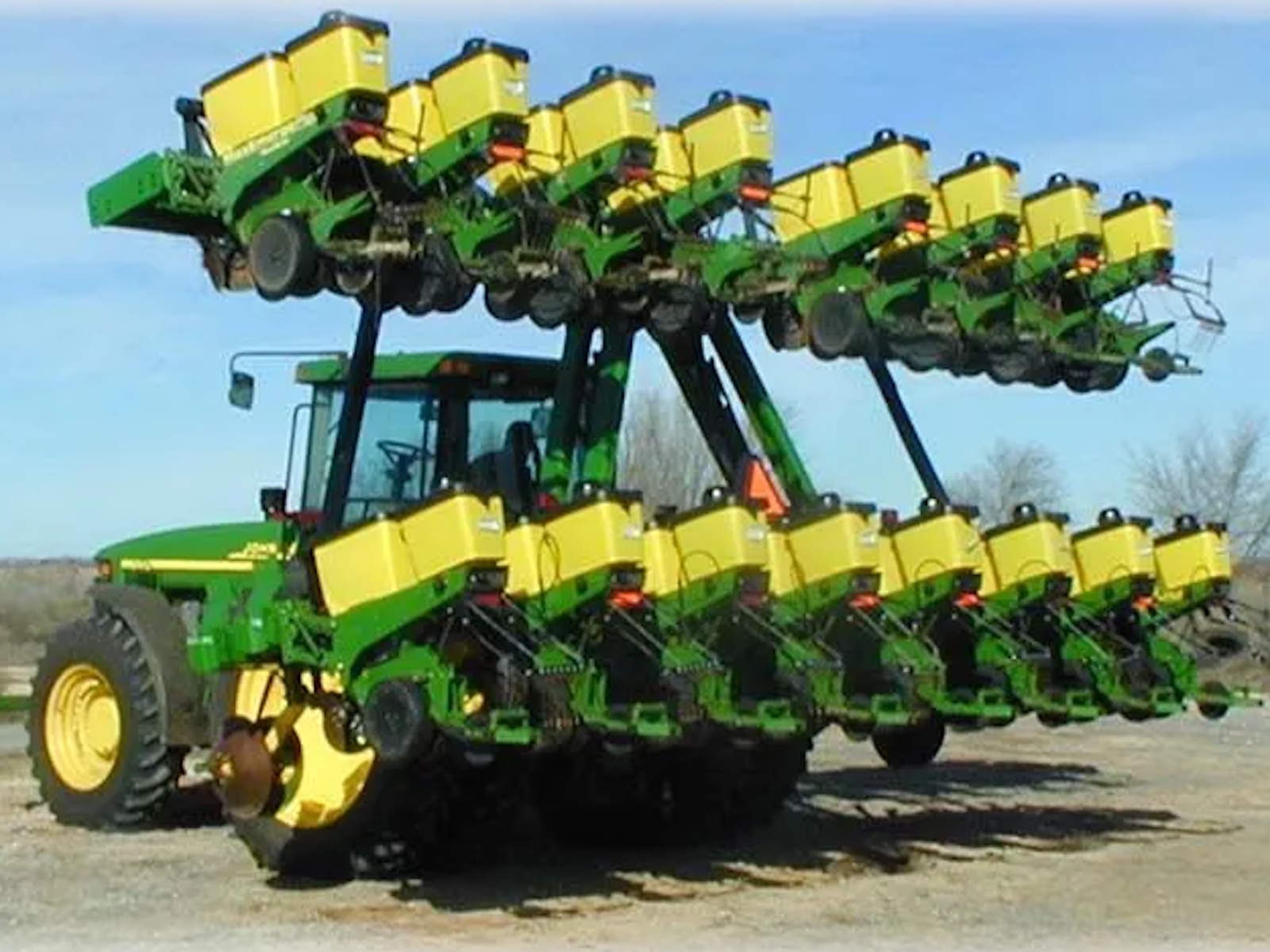

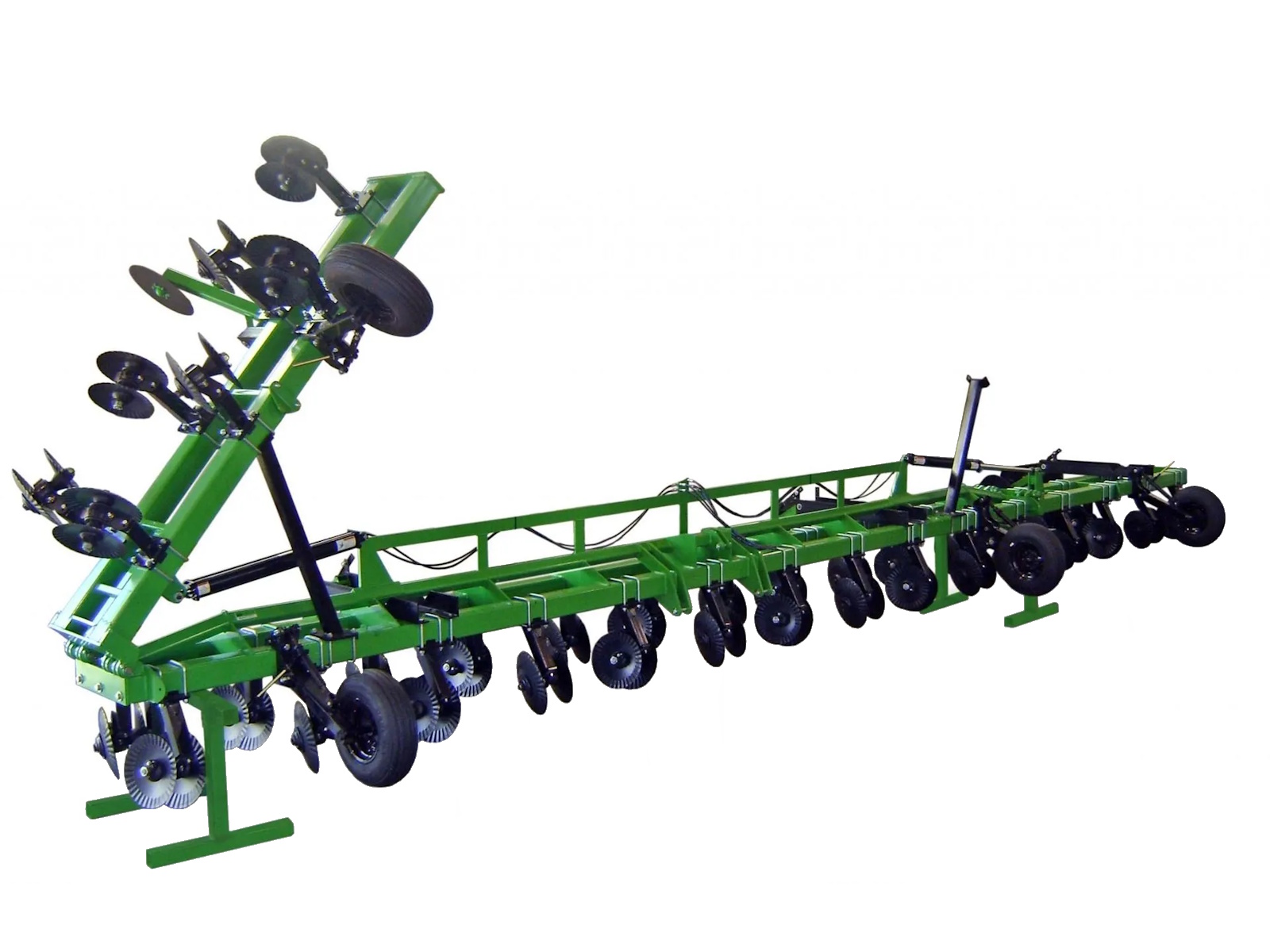

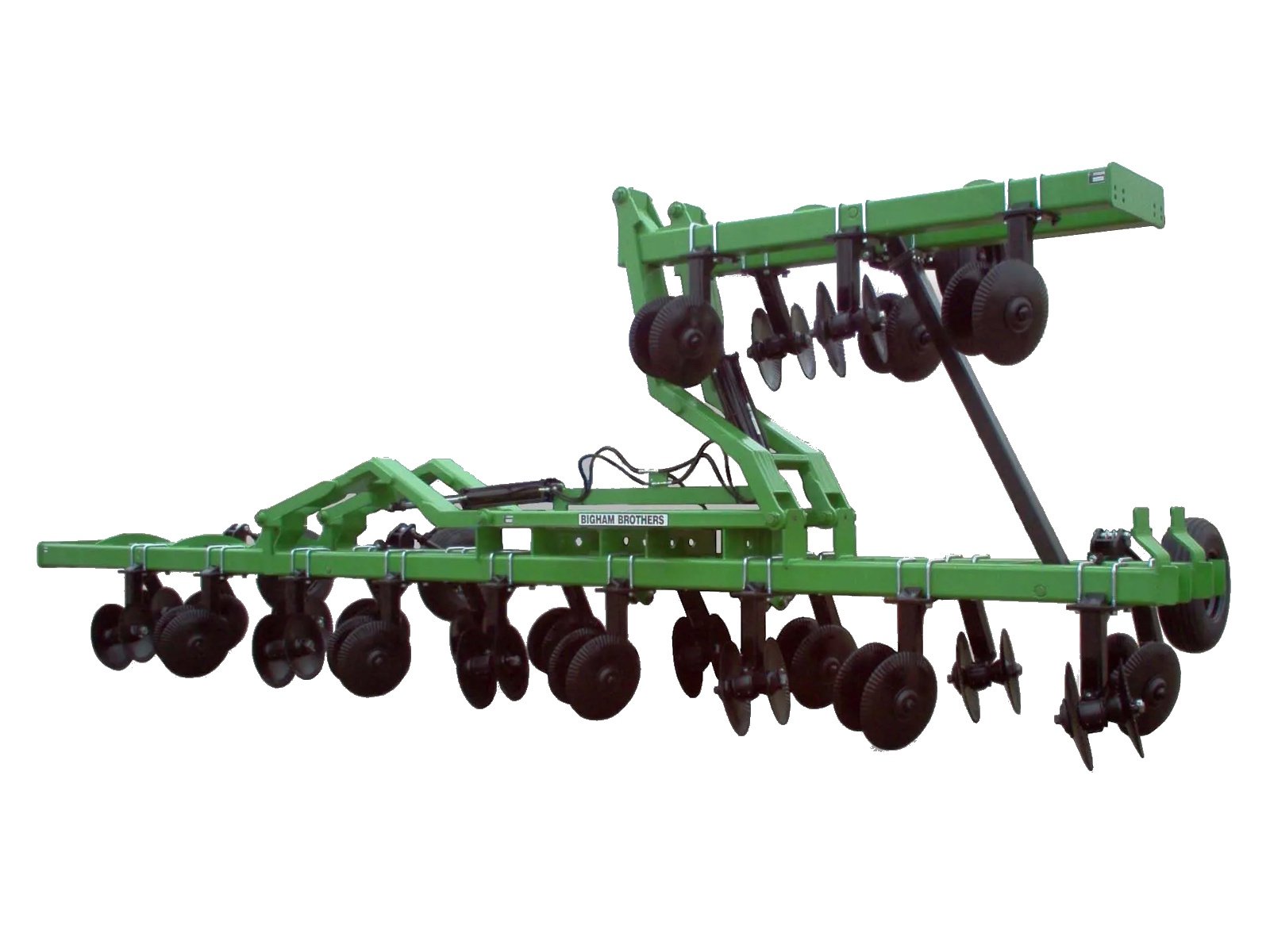

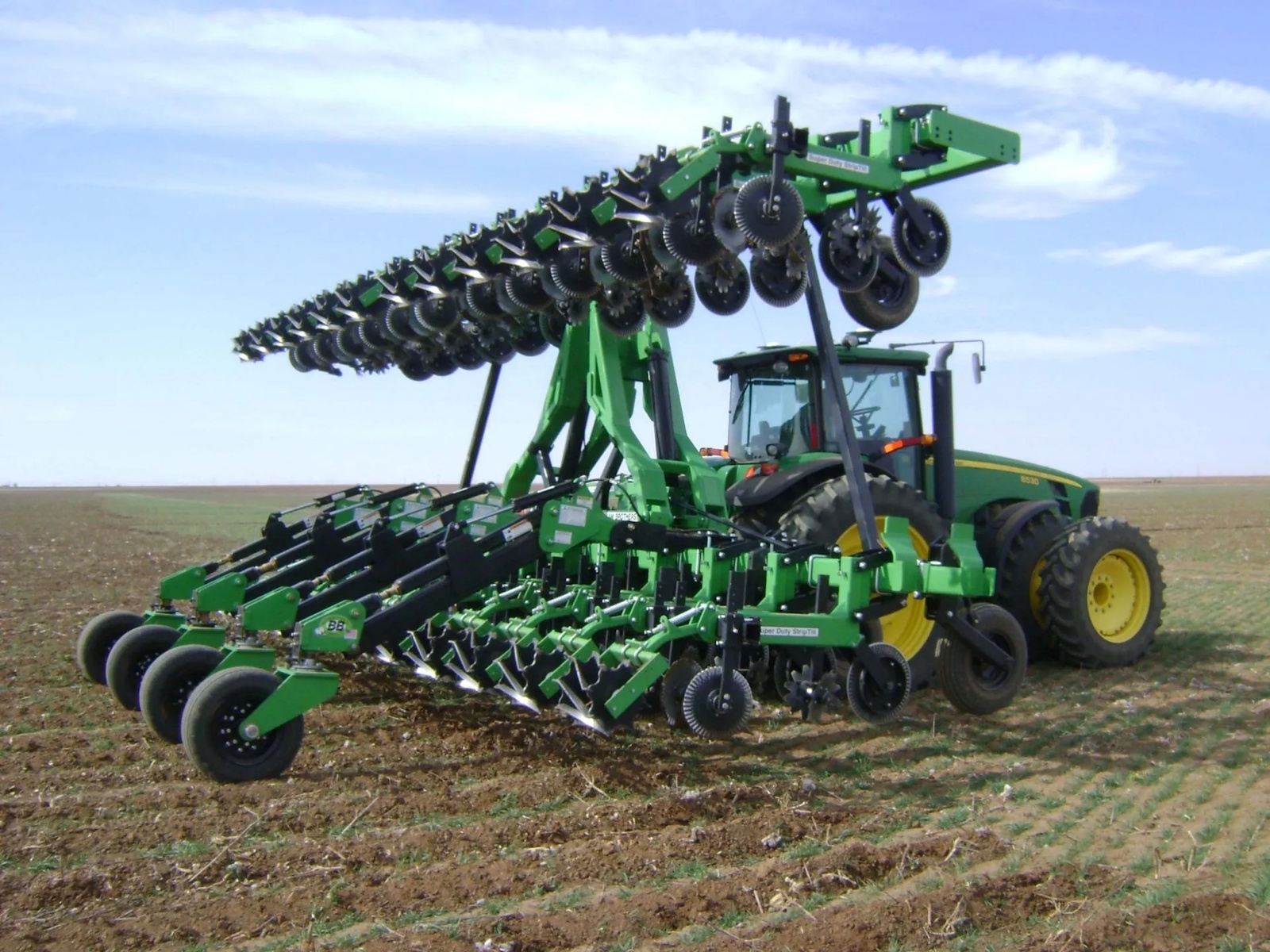

Bigham Vertical Fold Tool Bars give you an economical way to reduce your transport width with legendary Bigham quality.

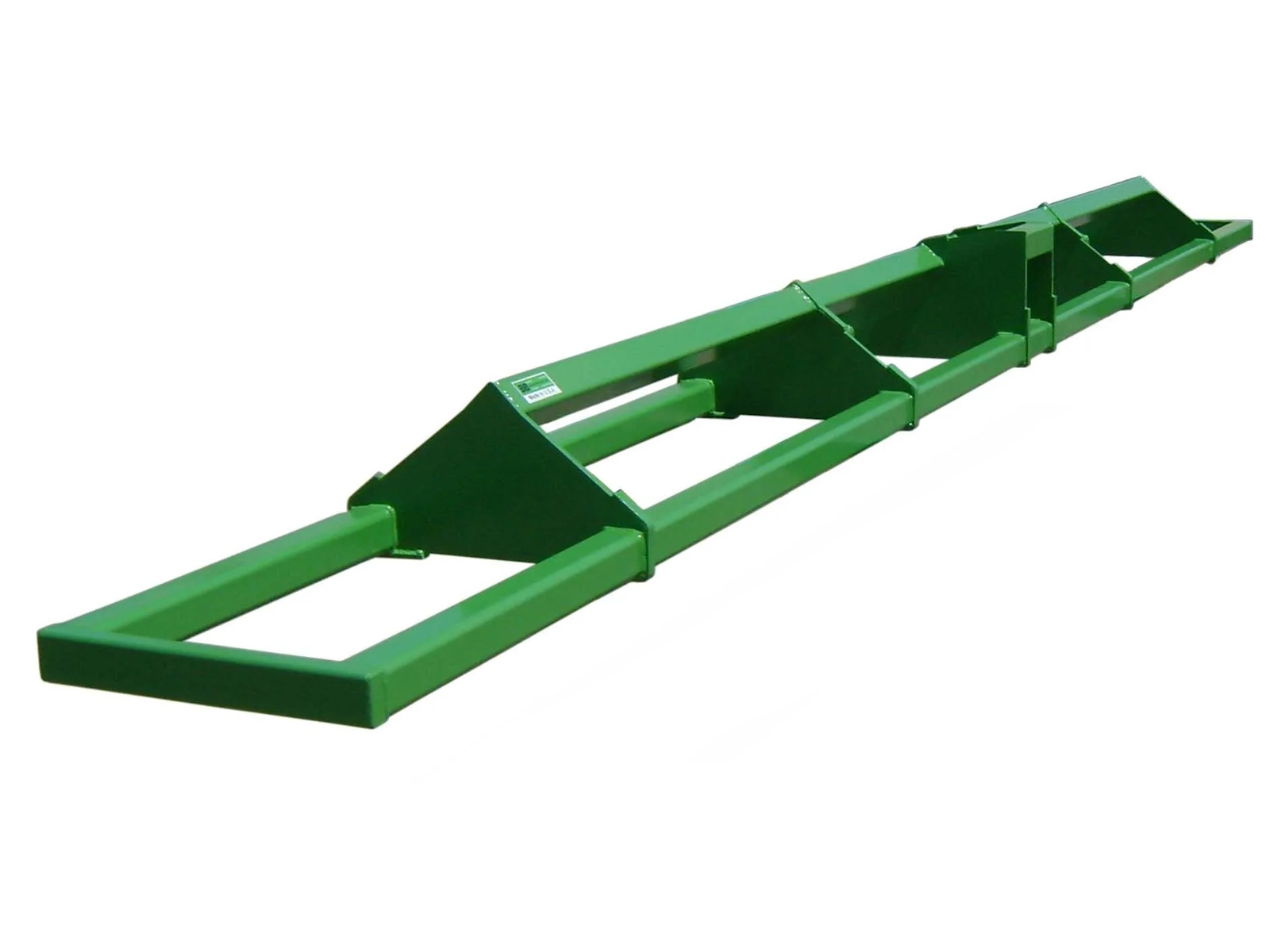

Available in double 7×7” bars to triple and quad bars with combinations of 4×7” and 4×4” tubes, these tool bars give you the flexibility to outfit wide tools you can safely transport.

Features May Include:

Standard Features on Vertical Fold Tool Bars

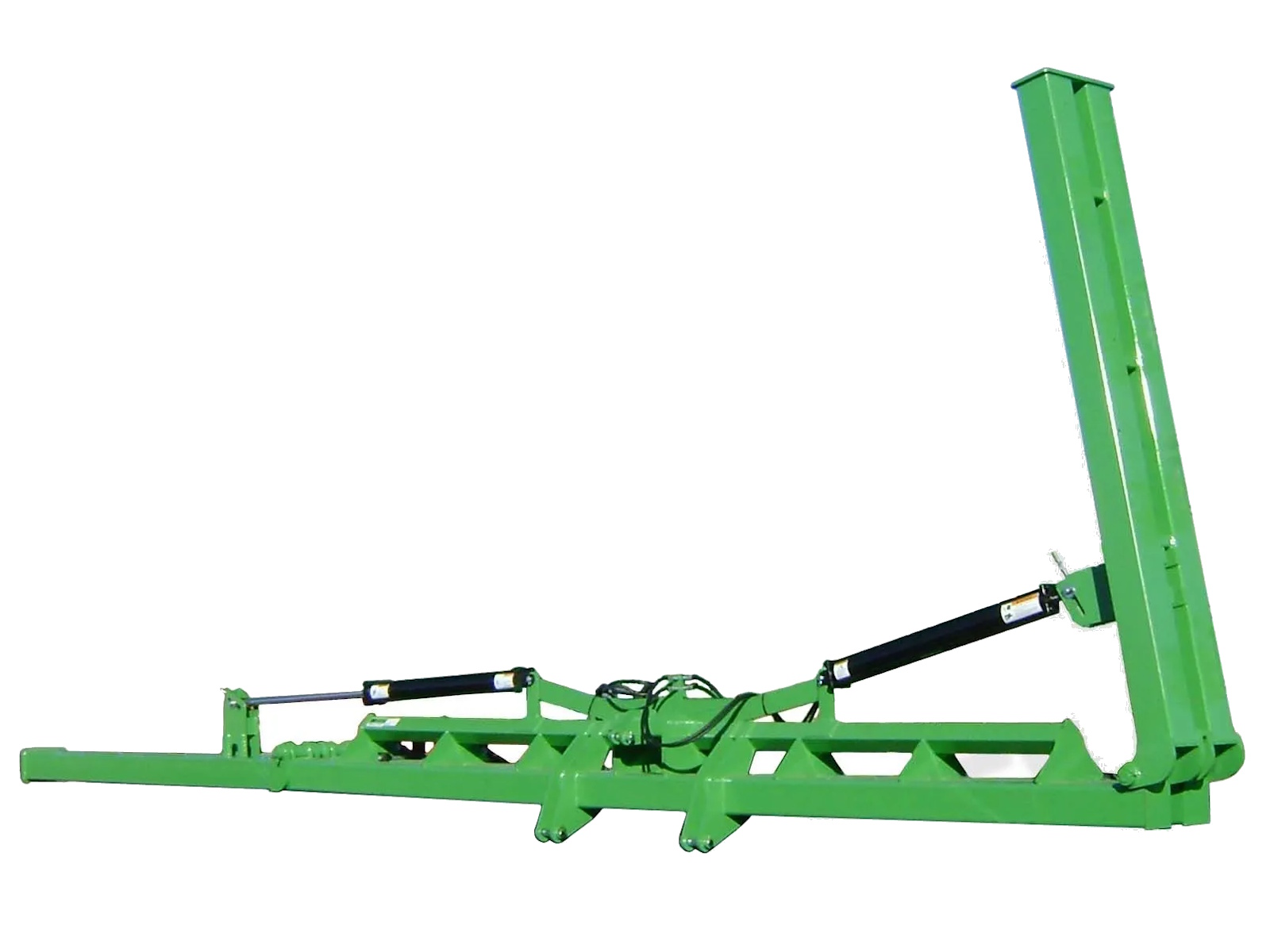

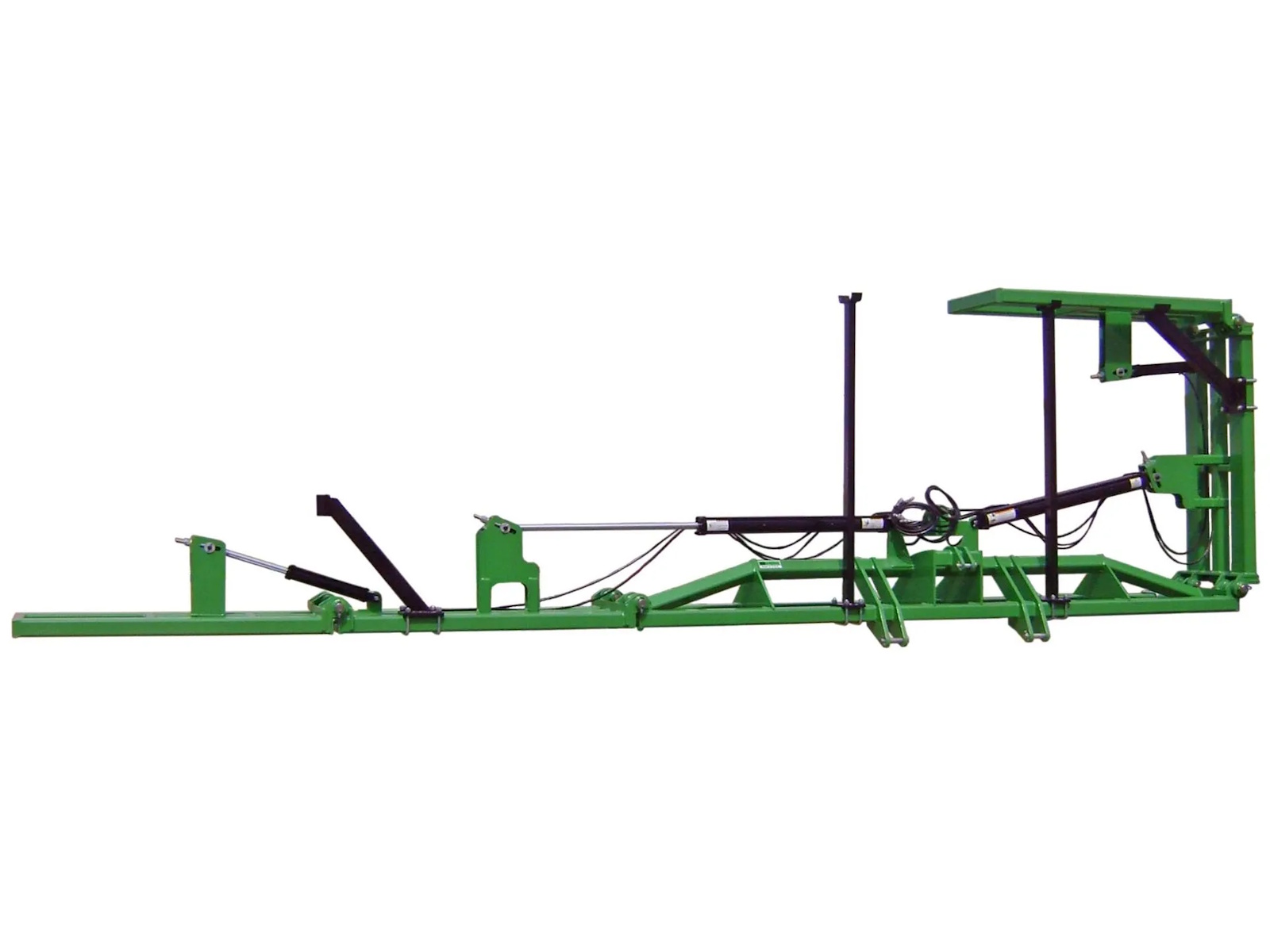

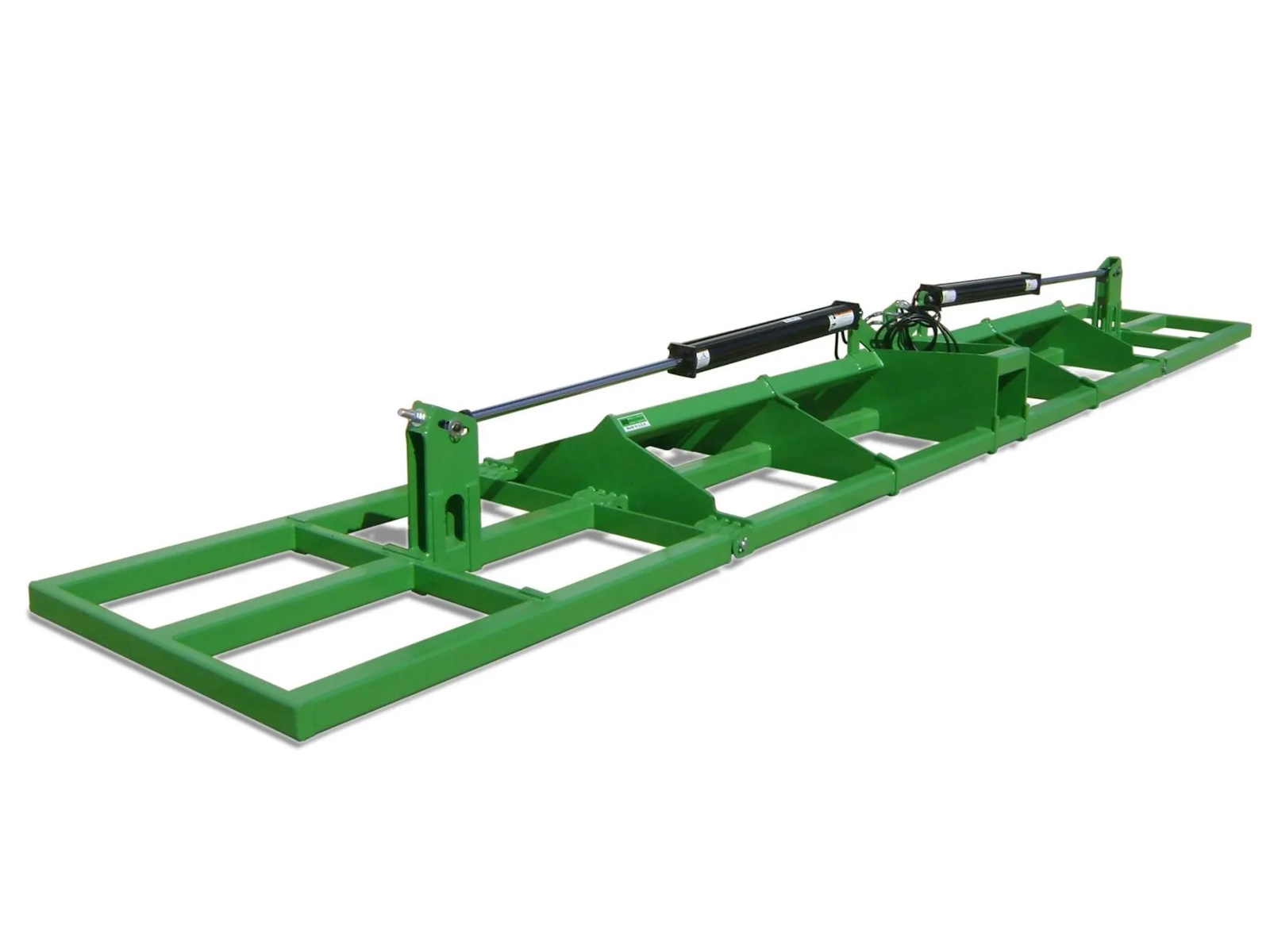

• 4 x 48″ Hydraulic cylinder provides capacity to lift any wing load with reduced operating pressure. Wings fold up and cylinder locks into closed position for positive transport.

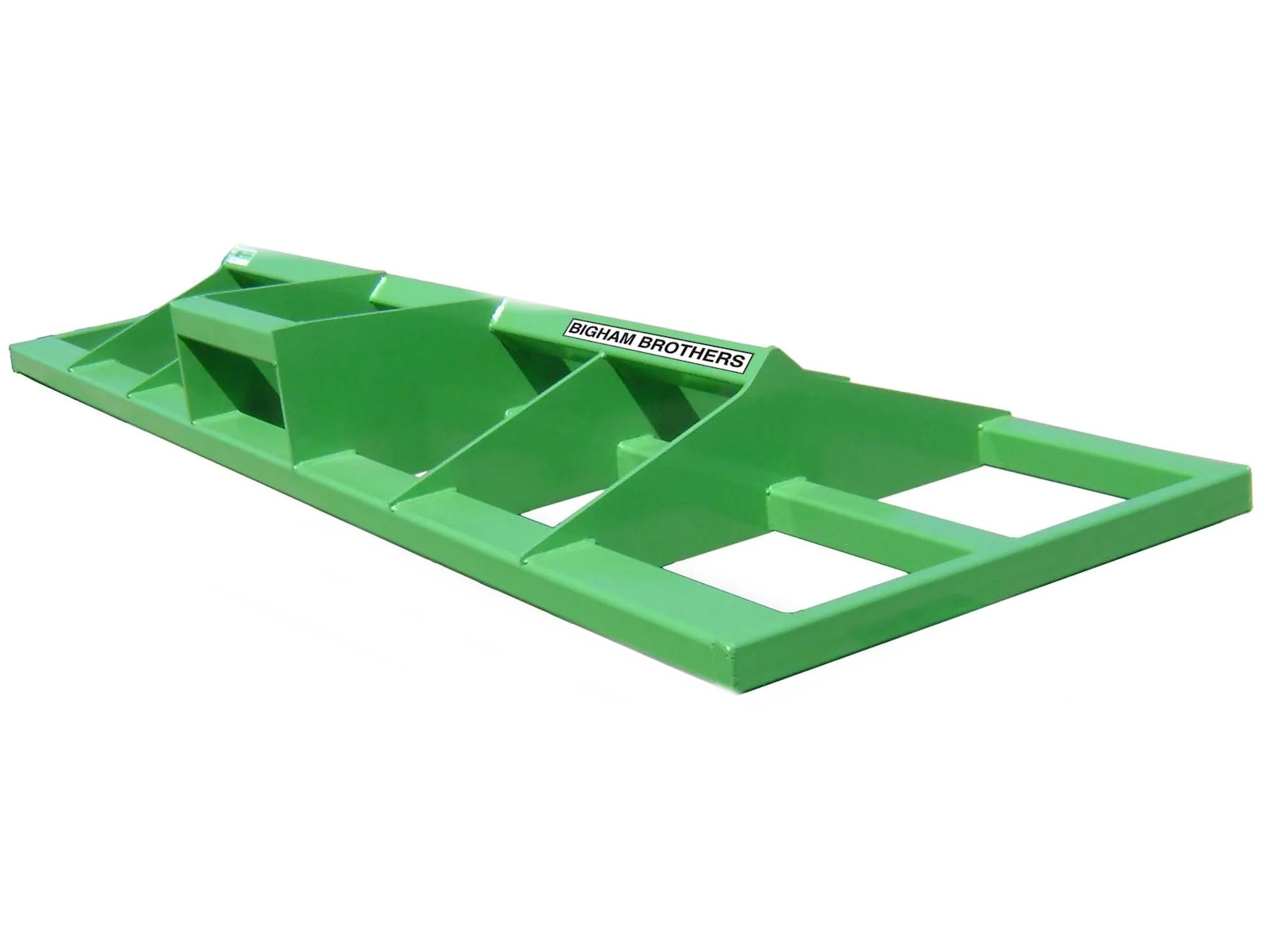

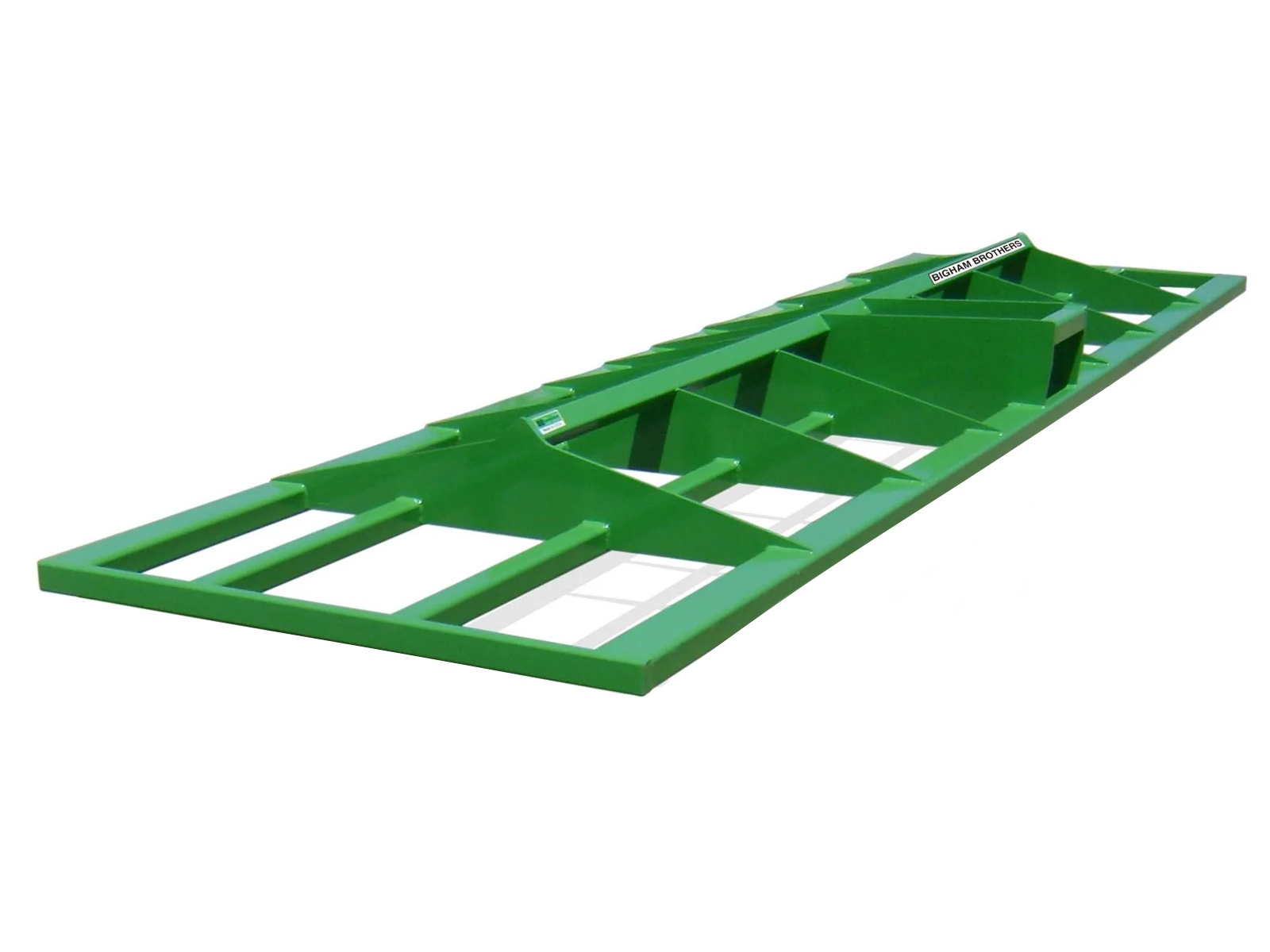

• Diamond mast design is enhanced by one piece stringer plates (braces) cut from solid 5/8″ plate. This design also centers cylinder and lifting lug between the bars of the wing. All tool bars are welded using pulse arc technology to minimize cracks near welds.
• Heavy duty in-line hinge incorporates 14 hinge ears per side on the double bar frame. (21 per side on triple bar frames.) Ears are cut from 1″ plate. Hinge pins are a full 1-7/16″ in diameter.
• Heavy duty hinge with 2” hinge pin sets hinge above the tool bar and allows a degree of fold over center.
