2026 Amazone ZG-TS 10001 ProfisPro

2026 Amazone ZG-TS 10001 ProfisPro

ZG-TS trailed spreader

High outputs with precise results
Highly efficient on a large scale – and yet precise right up to the field boundary. This is the only way to achieve professional fertilisation with high work rates whilst avoiding over-fertilisation and thereby protecting the environment at the same time. The ZA-TS and ZG-TS from AMAZONE meet these current fertilisation challenges with ease thanks to the innovative TS spreading system. Fertiliser is applied reliably, even in windy conditions, or when the fertiliser quality is poor. Up to 54 m working width, with hopper capacities of up to 10,000 litres, precise right up to the border. Pure precision from one spreading unit.
This is how the best in fertilisation works.

Product overview

Your benefits at a glance

High performance!

Highly efficient and intelligent
Precise spread patterns with working widths of up to 54 m and application rates of 650 kg/min

Precise!

AutoTS and BorderTS border spreading Systems
Proven precision, maximum yield at the field boundary

ProfisPro rate calibration
Absolutely accurate application rates from the very first second irrespective of the side

HeadlandControl headland optimisation
Uniform yield across the headland with optimised Section Control tailored to the shape of the spread fan

Intelligent!

WindControl
Windless conditions at the touch of a button to compensate for the effect of wind on the lateral Distribution

ArgusTwin
Permanent spread fan monitoring for optimum lateral Distribution under any conditions

The TS spreading system – Perfection in every component, just like clockwork

Characteristics of the TS spreading system

Delivery system adjustment of the TS spreading system

• Intelligent agitator for maximum fertiliser protection
• Electric setting motor for rotating the delivery system
• Delivery system for implementing the Section Control, HeadlandControl, WindControl, ArgusTwin functions
• Electric setting motor for precise fertiliser metering with application rates from 3 kg/min to 650 kg/min

Bottom assembly of the TS spreading system

• Electric setting motor for adjusting the carrier vane
• AutoTS gearbox, the heart of the integrated border spreading system
• Comfortable changeover between border and normal spreading by moving the carrier vane
• Short spreading vane for side, border and water course spreading
• Long normal spreading vane for high throwing widths and double overlap, even at a working width of 36 m

TS spreading disc

• TS spreading disc made of stainless steel, with easily exchangeable spreading vane sets TS 10, TS 20 and TS 30 for working widths from 15 to 54 m

Ultra-quick and precise! Electric actuators for the delivery system
The TS spreaders open up new dimensions in terms of maximum application rates, forward speeds and precision. To achieve this, they are equipped with an excellent delivery system with quick-reacting, precision actuators. Particularly in applications such as the automatic switch-on and switch-off at the headland or in wedge-shaped fields, spreading with application maps or via continuous on-board monitoring (ArgusTwin and WindControl), the delivery system guarantees the job is done at the highest level.

Concentric delivery point adjustment
The concentric rotation of the delivery system around the centre of the disc allows precise adjustment to various working widths and fertiliser types while protecting the fertiliser from shatter by placing it close to the centre of the spreading disc.

Quantity effect-free metering aperture
Due to the kidney-shaped design of the metering aperture, the spread pattern remains unchanged and precise, even at varying forward speeds and rates. This means that the position of the delivery system does not require constant adjustment.

The benefits of electric agitation

• two slow-running, fertiliser-protecting agitators; turning at just 60 rpm
• that switch off automatically as soon as the shutter slide is closed, also just to the one side and independently of each other
• that reverse automatically when blocked by a foreign object
• active delivery of the fertiliser flow to the aperture

The electric agitator with a brush unit ensures a continuous, precise fertiliser flow onto the spreading disc.

The TS spreading discs: For the utmost precision at all spreading widths up to 54 m

Spreading system made from stainless steel – For a long service life

On the TS spreaders, the entire spreading system is made from stainless steel providing a long service life.

The different spreading vane sets can be quickly and easily exchanged using an interchangeable system. The perfect solution, e.g. for agricultural contractors.

Between normal spreading and border spreading, different spreading vanes are activated via the so-called AutoTS system without the necessity to change spreading disc settings.

Hard-faced spreading vanes

The spreading vanes are coated with a special long-lasting anti-wear protection. Consequently, the result is a three-fold increase in lifespan.

Optimum working width ranges of the spreading vane sets, depending on the fertiliser being spread:

• TS 10 = 15 m – max. 27 m
• TS 20 = 21 m – max. 33 m
• TS 30 = 24 m – max. 54 m

Weighing system | Automatic rate control

ProfisPro weighing system with torque measuring

Profis – Intelligent weighing system
With the frame-integrated Profis weighing system, the hopper and its frame are connected to a separate chassis via two 200 Hz weigh cells on the ZA-TS or via four weigh cells with the ZG-TS. Thus, there are no weight measuring points which are influenced by the traction forces of the tractor. Precise online weighing every 25 kg is the result! An additional tilt sensor is fitted to compensate for the inclination of the machine on slopes. In the case of the ZG-TS, the signal is also used to counter-steer on slopes via the steering axle to prevent the ZG-TS from drifting downhill.

Optimised spread rate from the very first second
This combination of the Profis weighing system and FlowControl enables the fertiliser spreader to use torque to regulate its theoretical application rate throughout the complete spreading process. The Profis weighing system monitors the actual spread rate every 25 kg. This allows FlowControl to recalibrate itself at regular intervals. This takes place without any need to stop. The ProfisPro intelligent weighing system means that the spread rate is optimised from the very first second of the spreading process. In addition, the driver has an overview of the actual quantity remaining in the hopper at all times as well as the possibility to display the remaining distance to travel until empty.

The benefits

• Absolute precision from the very first second
• Side-independent calibration of the application rate in any field situation
• Highest precision through simultaneous monitoring of the weighing system and the torque measurement
• Detection of running empty and any blockages
• Accurate weight recognition with indication of the quantity remaining and the remaining area
• Documentation of the total amount applied
• Additional features for ZG-TS: control of the steering axle on hilly terrain and load-dependent braking force control

Intelligent fill level management

The extremely clever Profis weighing system goes into action with its intelligent fill level management right from the loading stage. Without the use of an external scale, the system gives precise information about the load condition at all times, thus preventing overloading and empty travelling. Profis also sets standards as a filling aid as well as through the continuous measurement of the hopper contents.

The filling process can be optimally monitored via the large, easily accessible platform.

The benefits

• Intelligent filling aid
• Reliable fill level measurements even without using an external weighing system
• Avoidance of unnecessary empty travelling and excessive residues

Filling aid

Operators will particularly love the filling aid provided by the work lights and the Profis weighing system. Initial flashing followed by the constant lighting up of the work lights signals that the fill level has been reached. A second person, or the frequent dismounting for checking, are no longer necessary.

ZG-TS – Fertiliser hopper in 7,500 or 5,000 litres

Advantages of the ZG-TS:

• Maximum precision during normal spreading and border spreading, regardless of external influences such as wind, hilly terrain or varying fertiliser properties
• Reduction of the load on the axle through optimum weight distribution

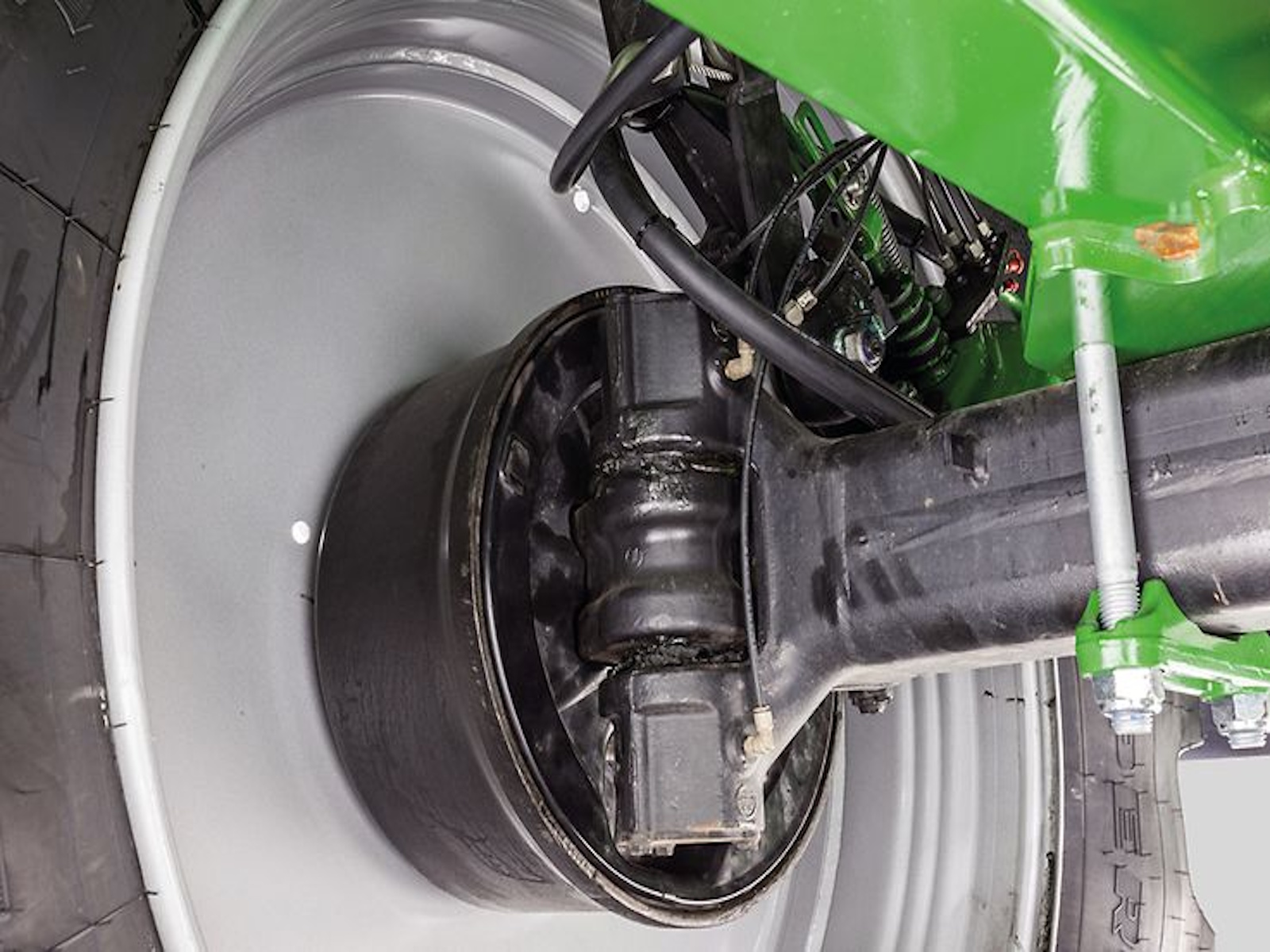

• True track-following thanks to a steering axle with a steering angle of up to 28°
• Highly efficient fertilisation with maximum area coverage

Optimally balanced - ZG-TS fertiliser hopper

A huge output
With hopper capacities of 7,500 l and 10,000 l, the ZG-TS models are especially efficient and ideal for large farms which attach particular importance to high precision. Thanks to their size, valuable travelling and loading times are saved. Due to the large hopper opening, the loading procedure can also be carried out very comfortably via a front end loader or from a bulk filling system. The belt floor, automatically centred to the middle, ensures the optimum material flow.

Advantages of the base hopper

• Low hopper centre of gravity
• Low filling height
• Large fill opening
• Low wear rubber floor belt
• Automatic belt floor centralisation

Precise metering and automatic pre-chamber filling

• Precise metering
  After the pre-chamber, the fertiliser is metered by means of the shutter slides in the exactly the same way as on the mounted spreaders.
• Automatic pre-chamber filling
  An endless floor belt for conveying the fertiliser is provided along the bottom of the hopper. This automatically fills the pre-chamber during the spreading operation.

Optimum load distribution

The floor belt rises by 5 degrees which enables a weight transfer from the back to the front. This guarantees optimum load distribution during spreading. Maximum drawbar load and reduced axle loads enable safe driving in the field under all operating conditions.

Benefits of the hopper design

• Optimum material flow even in sloping terrain
• Simple cleaning procedure
• Generous space for the axle steering
• Optimum weight distribution
• High ground clearance

The best of both worlds - KTL cathodic dip-paint coating combined with powder coating

High-quality, multi-layer paint finish

The paintwork on a fertiliser spreader is exposed to particular demands. The paintwork is intended to protect the spreader from corrosion, especially when handling fertiliser and where moisture is involved. Starting with the 2022 model year, there is a new painting process for the ZA-V, ZA-TS and ZG-TS fertiliser spreader ranges. This involves, on the one hand, a cathodic dip painting process (known as KTL) for priming to give the best possible protection on the internal surfaces of tubes and box sections and, on the other hand, a powder coating process to create a high-quality visual finish with extra-thick paint providing increased protection against mechanical demands.

7 year manufacturer’s guarantee

Based on this optimum painting process, AMAZONE is able to offer its customers a manufacturer guarantee of seven years against rusting through, starting with the 2022 model year. From 01/01/2023, customers can apply to have the guarantee activated for ZA-V, ZA-TS, and ZG-TS models, starting from the 2022 model year. This registration is done very simply via the

manufacturer’s portal, myAmazone, bearing in mind the terms and conditions (www.amazone.net/7-years) stated there. After registration, one can continue to work without any worries.

The benefits

• Cathodic dip painting process
  • Suppression of rust infiltration
  • Best possible protection, even on the inner surfaces of tubes and box sections
• Powder coated top coat
  • Double protection through additionally applied powder coating
  • Improved resistance against everyday wear and tear
• Quality and reliability
  • All the components on the spreading system and all hydraulic fittings are made from stainless steel
  • Impact, UV and chemical resistant plastic sieves

High-quality multi-layer paint finish – the most modern from all angles:

• 14-step paint preparation (e.g. degreasing)
• Zinc phosphating provides the most effective counteraction of rust formation
• Thick cathodic dip priming for full corrosion protection, even in cavities and those hard-to-reach areas
• Powder coating for a high-quality appearance and extra thick paint for increased protection against mechanical demands

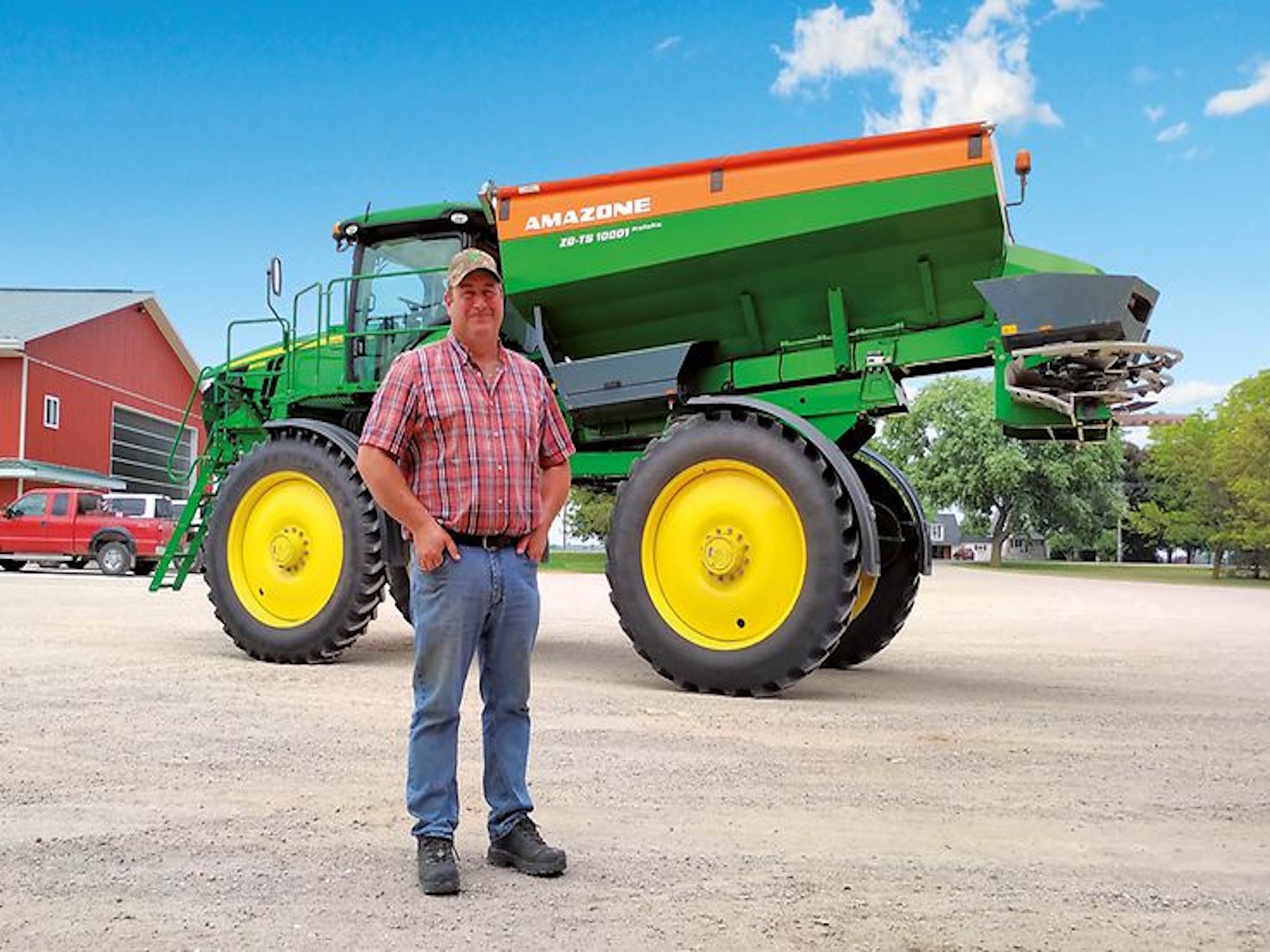

ZG-TS Truck – Precision combined with the advantages of the carrier vehicle

More efficiency and flexibility
The ZG-TS Truck mounted spreader is the ideal solution for contractors and farms which have to quickly cover large distances between the field and yard. In addition, the spreaders can be used on a carrier vehicles with larger ground clearances and track widths, so that the range of application is increased. The work rates can also be considerably increased with a self-propelled machine. Since the ZG-TS Truck is also supplied as a mounted spreader with the intelligent ProfisPro, WindControl and ArgusTwin systems, it also sets new standards in the self-propelled machine segment as far as precision is concerned.

Advantages of the ZG-TS Truck

• Better manoeuvrability in the yard and in the field
• More efficiency on the road thanks to higher transport speeds
• Benefits of the carrying vehicle, such as, larger ground clearance and track widths
• Optimum centre of gravity by emptying from back to front
