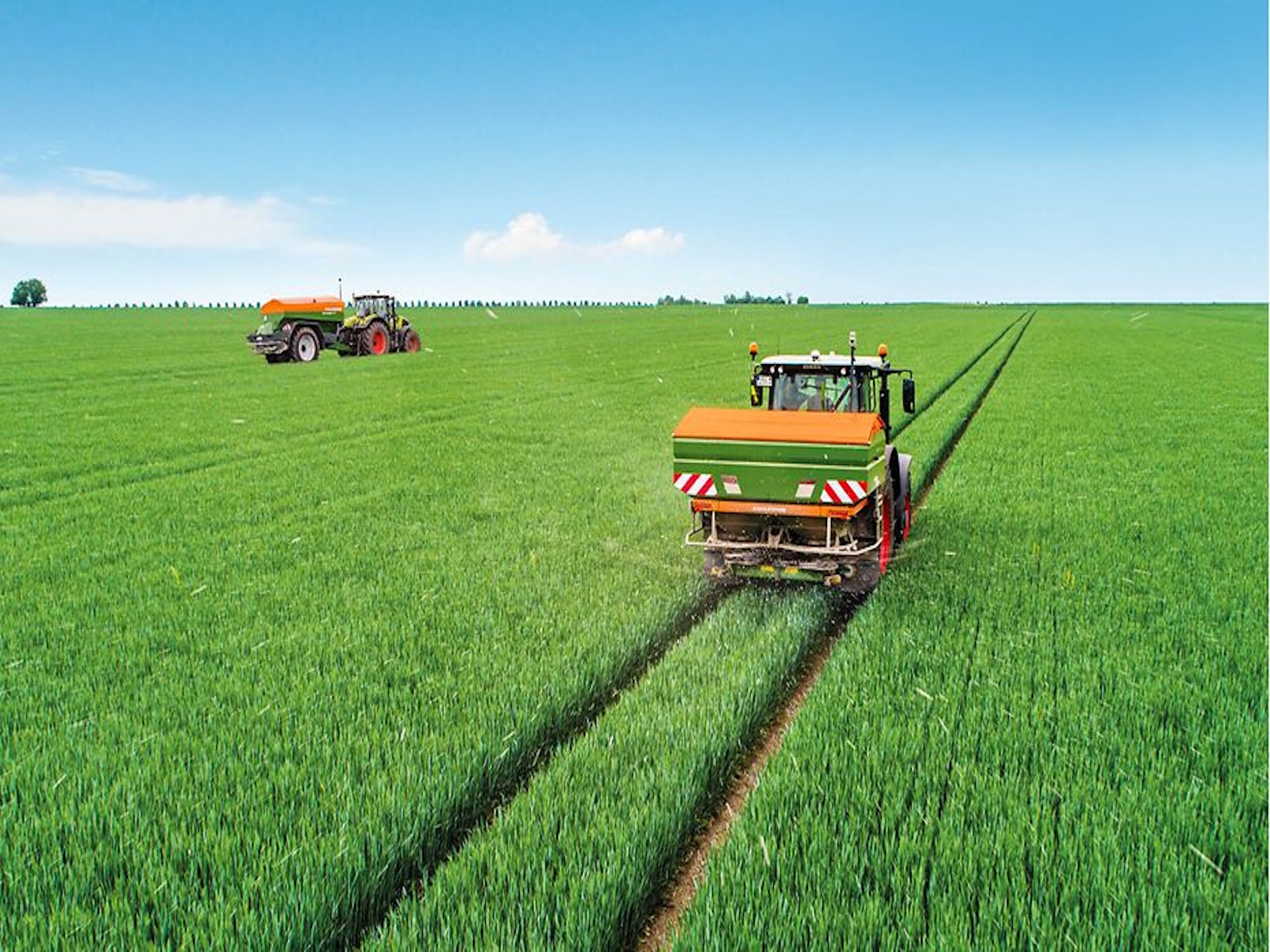

ZA-TS mounted spreader

High outputs with precise results
Highly efficient on a large scale – and yet precise right up to the field boundary. This is the only way to achieve professional fertilisation with high work rates whilst avoiding over-fertilisation and thereby protecting the environment at the same time. The ZA-TS and ZG-TS from AMAZONE meet these current fertilisation challenges with ease thanks to the innovative TS spreading system. Fertiliser is applied reliably, even in windy conditions, or when the fertiliser quality is poor. Up to 54 m working width, with hopper capacities of up to 10,000 litres, precise right up to the border. Pure precision from one spreading unit.
This is how the best in fertilisation works.

Product overview

Your benefits at a glance

High performance!

Highly efficient and intelligent
Precise spread patterns with working widths of up to 54 m and application rates of 650 kg/min

Precise!

AutoTS and BorderTS border spreading Systems
Proven precision, maximum yield at the field boundary

ProfisPro rate calibration
Absolutely accurate application rates from the very first second irrespective of the side

HeadlandControl headland optimisation
Uniform yield across the headland with optimised Section Control tailored to the shape of the spread fan

Intelligent!

WindControl
Windless conditions at the touch of a button to compensate for the effect of wind on the lateral Distribution

ArgusTwin
Permanent spread fan monitoring for optimum lateral Distribution under any conditions

The TS spreading system – Perfection in every component, just like clockwork

Characteristics of the TS spreading system

Delivery system adjustment of the TS spreading system

• Intelligent agitator for maximum fertiliser protection
• Electric setting motor for rotating the delivery system
• Delivery system for implementing the Section Control, HeadlandControl, WindControl, ArgusTwin functions
• Electric setting motor for precise fertiliser metering with application rates from 3 kg/min to 650 kg/min

Bottom assembly of the TS spreading system

• Electric setting motor for adjusting the carrier vane
• AutoTS gearbox, the heart of the integrated border spreading system
• Comfortable changeover between border and normal spreading by moving the carrier vane
• Short spreading vane for side, border and water course spreading
• Long normal spreading vane for high throwing widths and double overlap, even at a working width of 36 m

TS spreading disc

• TS spreading disc made of stainless steel, with easily exchangeable spreading vane sets TS 10, TS 20 and TS 30 for working widths from 15 to 54 m

Ultra-quick and precise! Electric actuators for the delivery system
The TS spreaders open up new dimensions in terms of maximum application rates, forward speeds and precision. To achieve this, they are equipped with an excellent delivery system with quick-reacting, precision actuators. Particularly in applications such as the automatic switch-on and switch-off at the headland or in wedge-shaped fields, spreading with application maps or via continuous on-board monitoring (ArgusTwin and WindControl), the delivery system guarantees the job is done at the highest level.

Concentric delivery point adjustment
The concentric rotation of the delivery system around the centre of the disc allows precise adjustment to various working widths and fertiliser types while protecting the fertiliser from shatter by placing it close to the centre of the spreading disc.

Quantity effect-free metering aperture
Due to the kidney-shaped design of the metering aperture, the spread pattern remains unchanged and precise, even at varying forward speeds and rates. This means that the position of the delivery system does not require constant adjustment.

The benefits of electric agitation

• two slow-running, fertiliser-protecting agitators; turning at just 60 rpm
• that switch off automatically as soon as the shutter slide is closed, also just to the one side and independently of each other
• that reverse automatically when blocked by a foreign object
• active delivery of the fertiliser flow to the aperture

The electric agitator with a brush unit ensures a continuous, precise fertiliser flow onto the spreading disc.

The TS spreading discs: For the utmost precision at all spreading widths up to 54 m

Spreading system made from stainless steel – For a long service life

On the TS spreaders, the entire spreading system is made from stainless steel providing a long service life.

The different spreading vane sets can be quickly and easily exchanged using an interchangeable system. The perfect solution, e.g. for agricultural contractors.

Between normal spreading and border spreading, different spreading vanes are activated via the so-called AutoTS system without the necessity to change spreading disc settings.

Hard-faced spreading vanes

The spreading vanes are coated with a special long-lasting anti-wear protection. Consequently, the result is a three-fold increase in lifespan.

Optimum working width ranges of the spreading vane sets, depending on the fertiliser being spread:

• TS 10 = 15 m – max. 27 m
• TS 20 = 21 m – max. 33 m
• TS 30 = 24 m – max. 54 m

Border spreading systems

AutoTS – The disc-integrated border spreading system

AutoTS – Comfortable adjustment and precise lateral distribution right up to the field boundary
The disc-integrated AutoTS border spreading system, enables the comfortable activation of the different border spreading techniques – side, border or watercourse spreading – via the terminal in the tractor cab irrespective of the side.

The ingenious operating principle of AutoTS
A setting motor twists the carrier vane forwards by approximately 10 °, so that the fertiliser is delivered via the shorter border spreading vanes when border or watercourse spreading. Due to the combination of disc speed and a shorter vane, the fertiliser is thrown over a significant shorter distance without affecting it mechanically.

Effective and precise – spread only where the fertiliser will benefit plants

Side spreading (yield-oriented setting)

The adjacent field is an area which is used agriculturally. In this case it is tolerable for a small quantity of fertiliser to be thrown over the field boundary. The full target rate is applied right up to the field boundary.

Border spreading (environmentally oriented setting)
If the field is next to a road or a cycle path, no fertiliser may be thrown beyond the field boundary. In this case, the throwing distance is adjusted in combination with the shutter slide.

Water course spreading (environmentally oriented setting)
If there is a body of water directly at the edge of the field, a defined distance to the water must be maintained when fertilising according to the fertiliser regulations. For this purpose, the throwing distance is further reduced in combination with the shutter slide.

ZA-TS – Fertiliser hopper in 1,400 to 5,000 litres

Advantages of the ZA-TS:

• Maximum precision during normal spreading and border spreading, regardless of external influences such as wind, hilly terrain or varying fertiliser properties
• Quick exchange of spreading vanes for flexible working widths
• User-friendly operation thanks to comprehensive software solutions for the spreader over and above the ISOBUS standard
• Precise fertilisation with high efficiency

Optimum hopper profile - ZA-TS fertiliser hopper

The deep-drawn hopper
The base hopper has a capacity of 700 l. It is deep-drawn, meaning that it does not have any corners, edges or welded seams. This provides a continual and even flow of the fertiliser. Also the cleaning of the spreader is made easy thanks to this design. The available hopper extensions allow for total volumes of up to 5,000 litres.

The benefits of the design

• No edges and weld seams, one-piece hopper
• Optimum fertiliser flow, consistent passage
• No residues
• Open frame structure facilitates easy cleaning
• Electronic components protected in the box section frame

Hopper extensions

For the ZA-TS, the following frames are available:

• Super frame: 3,200 kg payload, Cat. 2 linkage
• Ultra frame: 4,500 kg payload, Cat. 3 linkage

The benefits

• lightweight frame design with excellent rigidity
• optimised centre of gravity and yet plenty of space for hitching up
