2026 Amazone UX 6201 Super
Get in Touch
Description
2026 Amazone UX 6201 Super

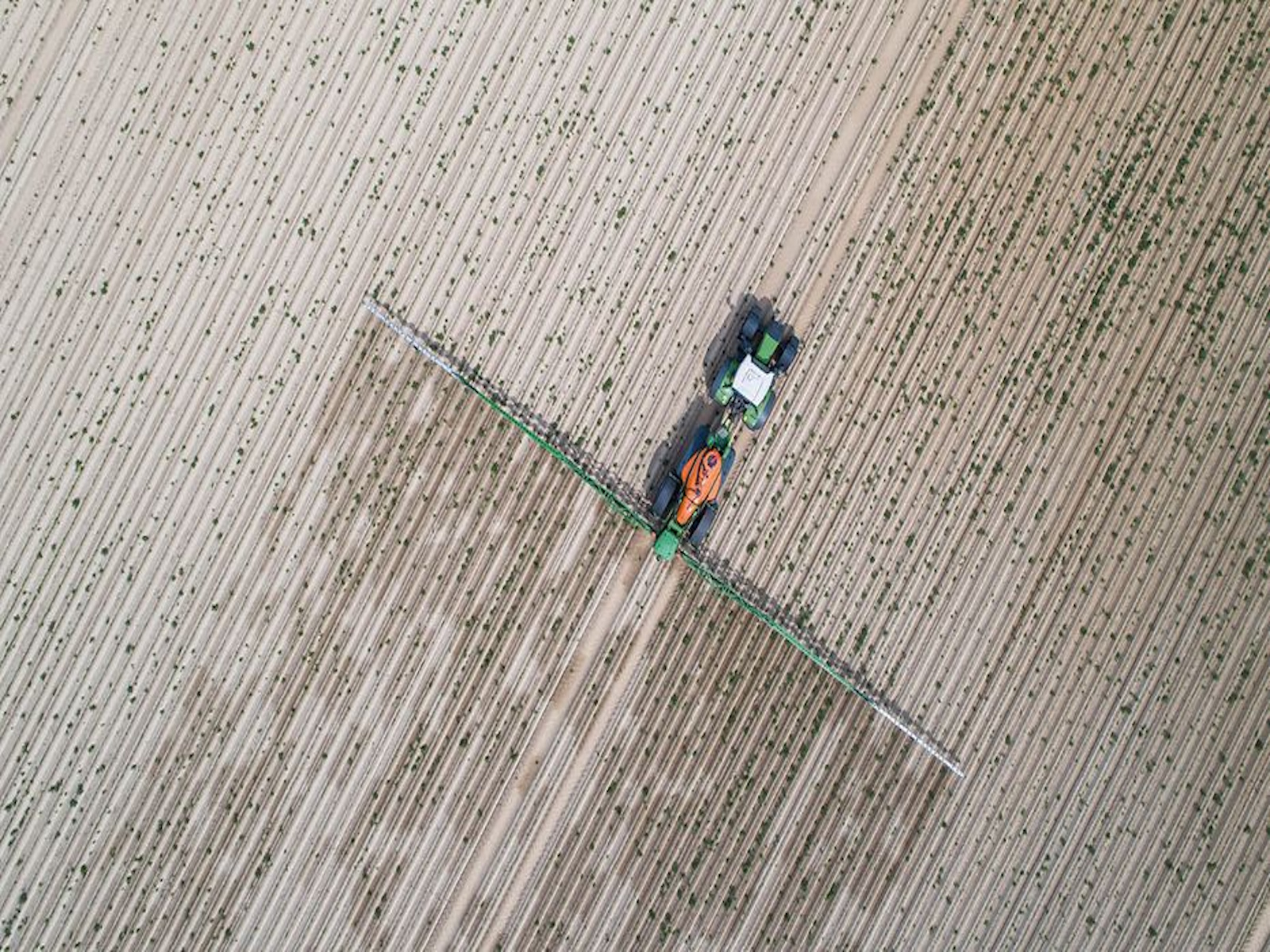

UX Super trailed sprayer
The UX Super trailed sprayer with tank capacities from 4,200 l to 11,200 l is distinguished by its extremely user-friendly operating concept. The Super-L2 and Super-L3 booms are available in widths from 21 to 48 m and stand out on account of their first-class boom guidance. Thanks to the level of high-performance equipment offered, the UX Super trailed sprayer ensures maximum efficiency at an unprecedented output.
Product overview
Your benefits at a glance
Precise!
Precise and resource-saving plant protection treatment with part-width section control or individual nozzle control for minimal overlapping in wedge-shaped fields, uniform application on bends, band spraying or small-area spot application. DistanceControl automatic boom guidance and ContourControl with SwingStop or SwingStop plus prevent over-application and under-application by ensuring an extremely smooth boom ride, even in difficult terrain and at high application speeds.
User-friendly!
The SmartCenter operator station with a high-capacity induction bowl and 7-way pressure tap or touch terminal for intuitive and safe
operation. Automatic cleaning programmes for perfect cleaning results under all conditions.
High performance!
High-capacity, self-priming and low-maintenance piston diaphragm pumps with a total delivery capacity of up to 700 l/min guarantee minimal filling times and also enable high application rates of up to 400 l/min at high spray pressures. Both the DUS and DUS pro pressure recirculation systems guarantee reliable circulation and an even application of the spray agent across the entire boom width from the very first metre.
Info
Industry
Agriculture
Make
Amazone
Model
UX 6201 Super
Trim
Base
Year
2026
MSRP
N/A
Category
Sprayers
Subcategory
General
Specs
Notes
max. working pressure (bar): 10 | Underbelly covers: Option | External wash kit: Option | Automatic slope compensation: Standard in conjunction with AutoTrail axle steering | Axle steering: AutoTrail axle steering only in conjunction with steered axle | ALB: Standard in conjunction with a pneumatic braking system | Braking systems: Hydraulic braking system / pneumatic braking system – depending on national regulations! | Max. tyre size (diameter): 620/70 R46 (Ø 2,050 mm) | Min. tyre size (diameter): 480/80 R46 (Ø 1,936 mm) | Axle suspension, active – hydro-pneumatic: Option | Axles: steered up to 28° – 2,100 mm | Towing eyes: Option | Parking jack: hydraulic | Drawbar shock absorbance system: Standard | Hitch drawbar – lower mounted: rigid | Straight drawbar – top mounted: rigid | Max. flow rate when spraying with HighFlow+: 400 l/min (at a spray pressure of 1 to 10 bar) only with Comfort-Pack or Comfort-Pack plus | Max. flow rate when spraying – standard: 200 l/min (at a spray pressure of 1 to 10 bar | Pump drive: mechanical or hydraulic | Pump capacity: 520 l/min (260 + 260) | Suction rate of induction bowl: 200 l / min | Induction bowl capacity: 60 l with large storage space, rinse ring, canister rinse nozzle, mixing nozzle and hand lance | Storage compartment: 240 l | Xtreme-Clean: only with Comfort-Pack or Comfort-Pack plus | DirectInject: only with Comfort-Pack plus | Nominal tank capacity: 6,200 l | Actual tank capacity: 6,560 l | Fresh water tank capacity: 580 l | Internal tank cleaning system: Standard | SmartCenter: Standard-Pack | SmartCenter: Comfort-Pack | SmartCenter: Comfort-Pack plus
Width
Track: 2.00 m – 2.25 m | Working: 21 m – 48 m
Height
Transport: 3.75 m – 3.90 m | Spraying: approx. 0.5 – 2.5 m depending on the tyres
Length
Transport: 7.05 m – 7.50 m
Weight
Unladen: 4,274 kg
