2026 Amazone UX 4200 Special

2026 Amazone UX 4200 Special

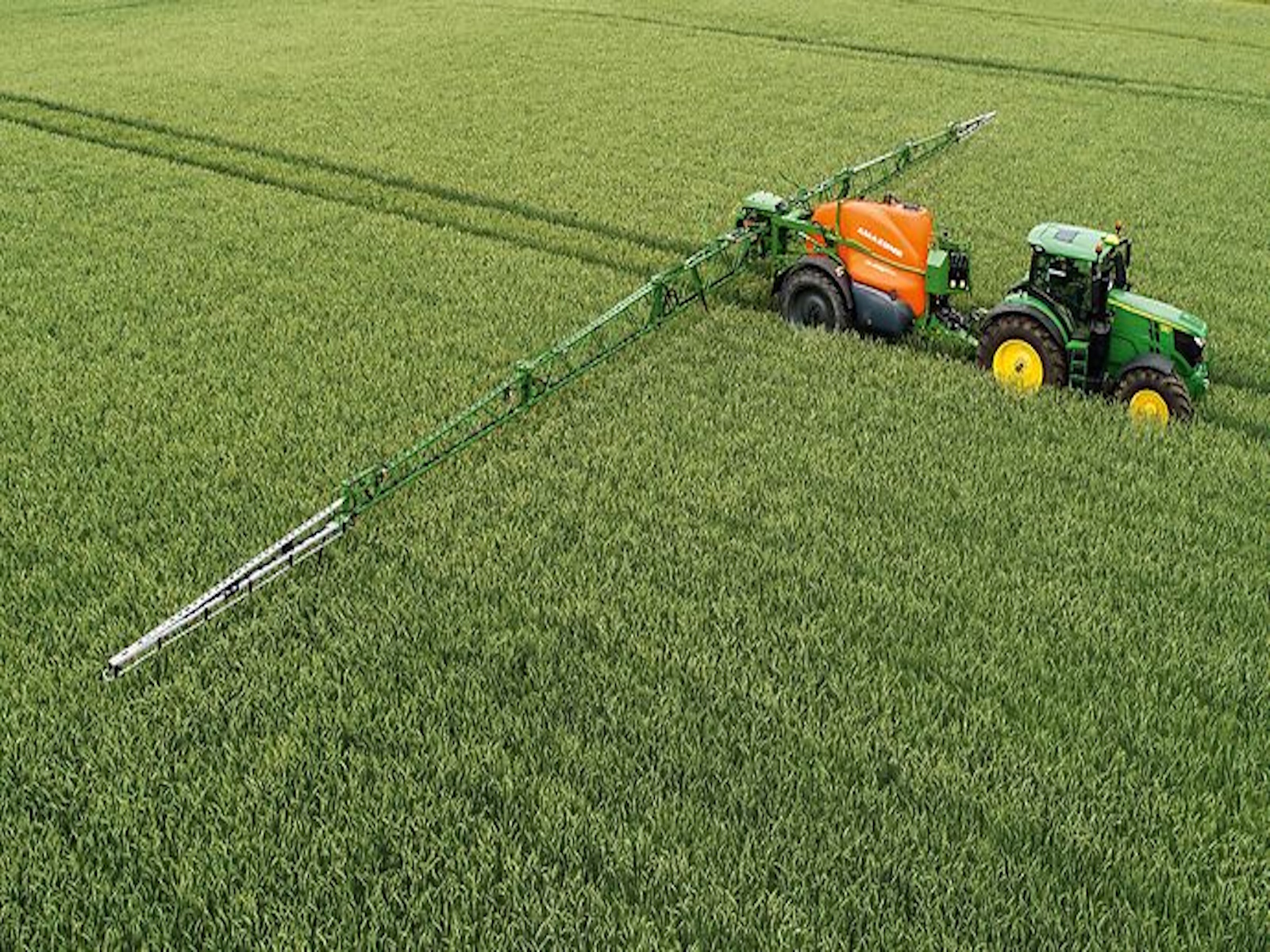

UX Special trailed sprayer

The UX Special trailed sprayer with tank capacities of 3,200, 4,200 and 5,200 litres is characterised above all by its dependable and user-friendly design. Boom widths from 15 to 36 m are possible with the Super-S2 or Super-L2 booms. The UX Special meets the highest demands for modern plant protection thanks to the extensive range of high-quality equipment options.

Product overview

Your benefits at a glance

• Low transport height and overall compact transport dimensions are achieved as a result of an innovative tank and boom construction
• Light, compact, easily manoeuvrable – compact design and drawbar steering or axle pivot steering with a steering angle up 20 degrees
• SmartCenter: Tailored control panels – from the easy-to-use Standard-Pack to the remotely-controlled panel with the Comfort-Pack
• High-performance induction bowl for minimum fill times and to ensure a homogeneous spray agent mix
• High-performance, self-priming, low maintenance piston diaphragm pump for large application rates, even at high spray pressures
• DistanceControl fully automatic boom guidance
• DUS or DUS pro pressure recirculation systems for continuous circulation of the spray agent
• 50 cm part-width sections and optimum nozzle choice thanks to the electric AmaSwitch plus and the AmaSelect individual nozzle controls
• Automatic cleaning cycles for optimum cleaning

The frame – strong and yet elastic!

The wide profile steel frame, made from torsion resistant steel, compact tank design and the well-engineered boom technology provide the utmost in robustness.

Hydraulic parking jack

The height adjustable parking jack integrated in the frame makes coupling to the tractor quick and easy with its convenient hydraulic height adjustment.

• Optional

Linking to the tractor – Just as you like it!

No matter whether using a rigid hitch drawbar with ball coupling or the classic towing eye, AMAZONE always offers the right solution for your tractor. Choose between top hitch or lower mounting, and between towing eyes with a diameter of 40 mm or 50 mm or the K80 ball point coupling.

Low centre of gravity

The design of the UX tanks along with the compact AMAZONE booms ensure a low centre of gravity and very compact transport dimensions. In addition, the boom is optimally protected via the sprung parallelogram boom frame, even when folded.

The tank

The compact spray agent tank, which is made from polyethylene, is especially secure, light and long lasting. The absolutely smooth inner and outer walls with rounded corners and no crannies allow quick and easy cleaning. Residual spray volumes are kept at a minimum due to the specific shape of the tank sump.

Benefits of the tank design

• Easy cleaning of the spray agent tank
• Very low residual spray volumes
• Low transport height
• Low centre of gravity

Stepless hydraulic main agitator

The intensity of the hydraulic agitator can, steplessly, be reduced down to nothing in order to avoid any foaming of the crop protection agent or to facilitate spraying out the remaining tank contents.

Cleaning devices

Three high-performance, rotating nozzles clean the spray agent tank internally. Short pipe runs and hose cross-sectional areas as small as possible make for low residual volumes.

High performance and reliable single pump system

The UX Special features a single pump system with a capacity of 260 l/min or 380 l/min. The pump is driven as standard via the wide-angle PTO shaft. During filling at its nominal speed, full pump capacity is available for filling the spray agent tank. At the same time, either the contents of the induction bowl can be drawn out via the venturi or the total fill capacity can be increased up to 400 or 500 l/min.

Benefits of a piston diaphragm pump:

• Simple handling due to its self-priming capability at the
• start of the filling procedure
• Very high, consistent application rates with system pressures of up to 10 bar
• Can run dry and is liquid-fertiliser proof
• Long service life

SmartCenter – Centralised operator station

The UX Special crop protection sprayer is equipped with the SmartCenter, a centralised and ergonomically designed operator station. All the operating elements with the induction bowl and the complete operator station together with fill ports for the suction and pressure filling are directly provided on the front left of the driver's side and are logically and unmistakably arranged.

Induction bowl and power injector

The high-performance induction bowl features a volume of 55 l and ensures the safe induction of crop protection agents. Active ingredients, in powder or granulated form, are reliably dissolved in the induction bowl with its integrated rinse ring that includes an additional nozzle, and can be quickly and simultaneously inducted with the venturi. The induction bowl is splash-proof and can be, when closed, internally cleaned.

Comfortable and thorough clean out with the induction bowl

For the comfortable cleaning of spray agent canisters and measuring jugs, the induction bowl provides a rotating nozzle. These make it possible to make full use of sticky spray agents and to rinse the spray agent canisters very thoroughly.

2" suction valve – suction capacity up to 500 l/min

• Self-cleaning pressure filter
• Control tap on the pressure side
• Rapid draining
• Agitation tap
• Suction filter
• Control tap on the suction side with Comfort-Pack

Comfort-Pack – for the in-cab control of the liquid system

Comfort-Pack on the UX Special controls the most important functions of the spray liquid system

• Automatic fill stop
• Agitator control
• Automatic, in-cab remote cleaning.

UX Special Comfort-Pack

The hydraulic agitator is switched off at low fill levels to prevent any foaming of the crop protection agent and also to minimise the residual spray volumes when spraying. The remaining spray agent is always returned to the suction filter via the return flow. In this way, any unintended dilution of the spray liquid is prevented. The in-cab controlled internal cleaning nozzles ensure a superb cleaning efficiency. The Comfort-Pack automatically ensures that the agitation will be rinsed.

Operationally safe suction and pressure filters

Both the suction and pressure filters are especially practical and operationally safe. The 32 mesh/cm² suction filter can be opened and cleaned without any loss of spray agent, even when the machine is full. The pressure filter on all UX sprayers is fitted as standard with either a 50 mesh/cm² or, as an option, 80 or 100 mesh/cm² inserts and is self-cleaning.

Fill level indicator

The standard manual fill level indicators for the spray agent and fresh water tanks are clearly visible down at the implement. An external digital fill level indicator is available as an option.
