UF 02 mounted sprayer

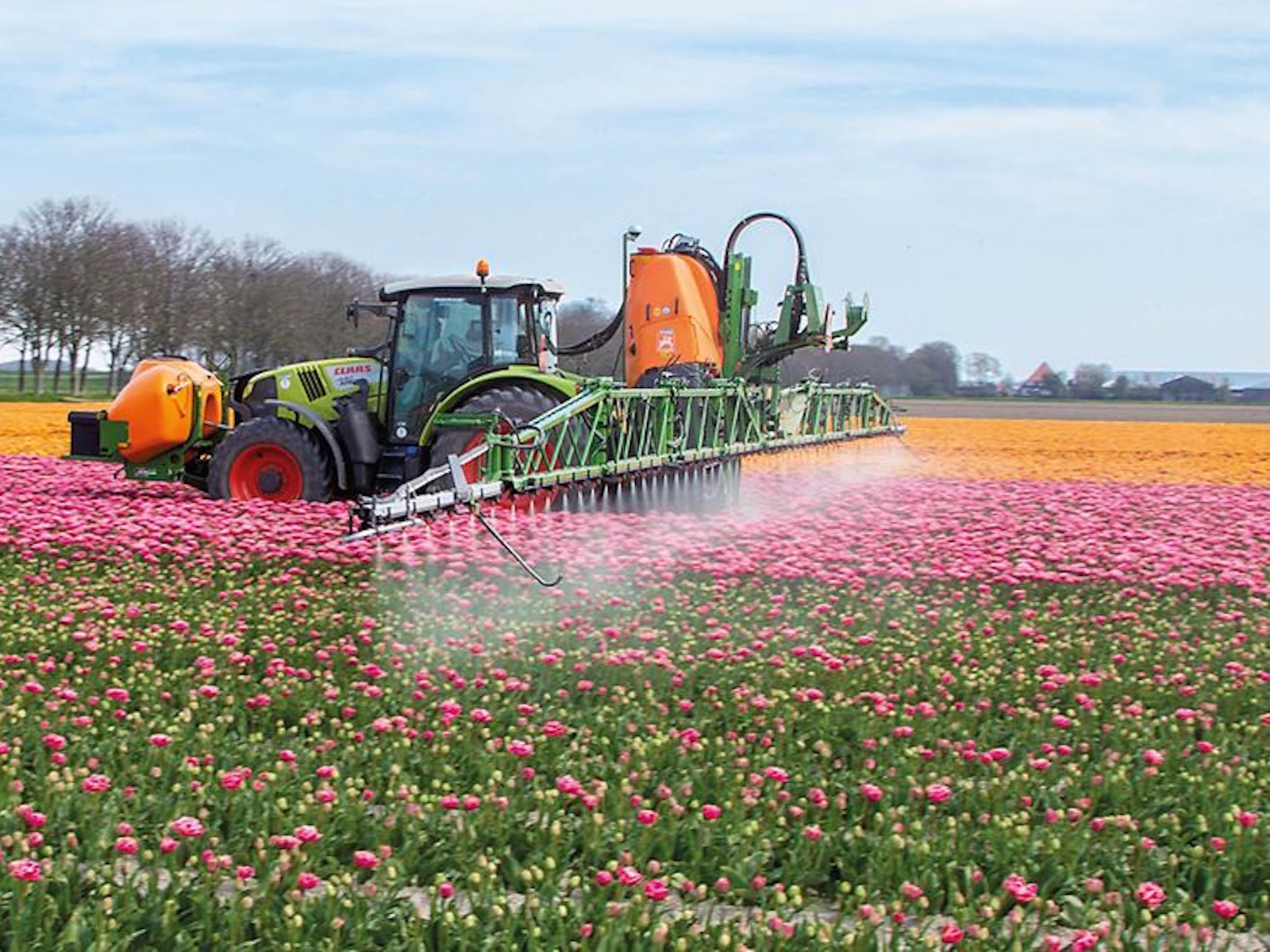

The UF 02 mounted sprayer is available in tank capacities from 1,000 to 2,000 litres and with booms in working widths from 12 to 30 metres. The UF 02 is outstanding in its compact design, as well as its simple, comfortable operation. In combination with the FT front tank, the tank capacity of the highly manoeuvrable, tractor-mounted combination can be increased to 3,500 litres. That sets the standards! The AMAZONE UF 01 mounted sprayer is available in smaller boom widths of 12 to 24 m and tank capacities of 900 or 1,200 l.

Product overview

Your benefits at a glance

• Lifting force optimised design with a favourable centre of gravity mounting
• Ingenious quick coupling system and convenient parking aid for easy mounting and demounting
• SmartCenter: tailored operating systems – from the intuitively operated Standard-Pack to the Comfort-Pack with TwinTerminal 3.0

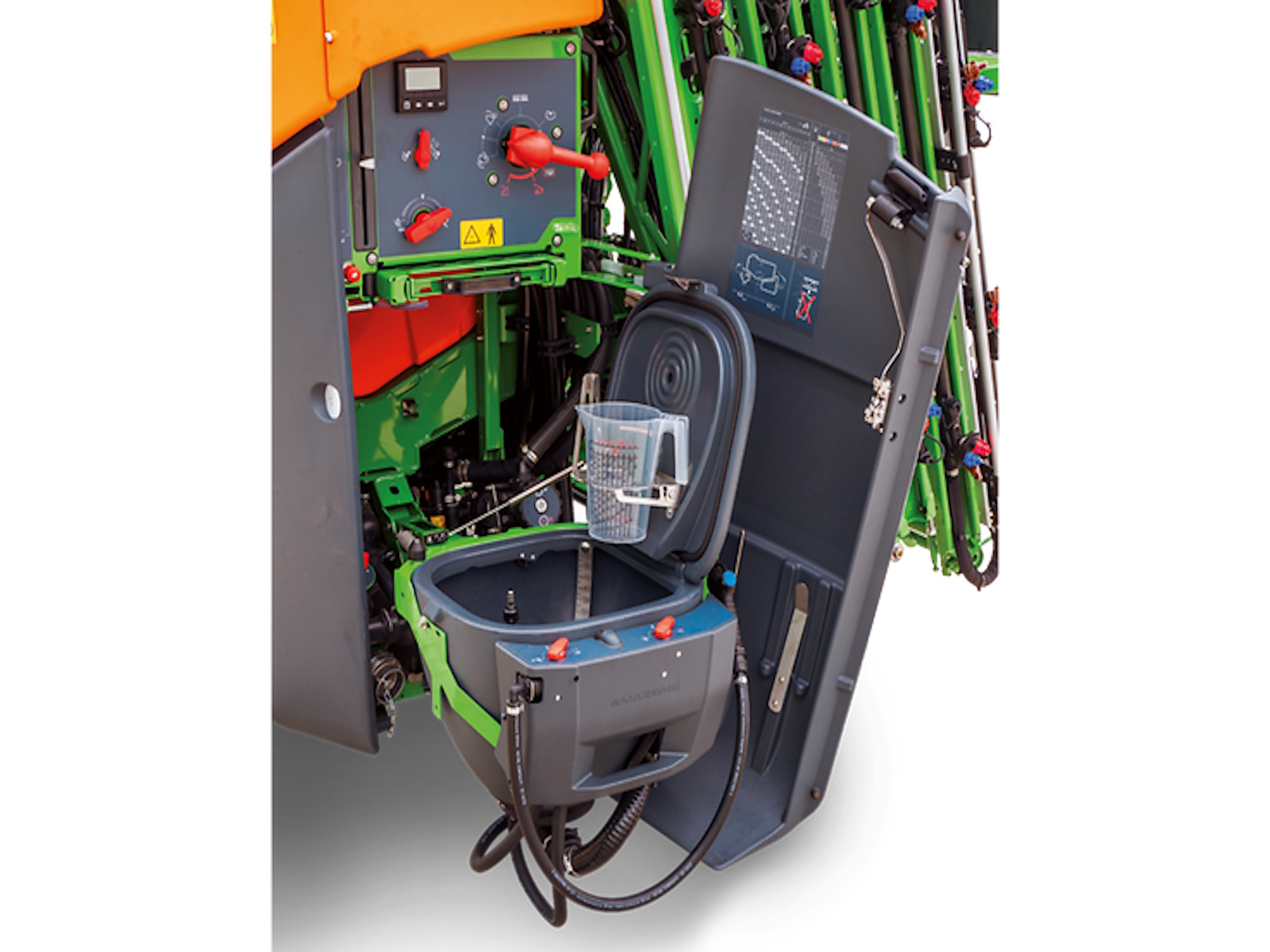

• High-performance 60 litre induction bowl and with a suction capacity of up to 150 l/min ensures the shortest possible fill times and homogeneous spray liquid mixing
• Outstanding, multi-facet spring suspension for a smooth boom ride
• DUS and DUS pro pressure recirculation systems for a continuous circulation of the spray liquid

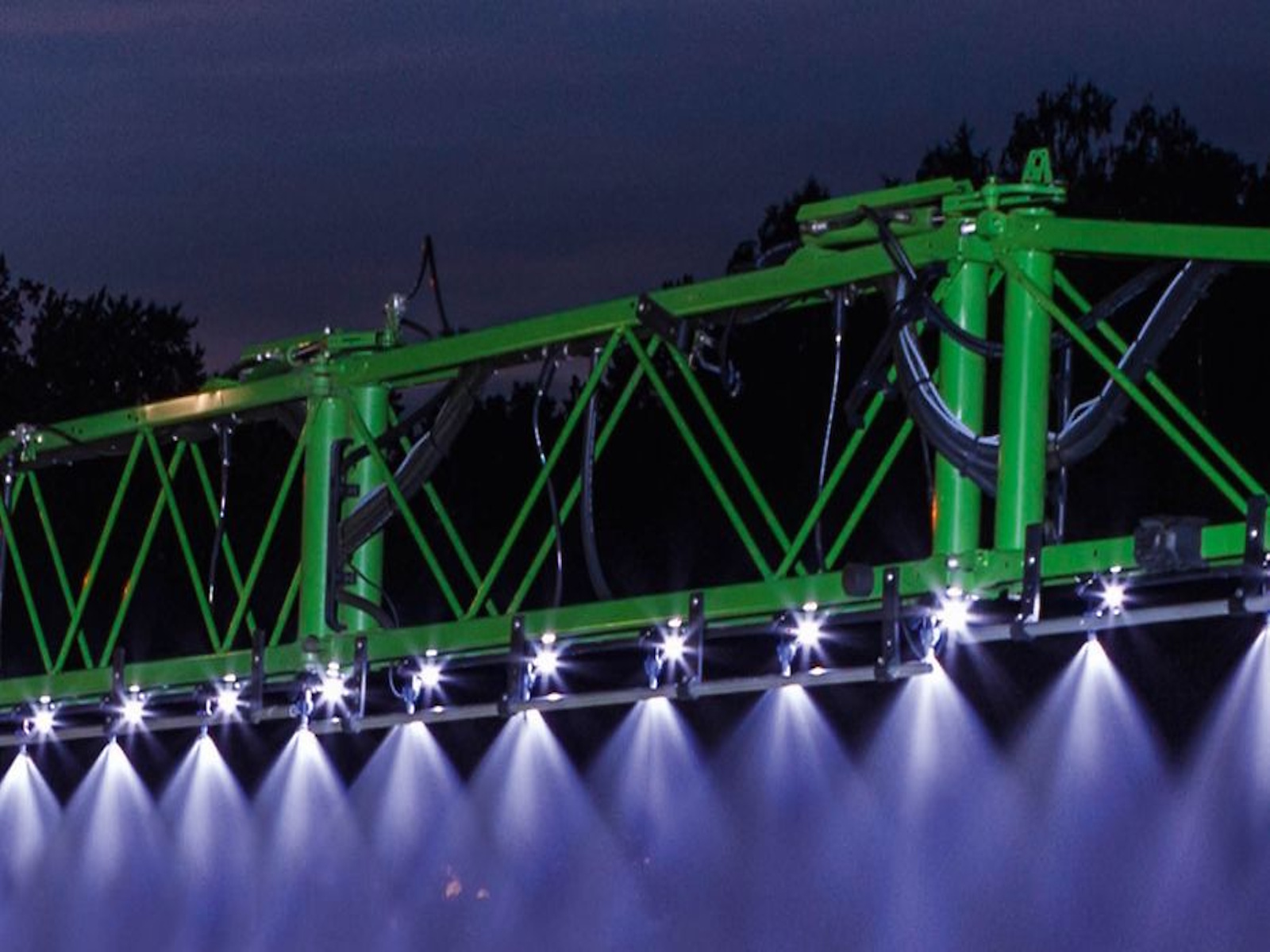

• 50 cm part-width sections thanks to the AmaSwitch plus electric individual nozzle control
• Automatic cleaning programme for perfect cleaning results under all conditions

Exceptional performance

With its teamwork of shape and performance, the UF 2002 convinced and inspired the iF Jury, consisting of experts and designers from all over the world. The jury’s evaluation criteria included, in addition to the quality of design, the finish and material choice, the degree of innovation and the environmental compatibility, its functionality and ergonomics and, finally, a visualisation of use and safety.

Large volume spray agent tanks

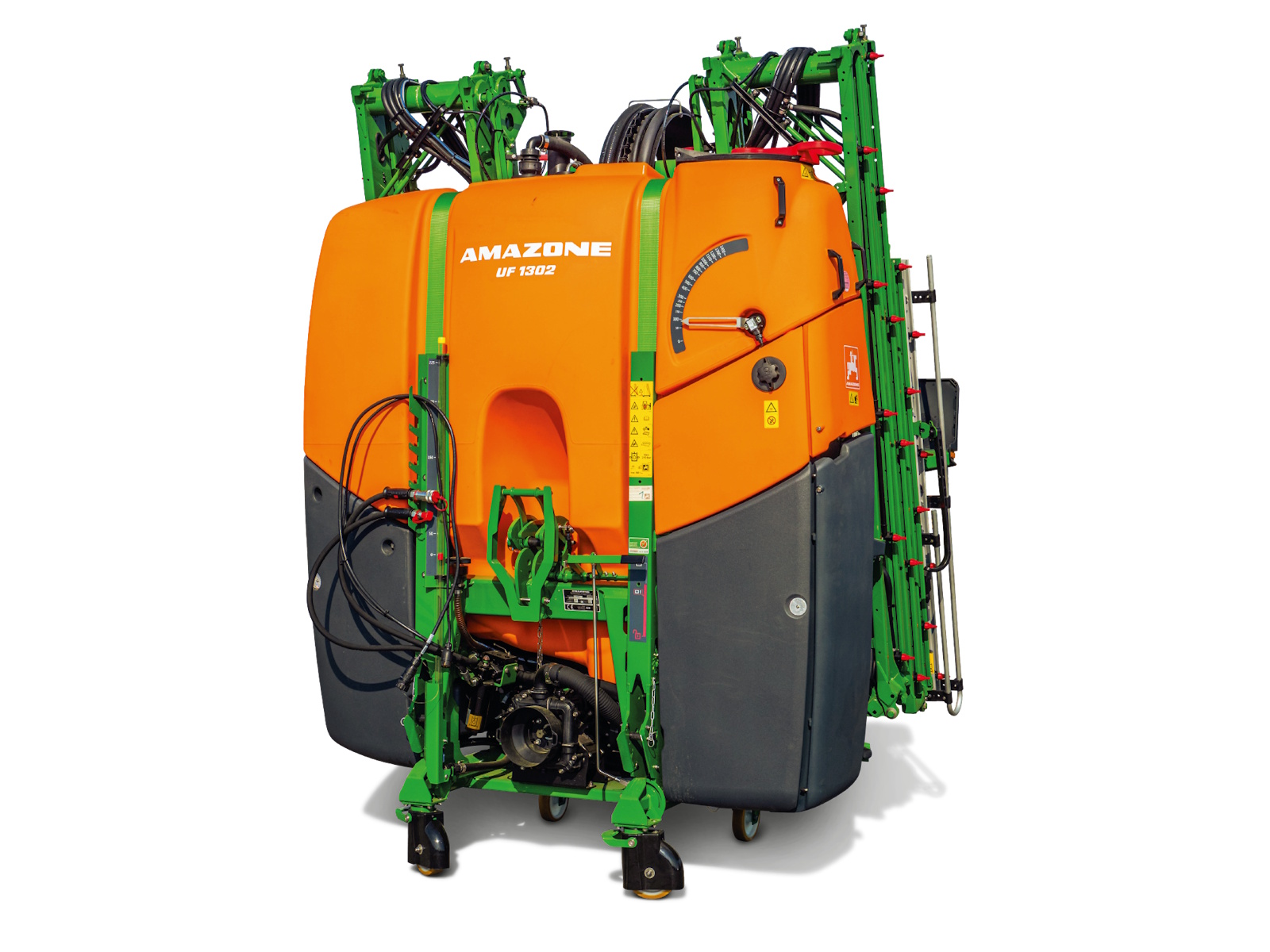

The UF 02 mounted sprayer is available in tank capacities of 1,000 l, 1,300 l, 1,600 l and 2000 l. The specially shaped, polyethylene tank is integrated into the main frame to give a favourable centre of gravity. The advantages of this tank design are the absolutely smooth internal and external walls of the tank, the rounded internal design and the low positioned sump on the bottom of the tank. This allows for quick, effective tank cleaning as well as minimal residual volumes.

Filling of the tank is carried out, both when suction filling and also when pressurised filling, close to the bottom of the tank. This eliminates any tendency to foam during the filling procedure. For an intensive agitation capacity and to prevent any deposits settling in the tank, the agitator is also positioned down on the tank floor. The internal cleaning nozzle, the tank breather and the easily opened, domed lid are positioned right up in the tank.

Favourable centre of gravity – perfect frame design

Due to the large tank volumes of the UF 02, it is of importance to link the machine to the tractor with an as favourable a centre of gravity as possible. To ensure this, the UF 02 is equipped with two different link arm positions for different tractors. Guide plates in front of the frame help to link the lower link arms to the non-rotating, lower link pins.

Comfortable demounting – the parking system

The new parking system is completely integrated in the frame. As an option, the patented system can be equipped with castor wheels that remain on the machine even during operation. Via its simple and robust mechanical design, the parking stands or rollers can be quickly swivelled from the transport position up into the work position. Any troublesome removal of parking rollers or skids is avoided.

Comfortable hitching up – the quick coupling system

For an even more stress-free coupling and uncoupling of the UF 02, it can be equipped with the optional quick coupling system. In conjunction with the TeleSpace PTO shaft, or the hydraulic pump drive, the machine can easily be hitched on and off.

Stepless hydraulic main agitator

The intensity of the hydraulic agitator can, steplessly, be reduced down to nothing in order to avoid any foaming of the crop protection agent or to facilitate spraying out the remaining tank contents.

Everything thought of! Fill level and cleaning
The fill level can be read off both via a pointer or from the operator terminal. High-performance, rotating nozzles clean the spray agent tank internally. Short pipe runs and hose cross-sectional areas as small as possible make for low residual volumes. Continuous internal cleaning is available as an option (not with Flow Control+).
