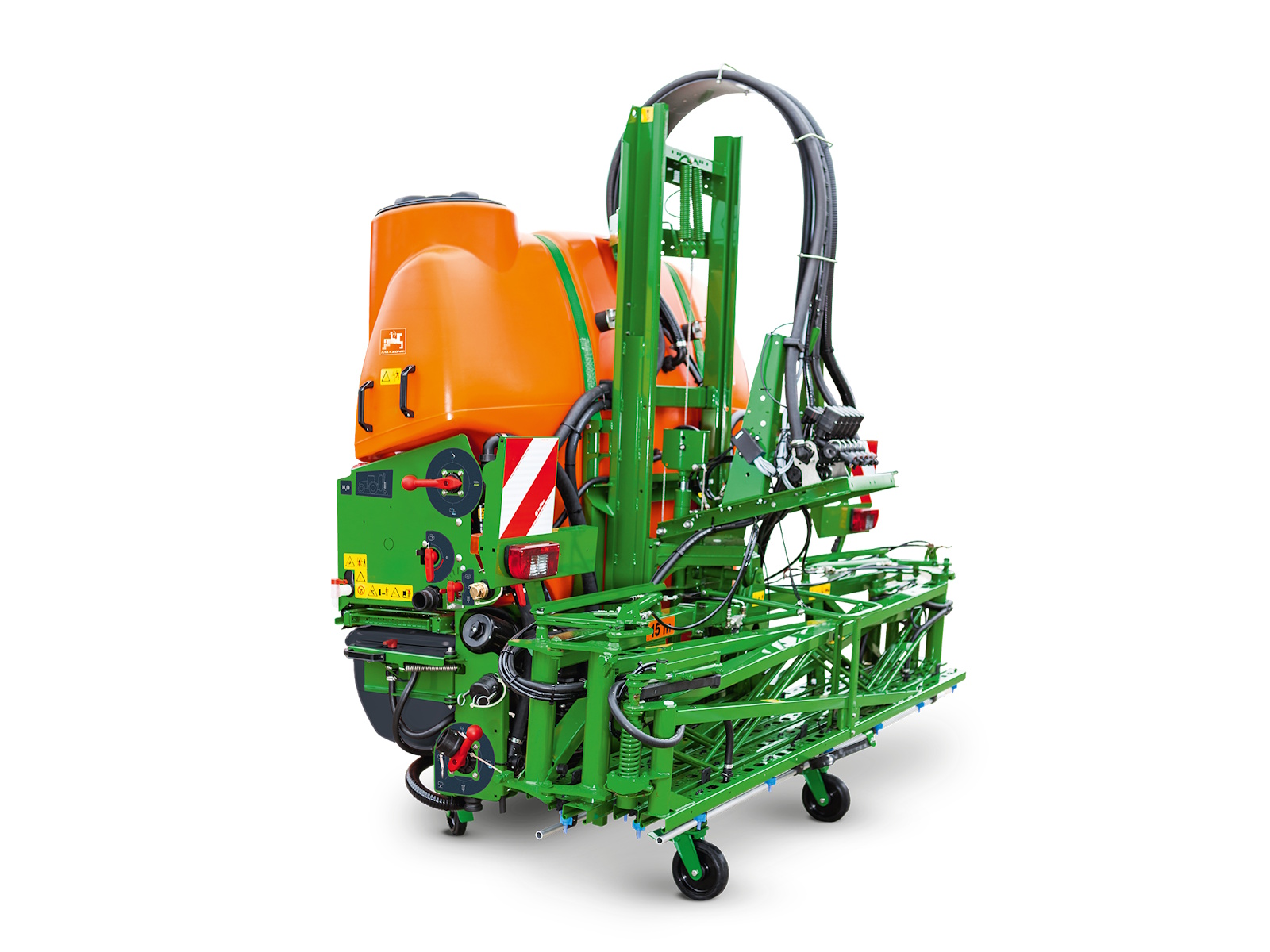

UF 01 mounted sprayer

The compact UF 01 mounted sprayer, with a tank capacity of 900 l or 1,200 l, is characterised by its sturdy construction and lightweight design. With a choice of the Q-Plus, Super-S1 or Super-S2 booms in widths from 12 to 24 m, the UF 01 caters for a wide ranging size of farm. The AMAZONE UF 02 mounted sprayer is available in wider boom widths and bigger tank capacities.

Product overview

Your benefits at a glance

• Robust construction in a lightweight design
• Light and smooth polyethylene spray agent tank with favourable centre of gravity

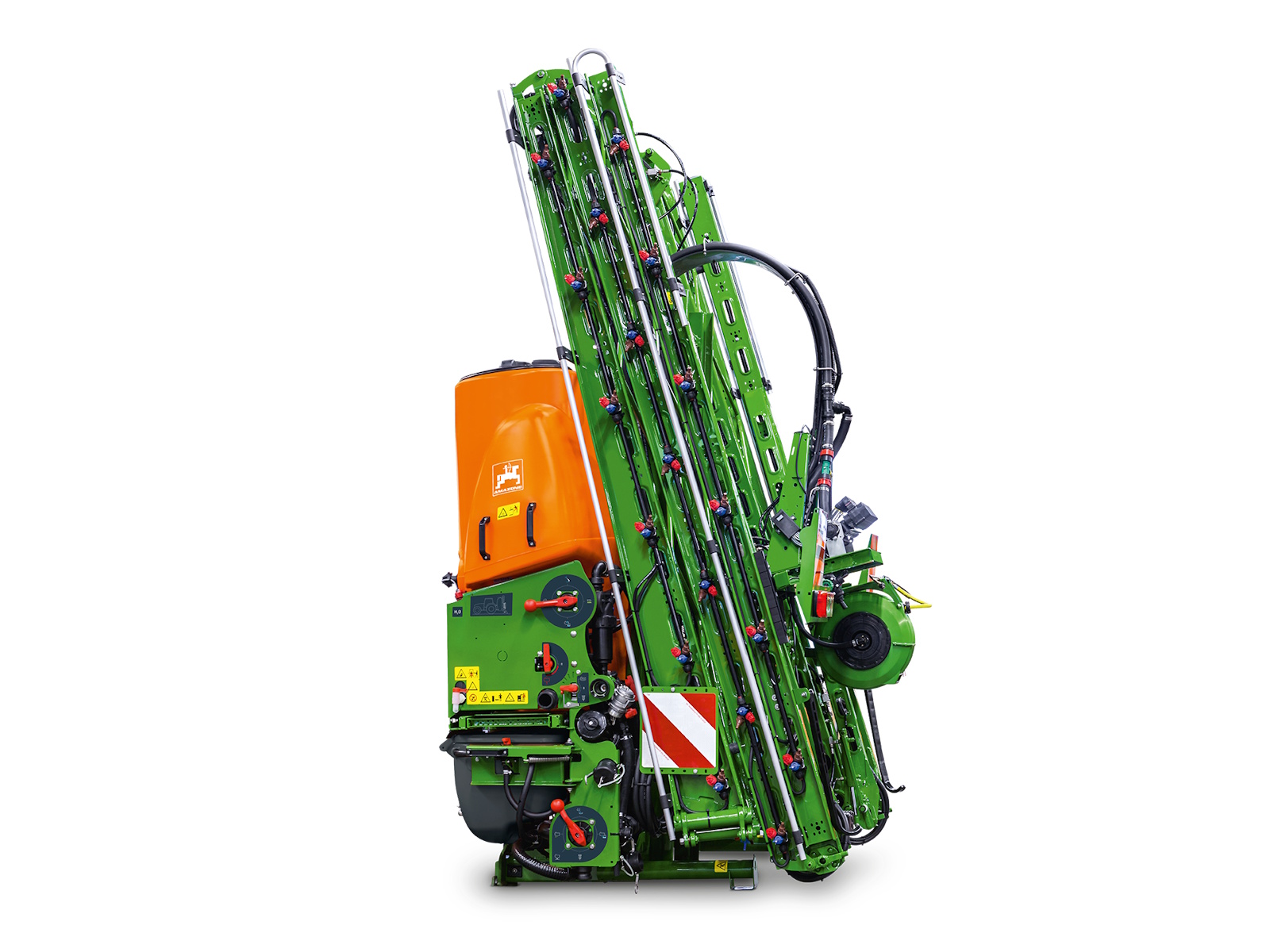

• Sprayer boom in a super-light, super-strong and super-compact profile design
• Outstanding boom suspension for an exceptional boom ride

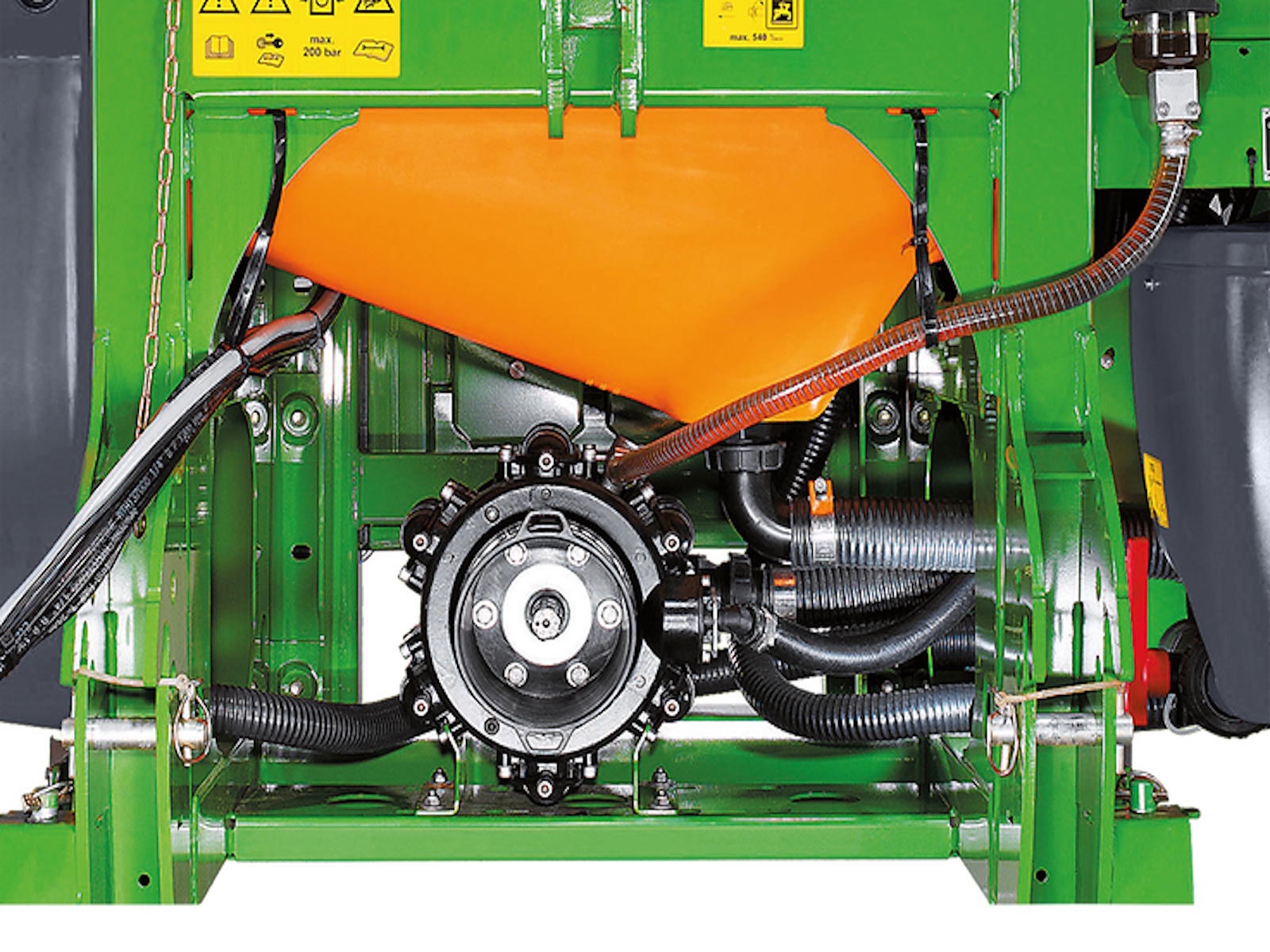

• Maintenance-friendly, self-priming piston diaphragm pump which can run dry
• Induction bowl with venturi for quick, safe and accurate operation
• Extendable to 2,200 litres with the FT 1001 front tank – for even higher outputs

The choice is yours – the UF 901 mounted sprayer or the UF 1201 mounted sprayer

AMAZONE field sprayers fulfil the demands of the crop protection regulations, the guide lines of the Julius Kühn Institute and the highest European test standards (ENTAM certification, D - 1732).

On request, AMAZONE sprayers are provided with an official certificate of inspection for crop protection sprayers.

Just a few things to connect. Quickly and safely.

With a few things to hitch up, you can quickly and safely attach the UF 01 to the tractor. Sufficient space between the tractor and the sprayer makes attaching easy.

The parking wheels make it easy to move the sprayer. All the cables and hoses are clearly and unmistakably arranged.

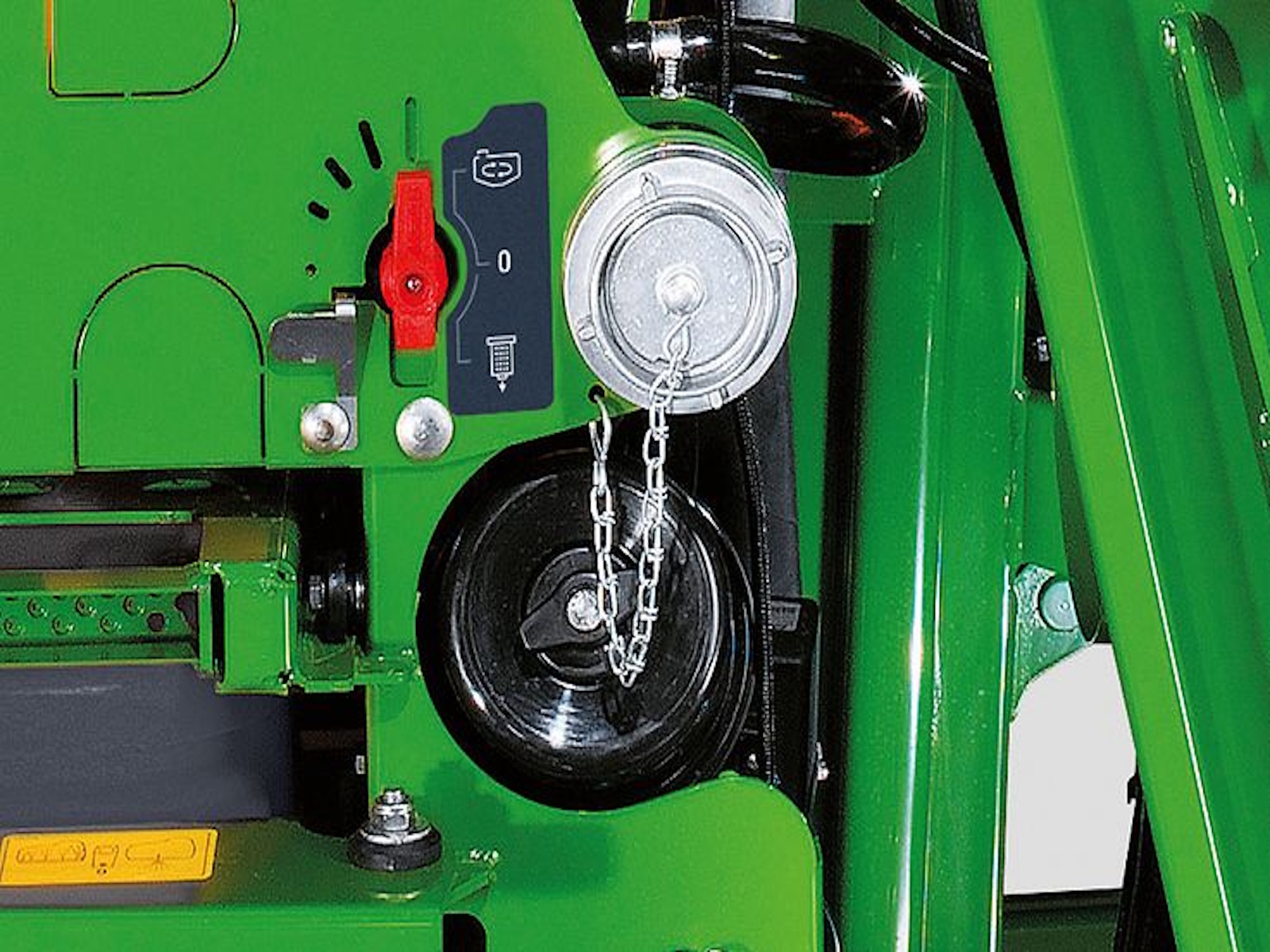

The fresh water tank with a capacity of 120 l is located on the right-hand side under the spray agent tank. The convenient positioning on the right allows easy filling at ground level. If required, the fresh water tank can also be filled via the fill port on the left.

Fill level indicator

The fill level indicator can be read via the pointer and electronically via the operator terminal.

Stepless hydraulic main agitator

The intensity of the hydraulic agitator can, steplessly, be reduced down to nothing in order to avoid any foaming of the crop protection agent or to facilitate spraying out the remaining tank contents.

On AMAZONE crop protection sprayers the un-sprayed plant protection agent is delivered back via the return flow into the suction system. In this way any unintended agitation of the spray liquid via the return flow is prevented.
