2026 Amazone Pantera 4504-HW

2026 Amazone Pantera 4504-HW

Pantera 4504 self-propelled sprayer

The Pantera 4504 self-propelled crop protection sprayer has a tank capacity of 4,500 l and can be equipped with sprayer booms with working widths from 21 m to 48 m. Stepless track width adjustment as standard makes the Pantera a universal all-rounder, particularly when shared across neighbouring farms. A wide variety of requirements can be met thanks to the different chassis options. The Pantera focuses on increasing work rates as well as reducing the work load on the driver.

Product overview

Your benefits at a glance

• Outstanding tandem chassis design – for a smooth horizontal boom ride and better stability on slopes
• Intelligent chassis management with front wheel, all-wheel and dog leg steering for even greater manoeuvrability
• Infinitely variable hydrostatic single range drive – for speeds from 0 to 50 km/h
• Spraying speeds of up to 30 km/h ensure high outputs
• Performance when needed. ECO mode and POWER mode
• Pantera+ drive hubs for improved climbing ability in hilly terrain
• DistanceControl or ContourControl and SwingStop fully automatic boom guidance system

Intelligent chassis management

Pantera – with light-footed intelligence

The special tandem chassis design of the Pantera not only ensures perfect adaptation to ground undulations but also an optimum boom ride – especially of course, in sloping terrain. Thanks to the level regulated hydro-pneumatic suspension, the Pantera operator also enjoys the maximum level of comfort.

The combination of this unique chassis design and the proven AMAZONE boom suspension additionally ensures an optimally smooth boom ride even under the most arduous of conditions.

• Main frame
• Suspension
• Wheel motor with disc brakes and drive hubs
• Tandem chassis

Exclusive: Automatic suspension management

• Soft setting for constant forward speeds
• Hard setting for acceleration, braking and manoeuvring

The outstanding longitudinal tandem chassis

The unevenness under the right hand front wheel is compensated by the elongated tandem. The pivot point is only slightly lifted. Only a slight transmission of the forces onto the frame.

The advantages of the Pantera chassis:

• Pendulum frame for optimised soil contact and reduced slip
• Comfortable and safe driving behaviour from the longitudinal tandem
• Hydro-pneumatic suspension system with level regulation
• Super-robust frame
• Reliable hydraulic system – no air regulation
• Stepless track width adjustment
• High ground clearance
• Headland management for steering and boom functions
• Stress relief for the driver and gentle boom treatment

Nearly unbounded – exceptional ground clearance

The high ground clearance of 1.20 m also proves to be an important advantage for the Pantera in practice. The Pantera-H and Pantera-HW even have a ground clearance of 1.70 m. This is an advantage that is of particular benefit when spraying rape during flowering or also in taller maize crops. The SunflowerKit is available for the Pantera-HW, in order to enhance plant care.

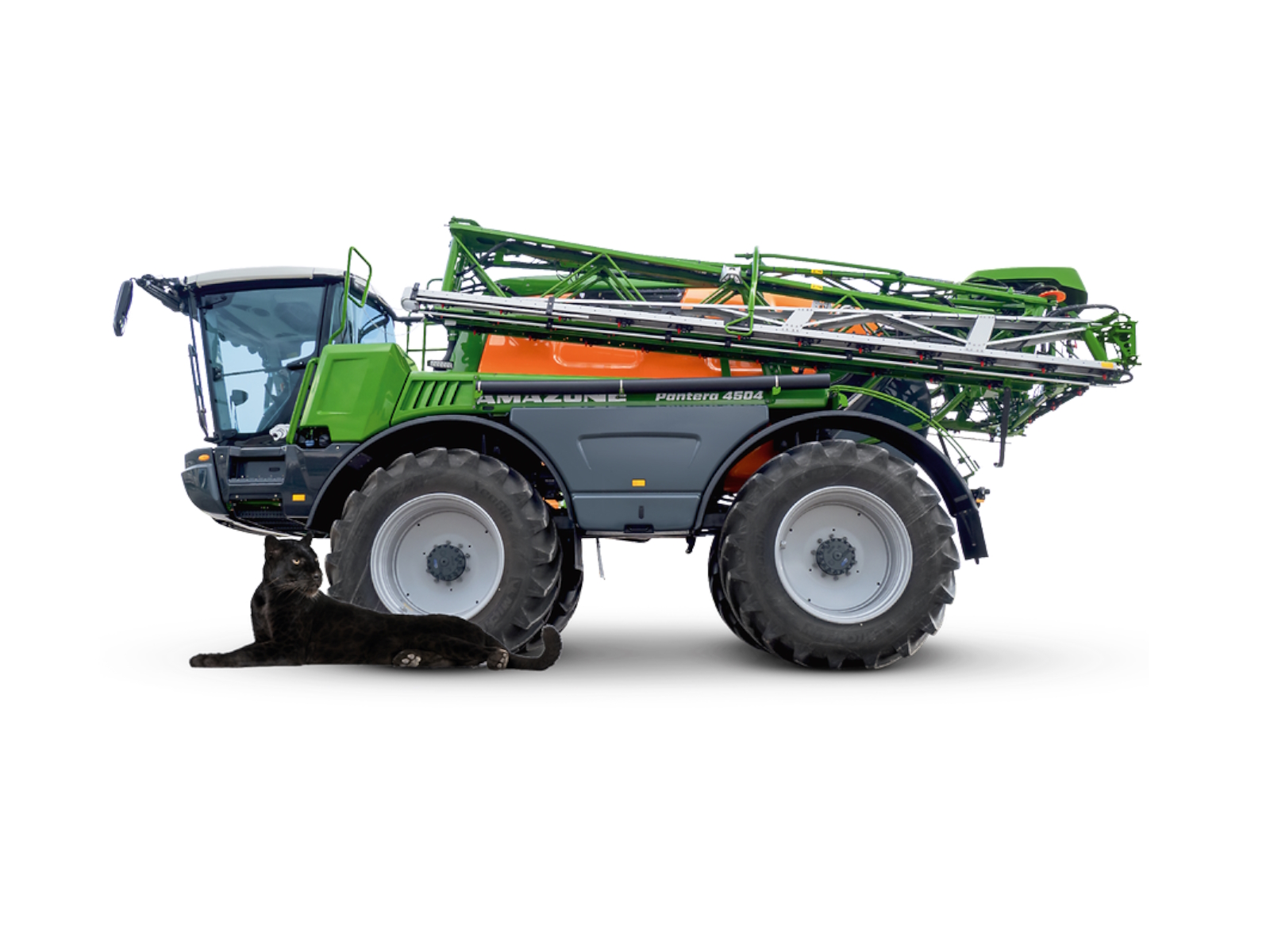

Pantera 4504-HW

Maximum flexibility

The Pantera-HW self-propelled sprayer is extremely versatile with a track width adjustment range from
–2.25 m to 3.00 m with a with a ground clearance of 1.25 m or
–2.45 m to 3.20 m (3.30 m) with a ground clearance of 1.7 m.

In spite of its higher centre of gravity, the Pantera 4504-HW turns out to be very stable and can be
flexibly used in a wide variety of crops and row spacings. In particular, contractors looking to offer a flexible plant protection service across a wide range of customers and crops can clearly increase the scope of crop protection treatments possible.

The benefits:

• Angled lifting cylinders provide tremendous stability
• Larger track width in combination with the high-clearance chassis for maximum flexibility
