2026 ASV RT-50

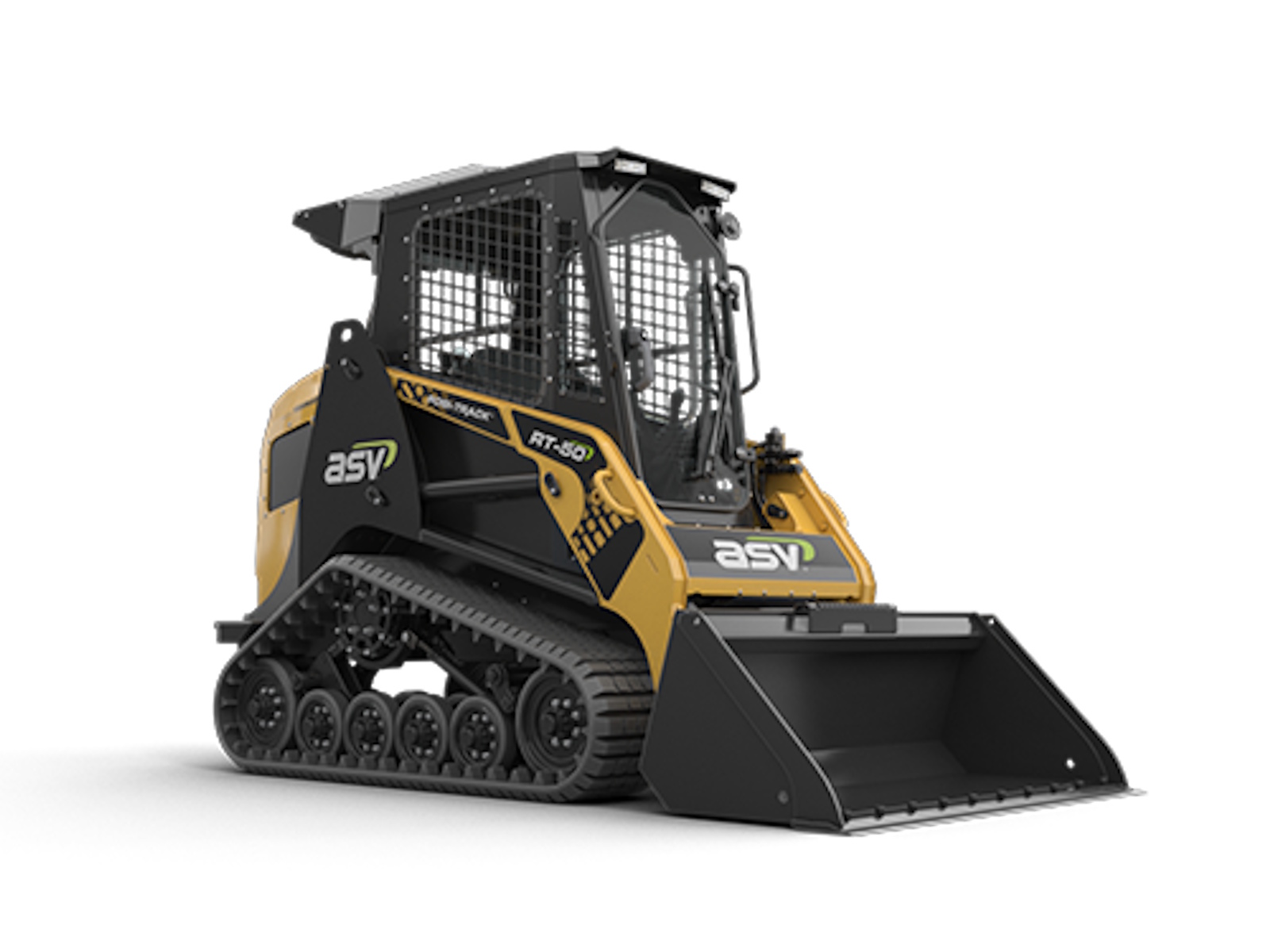

RT-50 Compact Track Loader
Serious power in a smaller package
The RT-50 boasts a greater performance-to-weight ratio than any machine in its class, so you can get more power in tight areas than ever before.
Lighter, Faster, Stronger
The RT-50 touts a 1,400-pound rated operating capacity while coming in at just 5,180 pounds. Not to mention the industry's lowest ground pressure and the ability to be towed behind a ½-ton pick-up truck. This small machine packs an impressive punch for contractors, homeowners, or rental customers.
Features May Include:
Works Hard. Tows Easy.
POWER
- The ASV RT-50 offers exceptional digging and pushing power from its Posi-Power system combined with a 50-horsepower class diesel, 3-cylinder, turbo charged YANMAR 3TN engine. This smooth-running 3-cylinder diesel engine gives you the power you want, when you want it. And attachments are a breeze thanks to its efficient cooling system and robust hydraulic system with 3,000 psi of auxiliary pressure and 13.3 gpm flow. So you’ll get the job done faster and easier than ever before.
PERFORMANCE

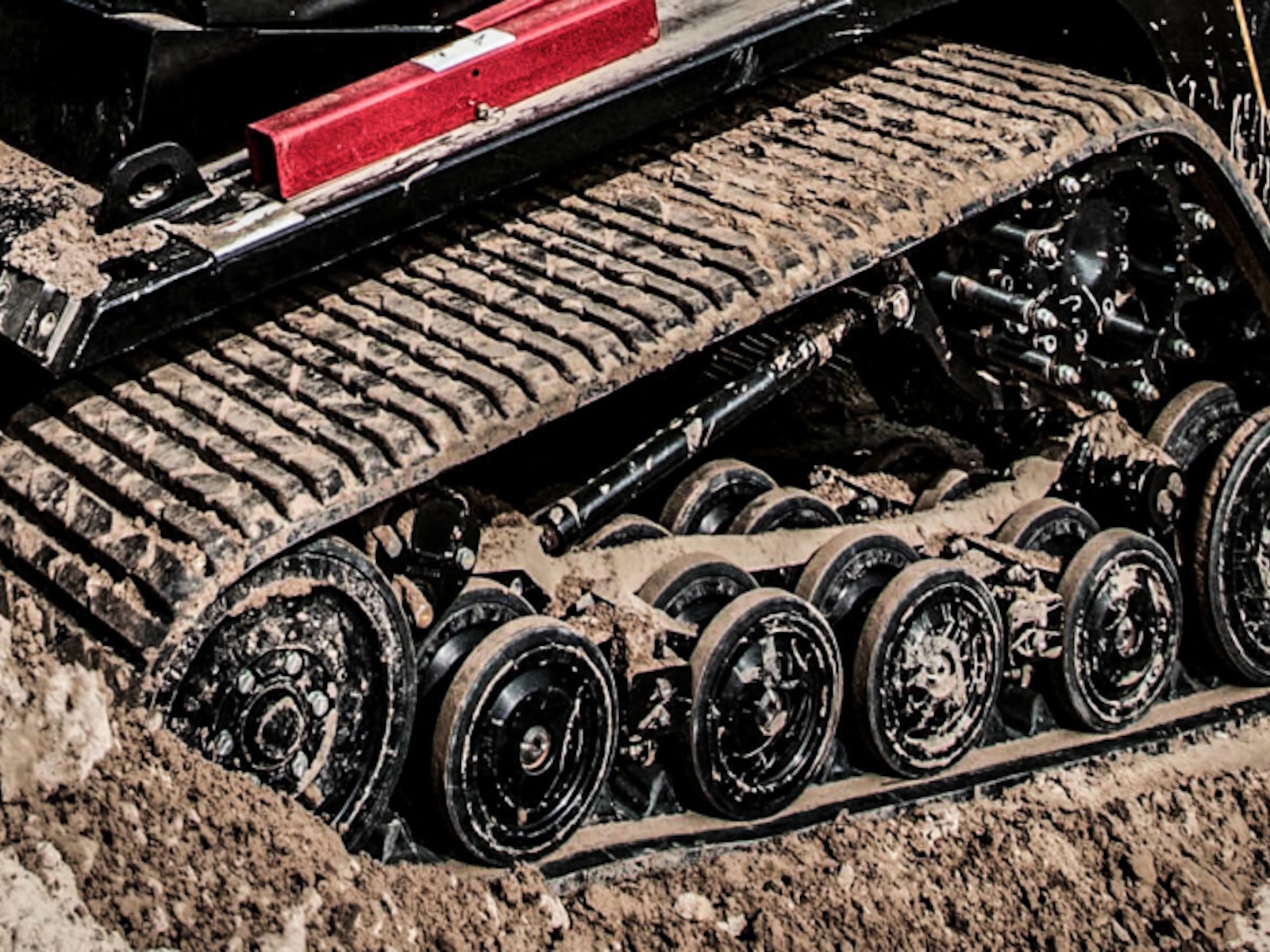

- Soft ground conditions are no problem for the RT-50. With its light weight and class-leading ground pressure of only 3.0 psi, you can get to work sooner after wet weather — even on sensitive turf. This is thanks to its 15-inch-wide tracks and even weight distribution on the patented Posi-Track undercarriage. It has a 7.1 mph top-speed to get around quickly. And the loader’s 109.6-inch pin height means operators can load landscape trucks and even small dump trucks.
COMFORT

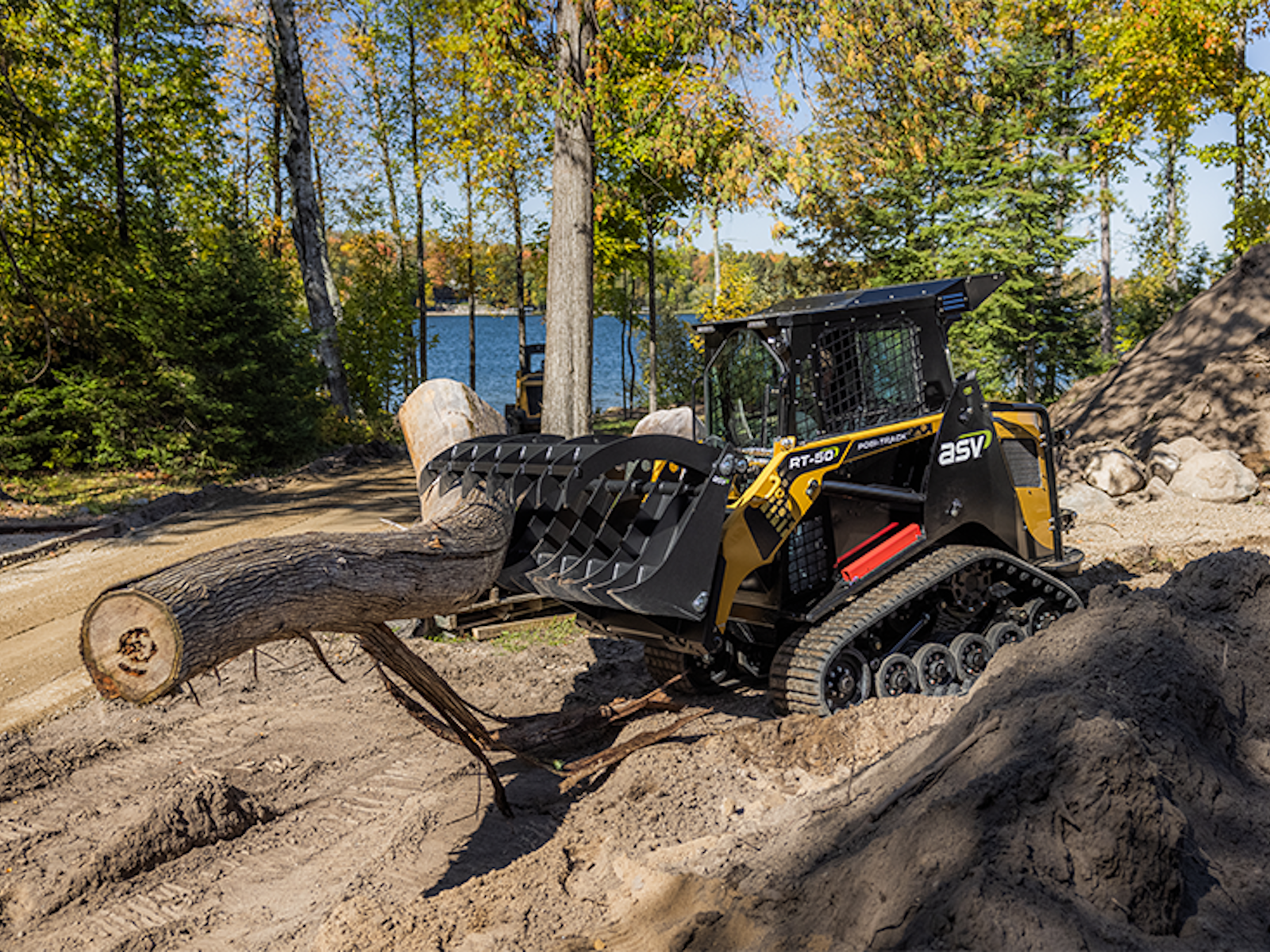

- Not only does Posi-Track technology improve traction, it also improves operator comfort with a smoother ride for less fatigue during a long day in the cab. For more comfort, there’s the optional suspended seat, cold weather cab with heater or pressurized all-weather cab with heat and A/C. And because of an exceptional 14.4 inches of ground clearance, nearly double that of comparable models, you can use the RT-50 to ride over logs, rocks or snow, for all-weather productivity.
SERVICEABILITY

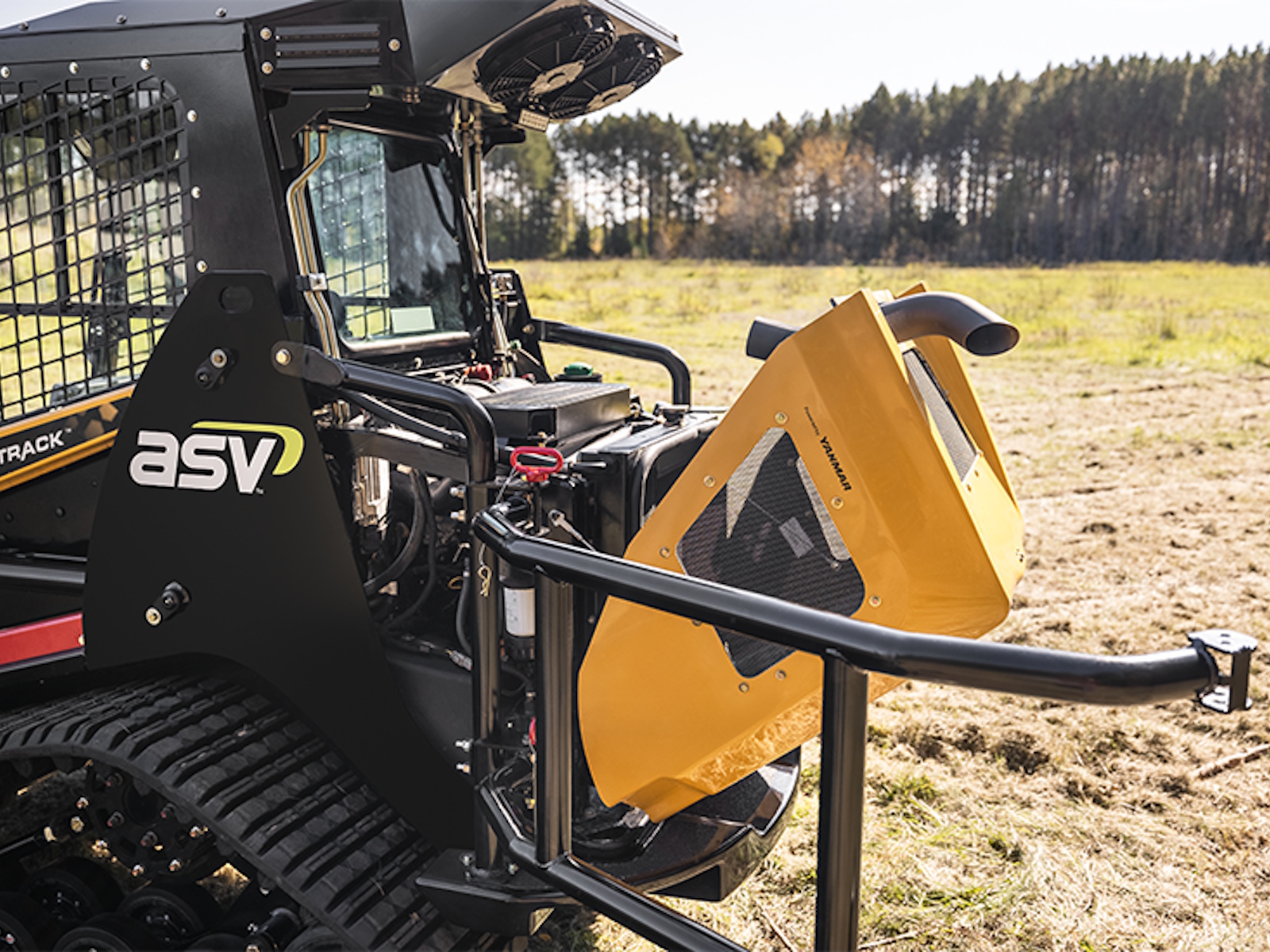

- There's no time for downtime, so the RT-50 features easily accessible maintenance points, zerk fittings for convenient greasing and spin-on, frame-mounted filters with single-wrench service. The direct-drive pump eliminates the labor-intensive belt servicing that comes with belt-driven pumps. Individually replaceable steel sprocket rollers, as well as standard metal-face seals keep maintenance down to a minimum.
Info
Industry
Agriculture
Make
ASV
Model
RT-50
Trim
Base
Year
2026
MSRP
N/A
Category
Track Loader
Subcategory
Compact
Specs
Load Capacity
Rated Operating Capacity @ 35%: 1400 lbs | Rated Operating Capacity @ 50%: 2000 lbs | Tipping Load: 4000 lbs
Fuel Type
Diesel
Cylinders
3-cylinder
Steering
Loader Control: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. | Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.
Oil Capacity
Engine Oil (Including Filter): 7.4 qts | Hydraulic Tank: 3.5 gal | Engine Coolant: 1.8 gal
Length
Full: 126.4 in | Length of track on ground: 57 in
Ground Clearance
14.4 in
Brakes
Parking Brake: Actuated by dash-mounted switch
Alternator
Charging System: 80 amp alternator
Interior
Multi-Functional Color 4.3 inch Display/Indicator: Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More | Outlets: 1-12 V port inside operator station | Standard Features: Horn, Backup alarm | Rops Meets ISO 3471 | Fops Meets ISO 3449 | Operator Restraint Anchorage Meets ISO 6683, CAL OSHA 1596
Notes
Ground Pressure: 3.0 psi | Ground contact area: 1713 in. squared | Pump Capacity: 13.3 gpm | Maximum System Pressure: 3000 psi | Shipping Weight: 4597 lbs | Auxiliary Hydraulic Controls: Variable flow via joystick rocker switch, or continuous via console switch | Couplers: Push to connect quick couplers mounted on manifold block. Pressure relief valve on block. | Emission Controls: Meets all U.S. EPA Tier 4 final standards
Family/Type
Compact Track Loader
Fuel Capacity
13 gal
Engine
YANMAR 3TN 86 CHT
Drivetrain
Drive System: Two hydrostatic direct drive sprockets controlled by single joystick | Track Drive Sprocket: Elevated with low-friction, replaceable sprocket rollers | Undercarriage Suspension: Two independent torsion axles per undercarriage
Width
58.5 in | Track Width: 15 in
Wheels
Front and Rear Wheels: 14 in | Middle Wheels: 10 in | Roller Wheels: 12 ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include metal-face sealed bearings.
Electrical
Nominal Charge: 12 V | Illuminator: (2) Adjustable forward-facing LED lights, (1) Adjustable rear-facing LED light, (1) Interior light, (2) Red LED tail lights | Wiring: Pre-wired for all factory-available accessories
Starter
Engine block heater
Seats
Adjustable contour vinyl seat with built-in operator presence switch, lap bar and 2 in wide seat belt
Style
Loader Arms: Radial
Engine Type
Diesel, 3-cylinder, turbocharged | Cooling system: Engine-driven fan and coolant/anti-freeze-filled radiator | High efficiency oil cooler beside engine radiator, not stacked
Power/Horsepower
Engine Power: 53.8 hp
Transmission
Max. Travel Speed: 7.1 mph
Throttle
Engine Speed: Hand-operated rotary throttle
Height
Hinge Pin Height: 109.6 in | Machine Height: 80 in
Weight
Operating Weight: 5180 lbs
Tires
Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads; Two rows of internal track lugs; Turf track with smooth tread available as an option
Battery
590 CCA
PTO Type
Auxiliary Hydraulic Connections: 2 flat face, 1/2 inch
Air Filter (Cabin)
Intake Air Cleaner: Dual Stage
