2026 ASV VT-80-1C FORESTRY

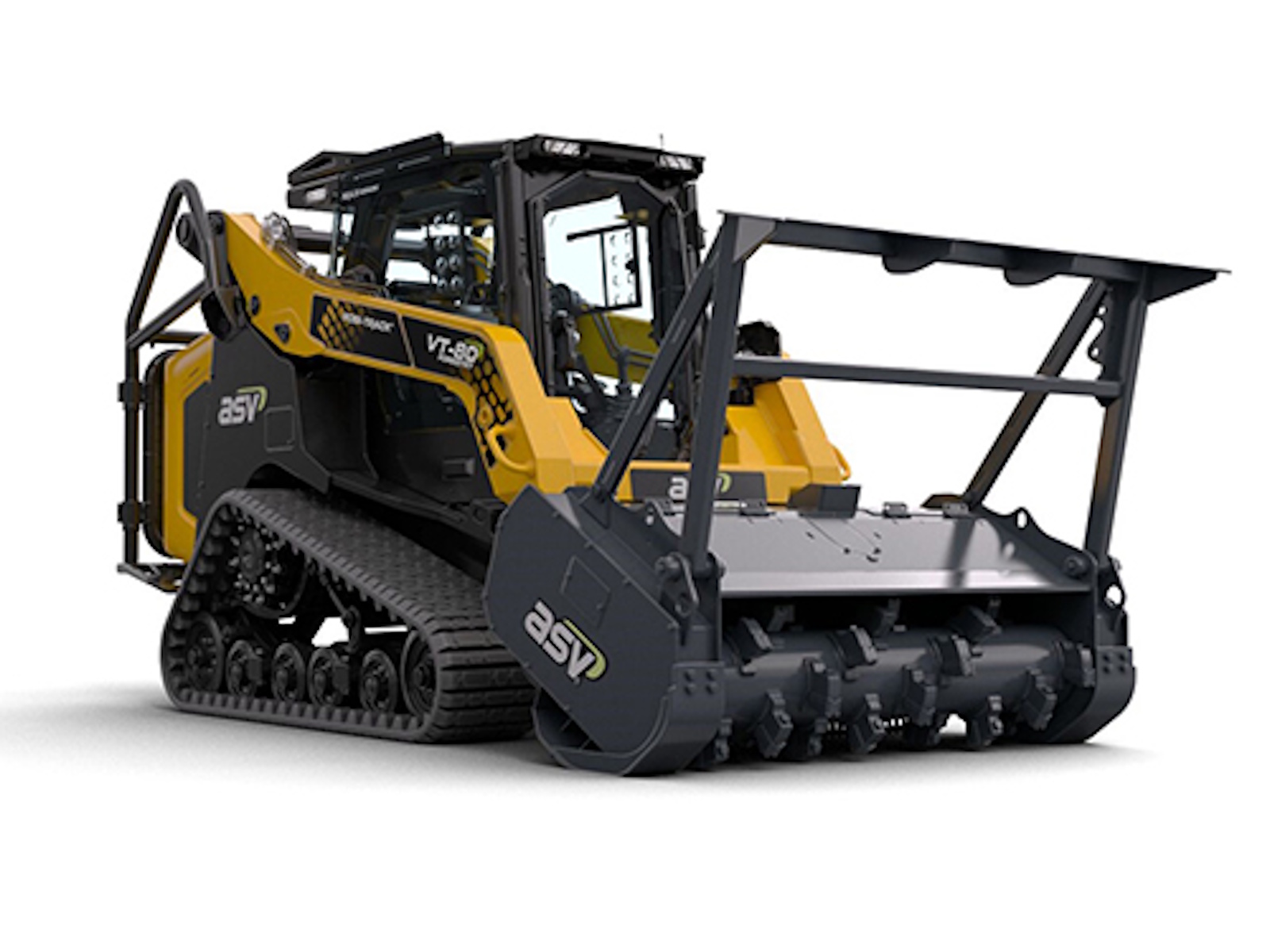

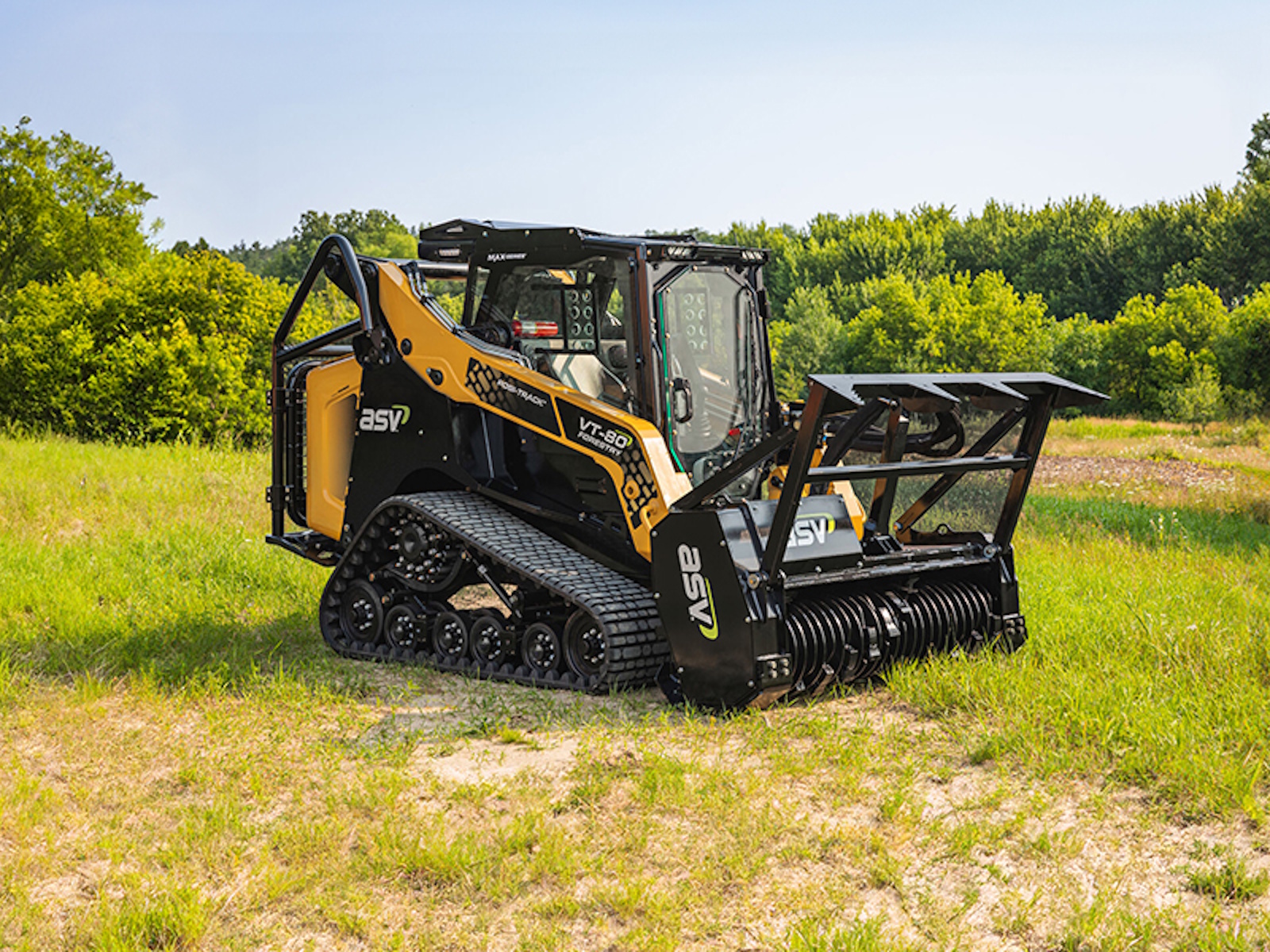

VT-80-1C FORESTRY COMPACT TRACK LOADER
MULCHING POWER.
Be a Force in Nature with the MAX-Series™ VT-80-1C Forestry Posi-Track® compact track loader. Despite its mid-sized frame, the machine packs a heavy punch to play with big forestry equipment. High flow performance comes standard for optimal performance while running mulchers. Safety takes the front seat with the VT-80-1C Forestry as one of the industry’s only compact track loaders to meet forestry equipment safety standards.
Forestry-Grade Safety
Work without worry with extra guarding, a polycarbonate door, rollover and falling object protection and an emergency roof escape hatch. And whether traversing a construction or landscaping jobsite or traveling through the woods, maximum traction and industry-leading ground clearance and departure angles mean you’re less risk of getting hung up on tricky ground conditions.
Features May Include:

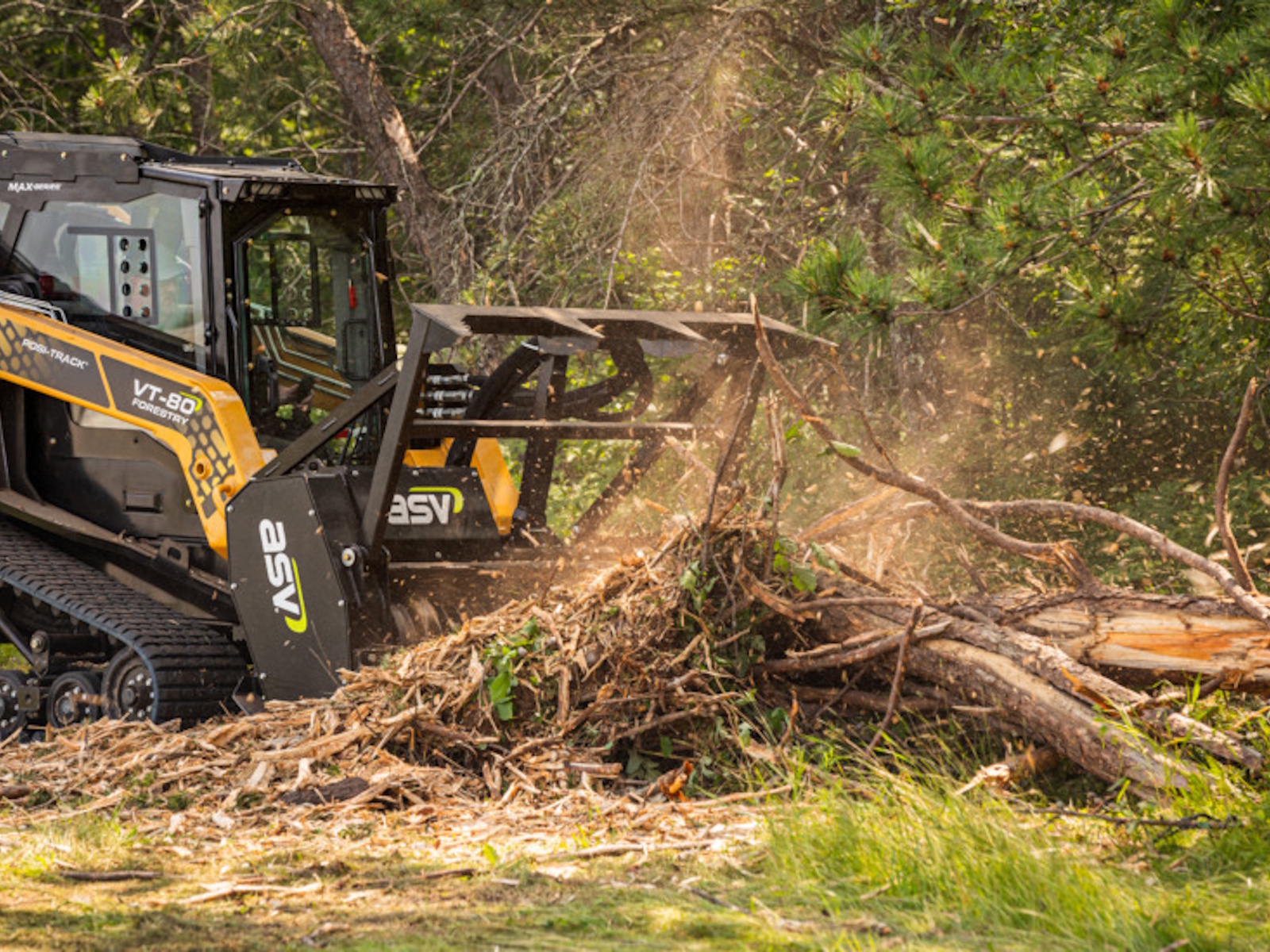

Power Without Compromise
Power
- Take on heavy-duty applications in the brush and beyond with the powerful VT-80-1C Forestry. The Posi-Track loader boasts 71.5 horsepower from its Yanmar diesel engine and an optional 34.3 gpm high flow for high performance with attachments such as mulchers. The ASV track loader’s direct-drive motor boost power even further, allowing the machine to run attachments more efficiently than even higher-horsepower units.
Performance

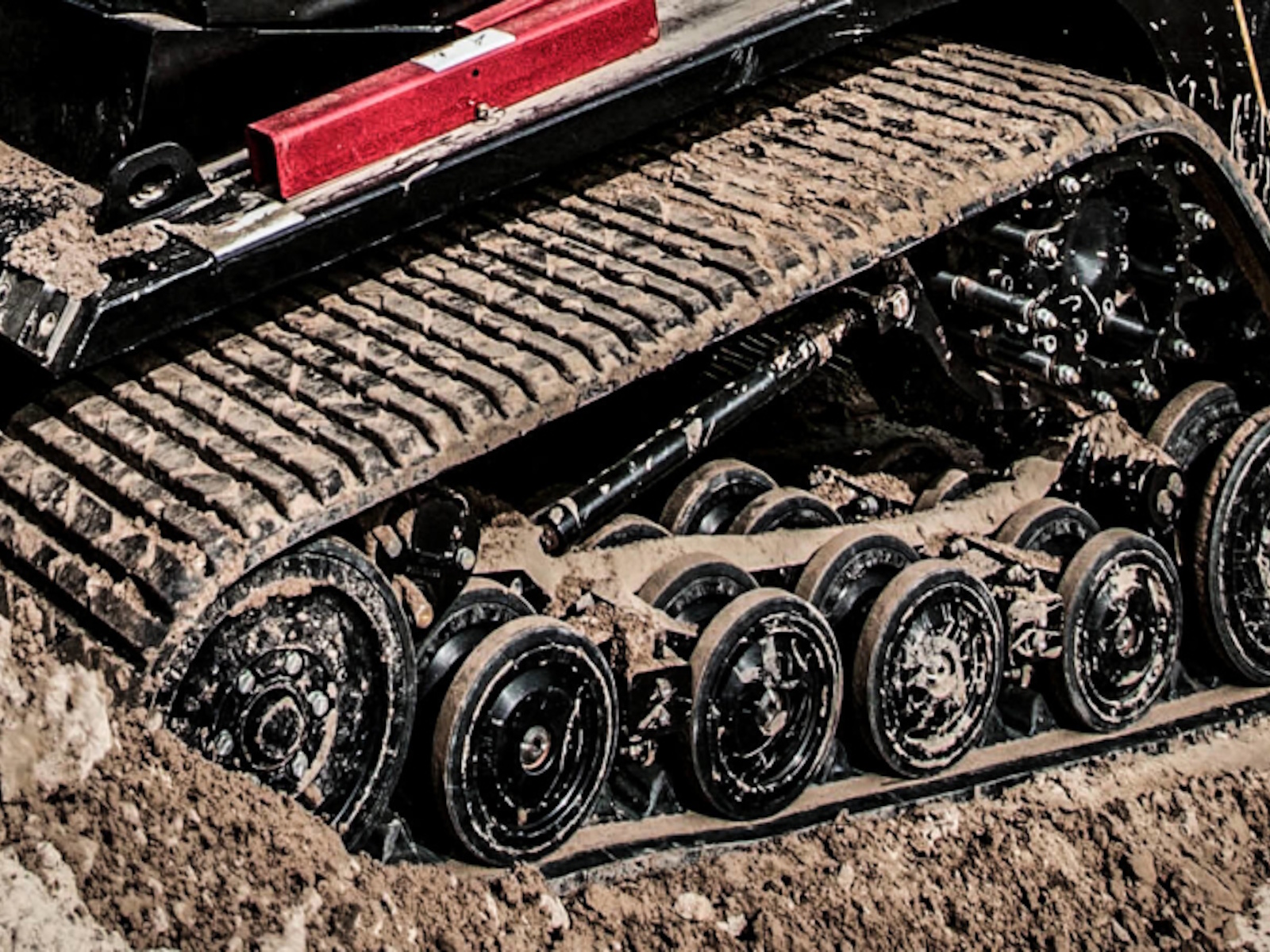

- Premium hydraulics and cooling systems give the VT-80-1C Forestry compact track loader the performance needed to take on land clearing jobs in high temperatures without breaking a sweat. Combine that with ASV’s patented Posi-Track dual-level rubber-track suspension allowing high travel speeds of up to 9.1 mph and a low 4.2 psi ground pressure and you can get more done in more places.

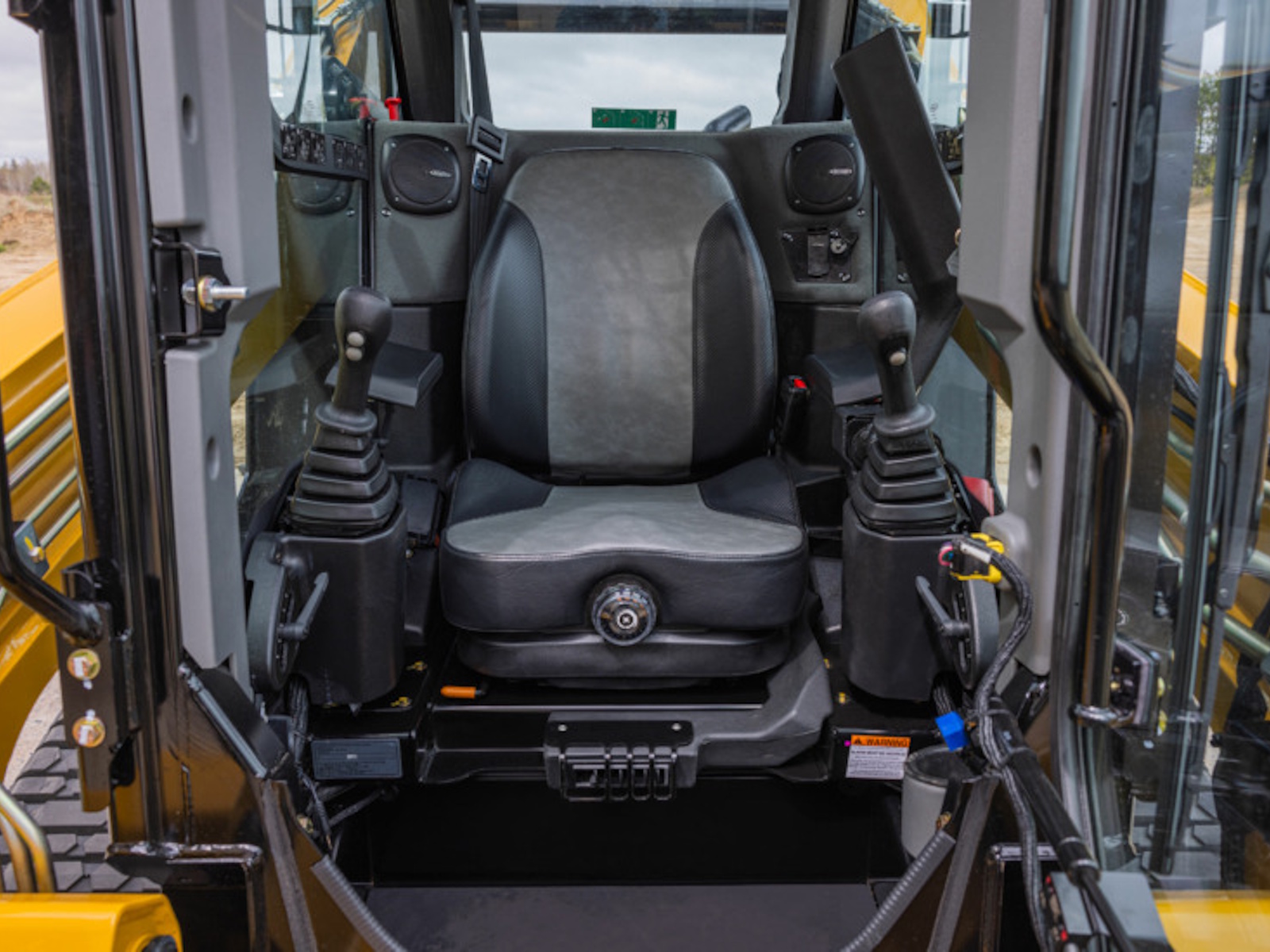

Comfort & Operator Experience
- Operators can work intense conditions with less fatigue thanks to the VT-80-1C Forestry’s ASV rubber track undercarriage and MAX-Series cab. Enjoy more all-around space, ergonomics controls, an HVAC system optimized for better circulation and defrosting, standard joystick controls and an all-weather pressurized cab to keep the cabin comfortable and clean. Additionally, the dual-level suspension provides more comfort and stability while driving over uneven surfaces. The VT-80-1C Forestry also boasts forestry-grade safety features so you can take on big jobs and stay safe while doing it.

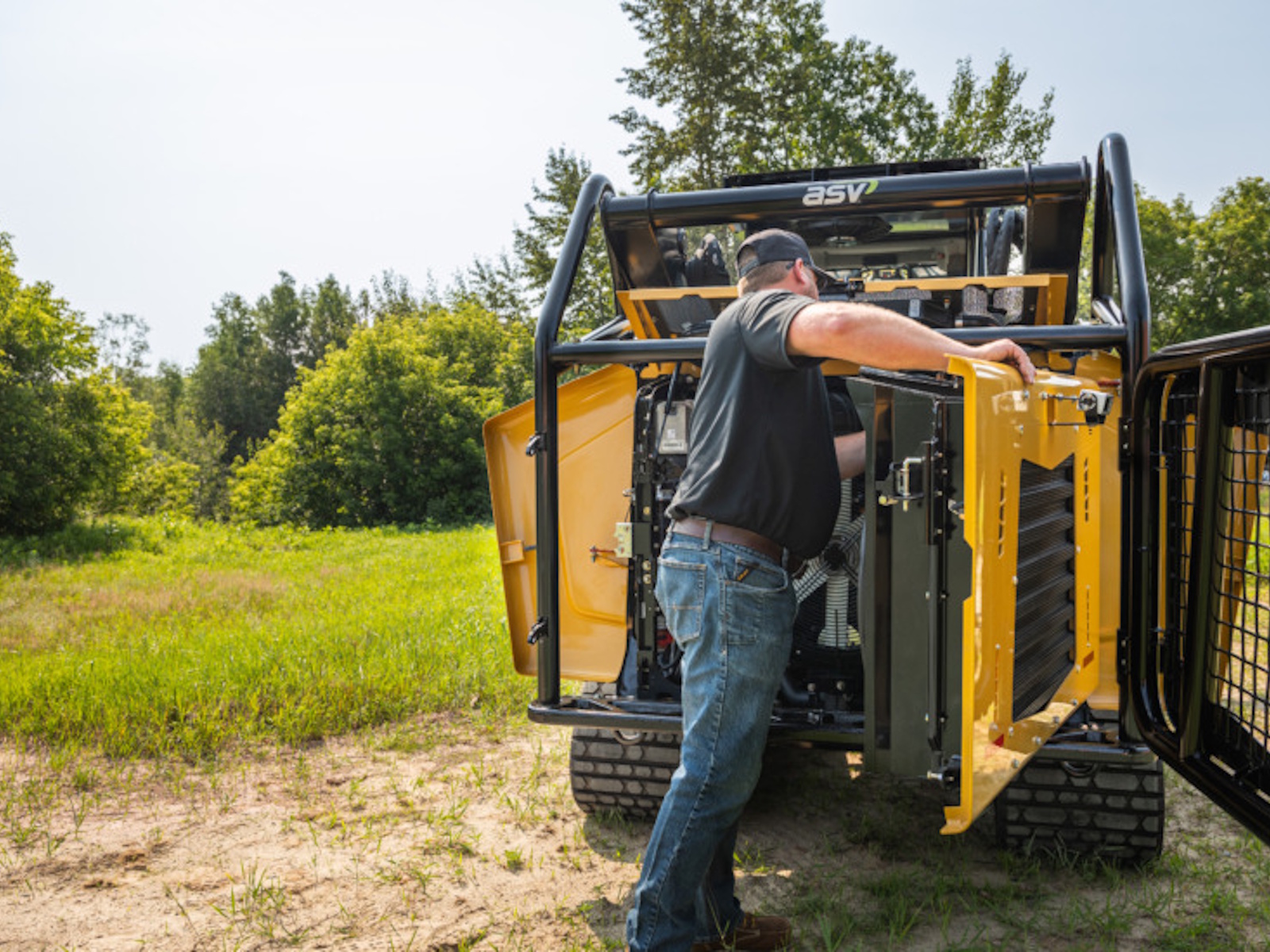

Serviceability
- A three-panel hood arrangement makes maintenance or daily checks a breeze on the VT-80-1C Forestry track loader. Built with serviceability in mind, the compact track loader allows easy access to daily service points including the air filter, battery, and oil filter. ASV backs its reliability promise with a 2-year / 2,000-hour warranty that includes the tracks for the entire warranty period and the industry’s only no-derailment guarantee.
Info
Industry
Agriculture
Make
ASV
Model
VT-80-1C FORESTRY
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Load Capacity
Rated Operating Capacity @ 35%: 2,800 lbs | Rated Operating Capacity @ 50%: 4,000 lbs | Tipping Load: 8,000 lbs
Discharge Reach
Rear Angle of Departure: 34 Degrees | Bucket Roll Back at Ground Level: 20 Degrees | Reach at Dump Height: 32 in
Fuel Type
Diesel
Cylinders
4-cylinder
Torque
Torque Peak: 193.8 ft-lb
Steering
Controls: Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
Length
Full Length: 148.7 in | Overall Length with Bucket: 148.7 in | Length of Track on Ground: 64.5 in
Ground Clearance
13 in
Alternator
Alternator Charging System: 80 Amp
Interior
Machine Display: Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging | Deluxe Display Includes 7 in. color touch screen, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules | Outlets / Convenience: 1-12 V port outlet inside operator station / 12 V power port | Standard Features: Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lap bar, roof escape hatch, roof panel & rear cab windows. | Premium Features: Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, beacon switch/outlet, easy-off door | ROPS: ISO 8082-Forestry | FOPS: ISO 8083-Forestry
Notes
Ground Pressure: 4.2 psi | Ground Contact Area: 2,283 in.2 | Standard Pump Capacity: 24.7 gpm | Optional High Flow: 34.3 gpm | Maximum System Pressure: 3,771 psi | Shipping Weight: 8,911 lbs | Emission Controls: Meets all U.S. EPA Tier 4 final standards
Family/Type
Forestry Compact Track Loader
Fuel Capacity
21.4 gal
Engine
Yanmar 4TN86CHT
Drivetrain
Drive System: Two hydrostatic direct drive sprockets controlled by single joystick | Track Drive Sprocket: Elevated with low-friction, replaceable sprocket rollers | Undercarriage Suspension: Two independent torsion axles per undercarriage
Width
70 in | Track Width: 17.7 in
Wheels
Front & Rear Roller Wheels: 14 in. (355.6 mm) | Middle Roller Wheels: 10 in. (254 mm) | Roller Wheels: 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Electrical
Nominal Charge: 12 V | Illuminaton: 2 - Fixed forward-facing LED lights, 2 - Adjustable rear-facing LED lights, 2 - LED side lights (optional), 1 - Interior light | Wiring: Pre-wired for all factory-available accessories
Seats
Vinyl seat with built in operator presence switch, Operator Manual pouch, and 2 in wide seat belt, adjustable position seat optional
Style
Loader Arms: Vertical
Engine Type
Diesel, 4-cylinder, intercooled, turbocharged | Cooling System: Belt-driven fan and anti-freeze filled radiator cooling system | High efficiency side-by-side radiator and oil cooler
Power/Horsepower
Engine Power: 71.5 hp | Gross Horsepower: 71.5 hp
Transmission
TRAVEL SPEED, MAXIMUM- 1ST SPEED: 6.1 mph | TRAVEL SPEED, MAXIMUM- 2ND SPEED: 9.1 mph
Throttle
Engine Speed: Hand-operated dial and foot throttle
Height
Hinge Pin Height: 126.5 in | Machine Height: 86 in
Weight
Operating Weight: 9,645 lbs
Tires
Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
Battery
800 CCA
PTO Type
Couplers: 1/2 in. Flat Face Couplers | Controls: Intermittent via joystick button or continuous via console switch
Air Filter (Cabin)
Intake Air Cleaner: Dual-Stage
