2026 ASV RT-135 Forestry

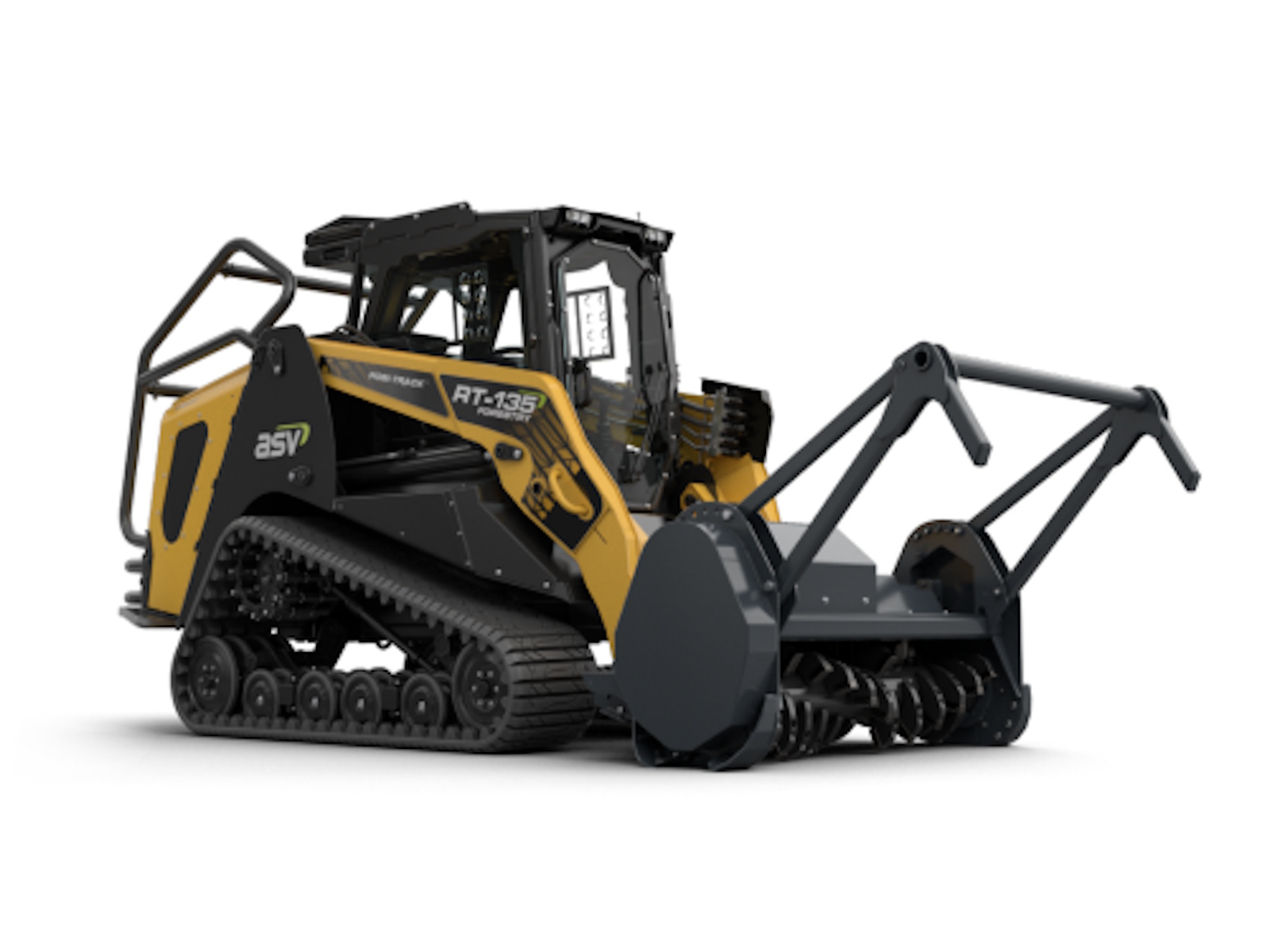

RT-135 Forestry Compact Track Loader
Bigger. Stronger. Tougher.
The RT-135 Forestry make impossible jobs seems ordinary. Comfortable and easy to operate, the MAX-Series premium operator experience is front and center to getting big forestry jobs done.
Bigger. Stronger. Tougher.
The RT-135 Forestry make impossible jobs seems ordinary. Comfortable and easy to operate, this machine makes a day of working in the woods feel like a day at the beach.
Features May Include:
Let The Big Dog Eat
Power
A Cummins 3.8-liter, turbocharged diesel engine powers the RT-135 Forestry. This 132-horsepower engine produces 360 foot-pounds of torque which is transferred to the terrain through direct-drive hydraulic motors that moves through anything in its path.
Performance

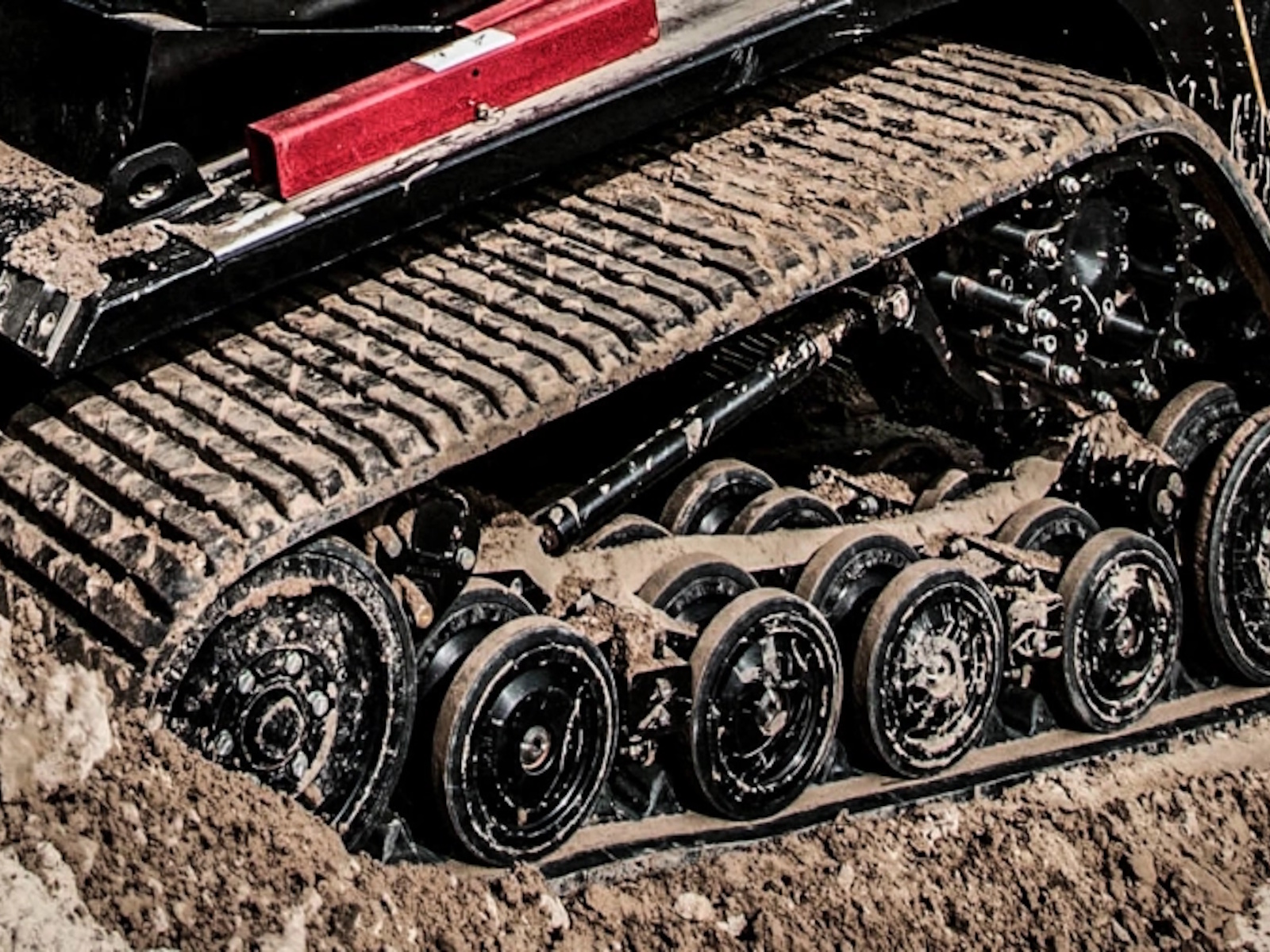

The MAX-Series RT-135 Forestry features a rated operating capacity of 4,150 pounds and a tipping load of 11,858 pounds. It offers ASV’s patented Posi-Track® rubber-track suspension and includes both suspended wheels and axles, allowing it to achieve faster speeds. This machine offers a fully-flexible 20” tracks and suspended wheels that conform to the ground and a special guarding package. Combine that with 15 inches of ground clearance and you get a unit that works in more places, on more days, more comfortably than competitive machines.
Comfort

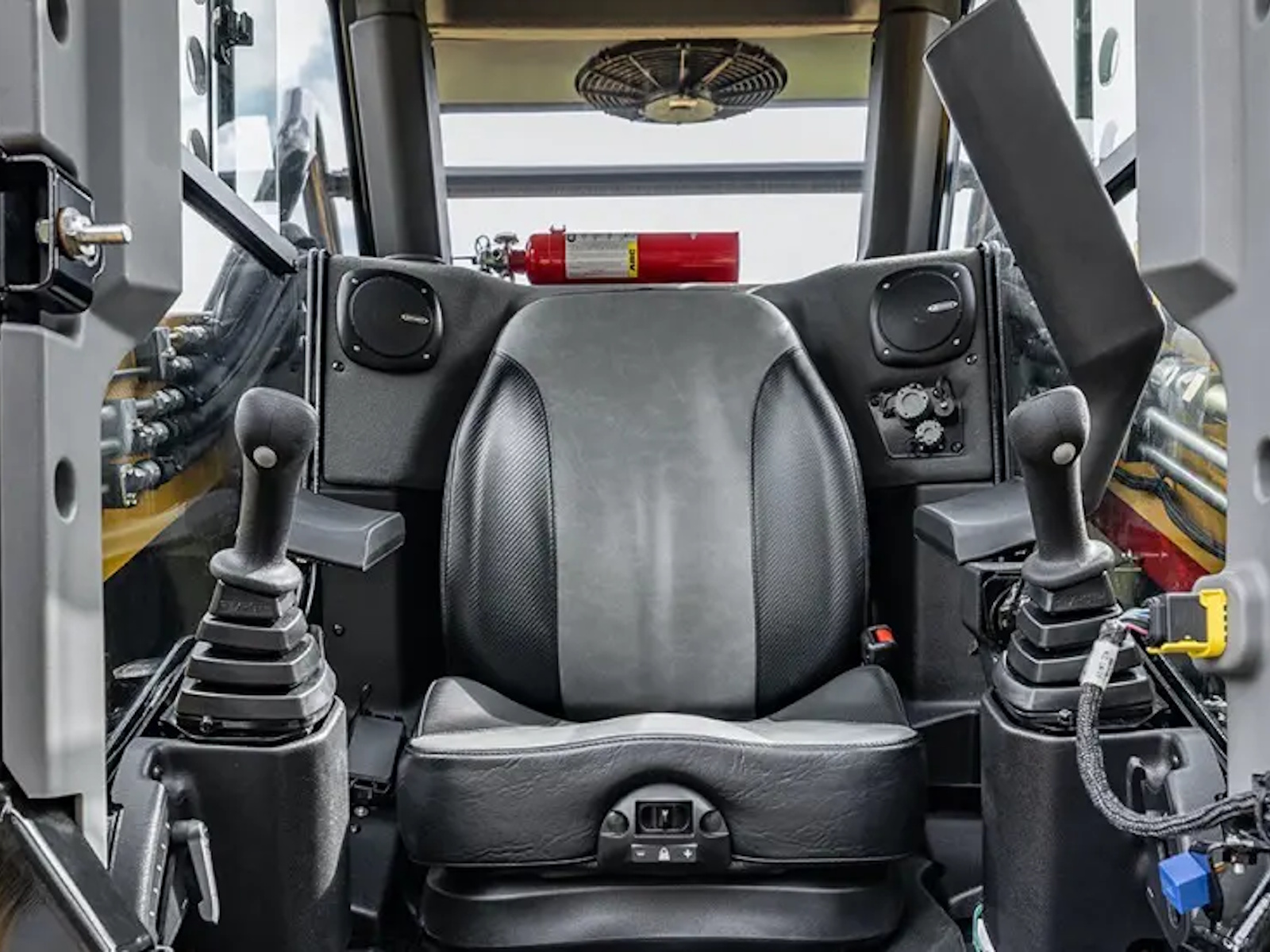

The RT-135 Forestry features our premium MAX-Series cab, designed with a spacious interior—including additional legroom, shoulder room and foot room—and improved ergonomics from corner to corner in order to reduce fatigue during long days and long jobs. An upgraded HVAC system allows for ideal circulation and better defrosting capabilities.
Serviceability
The RT-135 Forestry gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement. This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.
Info
Industry
Agriculture
Make
ASV
Model
RT-135 Forestry
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Load Capacity
Rated Operating Capacity @ 35%: 4150 lbs | Rated Operating Capacity @ 50%: 5929 lbs | Tipping Load: 11858 lbs
Fuel Type
Diesel
Cylinders
4-cylinder
Torque
Torque: 360 foot-pounds
Oil Capacity
Engine Oil (Including Filter): 12 quarts | Hydraulic Tank: 22 gal | Engine Coolant: 5.5 gal
Length
Full Length: 163 in | Length of Track on the Ground: 71 in
Ground Clearance
15 in
Alternator
Charging System: 120 Amp
Interior
Outlets / Convenience: 1 - 12 V inside operator station / 12 V power port | Standard Features: Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, easy-off door | ROPS: ISO 8082-Forestry
Notes
Ground Pressure: 4.6 psi | Ground Contact Area: 2840 in2 | Pump Capacity Low: 20 gpm | Pump Capacity High: 50 gpm | System Pressure Max Low: 3300 psi | System Pressure Max High: 4060 psi | Emission Controls: Meets all U.S. EPA Tier 4 final standards
Family/Type
MAX-Series Forestry Compact Track Loader
Fuel Capacity
52 gal
Engine
Cummins QSF3.8
Displacement
3.8-liter
Drivetrain
Suspended wheels and axles | Tracks: fully-flexible 20 in tracks
Width
78 in | Track Width: 20 in
Wheels
Roller Wheel Diameter Front & rear wheels: 15 in | Roller Wheel Diameter Middle Wheel: 10 in
Electrical
Wiring: Pre-wired for all factory-available accessories | Illumination: 2 - Adjustable forward-facing LED lights, 2 - Adjustable rear-facing LED lights, 1 - Interior light, 2 - LED side lights
Starter
Standard Features: Block heater
Style
Loader Arms: Radial
Engine Type
Diesel 4-cylinder, turbo charged | Cooling System: Temperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator
Power/Horsepower
Engine Power: 132 hp
Transmission
Travel Speed, Maximum - 1st Speed: 6 mph | Travel Speed, Maximum - 2nd Speed: 10 mph
Height
Hinge Pin Height: 125 in | Machine Height: 90 in
Weight
Operating Weight: 12990 lbs
Tires
Track Type: fully-flexible 20 in tracks
PTO Type
Hydraulic quick attach | Standard Features: Attachment control kit
Air Filter (Cabin)
Intake Air Cleaner: Three-stage
